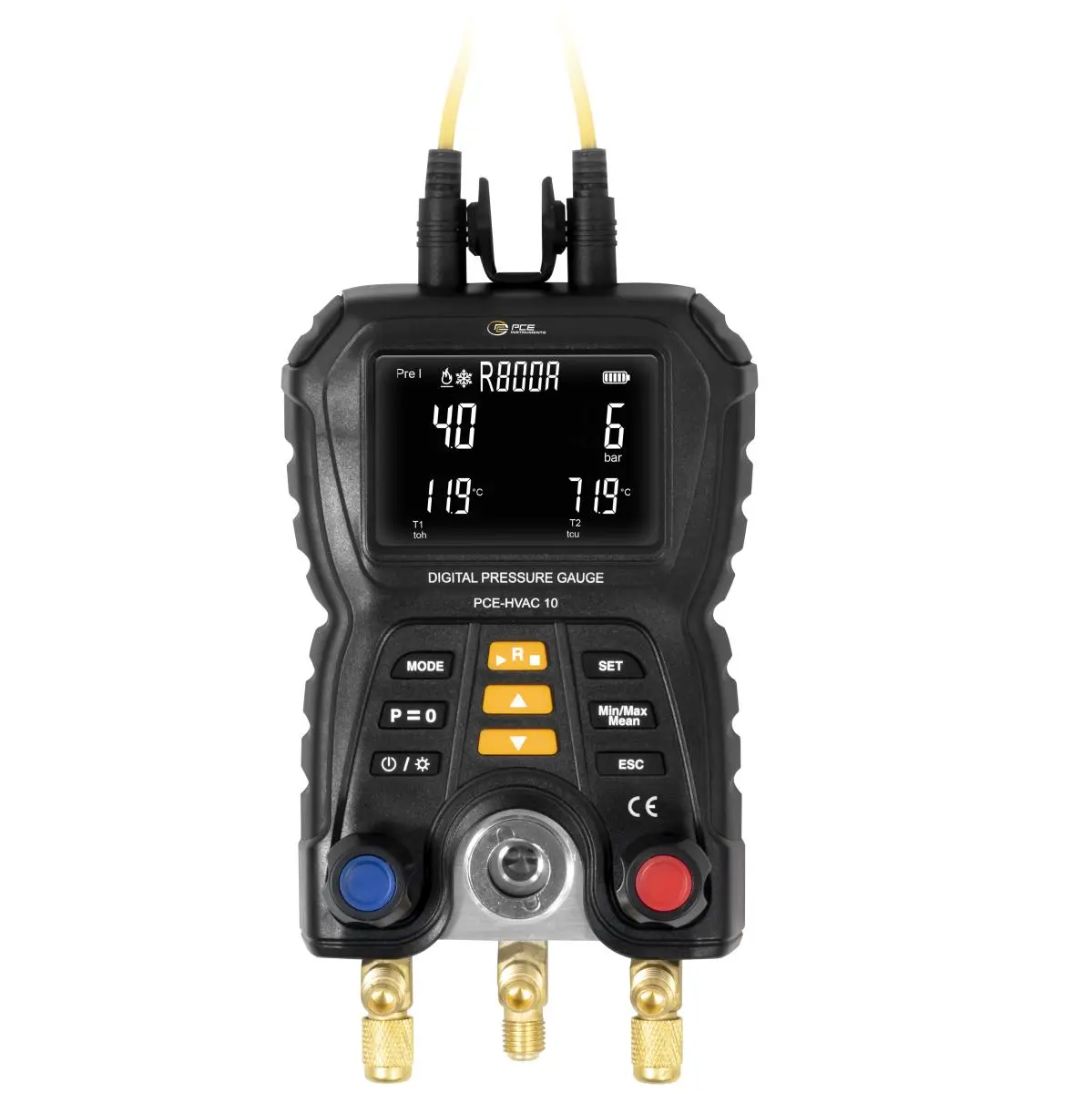

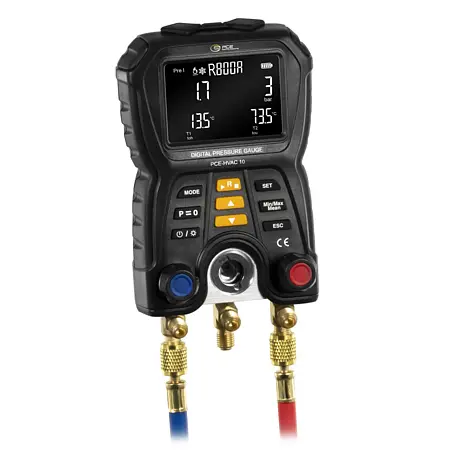

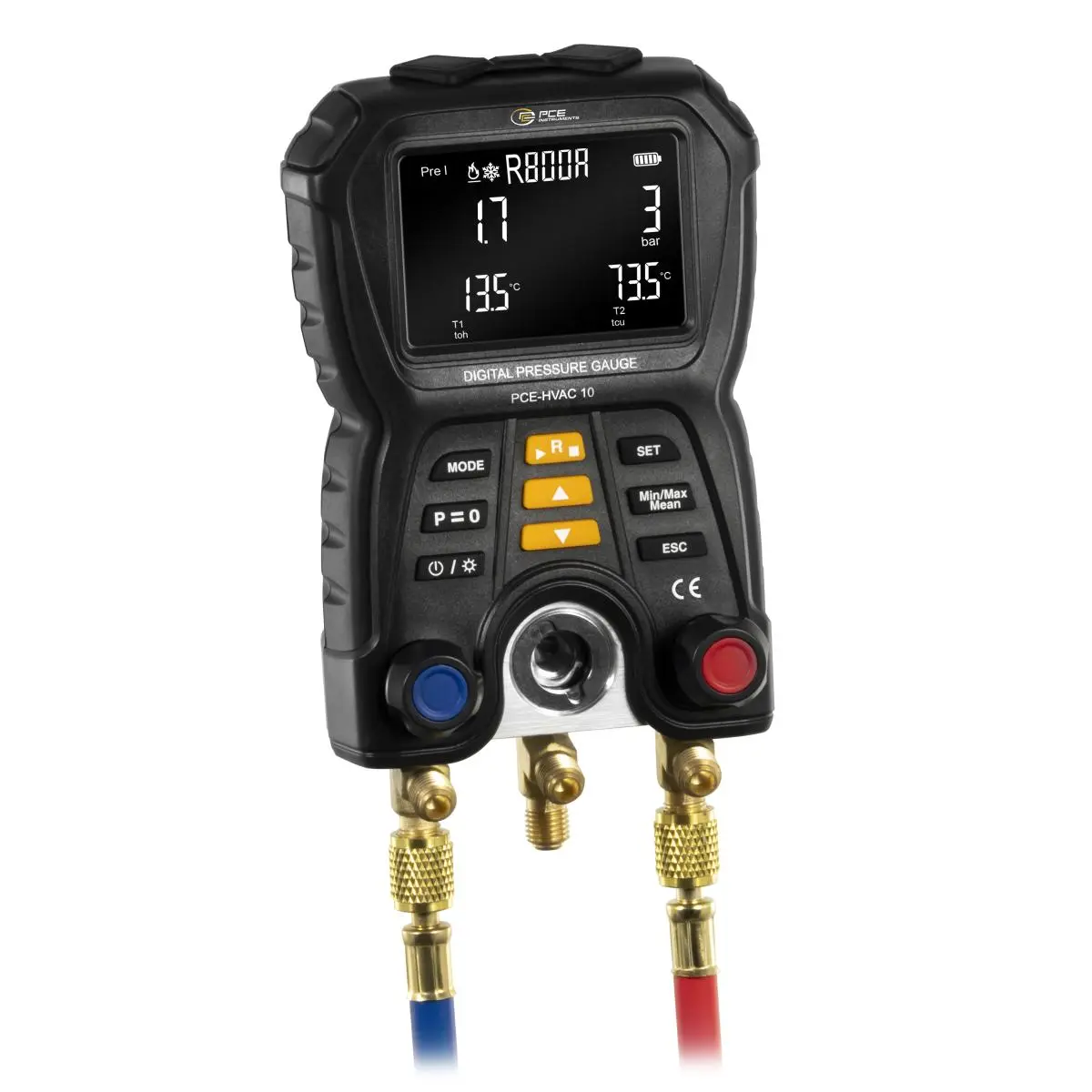

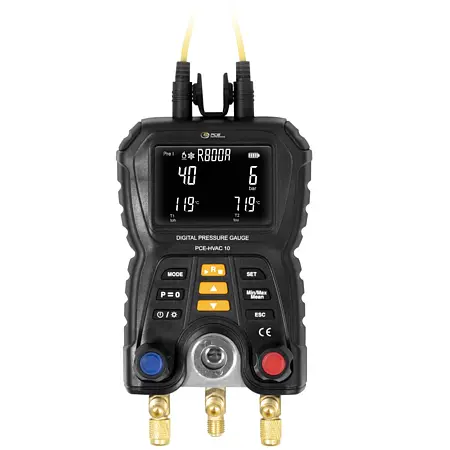

HVAC Meter PCE-HVAC 10

Order no.: PCE-HVAC 10

GTIN (EAN): 4250348732200

Description

HVAC Meter in a robust metal casing / Measures pressure from -1 ... +60 bar and temperature from -10 ... +200 °C / 2-way valve block with 3 connectors 7/16" – UNF / Various display units / Hanging fixture

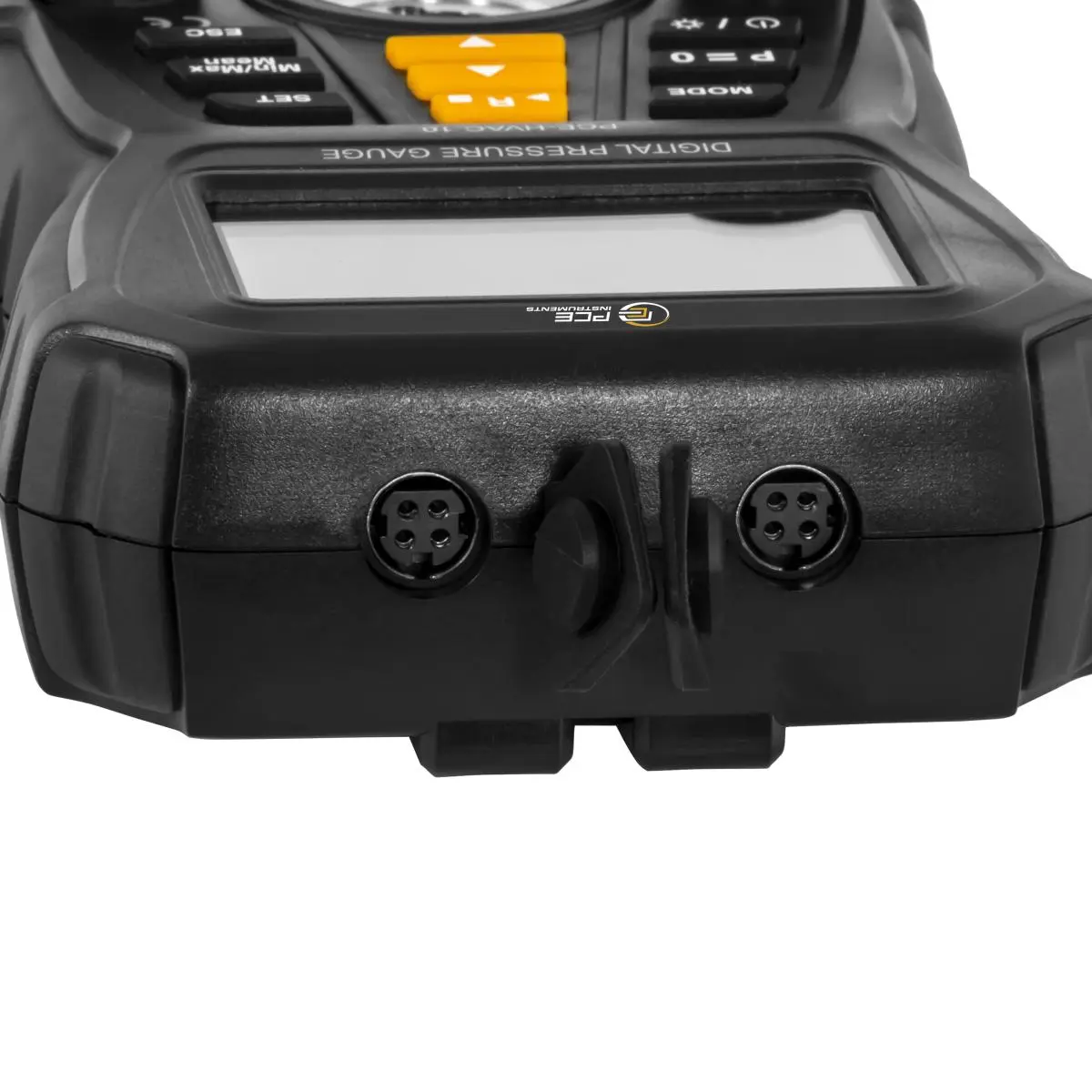

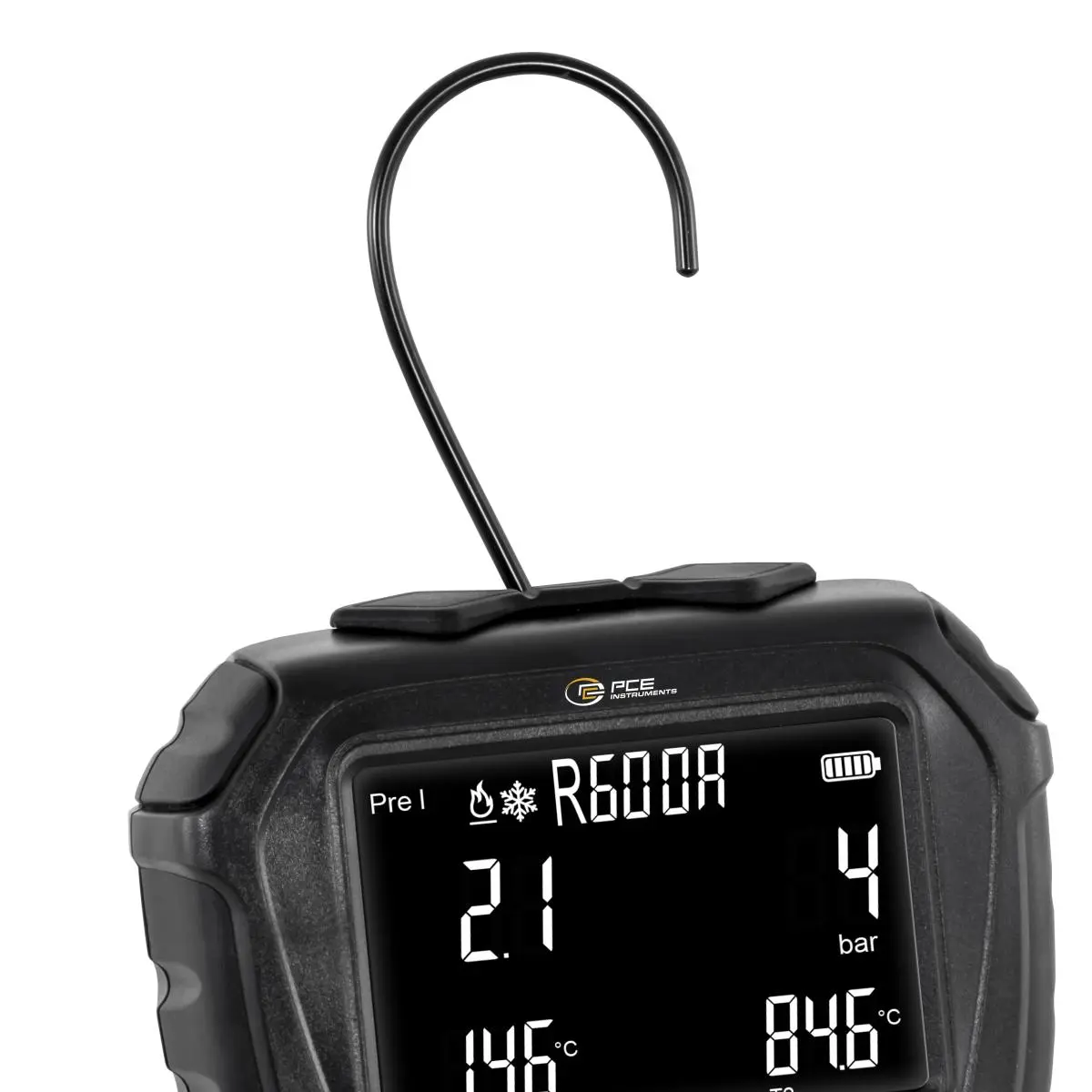

The HVAC meter is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the HVAC meter is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. All measurement parameters can be simultaneously captured by simply attaching or screwing them on. The metal 2-way valve block with 3 connectors and 3 hose holders allows for quick and easy operation of the HVAC meter. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen. During measurements, the hanging fixture ensures secure attachment. The HVAC meter is powered by 4 x 1.5V AA batteries.

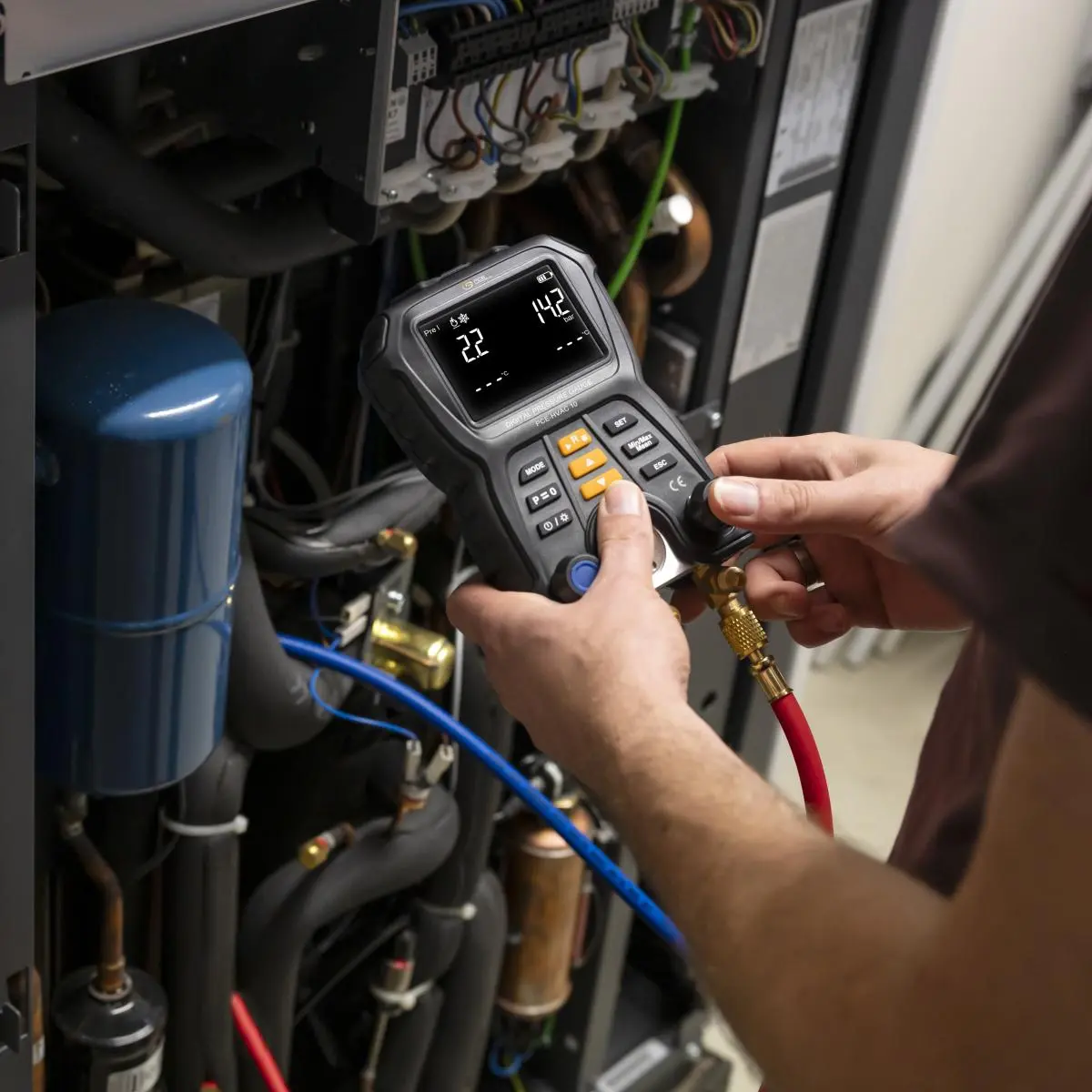

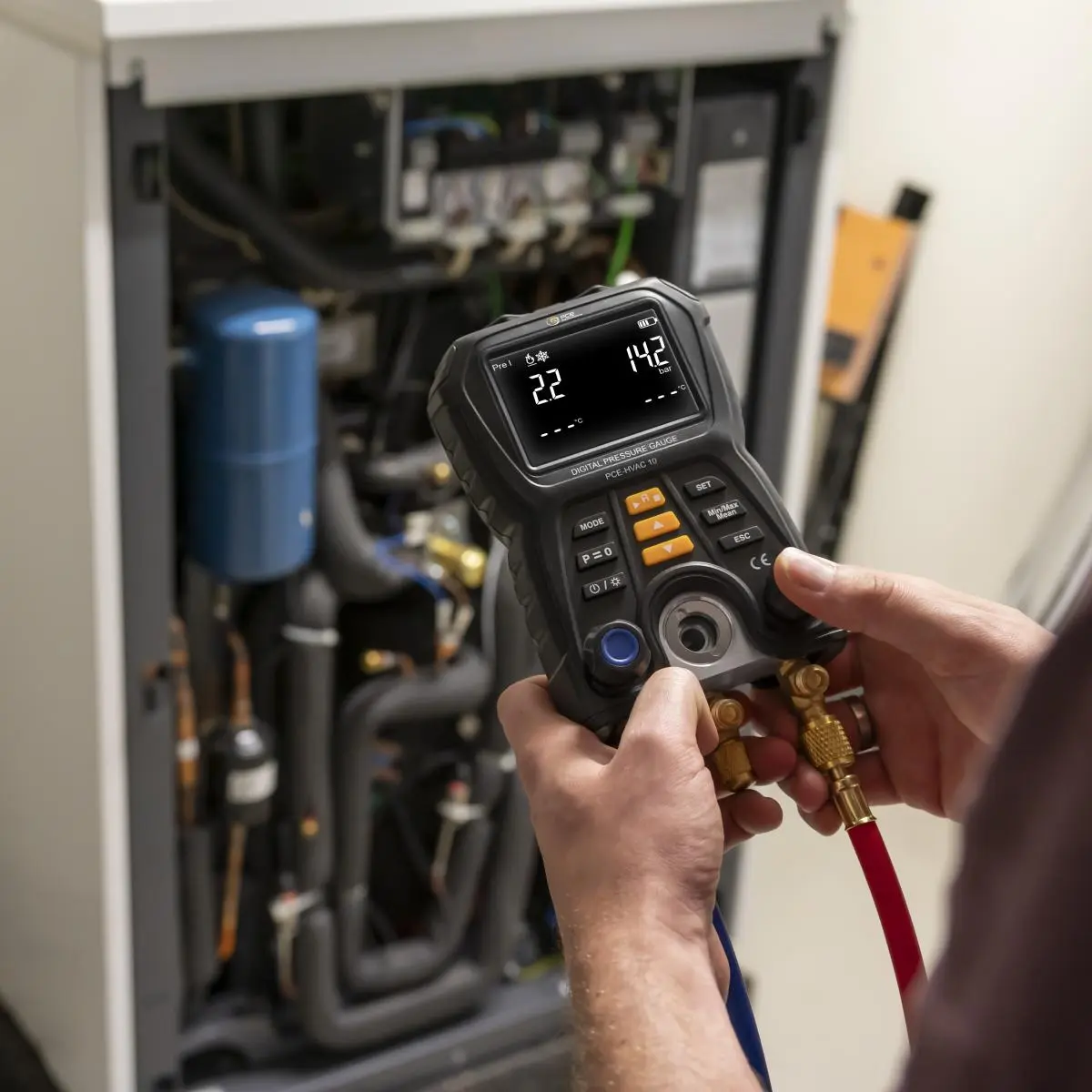

The HVAC meter is ideal for commissioning, servicing, and maintenance tasks. Thanks to additional device features such as the automatic heat pump mode, which eliminates the need to swap refrigerant hoses for measurements, and the temperature-compensated density testing function, working on refrigeration systems and heat pumps becomes very straightforward.

Highlights

- Measurement Range: -1 ... +60 bar

- Resolution: 0.01 bar

- Accuracy: ±0.5% FS (Full Scale).

- 83 refrigerants stored in the device

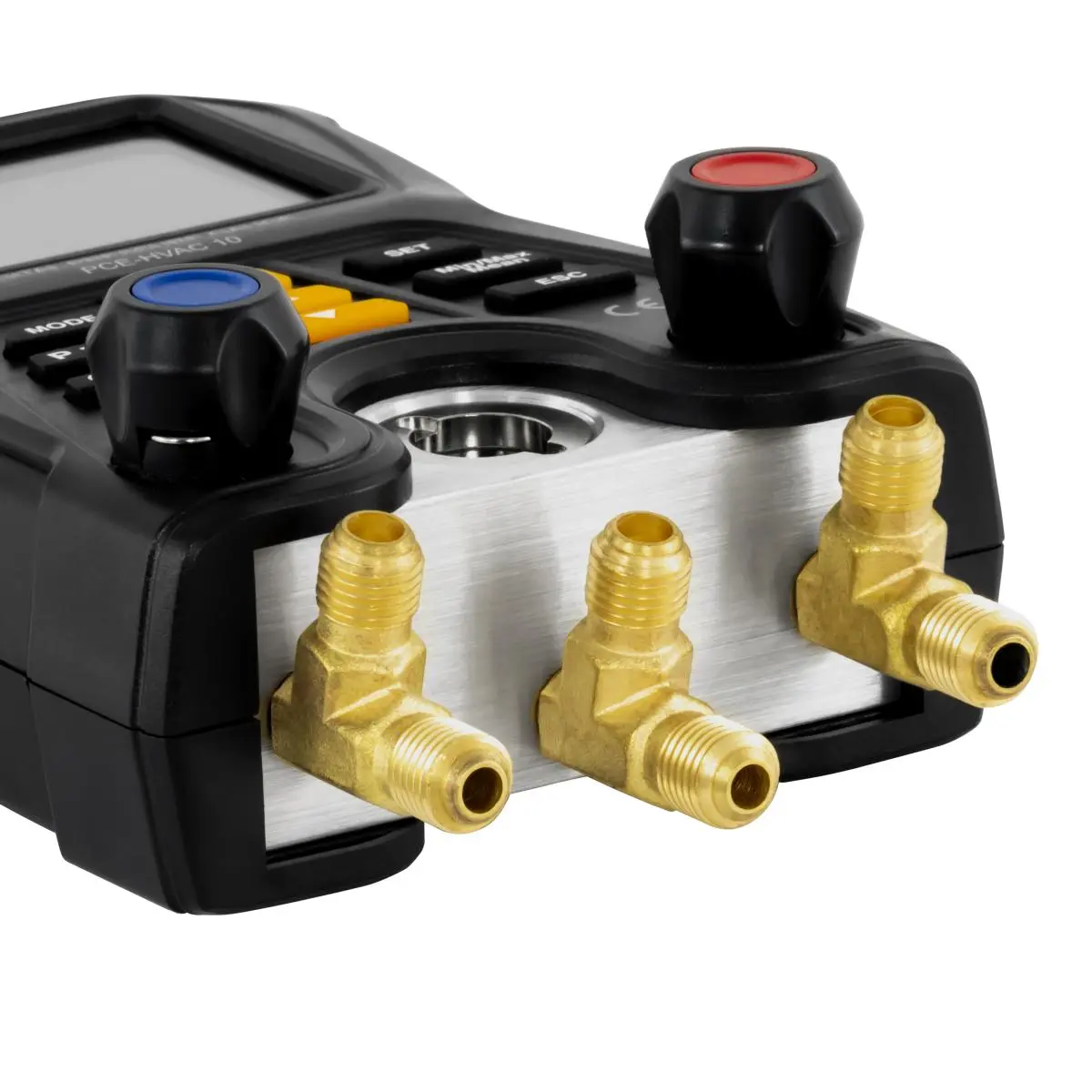

- 2-way valve block with 3 connectors 7/16" – UNF

- Includes 2 NTC clamp-on temperature sensors

- Temperature measurement from -10 ... +200 °C

Specification

Temperature NTC
Measurement Range	-10°C ... +200°C
Resolution	0.1°C
Accuracy	±(1°C + 1 Digit)

Pressure
Measurement Range	-1 bar ... +60 bar
Resolution	0.01 bar
Accuracy	±0.5% FS (Full Scale)

General Technical Data
Units	MPa, kPa, psi, bar, °F, °C
Connection Type	3 x 7/16" – UNF
Display Type	LCD
Automatic Shutdown	30 min.
Measuring Medium	Refrigerant (see manual)
Battery Type	AA Battery (1.5V)
Menu Language	English
Protection Class	IP42
Weight	768 g
Device Weight with Accessories	2185 g
Device Weight with Accessories and Packaging	2271 g
Dimensions	204 x 116 x 65 mm (L x W x H)
Dimensions Including Packaging	345 x 275 x 105 mm (L x W x H)
Additional Dimensions	Refrigerant Hose Length: 0.8 m Temperature Sensor Length: 0.8 m
Operating Conditions	0°C ... +45°C, +10% ... 95% r.F. (Relative Humidity)
Storage Conditions	-20°C ... +60°C, +10% ... 95% r.F. (Relative Humidity)

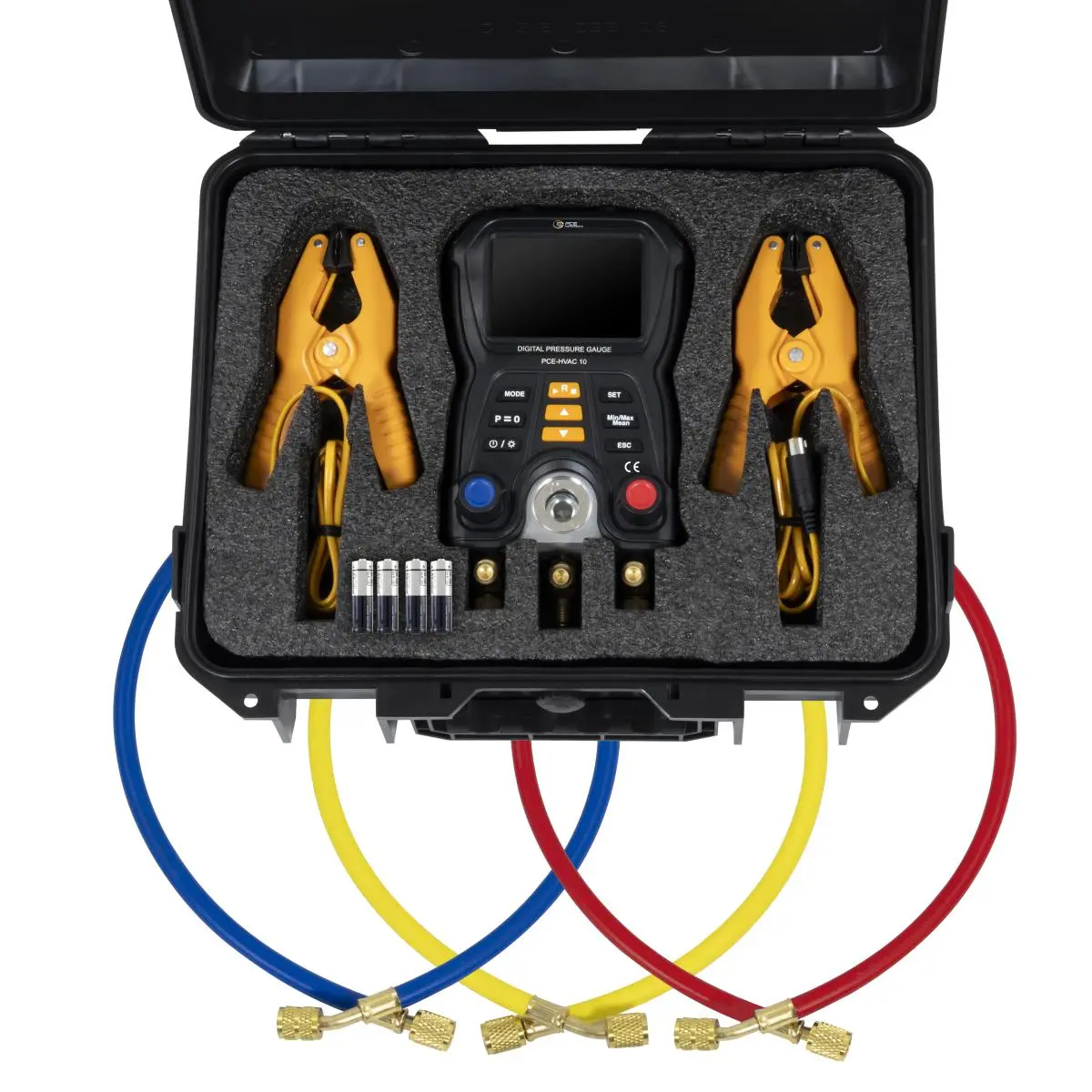

Delivery Scope

1 x HVAC Meter PCE-HVAC 10

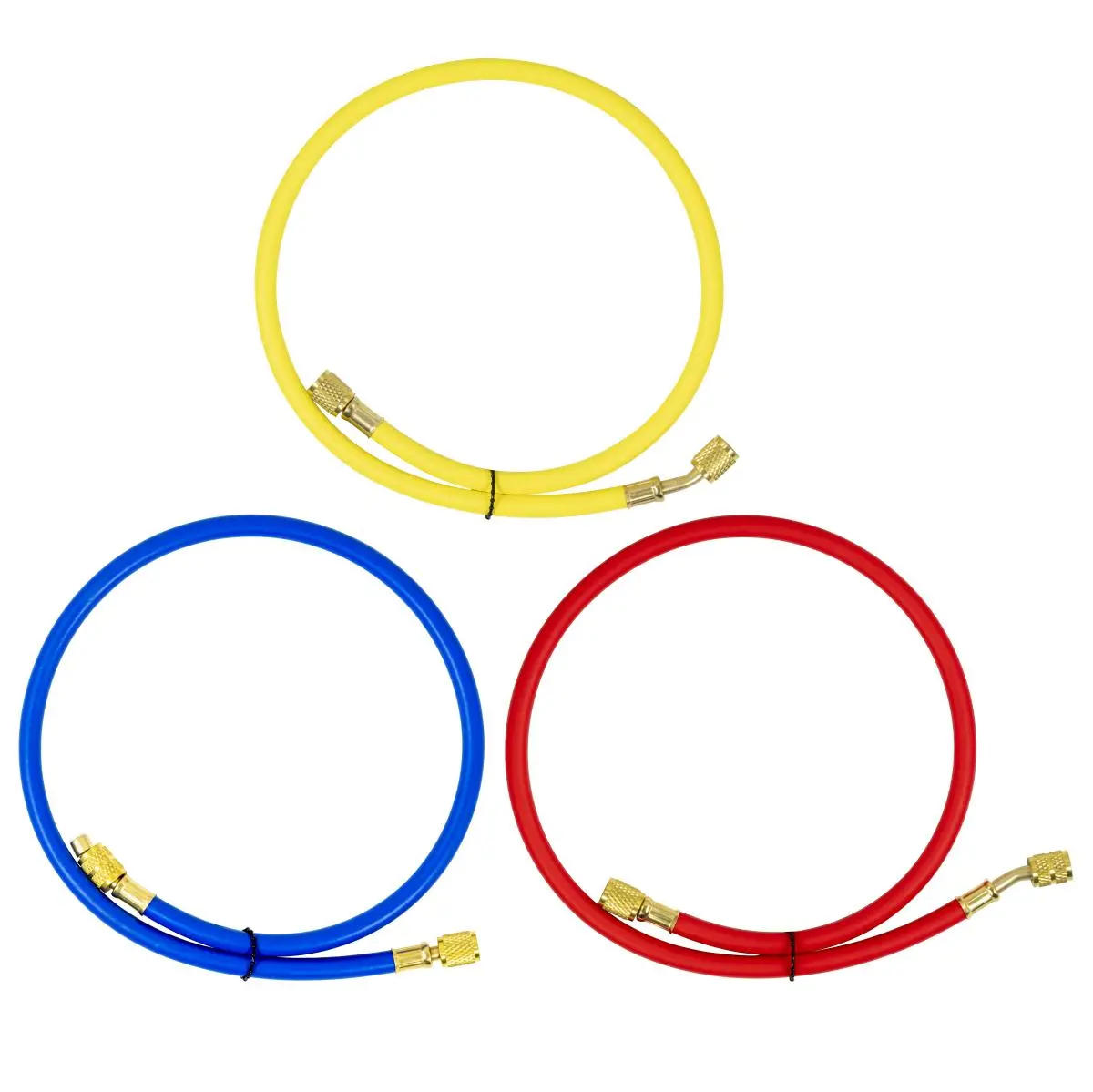

3 x Refrigerant Hoses (Red, Blue, Yellow)

2 x Clamp-On NTC Temperature Sensors

4 x 1.5V AA Batteries

1 x Carrying Case

1 x User Manual
