HVAC Meter / HVACR Tester PCE-GA 10

HVAC Meter PCE-GA 10

Order no.: PCE-GA 10
GTIN (EAN): 4250348719201
£ 173.00
£ 207.60
price ex. (VAT / delivery)
:
4250348719201
PCE-GA 10
Delivery time:1-2 working days

Description

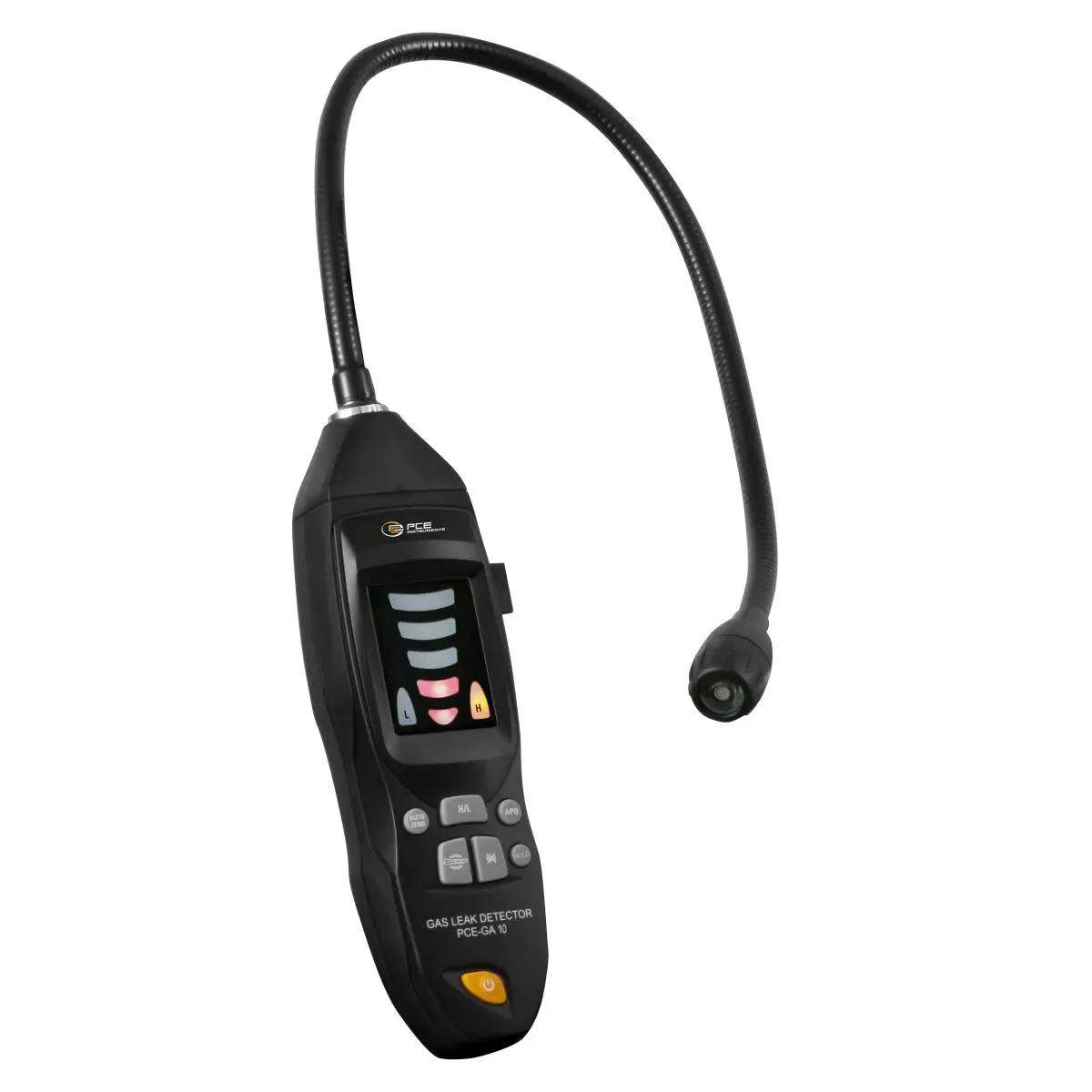

HVAC Meter PCE-GA 10
Gas leak detector for flammable gases / Optical, acoustic and haptic alarm / Battery operation / Simple LED display

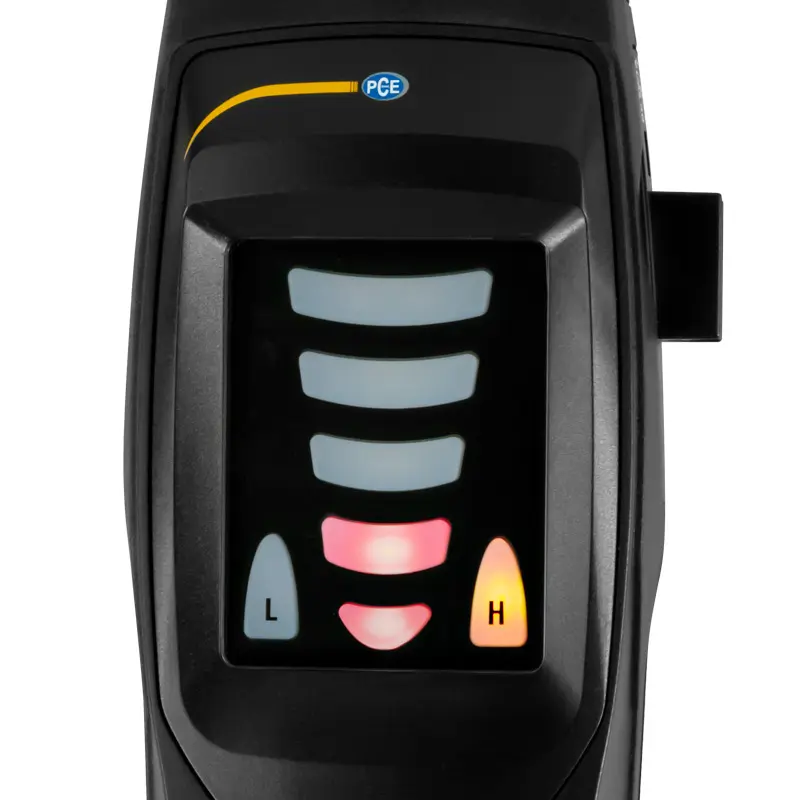

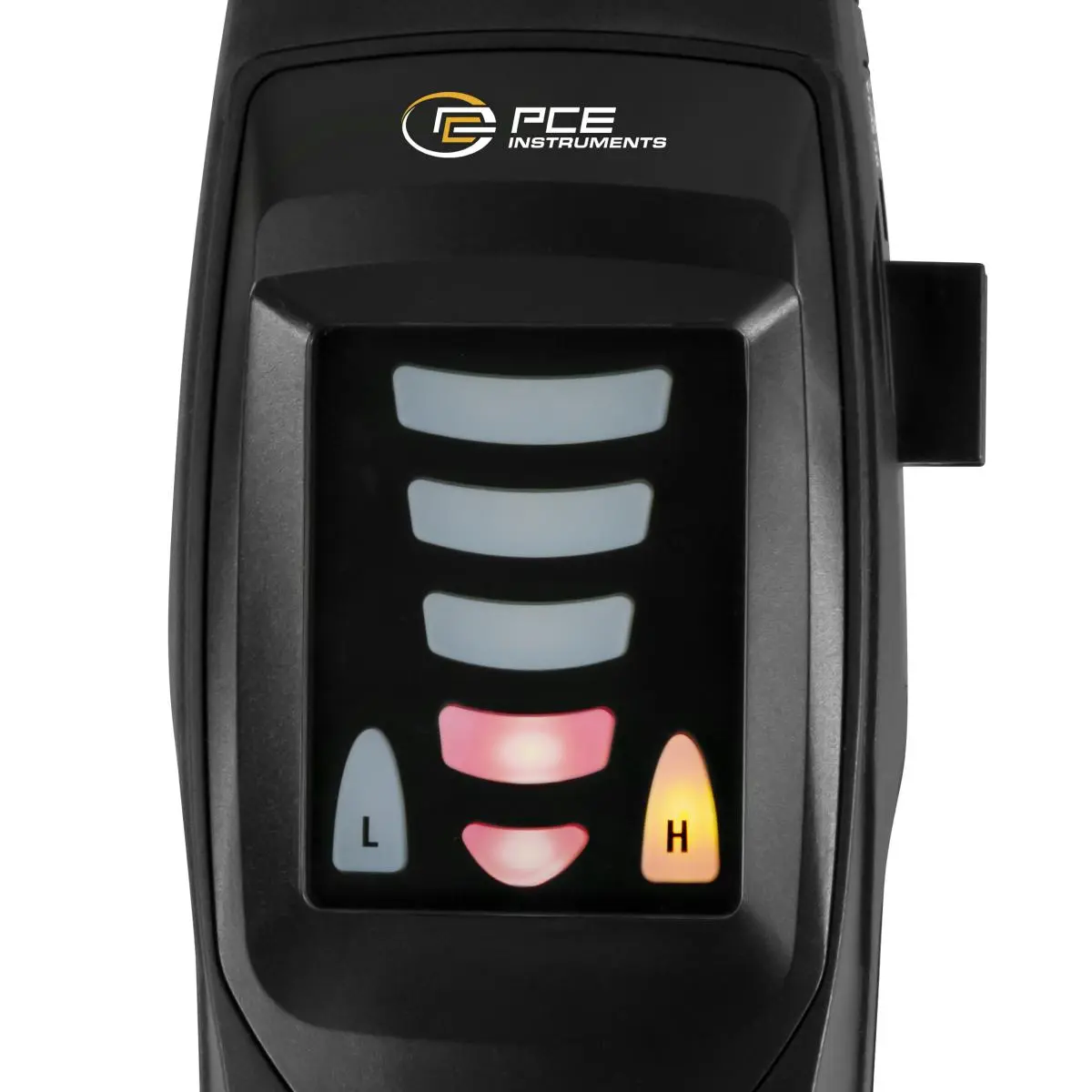

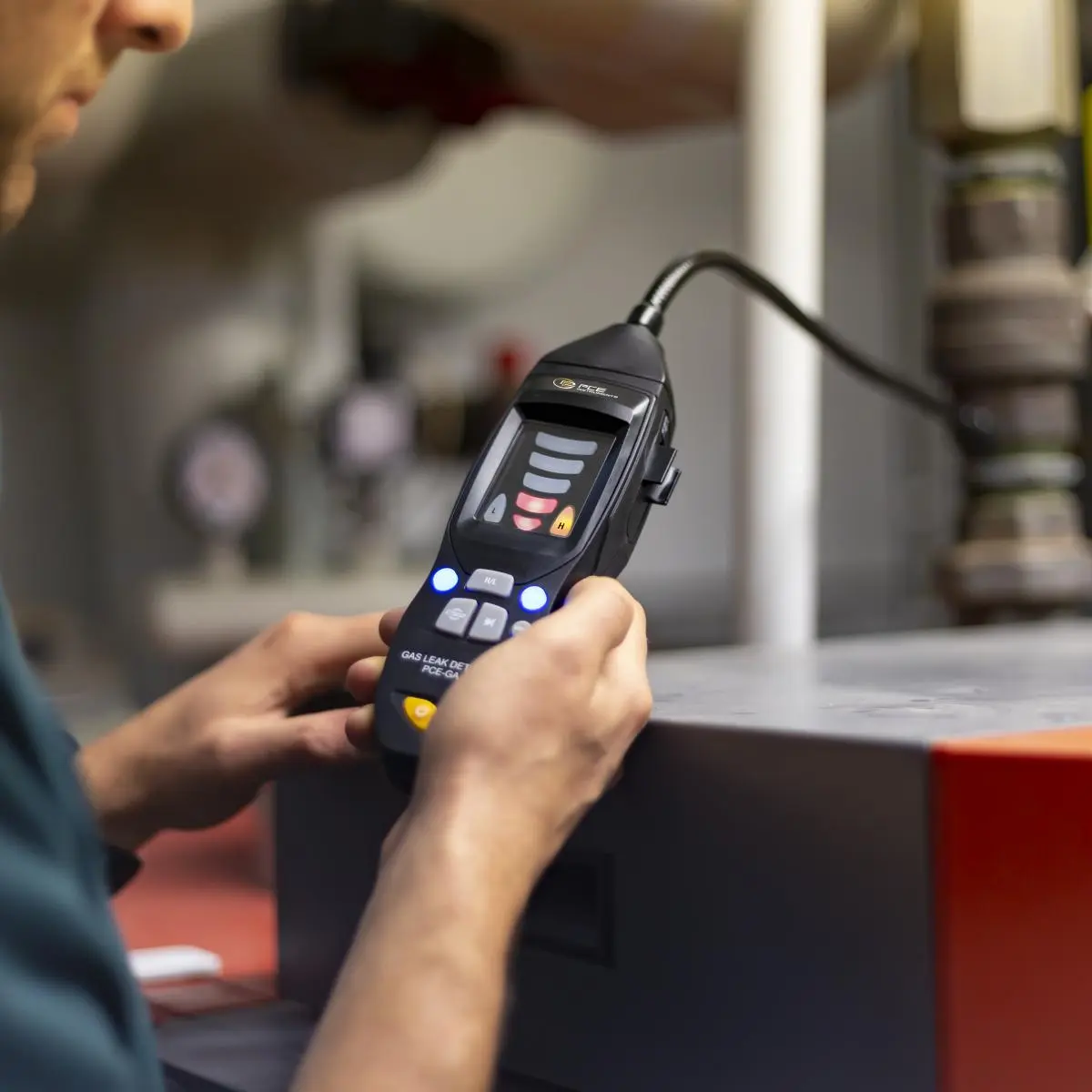

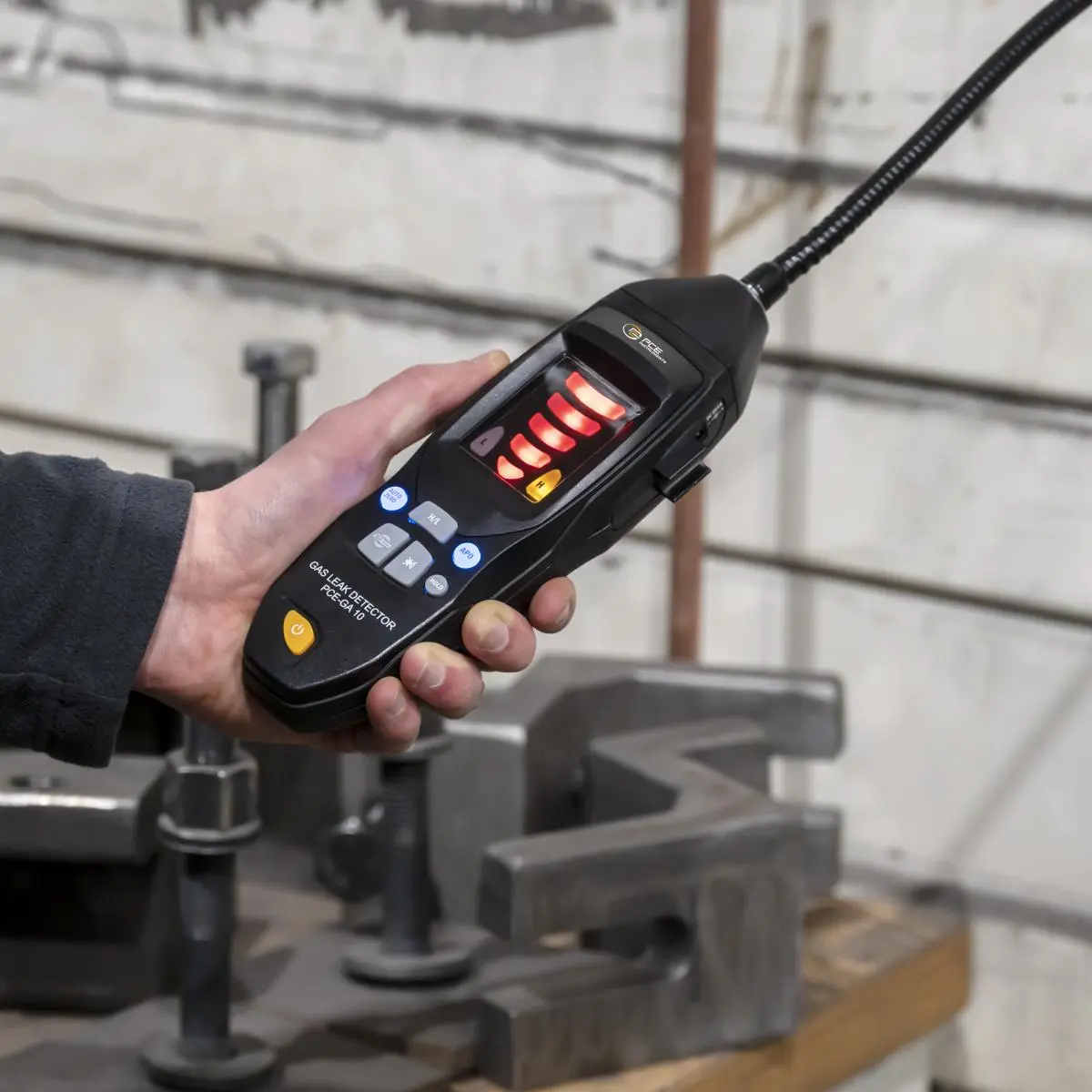

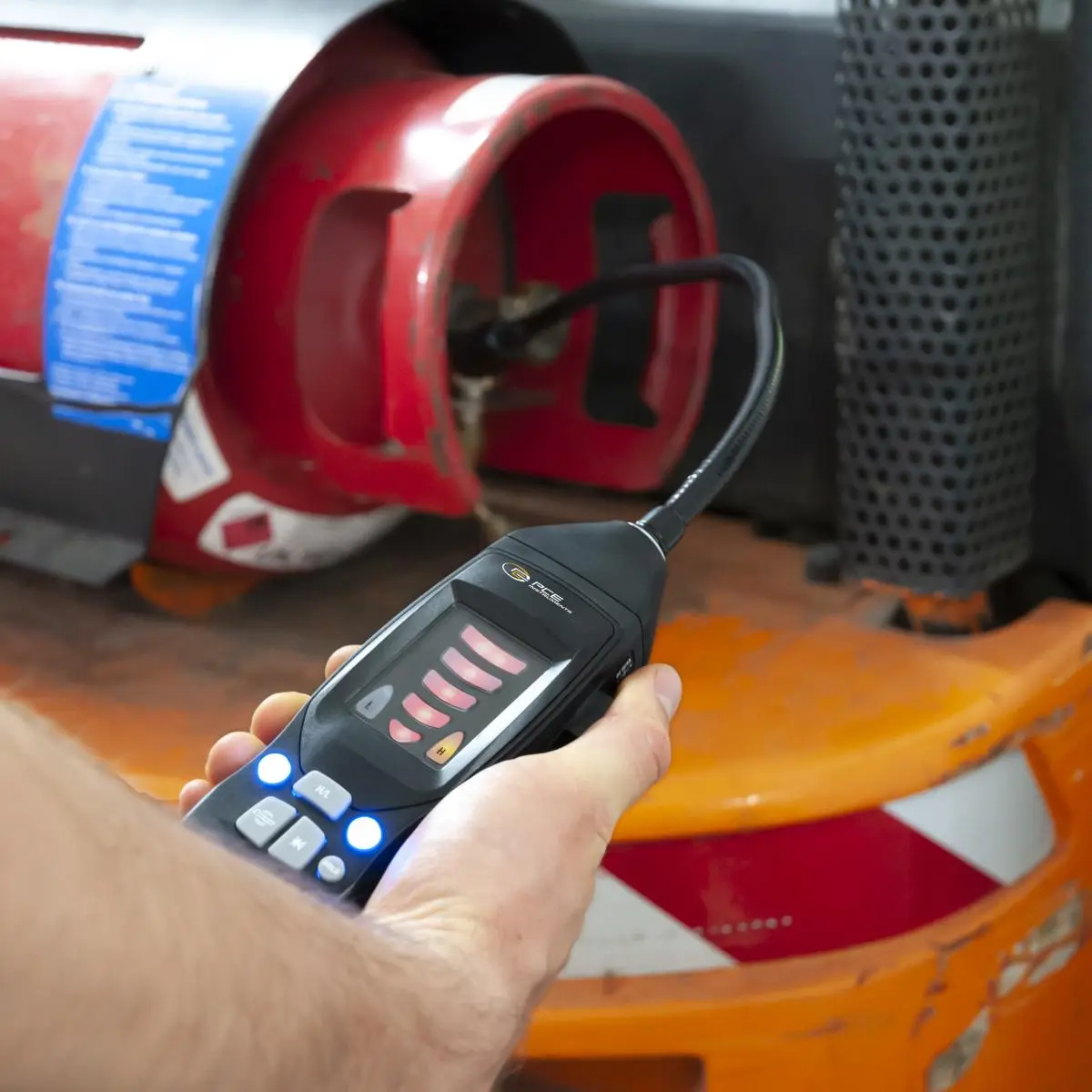

The gas leak detector PCE-GA 10 is used to check for leaks in gas pipes and connections. This gas leak detector is suitable for many flammable gases. The gas leak detector has 5 LEDs that inform the gas intensity. In addition to the visual information, the gas leak detector has an audible and haptic alarm. This means that, depending on the level, the gas leak detector emits an alarm tone and vibrates at the same time.

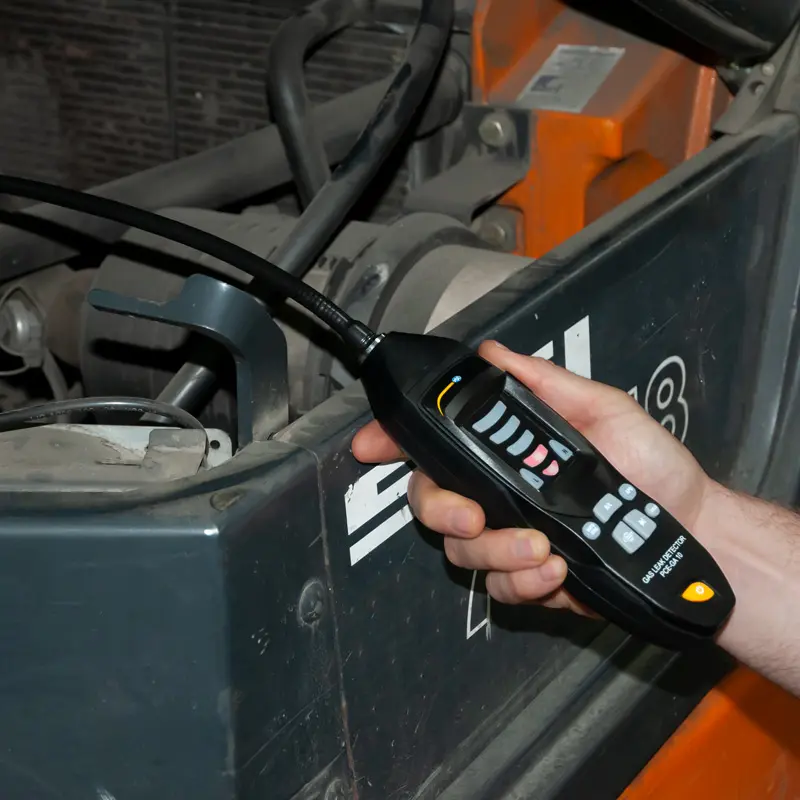

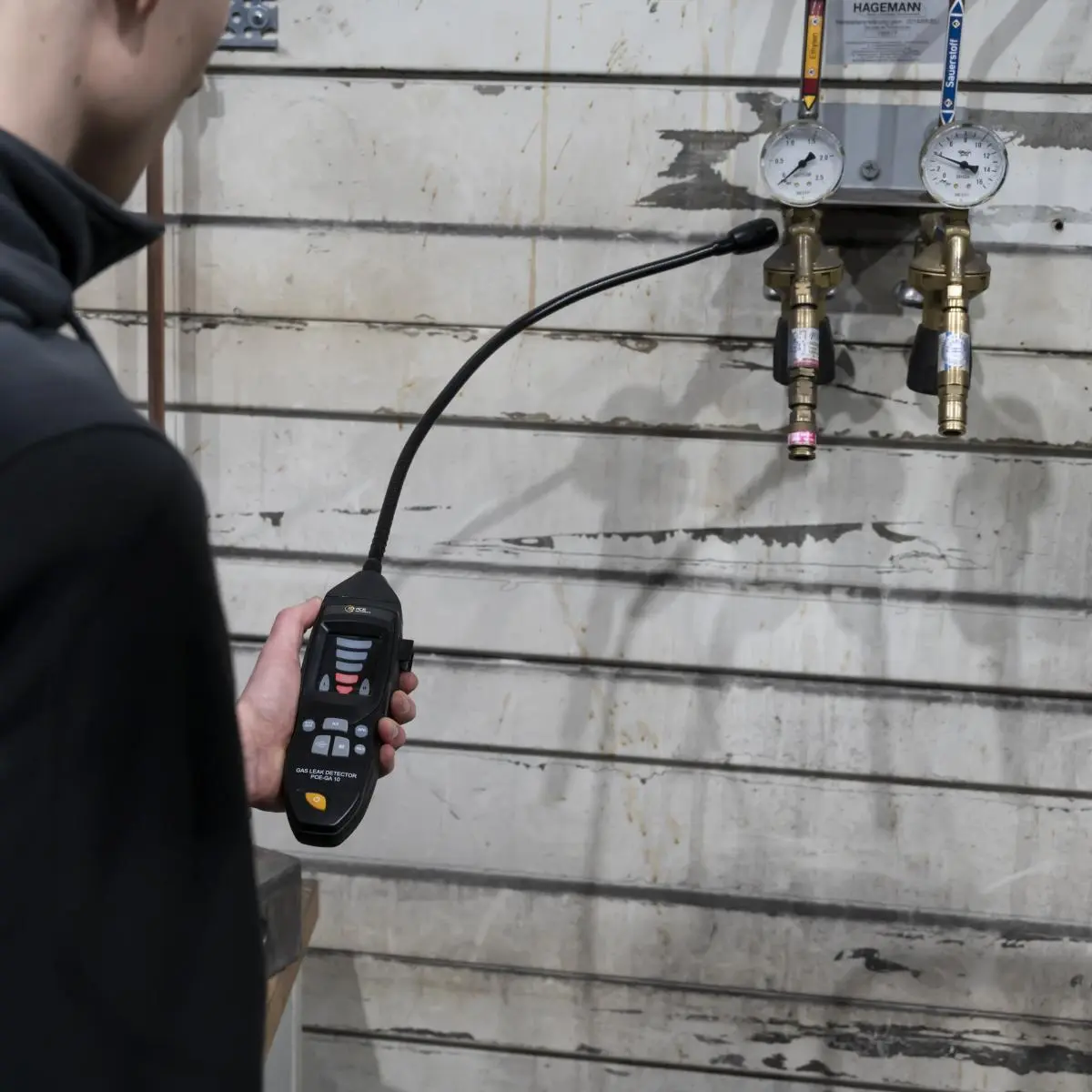

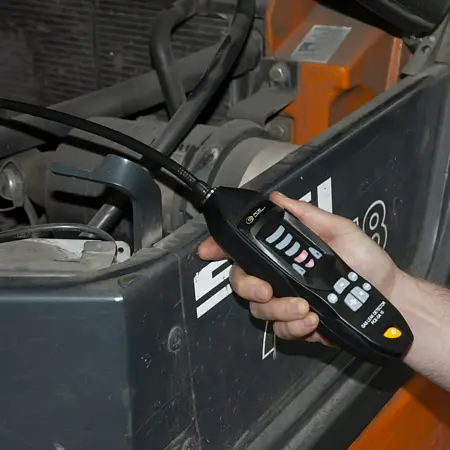

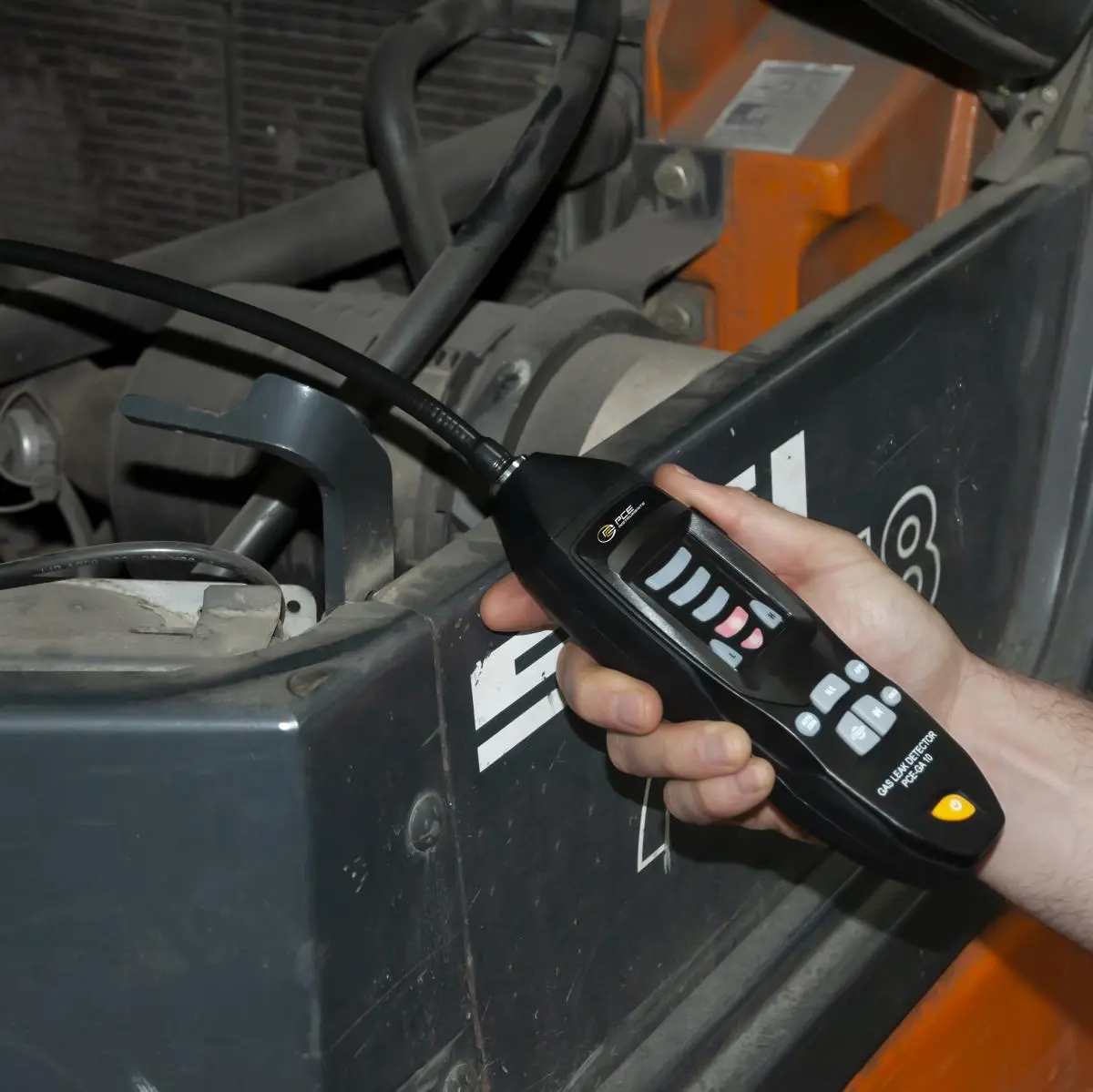

The leak detector is therefore ideal for detecting sporadic gases. The gas leak detector is therefore of great help to employees who want to inspect plants during a plant tour or inspect engines, supply lines or gas lines. The gas leak detector is supplied with a rechargeable battery. The sensor of the gas leak detector has an average life of approx. 5 years and can be exchanged without any problems.

Highlights

- LED display
- For flammable gases

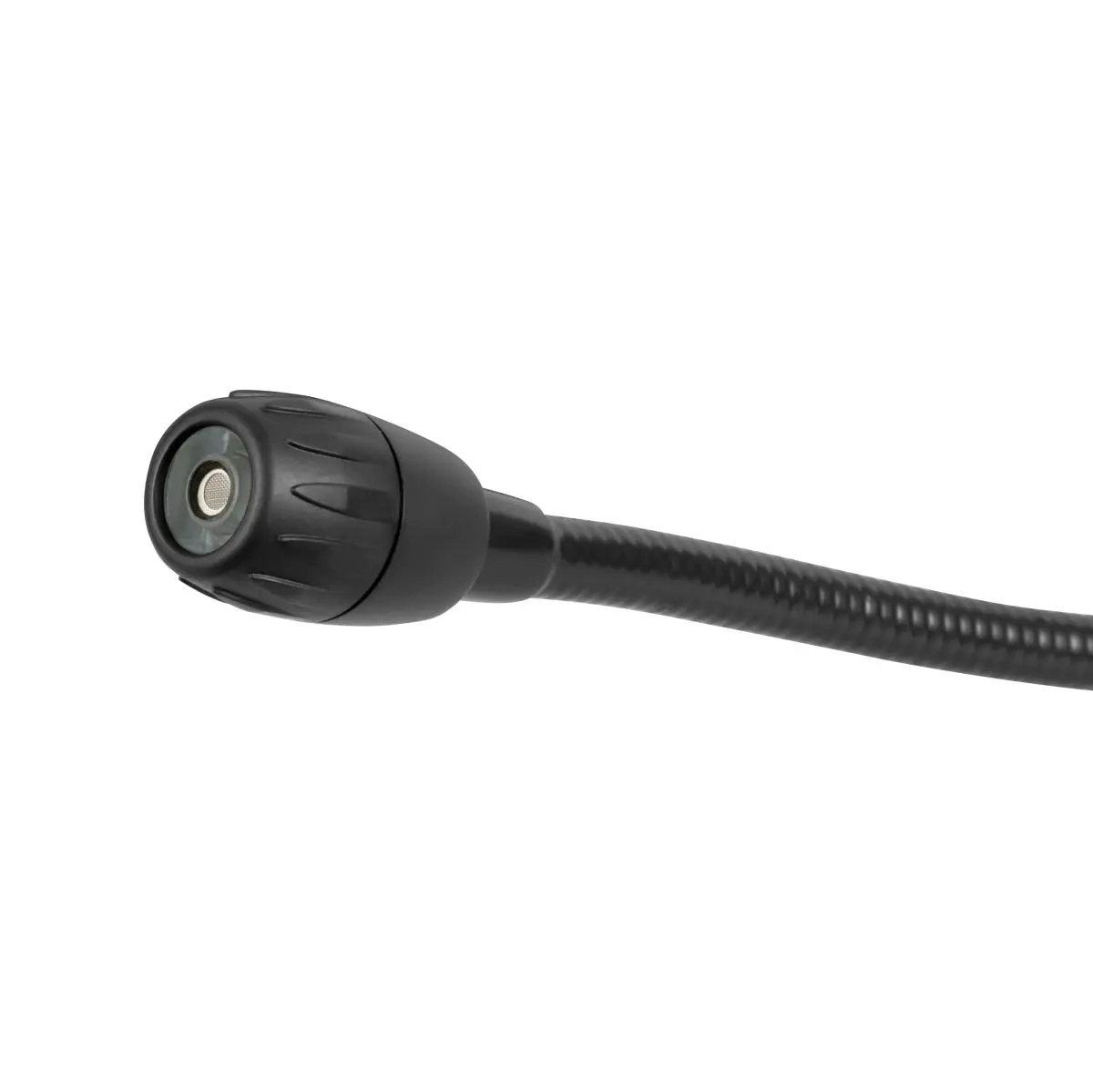

- 500 mm / 19.6" sensor
- Optical, acoustic and haptic alarm
- Fast response time
- Rechargeable battery

Specification

Gas
Measuring range  0 ... 10000 ppm
Resolution  50 ppm

General technical data
Type of cable  Semi-rigid approx. 500 mm / 16 inches
Display type  without display
Response time  2 s
Warm-up time  50 s
Measured medium  Acetaldehyde, Ammonia, Benzene, Ethan, Ethanol, Ethylene, Formaldehyde, Hexan, ISO butane, Metan, Propane, P-Xylol, Hydrogen sulphide, Toluene, Hydrogen
Automatic power-off  10 min
Sensor length  500 mm
Alarm  Acoustic, optical, Vibration
Calibration  automatic
Sensitivity  < 50 ppm (for methane)
Alarm volume  85 dB
Protection class (device)  IP20

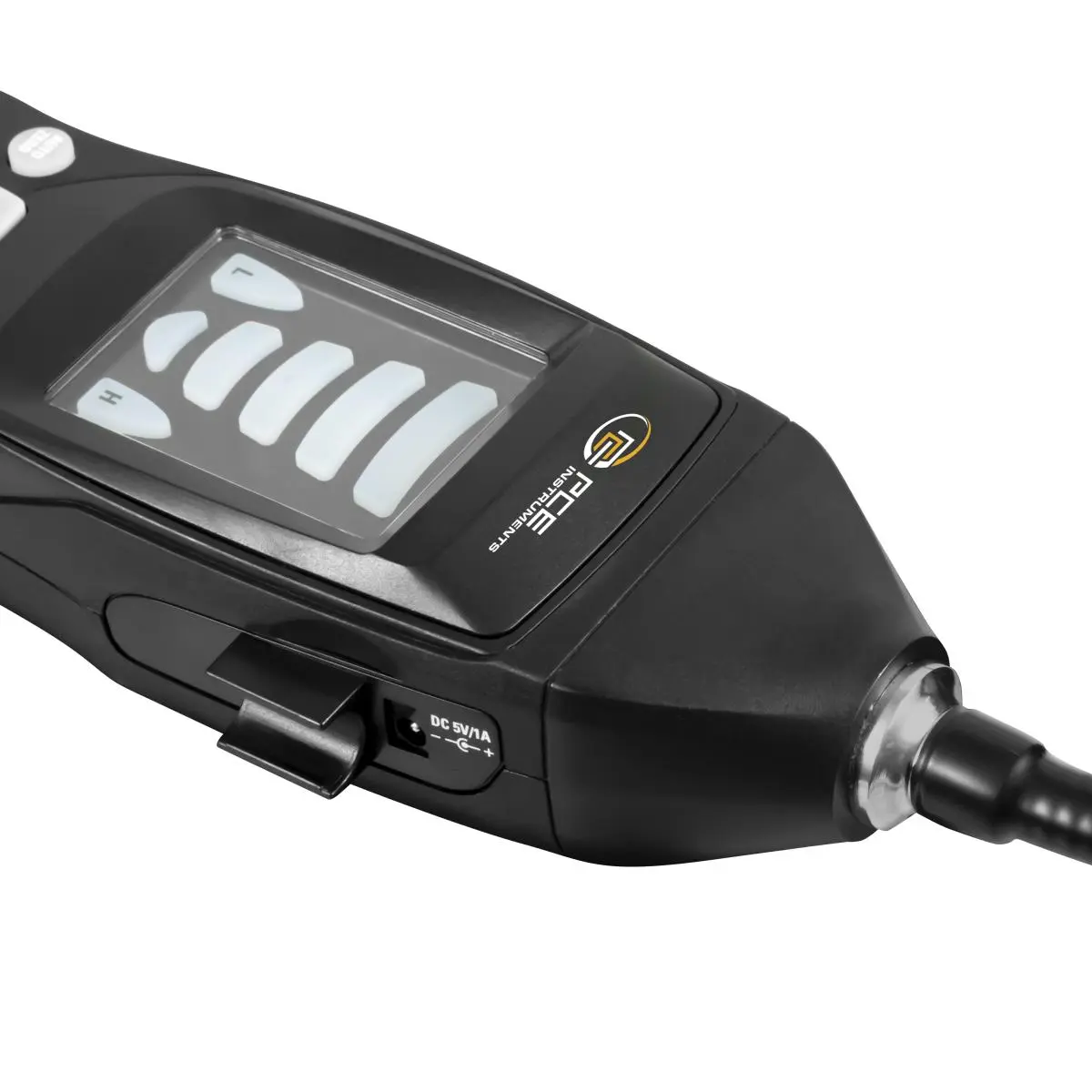

Power supply  5 V / 1 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  1400 mAh
Performance  5,18 Wh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  211 x 70 x 45 mm
Weight  400 g

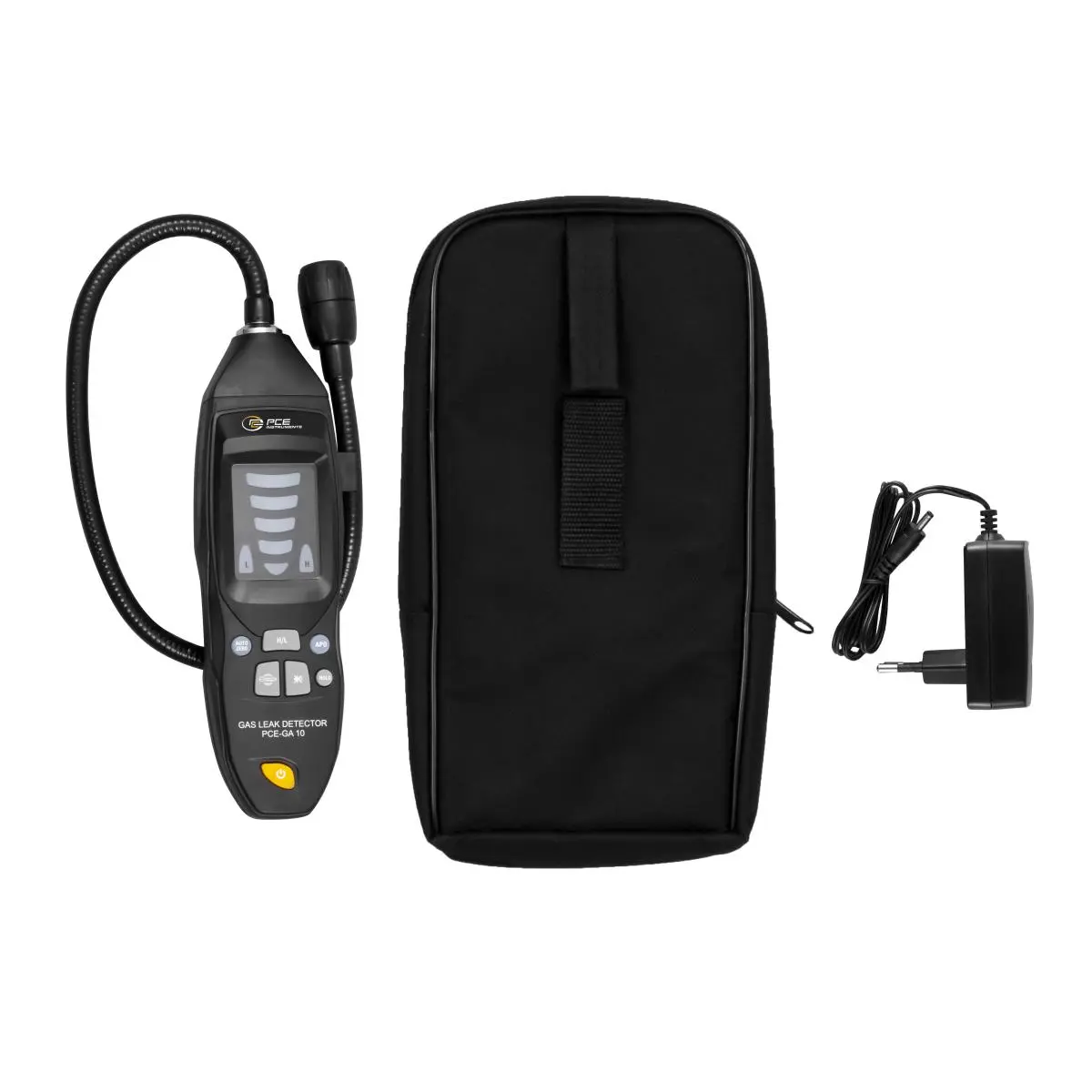

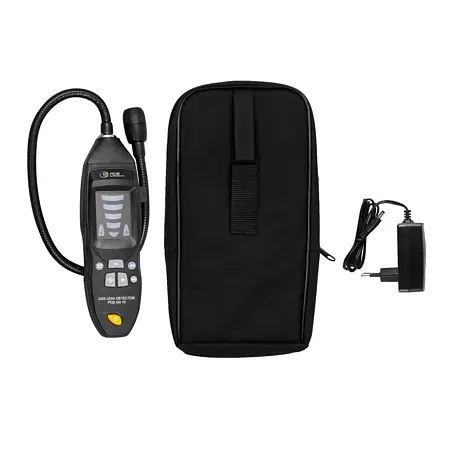

Delivery Scope

1 x HVAC Meter / HVACR Tester PCE-GA 10
1 x Power adapter 5V / 1 A (100 ... 240V AC)
1 x Carry bag
1 x User manual
