Industrial Measurement Products and Solutions


Order no.: PCE-G1
£ 667.00
£ 800.40
price ex. (VAT / delivery)
* Includes a longer sensor cable + a measurement amplifier
Air Conditions
Delivery time: 1-2 working days

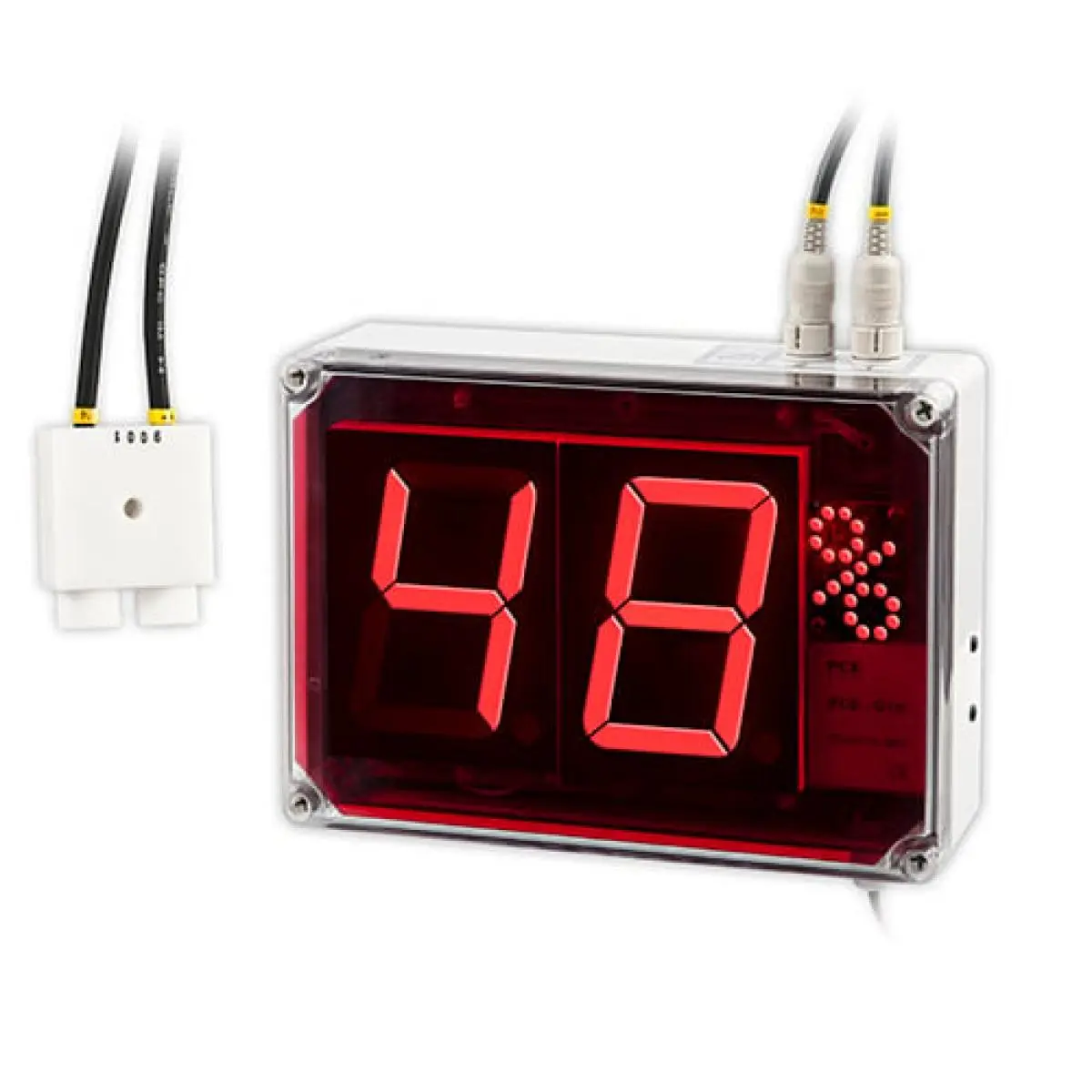

Thermometer to measure relative humidity and temperature,
with a large display visible from up to 50m distance

The PCE-G1 thermometer has been designed for measuring relative humidity and temperature, with readings shown on its high visibility display. The thermometer is composed of a 100mm high LED and comes with IP54 rating. This thermometer has a display that will alternate values and show relative humidity for 2 seconds followed by temperature for 2 seconds. The sensor comes calibrated from the manufacturer. An optional ISO calibration and certification can be ordered separately. Easy to use, accurate and durable.

Technical specifications
Measurement ranges
relative humidity / temperature
10 to 95% r.h. / 0 to 60°C
relative humidity / temperature
1% r.h. / 1°C
relative humidity / temperature
 ±2% r.h. / 1°C
Visible distancecan be read from 50m away
Sensor type
relative humidity / temperature
capacitive / PT1000
Response time T90approx. 4 seconds
Cable length (between sensor and display)1 meter
Display 100mm high LED (alternates values)
Power110V to 230V / 50 to 60Hz
DimensionsSensor: 50 x 70 x 20mm
Display: 175 x 250 x 75mm
ProtectionIP 54
Weight 1.3kg (with sensor and cable)

Delivery Contents:
1 x PCE-G1 humidity detector
1 x display
1 x sensor connecting cable 1m long
1 x direct connection cable to 110/220 VAC
1 x user's manual
