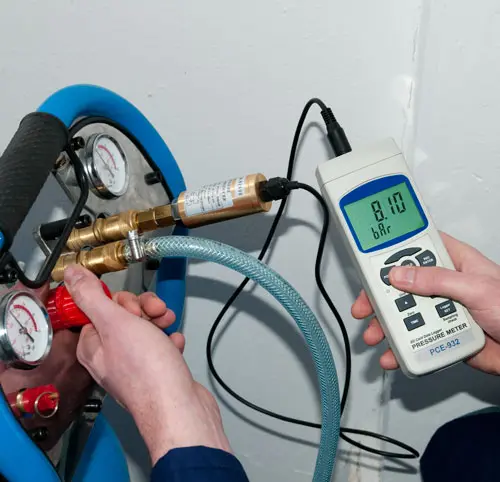

PCE-932 is an easy-to-use, digital, handheld device for high pressure measurement in hydraulic and compressor systems, pumps, tanks and silos in chemical, manufacturing, plastics and HVAC industries. This portable pressure measuring device can be connected to pressure sensors with ranges up to 400 bar (each with a 1.2 m / 3.9 ft connecting cable).
Please note: Pressure sensors are sold separately. See also for recommendations.

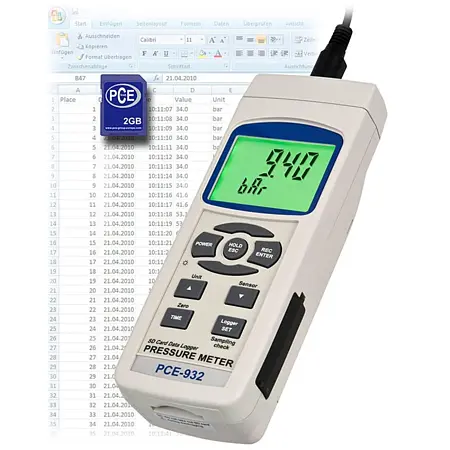

Measurement values are stored in a Microsoft Excel-compatible format to the included SD card memory. PCE-932 comes calibrated from the factory, but an ISO calibration certificate may be obtained for an additional fee. See also for ISO calibration details.
|Measurement range||0 ... 400 bar (depending on the sensor)|
bar, psi, kg/cm2, mm/Hg, inch/Hg,|
meter/H2O, inch/H2O, atmosphere
|Pressure connector||Optional, 5V DC, maximum output of sensor is 100 mV DC (see also for ranges)|
|Zero reset||By way of keypad|
|Auto shut-off||Yes (this function can be disabled)|
|Functions||Measurement of pressure, min, max and hold|
|Auto shut-off||To conserve battery power (can be disabled)|
|Rate of measurement||Approx. every 0.8 seconds|
|LCD display||Approx. 52 x 38 mm / 2.05 x 1.50 in|
|Memory||SD card up to 16 GB|
|Software||Optional (required only for real-time data transfer - see also)|
|Power supply|| 6 x 1.5V AA batteries|
AC power cable (optional - see also)
|Dimensions||Approx. 177 x 68 x 45 mm / 6.97 x 2.68 x 1.77 in|
|Weight||Approx. 350 g / < 1 lb|
|Operating temperature||0 ... 50°C / 32 ... 122°F|
|Operating humidity||0 ... 80% rh|
