This HVAC Meter / HVACR Tester is a portable HVAC Meter / HVACR Tester that has been specially developed for the precise measurement of flow velocity in open channels, such as those found in rivers, streams or canals. The measurement is based on the proven velocity-area method.
The device has a simple, light and handy structure and is characterized by low power consumption and comprehensive functions. Thanks to the integrated Hall velocity rotation sensor, this HVAC Meter / HVACR Tester can also be used reliably in wastewater environments.

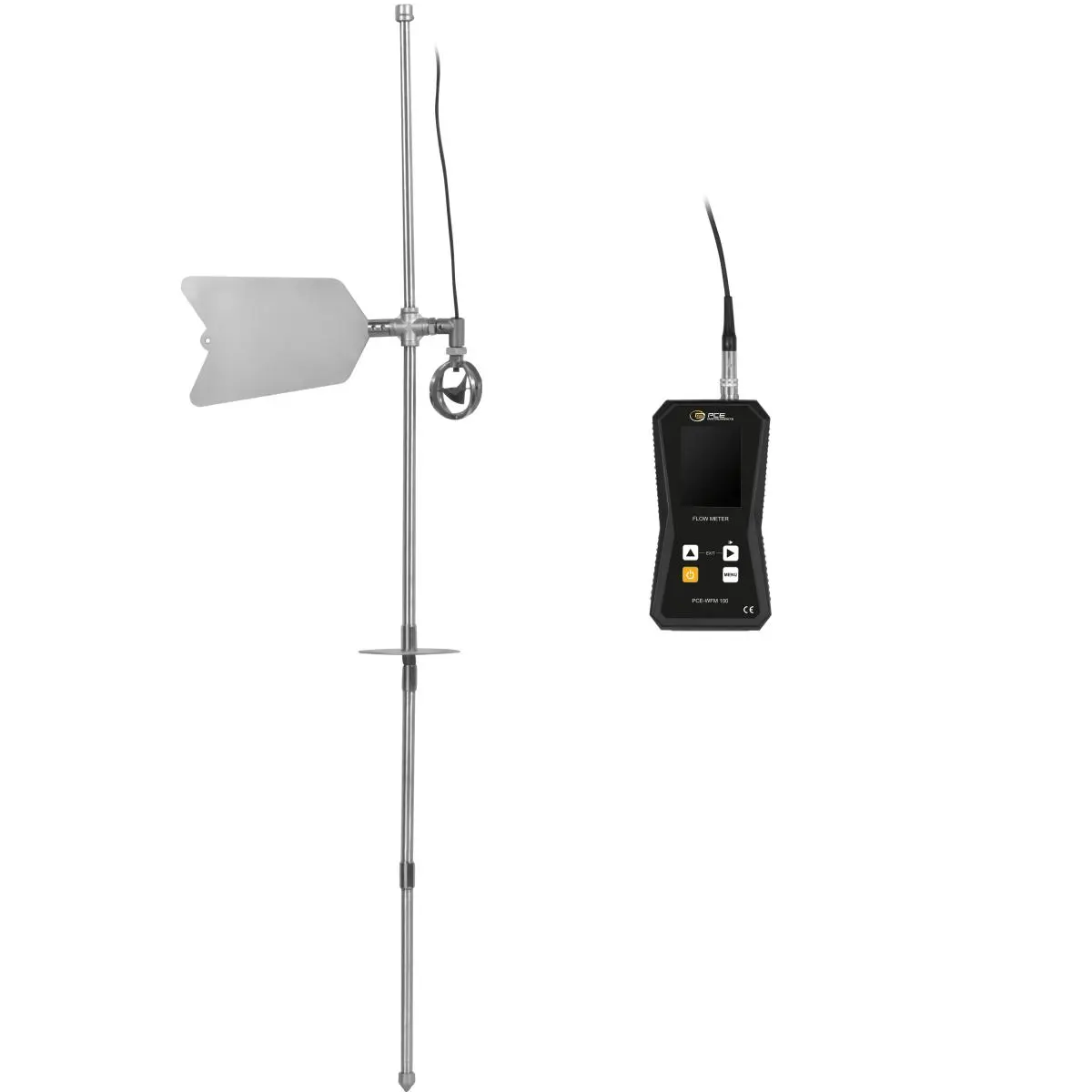

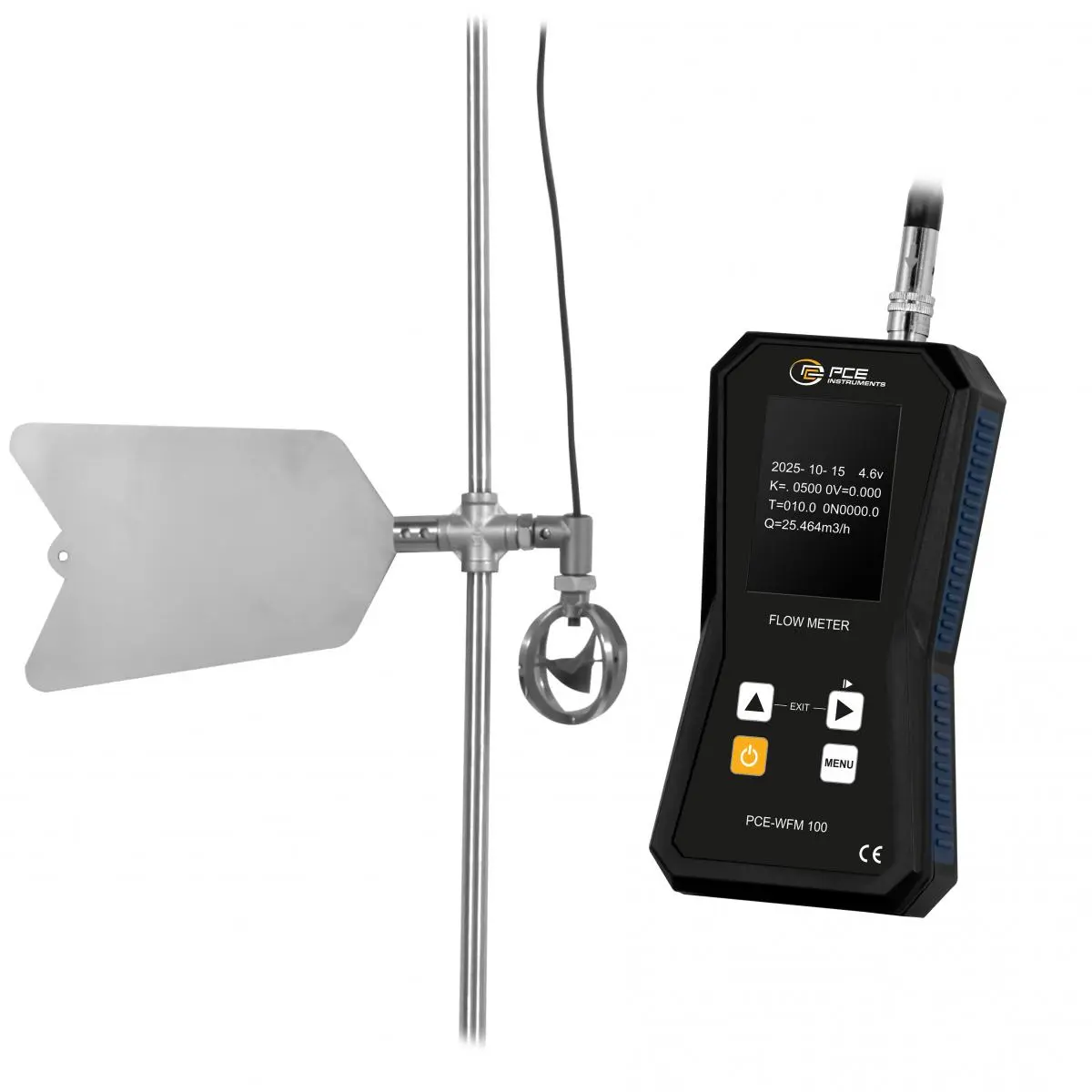

The operation is characterized by a high degree of automation, which ensures stable and reliable operation. The measurement results are shown on an LCD display with LED backlighting. The measurement itself is carried out using the rod position measurement method.
This versatile HVAC Meter / HVACR Tester is the ideal instrument for a wide range of applications, including hydrological stations, environmental monitoring, irrigation and drainage of farmland and hydrogeological surveying. The HVAC Meter / HVACR Tester is your reliable tool for on-site flow velocity measurement.
| Speed | |
| Measurement range up to | 0,01 ... 10 m/s |
| Resolution | 0.01 m/s |
| Accuracy | 1.5% |
| Sensor | |
| Battery type | Hall sensor |
| Protection class | IP68 |
| Cable length | 5 m |
| General technical data | |

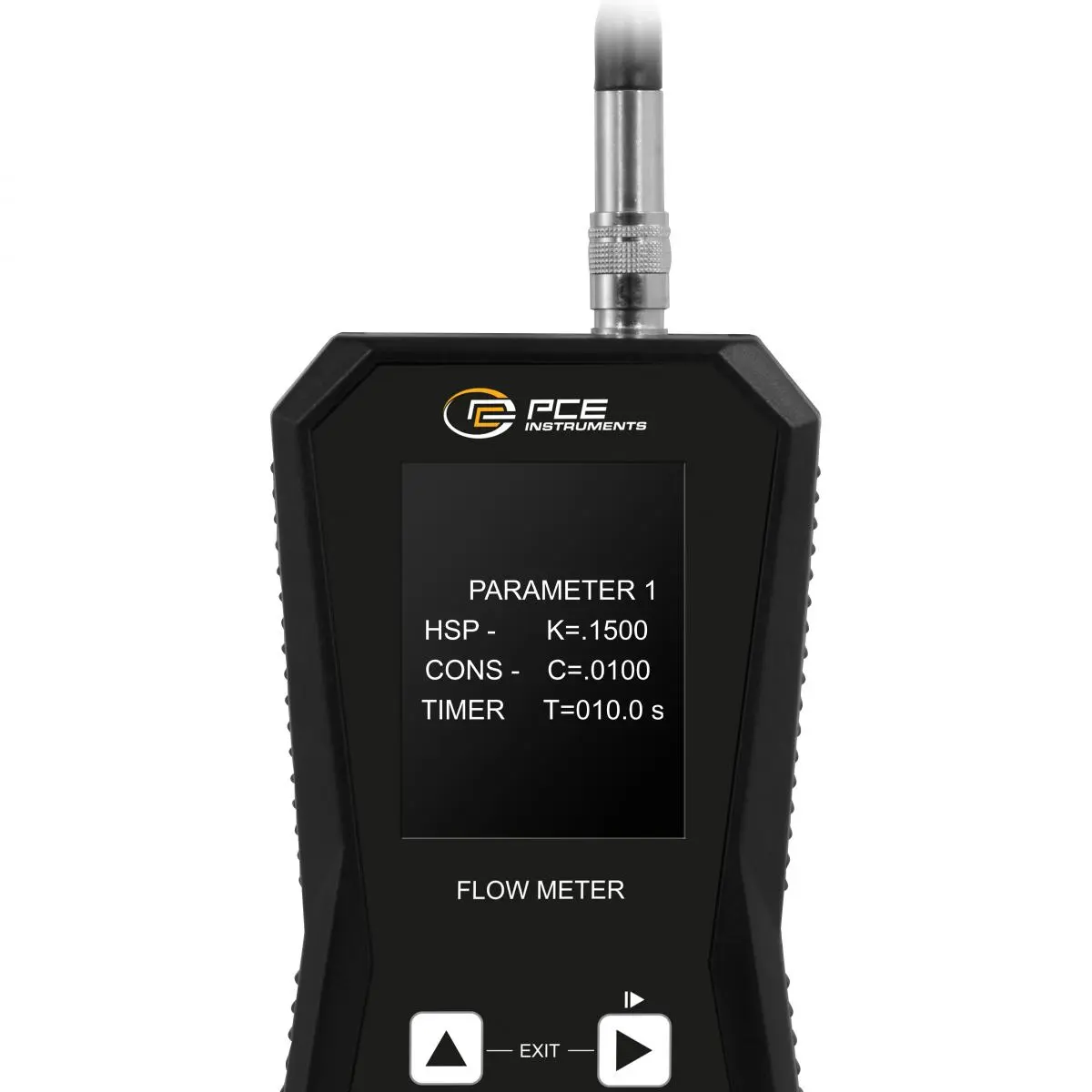

| Display type | LCD with backlight |
| Display size | 2,75 Inch |
| Menu language | English (GB), English, Chinese |
| Protection class (device) | IP52 |

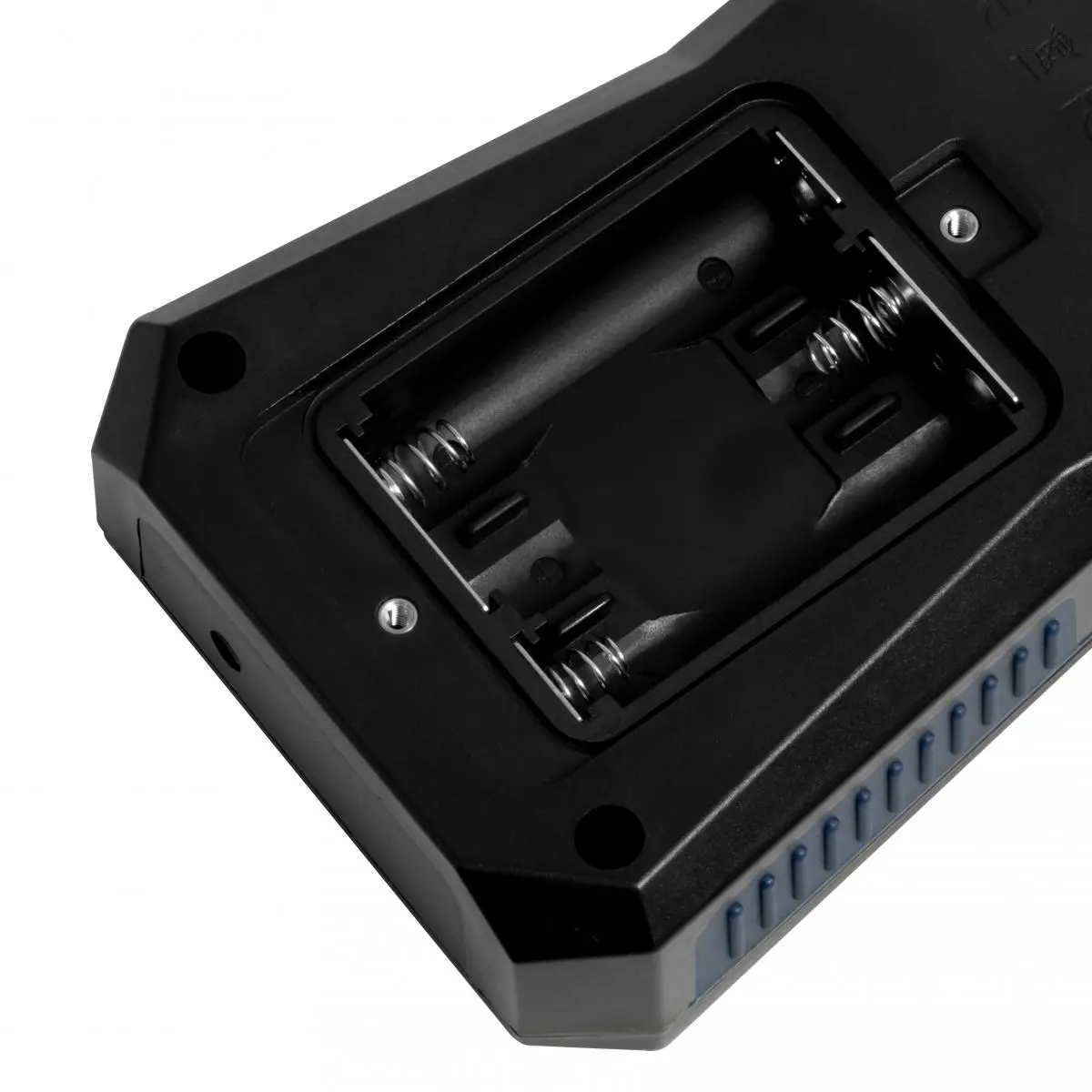

| (Rechargeable) battery | 3 x 1,5 V AA battery , Zinc-manganese dioxide |
| Capacity | 2970 mAh |
| Operating conditions | -10 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -10 ... 50 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 175 x 85 x 33 mm |
| Weight | 232 g |
