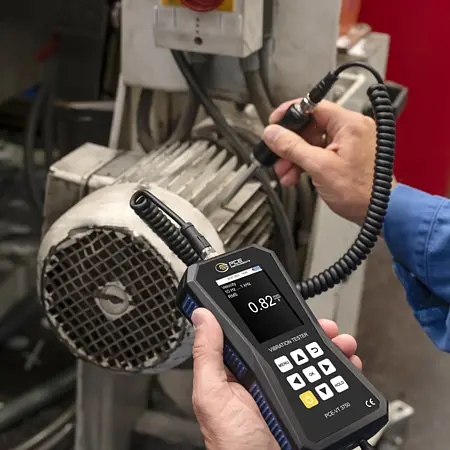

The HVAC Meter / HVACR Tester is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This HVAC Meter / HVACR Tester shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances, which can lead to, for example, bearing damage. The HVAC Meter / HVACR Tester is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The HVAC Meter / HVACR Tester analyzes the measured values and automatically shows a good / bad evaluation on the display.

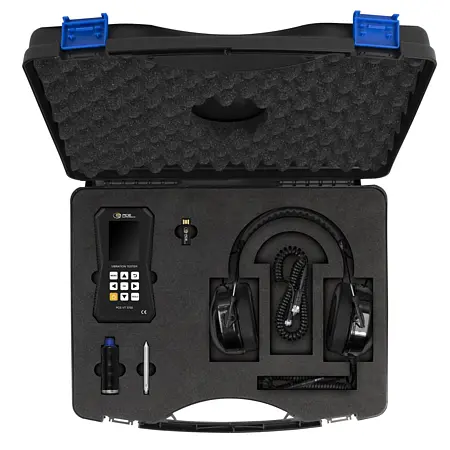

The HVAC Meter / HVACR Tester is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the HVAC Meter / HVACR Tester is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the HVAC Meter / HVACR Tester are easily switchable.
| Acceleration | |
| Measuring range | 0 ... 399,9 m/s² |
| Resolution | 0,1 m/s² |
| Accuracy | ±2% @160 Hz |
| Frequency range | 1 kHz ... 10 kHz 10 Hz ... 10 kHz |
| Speed | |
| Measuring range | 0 ... 399,9 mm/s |
| Resolution | 0.1 mm/s mm/s |
| Accuracy | ±2% @160 Hz |
| Frequency range | 10 Hz ... 1 kHz |
| Path | |
| Measuring range | 0 ... 3,9 mm |
| Resolution | 1 µm |
| Accuracy | ±2% @160 Hz |
| Frequency range | 10 Hz ... 200 Hz |
| Sensor | |
| Designation | PCE-VT 3xxxS |
| Housing | Stainless steel |
| Additional description | Resonant frequency: 24 kHz Transverse sensitivity: Δ 5% Destruction limit: 5000 g (peak) Mounting thread: ¼ - 28 UNF Operating/storage conditions: -55°C … +150°C |
| Dimension | Ø 29 x 91 mm |
| General technical data | |
| Number of measuring channels | 1 |
| Measuring functions | RMS, peak, Peak-peak, Crest factor |
| FFT | 0 |
| Units | metric, imperial |
| Connections additional information | Headphone socket 3.5 mm jack |
| Frequency | 10 ... 10000 Hz |
| Display type | LC colour display with backlight |
| Display size | 2,8 Inch |
| Standard(s) | ISO 10816-3 |
| Menu language | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Performance | 4,5 Wh |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Storage conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Dimensions ( L x W x H ) | 165 x 85 x 32 mm |
| Weight | 239 g |
