Order no.: PCE-UFM 25CU

HVAC Meter / HVACR Tester PCE-UFM 25CU

£ 1,050.00
£ 1,260.00
:
4250348733948
PCE-UFM 25CU
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

HVAC Meter / HVACR Tester / PoE and sensor with 9 m Ethernet cable / measurement of flow rate and volume flow via ultrasound / simple operation via 4 keys

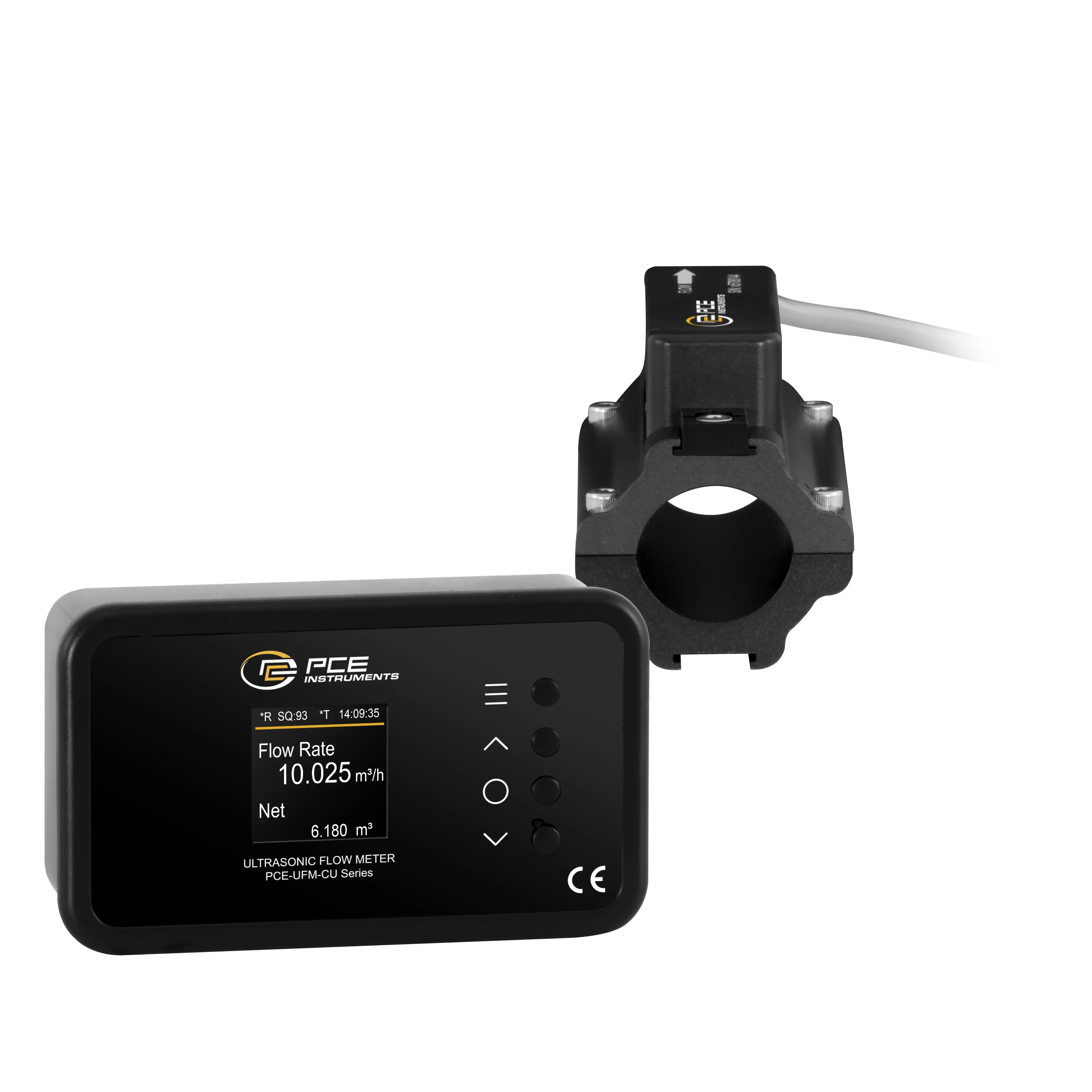

Our HVAC Meter / HVACR Tester enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on copper pipes with a diameter between 21 and 29 mm. The HVAC Meter / HVACR Tester of the PCE-UFM-CU series uses the ultrasonic transit time method to determine velocity and flow volume. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel.

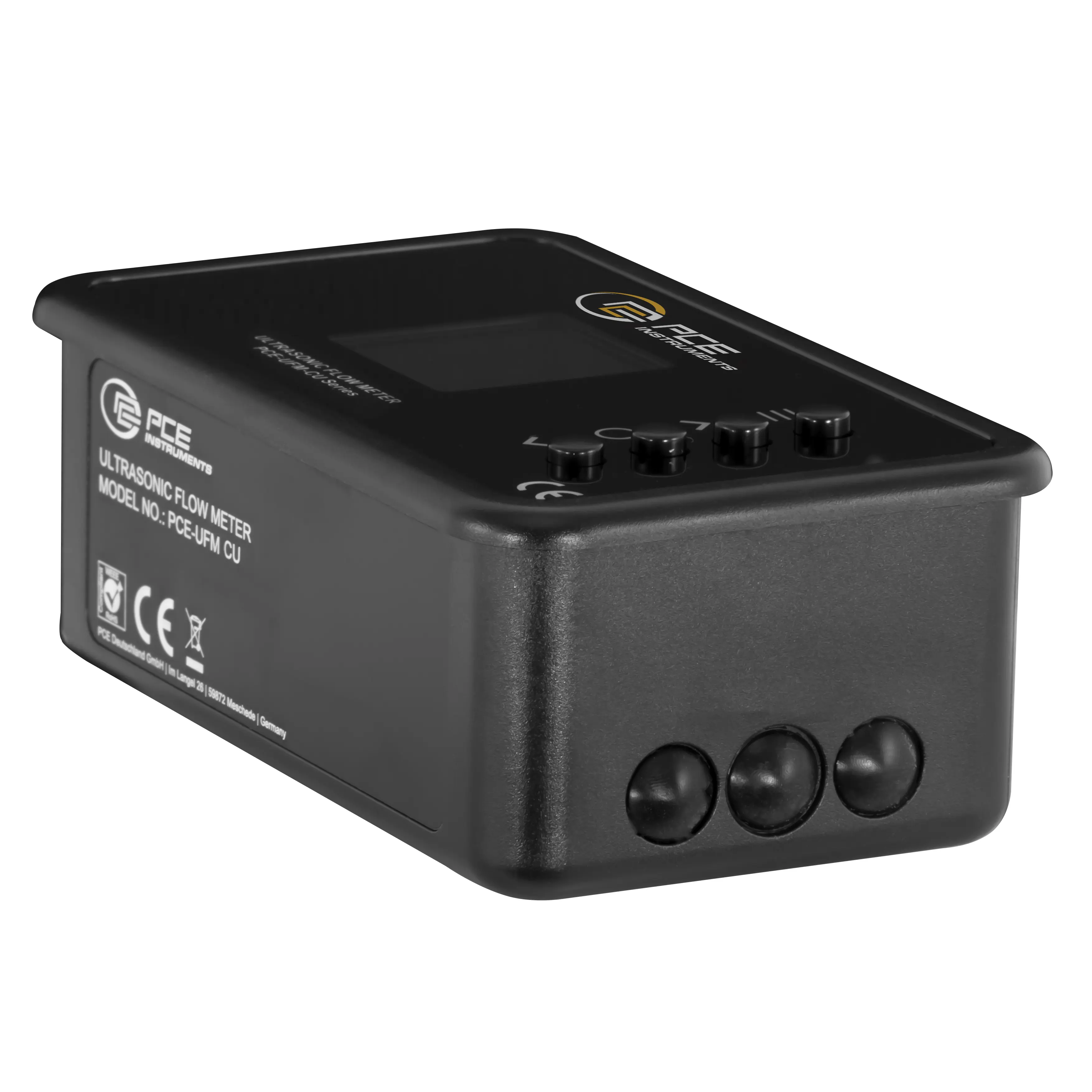

The HVAC Meter / HVACR Tester is equipped with a 360° rotatable display that can be pointed in four directions (0°, 90°, 180°, 270°). The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters. The flow unit can be selected between m³, l and gal.

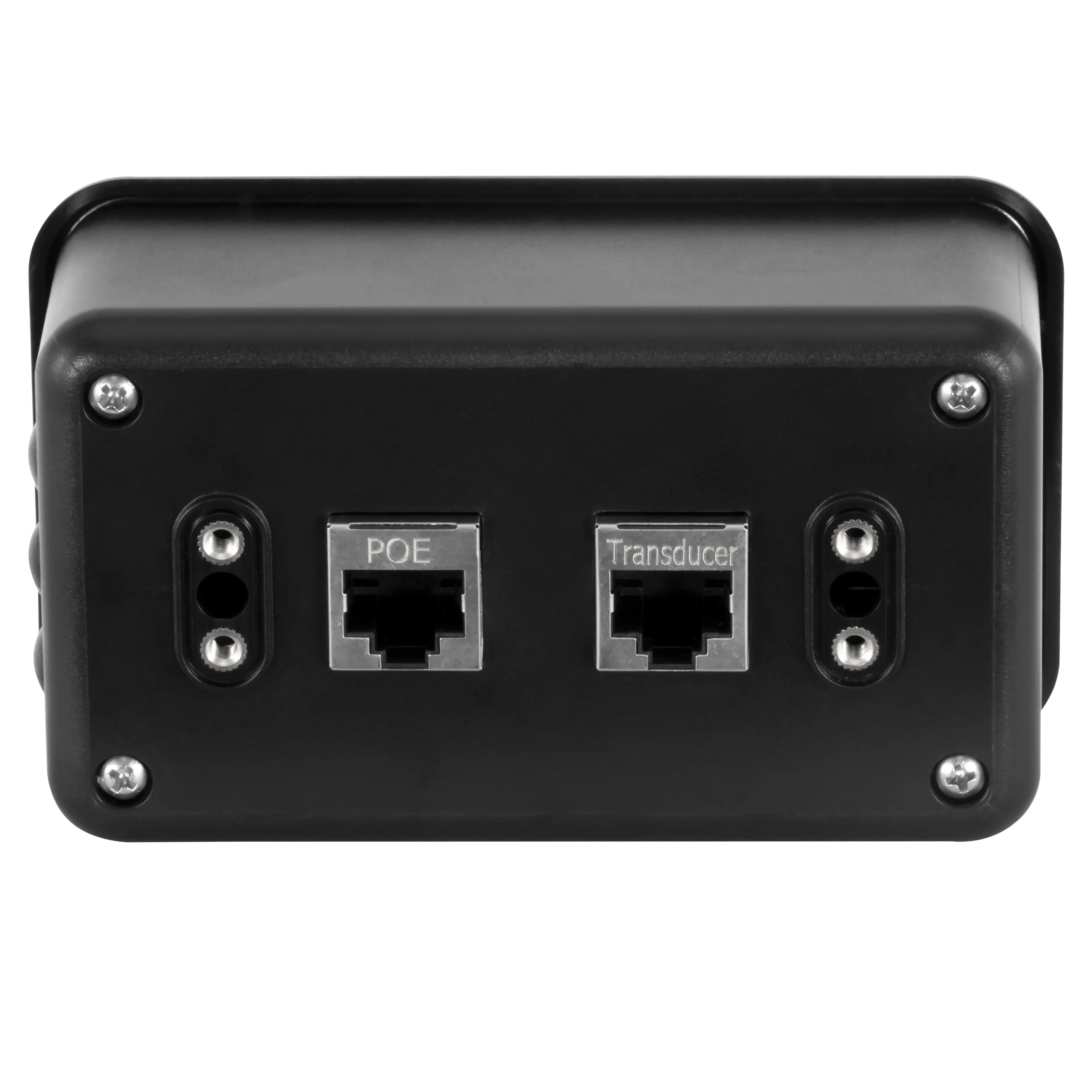

The HVAC Meter / HVACR Tester uses Power over Ethernet (PoE) for power supply and Ethernet communication to save data to the cloud. This allows users to access, manage and analyse their measurement data at any time and from any location via mobile devices or computers without interrupting production processes. In water and wastewater management, drinking water treatment or in industry, flow meters are used in processes where water is used as a coolant, cleaning agent or component of production processes. They help to optimise water consumption and control the process flow.


Highlights

- measurement range 0.03 ... 5 m/s
- display of flow velocity, volume flow
- pipe size: DN25 (21 ... 29 mm)
- pipe material: copper
- interface: Ethernet
- incl. reusable coupling pads

Specification

Speed
Measurement range up to  0,03 ... 5 m/s
Resolution  0.01 m/s
Accuracy  ±2 % of Rd (0.3 ... 5 m/s)

Speed
Measurement range up to  0,1 ... 16 ft/s
Resolution  0.1 ft/s
Accuracy  ±2 % of Rd (1.0 ... 16 ft/s)

Volume flow
Measurement range up to  0,05 ... 9 m³/h
Resolution  0,01 m³/h
Accuracy  ±2 % of Rd

General technical data
Display type  LC colour display
Display size  1,44 Inch
Display resolution  128 x 128
Interface  Ethernet, PoE
Materials  Copper
Measured medium  Water
Repeatability  0,2 %
Communication  HTTP, MQTT
Menu language  English, Chinese, English (GB)
Protection class (device)  IP54
Power supply  PoE
Connector type  RJ45
Weight  841 g
Operating conditions  -10 ... 50 °C , 0 ... 99 % RH
Storage conditions  -10 ... 50 °C , 0 ... 99 % RH
Dimensions ( L x W x D )  65 x 111 x 43 mm

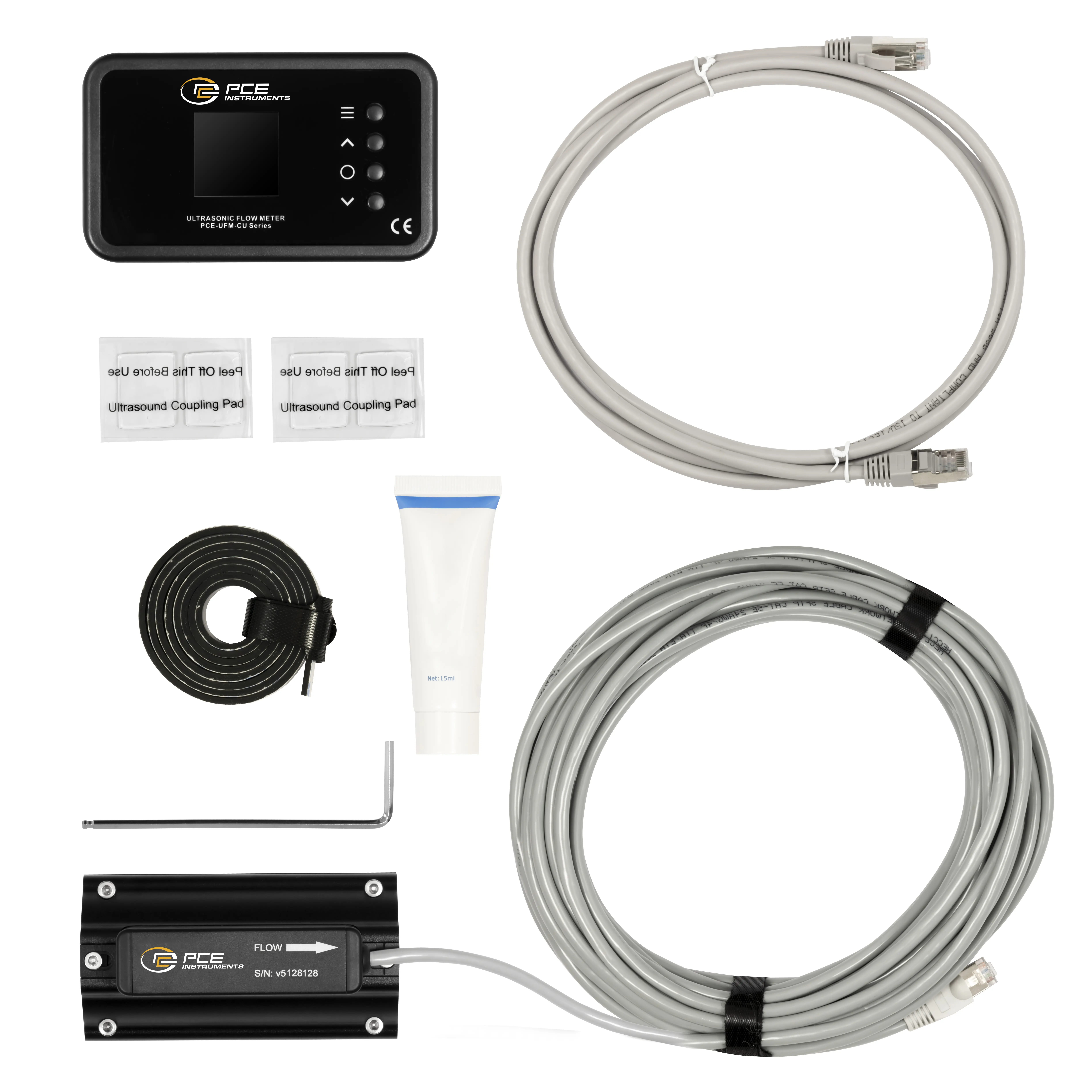

Delivery Scope

1 x HVAC Meter / HVACR Tester PCE-UFM 25CU
1 x sensor with Ethernet cable 9 m
1 x PoE network cable 2 m
1 x ultrasonic contact gel
1 x silicone seal 1 m
4 x coupling pad
1 x Allen key
1 x user manual
Note: The Android app "dial Meter Tube" can only be downloaded from our shop,
under Downloads!
