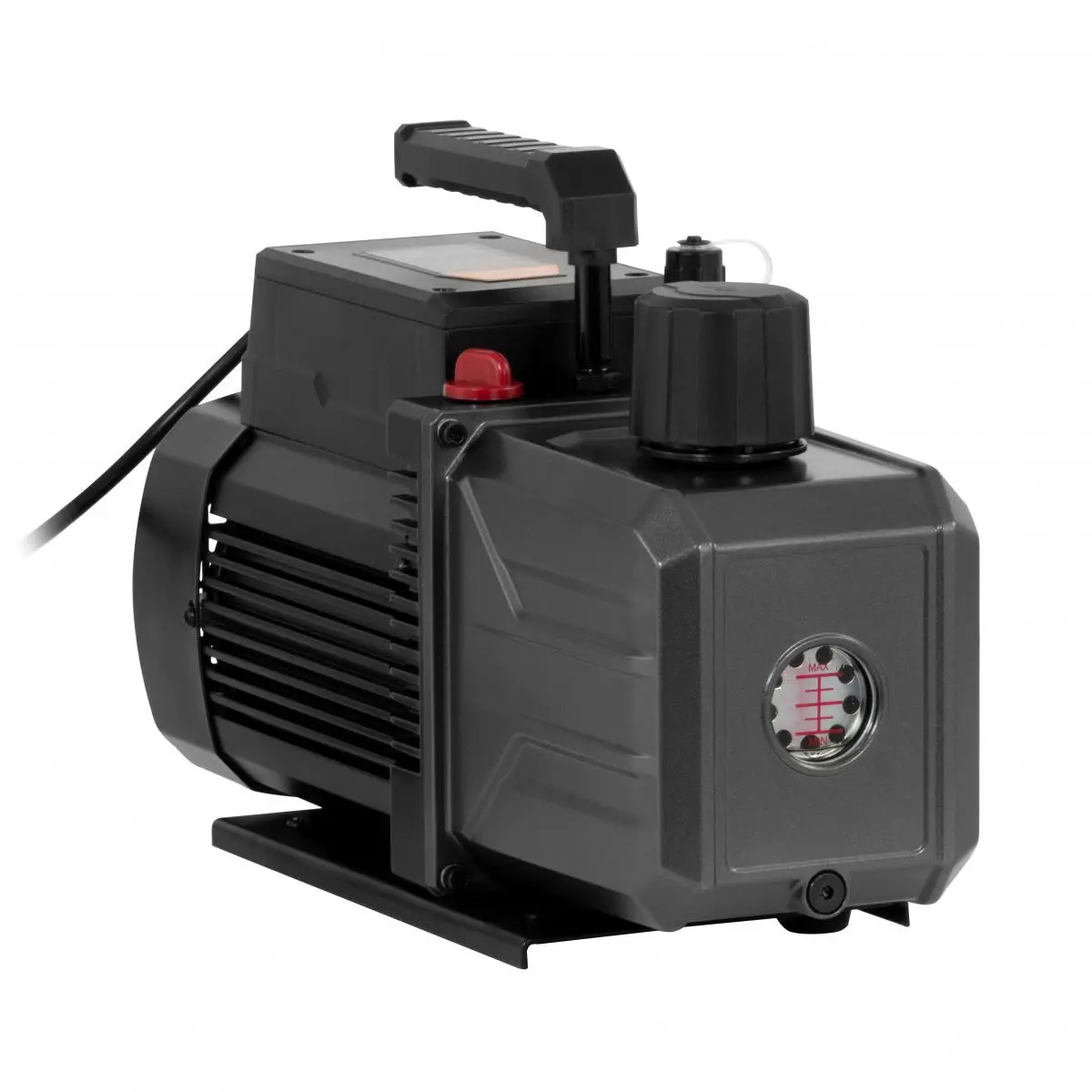

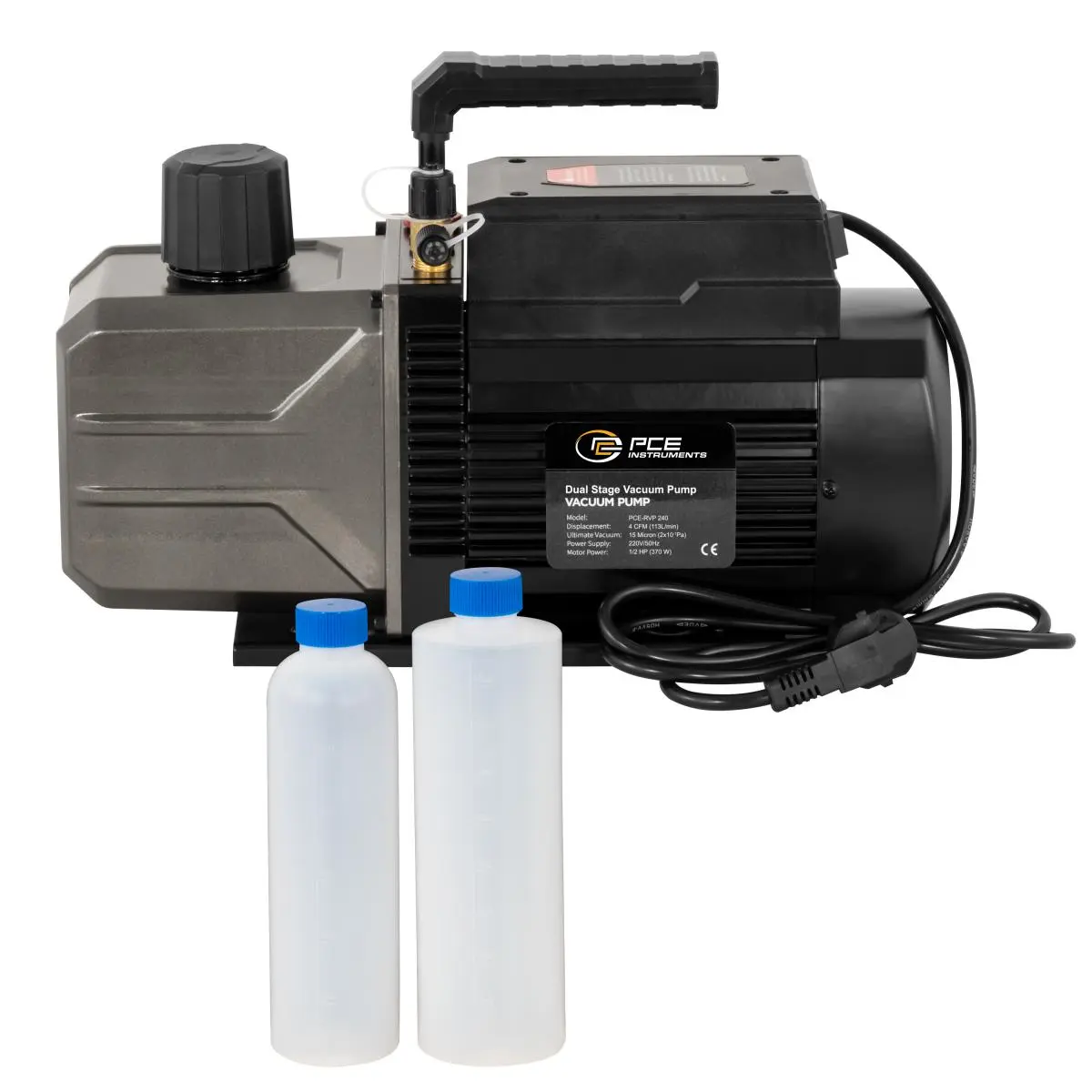

The HVAC Meter / HVACR Tester is equipped with a reliable motor that provides sufficient torque for stable operation. The motor power is 0.51 hp (370W) and ensures efficient and reliable performance. With a flow rate of 113 ... 135 l/min, the HVAC Meter / HVACR Tester can quickly evacuate air and moisture from air conditioning systems, cooling systems or heat pumps.

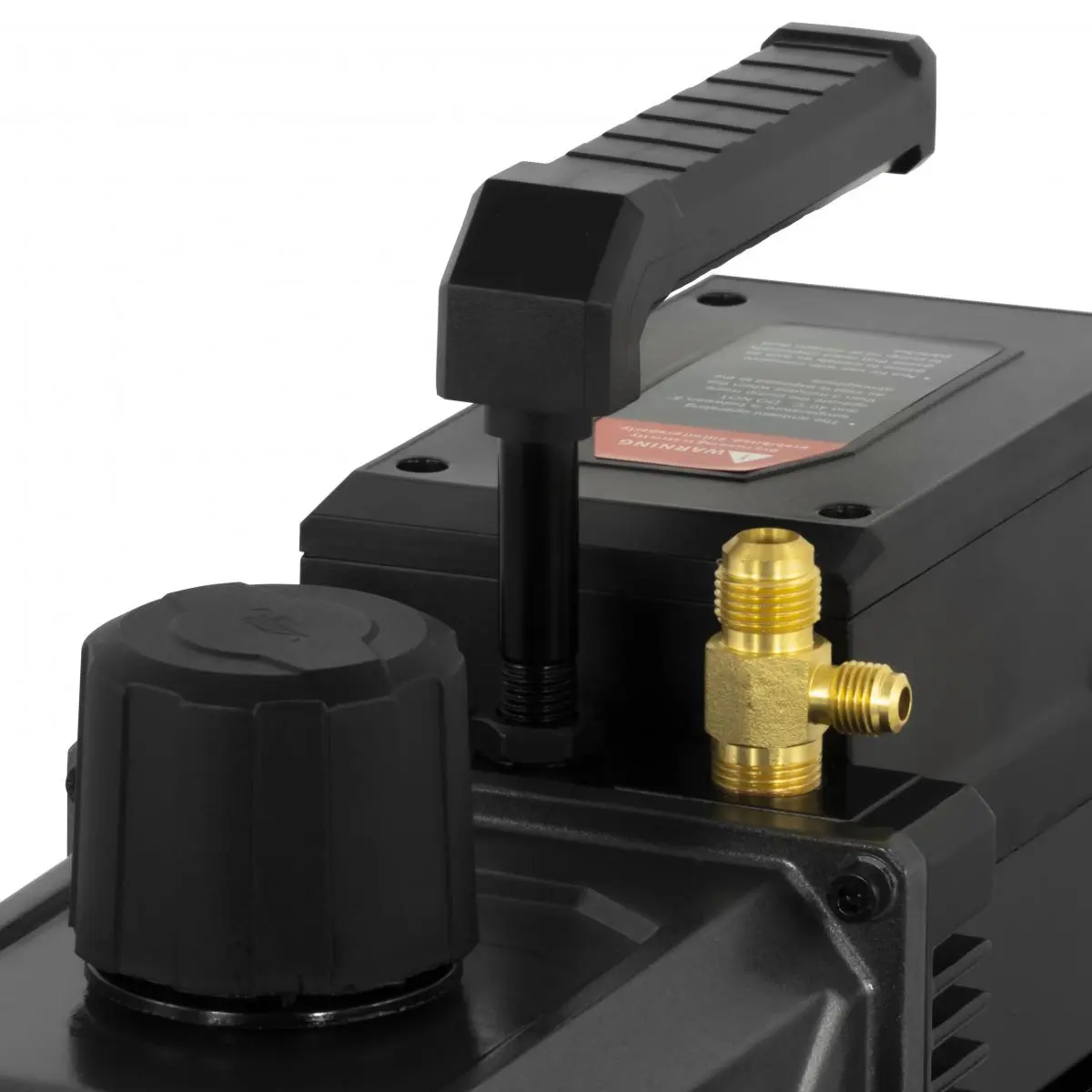

The HVAC Meter / HVACR Tester has 1/4 inch and 3/8 inch connections, which increases its versatility and adaptability to different refrigerant hoses and applications. An integrated filter element reduces oil mist, extends the service life of the HVAC Meter / HVACR Tester and ensures a cleaner working environment. The ergonomic rubber handle facilitates transport and handling.
The HVAC Meter / HVACR Tester removes air and moisture from the system before refrigerant is charged, improving the efficiency and service life of the system.
| General technical data | |
| Cable length | 130 cm |
| Connections | 1/4 inch SAE, 3/8 inch SAE |
| Motor power | 0,51 PS |
| Oil capacity | 410 ml |
| Ultimate vacuum | 0,02 mbar |
| Flow rate | 113 ... 135 l/min |
| Protection class (device) | IP20 |
| Power supply | 220 V AC | 50 Hz |
| Connector type | Schuko plug |
| Operating conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Storage conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Dimensions ( L x W x H ) | 335 x 130 x 250 mm |
| Weight | 10153 g |
