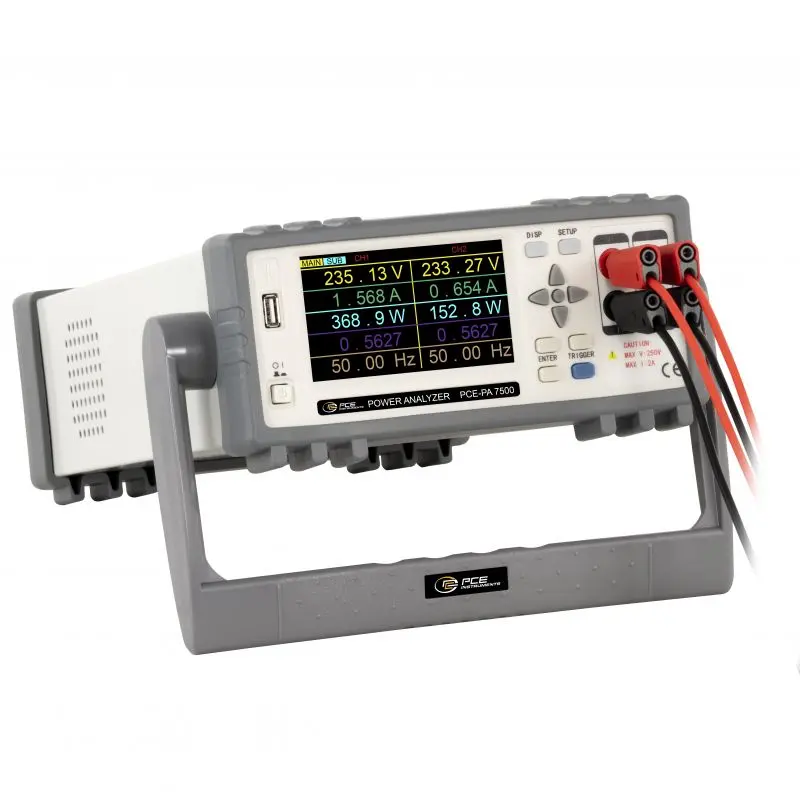

HVAC Meter 2-Channel PCE-PA 7500

Order no.: PCE-PA 7500

GTIN (EAN): 4250348732255

Accessory

Calibration Certificate CAL-PCE-PA

£ 429.00

Description

2-Channel HVAC Meter for Measuring Current, Voltage, Power, and Consumption / Power Measurement Range 0.1 ... 5000 W / Current 0.001 ... 20 A AC / Color Display with Switchable View / Includes Safety Measurement Cables

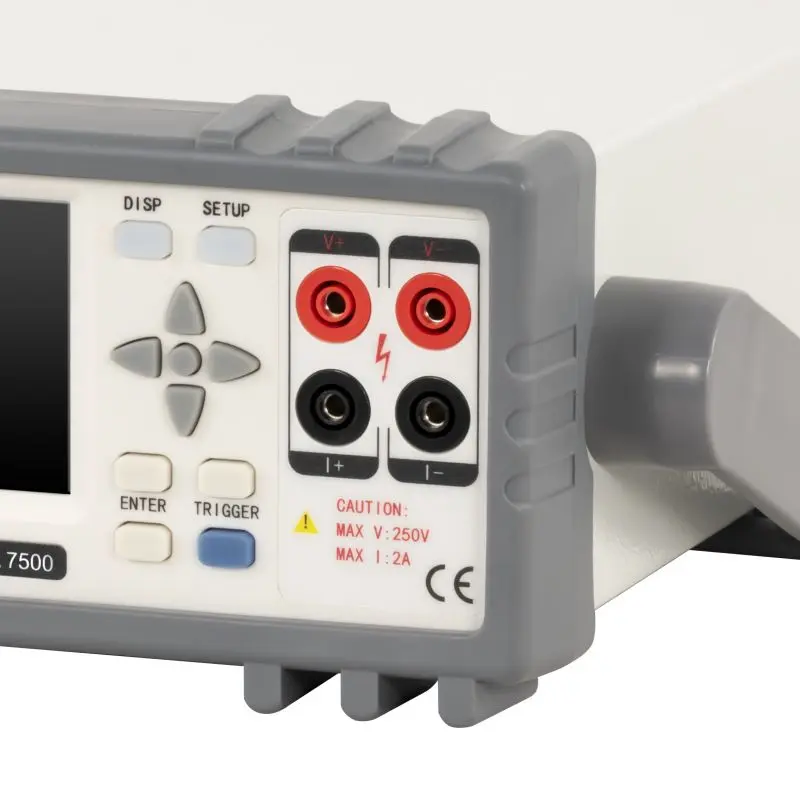

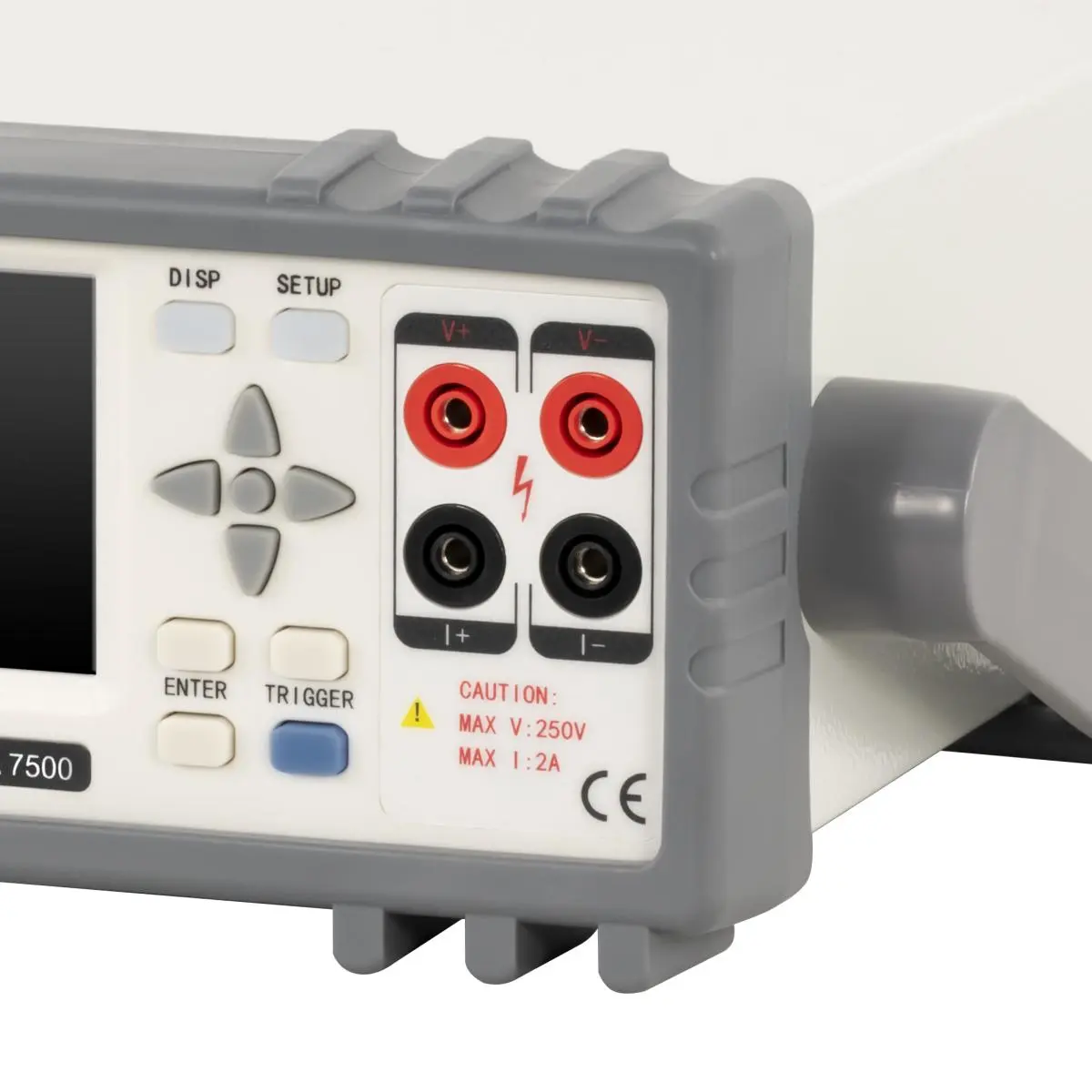

The HVAC meter is designed for accurate measurement and analysis of parameters such as power consumption and quality. The power meter has 2 input channels for measuring voltage, current, active power, power factor, frequency, and energy consumption in kWh. In addition to the color display, the HVAC meter has additional input jacks for measurements up to 2 A. The measurement range of 0.1 ... 5000 W allows power measurement for many consumers in industry and crafts. The HVAC meter has a current measurement range of 0.001 ... 20 A AC with a resolution of 1 mA.

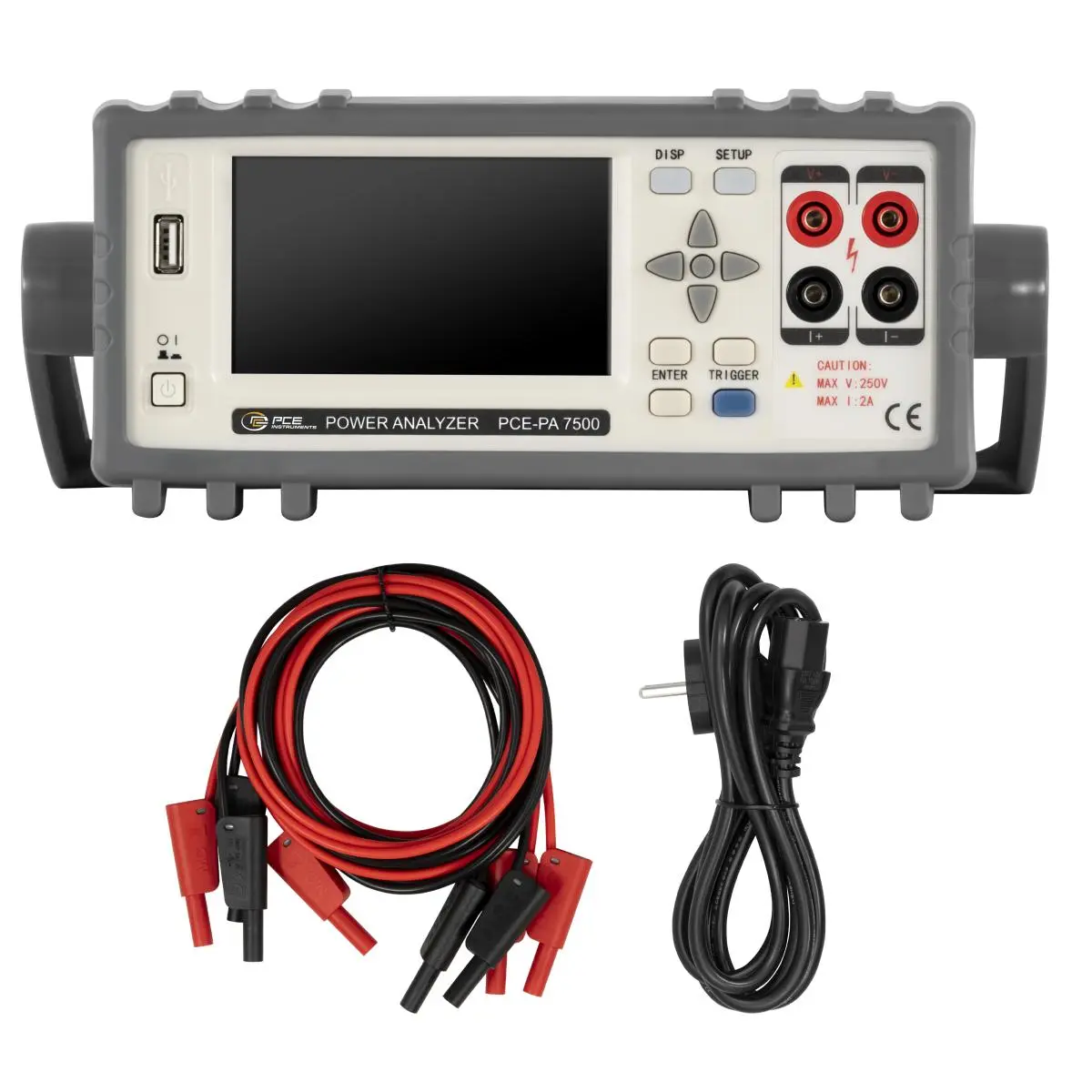

In the settings of the HVAC meter, an alarm value can be set for the power and current value, which gives an audible warning when exceeded. The HVAC meter comes with 4 safety measurement cables, and the measurement jacks are also protected against electric shock to enable the operator to measure safely. The power meter can be used in the laboratory on the table as well as in industrial environments, thanks to the adjustable stand bracket.

Highlights

- Power Measurement Range: 0.1 ... 5000 W

- Current Measurement Range: 0.001 ... 20 A AC

- Frequency, Power Factor, Energy

- Accuracy: ±(0.4% of measured value + 0.1)

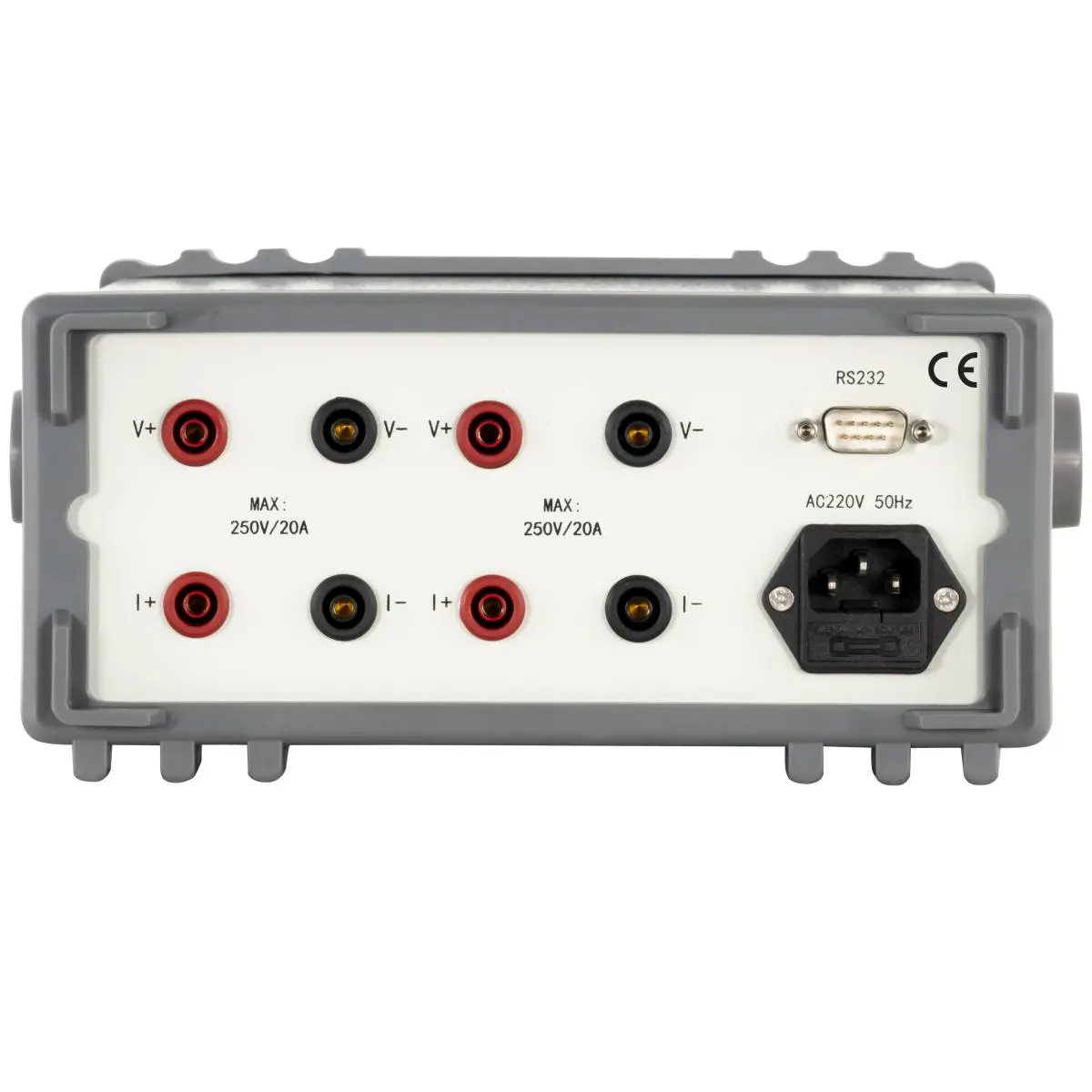

- 2 Input Channels

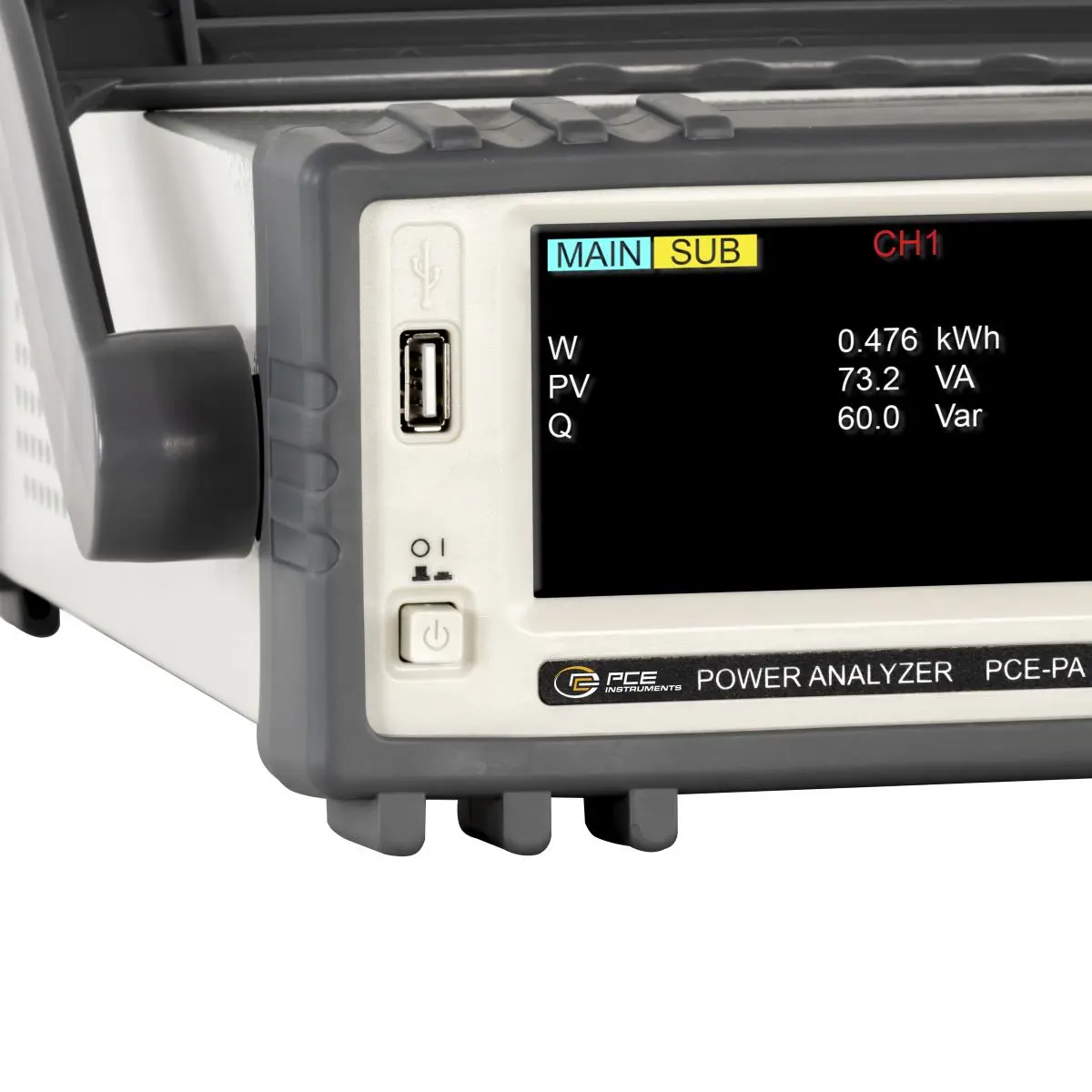

- Color Display

Specification

AC voltage
Measuring range	2 ... 250 V
Resolution	0,01 V
Accuracy	±(0.4 % of Rd +0.1)

Alternating current AC
Measuring range	0,001 ... 20 A
Resolution	0,001 A
Accuracy	±(0.4 % of Rd +0.1)

Active power
Measuring range	0,1 ... 5000 W
Resolution	0,1 W
Accuracy	±(0.4 % of Rd +0.1)

Power factor
Measuring range	0,001 ... 1
Resolution	0.0001

General technical data
Number of measuring channels	3
Cable length	2 m
Frequency	10 ... 100 Hz
Display type	TFT colour display
Display size	4,3 Inch
Measuring method	Trms
Measuring interval from	0,1 s
Measuring interval to	5 s
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
Power supply	100 ... 240 V AC
Connector type	Cold-device plug
Operating conditions	0 ... 40 °C , 0 ... 93 % RH
Storage conditions	0 ... 55 °C , 0 ... 93 % RH
Dimensions ( L x W x H )	355 x 265 x 110 mm
Weight	2870 g
