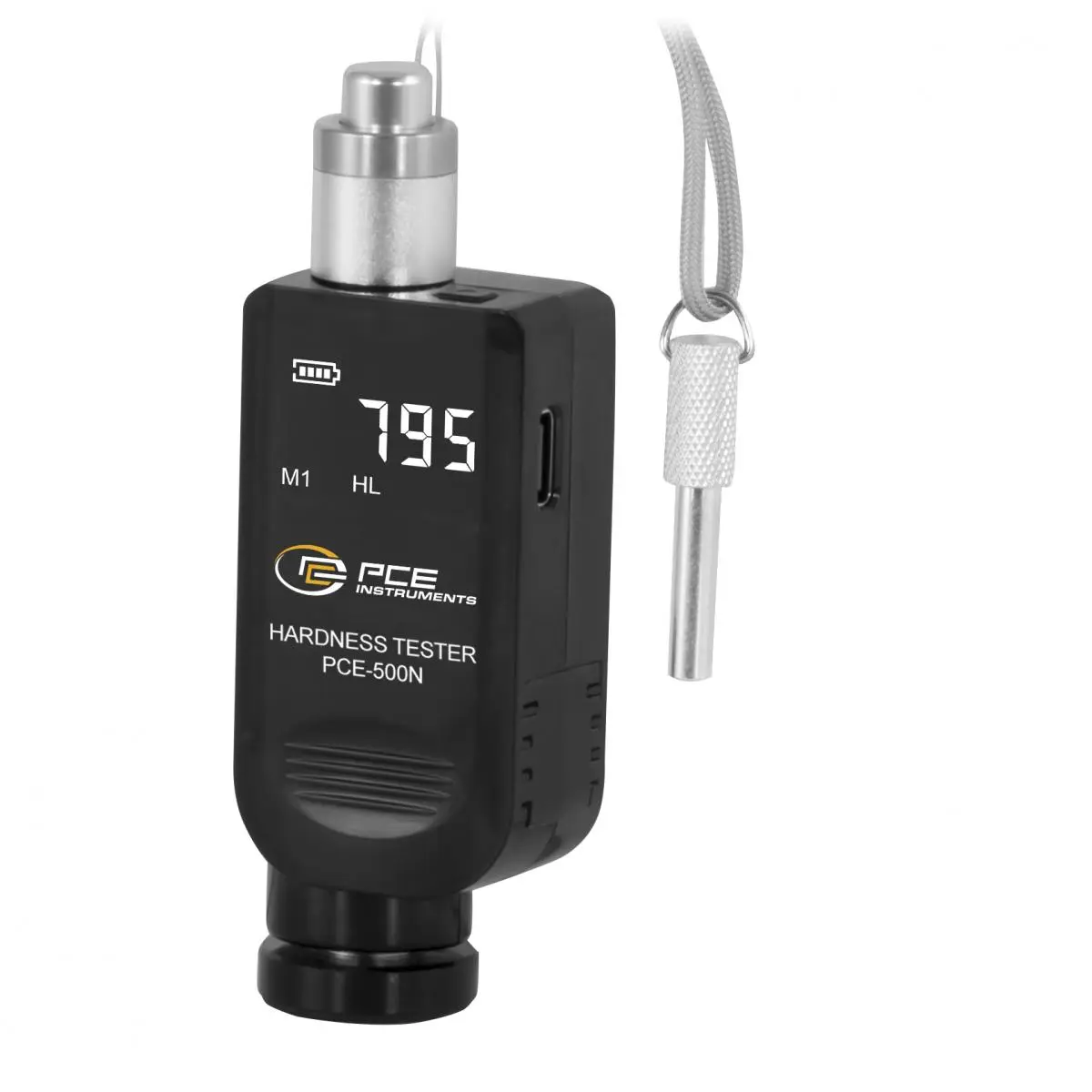

Hardness Tester PCE-500N

Hardness Tester PCE-500N

Order no.: PCE-500N
GTIN (EAN): 4250348739179
£ 468.00
£ 561.60
price ex. (VAT / delivery)
:
4250348739179
PCE-500N
Delivery time:1-2 working days

Description

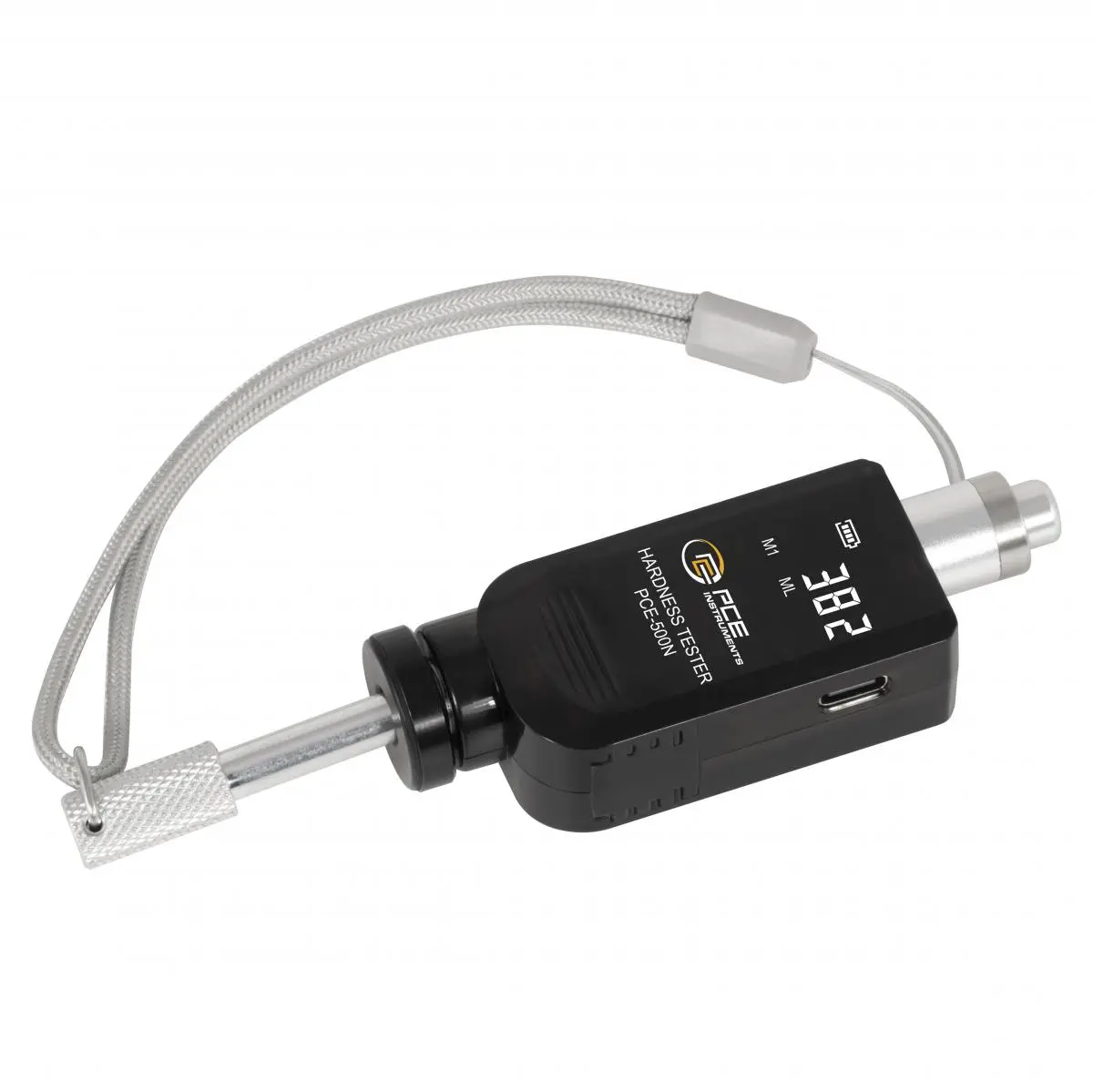

Hardness Tester for metallic materials / Type D impact tester / Automatic switch-off / Software / Compact and handy

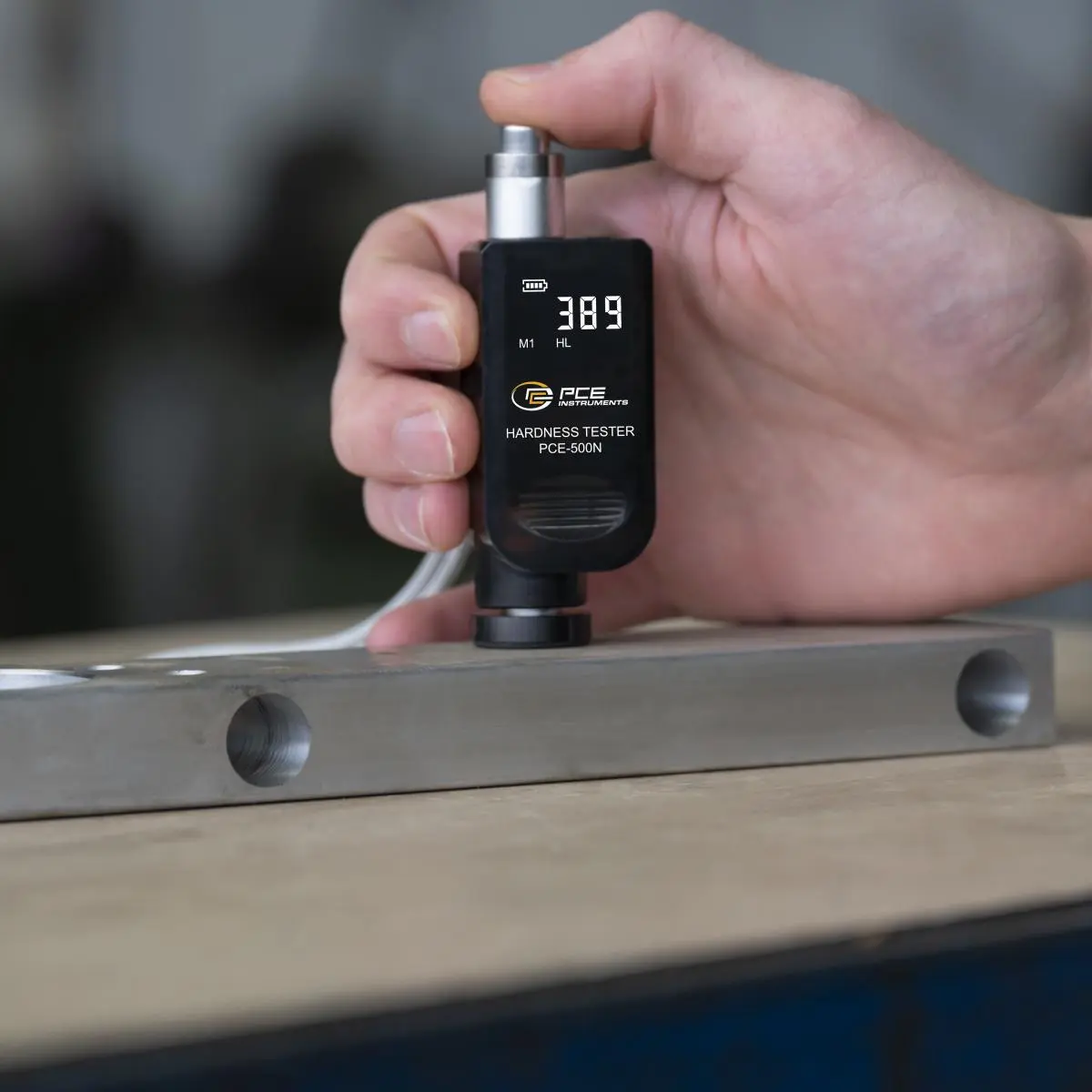

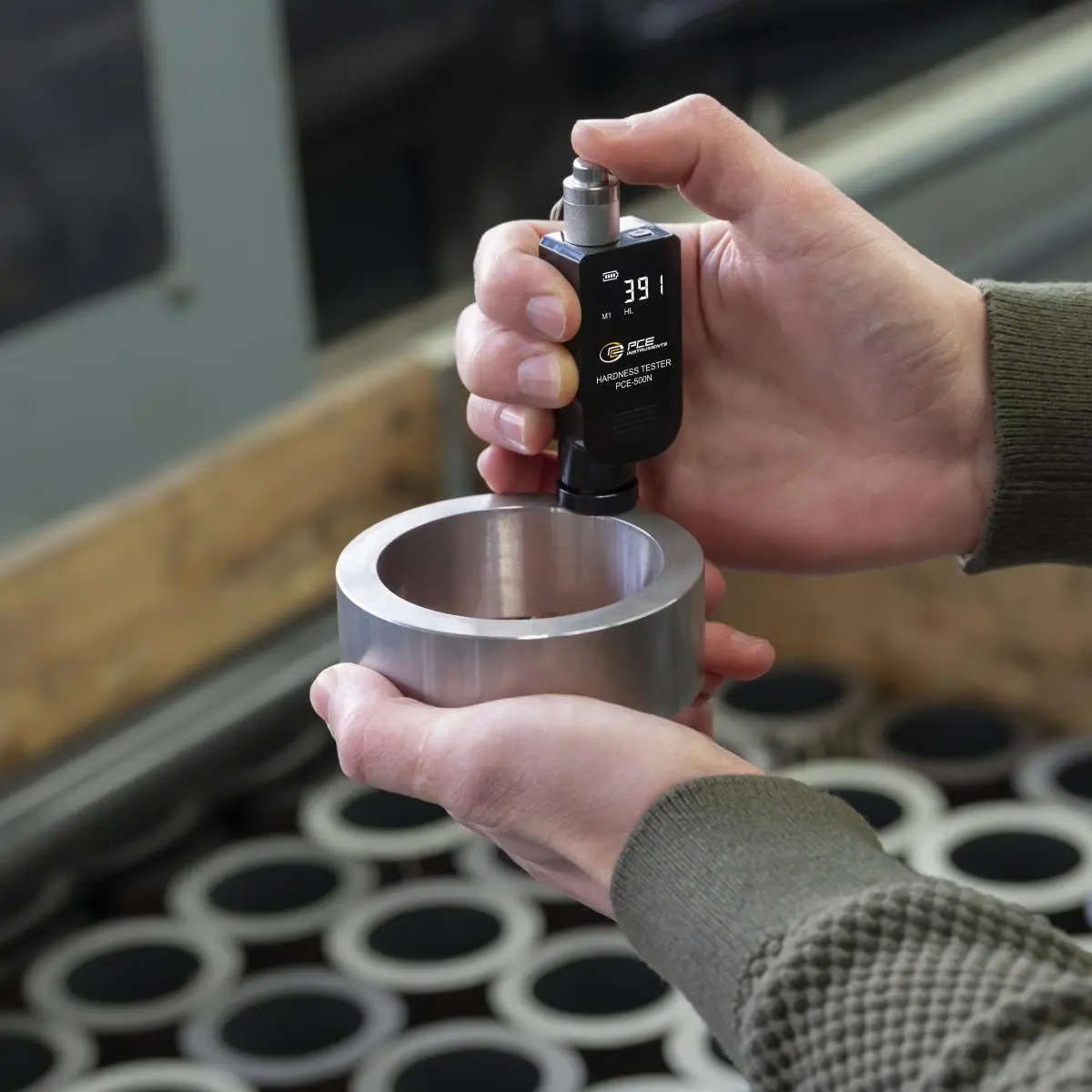

A Hardness Tester is used to reliably determine the hardness of materials, for example, in quality control or during material testing in the laboratory. The Hardness Tester is compact and suitable for small and medium-sized metal parts. The Hardness Tester can test materials such as aluminum, aluminum-copper alloys, brass, bronze, copper, low-alloy copper, forged copper alloys, stainless steel, steel, forged steel, cast iron, cast steel, grey cast iron, ductile cast iron, and alloyed tool steel. The measurement is carried out with a type D impact device that touches the surface. The hardness values are automatically transferred to the connected software, where they are recorded and evaluated. Settings on the device are made exclusively via the software. The recorded measurement data can be exported directly from the software as an XLS or PDF file. In addition, an upper and lower limit can be set in the software, which highlights the result in color if it is exceeded. The device also has an automatic shut-off function after 220 seconds. Common hardness scales such as HRC, HRB, HRA, HB, HV, HS, HL, and MPa are supported. The Hardness Tester is mainly used by testing laboratories, manufacturing companies, and workshops to check smaller metal parts and document the measurement results via software.


Highlights

- Determines all common hardness scales
- High accuracy/repeatability

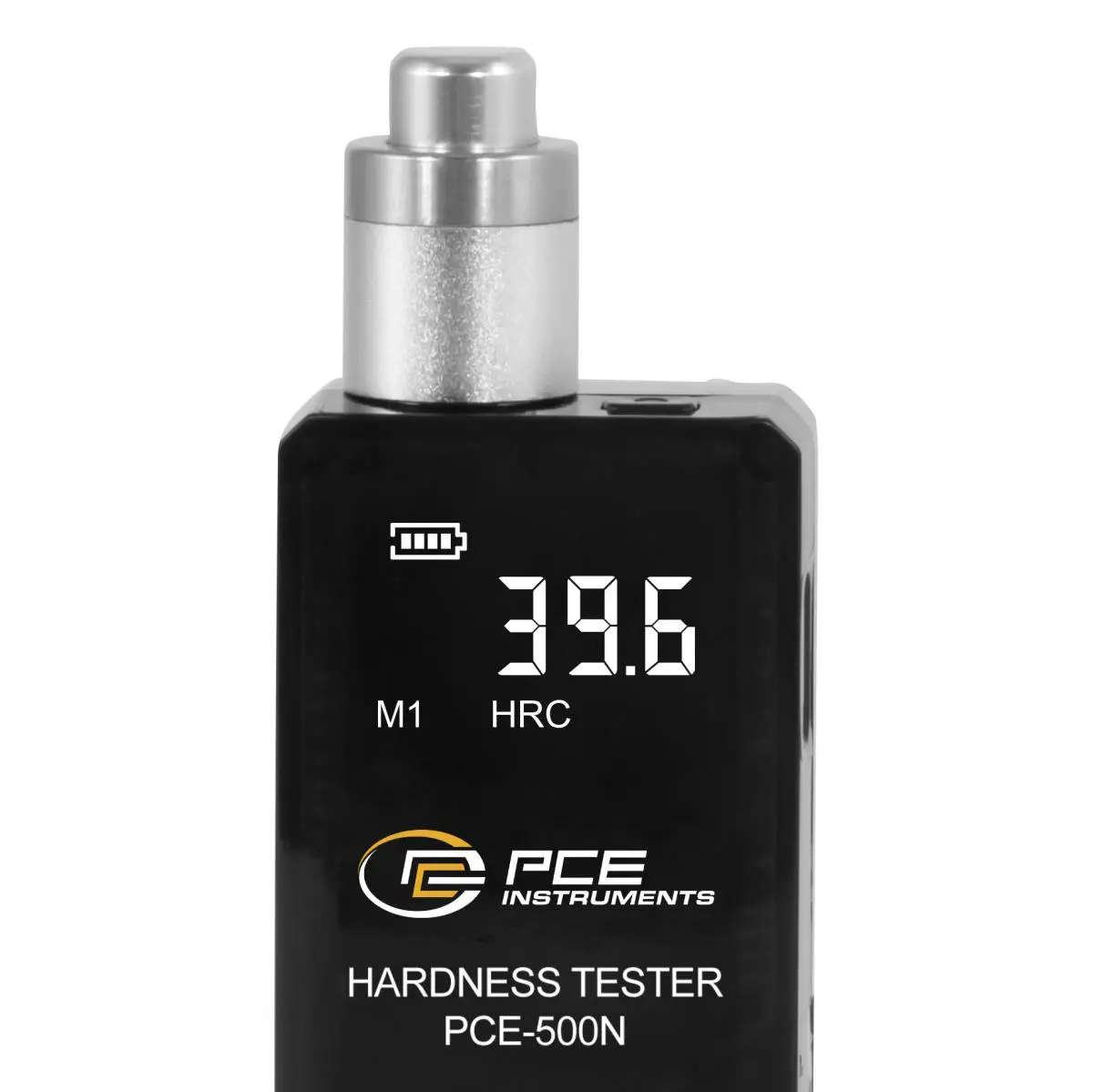

- LCD display
- Current measured value
- Measurement possible in various positions
- Measurement on many materials

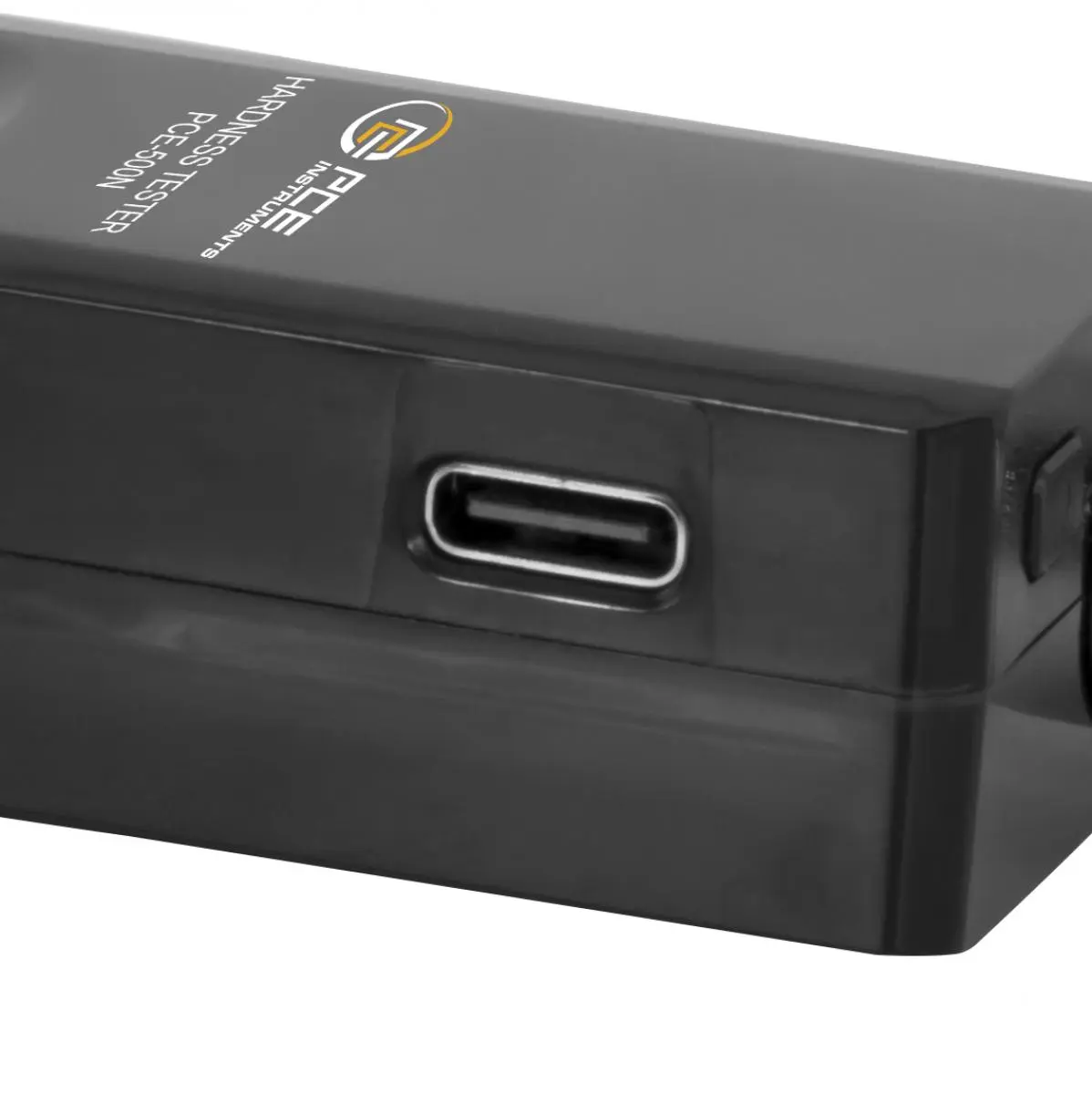

- USB-C interface for charging/PC software
- Rechargeable lithium-ion battery
- Charging via micro-USB C cable
- Portable, lightweight design

Specification

Hardness
Measurement range up to  170 ... 960 HL
Resolution  1 HL
Accuracy  ±0.3% @ 800 HL

Hardness
Measurement range up to  1 ... 74 HRC
Resolution  0,1 HRC
Accuracy  ±0.3%

Hardness
Measurement range with  140 HRB
Resolution  0,1 HRB
Accuracy  ±0.3%

Hardness
Measurement range up to  7 ... 88,5 HRA
Resolution  0,1 HRA
Accuracy  ±0.3%

Hardness
Measurement range up to  18 ... 1027 HB
Resolution  1 HB
Accuracy  ±0.3%

Hardness
Measurement range up to  42 ... 1220 HV
Resolution  1 HV
Accuracy  ±0.3%

Hardness
Measurement range up to  3,9 ... 112 HS
Resolution  1 HS
Accuracy  ±0.3%

Hardness
Measurement range up to  89 ... 3300 MPa
Resolution  1 MPa
Accuracy  ±0.3%

General technical data
Measuring functions  Average value
Measuring principle  Rebound method
Display type  LCD with backlight
Display size  1,1 Inch
Storage medium  About software
Interface  USB-C
Automatic power-off  220 s

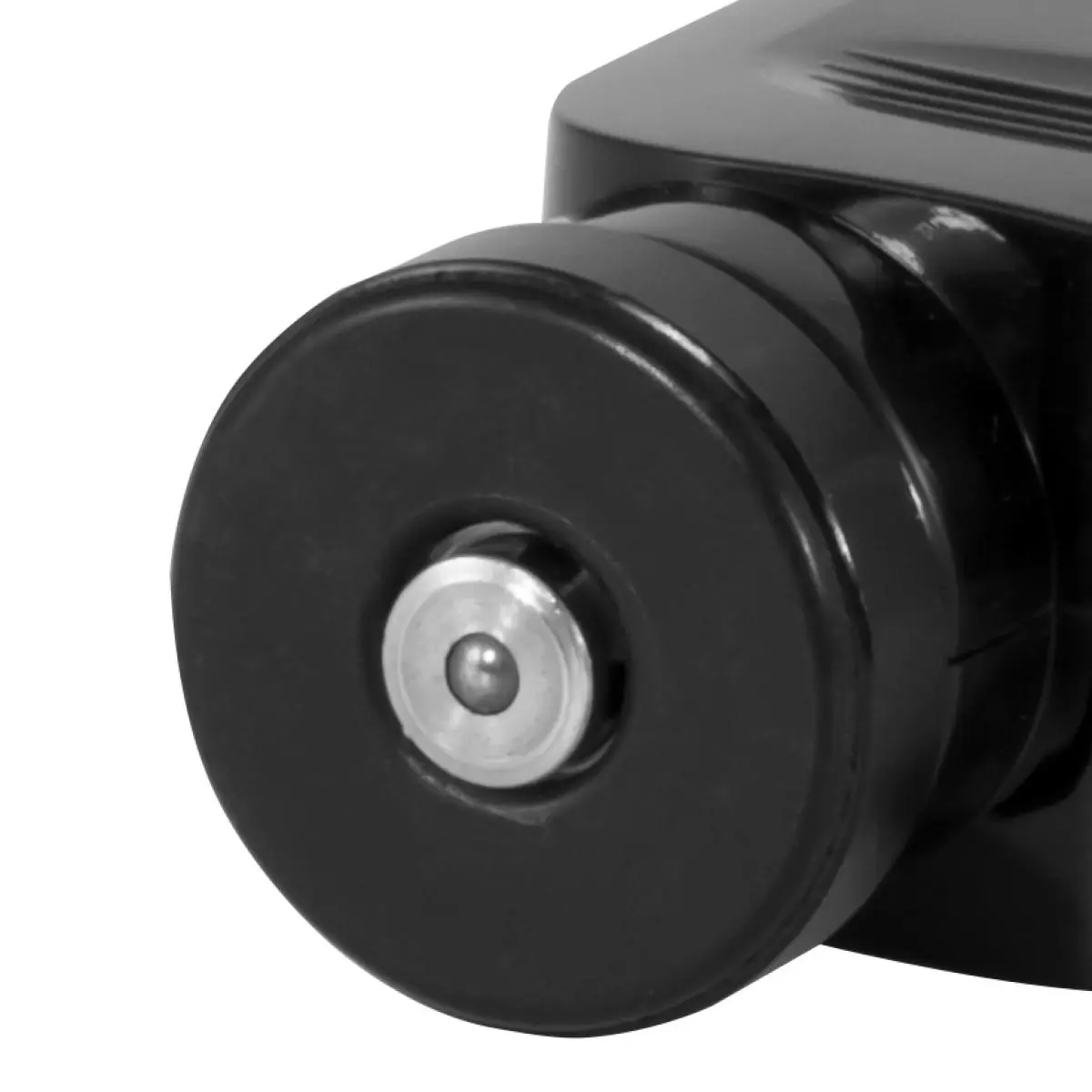

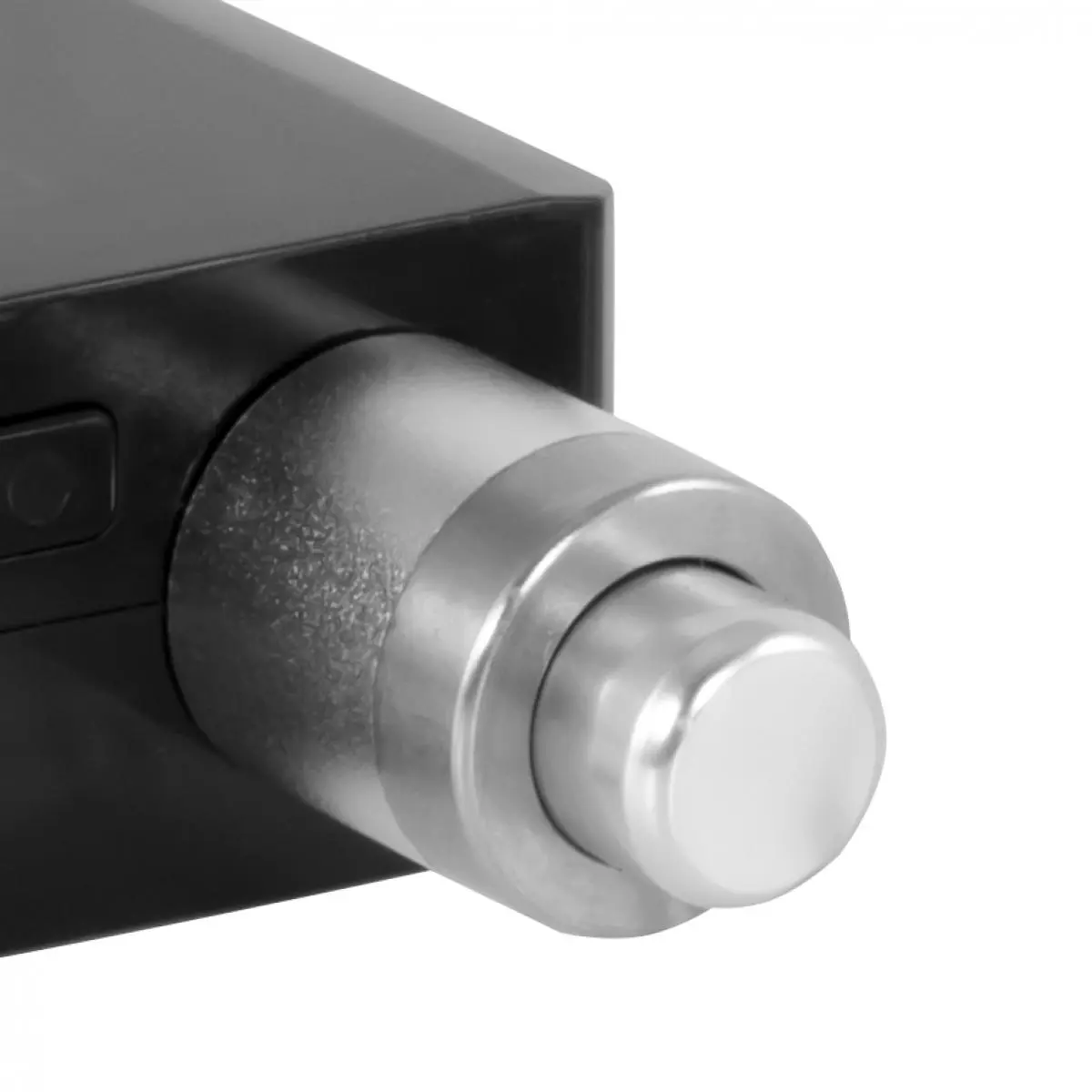

Impact device  D-type
Hardness scales  HRC, HRB, HRA, HB, HV, HS, HL, MPa
Repeatability  ±2 HL
Additional description  Settings such as changing the unit can only be adjusted via the software
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5V DC / 0.5 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Operating conditions  -20 ... 45 °C , 20 ... 80 % RH
Storage conditions  -20 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  88 x 30 x 18 mm
Weight  56 g

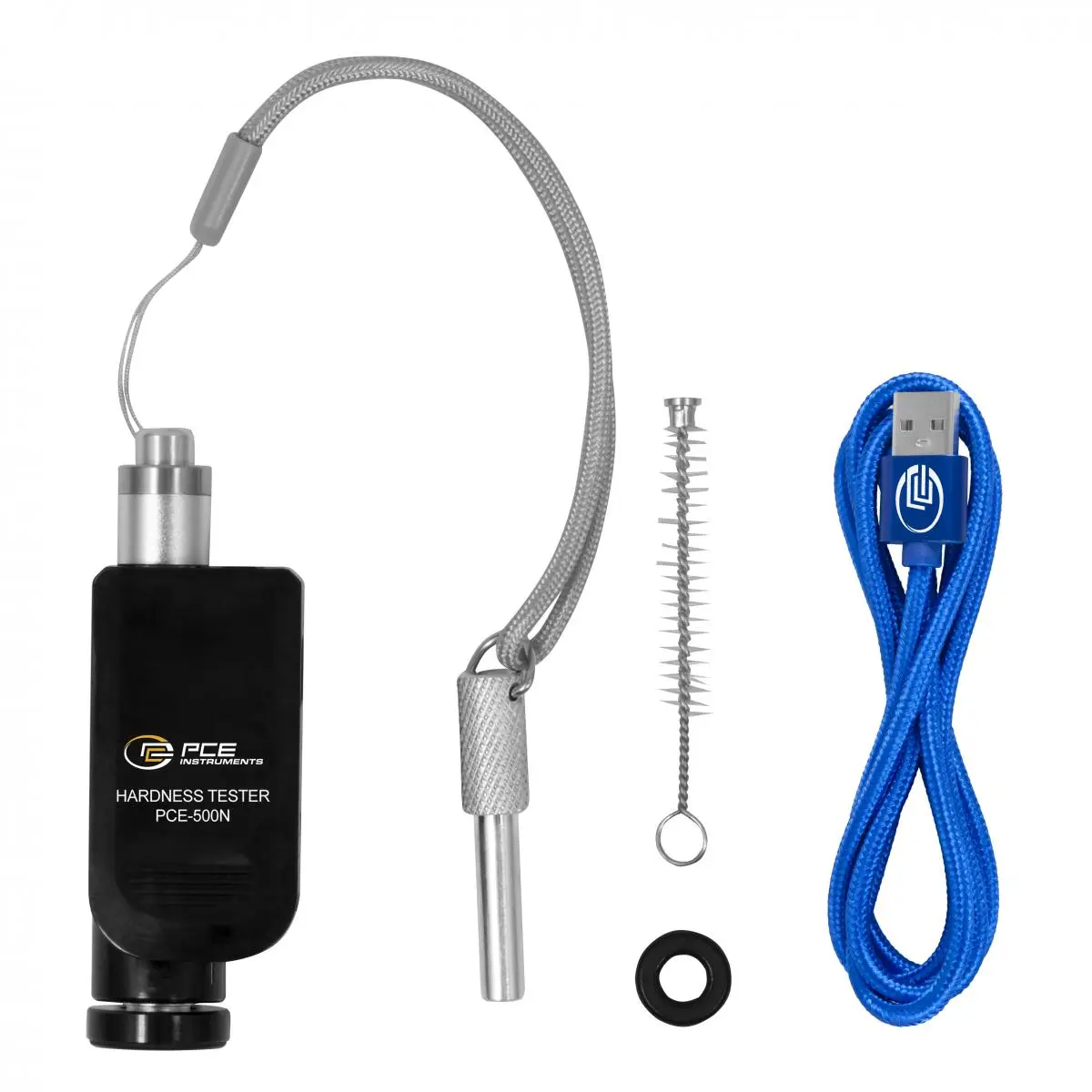

Delivery Scope

1 x PCE-500N Hardness Tester
1 x USB-C cable
1 x Cleaning brush
1 x Small support ring

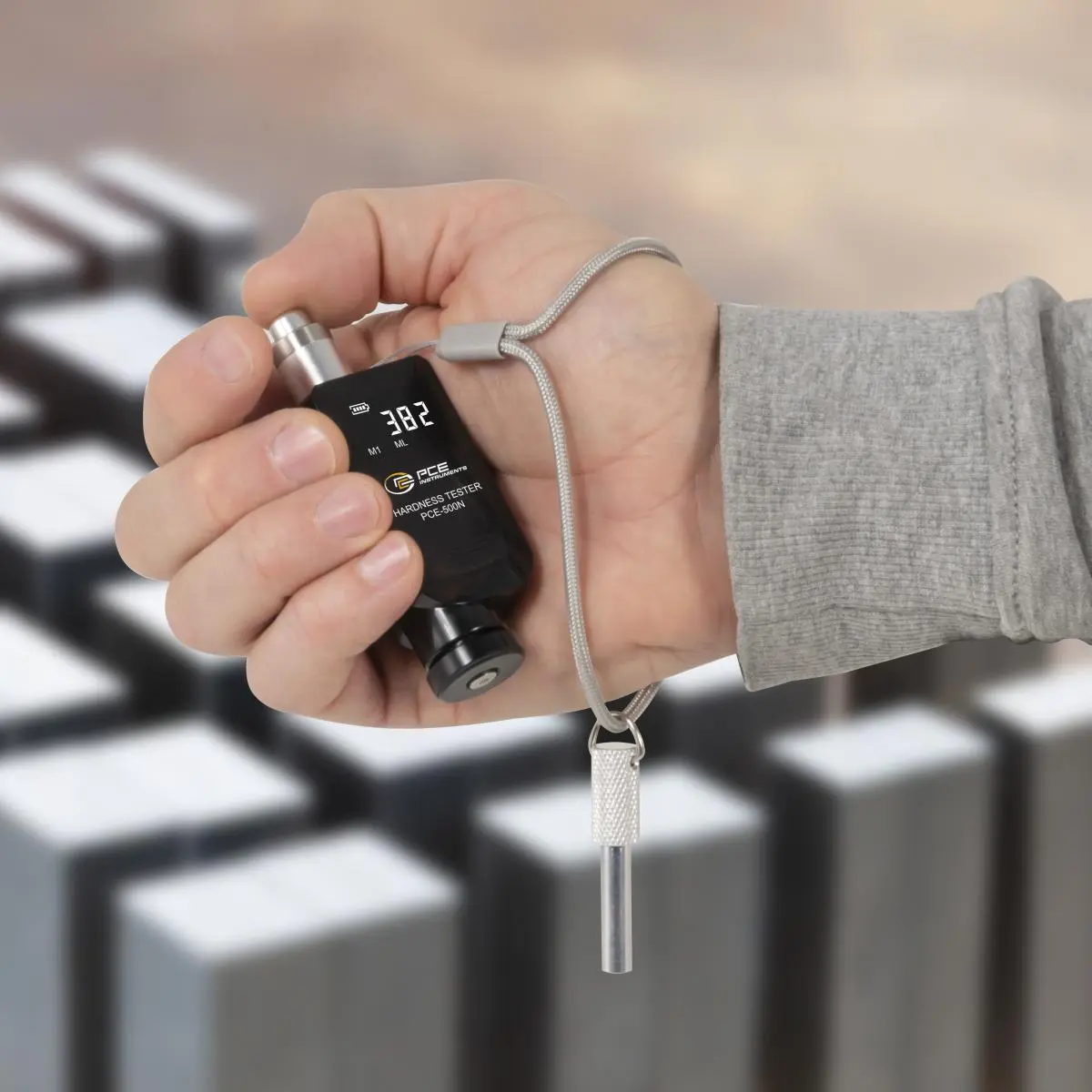

1 x Hand strap
1 x Carrying case

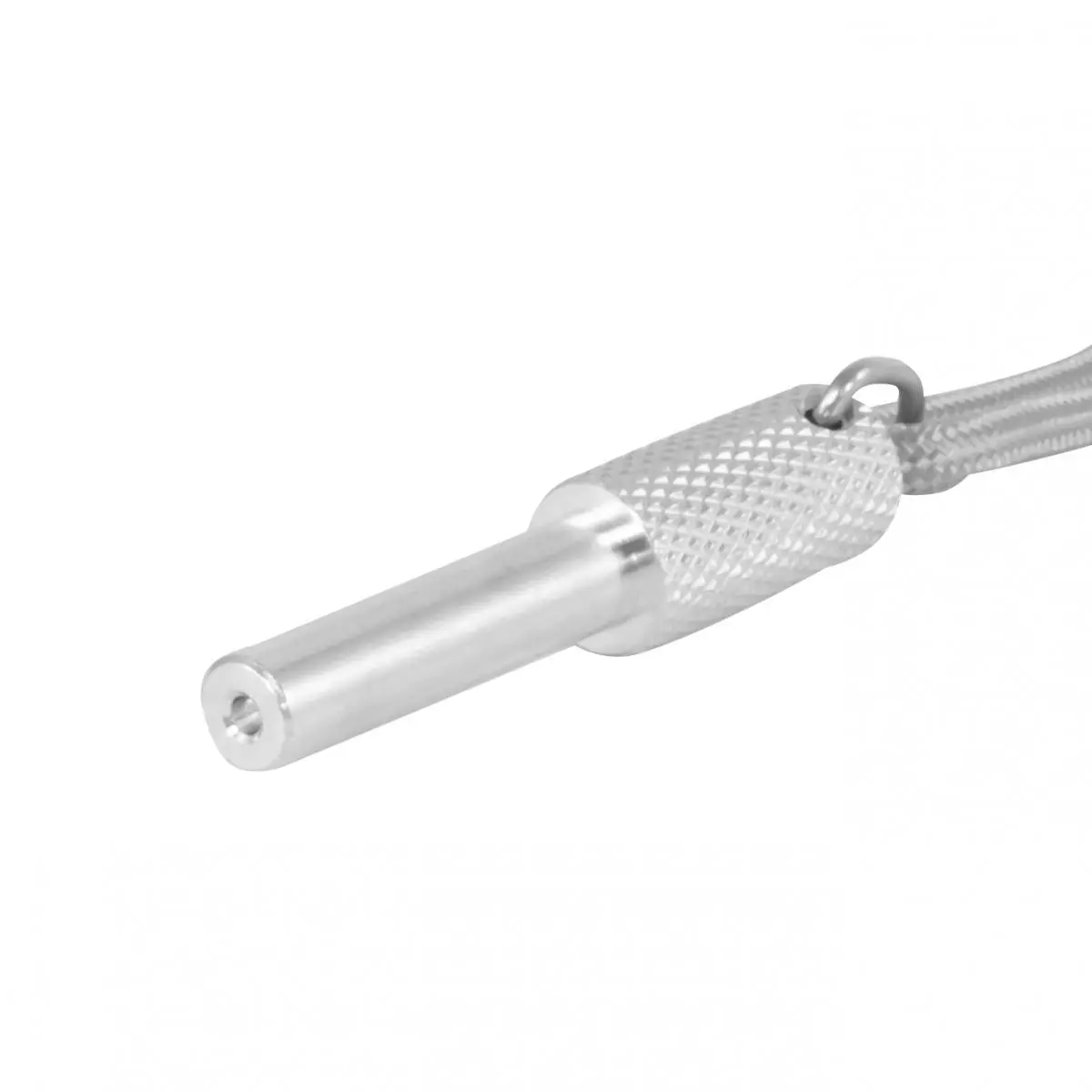

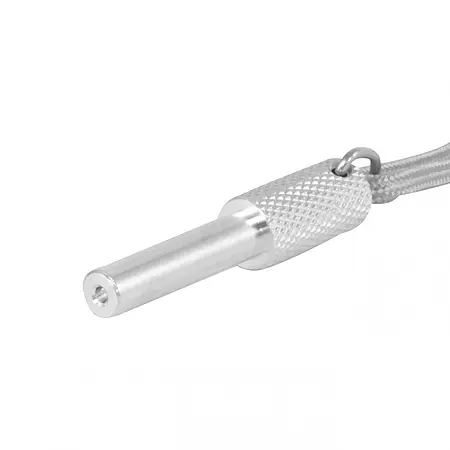

2 x Metal pins
1 x User manual
