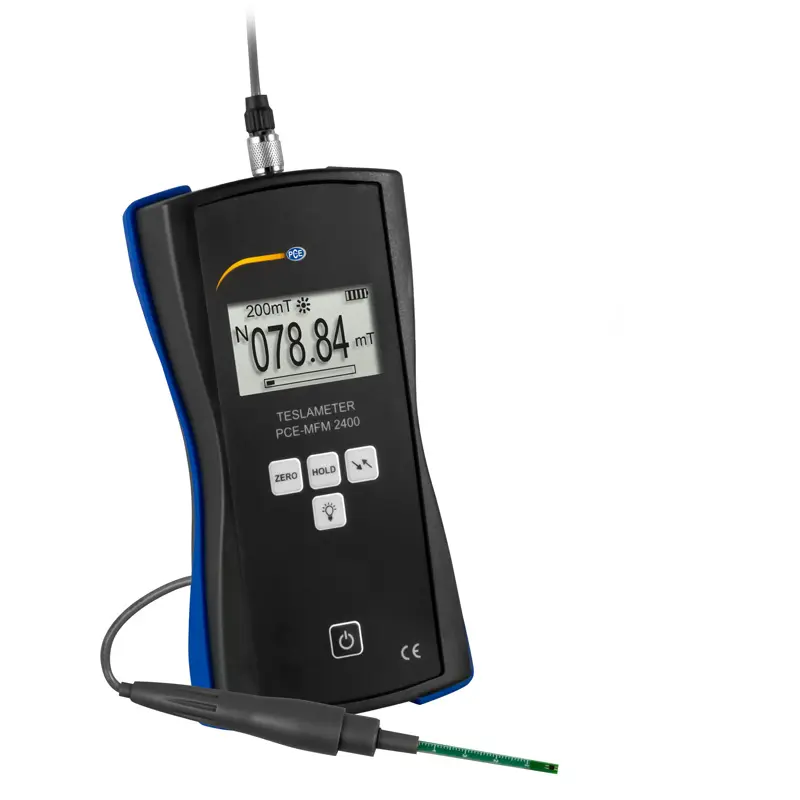

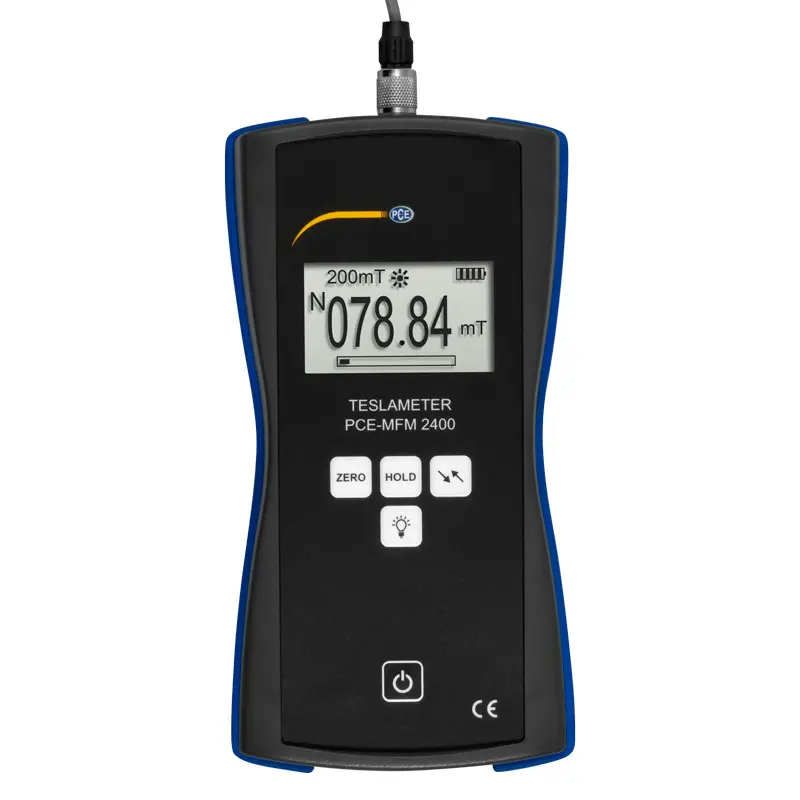

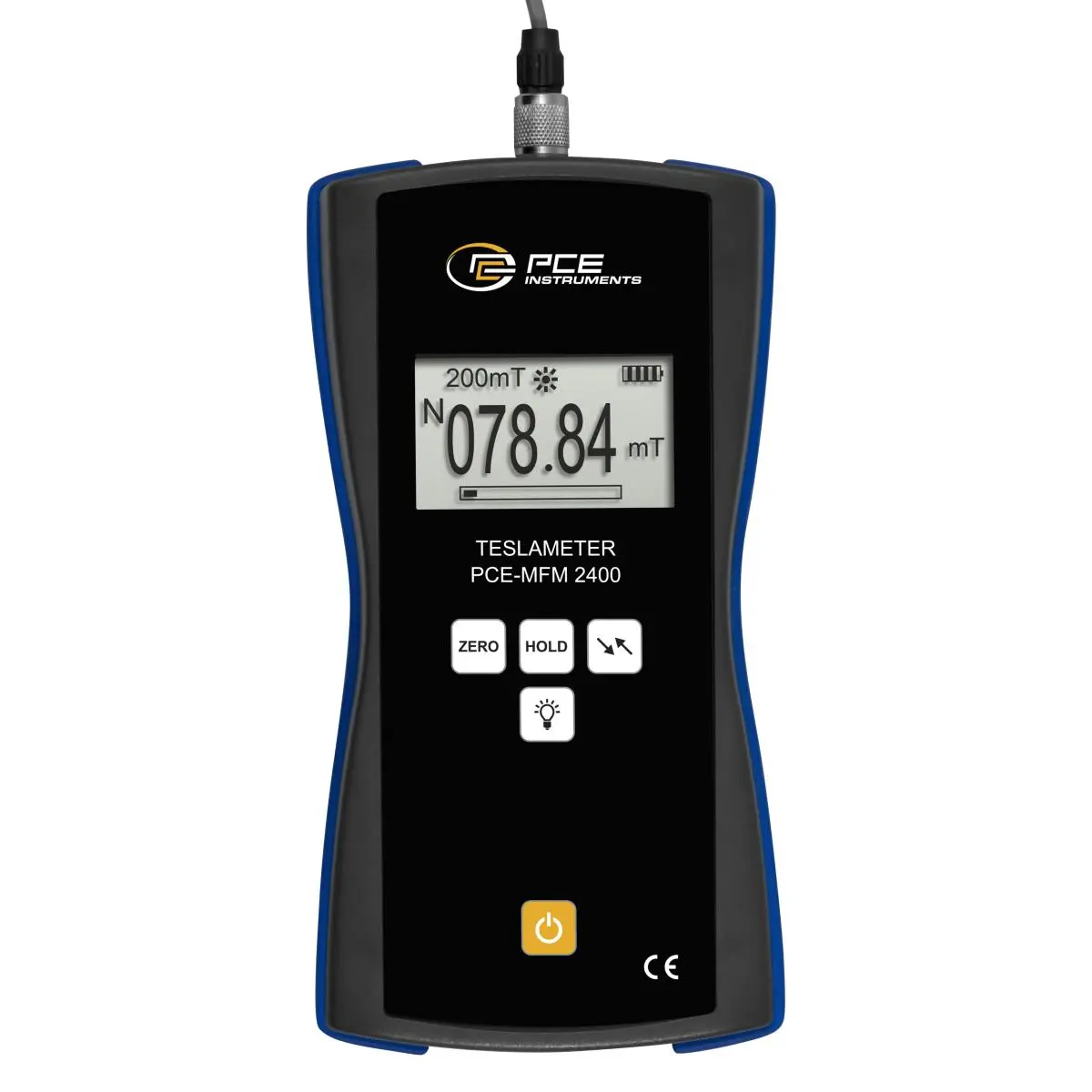

High Precision Gaussmeter PCE-MFM 2400-ICA incl. ISO Calibration Certificate

Order no.: PCE-MFM 2400-ICA

GTIN (EAN): 4250348726315

Accessory

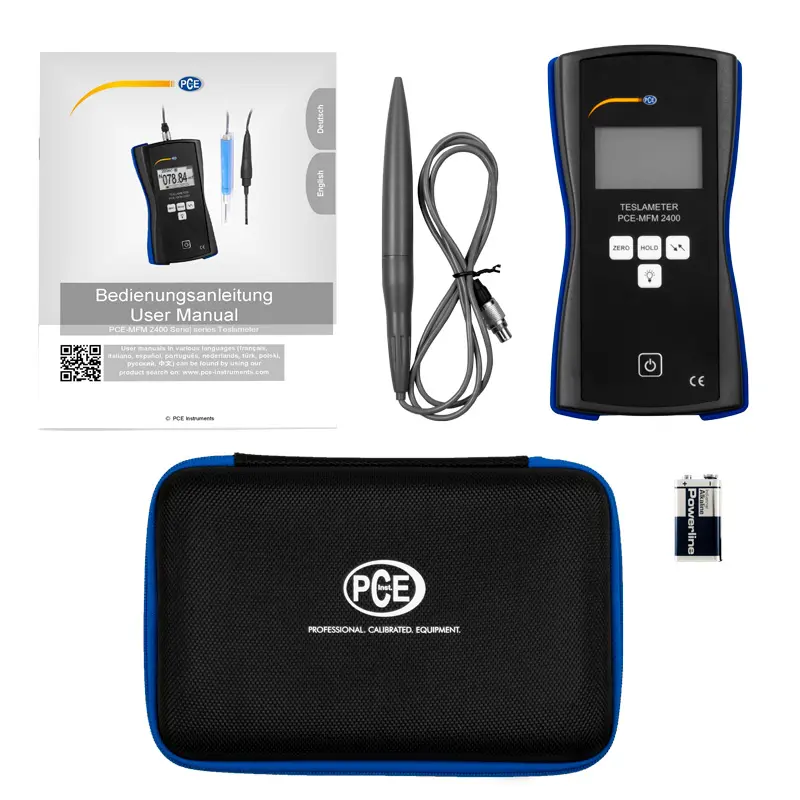

Plastic case for magnetic field tester PCE-MFM 2400

£ 44.00

Description

Precise Gaussmeter with an accuracy of 1% /

automatic switch-off / transverse measurement / backlight /

Tesla and Gauss measurement / for static magnetic fields

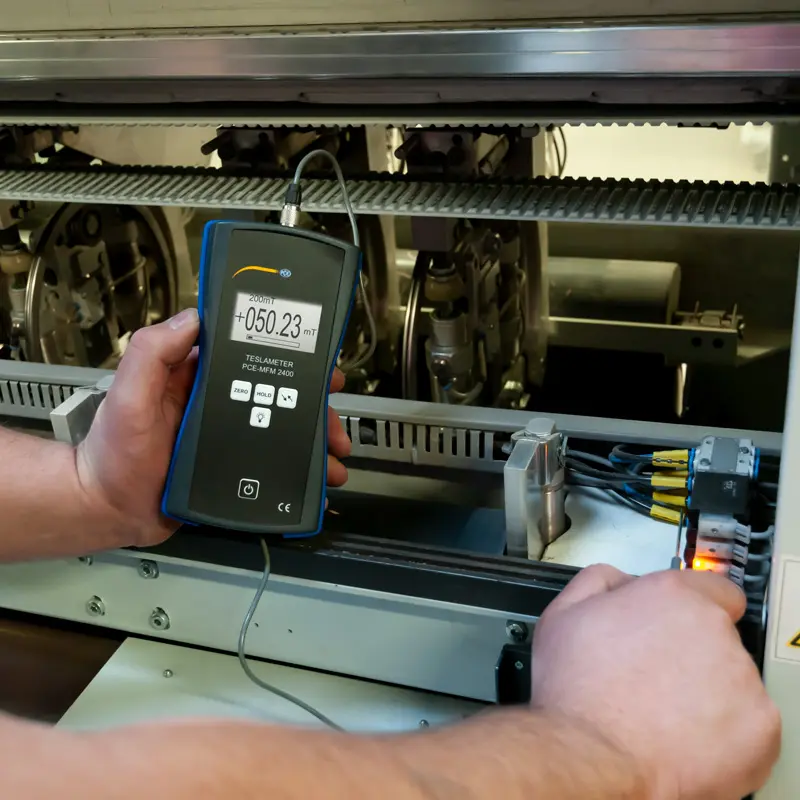

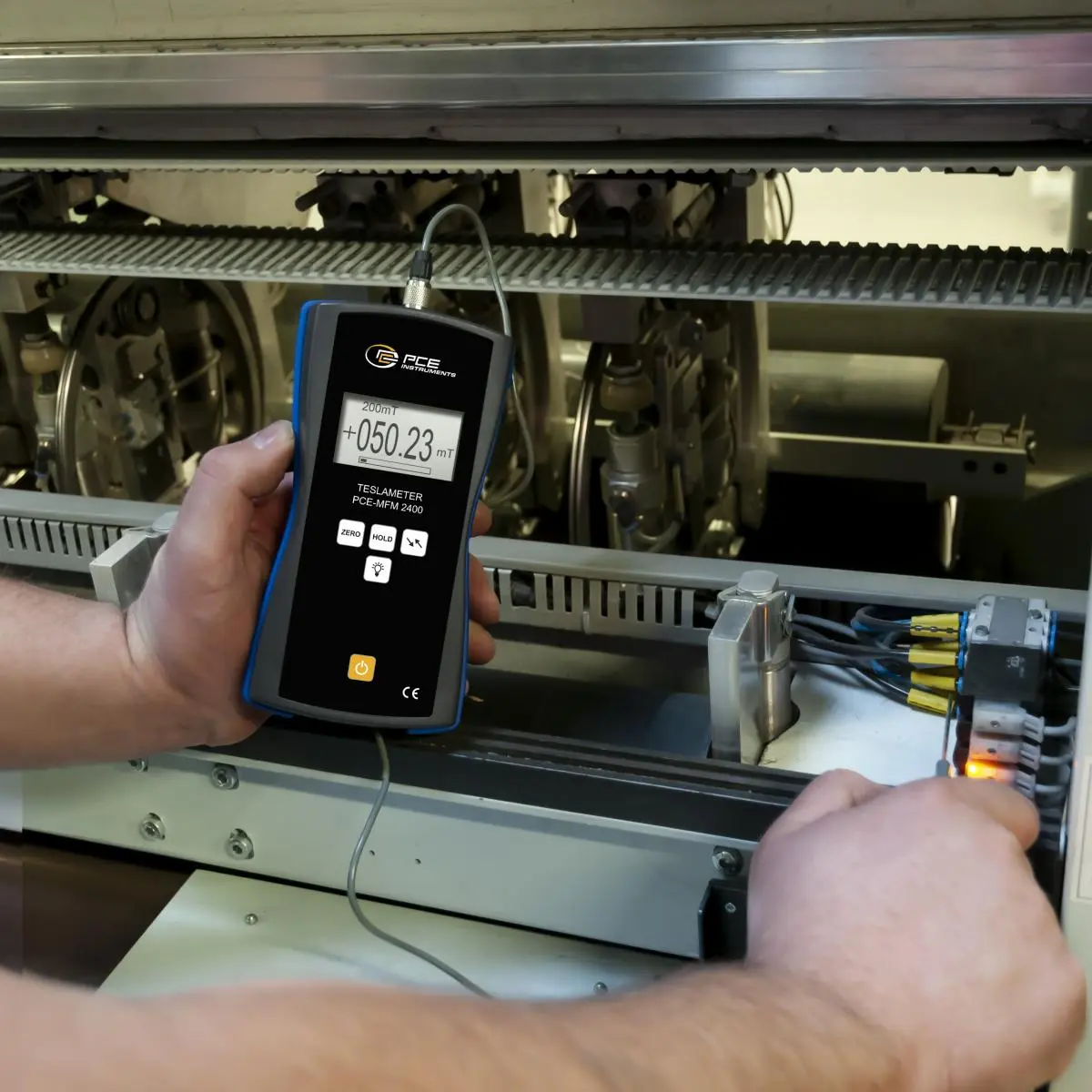

With a measuring range of 2,400 mT, the gaussmeter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Radiation Detector a very precise measuring device. For example, the Electromagnetic Radiation Detector can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Radiation Detector is therefore used in production processes or in quality control.

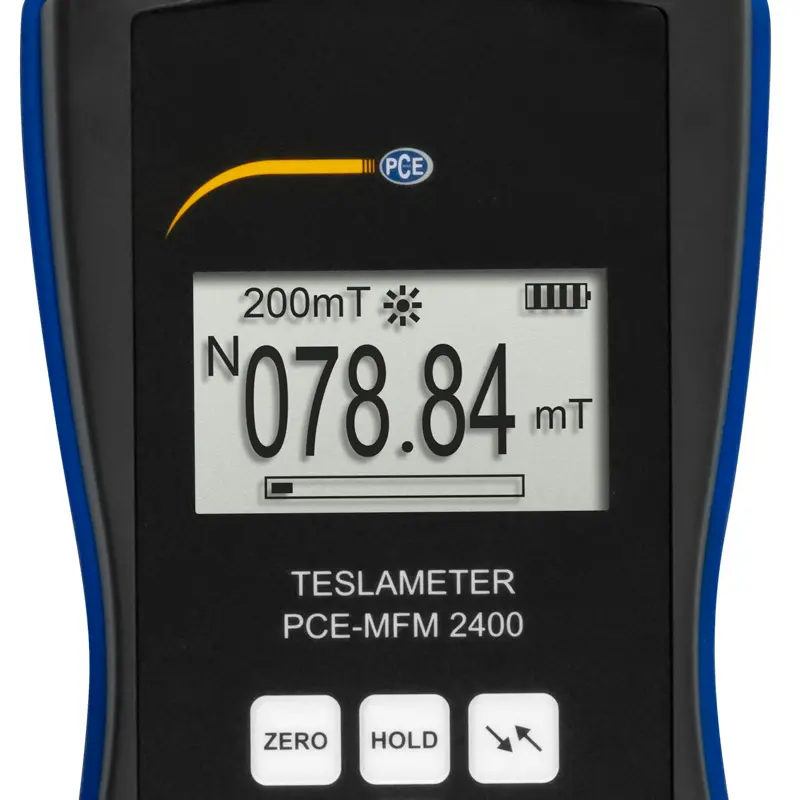

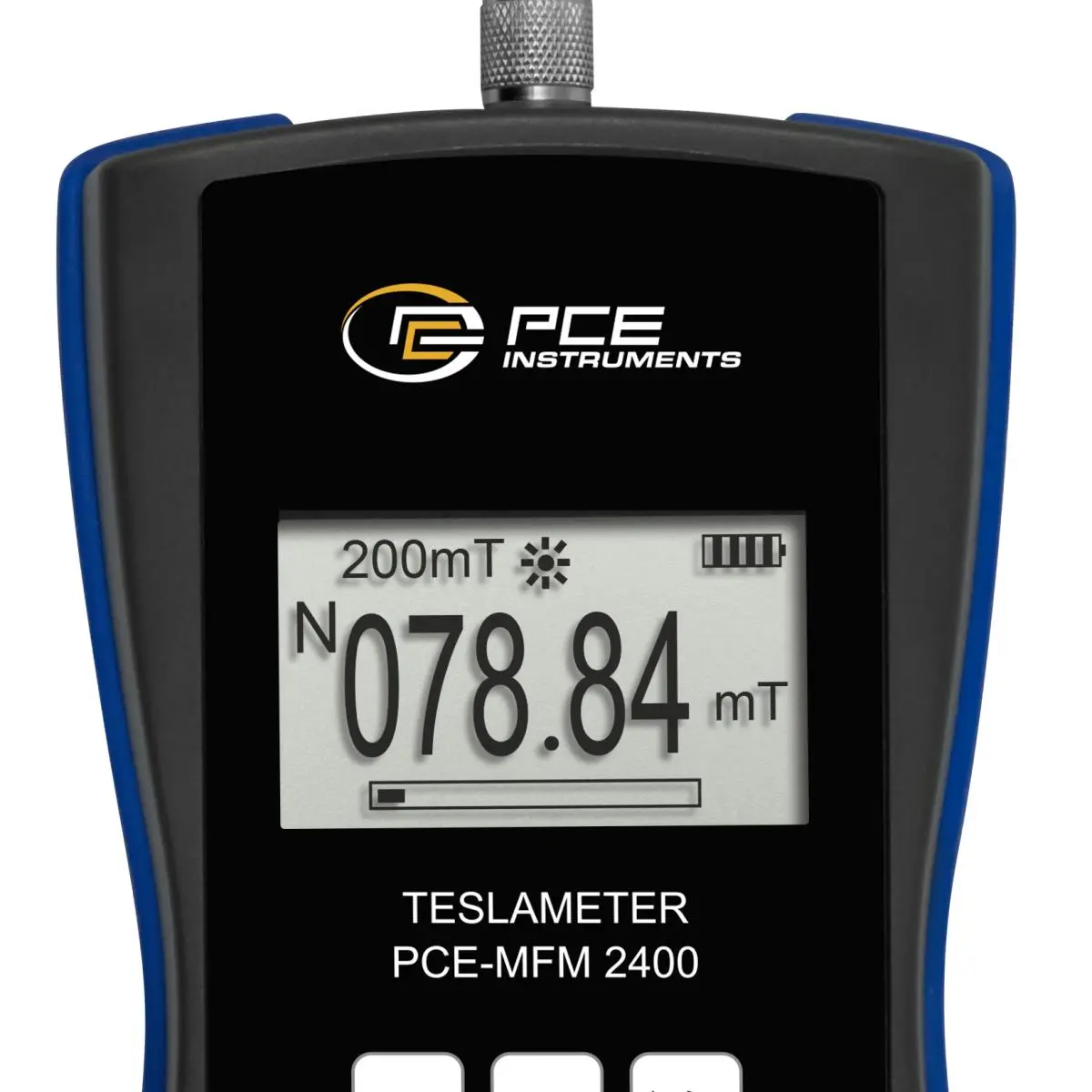

With the backlight on the Electromagnetic Radiation Detector, the measured values are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Radiation Detector automatically switches itself off after 5 minutes. This ensures that the battery of the Gauss meter does not discharge completely.

Highlights

- very precise measurement technology

- Measuring range up to 24,000 G and 2,400 mT

- transverse sensor

- for measuring static magnetic fields

- automatic shutdown

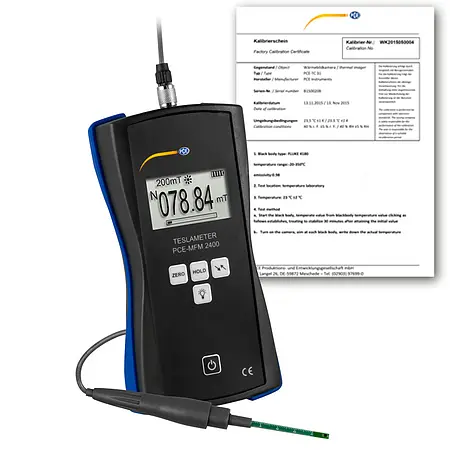

- incl. ISO-Calibration Certificate

Specification

Magnetic field DC
Measuring range	0 ... 200 mT
Resolution	0,01 mT
Accuracy	±1% of Rd

Magnetic field DC
Measuring range	200 ... 2400 mT
Resolution	0,01 mT
Accuracy	±1% of Rd

Magnetic field DC
Measuring range	0 ... 2000 g
Resolution	0,1 g
Accuracy	±1% of Rd

Magnetic field DC
Measuring range	2000 ... 24000 g
Resolution	0,1 g
Accuracy	±1% of Rd

General technical data
Cable length	1 m
Measuring functions	HOLD
Units	mT, g

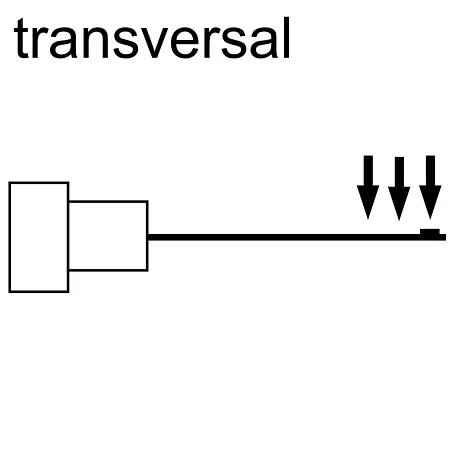

Measuring direction	transversal
Display type	LCD with backlight
Measuring rate	1 Hz
Sensor	Hall sensor
Automatic power-off	5 min
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Performance	5,76 Wh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	-20 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	185 x 97 x 40 mm
Weight	310 g
