Gauss Meter / Tesla Meter PCE-MFM 3000

Gauss Meter / Tesla Meter PCE-MFM 3000 [zoom]
Gauss Meter / Tesla Meter PCE-MFM 3000
Gauss Meter / Tesla Meter Sensor
Gauss Meter / Tesla Meter Connections
Gauss Meter / Tesla Meter Sensor

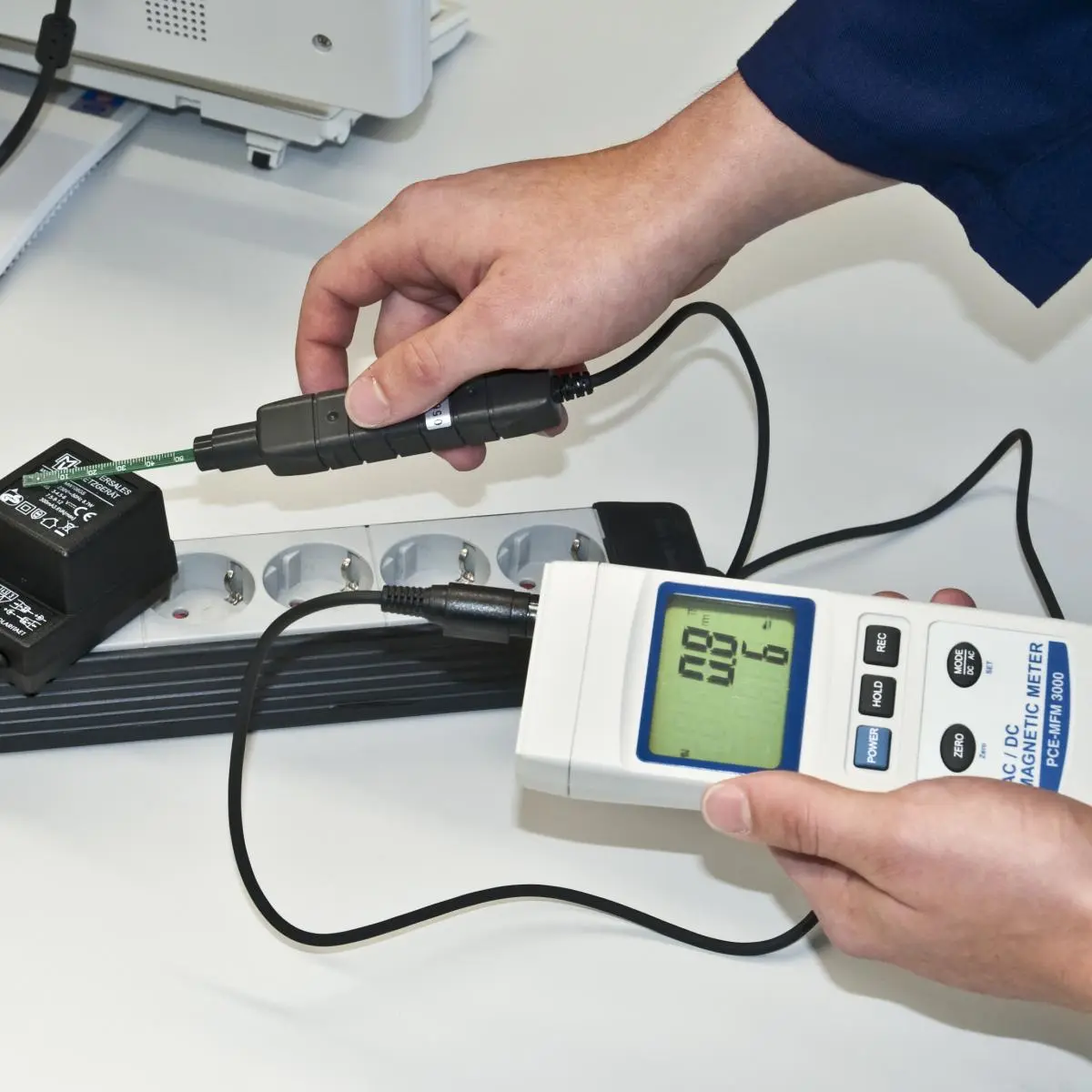

Gauss Meter / Tesla Meter Application picture
Gauss Meter / Tesla Meter Delivery scope

Gauss Meter PCE-MFM 3000

Order no.: PCE-MFM 3000
GTIN (EAN): 4250348707260
£ 378.00
£ 453.60
price ex. (VAT / delivery)
:
4250348707260
PCE-MFM 3000
Delivery time:1-2 working days

Accessory

Description

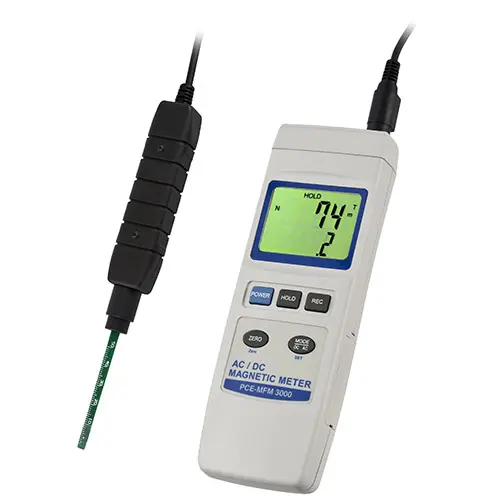

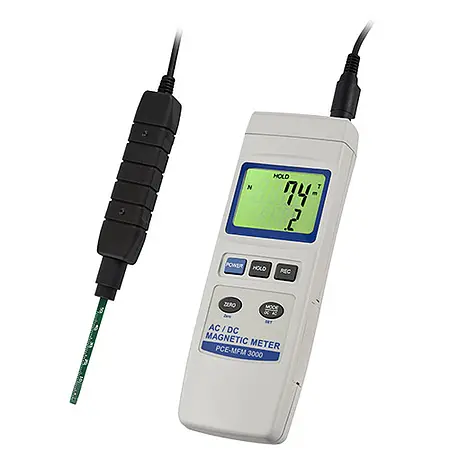

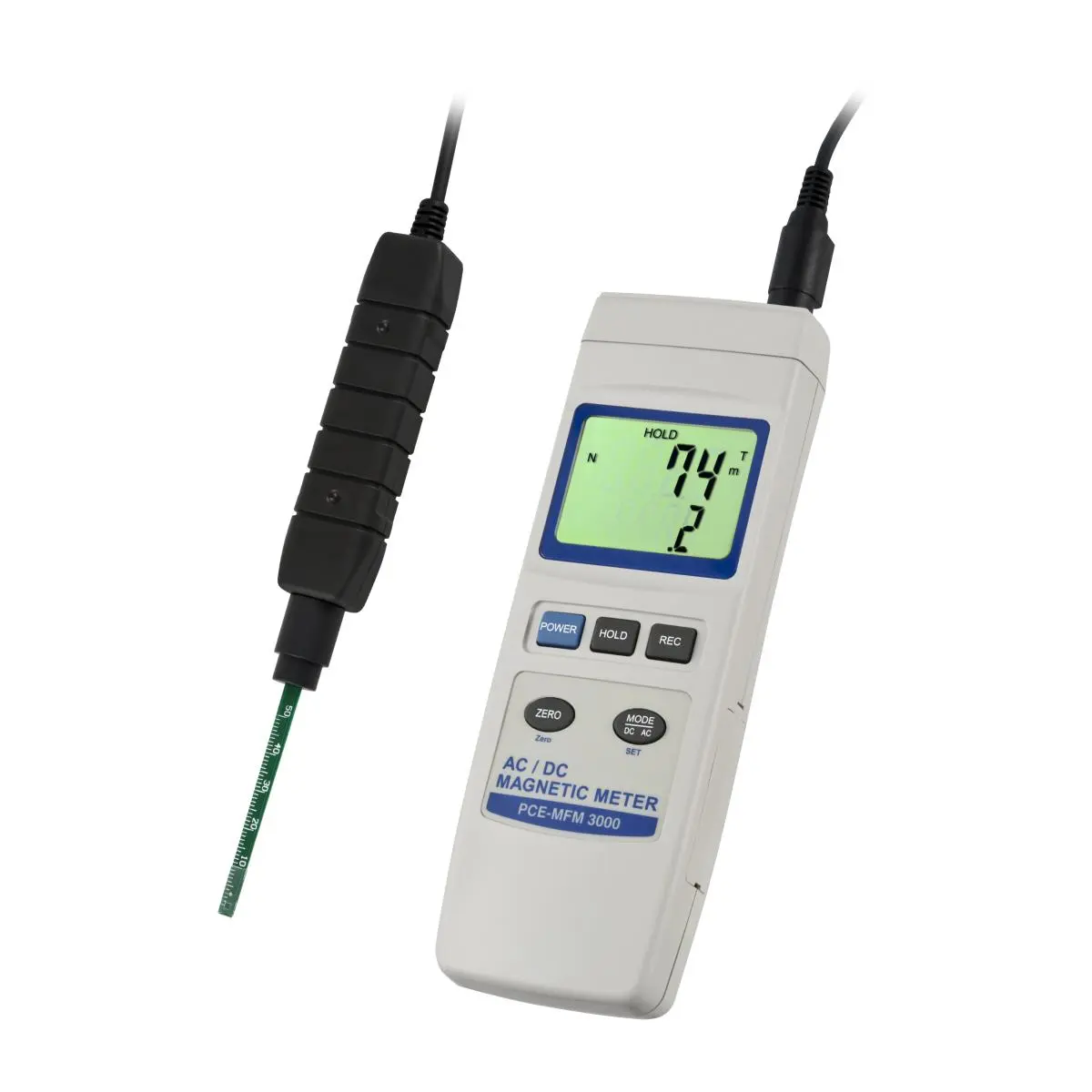

PCE-MFM 3000 Gauss Meter
Portable handheld AC / DC magnetic field detector

PCE-MFM 3000 is a handheld gauss meter that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetic field measuring device comes with an external sensor and features an RS-232 port for downloading data to a PC.

Meter can be calibrated by an ISO lab to verify accuracy, see accessories tab for information.


Highlights

- Measurement range: 0 ... 30000 G / 0 ... 3000 mT
- Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
- Resolution: 0.1 G / 0.01 mT
- Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic
fields (EMFs)
- Displays measurement results in gauss (G) or milli Tesla (mT)
- Comes with an external sensor

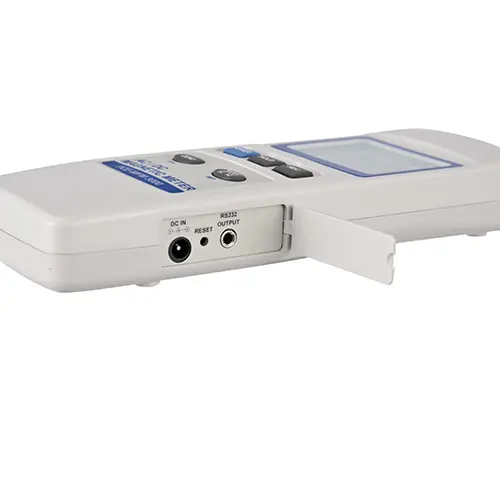

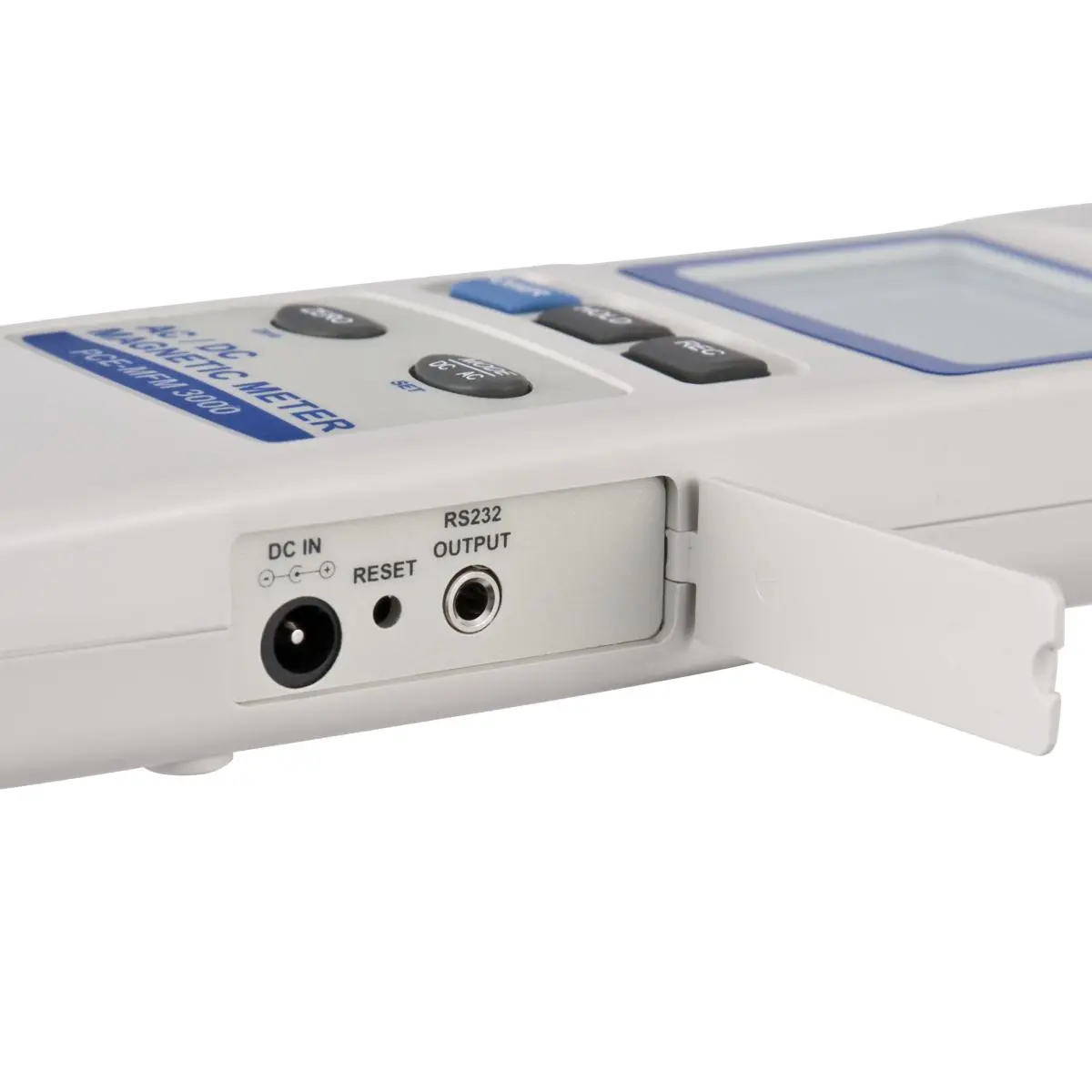

- Features an RS-232 port for downloading data to PC
- Max, min, data hold and auto shutdown power-saving functionality
- Ideal tool for checking magnetic valves, relays and air-core transformers
- Useful for assessing permanent magnets and rare earth magnets made of
Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also
known as ceramic)

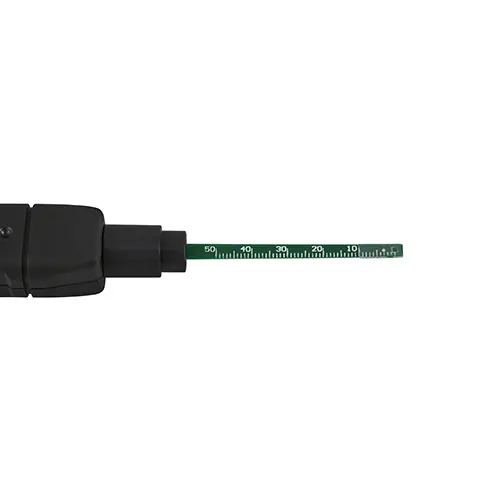

- The external sensor's small, flat tip allows easy access through gaps and
into tiny spaces
- Measures through casings, coverings and housings, eliminating the need to
dismantle parts for inspection

Specification

Magnetic field AC
Measuring range  0 ... 150 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)
Frequency range  50 ... 60 Hz

Magnetic field AC
Measuring range  0 ... 1500 mT
Resolution  0,1
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 1500 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 15000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 300 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 mT
Resolution  0,1 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 30000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

General technical data
Measuring functions  MIN, MAX, HOLD
Measuring direction  Uniaxial
Frequency  50 ... 60 Hz
Display type  LCD
Measuring rate  1 Hz
Sensor  Hall sensor
Dimensions  Probe: 195 x 25 x 19 mm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  198 x 68 x 30 mm
Weight  275 g

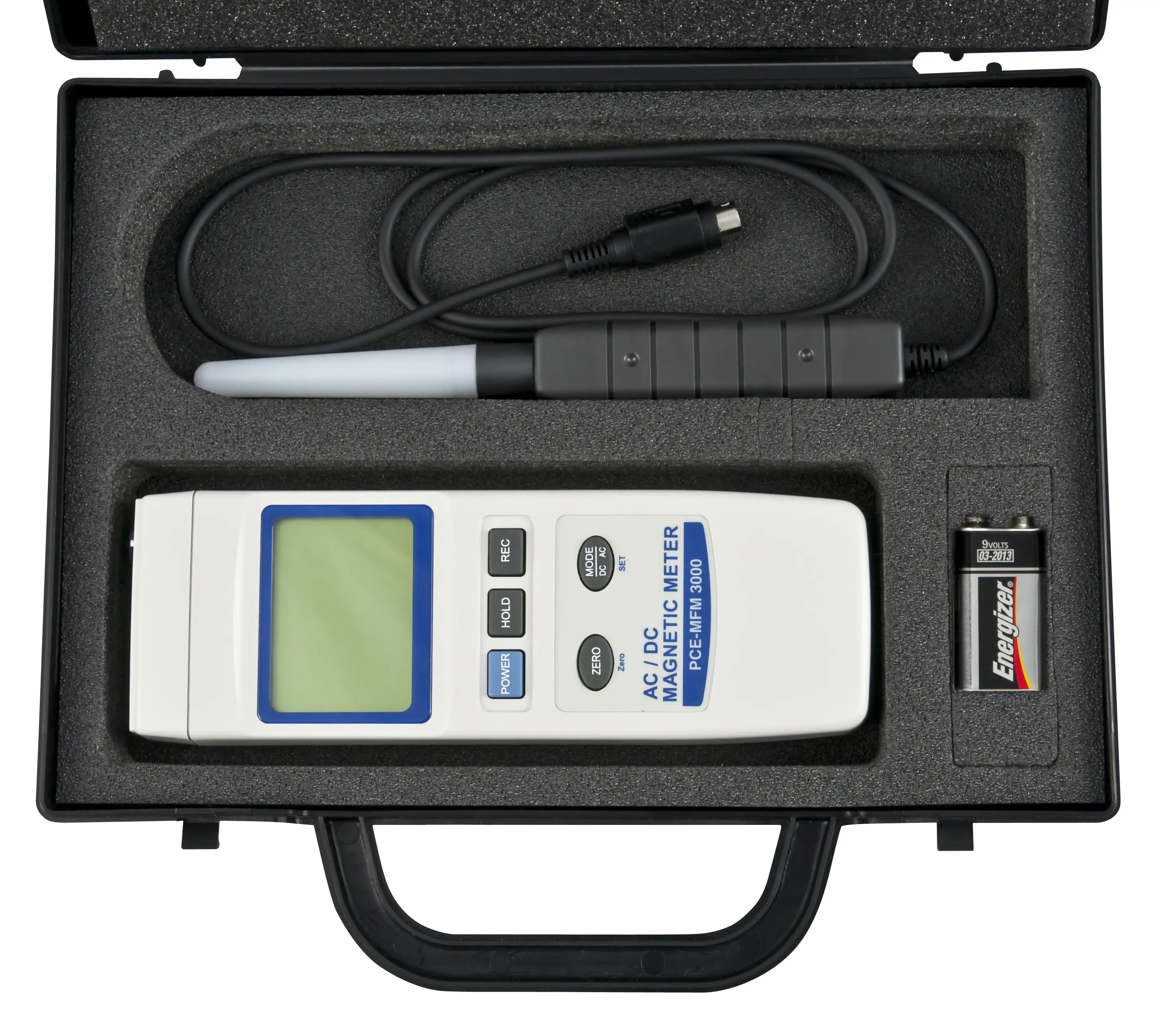

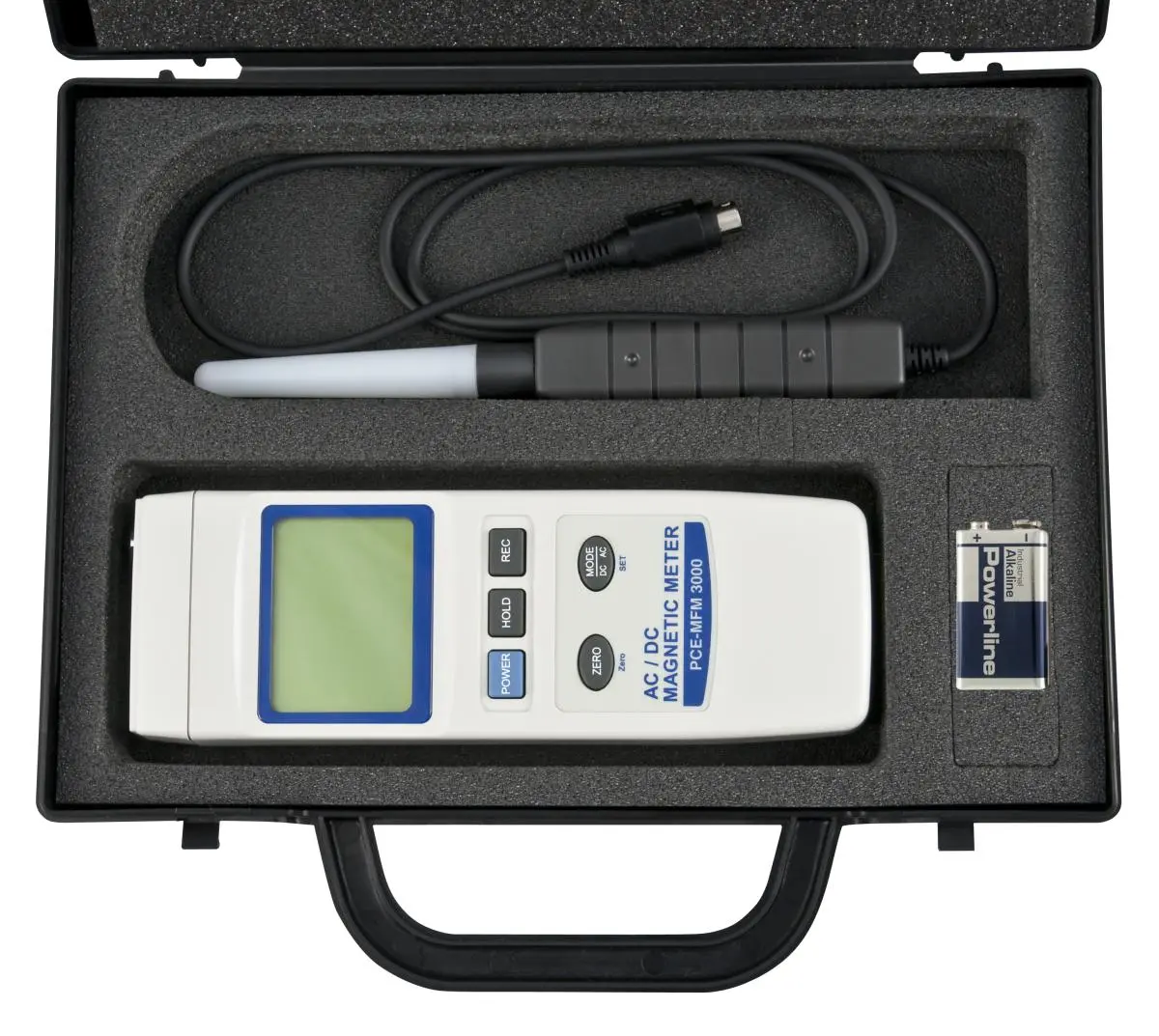

Delivery Scope

1 x PCE-MFM 3000 Gauss Meter / Tesla Meter
1 x External sensor
1 x 9V battery
1 x Carrying case
1 x User manual
