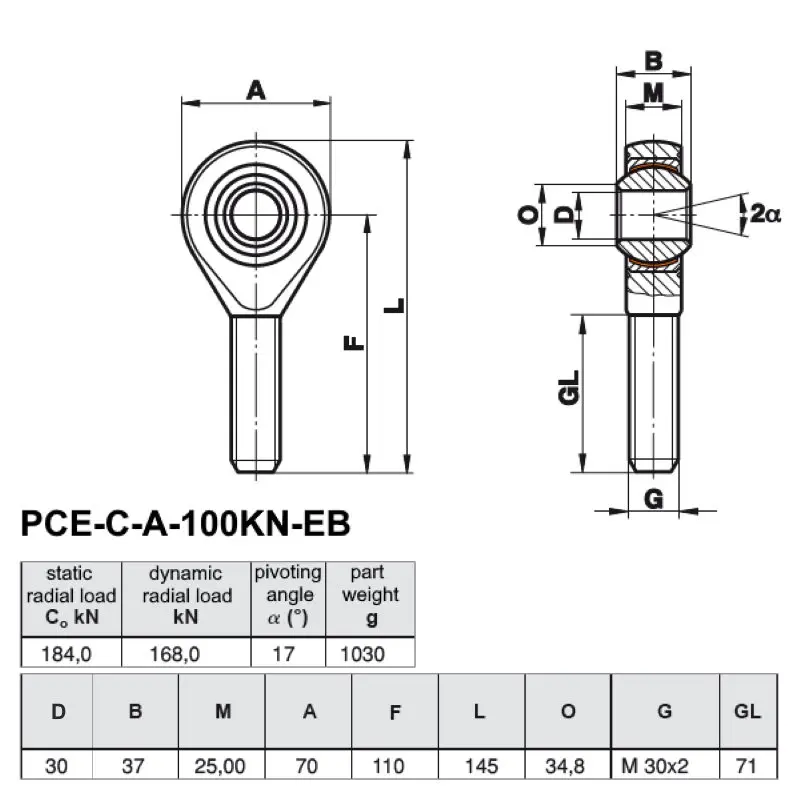

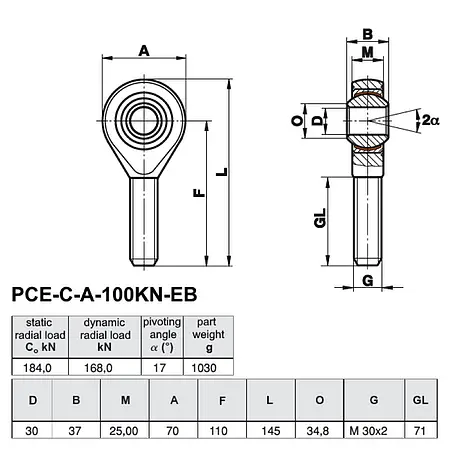

The high-strength swivel head is supplied individually. With an M30 thread and a maximum load of 18.4 t, the eye bolts fit into the S cells of the PCE-DFG N 100K.

- Static load-bearing capacity 184,000 N / 18.4 t
- Dynamic load capacity 168,000 N / 16.8 t
- Thread D: M30 x 2
- Inner ring D 30 mm
- Outer ring A 70 mm
- Length thread GL 71 mm
- Weight per piece 1030 g
