Force Gauge PCE-FM 200

Order no.: PCE-FM 200
£ 307.00
£ 368.40
4250348727749
PCE-FM 200
price ex. (VAT / delivery)
digital
internal
yes
yes
Delivery time: 1-2 working days

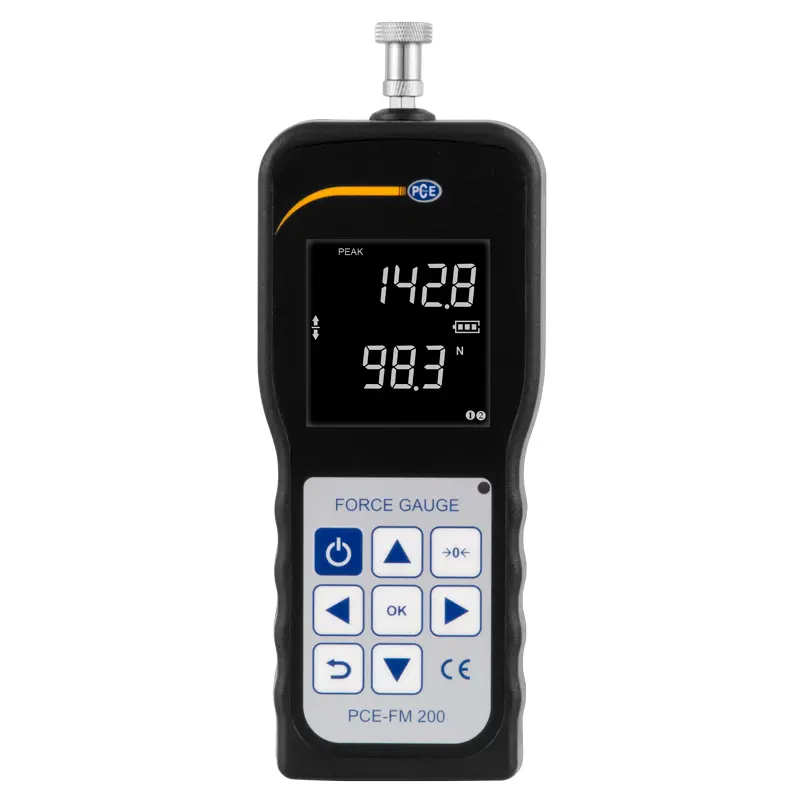

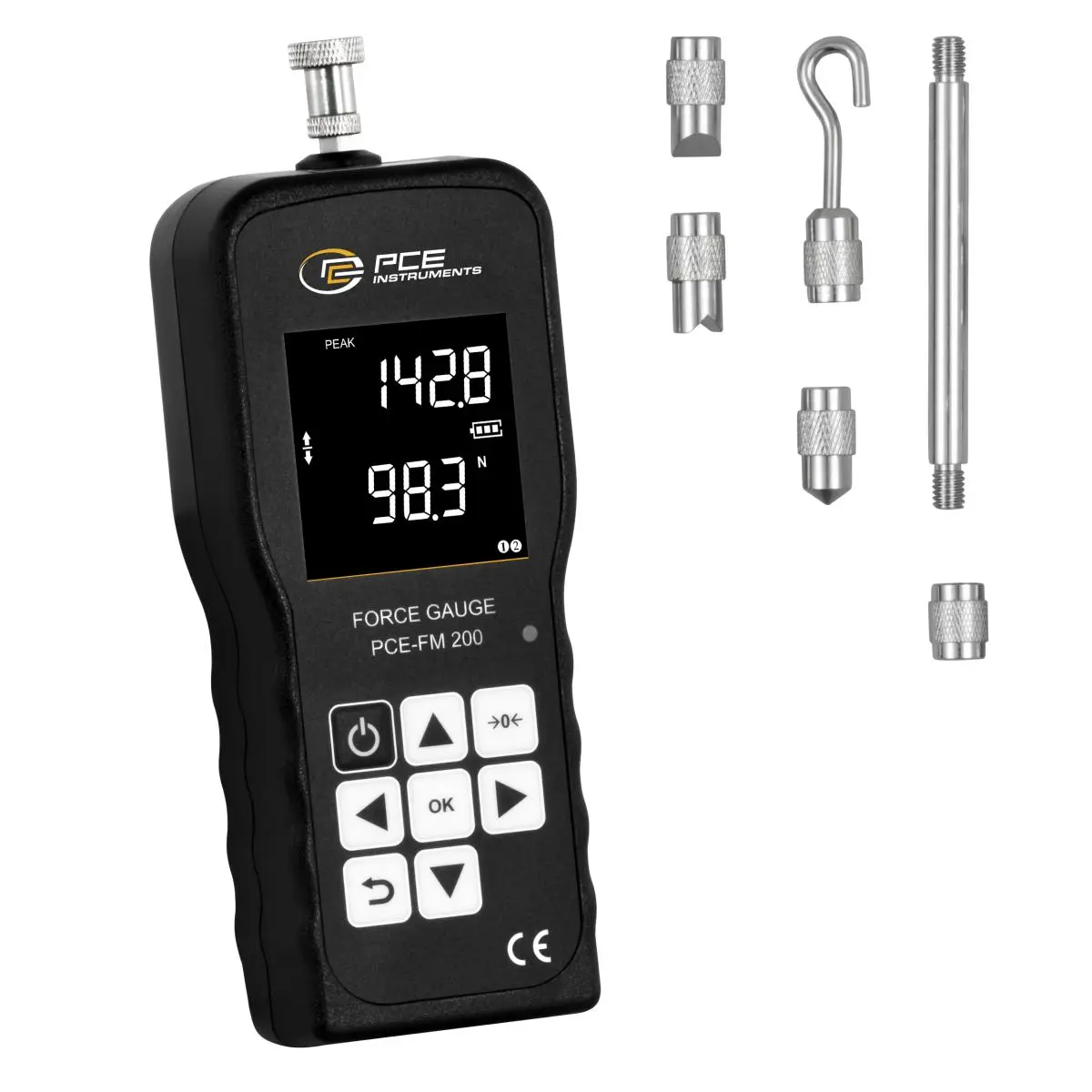

Force Gauge PCE-FM 200
Force gauge for tensile force measurement and pressure force measurement up to 200 N
USB interface and downloadable evaluation software for data transmission / Many measuring adapters

The force gauge PCE-FM 200 is a handheld device that measures up to 200 N. The force gauge can determine the units N, kg and lb. The scope of delivery of the PCE-FM 200 force gauge includes various adapters with different shapes. These can be screwed onto the device and thus offer the optimum solution for differently designed surfaces in the measurement of pressure and tension. In addition to the adapters, an extension rod is also supplied, which allows measurements in hard to reach places. This extension rod has a length of 65 millimeters. The scope of delivery of the PCE-FM 200 force gauge includes flat head adapter, hook adapter, ball head adapter, chisel head adapter and a notched head adapter, whereby the hook adapter is used for tensile force measurements.

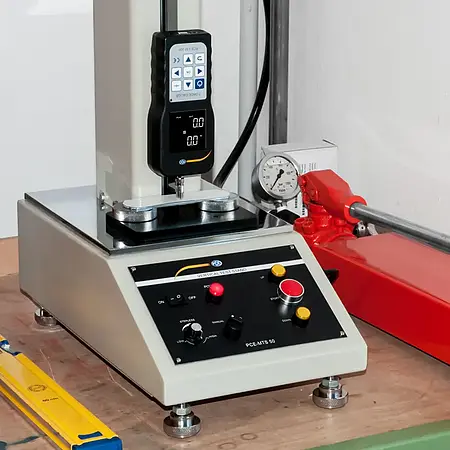

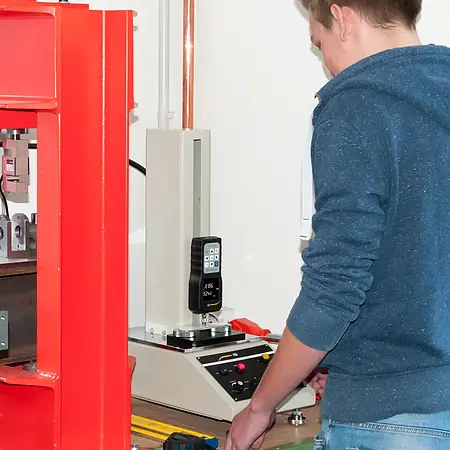

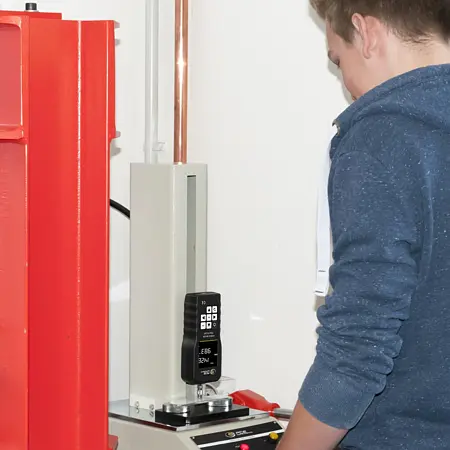

The PCE-FM 200 force gauge offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gauge if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gauge, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gauge as well as the inspection of incoming goods.


Attention: The internal load cell is maintenance-free, light and characterized by extremely long service life. For the production of this load cell only high quality materials are used, which guarantee maximum safety and longevity. The force gauge has an overload range. If you exceed this, you destroy the internal load cell. So if you select a force gauge for your application, then for safety's sake move to the next higher model at the measuring range.

- Differently shaped measuring adapters
- Downloadable evaluation software

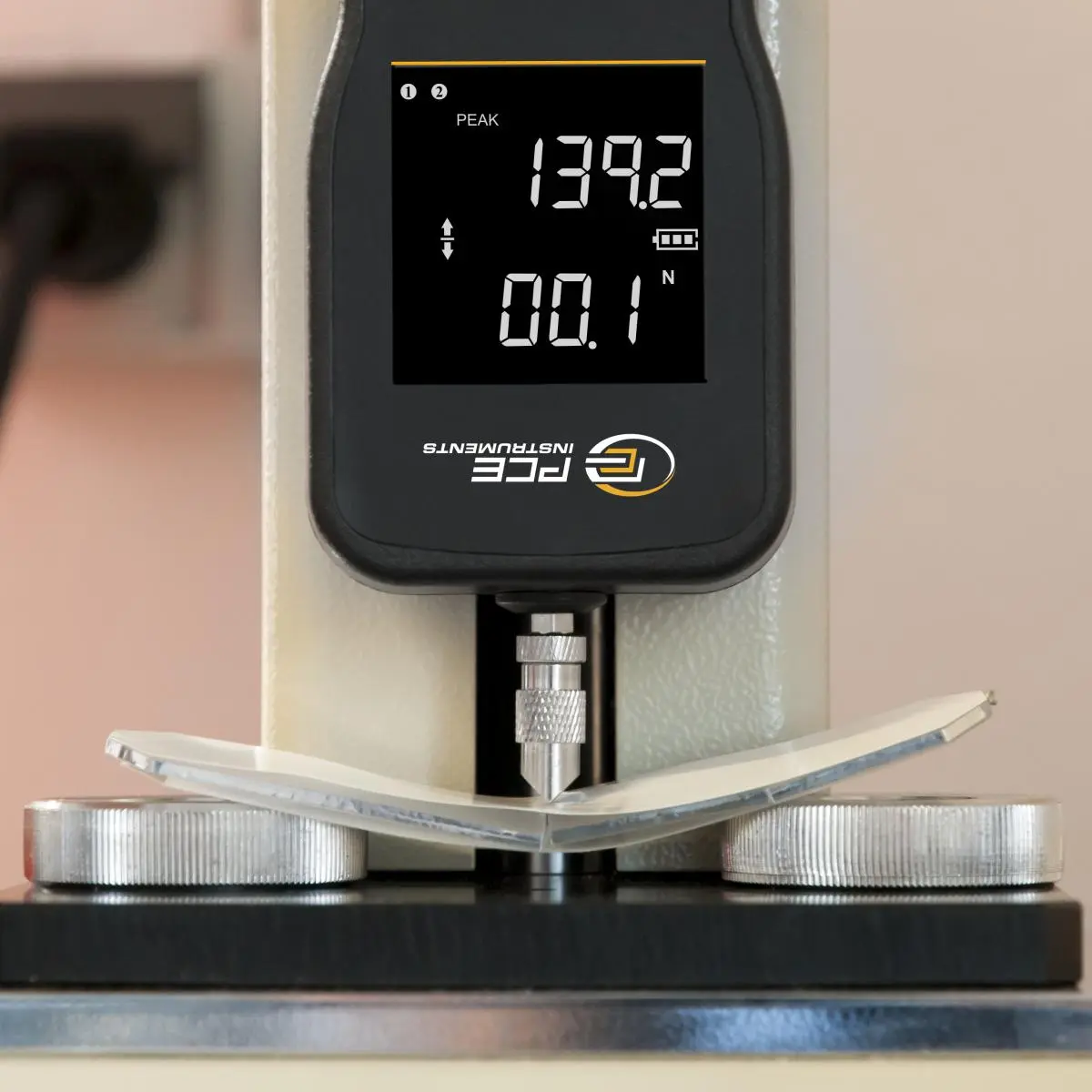

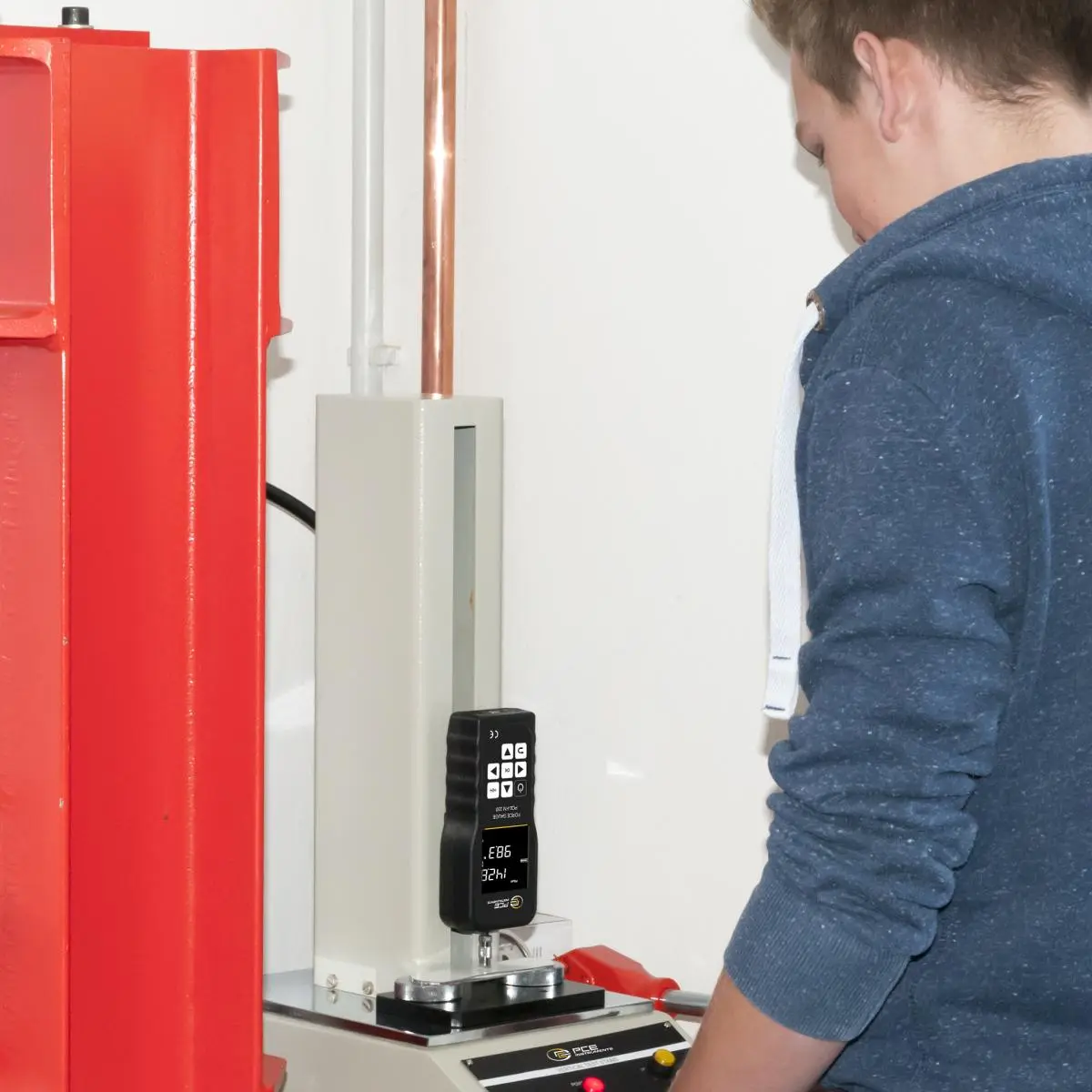

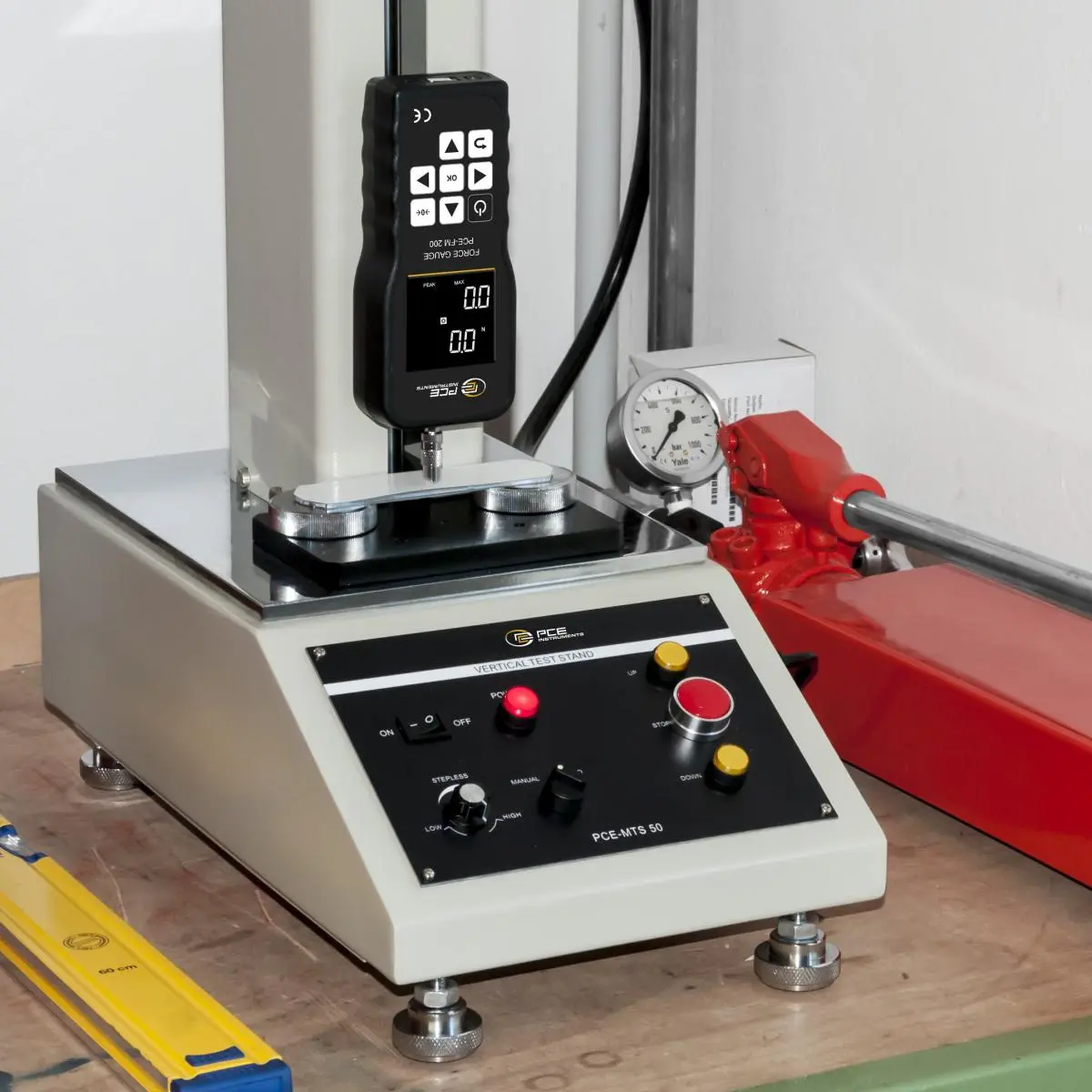

- Device for mounting on test stands

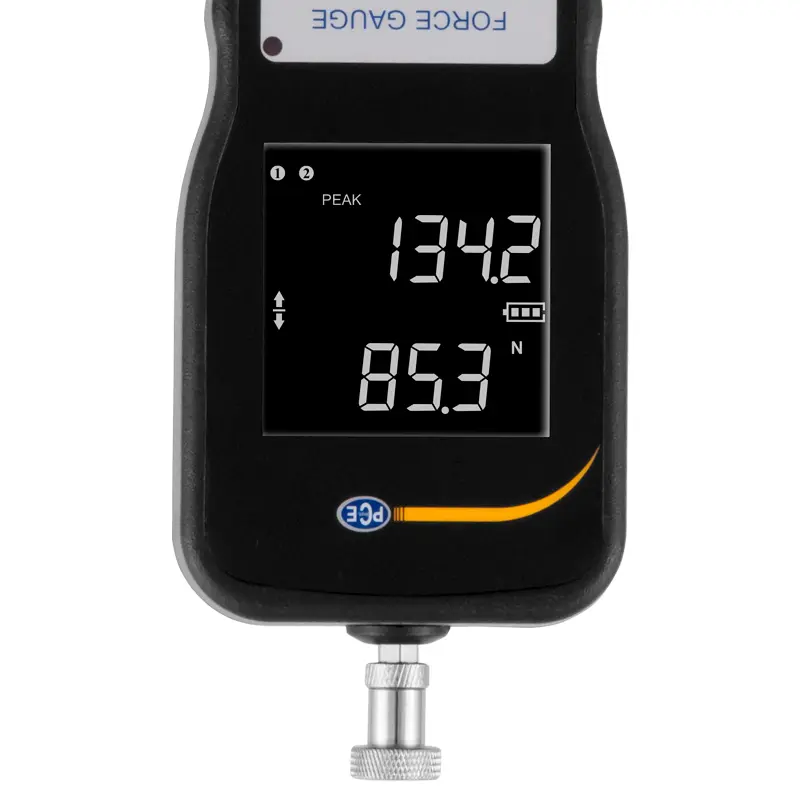

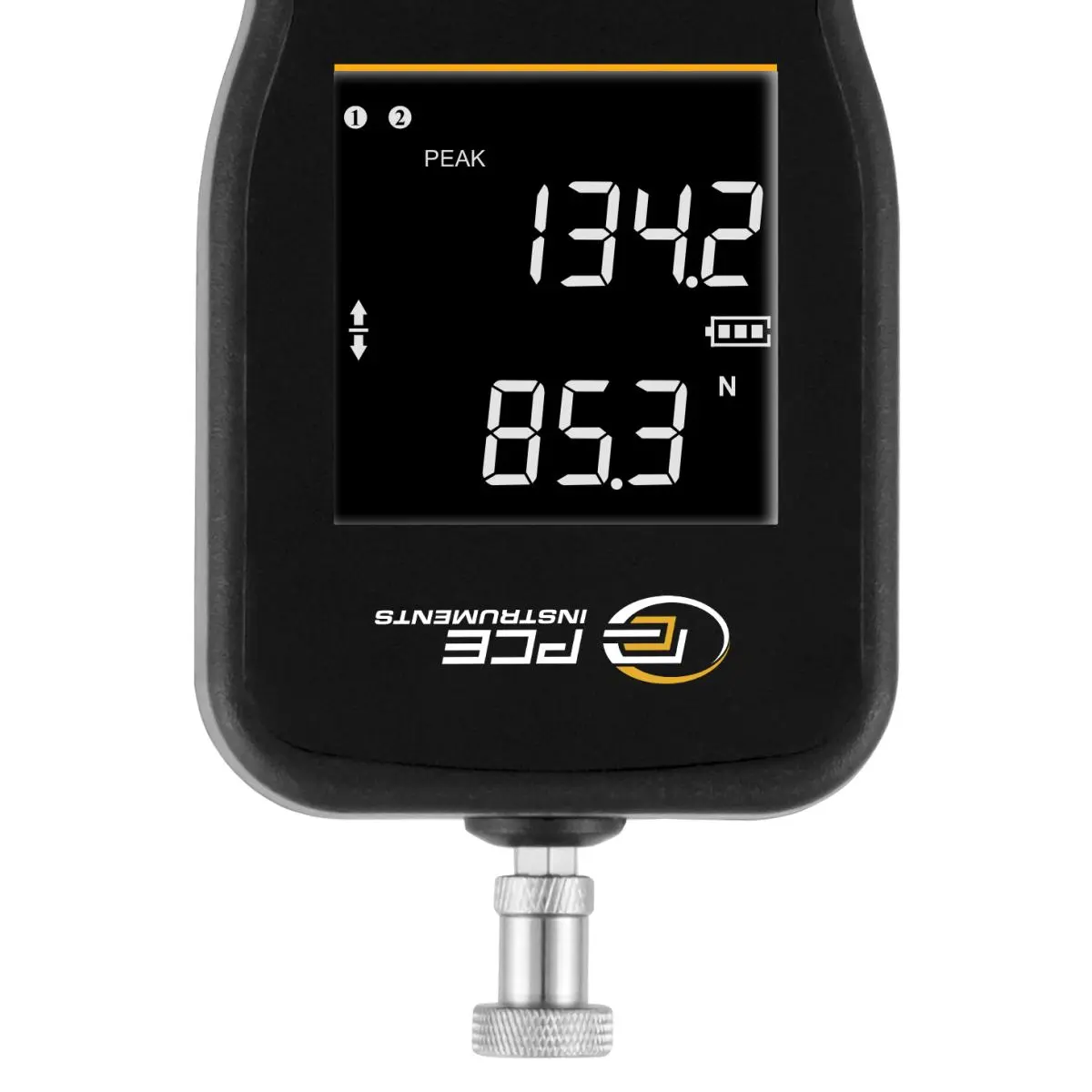

- Peak measurement
- Power supply via charging adapter
- Delivery includes extension rod

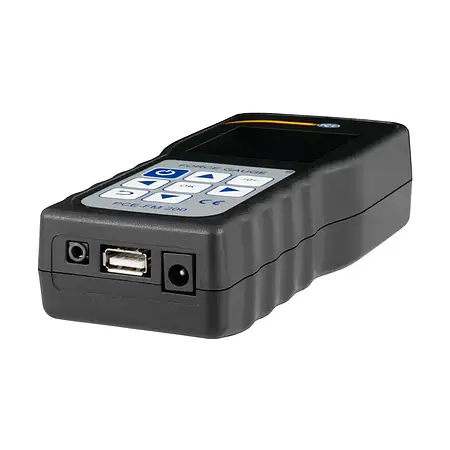

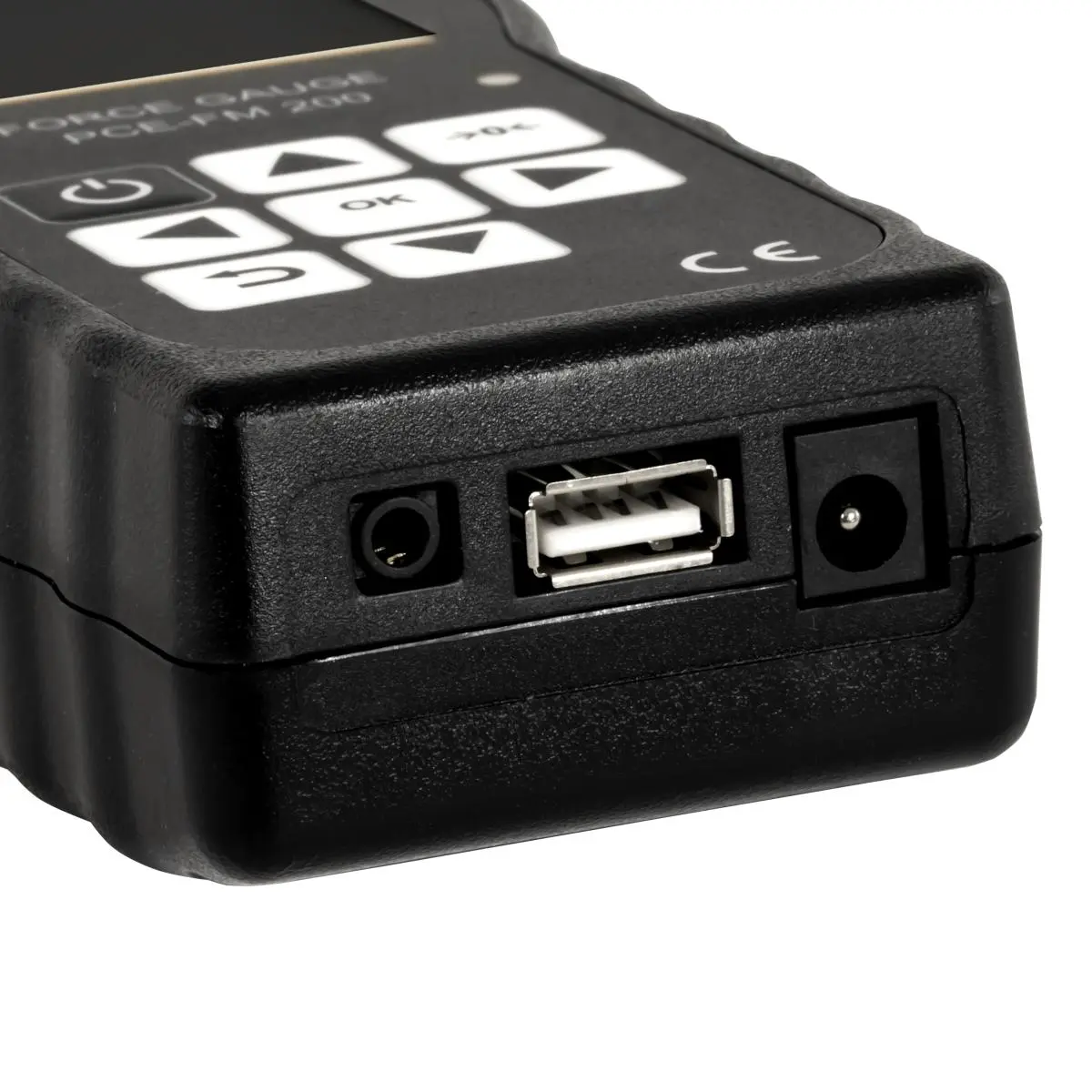

- Evaluation via USB interface
- Fast display of measured value

Measuring range

2 ... 200 N / 0.2 ... 20  kg / 0.4 ... 45 lbs
Resolution 0.1 N / 0.02 lbs
Pressure calibration 1 Mpa

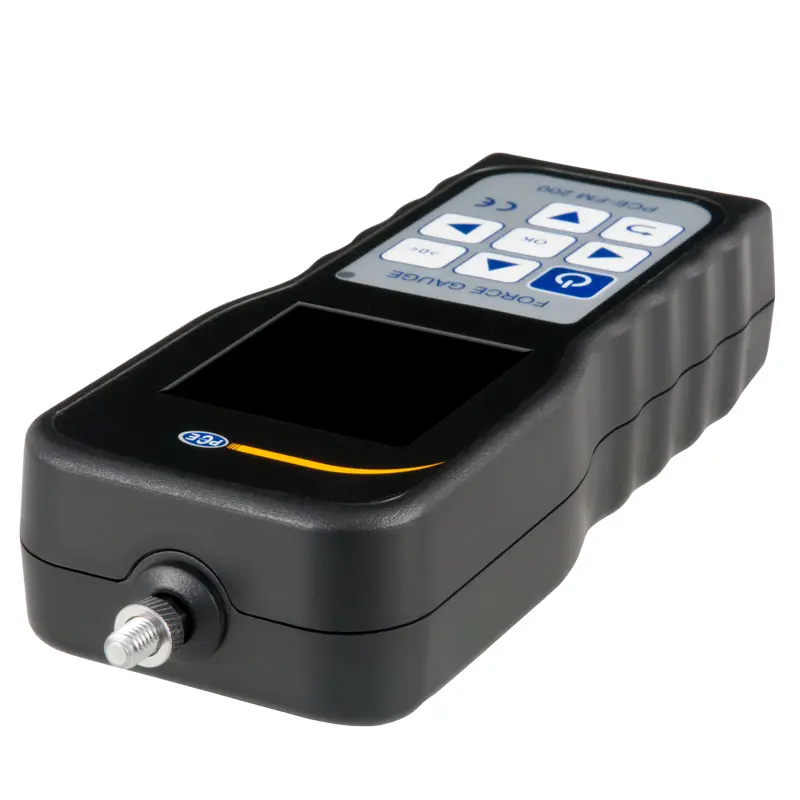

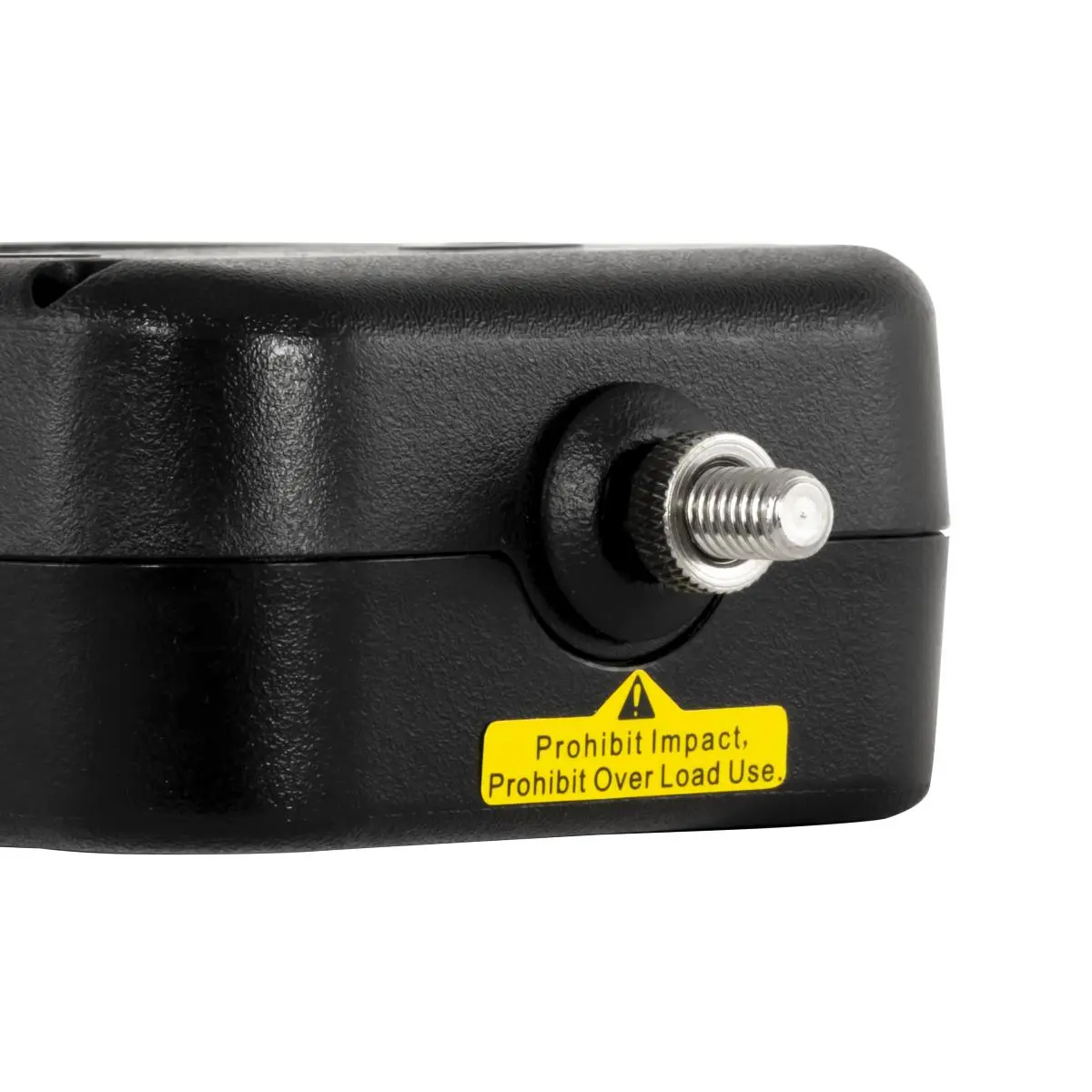

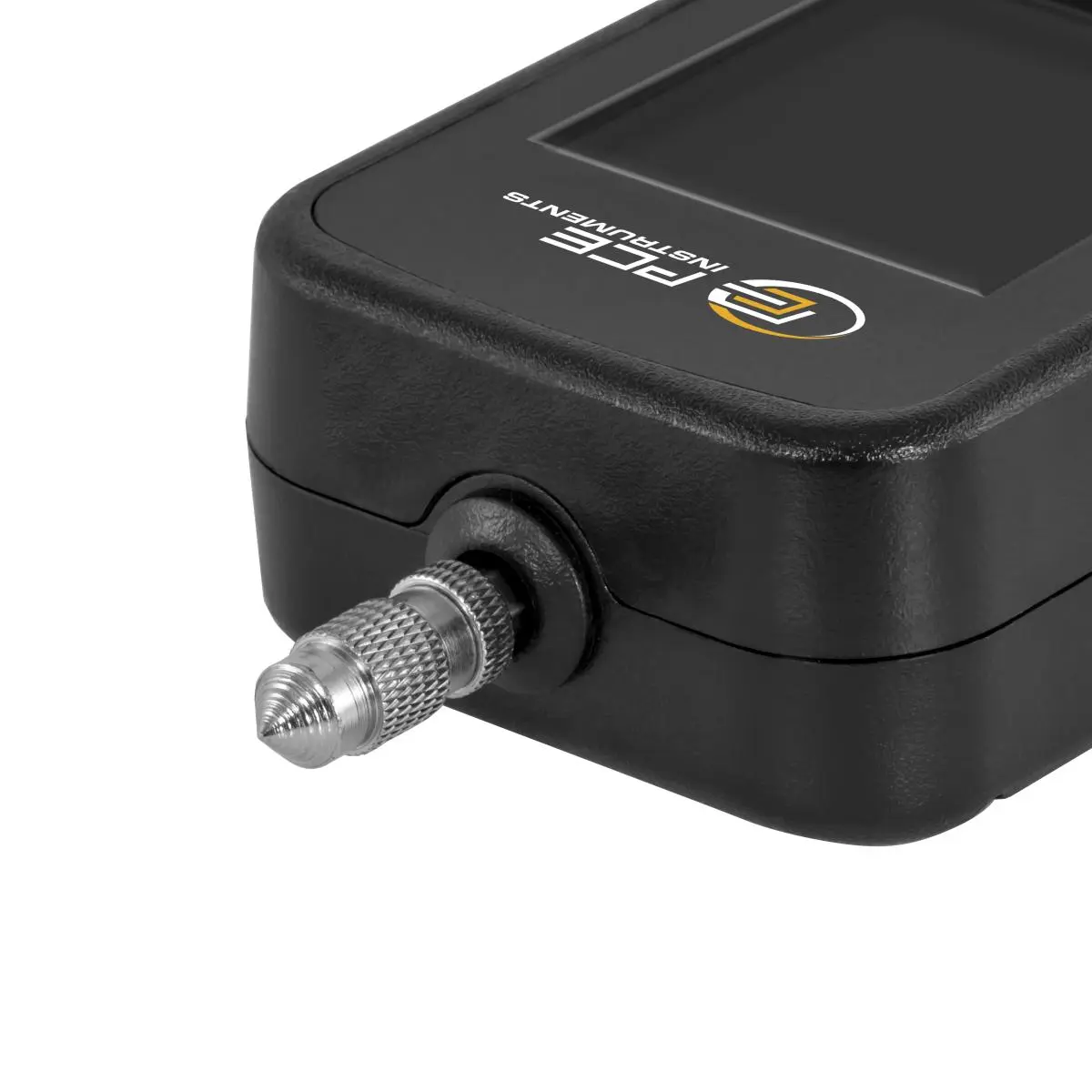

Load cell Integrated load cell with M6 connection
Measuring range 1 ... 100% of the full scale
Measurement accuracy ±0.5%
Units n, kg, lb
Display LCD
Operating temperature 10 ... 30°C / 50 ... 86°F
Relative humidity 15 ... 80%
Working conditions The device must not be located near sources of vibration or corrosive substances
Weight 1 kg / 2.2 lb

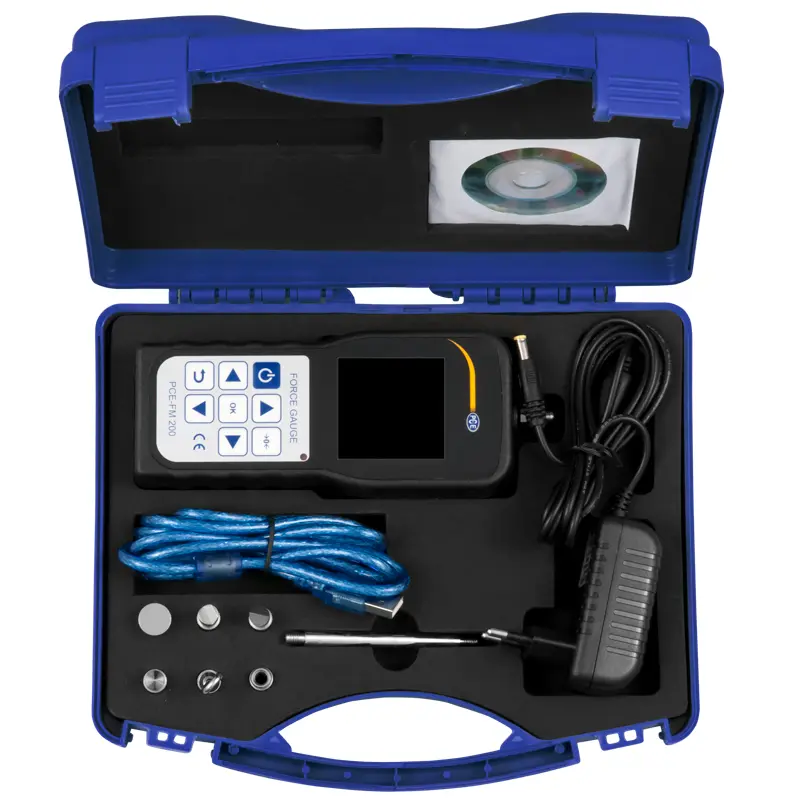

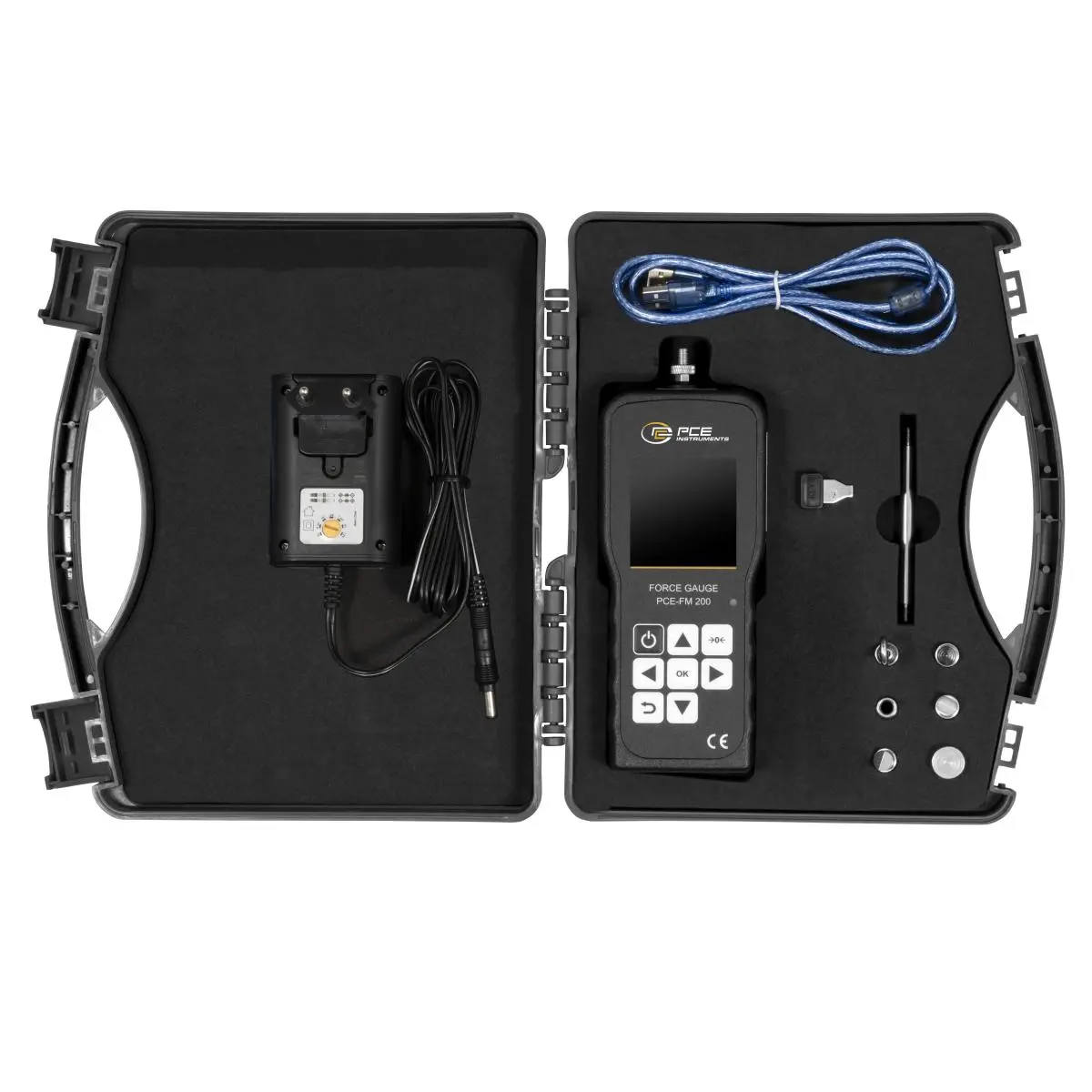

1 x Force Gauge PCE-FM 200
1 x Downloadable evaluation software
1 x Flathead adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notch head adapter
1 x Adapter for extension rod
1 x Extension rod (65 mm / 2.55")
1 x USB cable
1 x Charging adapter (240 V)
1 x Equipment case
1 x Operation manual

Accessories

Order no.: PCE-DHFG 500
Double handle PCE-DHFG 500 for force gauges
Double handle for force measuring devices with internal force measuring cell up to 500N

N.B. Force gauge not included in delivery.
Manufacturer: PCE Instruments
£ 102.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJM10M6
Thread reducer PCE-SJJM10M6
Thread reducer for SJJ accessories and force gauges / test stands

- Thread connection: M10 to M6
- External thread: M10
- Internal thread: M6
Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: Markus Wrobel
£ 12.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-FTS50
Force Test Stand PCE-FTS50

Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.


- with digital measuring distance display
- max. range of force 500 N
- maximum operating length of 236.36 mm / 9.30"
- the mounting plate ADP-UNI must be ordered at the same time!

Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
£ 435.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: LTS-20
Force gauge test stand LTS-20
The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.

- Force range: max. 1000 N / 100 kg / 220 lbs
- Travel: max. 345 mm / 13.5"
- Spindle pitch: 2 mm / 0.07"
- Minimal maintenance
- the mounting plate ADP-UNI must be ordered at the same time!
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 529.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: KG-LTS-20
Hand grip KG-LTS-20
Hand grip as a wedge for the PCE-FM 50/200 device. The hand grip can be fixed at the top of the device. [more]
Manufacturer: PCE Instruments
£ 35.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: FG-ADP
Mounting adapter for test stand FG-ADP
Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.
Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: WEVO GmbH
£ 54.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ01
PCE-SJJ01 Adapters for Pressure Tests
Adapter for pressure force testing of sponge, foam glass, rock material, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Diameter: 16 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ02
PCE-SJJ02 Adapter Ring for Tensile Tests
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.

- Useful for tension test of springs or wires
- M6 threaded connection
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ03
PCE-SJJ03 Clamping Device for Test Stand
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.

- Capacity 500 N / 112.4 lbs
- Max. opening size 3 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 61.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ04
PCE-SJJ04 Adapter Stamp Round for Pressure Tests
Adapter-stamp for pressure force test of spring and sponge etc.

- Max. Capacity: 3 kN / 3,000 N / 674 lbs
- Diameter: 50 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ05
Clamp Jaw PCE-SJJ05 for Teststand PCE-FTS50 and PCE-SH 500
Clamping device with large opening width for pull test of fabric, paper, leather and rubber.

- Capacity 5000 N / 1,124 lbs
- Material is iron
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ06
PCE-SJJ06 Adapter Clamps for Tensile Tests
Adapter clamps for tensile testing of wire and filaments.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ07
Clamping Device for Tensile Tests PCE-SJJ07
Use clamping device for tensile testing of electronic parts, wires, etc.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 2.5 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ08
Clamping Tool for Tensile Tests PCE-SJJ08
Use clamping pliers for tensile tests of electronic components, wires, etc.

- Max. Capacity: 1000 N / 225 lbs
- Opening max: 20 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ09
PCE-SJJ09 Fork Holder for Tensile and Compression Tests
Fork holder for tensile and pressure tests.

- Max. capacity: 5 kN / 5,000 N / 1124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ010
Adapter Clamp For Tensile Tests PCE-SJJ010
Adapter clamp for tensile tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 8 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ011
Clamp Jaw PCE-SJJ11 for Teststand

Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.


- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 4 mm
- M10 threaded connection



Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ012
PCE-SJJ012 Tensioning Device for Tensile Tests
Tensioning device for tensile tests.

- Max. capacity: 0.2 kN / 200 N / 45 lbs
- Max. opening: 3 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ013
Clamp Jaw PCE-SJJ013 for Test stand
Clamping device with large opening width for pull or push test of block, glass, and board type materials components.

- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 5 mm
- M10 threaded connection
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ015
PCE-SJJ015 Clamping Device for Test Stand
Clamping device with large opening width for peel test of block, glass and cardboard.

- Capacity 5000 N / 1,124 lbs
- Max. opening 33 mm / 1.29 in
- M10 threaded connection
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 149.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ017
PCE-SJJ017 Universal Clamping Device
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Opening max: 4 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 472.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ020
Clamping Device for Testing Bristles PCE-SJJ020
Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ024
PCE-SJJ024 Clamping Device for Test Stand
Clamping device with soft jaws for tension testing of paper, film etc.

- Capacity 500 N / 112.4 lbs
- Diameter: 6 mm
- Aluminum material
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 205.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ029
Clamping Device for Testing Bristles PCE-SJJ029
Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ032
Holder for Button and Rivet Testing PCE-SJJ032
Holder for knob and rivet test.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ035
Pliers for Trigger Tests PCE-SJJ035
Pliers for trigger tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 37 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: ADP-UNI
Adapter Plate for Force Test Stand ADP-UNI
Adapter plate for mounting the PCE-FM50, PCE-FM200, PCE-SH 500 and PCE-SH 2K force gauge transducers to the PCE-FTS50, PCE-MTS50 and PCE-MTS 500 motorized test stand.
Manufacturer: WEVO GmbH
£ 62.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: RE-CAL-FG 2
Re-Calibration for Force Gauge over 50kg / 500N

ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.


If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Manufacturer: Gilsbach + Bach GmbH
£ 195.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-FG
ISO Calibration Certificate CAL-FG
CAL-FG is a calibration certificate for companies that wish to incorporate the device into their array of internal quality control tools or for annual recalibrations. The calibration certificate includes calibration in accordance with ISO standards and a document containing all the readings taken.

The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.
Manufacturer: PCE Instruments
£ 155.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ031
Universal Clamping Device PCE-SJJ031
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

- Max. capacity: 5 kN
- Opening max: 4 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 666.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-HTS 50
Test Stand PCE-HTS 50
The motorized tension-compression test stand is a motorized test station with a force range of up to 500 N. With the help of the horizontal test stand, it is possible to to carry out tension-compression tests.

- Force range: 500 N / 50 kg / 110 lb
- Distance display resolution: 0.02 mm
- Resolution: 1 mm/min
- Tensile and compression testing
- Travel: 270 mm / 10.6"
Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
£ 1,334.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-VTS 50
Test Stand PCE-VTS 50
This vertical force test stand is a motorized test station with a force range of up to 500 N. In addition to setting the speed, the vertical force test stand also offers the option of switching between automatic and manual mode.

- Force range: 500 N / 50 kg / 110 lb
- Distance display resolution: 0.02 mm
- Resolution: 1 mm/min
- Tensile and compression testing
- Travel: 270 mm / 10.6"
- 220V AC ONLY
Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
£ 1,468.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
