Order no.: PCE-DFG 500 X

Force Gauge PCE-DFG 500 X

£ 717.00
£ 860.40
:
4250348734891
PCE-DFG 500 X
price ex. (VAT / delivery)
Delivery time: 5-7 working days

Description

Force gauge with internal measuring cell up to 500 N / various alarm modes / graphic display / data logger / incl. software

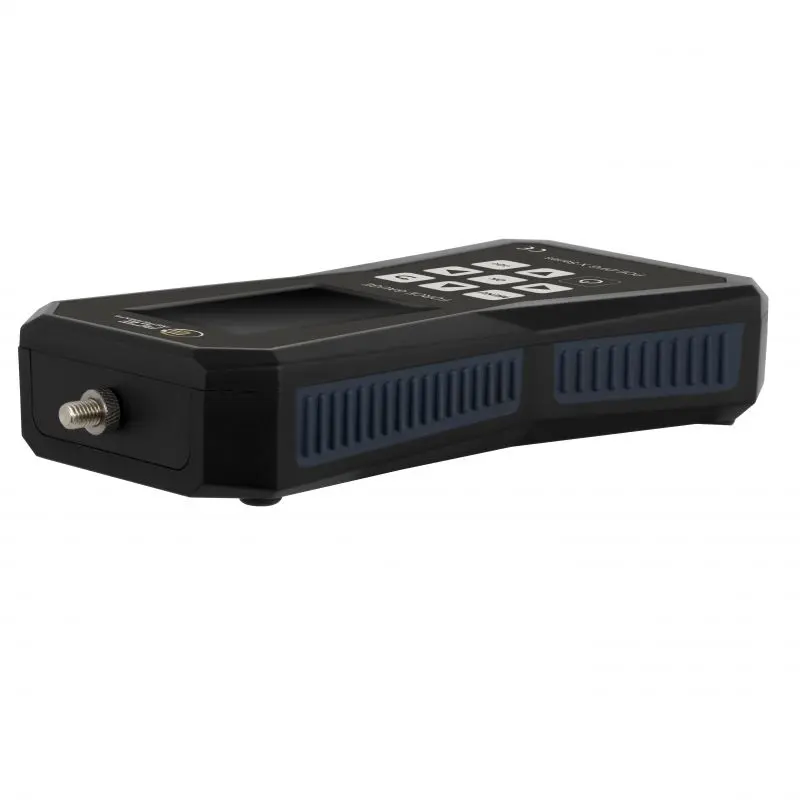

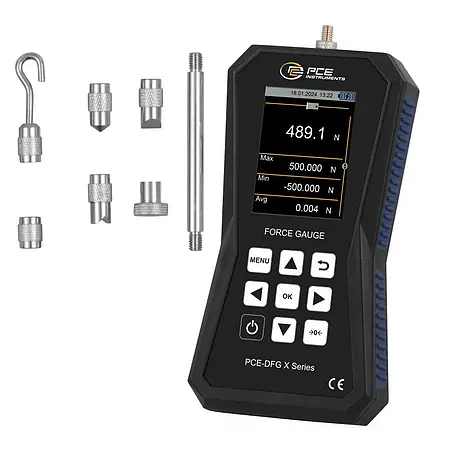

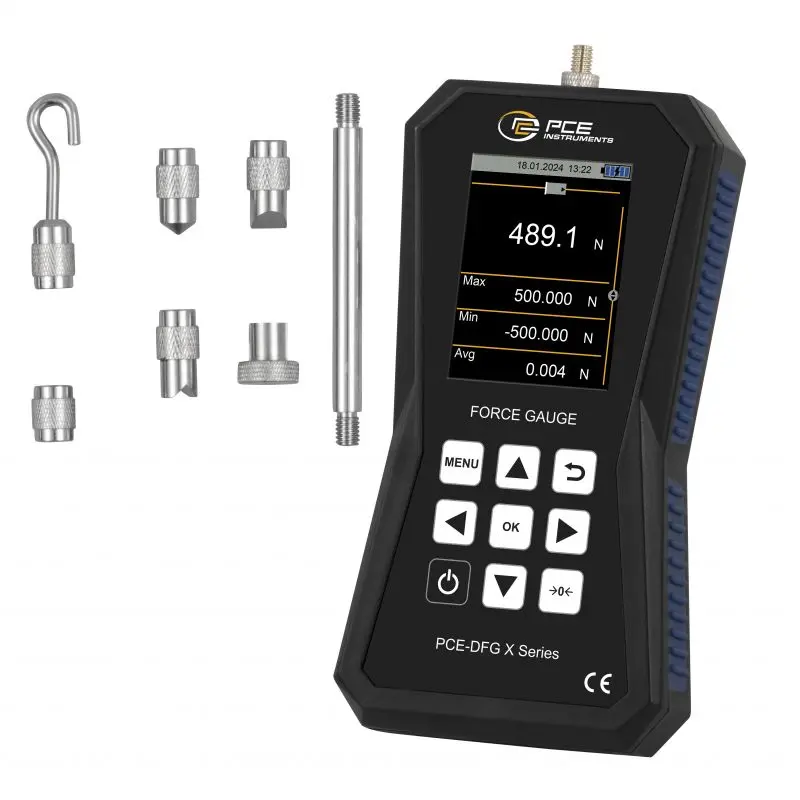

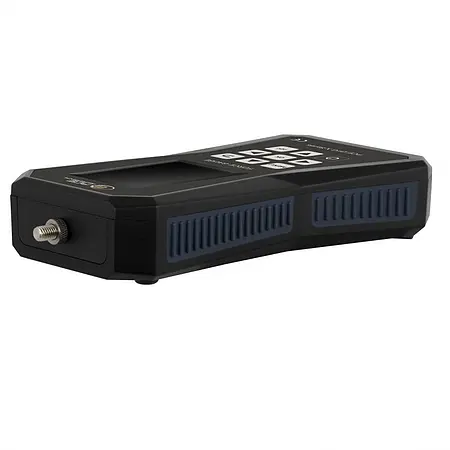

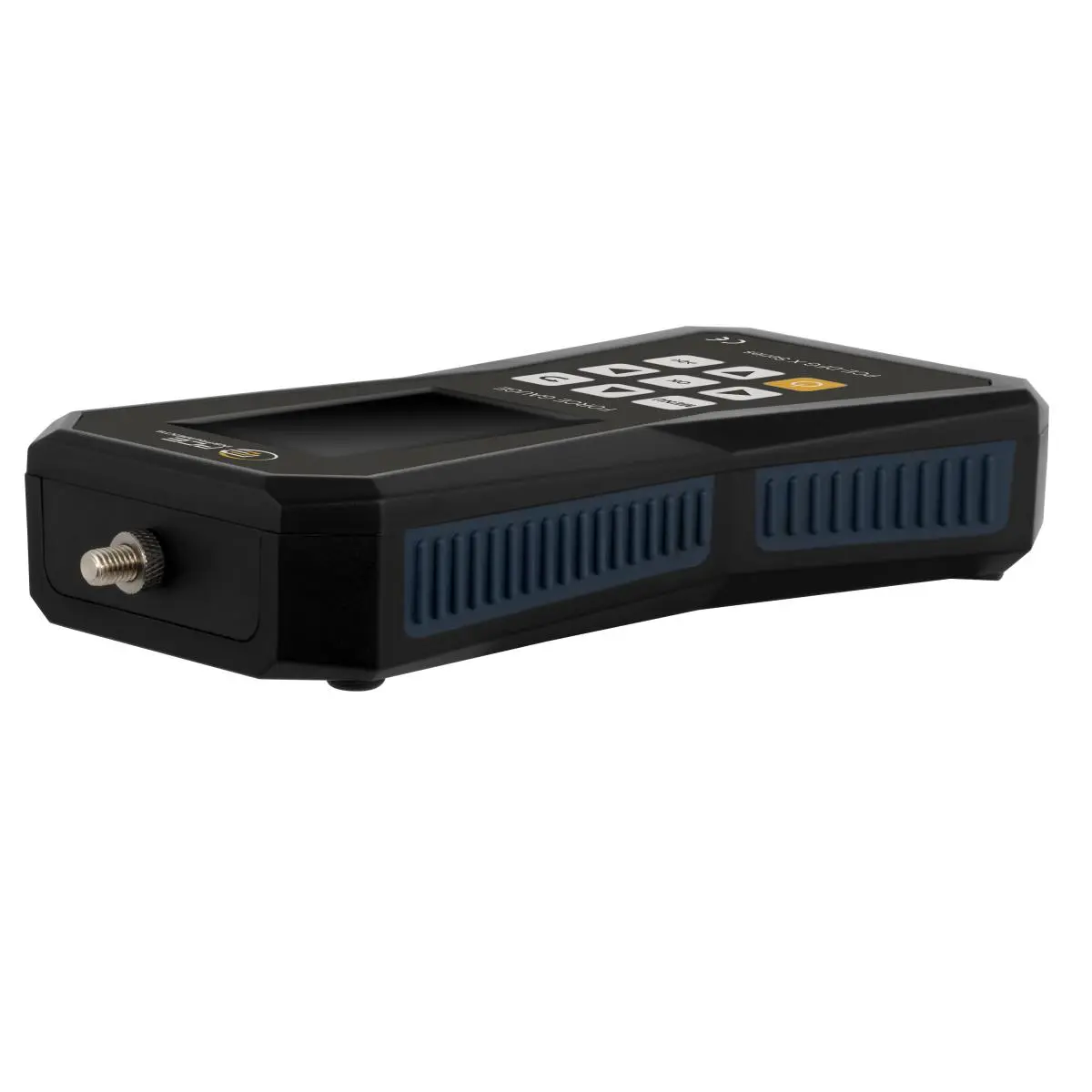

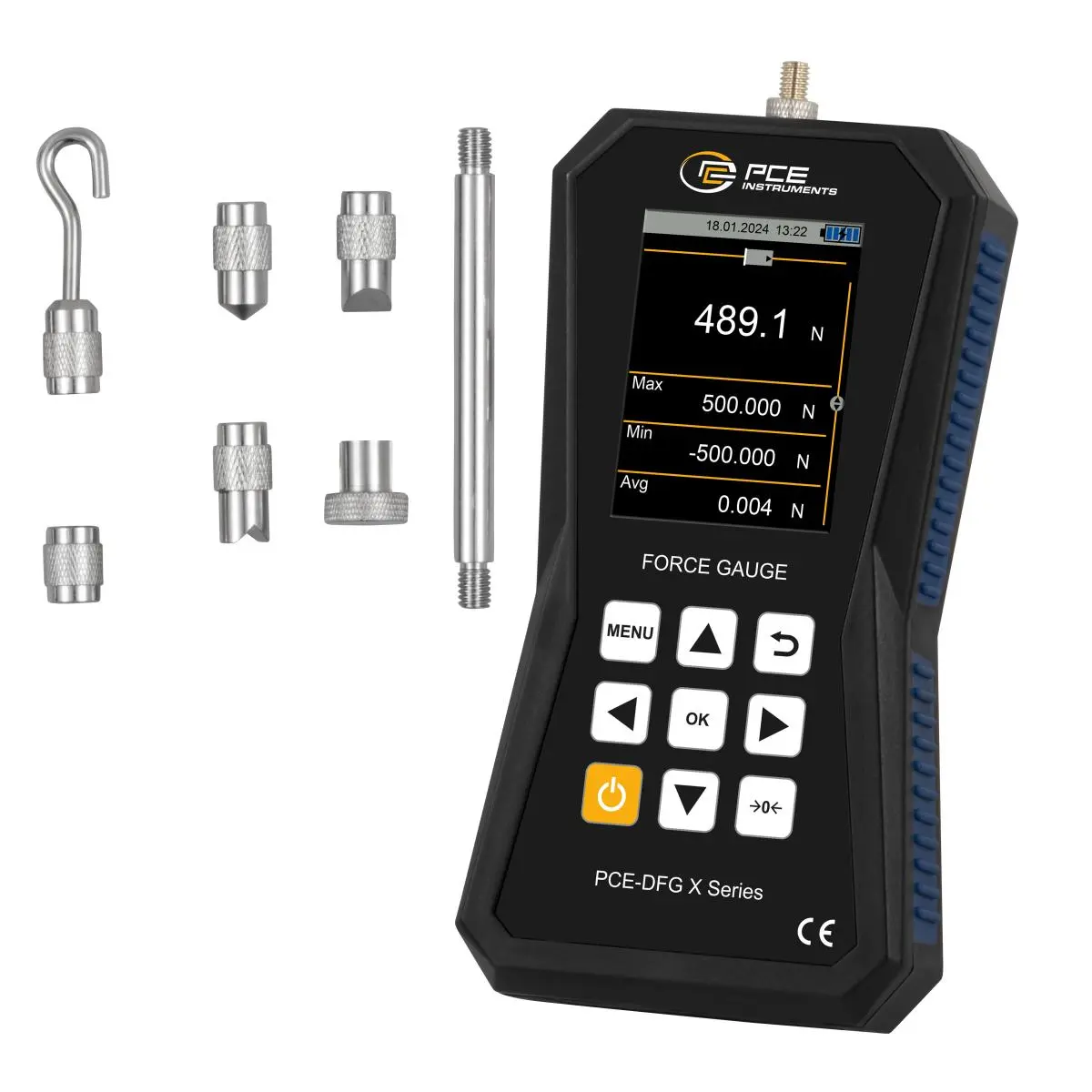

The force gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The device has an internal measuring cell and can measure forces of up to 500 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads.

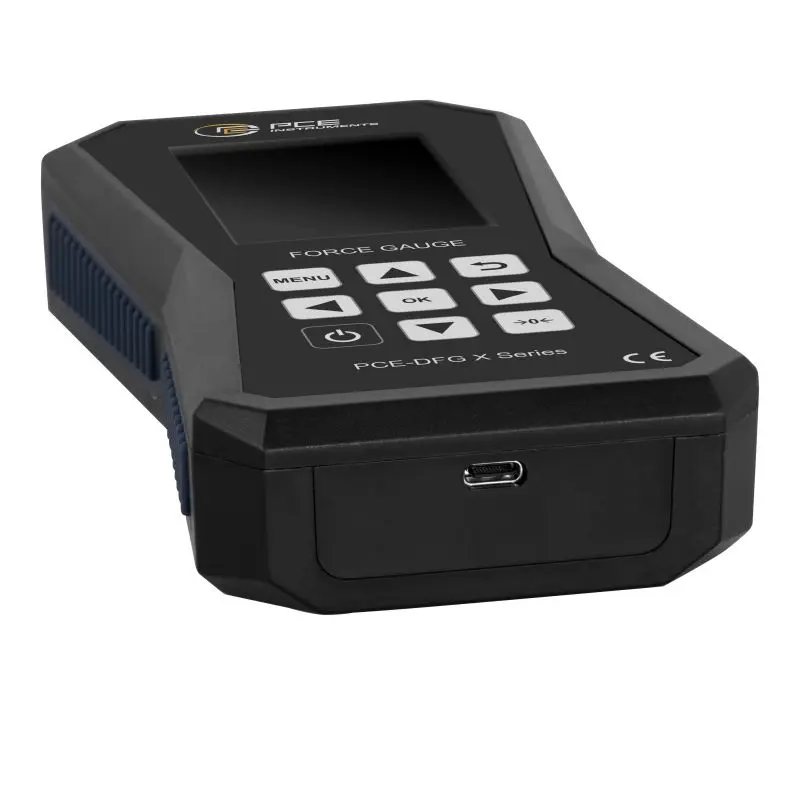

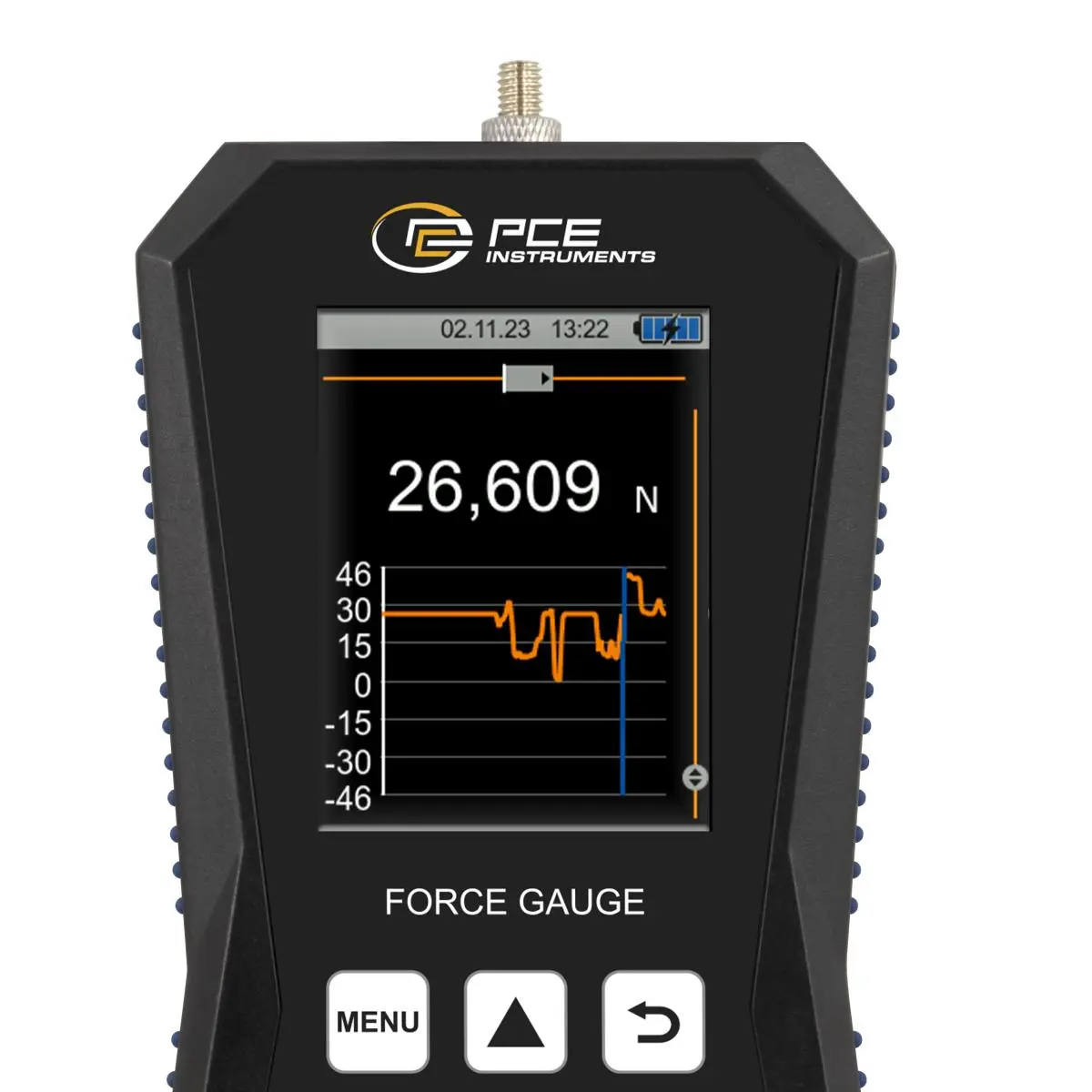

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement protocols to be created, saved and exported. The force measuring device has a USB-C interface that can be used to read the measurement data into the PC software. The device is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test benches are available for adapting the force transducer.


Highlights

- Measuring range: 0 ... 500 N
- Measuring rate: 1 ... 7200 Hz
- Accuracy: ±0.05 % F.S.

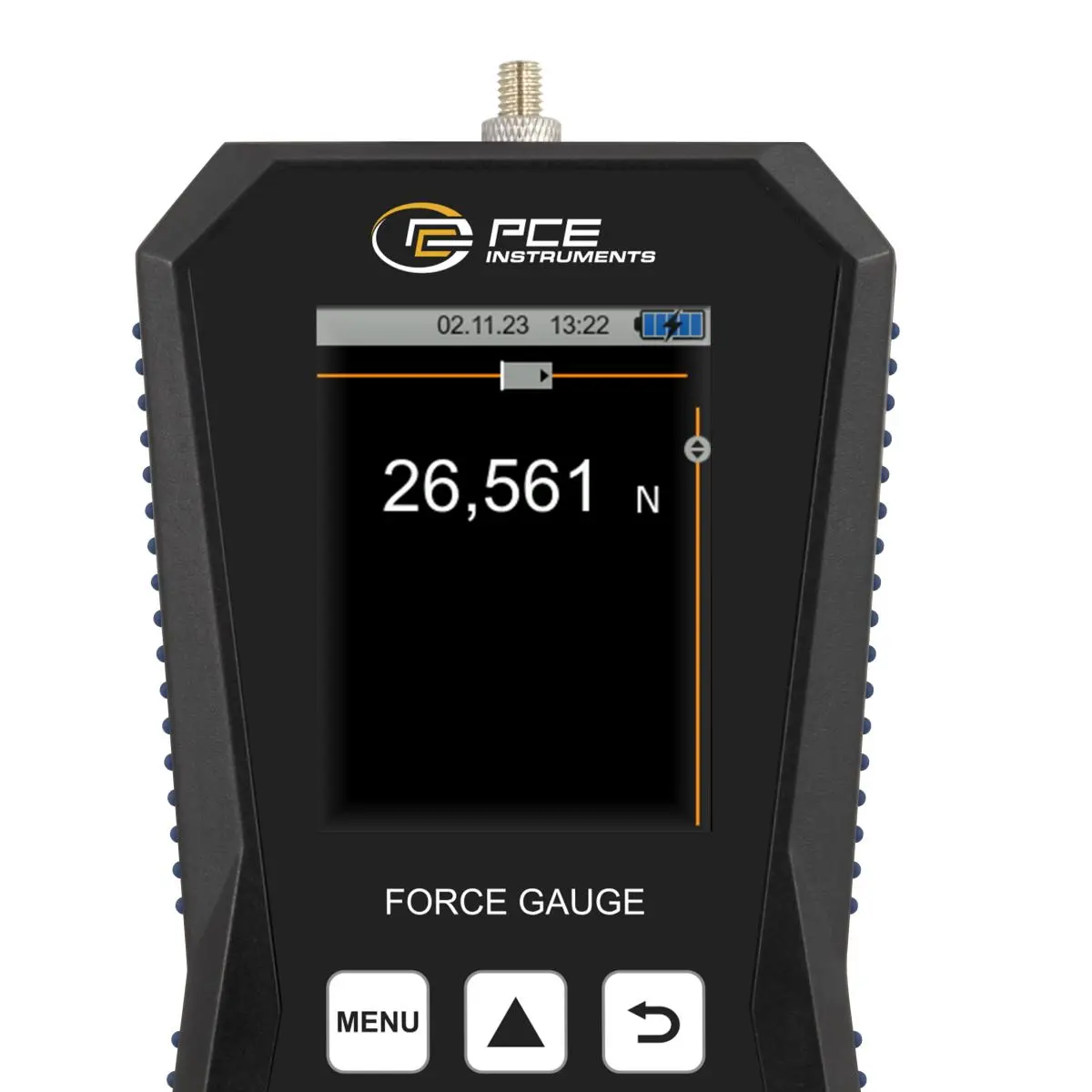

- Graphic display

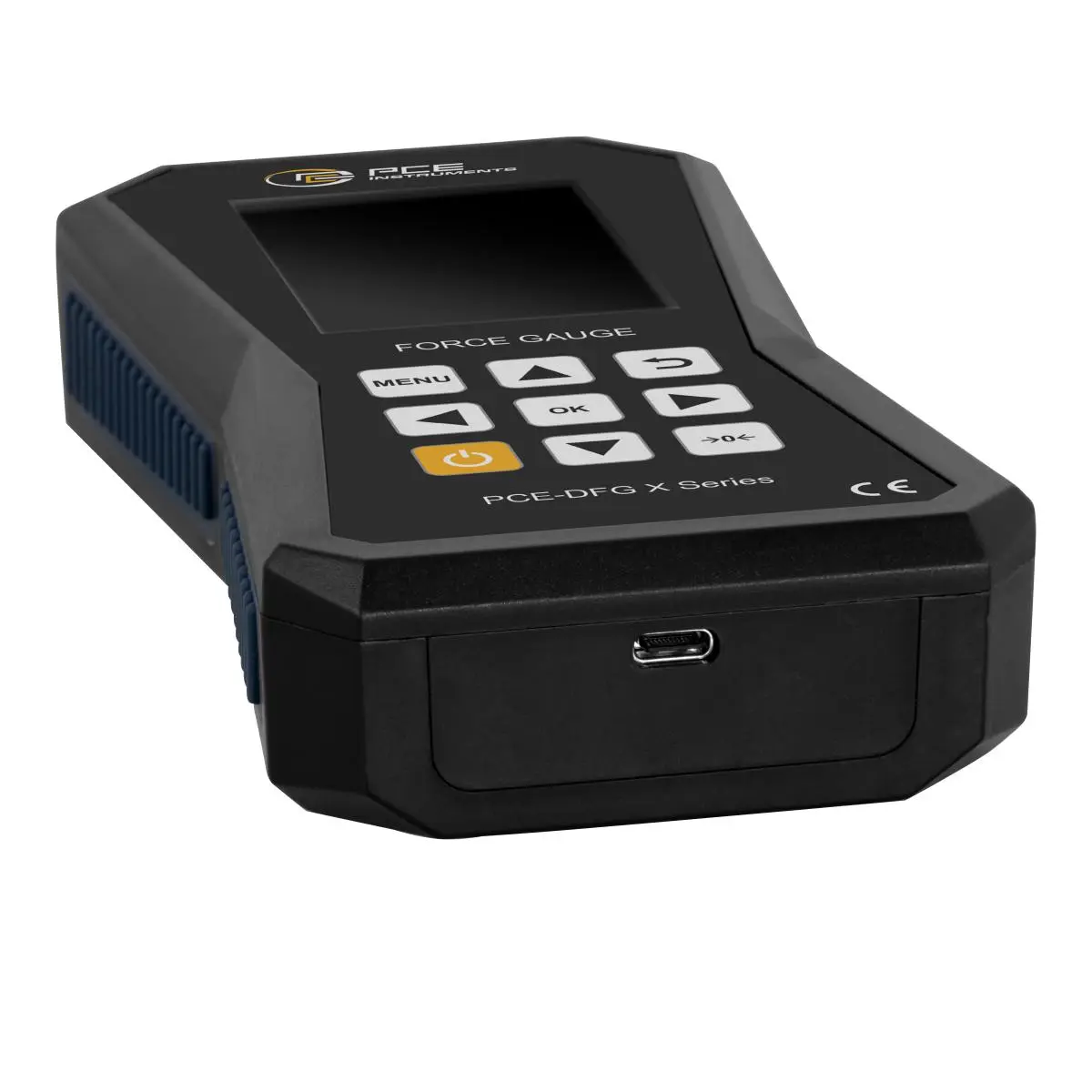

- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed

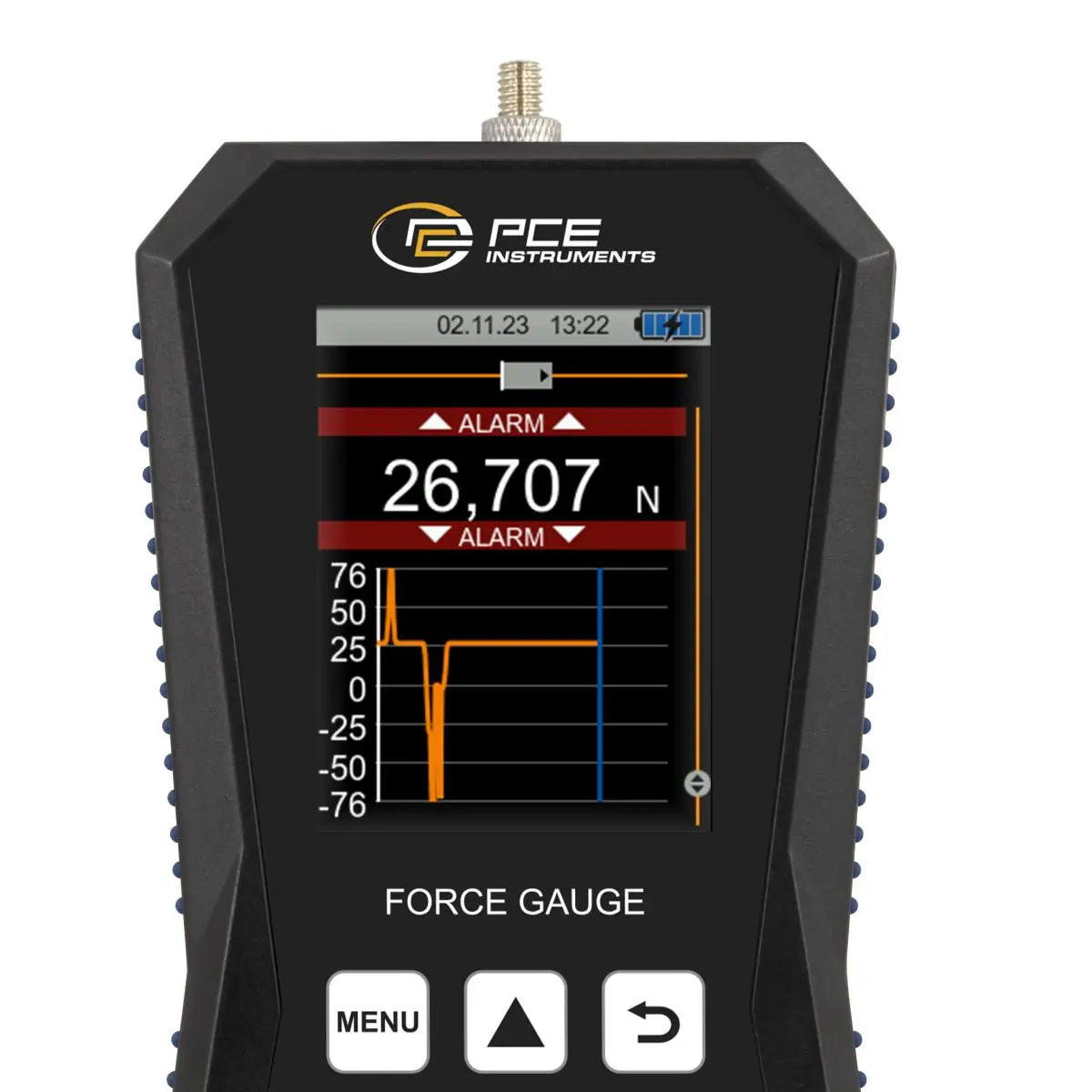

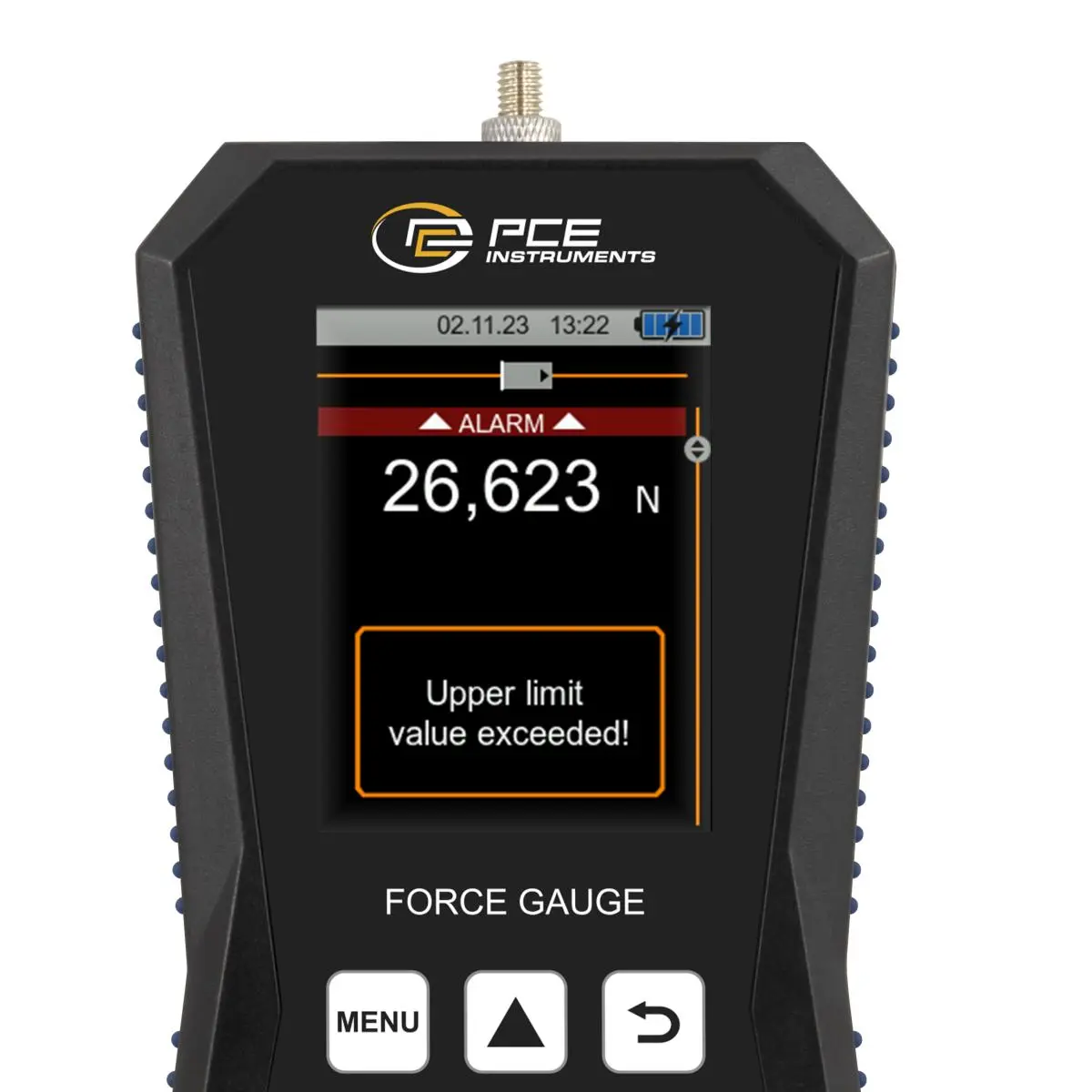

- Various alarm modes
- Bar chart for displaying the measured value in the measuring range
- Calibration reminder

Specification

Force
Measuring range  0 ... 500 N
Resolution  0.1 N
Accuracy  ± 0.05 % F.S.

General technical data
Units  kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Display type  LCD with illumination
Display size  2.8 inch
Adjustable measurement rate  1 ... 7200 Hz
Memory medium  Internal memory
Storage capacity  32 GB
Memory interval of  1 Hz
Memory interval up to  7200 Hz
Operating time  13 h
Automatic switch-off adjustable  1 ... 15 min.
Automatic switch-off can be deactivated  Yes
Alarm  Optical, acoustic
Alarm modes  Inside, Outside, Crack, Switch off
Menu language  German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese
Protection class (device)  IP52
Power supply  USB 5 V DC, 500 mA
Weight  255 g
Dimensions (L x W x H)  165 x 85 x 32 mm
Operating conditions  -20 ... 65 °C , 10 ... 95 % r.H
Storage conditions  -20 ... 65 °C , 10 ... 95 % r.H

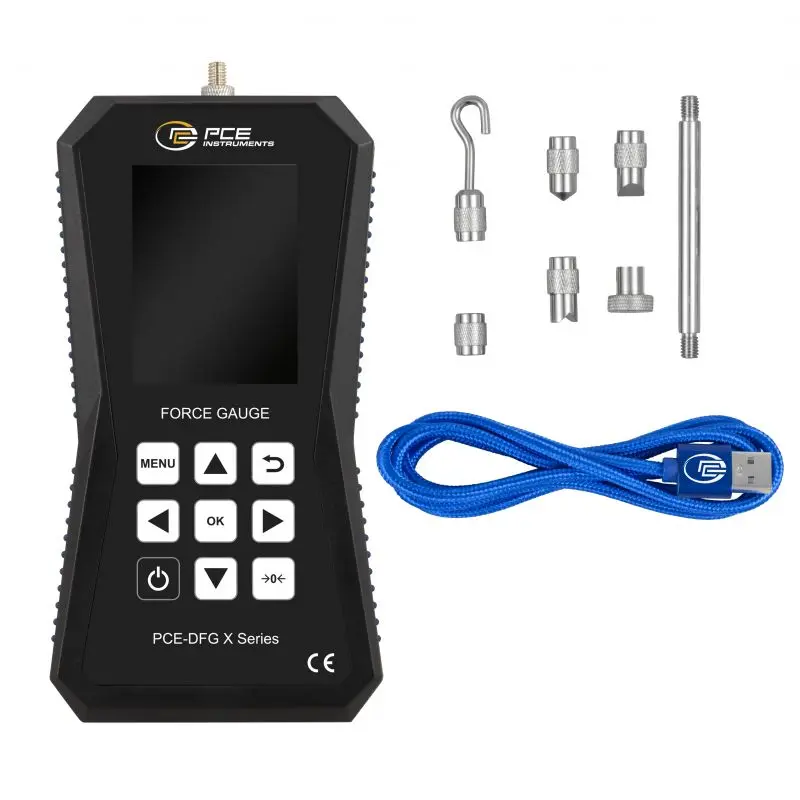

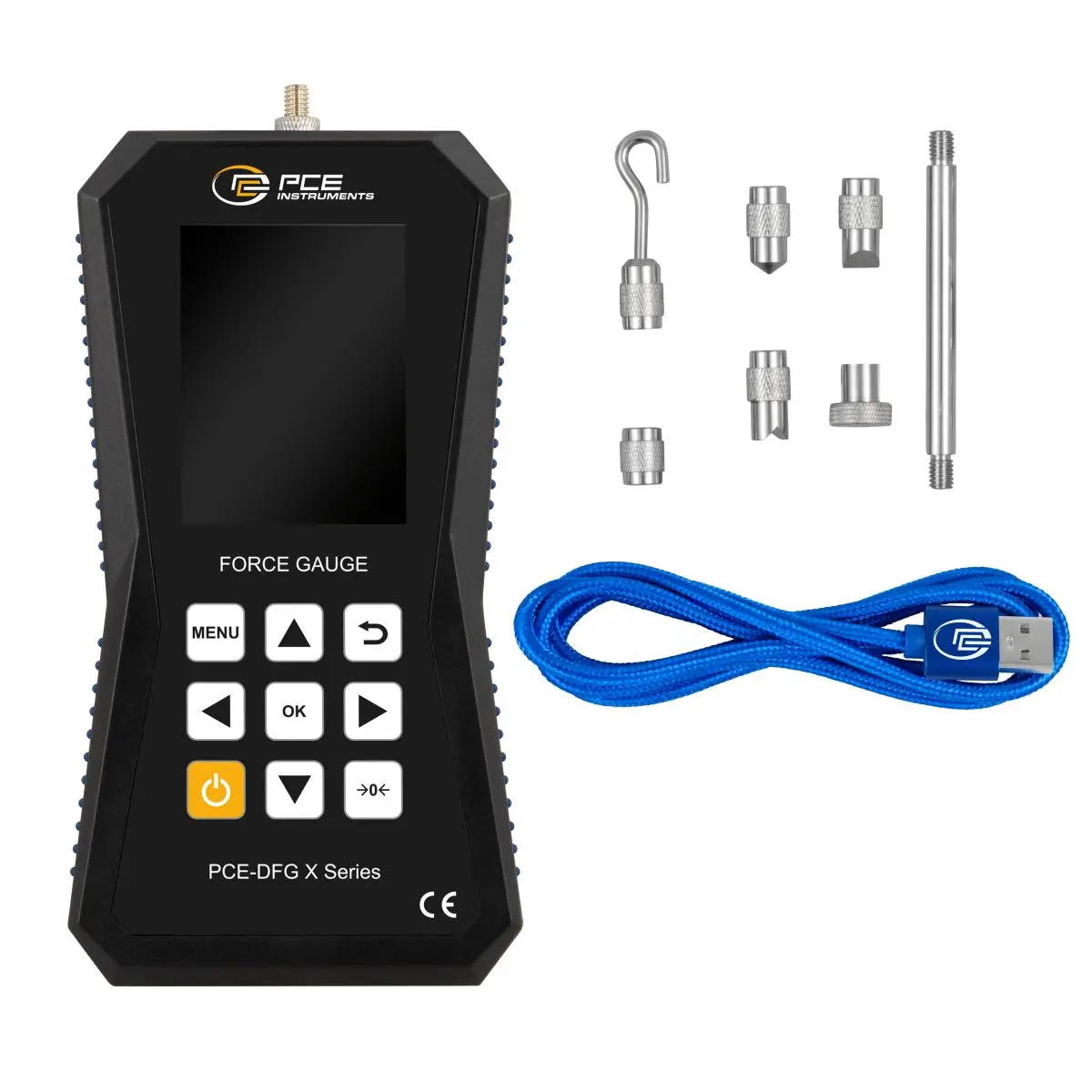

Delivery Scope

1 x PCE-DFG 500 X force gauge
1 x adapter set
1 x case
1 x USB-C cable
1 x PC software
1 x operating instructions
