£ 224.00

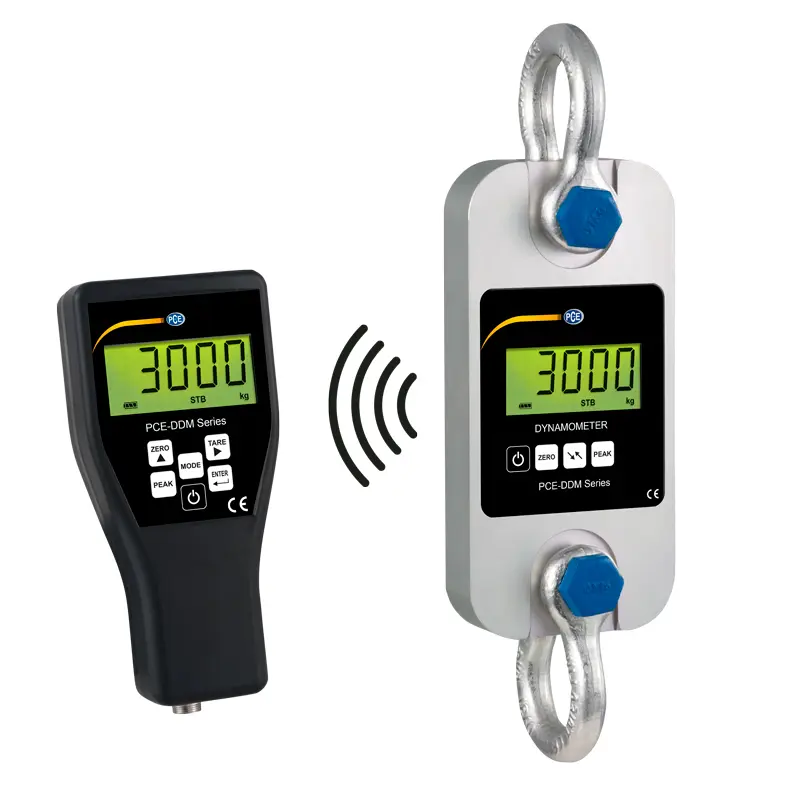

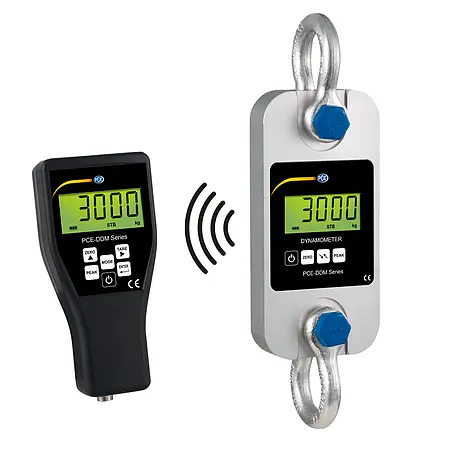

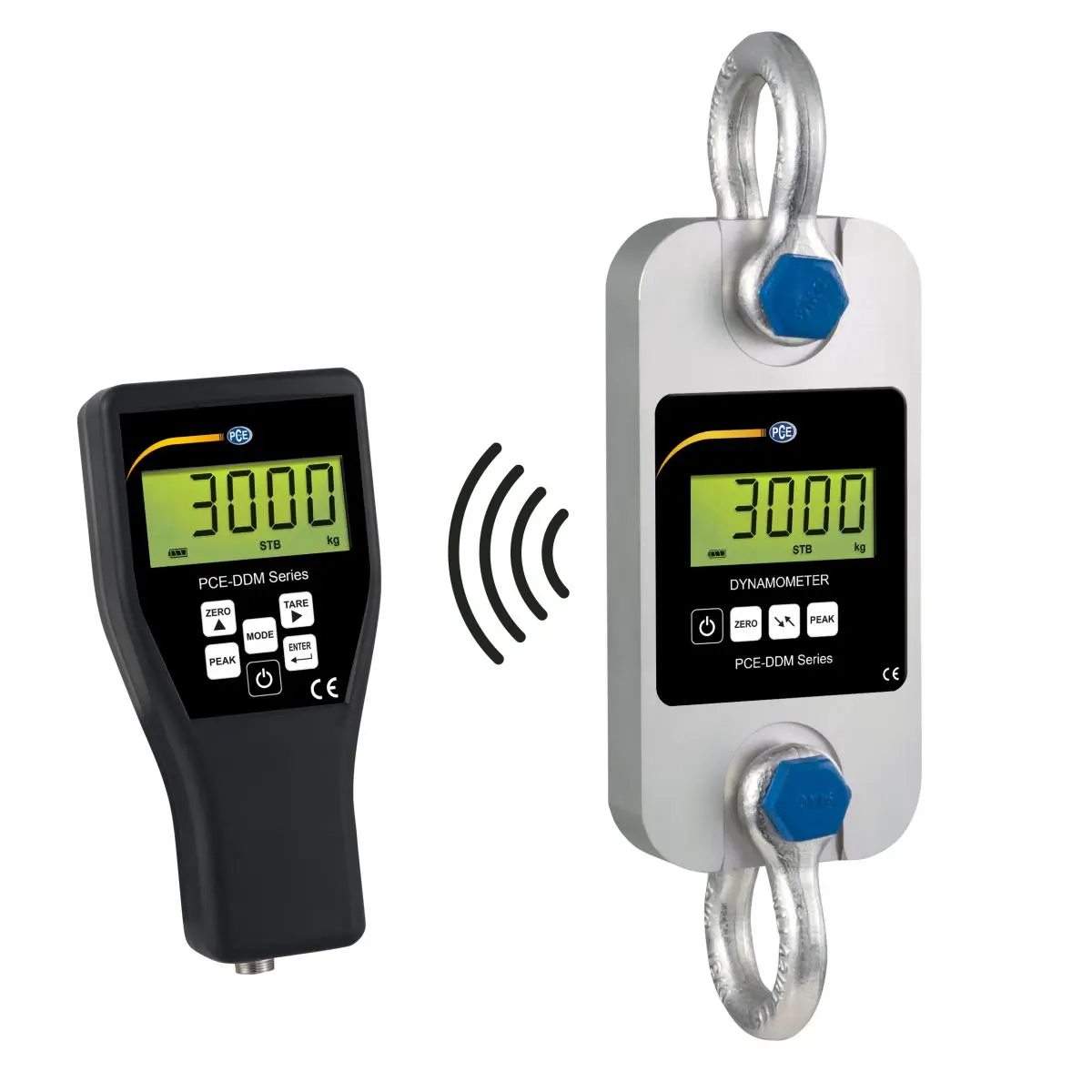

PCE-DDM 3 Force Gauge
Measurement range up to 3 t / Peak hold function / Includes remote control indicator, shackles and protective carrying case

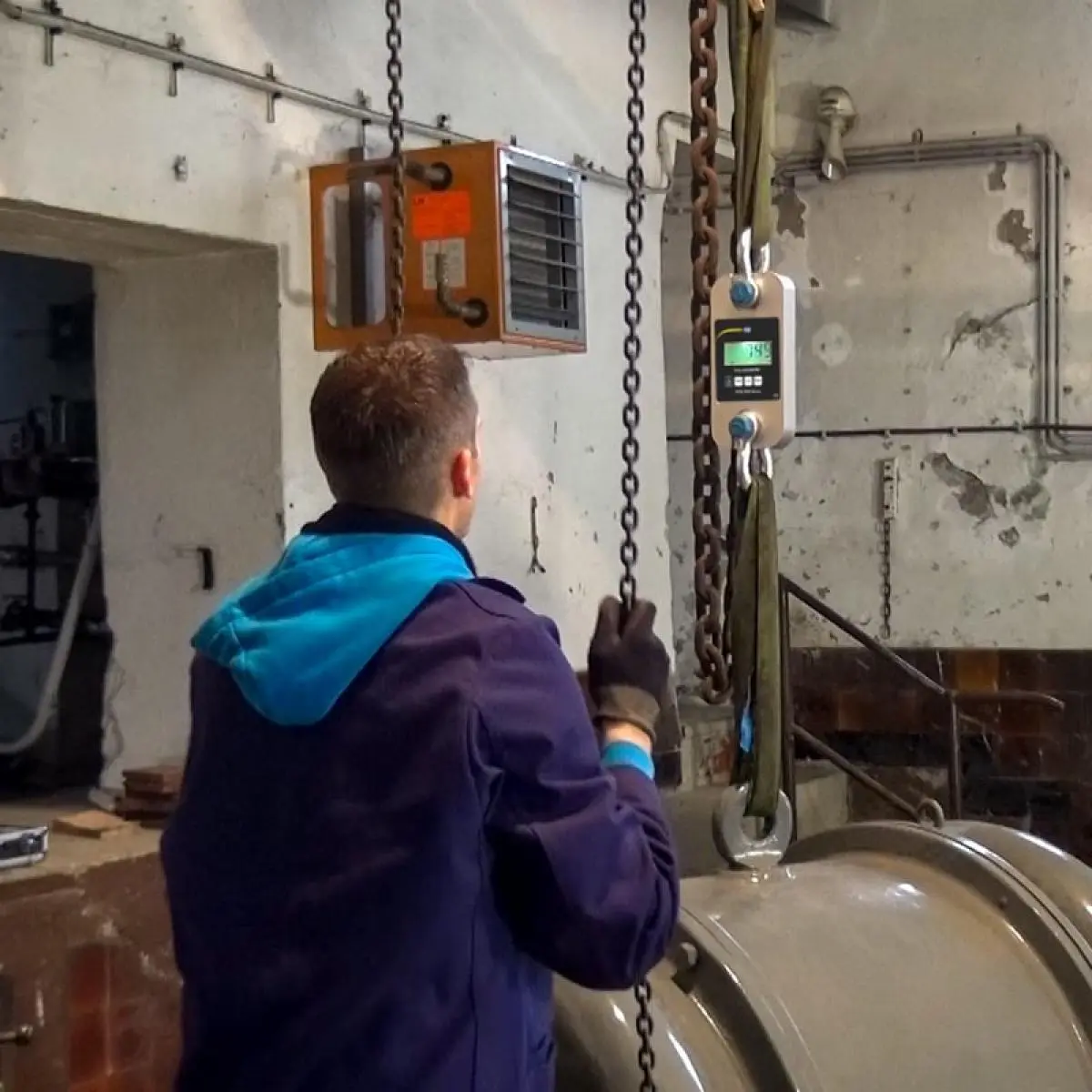

The PCE-DDM 3 Force Gauge is the ideal tool for measuring strong tensile forces. The PCE-DDM 3 Force Gauge is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Force Gauge is a compact portable device with a low net weight. Interesting functions of the Force Gauge are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for tension force testing. For compression force testing, please see the PCE-FB series force gauges.
| Measuring range | 3000 kg / 30 kN / 6614 lbs |
| Resolution | 1 kg / 10 N / 2.2 lbs |
| Min. range | 10 kg / 22 lbs |
| Weight (with shackle) | 2 kg / 4.4 lbs (5 kg / 11 lbs) |
| Accuracy | ±0.1% of measurement range |
| Tare range | Max. 20% of measurement range |
| Display | LCD with 22 mm / 0.9 in digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature | -10°C ... 40°C / 14° F ... 104° F |
| Power supply | 3 x 1.5V AA batteries |
| Operating time | Approx. 50 hours |
| Technical drawing | ||||||||||||||||||
 |
||||||||||||||||||
|
1 x PCE-DDM 3 Force Gauge

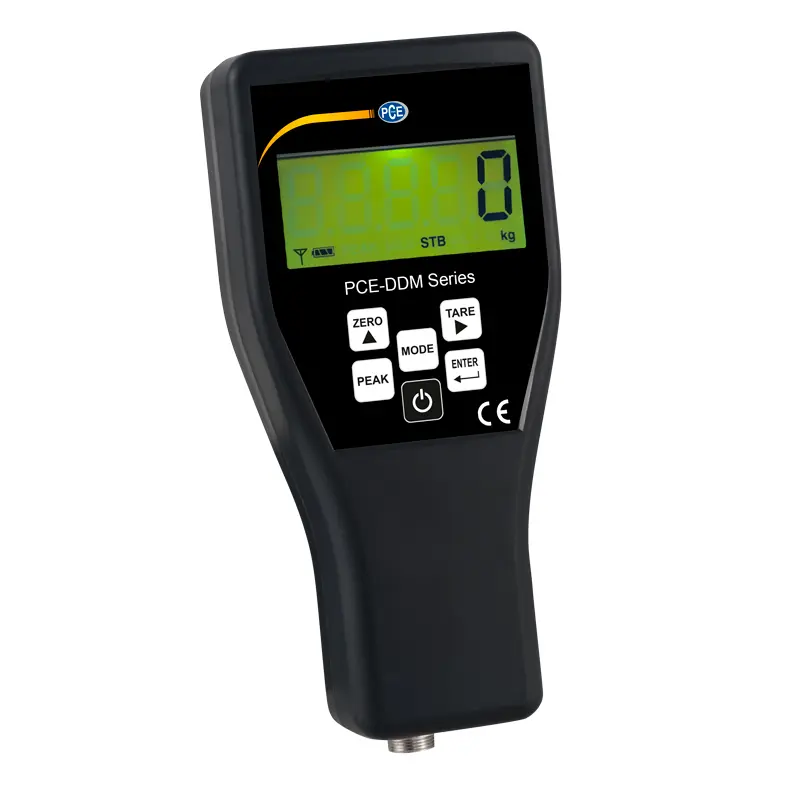

1 x Remote control indicator
2 x Shackles

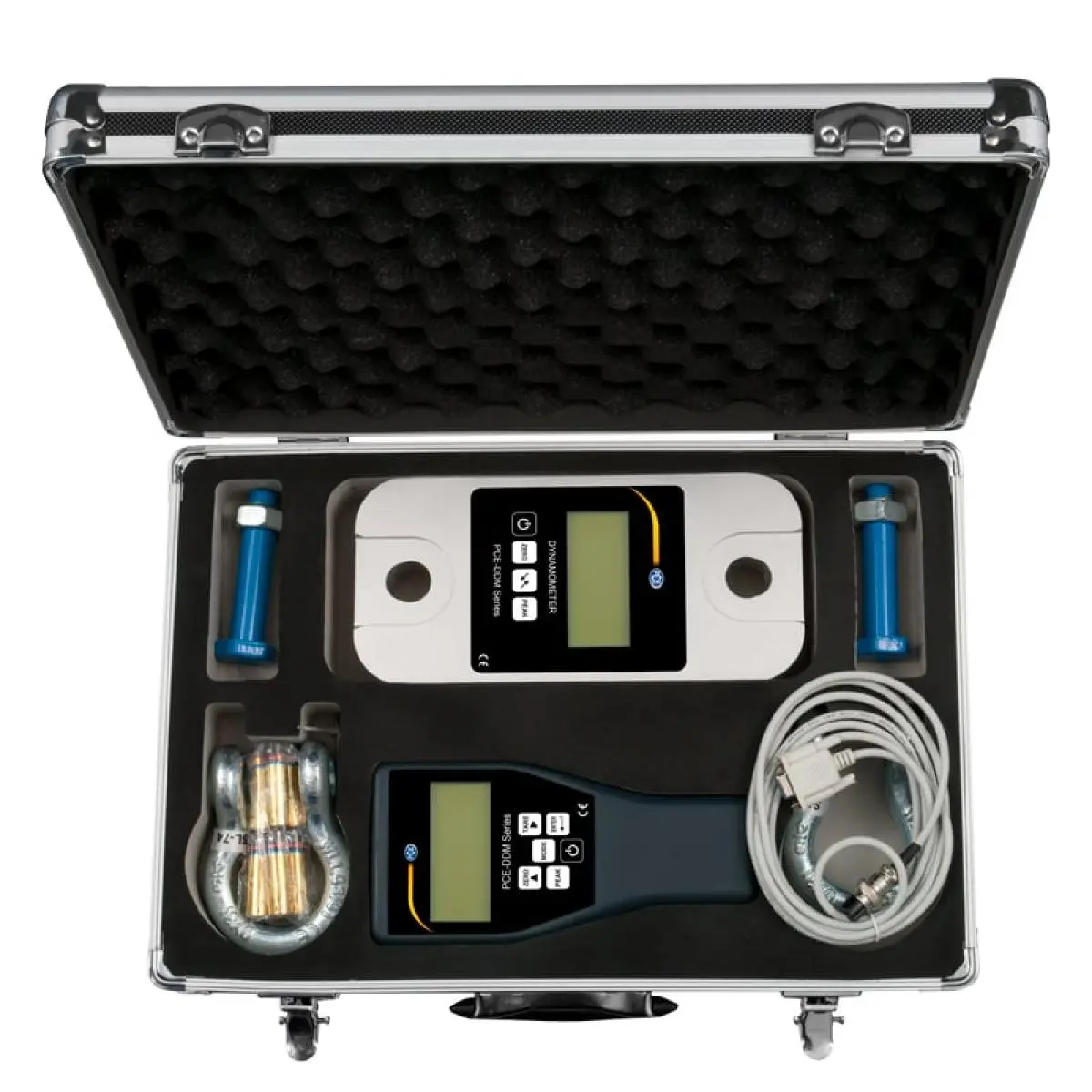

1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
