Force Gauge PCE-DDM 10-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 2,106.00
£ 2,527.20
PCE-DDM 10-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

Mobile Force Gauge / Measuring range up to 10 t /
PEAK hold function / incl. remote display / incl. shackles and transport case

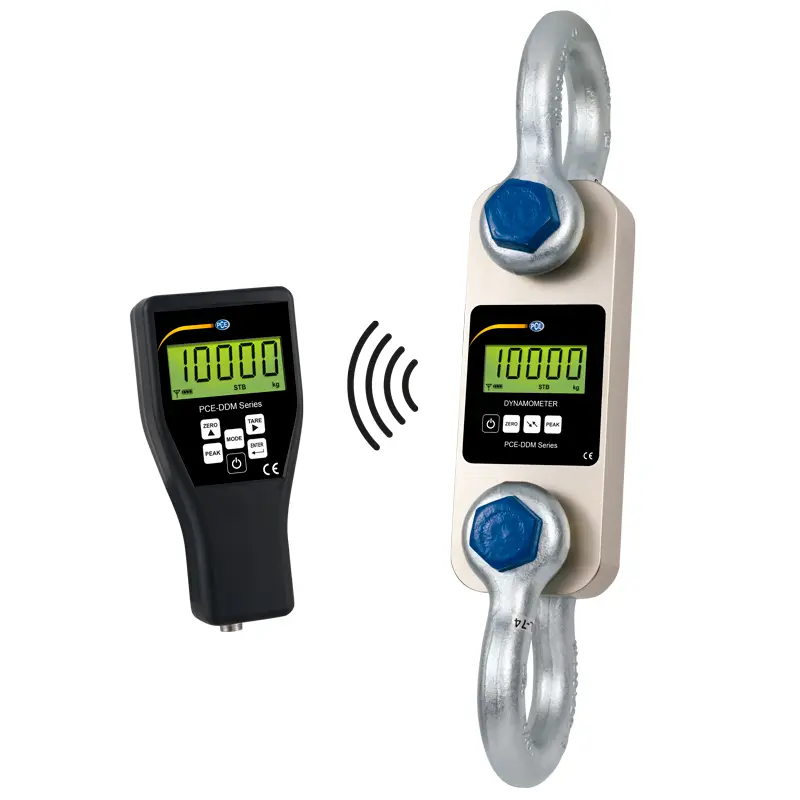

The force gauge is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with a radio display and two shackles in a transport case.

Interesting functions of the force gauge are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measuring range up to 10,000 kg / 100 kN
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.
- incl. ISO Calibration Certificate

Specification

Measuring range 10000 kg / 100 kN / 22046 lbs
Resolution 5 kg / 50 N / 11 lbs
Min. range 100 kg / 220 lbs
Weight (with shackle)
11 kg / 24 lbs
(25 kg / 55 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature   -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
320 mm
12.6 in		 120 mm
4.7 in		 57 mm
2.2 in		 230 mm
9.1 in		 92 mm
3.6 in		 41 mm
1.6 in		 54 mm
2.1 in		 535 mm
21.1 in		 Aluminum

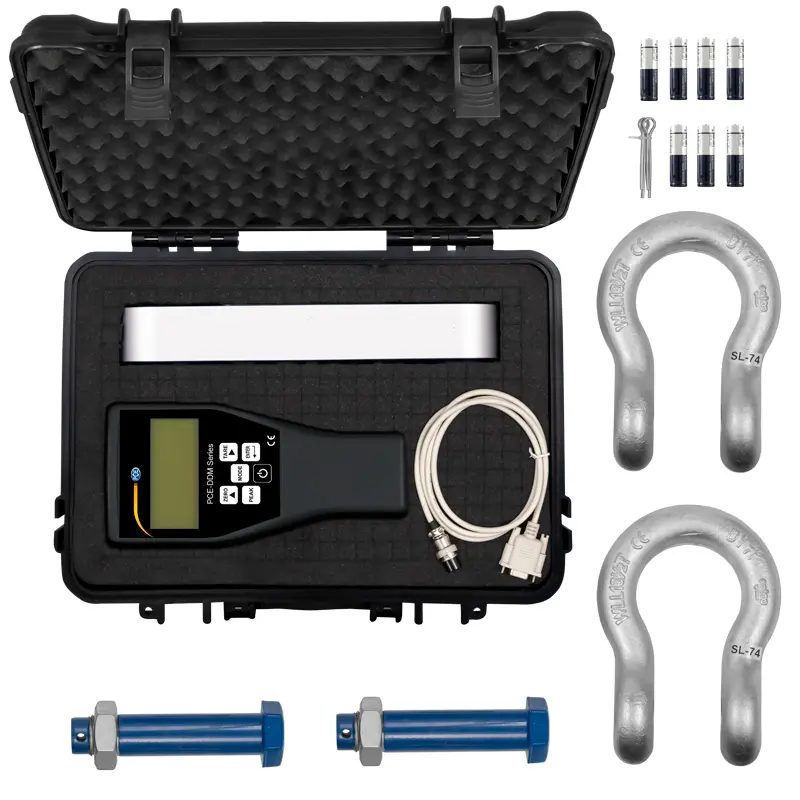

Delivery Scope

1 x Force Gauge PCE-DDM 10-ICA

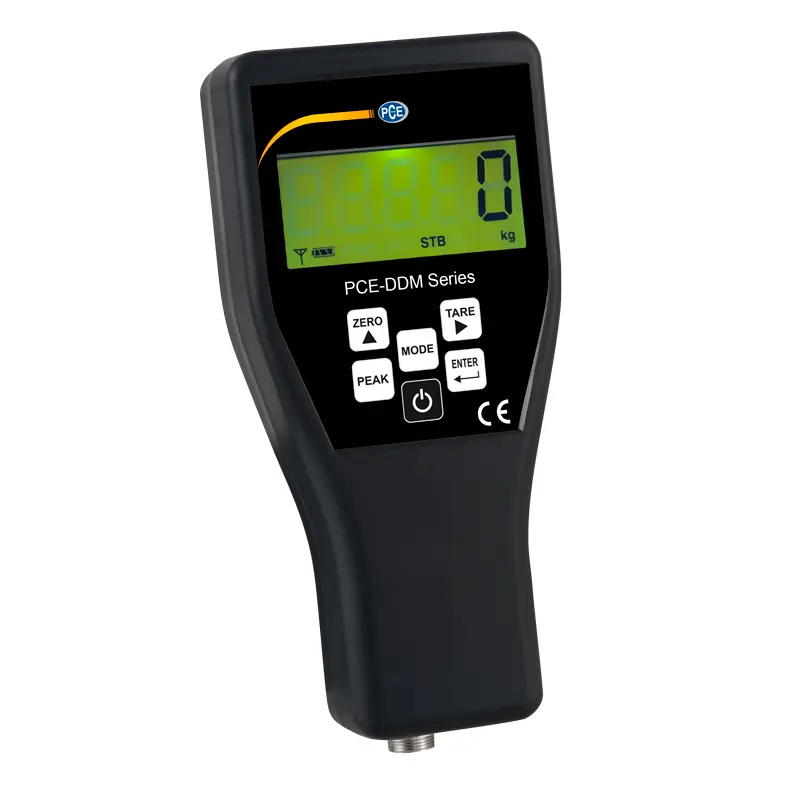

1 x Remote control indicator

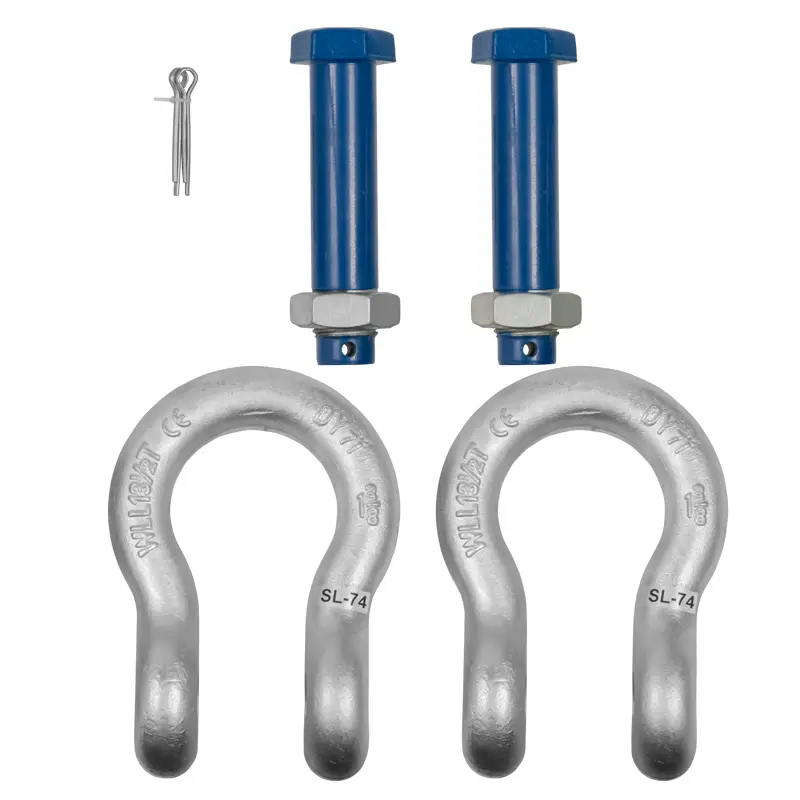

2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual

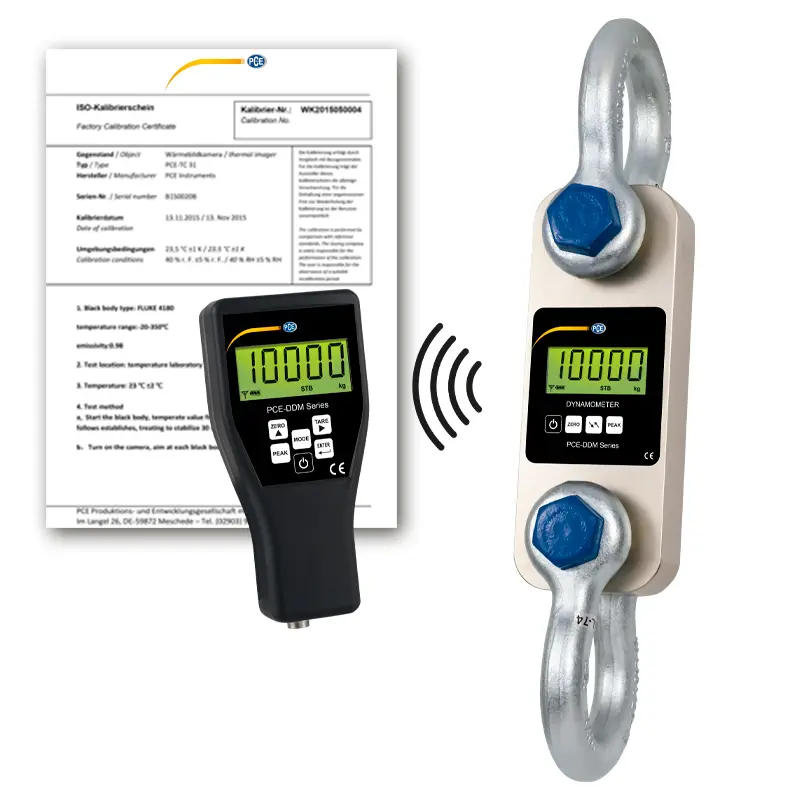

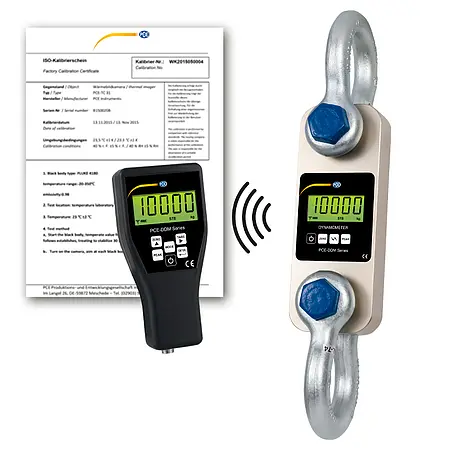

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
