£ 503.00

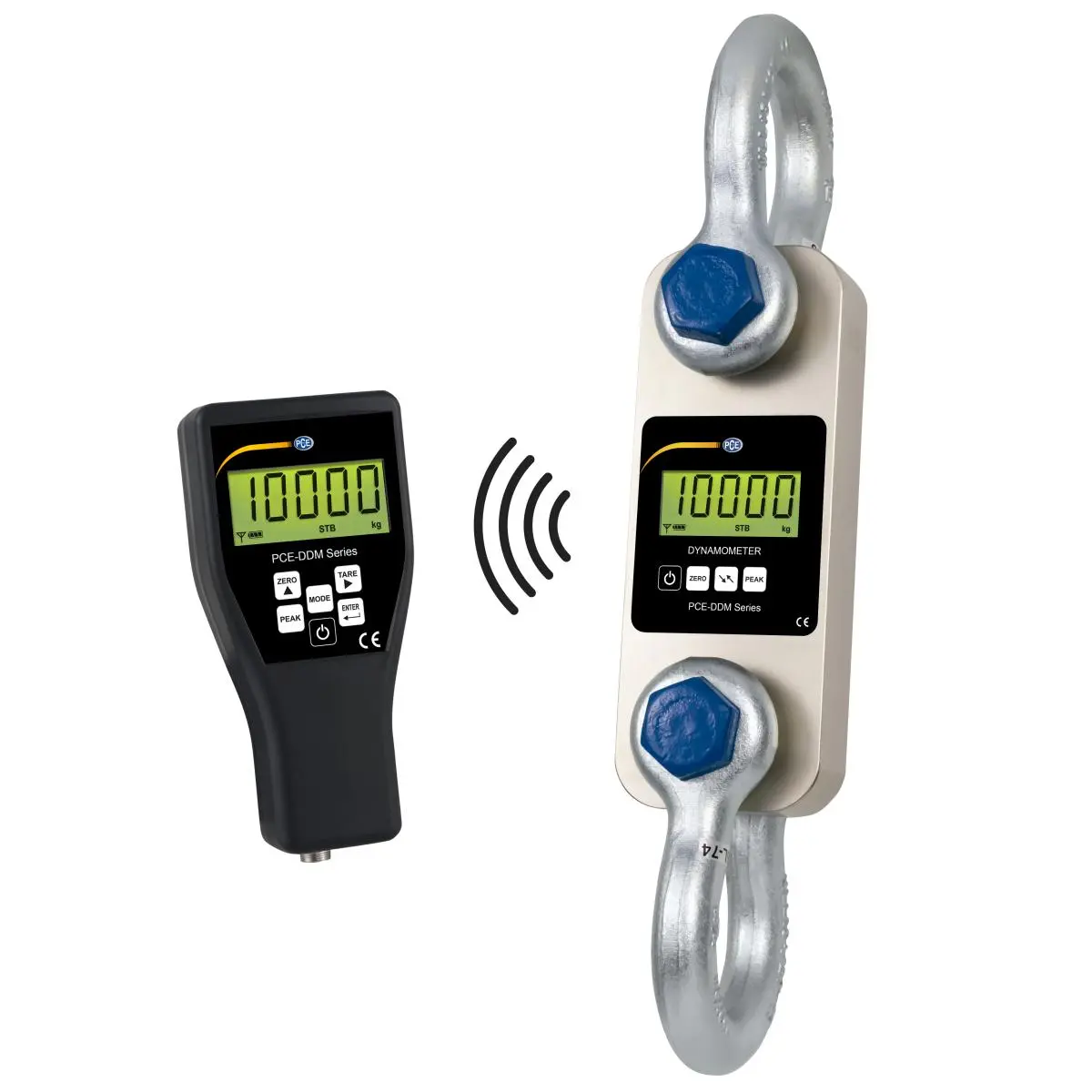

PCE-DDM 10 Force Gauge

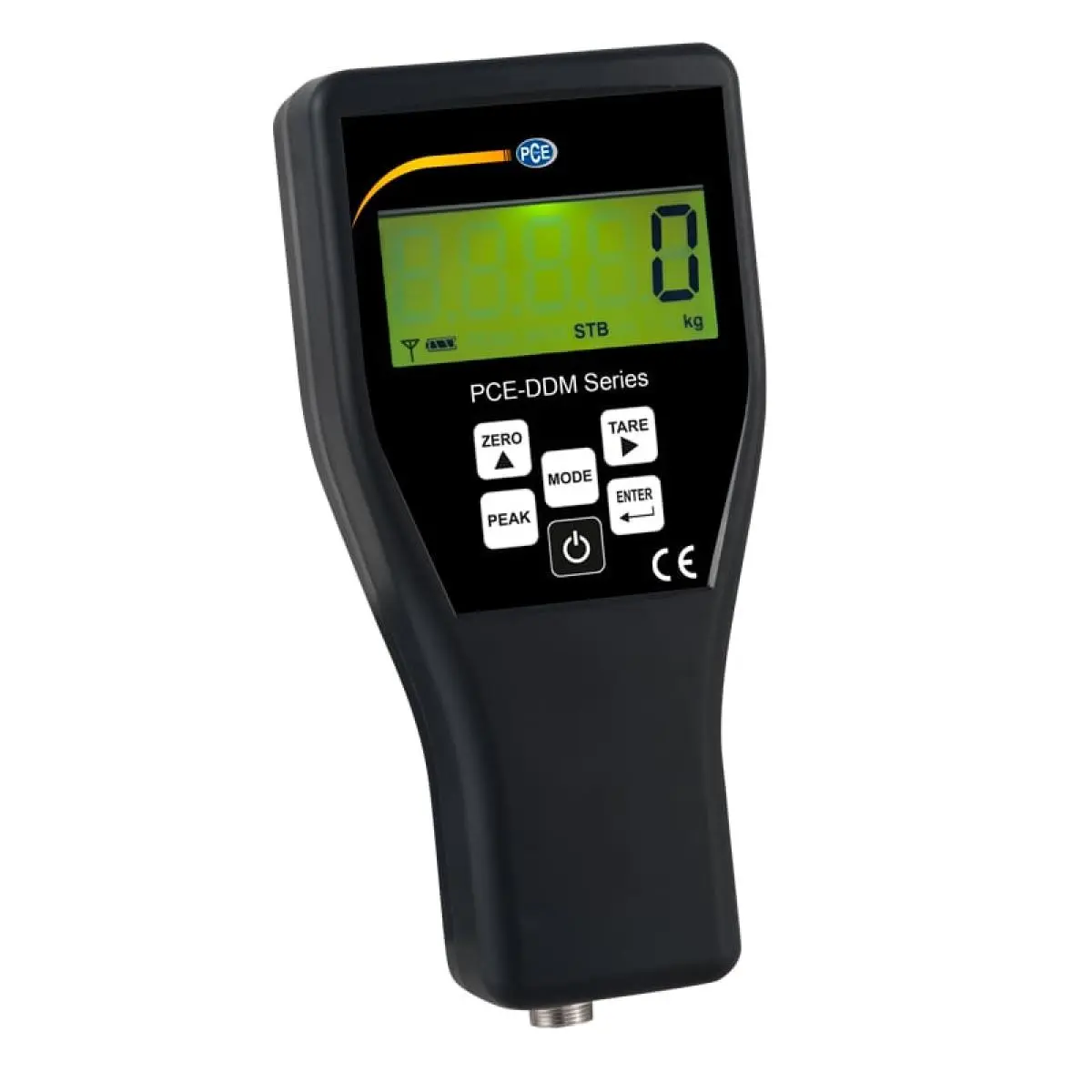

Measurement range up to 10 t / Peak hold function / Includes remote control indicator, shackles and protective carrying case

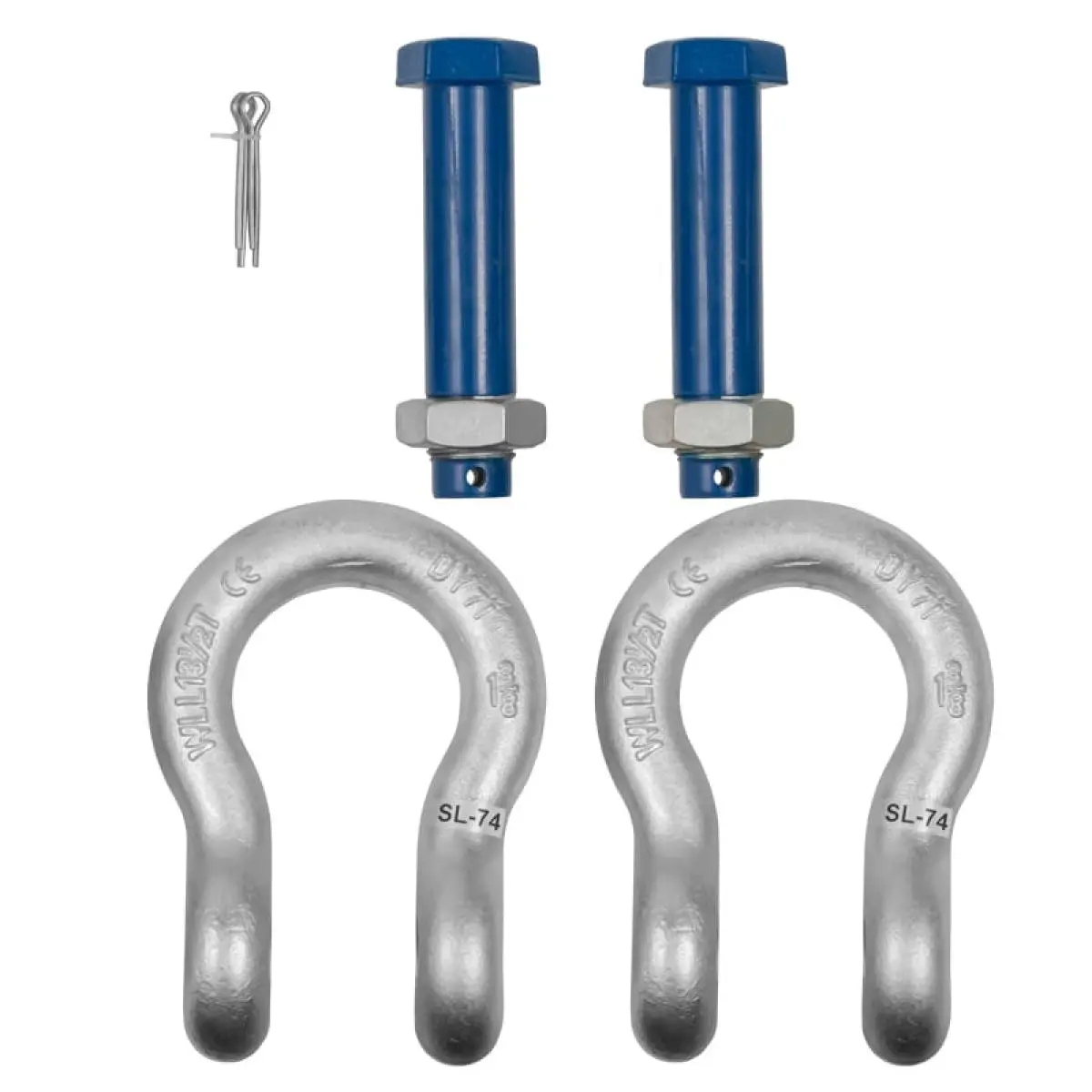

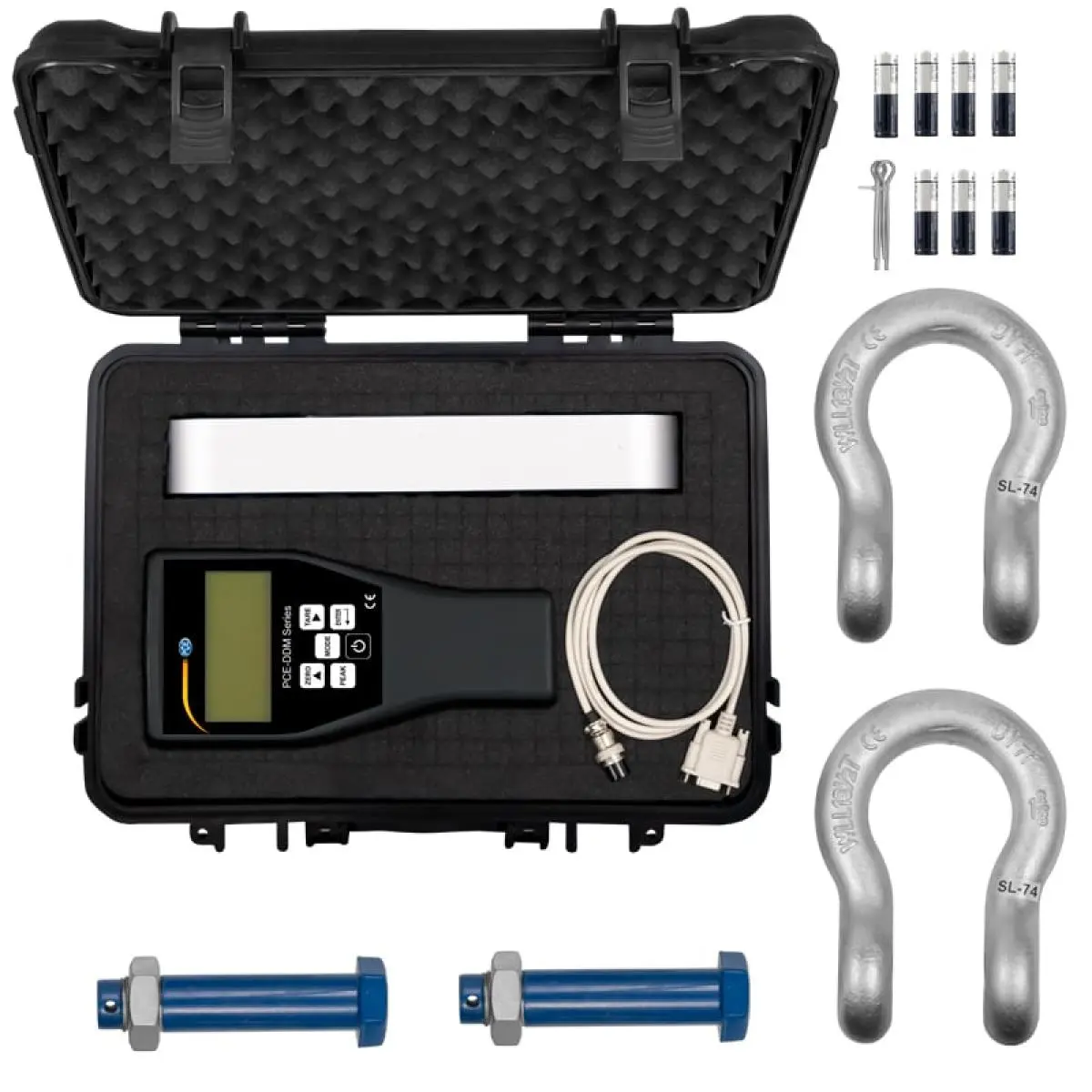

The PCE-DDM 10 Force Gauge is the ideal tool for measuring strong tensile forces. The PCE-DDM 10 Force Gauge is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Force Gauge is a compact portable device with a low net weight. Interesting functions of the Force Gauge are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.
| Force | |
| Measuring range | 0 ... 100 kN |
| Resolution | 50 N |
| Accuracy | ±0.1% FS |
| Force | |
| Measuring range | 100 ... 10000 kg |
| Resolution | 5 kg |
| Accuracy | ±0.1% FS |
| General technical data | |
| Measuring functions | HOLD, peak |
| Measuring functions (additional information) | Summing function |
| Units | kg, N, lb, T, kn |
| Display type | LCD |
| Digit size [WxH] | Height: 22 mm |
| Measuring rate | 2,5 Hz |
| Operating time | 50 h |
| Minimum load [min] | 100 kg |
| Tare range | max. 20 % of the measurement range |
| Maximum radio range | 80 m |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 7 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 320 x 120 x 57 mm |
| Weight | 11000 g |
