Force Gauge / Digital Force Gauge
W

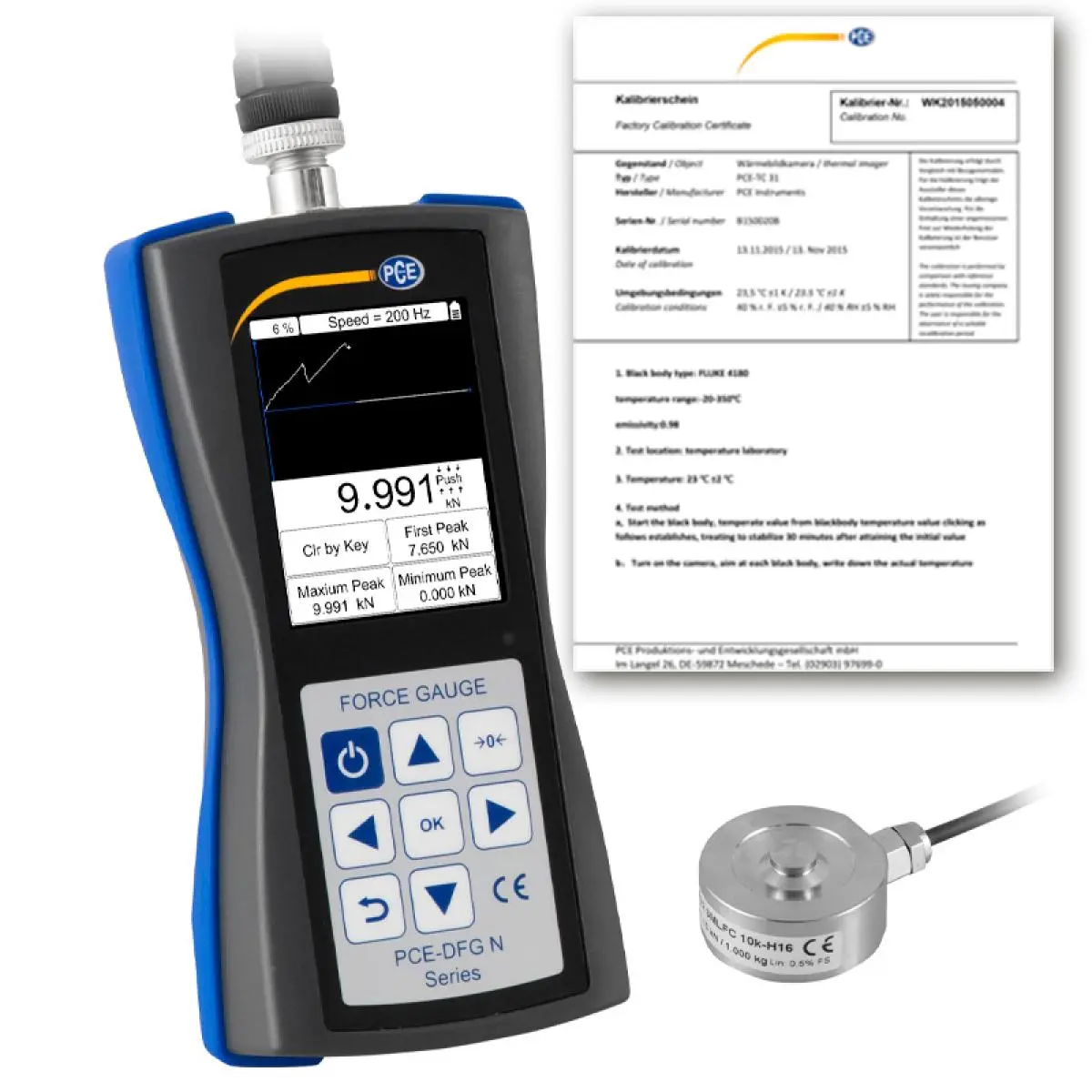

The Force Gauge / Digital Force Gauge with an external load cell is designed for the measurement of compressive forces at hard-to-reach measuring points. The pressure cell is connected to the Force Gauge / Digital Force Gauge by a sensor cable of approx. 3 m length and, thanks to the small cell dimensions, it ensures a versatile application. The Force Gauge / Digital Force Gauge or the load cell has on the bottom several threaded holes that allow a firm installation.

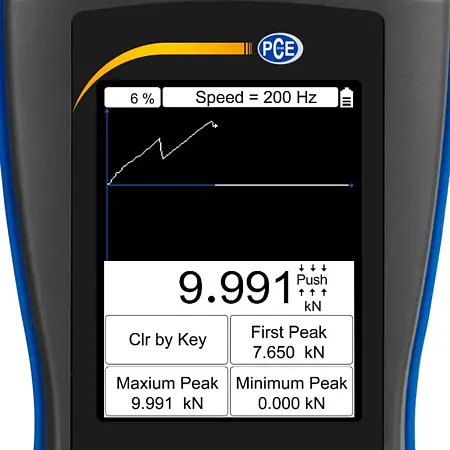

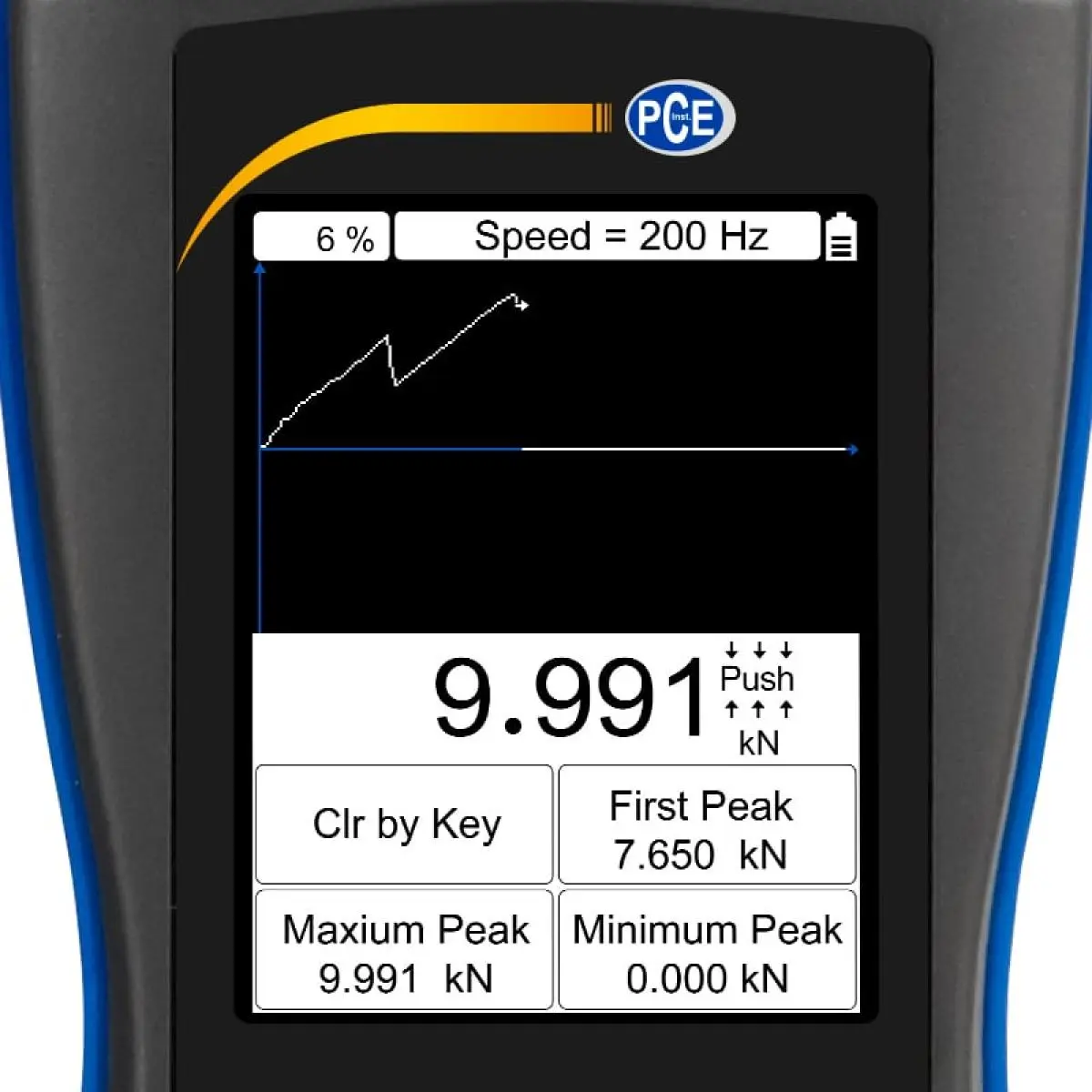

The Force Gauge / Digital Force Gauge can operate at a sampling rate of up to 1600 Hz. The sampled measured values are displayed as an instantaneous value, as well as in a graph trace directly in the Force Gauge / Digital Force Gauge.
The measurements can be stored in the internal memory or transmitted via USB interface with the included software with a maximum of 800 Hz as a live measurement.
The PEAK Hold function allows freezing of the highest measured value in the Force Gauge / Digital Force Gauge until this value is exceeded or cleared.
The Force Gauge / Digital Force Gauge offers the option of storing two limit values, which are continuously compared with the instantaneous value. When exceeding or falling below these limits, a signal in the display of the Force Gauge / Digital Force Gauge, as well as a reaction via external interfaces, which can be used, for example, for the control of a testing machine.
| Force | |
| Measuring range | 0 ... 10000 N |
| Resolution | 1 N |
| Accuracy | ±0.5% of range |
| General technical data | |
| Outputs | Switching output: 12 V / 50 mA |
| Units | N, kg, lb, kPa |
| Display type | TFT graphic display |
| Display size | 2,8 Inch |
| Adjustable measuring rate | 6 ... 1600 Hz |
| Storage medium | Internal memory |
| Storage capacity | 100 Measurements |
| Storage interval from | 6 s |
| Storage interval to | 1600 min. |
| Interface | USB |
| Operating time | 10 h |
| Alarm modes | Within, beyond, fracture, off |
| Menu language | English, German |
| Protection class (device) | IP54 |
| Power supply | Rechargeble battery: 6 V / 1600 mAh Mains adaptor: 12 V / 1 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 6 V AA - rechargeable battery , Nickel-metal hydride battery |
| Capacity | 1600 mAh |
| Performance | 9,6 Wh |
| Operating conditions | -10 ... 50 °C , 5 ... 95 % RH |
| Storage conditions | -10 ... 50 °C , 5 ... 95 % RH |
| Dimensions ( L x W x H ) | 200 x 97 x 42 mm |
| Other dimensions | Pressure load cell Ø 32 mm / H 16 mm / M5 thread |
| Weight | 540 g |
