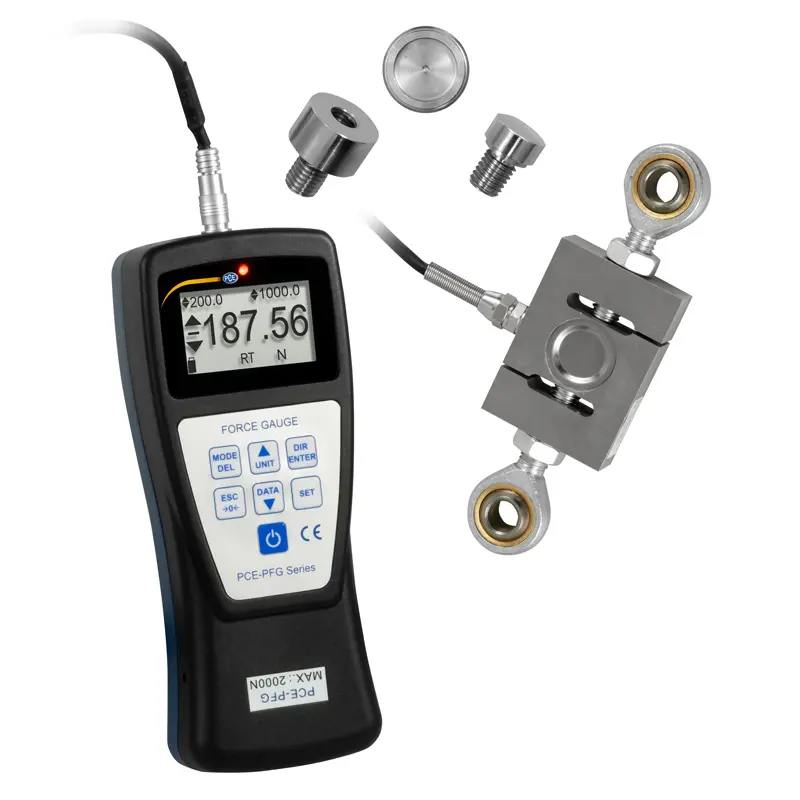

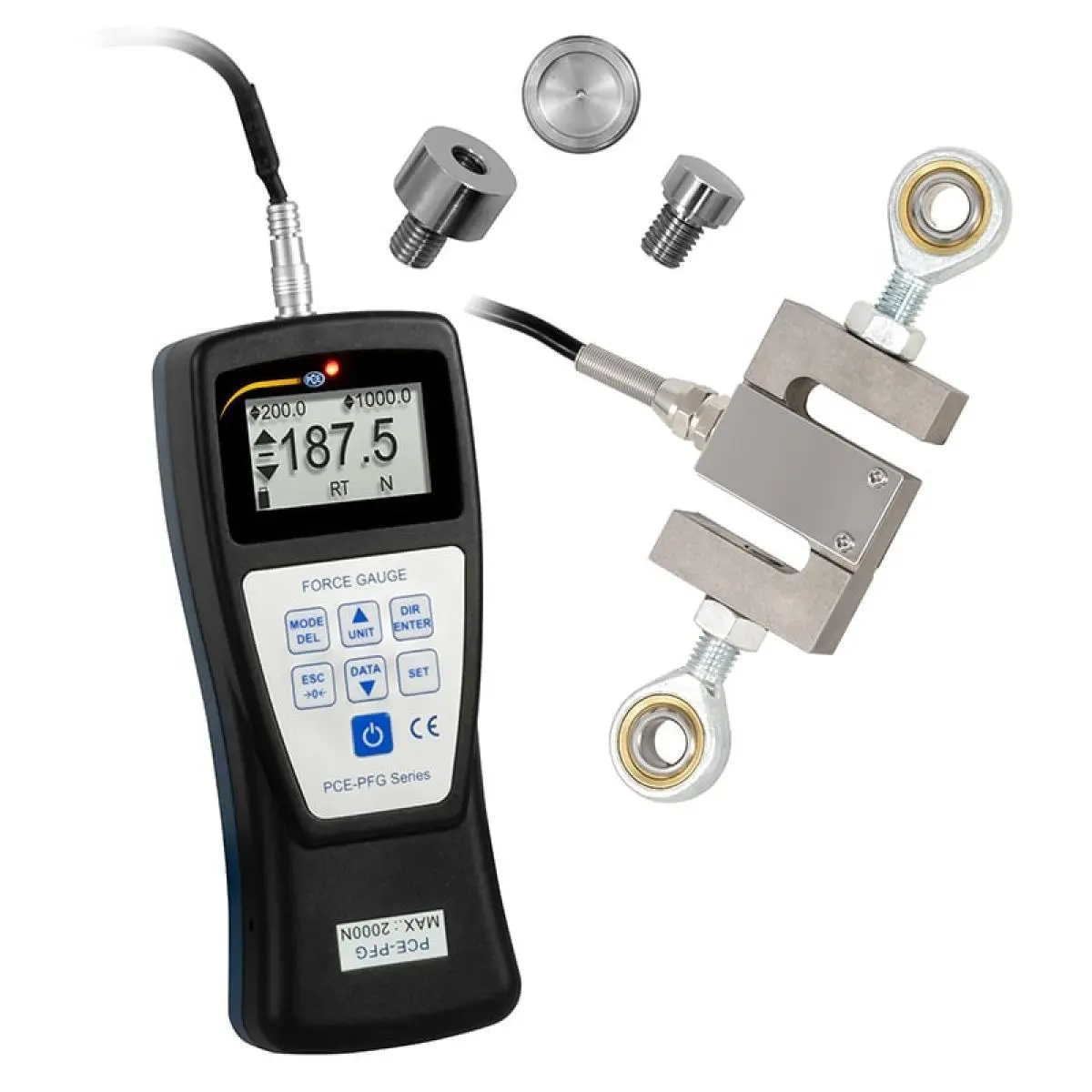

The PCE-PFG force gage is a handy, digital measuring device for measuring tensile and compressive forces. The force gage offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.
The measurement data and a statistical evaluation of the data stored in the force gage (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.The force gage can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.
| Measuring range | 0 ... 2000 N |
| Resolution |
0.5 N |
| Accuracy |
±0.3 % of the measuring range |
| Measurement units | N, kgF, lbF |

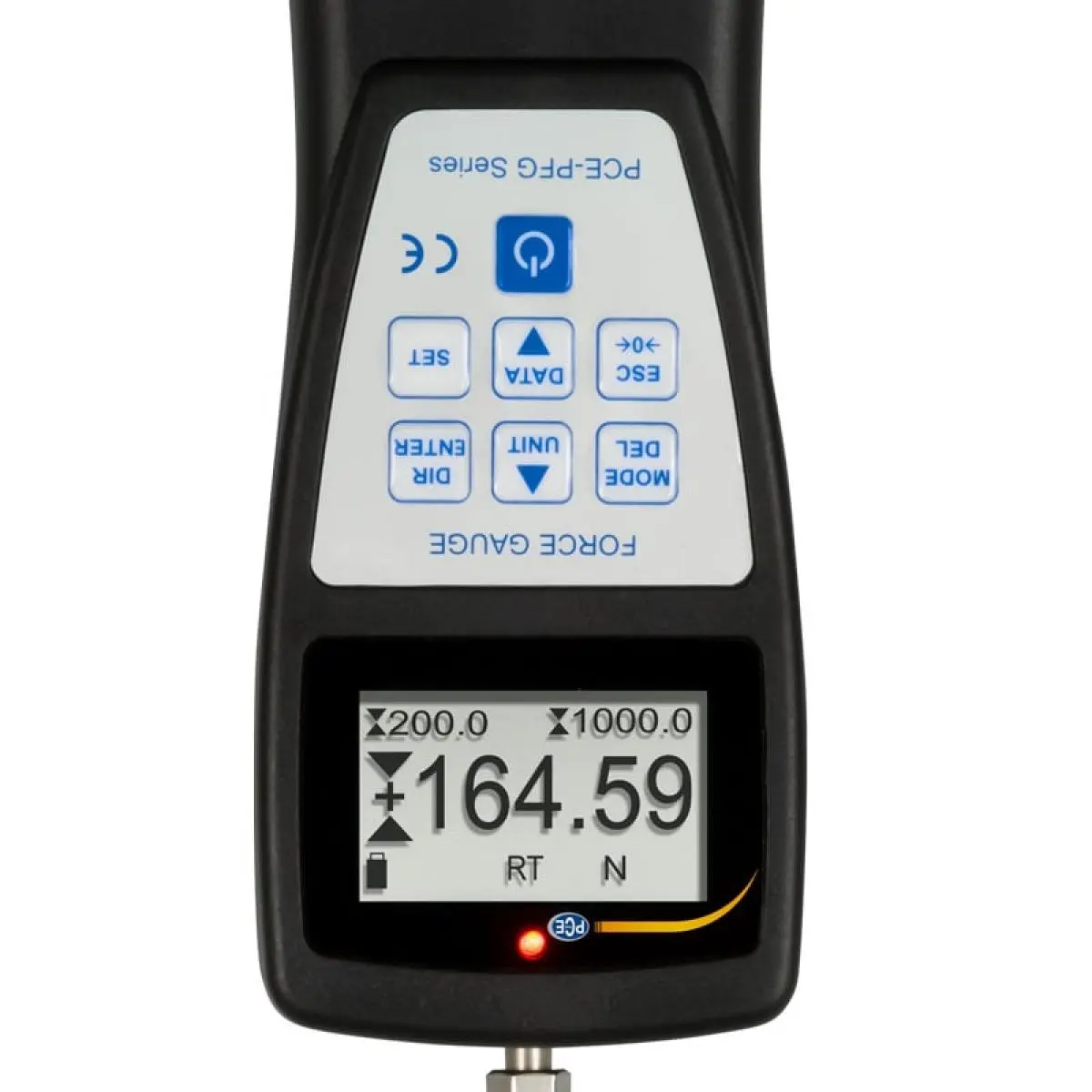

| Display | 1.8" graphic display |
| Alarm modes | Below, Inside, Outside |
| Sampling rate | 500 Hz |
| Memory |
100 measurements |
| Power supply | lithium battery 3.7 V / 1500 mAh |
| Battery life | up to 36 hours |
| Power supply / USB charging adapter | 5 V / 1 A |
| Outputs |

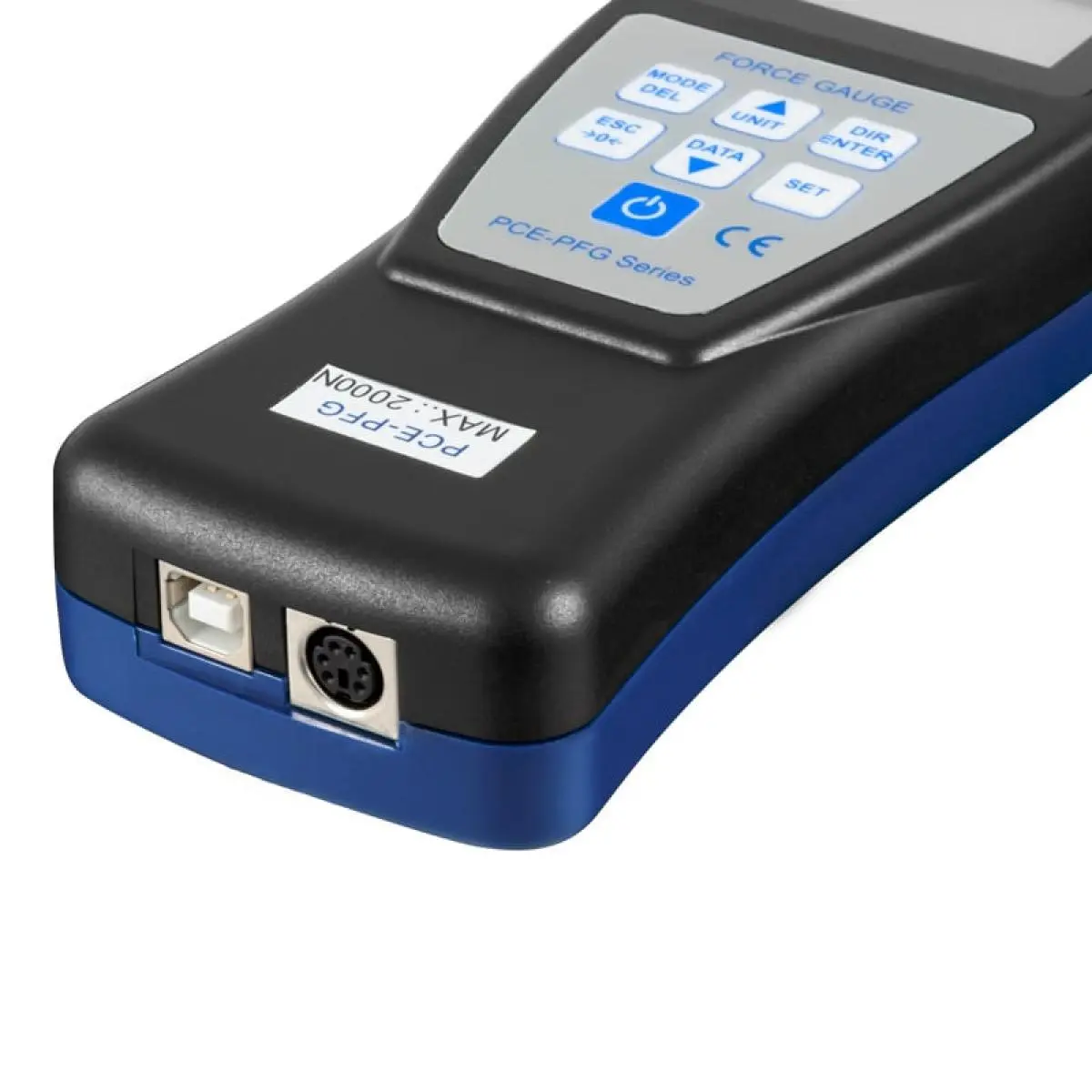

interface: USB B Switching output / alarm modes: MD6 with 2.85 V if active |
| Protection class | IP 54 |
| Operating and storage conditions |
5 ... 45 °C 35 ... 65 % r.H. not condensing |

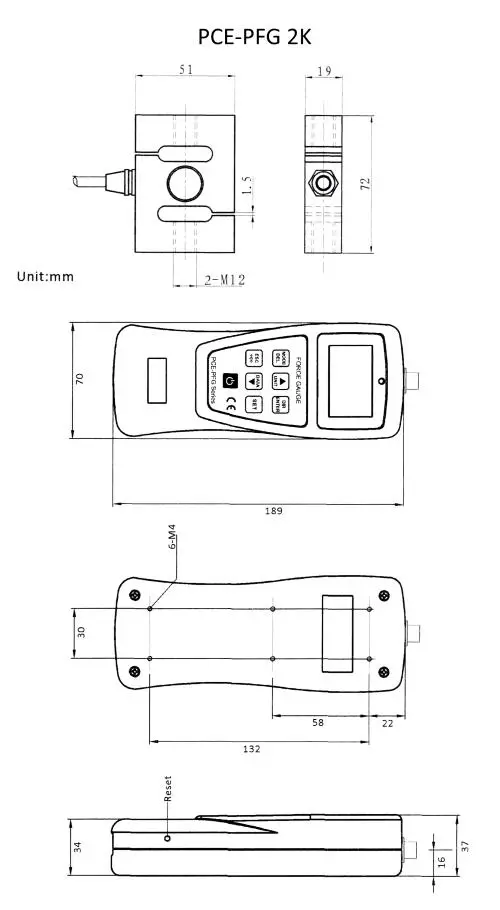

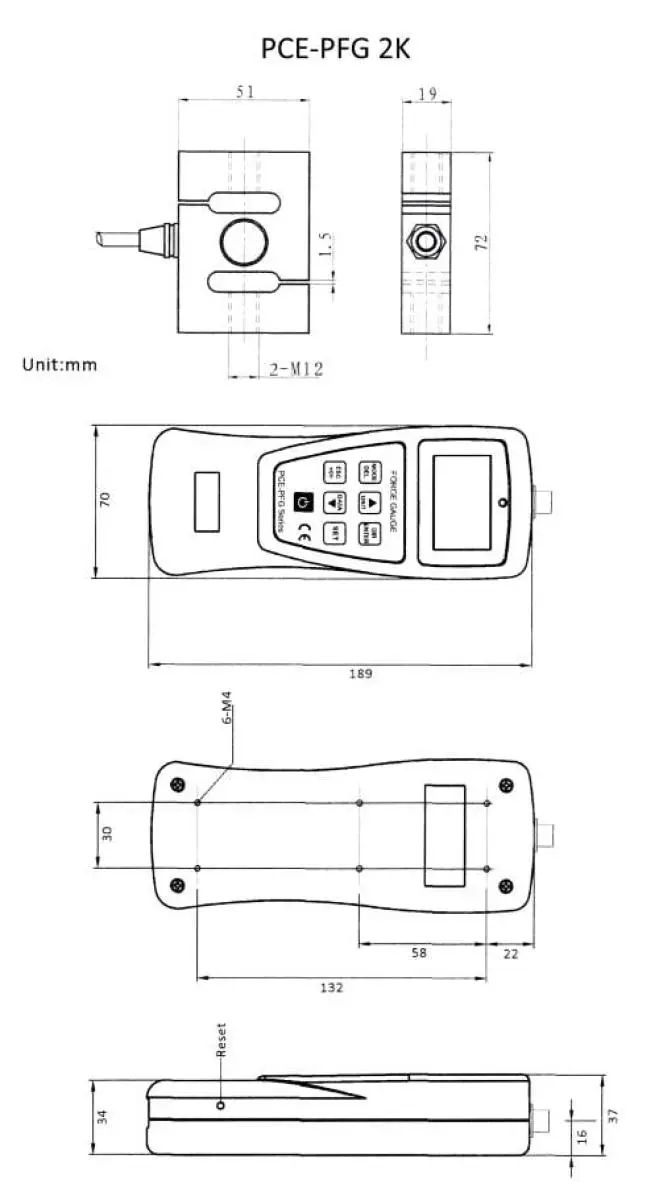

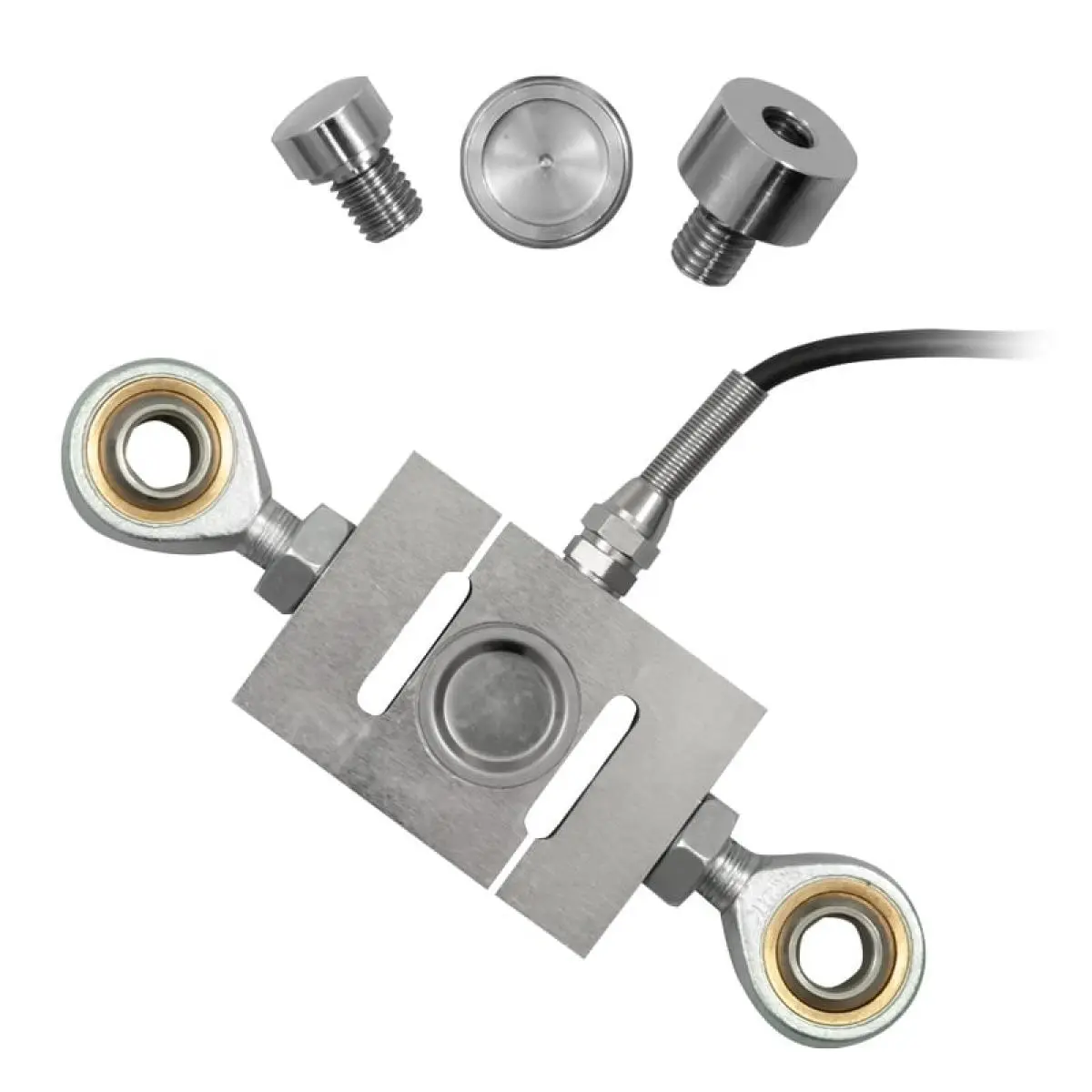

| Dimensions of load cell |
L 52 mm / H 72 mm / W 19 mm / M12 thread / 490 g |
| (see technical drawing) |
|
| Cable length of load cell |
approx. 1.8 m |
| Dimensions handset |
189 x 707 x 34 mm |
| Weight handset | 240 g |
