Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.

• with digital measuring distance display
• max. range of force 500 N
• maximum operating length of 236.36 mm / 9.30"
• the mounting plate ADP-UNI must be ordered at the same time!

The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.

• Force range: max. 1000 N / 100 kg / 220 lbs
• Travel: max. 345 mm / 13.5"
• Spindle pitch: 2 mm / 0.07"
• Minimal maintenance
• the mounting plate ADP-UNI must be ordered at the same time!

PCE-MTS50 is a motorized material test stand for use with PCE-series force gauges. The motorized material test stand offers enhanced control and stability during force testing. It also helps to ensure the accuracy and repeatability of vertical tension and compression force test results.

• Maximum force measurement: 500 N / 50 kg
• Automatic or manual (push-button) operation
• Adjustable feed speed: 50 … 500 mm / min
• AC power connection (110V or 220V)
• Adjustable traverse / distance
• ** The mounting plate ADP-UNI must be ordered for internal load cell force gauges!***

Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.

Thread reducer for SJJ accessories and force gauges / test stands

• Thread connection: M10 to M6
• External thread: M10
• Internal thread: M6

Adapter for pressure force testing of sponge, foam glass, rock material, etc.

• Max. capacity: 5 kN / 5,000 N / 1,124 lbs
• Diameter: 16 mm
• Threaded connection: M10

Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.

• Useful for tension test of springs or wires
• M6 threaded connection

Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.

• Capacity 500 N / 112.4 lbs
• Max. opening size 3 mm

Adapter-stamp for pressure force test of spring and sponge etc.

• Max. Capacity: 3 kN / 3,000 N / 674 lbs
• Diameter: 50 mm
• Threaded connection: M10

Adapter clamps for tensile testing of wire and filaments.

• Max. capacity: 5 kN / 5,000 N / 1,124 lbs
• Threaded connection: M10

Use clamping device for tensile testing of electronic parts, wires, etc.

• Max. Capacity: 500 N / 112 lbs
• Opening max: 2.5 mm

Use clamping pliers for tensile tests of electronic components, wires, etc.

• Max. Capacity: 1000 N / 225 lbs
• Opening max: 20 mm

Fork holder for tensile and pressure tests.

• Max. capacity: 5 kN / 5,000 N / 1124 lbs
• Threaded connection: M10

Adapter clamp for tensile tests.

• Max. Capacity: 500 N / 112 lbs
• Opening max: 8 mm

Tensioning device for tensile tests.

• Max. capacity: 0.2 kN /200 N / 45 lbs
• Max. opening: 3 mm
• Threaded connection: M10

Clamping device with large opening width for peel test of block, glass and cardboard.

• Capacity 5000 N / 1,124 lbs
• Max. opening 33 mm / 1.29 in
• M10 threaded connection

Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

• Max. capacity: 5 kN / 5,000 N / 1,124 lbs
• Opening max: 4 mm
• Threaded connection: M10

Clamping device with soft jaws for tension testing of paper, film etc.

• Capacity 500 N / 112.4 lbs
• Diameter: 6 mm
• Aluminum material

Pliers for trigger tests.

• Max. Capacity: 500 N / 112 lbs
• Opening max: 37 mm

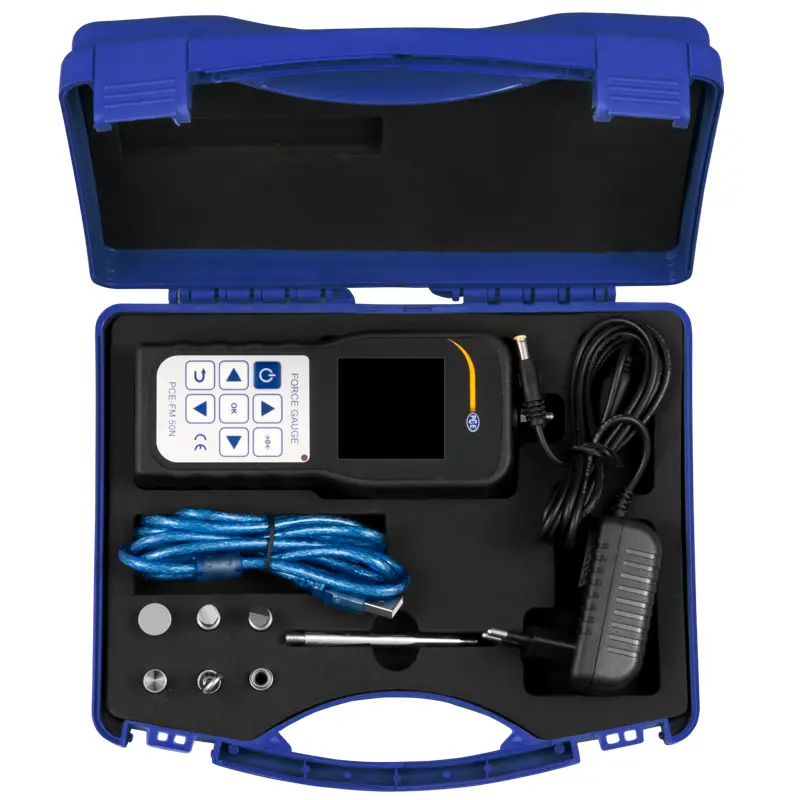

Spare adapter set for force gauges for:

Force Gauge PCE-FM 50N
Force Gauge PCE-FM 200
Force Gauge PCE-FM 500N

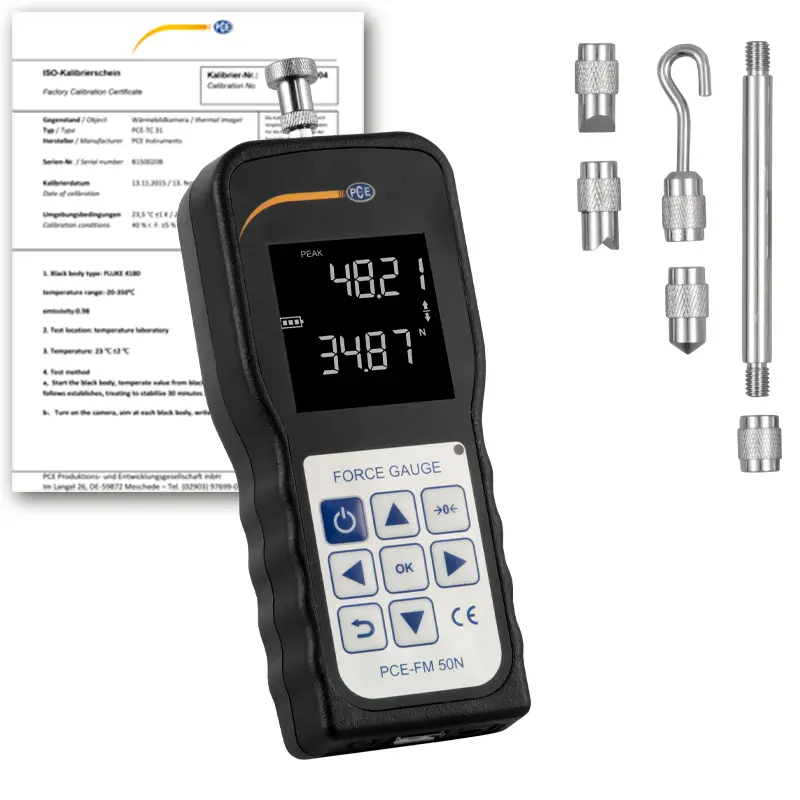

ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

• Max. capacity: 5 kN
• Opening max: 4 mm
• Threaded connection: M10

The motorized tension-compression test stand is a motorized test station with a force range of up to 500 N. With the help of the horizontal test stand, it is possible to to carry out tension-compression tests.

• Force range: 500 N / 50 kg / 110 lb
• Distance display resolution: 0.02 mm
• Resolution: 1 mm/min
• Tensile and compression testing
• Travel: 270 mm / 10.6"

This vertical force test stand is a motorized test station with a force range of up to 500 N. In addition to setting the speed, the vertical force test stand also offers the option of switching between automatic and manual mode.

• Force range: 500 N / 50 kg / 110 lb
• Distance display resolution: 0.02 mm
• Resolution: 1 mm/min
• Tensile and compression testing
• Travel: 270 mm / 10.6"
• 220V AC ONLY
