Force Gage PCE-DDM 5WI-ICA

[zoom]

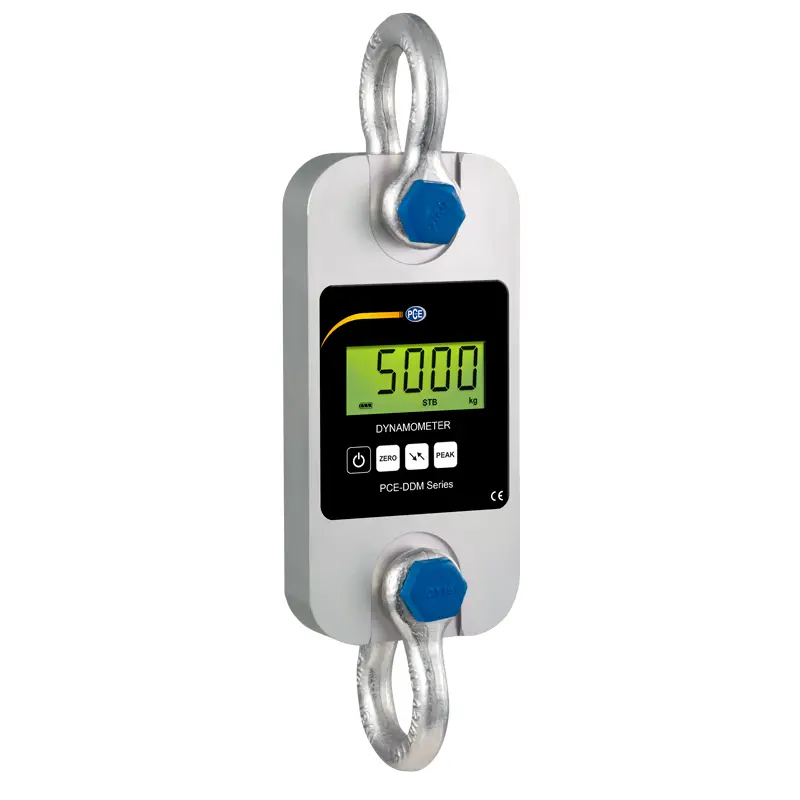

Force Gage PCE-DDM 5WI-ICA Incl. ISO Calibration

Order no.: PCE-DDM 5WI-ICA

GTIN (EAN): 4250348725530

Accessory

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

£ 1,503.00

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

£ 1,268.00

Description

Mobile Force Gage / Measuring range up to 5 t /
PEAK hold function / incl. shackles and transport case

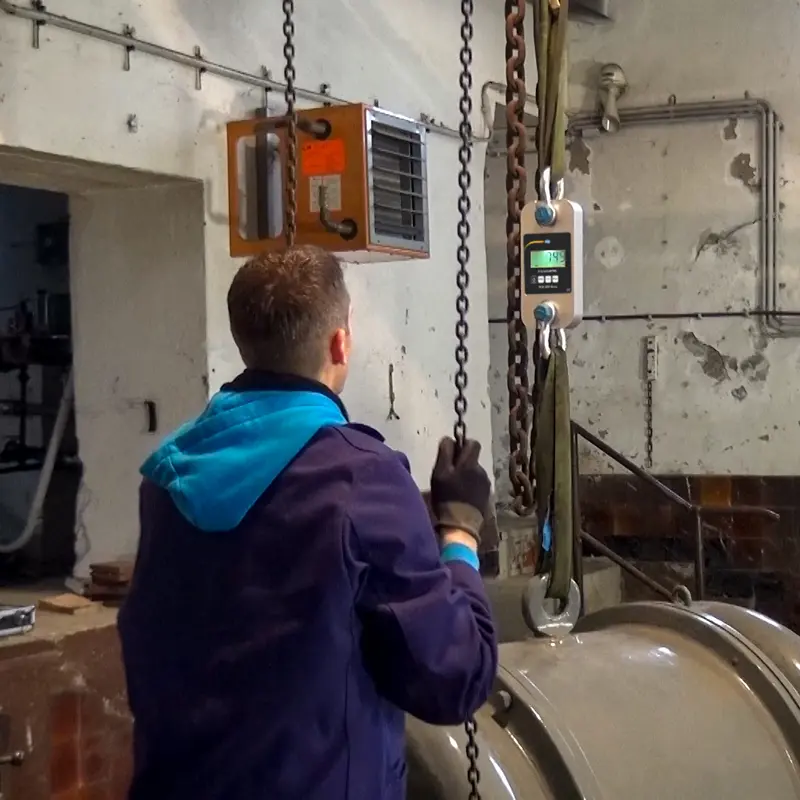

The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with two shackles in a transport case.

Interesting functions of the force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- High capacity up to 5 t / 11023 lbs / 5000 kg / 50 kN

- Heavy duty, rugged and durable yet compact and portable

- Selectable units of measurement: kg / t / lb / N / kN

- Peak hold, sum and tare functions

- Long battery life - approx. 50 hours of continuous use at full charge

- Includes shackles, protective carrying case and two-year warranty against

manufacturer defects

- Manufacturer calibrated, but can be certified to ISO standards for an

additional fee

(see accessories for details)

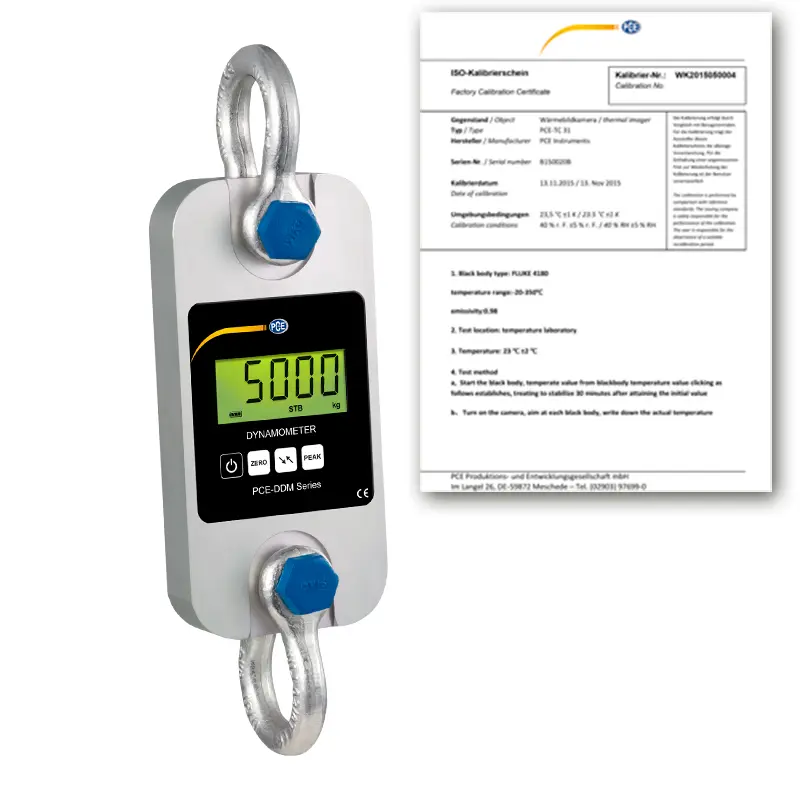

- incl. ISO-Calibration Certificate

Specification

Weighing range
Measuring range from	40 kg
Measurement range up to [Max]	5000 kg
Resolution [d]	2 kg
Accuracy	±0.1% of range

Force
Measuring range	0 ... 50 kN
Resolution	20 N
Accuracy	±0.1% of range

General technical data
Measuring functions	HOLD, peak
Measuring functions (additional information)	Summing function
Units	kg, N, lb, T, kn
Display type	LCD
Digit size [WxH]	Height: 22 mm
Measuring rate	2,5 Hz
Operating time	50 h
Housing	Aluminium
Minimum load [min]	40 kg
Tare range	max. 20 % of the measurement range
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	3 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 ... 40 °C , 0 ... 85 % RH
Storage conditions	-10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	285 x 123 x 57 mm
Weight	3000 g

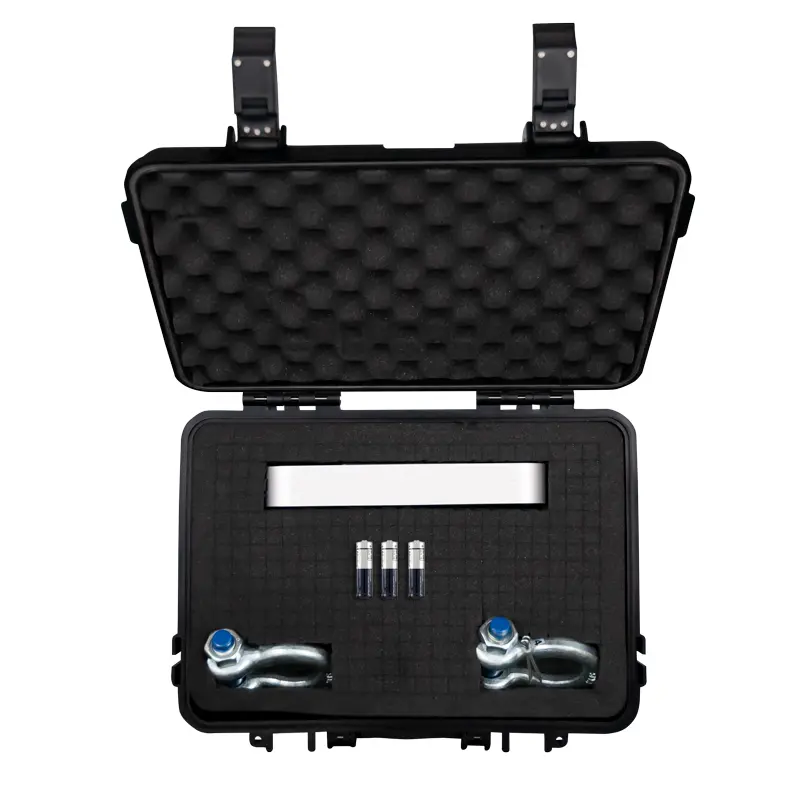

Delivery Scope

1 x PCE-DDM 5WI-ICA Force Gages

2 x shackles

3 x 1.5 V AA batteries

1 x user manual

1 x protective carrying case

Note: This model does not come with a remote control. If a remote control is

desired, please see the PCE-DDM 5 (visit similar items for details).

1 x ISO-Calibration Certificate
