Flow Meter PCE-WS CR

Order no.: PCE-WS CR
£ 240.00
£ 288.00
4250348722645
PCE-WS CR
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Robust Flow Meter for fixed installation / various output signals /
for wind warning systems, building services and building automation

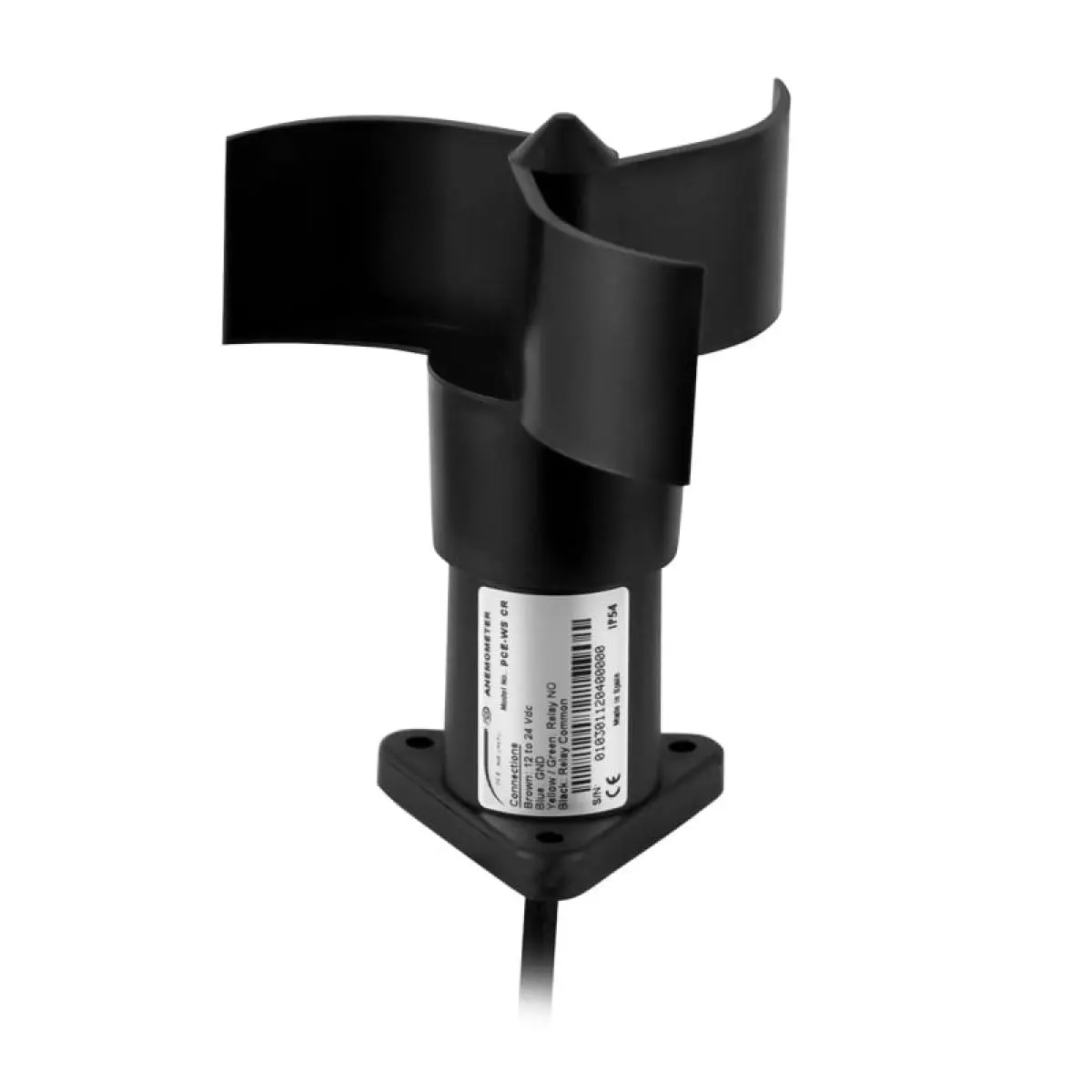

The flow meter impresses with its compact design and various output signals. The flow meter can be used for applications in warning technology, building automation and home technology. Depending on the flow meter, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The flow meter is designed as a star, so that operation independent of the wind direction is guaranteed.

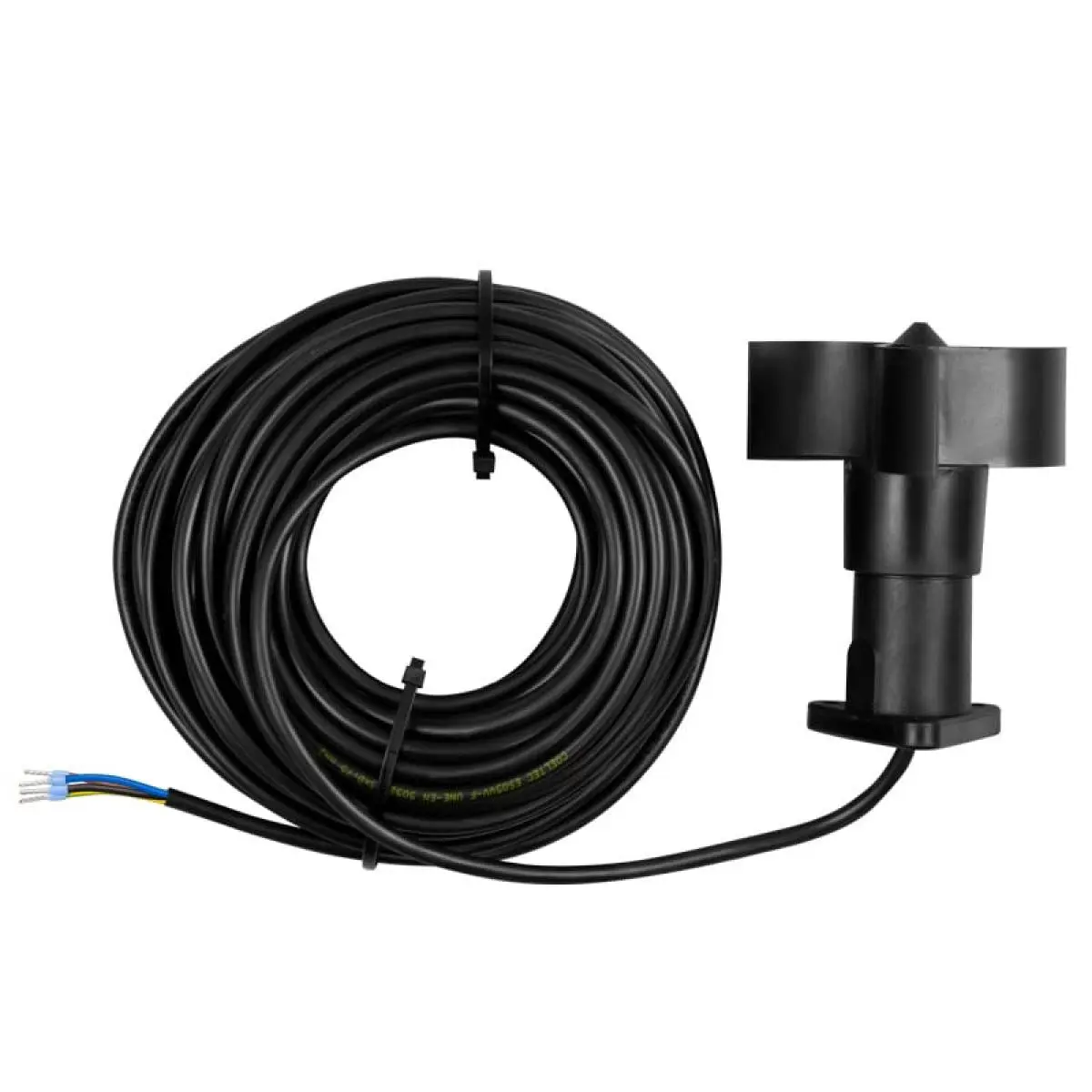

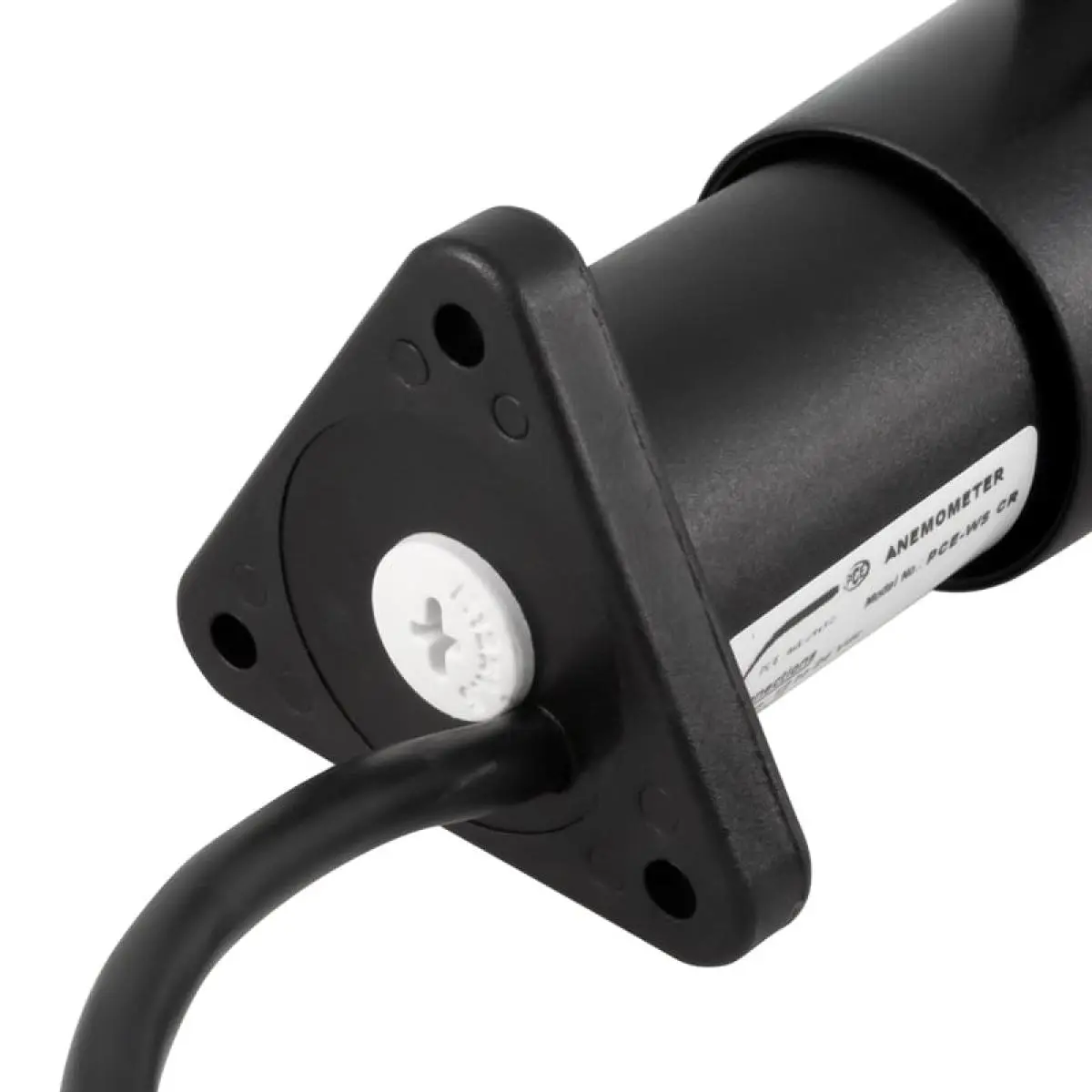

The flow meter is made of robust plastic and is therefore resistant to rust and corrosion. The flow meter is also protected to IP 54. The design of the flow meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The flow meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the flow meter is optionally available.

- Robust PA plastic housing
- IP 54 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m/s
Measuring range 0.8 m/s ... 50 m/s, 2.62 ... 164.04 ft/s
Measurement from ≤0.8 m/s, ≤2.62 ft/s
Output Adjustable relay
Accuracy <4 m/s: ± 0.27 m/s, <13.12 ft/s: ± 0.89 ft/s
  >4 m/s: ± 3 %, >13.12 ft/s: ± 3%
Operating voltage 12 ... 24 V DC
Operating temperature range -20 ... +80 °C, -4 ... +185 ° F at ≤95 % rel. humidity
Maximum wind speed 55 m/s, 180.45 ft/s, 123 mph

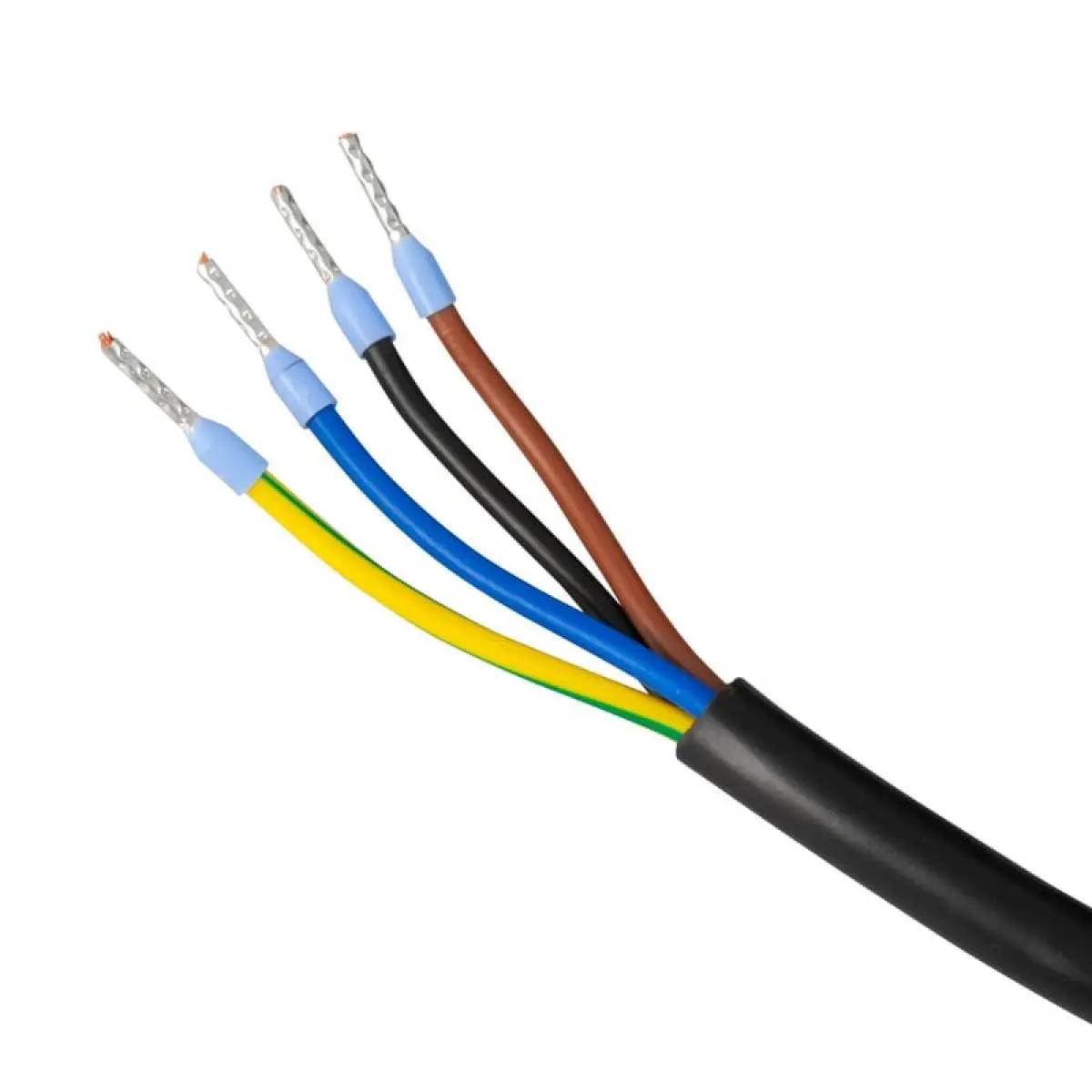

Electrical connection 20 m, 65 ft connection cable
Protection class IP 54

1 x Flow Meter PCE-WS CR
1 x User manual
