Flow Meter PCE-AM 30

Flow Meter PCE-AM 30

Order no.: PCE-AM 30
GTIN (EAN): 4250348733528
£ 49.00
£ 58.80
price ex. (VAT / delivery)
:
4250348733528
PCE-AM 30
Delivery time:1-2 working days

Description

Flow Meter with vane wheel sensor / Measuring range 0 ... 30 m/s / Temperature measurement / Units: m/s, km/h, kn, mph, ft/min / Humidity measurement / MAX, MIN, HOLD, AVG display

The flow meter is the ideal solution for measuring wind speeds, whether in light breezes or strong wind currents, and can measure speeds of up to 55 km/h. Versatile in use, it enables measurement in various units such as m/s, km/h, kn, mph and ft/min and also integrates the Beaufort scale to enable a quick assessment of wind force.

In addition to wind speed measurement, the flow meter also offers functions for temperature and humidity measurement. These three parameters are shown simultaneously on the display, providing the user with a clear and simple visualisation.

With additional functions such as MAX, MIN, HOLD and AVG, the flow meter makes it easier to record important data. The automatic switch-off function helps to extend battery life, with the device being powered by a standard CR2032 battery, which ensures an operating time of around 88 hours. The multifunction air Flow meter is supplied with a wrist strap and carrying case.


Highlights

- Wind speed measurement up to 108 km/h
- m/s, km/h, kn, mph, ft/min
- Beaufort scale
- Temperature measurement
- Humidity measurement
- MAX, MIN, HOLD, AVG display
- Vane wheel sensor

Specification

Speed
Measuring range  0,1 ... 30 m/s
Resolution  0.1 m/s
Accuracy  ±5 %

Speed
Measuring range  39 ... 5860 ft/min
Resolution  19 ft/min
Accuracy  ±5 %

Speed
Measuring range  0,1 ... 55 knots
Resolution  0.2 knots
Accuracy  ±5 %

Speed
Measuring range  0,3 ... 108 km/h
Resolution  0.2 km/h
Accuracy  ±5 %

Speed
Measuring range  0,2 ... 65 mph
Resolution  0.2 mph
Accuracy  ±5 %

Relative humidity
Measuring range  20 ... 90 %
Resolution  1 %
Accuracy  5 %

Temperature
Measuring range  -10 ... +50 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Measuring functions  MIN, MAX, HOLD, Average value
Units  m/s, km/h, kn, mph, ft/min
Display type  LCD with backlight
Sensor  Vane
Automatic power-off  10 min
Menu language  English
Protection class (device)  IP20

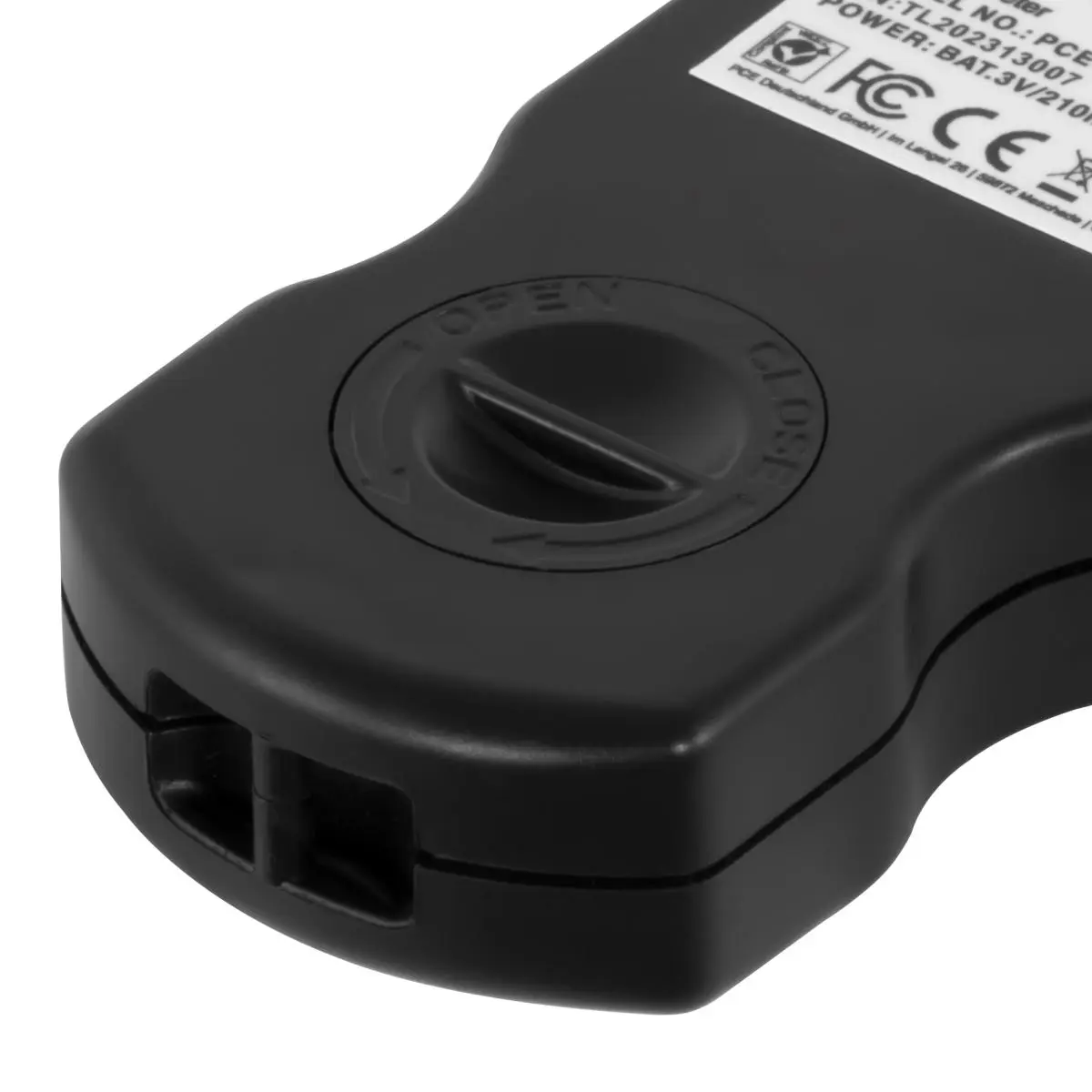

(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium
Capacity  220 mAh
Operating conditions  -10 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  115 x 40 x 18 mm
Weight  48 g

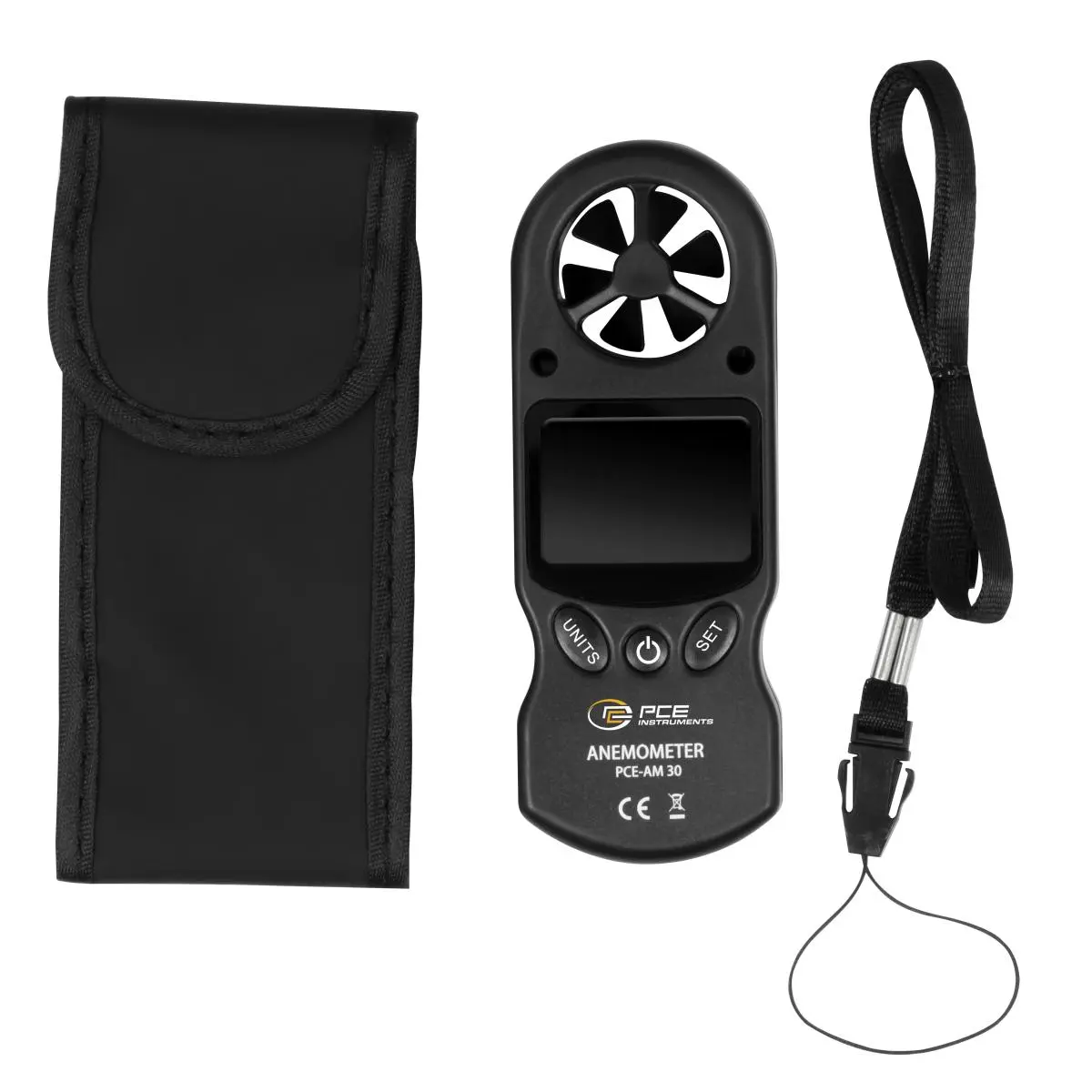

Delivery Scope

1 x PCE-AM 30 Flow Meter
1 x 3 V CR2023 battery
1 x carrying case
1 x wrist strap
1 x operating instructions
