Flow Meter PCE-EM 890

Air Flow Meter PCE-EM 890

Order no.: PCE-EM 890
GTIN (EAN): 4250348719478
£ 294.00
£ 352.80
price ex. (VAT / delivery)
:
4250348719478
PCE-EM 890
Delivery time:1-2 working days
Up to 20 m/s
No

Description

Flow Meter PCE-EM 890 Climate weather measuring device for recording various environmental data / Various measuring functions / MAX / MIN measurement / High accuracy  Explanation of various environmental conditions: Wind Chill Air Pressure Dew Point

The Flow Meter PCE-EM 890 is an instrument for measuring environmental conditions. The Flow Meter gives you an accurate measurement very quickly. Due to the small dimensions and the low weight, this Flow Meter is an easy-to-use information system on the weather condition. It is possible to switch between the measuring functions with just one push of a button. Thus, this Flow Meter is ideal for technicians, sailors, farmers and many other people who are dependent on the weather or whose activities are significantly influenced by the weather.
With just one gauge, you can read wind speed, temperature, wind chill (sensed temperature), dew point, relative humidity, heat index, barometric pressure, and height above sea level. The Flow Meter offers you the functions of the individual measured value, minimum value, maximum value measurement.

The wind chill describes the difference between the measured air temperature and the sensed temperature as a function of the wind speed. Some of our Flow Meters can record the wind chill and other parameters.
The air pressure at any location in the Earth's atmosphere is the hydrostatic pressure of the air that prevails in that location. This pressure is consistent with the weight of the column of air that is on the surface of the earth or a body on it. The average atmospheric pressure of the atmosphere at sea level is 101325 Pa = 1013.25 hPa = 101.325 kPa and is thus part of the normal conditions.
Air can absorb more water vapor with increasing temperature. With decreasing temperature of a building material or the air, in which the relative humidity of 100% is reached, then the excess water vapor precipitates in the form of condensation. The boundary area is called dew point. Buildings should be designed so that the dew point temperature on the inside of the air tightness layer is not undershot. The formation of condensation and resulting structural damage or mold is thereby avoided. Particularly harmful are air currents through the air tightness layer. In this case, a fall below the dew point is always to be expected. The wet bulb temperature, which plays an important role in the air conditioning industry, for example, is a very important parameter in many other areas.


Highlights

- compact and robust construction
- high precision
- very precise, smooth-running impeller
- easy to read digital display
- backlight
- interchangeable impeller
- Max-Min measurement
- 11 measurement functions in one device

Specification

Absolute pressure
Measuring range  10 ... 999,9 hPa
Resolution  0,1 hPa
Accuracy  ±1.5 hPa

Absolute pressure
Measurement range min.  1000 hPa
Measurement range  1100 hPa
Resolution  1 hPa
Accuracy  ±2 hPa

Absolute moisture
Measuring range  10 ... 70 %
Resolution  0,1 %
Accuracy  ±4 % RH

Absolute moisture
Measuring range  70 ... 95 %
Resolution  0,1 %
Accuracy  ±4% by mass +1.2% relative humidity

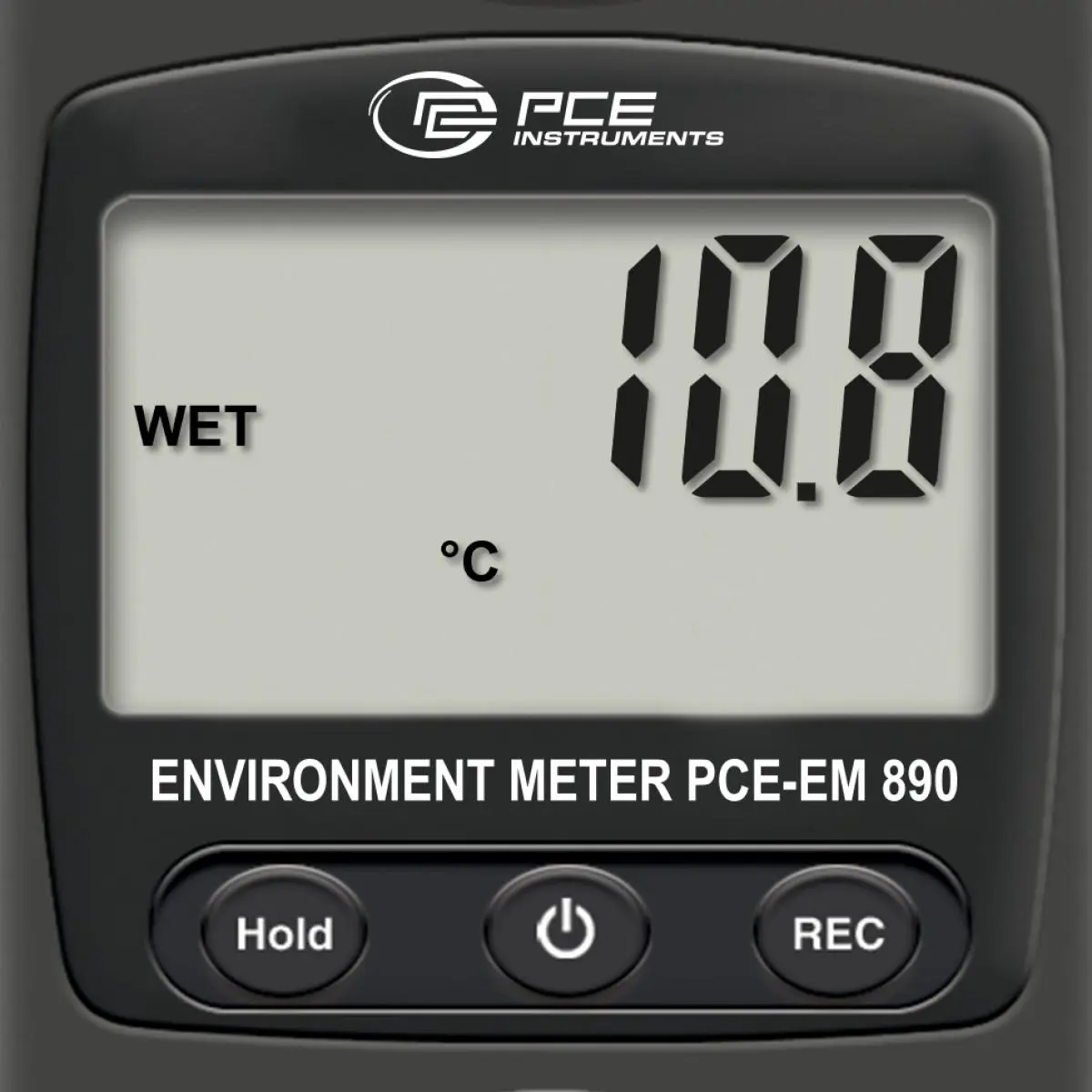

Wet bulb temperature
Measuring range  -5,4 ... +49 °C
Resolution  0,1 °C

Speed
Measuring range  0,4 ... 20 m/s
Resolution  1 m/s
Accuracy  ±3 % of range

Speed
Measuring range  80 ... 3937 ft/min
Resolution  1 ft/min
Accuracy  ±3 % of range

Speed
Measuring range  1,4 ... 72 km/h
Resolution  0.1 km/h
Accuracy  ±3 % of range

Speed
Measuring range  0,9 ... 44,7 mph
Resolution  0.1 mph
Accuracy  ±3 % of range

Speed
Measuring range  0,8 ... 38,8 knots
Resolution  0.1 knots
Accuracy  ±3 % of range

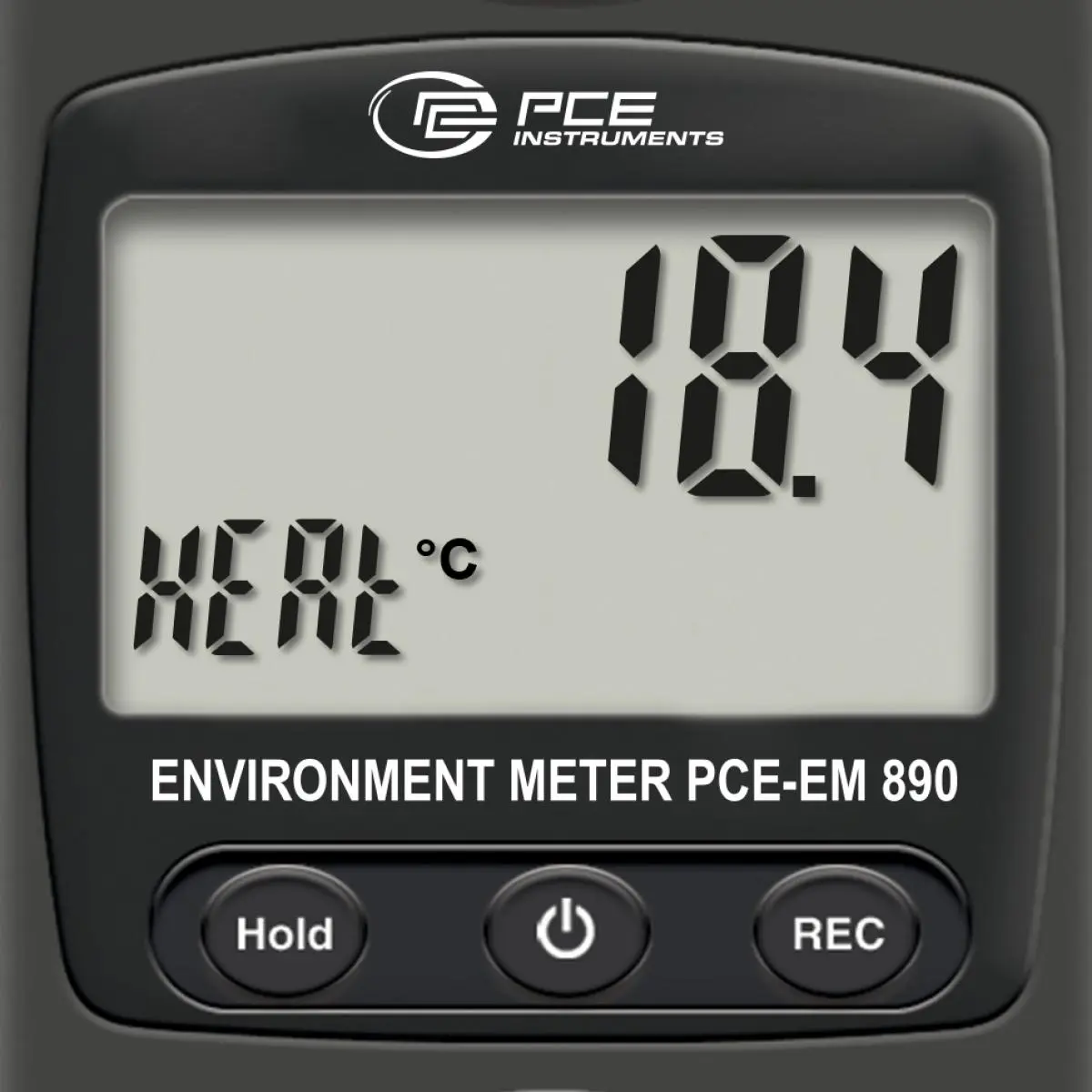

Heat stress
Measuring range  0 ... 100 °C
Resolution  0,1 °C
Accuracy  ±2 °C

Height
Measuring range  -2000 ... +9000 m
Resolution  1 m
Accuracy  ±15 m

Volume flow
Measuring range  0,024 ... 9,999 CFM
Resolution  0,001 CFM

Volume flow
Measuring range  10 ... 99,99 CFM
Resolution  0,01 CFM

Volume flow
Measuring range  100 ... 999,9 CFM
Resolution  0,1 CFM

Volume flow
Measuring range  1000 ... 9999 CFM
Resolution  1 CFM

Volume flow
Measuring range  10000 ... 99999 CFM
Resolution  10 CFM

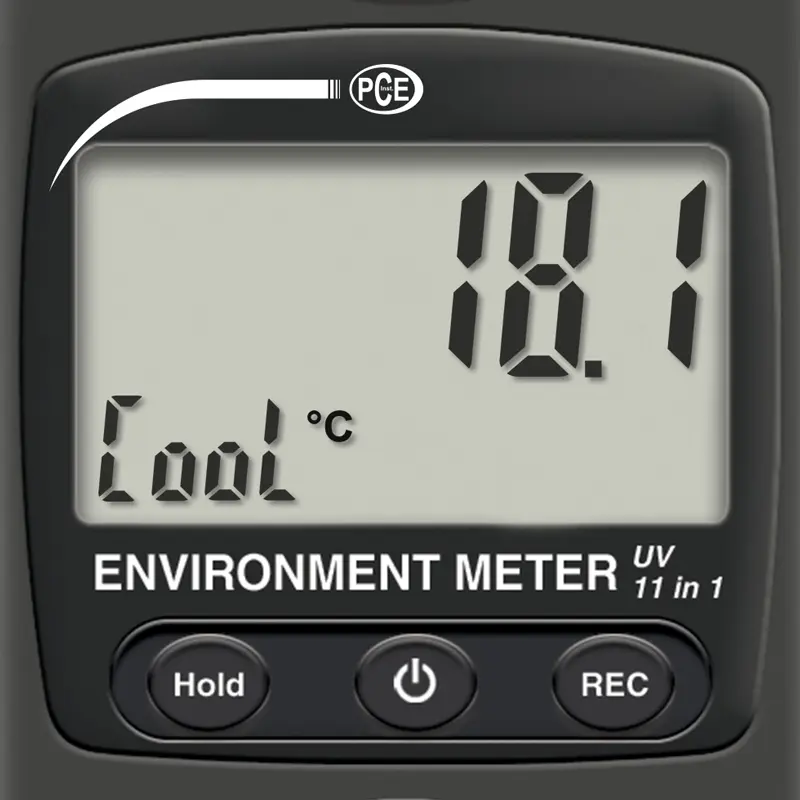

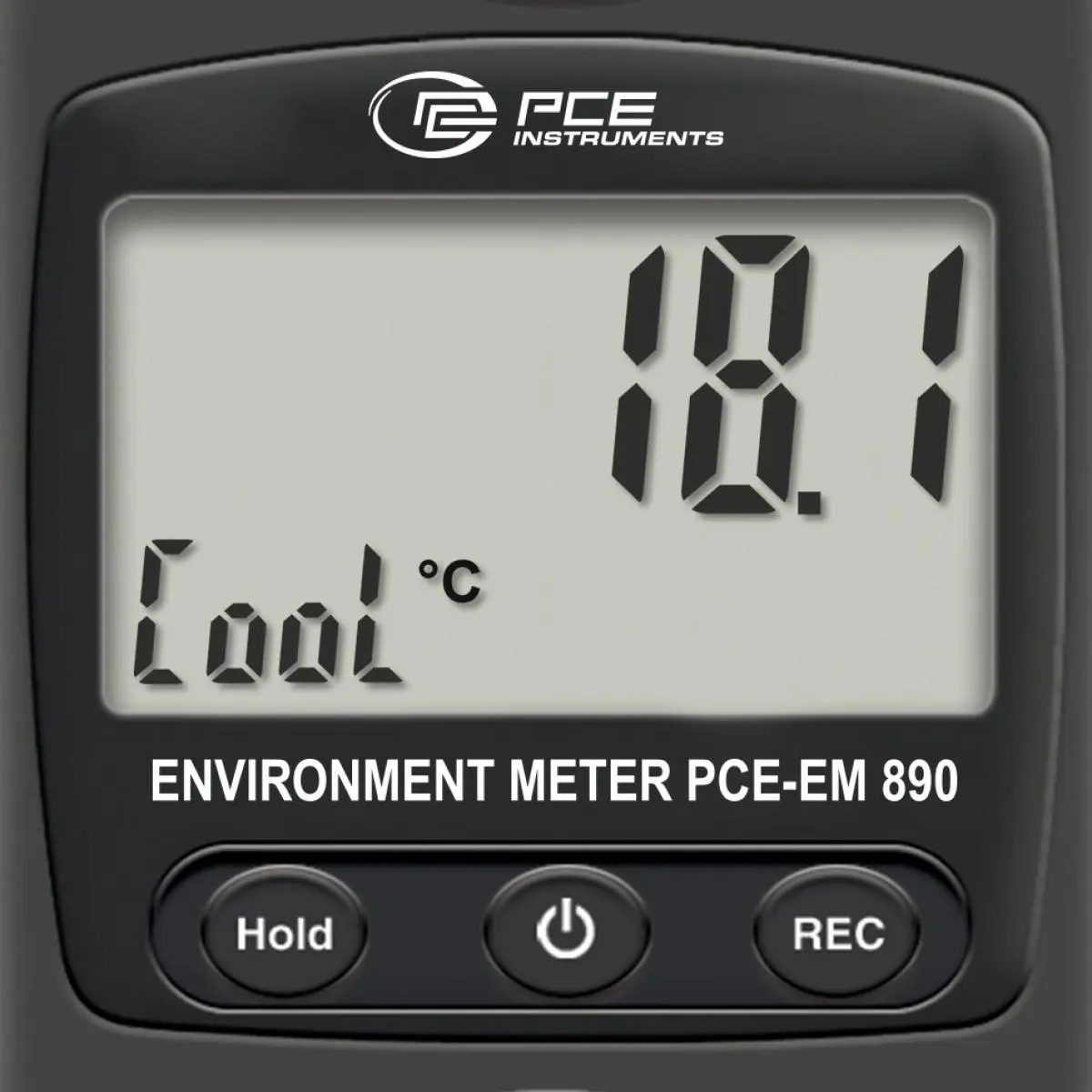

Wind chill
Measuring range  -9 ... +44,2 °C
Resolution  0,1 °C
Accuracy  ±2 °C

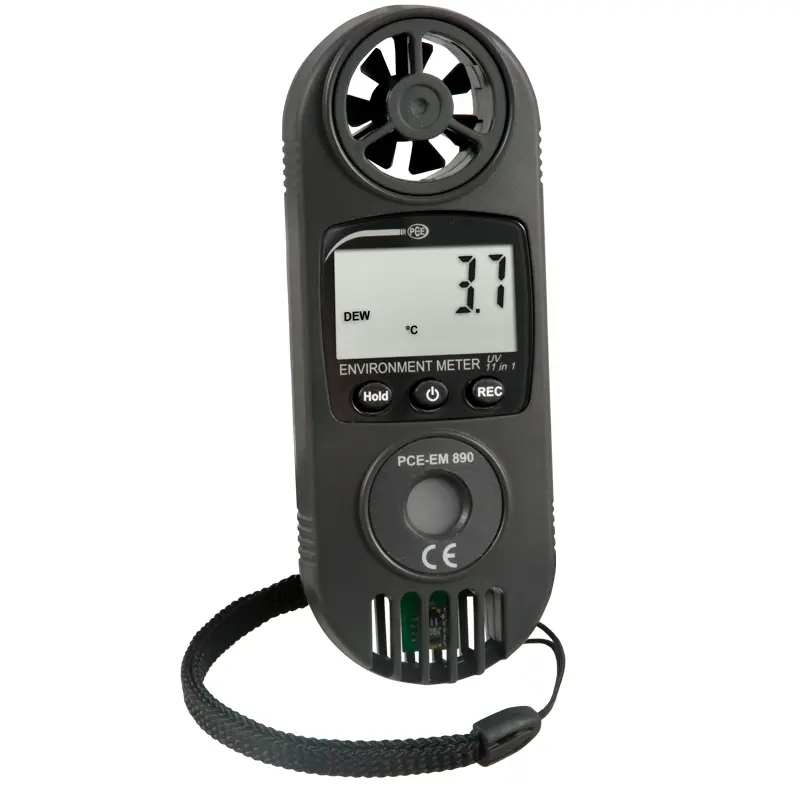

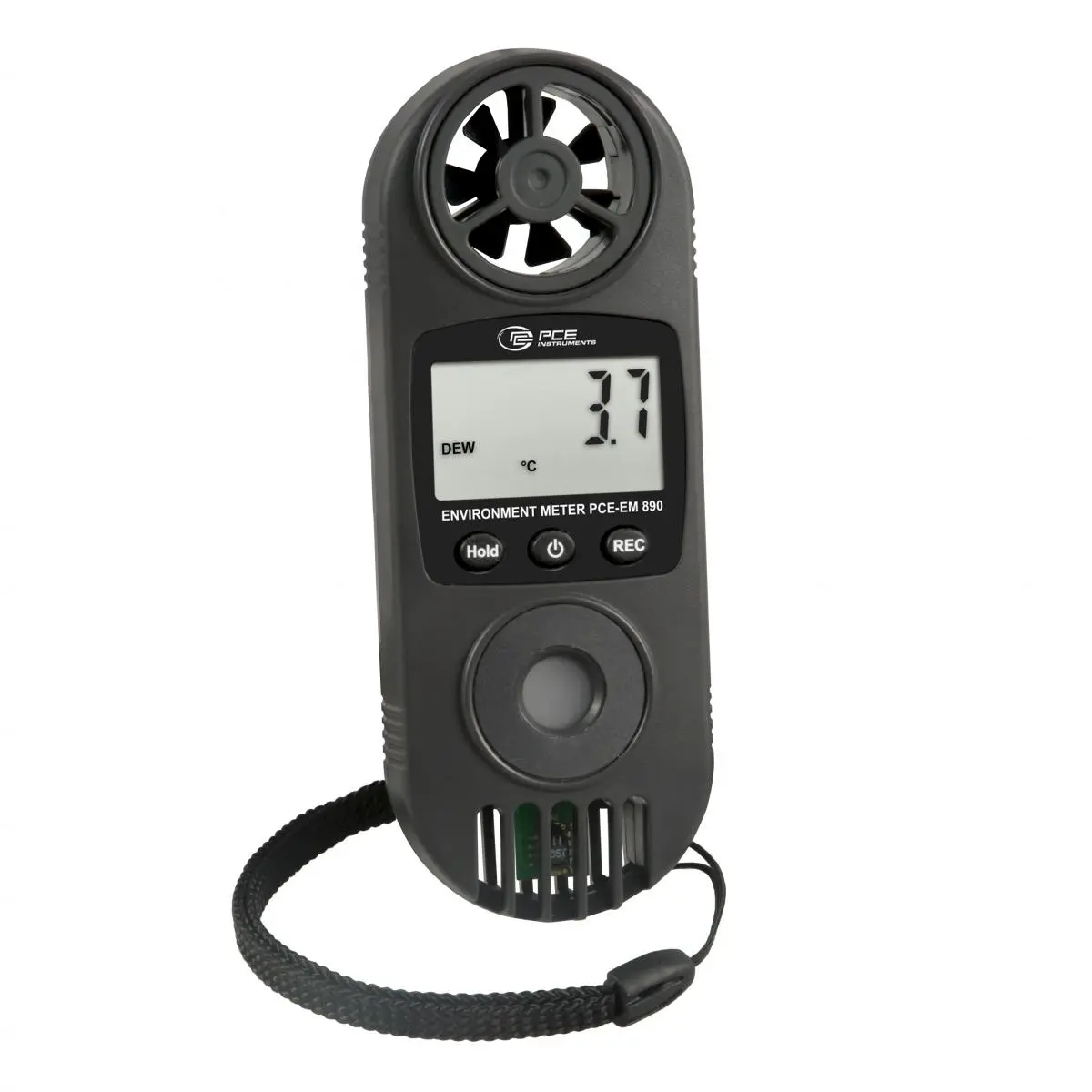

Dew point
Measuring range  -25,3 ... +49 °C
Resolution  0,1 °C

UV
Measuring range  0 ... 1999 µw/m²
Resolution  0,1 µw/m²
Accuracy  ±(4% of range +2 digits)

UV
Measuring range  2 ... 20 mW/m²
Resolution  0,01 mW/m²
Accuracy  ±(4% of range +2 digits)

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C
Accuracy  ±1.2 °C

General technical data
Inputs  Platinum 100
Measuring functions  HOLD, MAX, MIN
UV type  UV A
UV wavelength  290 ... 390 Nm
Display type  LCD
Display size  1,5 in
Display refresh rate  1 x per second
Measuring rate  1 Hz
Current consumption meter  5 mA DC
Automatic power-off  10 min
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions  Vane Ø30 mm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium
Capacity  230 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  120 x 45 x 20 mm
Weight  136 g

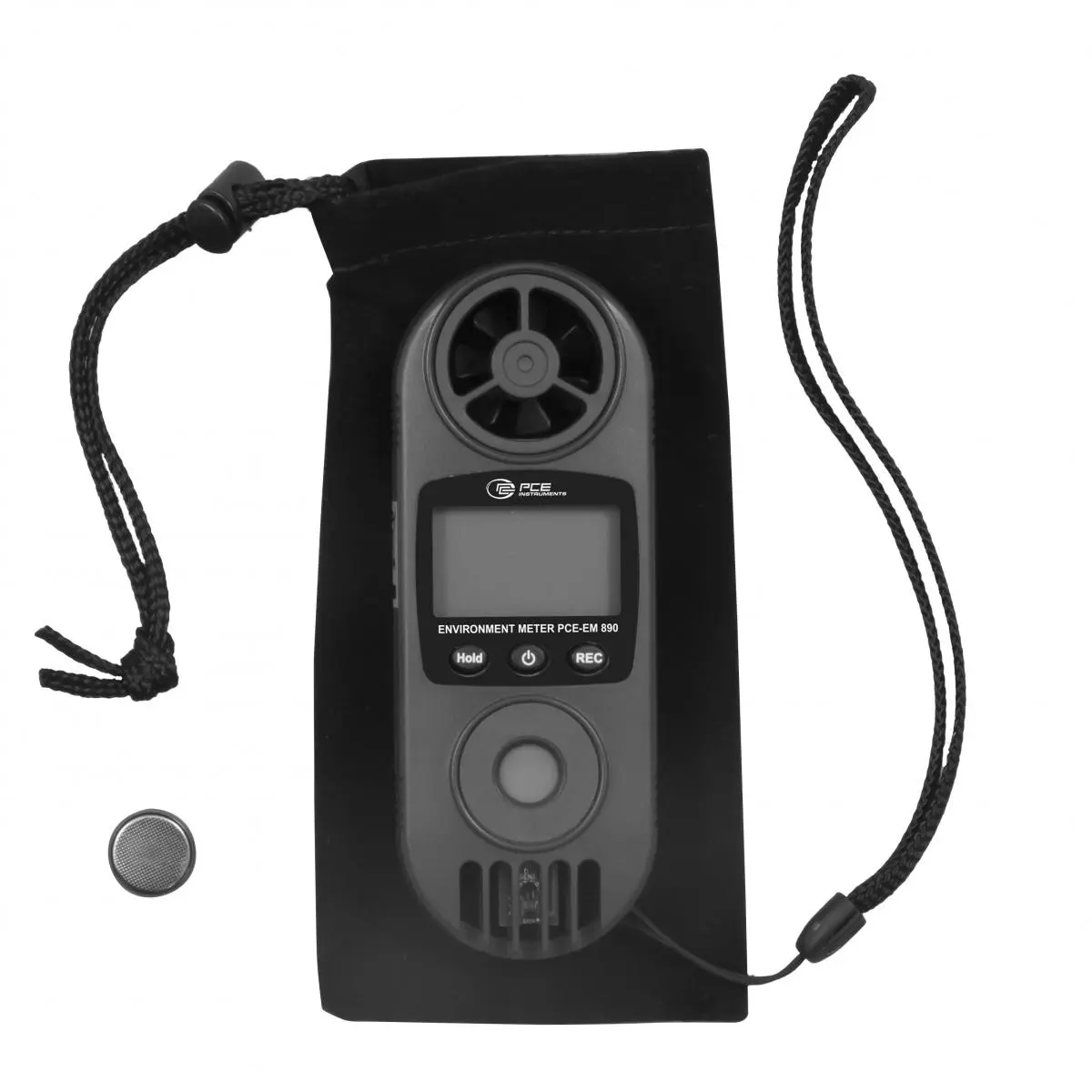

Delivery Scope

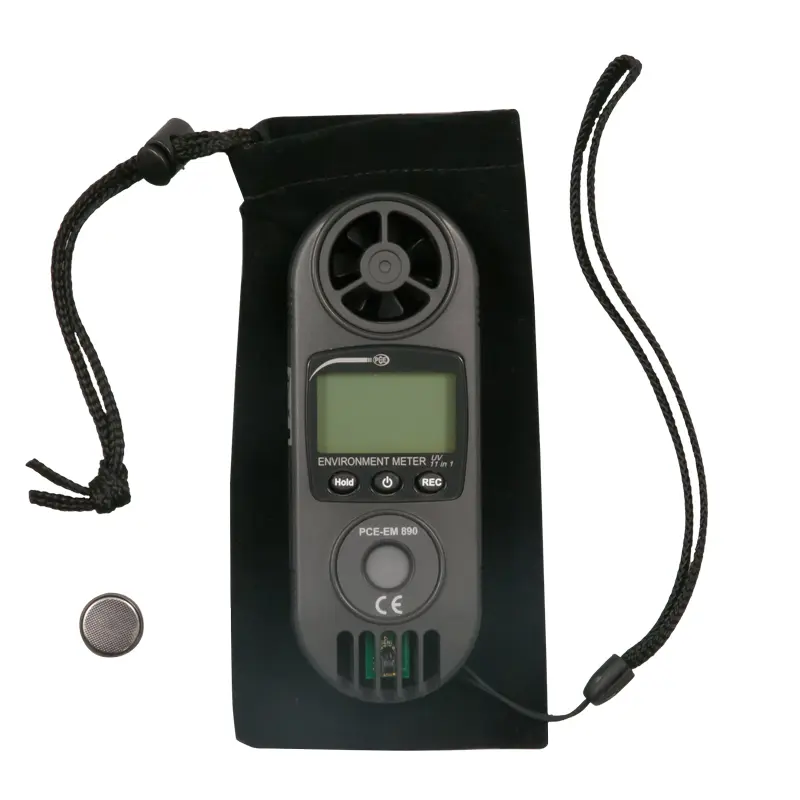

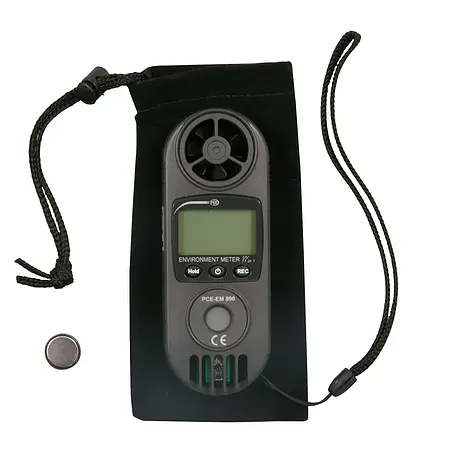

1 x Flow Meter PCE-EM 890
1 x CR2032 batteries
1 x User manual
