Order no.: PCE-WV A

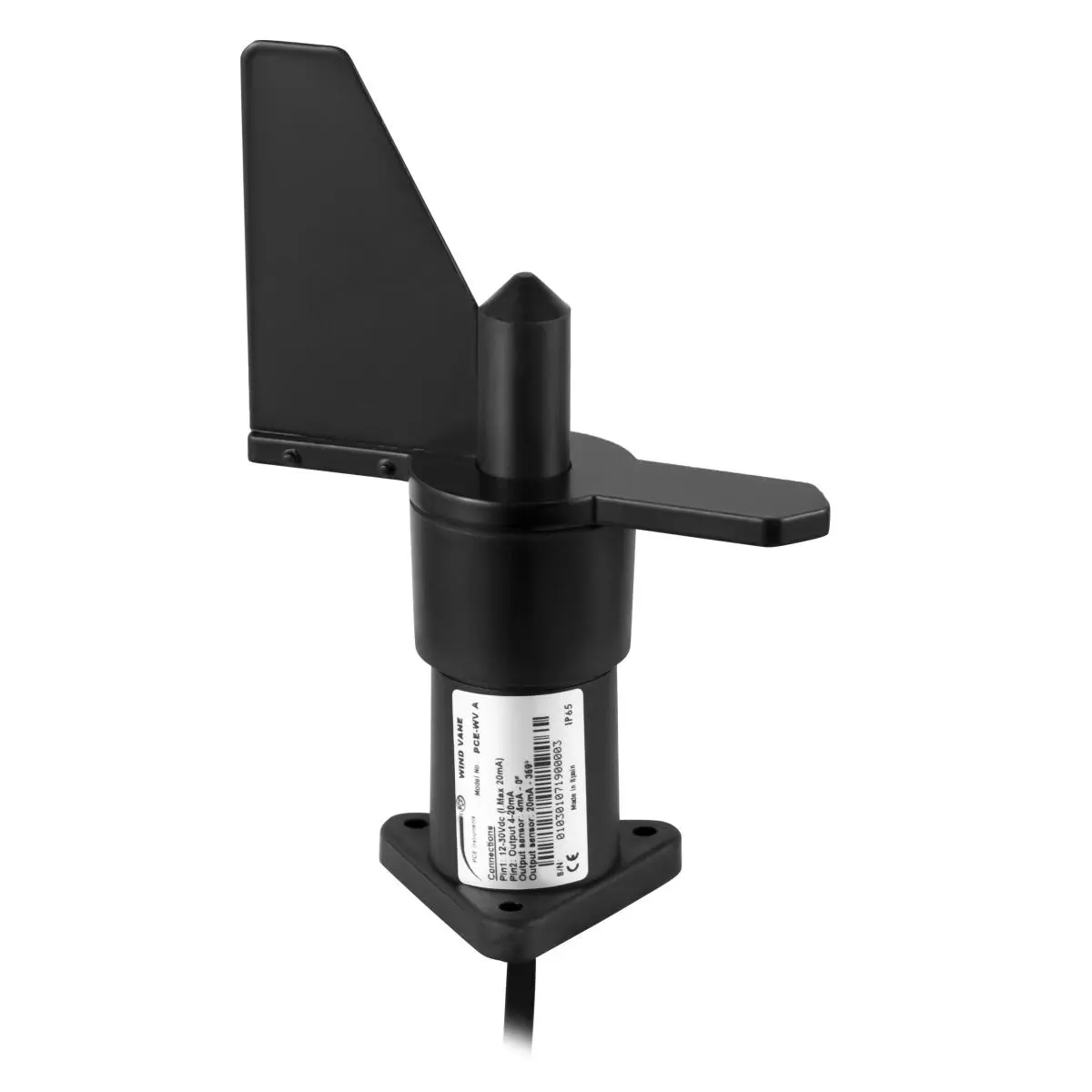

Environmental Wind Direction Meter PCE-WV A

Question / Callback

Delivery time: 1-2 working days

Description

Robust Environmental Wind Direction Meter for fixed installation / 4 ... 20 mA output /

for wind warning systems, building services and building automation

The Environmental Wind Direction Meter was developed to measure the wind direction in the industrial environment. This Environmental Wind Direction Meter can be connected to data loggers, process control systems, displays. A 4 ... 20 mA signal is available as an output signal on the Environmental Wind Direction Meter. The Environmental Wind Direction Meter has no dead center in the north and measures the wind direction from 0 ... 360 °. In order to protect the air flow meter from external weather influences, it is protected according to IP65.

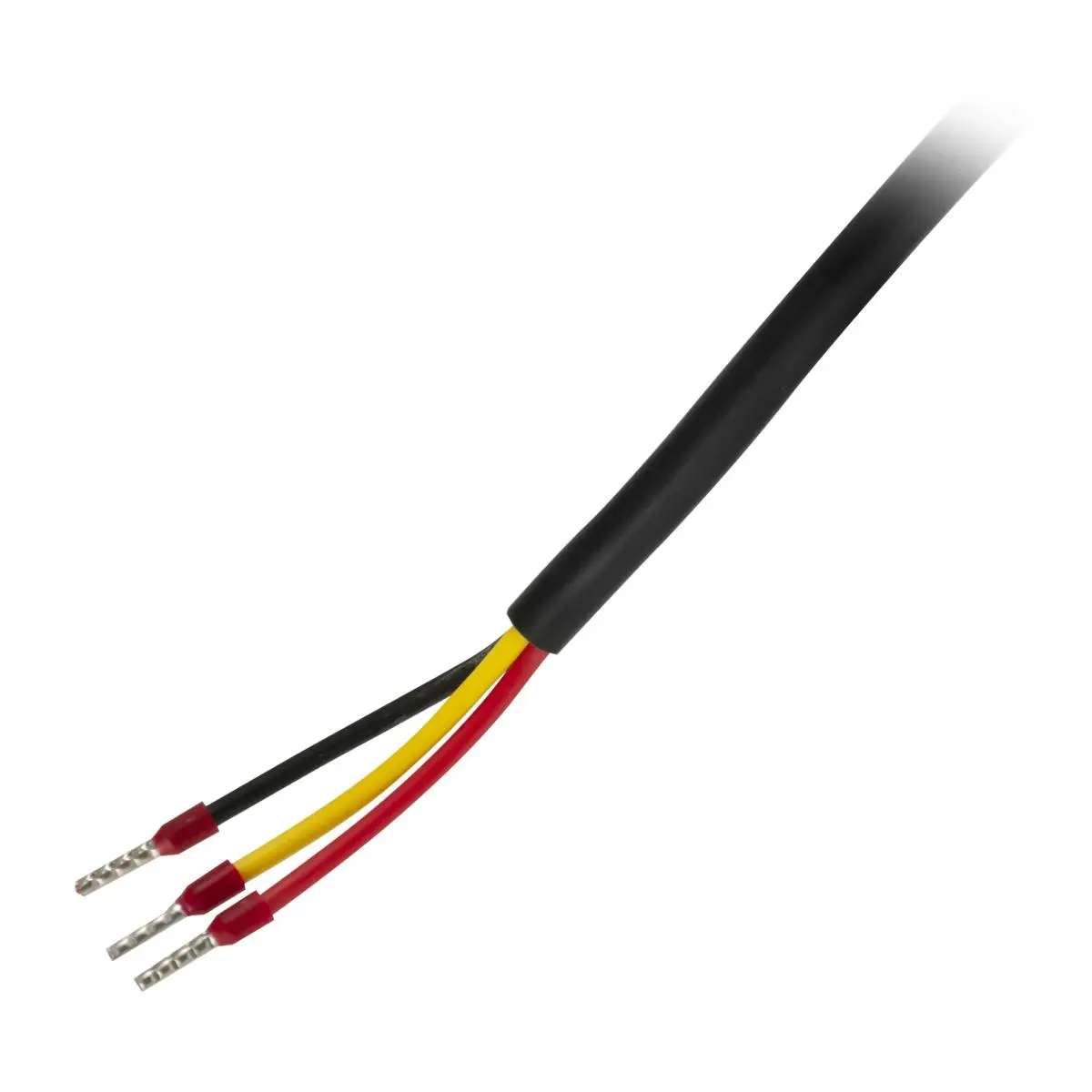

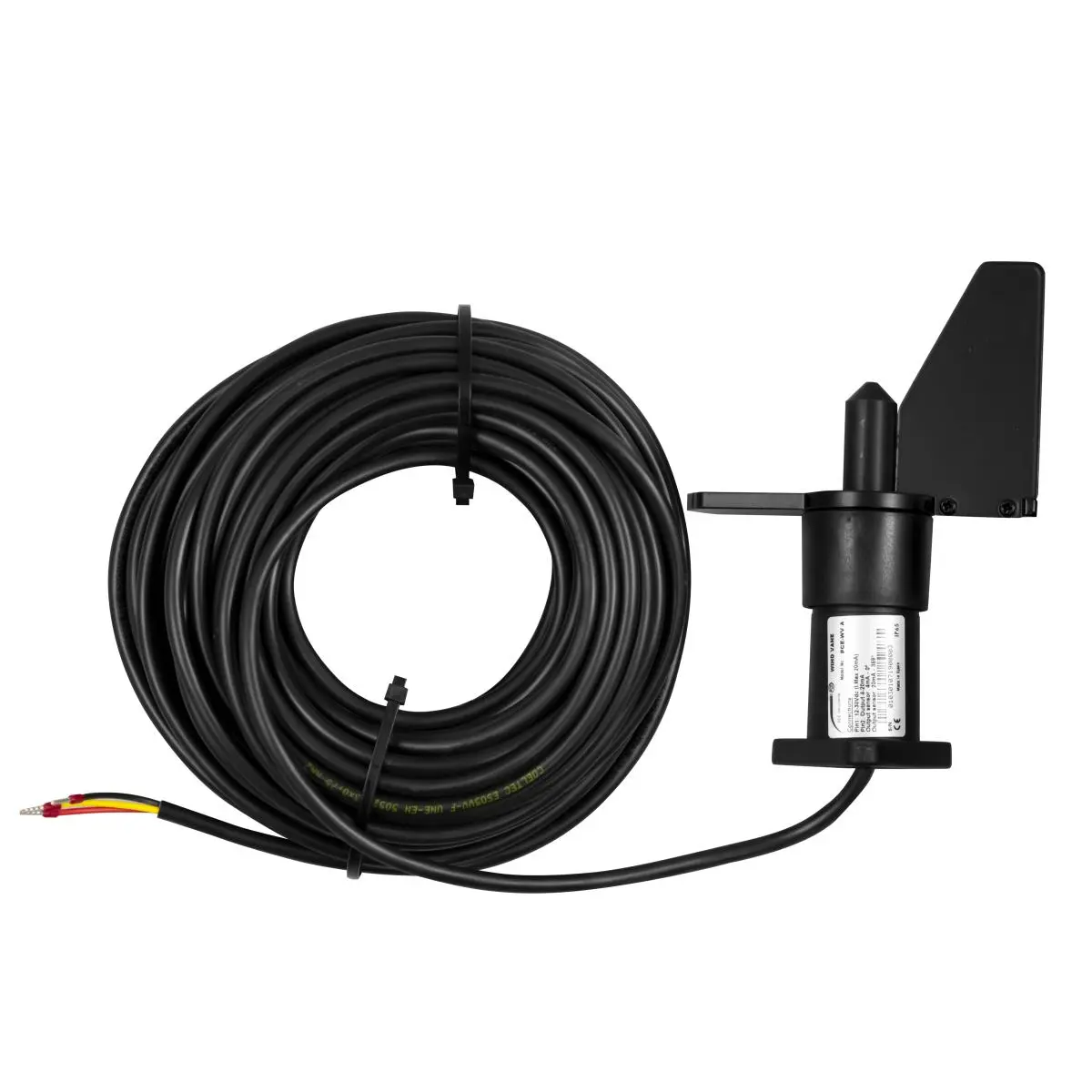

To connect the Environmental Wind Direction Meter to an evaluation, a 20 m cable is installed on the wind direction sensor. The Environmental Wind Direction Meter can be used for irrigation control, automation in greenhouses, on solar trackers, cable cars in ski areas, cranes, wind turbines, weather stations and wherever the wind or wind direction must be observed precisely.

Highlights

- Robust PA plastic housing

- IP 65 protection

- 4 ... 20 mA output

- Long lifetime

- 0 ... 360 ° measuring range

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range	0 ... 360 °
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	4 ... 20 mA
Accuracy	± 3 °
Resolution	± 25.5 °
Maximum wind speed	123 mph, 180 ft/s, 55 m / s
Operating temperature range	-4 ... +176 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Electrical connection	65.6 ft, 20 m connection cable
Operating voltage	12 ... 30 V DC
Protection class	IP65
