Description

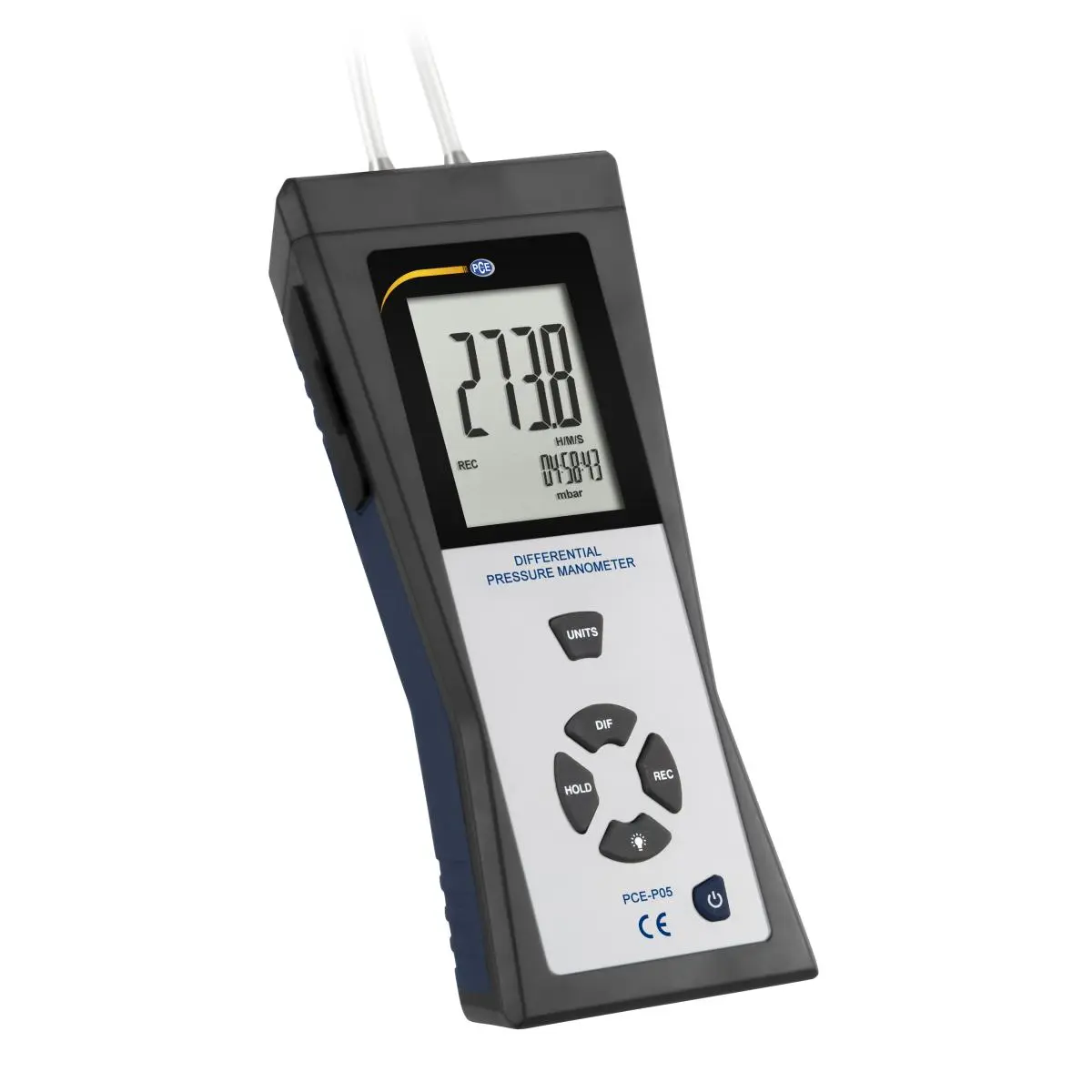

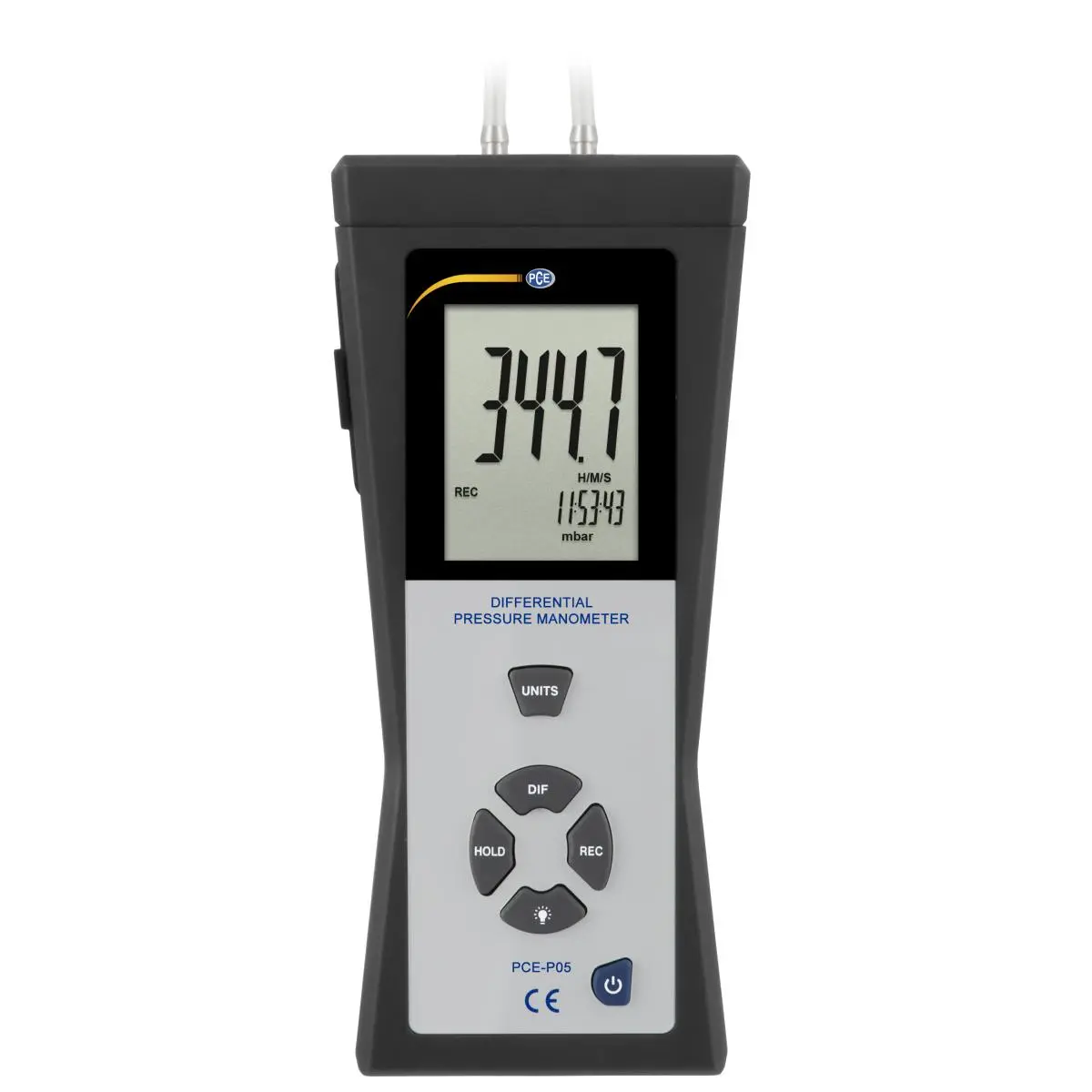

Environmental Meter PCE-P05
Portable handheld manometer measures differential pressure from 0.001 to 0.344 bar (0.001 to 5.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

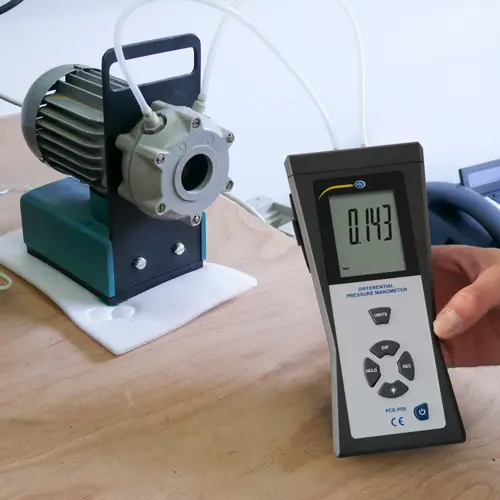

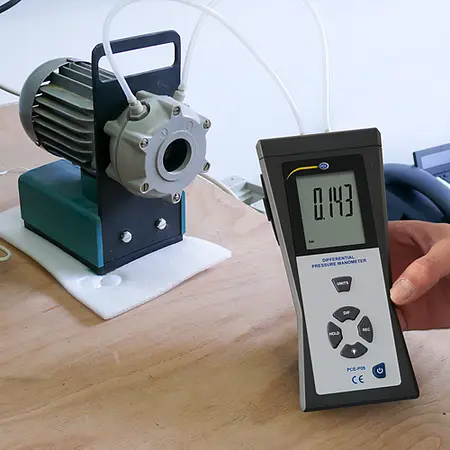

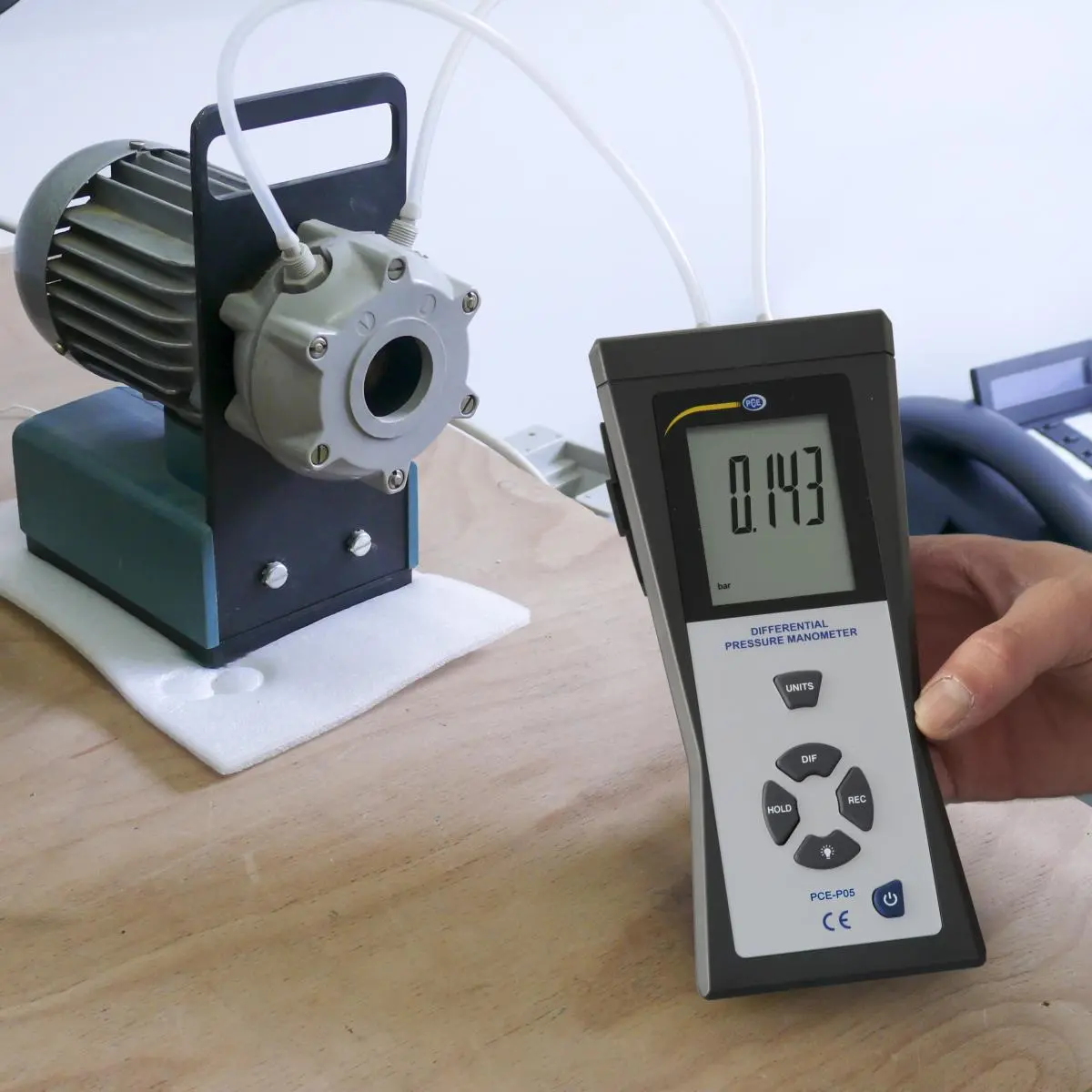

PCE-P05 is a portable handheld digital environmental meter or differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The environmental meter displays min / max / average values right on the meter's screen for comparison against current measurement values.

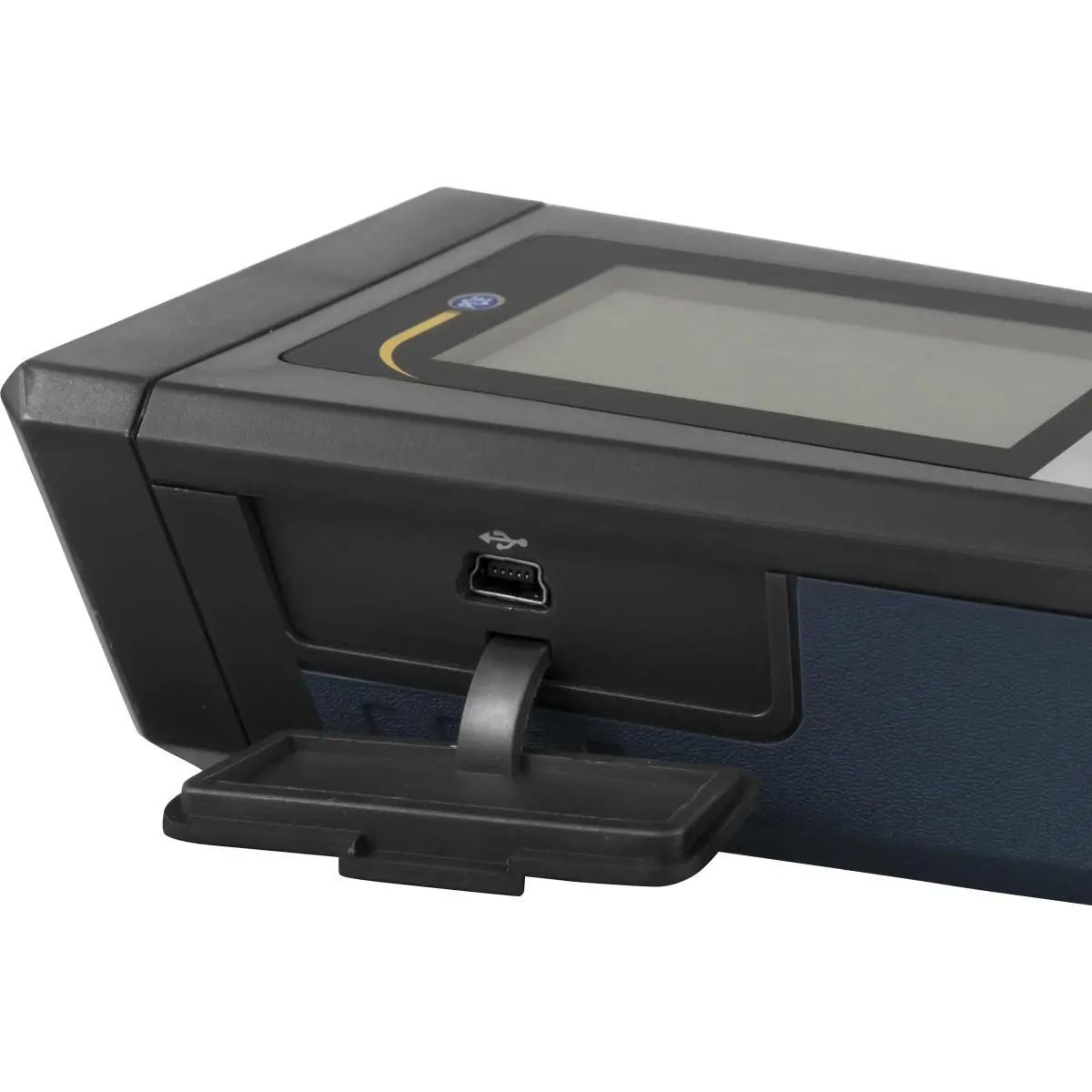

In addition, the environmental meter features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the environmental meter via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.


Highlights

- Easiest operation
- 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -344 ... +344 mbar / -5.000 to +5.000 psi
- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply
- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time

Specification

Measuring range
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar
 (±)
138.30

5.000
344.7
34.47
1.018
258.5
80.00
11.53
351.5
0.351
0.344

Resolution

inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar


0.1

0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001


Accuracy (at +25 °C / +77 °F)± 0.3% of measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure1378 mbar
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-10 ... 60°C / 14 ... 140°F
MediaAir and non-explosive gases
Real-time data-logging interval    1 sec. to 24 h adjustable
DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs
Power supplyBattery: 1 x 9V block
AC adapter: 9V DC / 500-mA


See user manual for complete technical specifications.

Delivery Scope

1 x Environmental Meter PCE-P05 Differential Pressure
4 x 30cm / 11.8" silicone hose
1 x Software including USB cable
1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual

Note:
Overloading destroys the pressure sensor on the differential pressure meter
