Order no.: PCE-LXT-ICA

Environmental Meter PCE-LXT-ICA incl. ISO calibration certificate

ISO Calibration
£ 566.00
£ 679.20
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

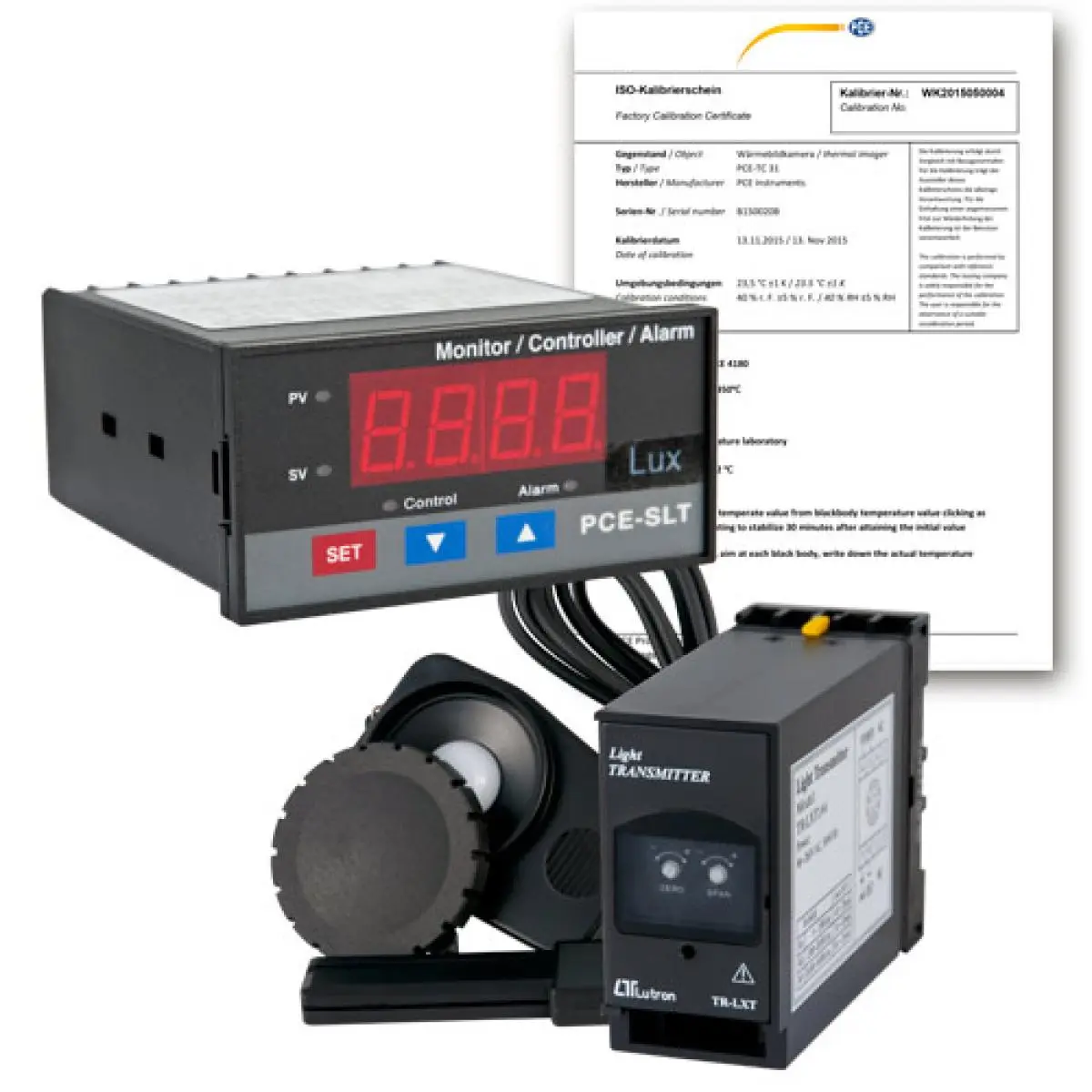

PCE-LXT-ICA environmental meter incl. ISO calibration certificate
For permanent installation with relay output and control output

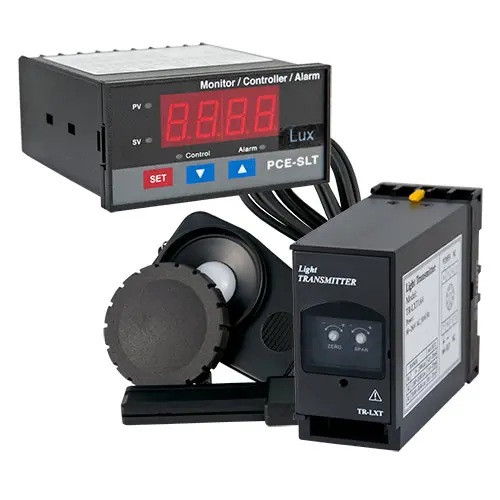

The environmental meter consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, a light transmitter and a digital display. The main application of this environmental meter lies in the continuous light measurement and light monitoring of photo labs and production areas, such as in food or drug manufacturing.

The digital display has a relay output for controlling alarm horns or flashing lights for visual or audible warning and a control output. The limit value for the alarm output can be programmed on the display. Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The sound warning device is very easy to connect and can be operated via 240V mains current.

The environmental meter XLT is designed for continuous measurement of the light intensity. The light transmitter and the digital display have standard dimensions and therefore fit into every control cabinet that has standard plug-ins. The environmental meter is particularly suitable for monitoring in companies that manufacture or store photosensitive materials, such as photo labs, food production/storage, and pharmaceutical production/storage.


- For permanent installation
- Relay output
- Control output
- Light measurement and monitoring
- Visual or audible warning
- Limit value programming
- Incl. ISO calibration certificate

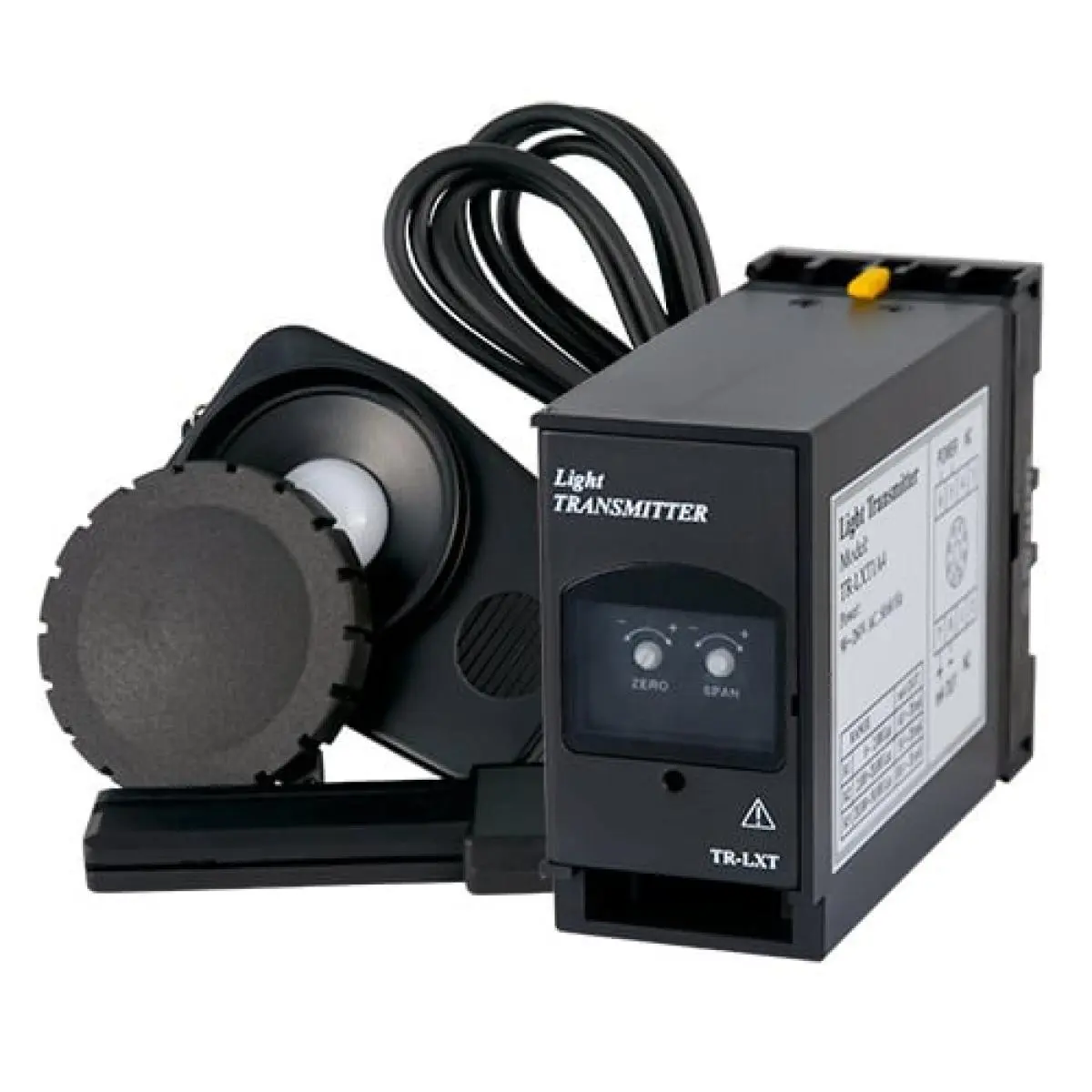

Lux sensor
Measuring range0 ... 50,000 lux in three areas
Resolution0.1 lx / 1 lx
Accuracy± 5% of the reading
SensorPhoto diode with color correction filter according to CIE
CareVia transmitter
Cable length (sensor to transmitter)1.5 m / 4.9 ft
Environmental conditionsMax. 80% relative humidity / 0 ... 50°C
Housing materialABS plastic
CasingABS plastic
Care90 ... 260 ACV
CalibrationAdjustable via grub screws
Exit4 ... 20-mA
ProtectionIP 54
Environmental conditionsMax. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

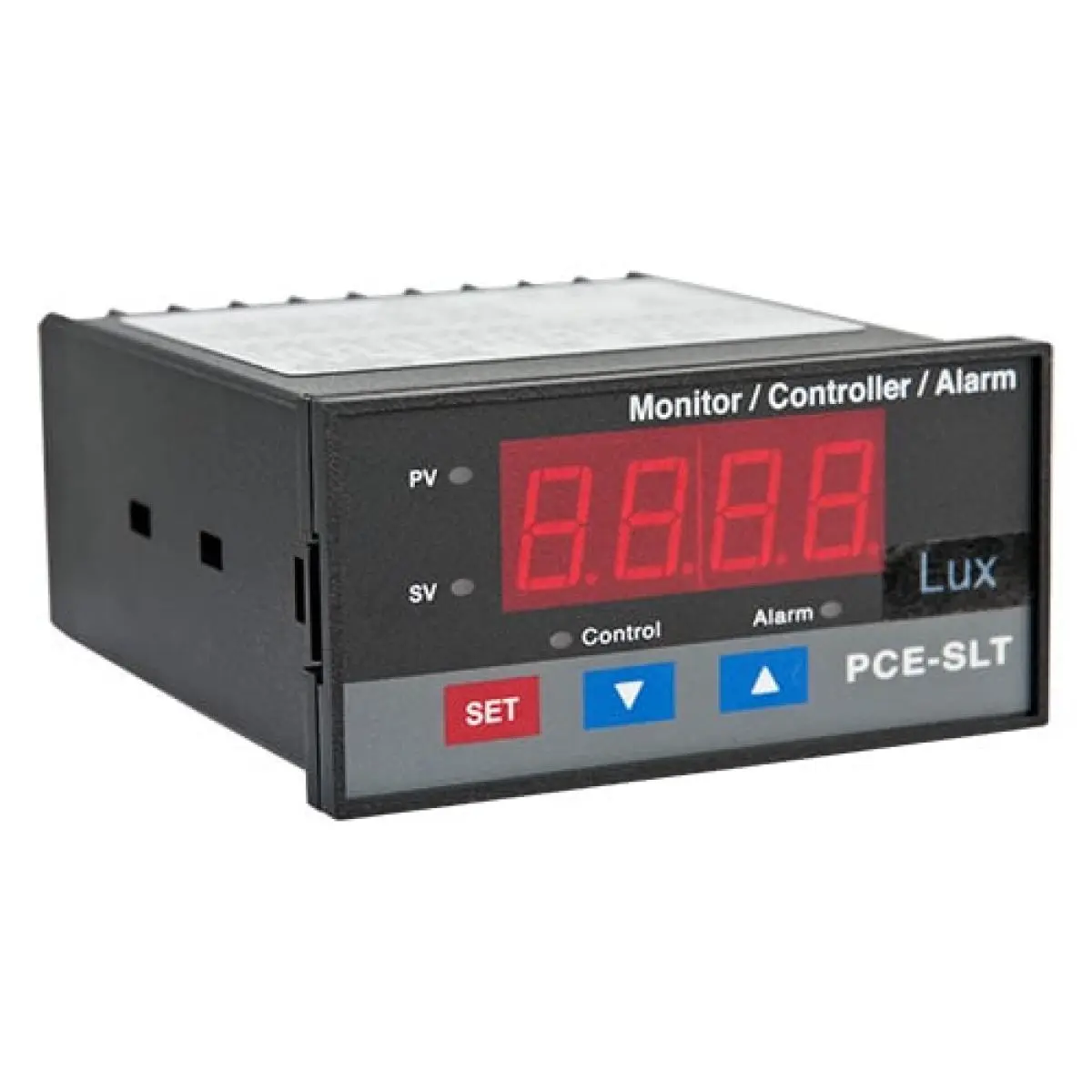

Digital display
Input signal from the transmitter4 - 20-mA
Display-1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / user-selectable)
Programming data (decimal place, limit value ...)Are stored in the device
Control output3-point (Com, NO, NC)
alarm outputRelay output: 5 A / 240 VAC
care90 ... 260 ACV / 50 ... 60 Hz
Dimensions / panel cutout according to DIN92 (+0.8) x 45 (+0.5) mm / 3.6 (+0.03) x 1.8 (+0.02) in
WeightAbout 250 g / < 1 lb
Environmental conditionsMax. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
ProtectionIP 65

Delivery Scope

1 x Environmental meter PCE-LXT-ICA
1 x Lux sensor on 1.5 m / 4.9 ft cable
1 x Light transmitter
1 x Digital display unit
1 x Operating Instructions
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
