Environmental Meter PCE-IR 80

Order no.: PCE-IR 80
£ 44.00
£ 52.80
4250348719256
PCE-IR 80
price ex. (VAT / delivery)
Delivery time: 1-2 working days

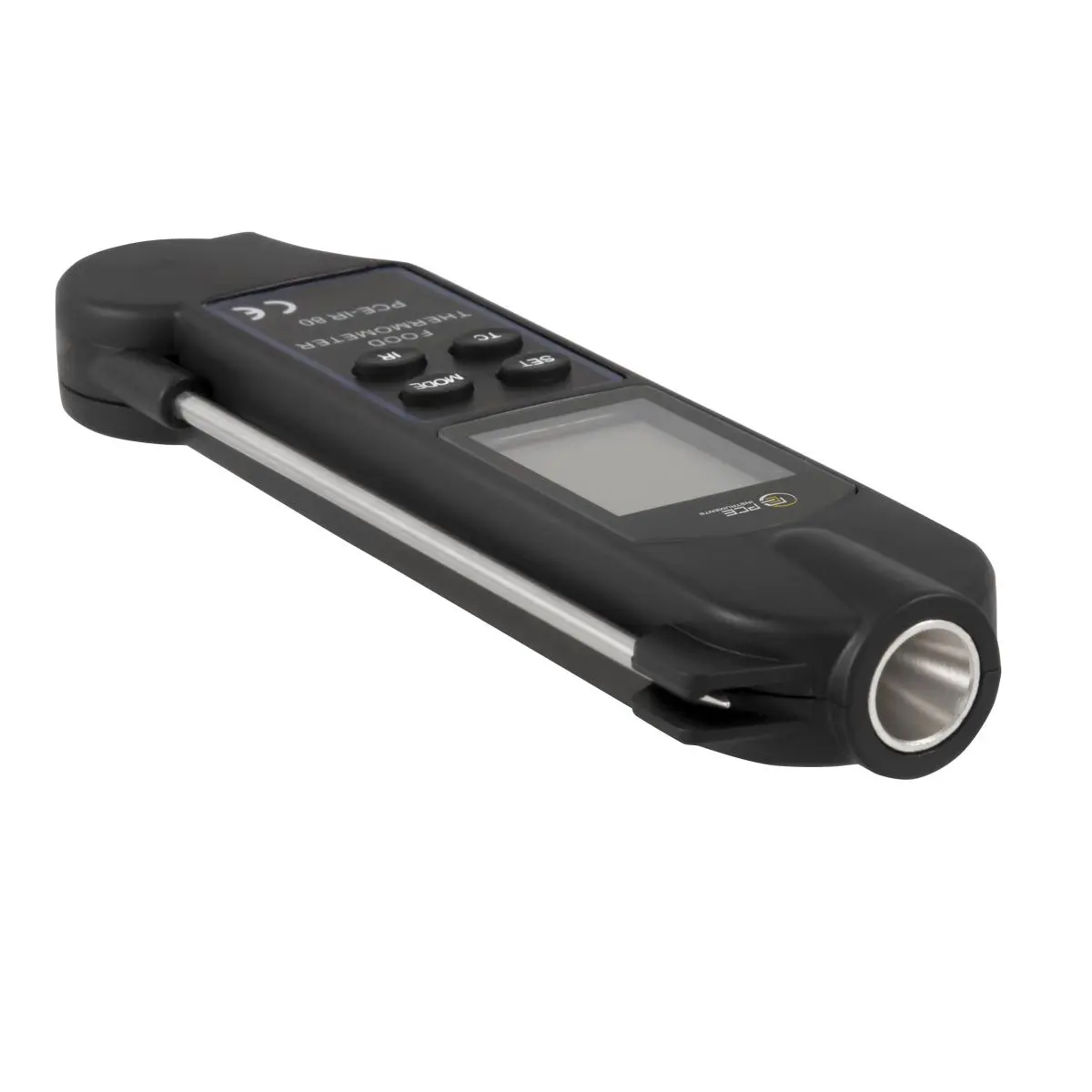

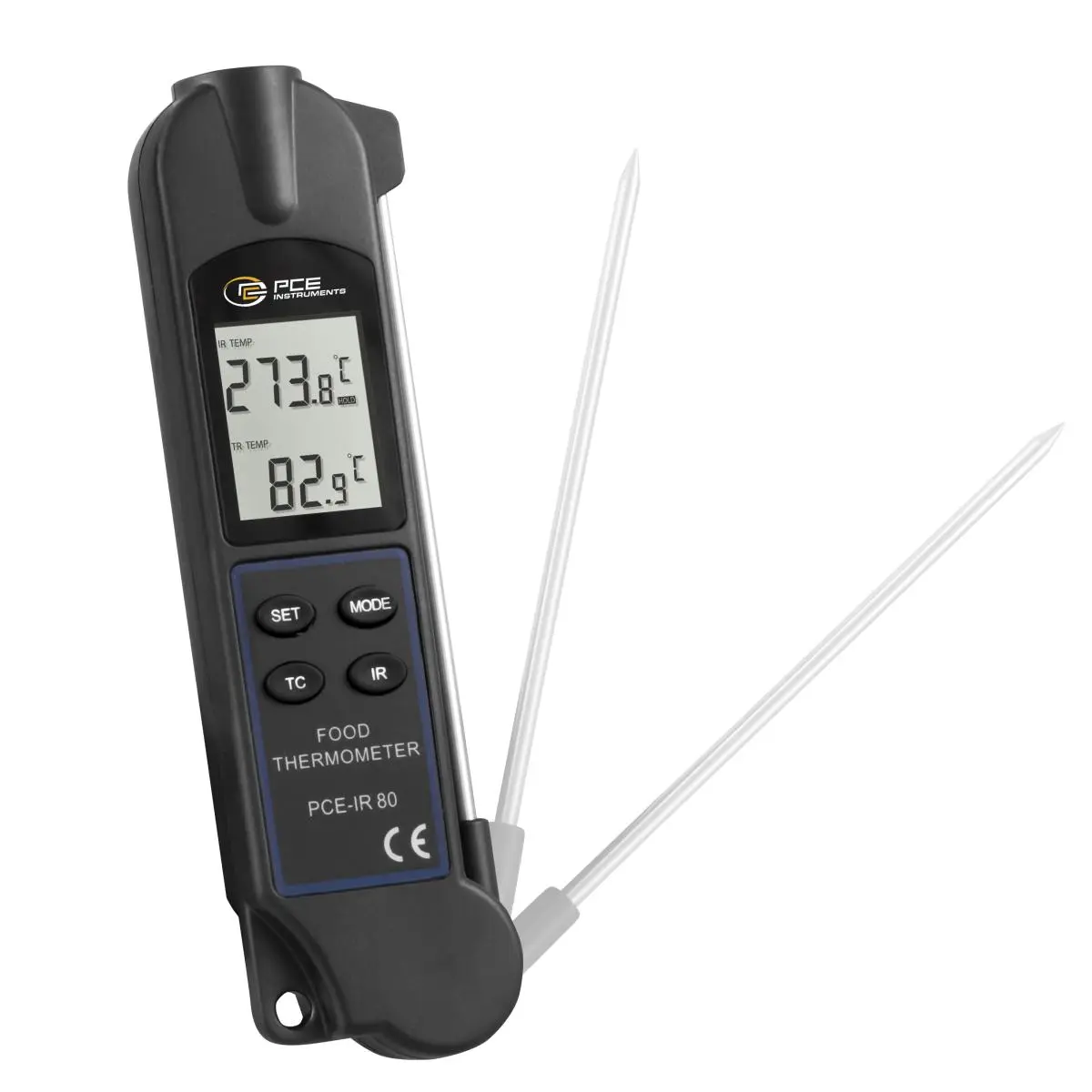

PCE-IR 80 Environmental meter
Food thermometer for non-contact and contact measurement / Up to 330°C (626°F) / Probe made of stainless steel / Simple operation

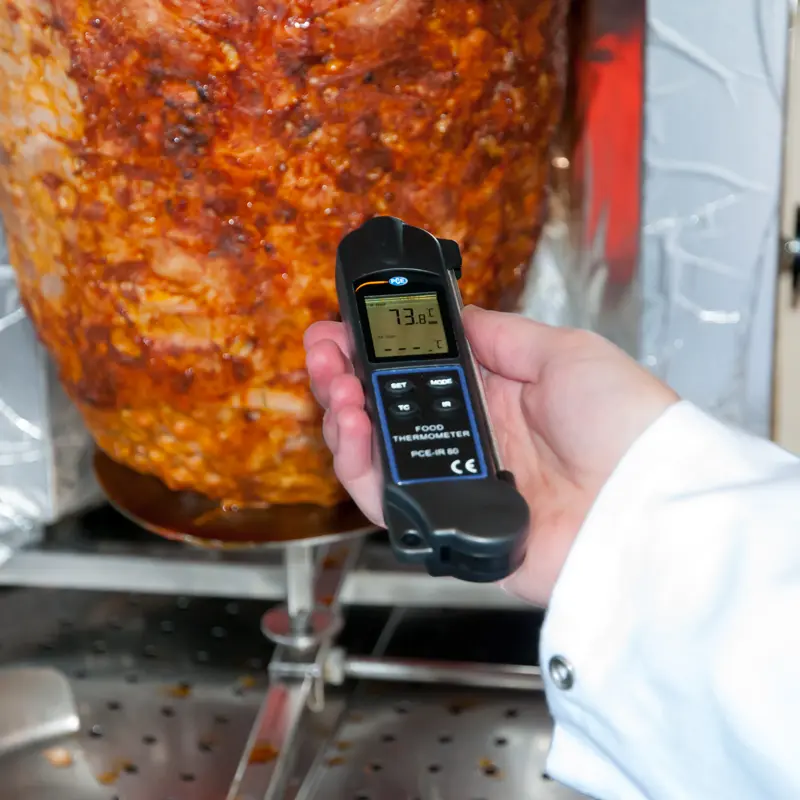

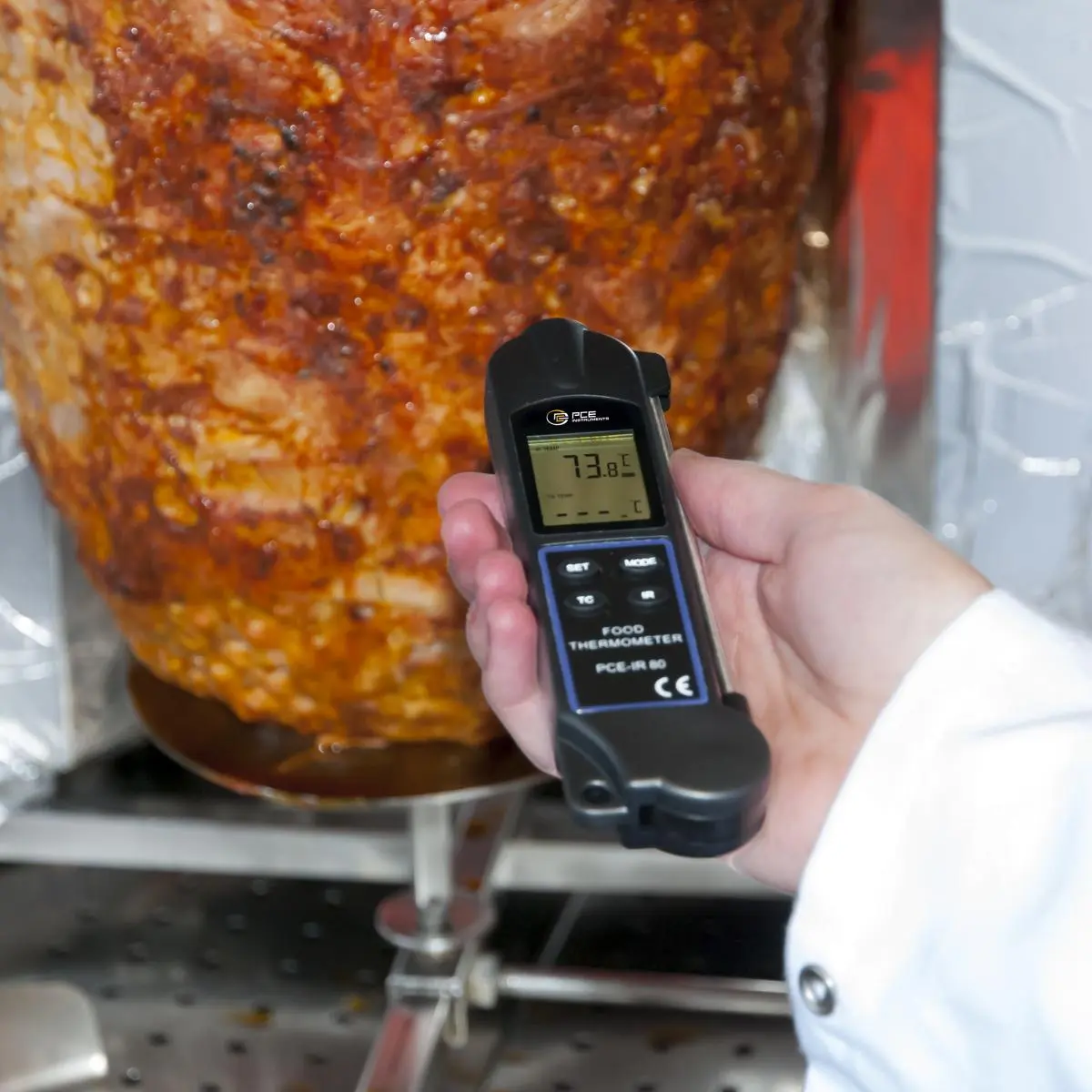

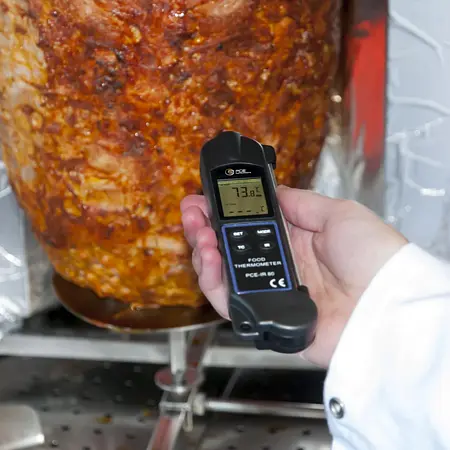

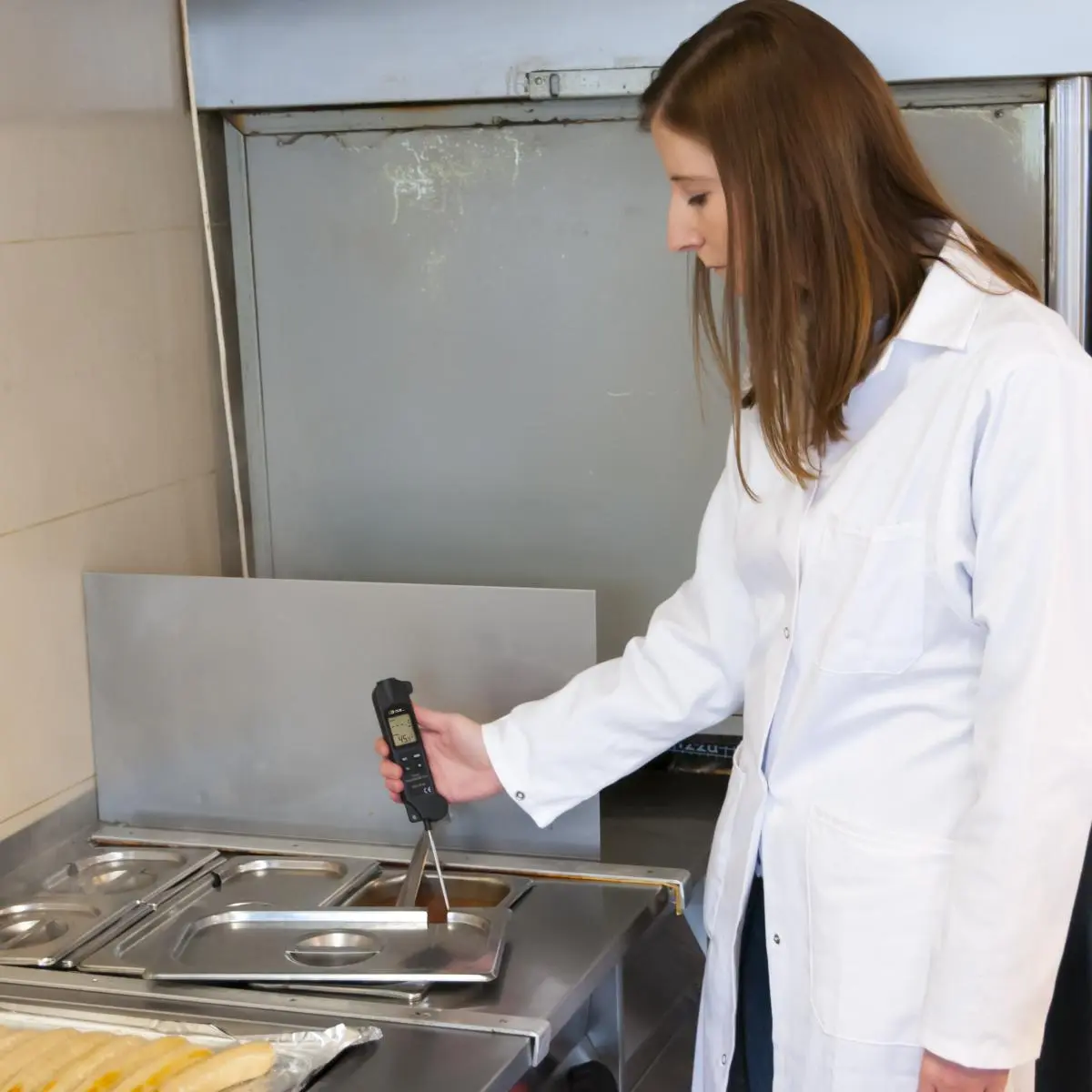

The environmental meter PCE-IR 80 is used to quickly control the temperature of food. The environmental meter is used in the area of ​​canteen kitchens, catering services, refrigerated warehouses and warehouses. The environmental meter has two types of measurement. On the one hand, the PCE-IR 80 environmental meter can measure the temperature of the object without contact via infrared. Here the measuring range is -35 ... 330°C / -31 ... 626°F. The emissivity of the environmental meter is adjustable, so that always best measuring results can be achieved.

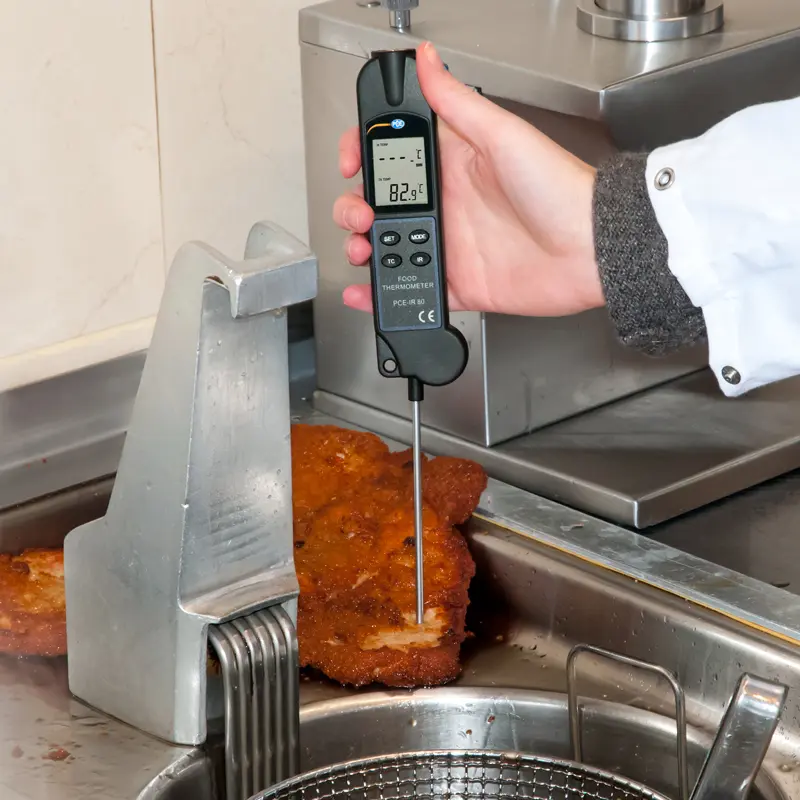

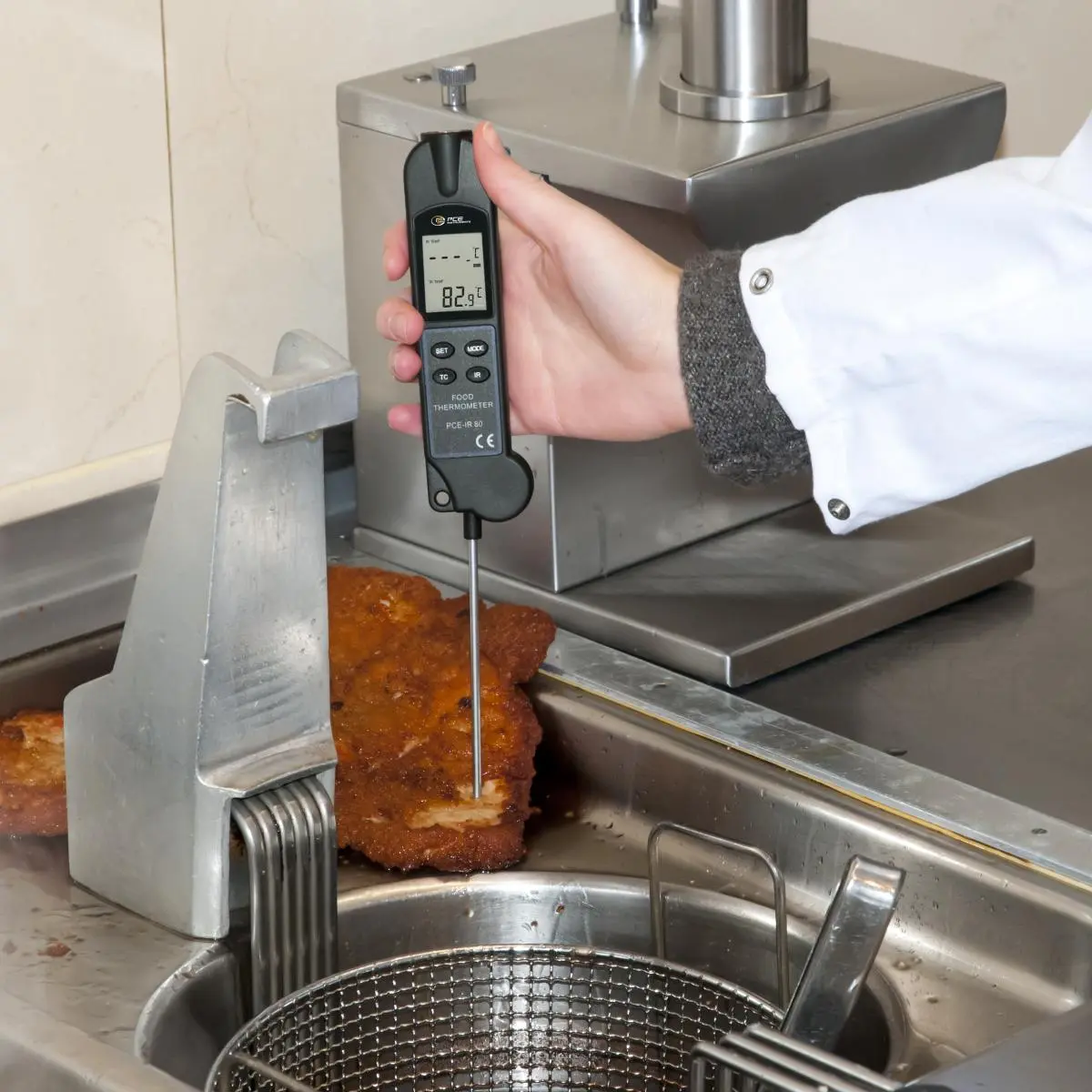

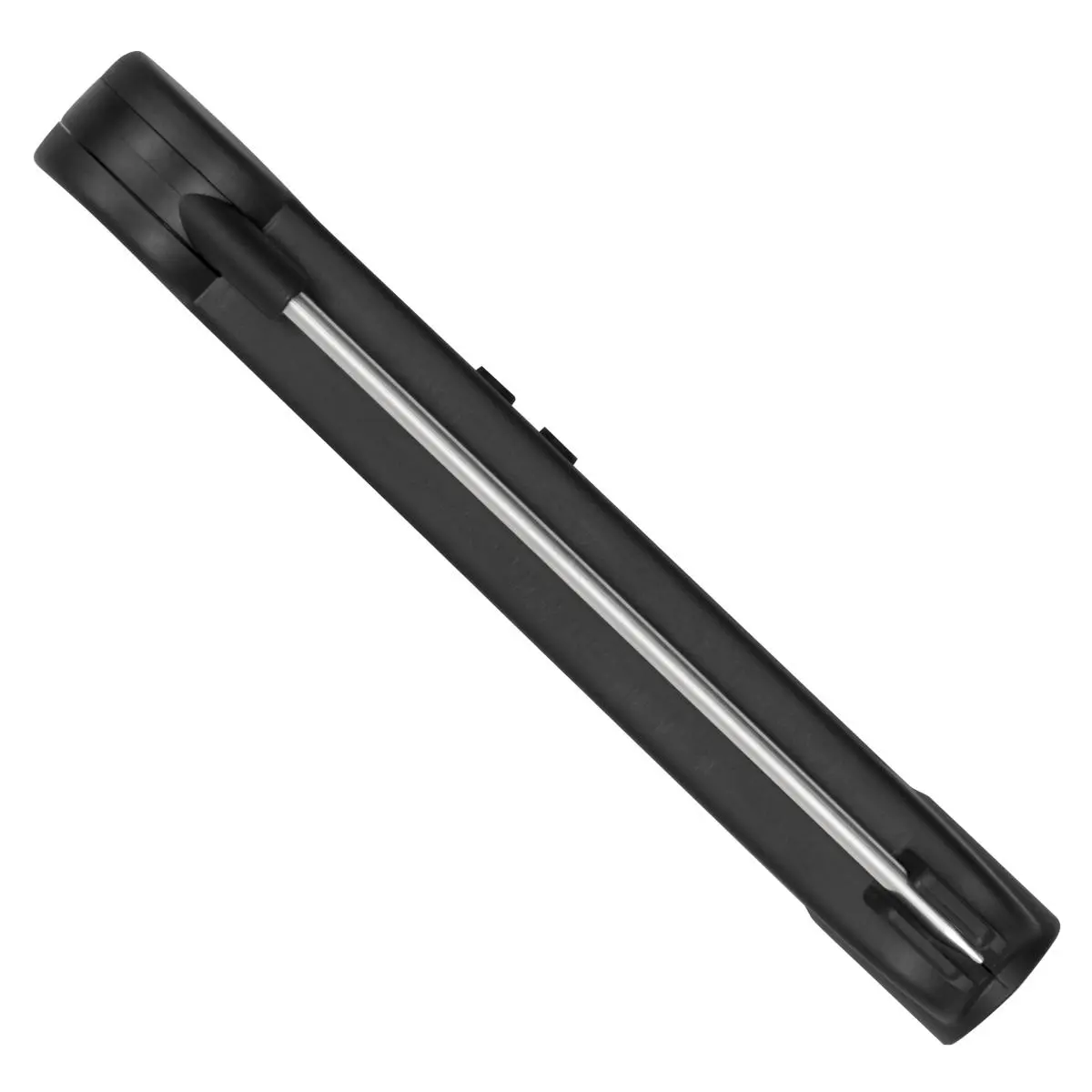

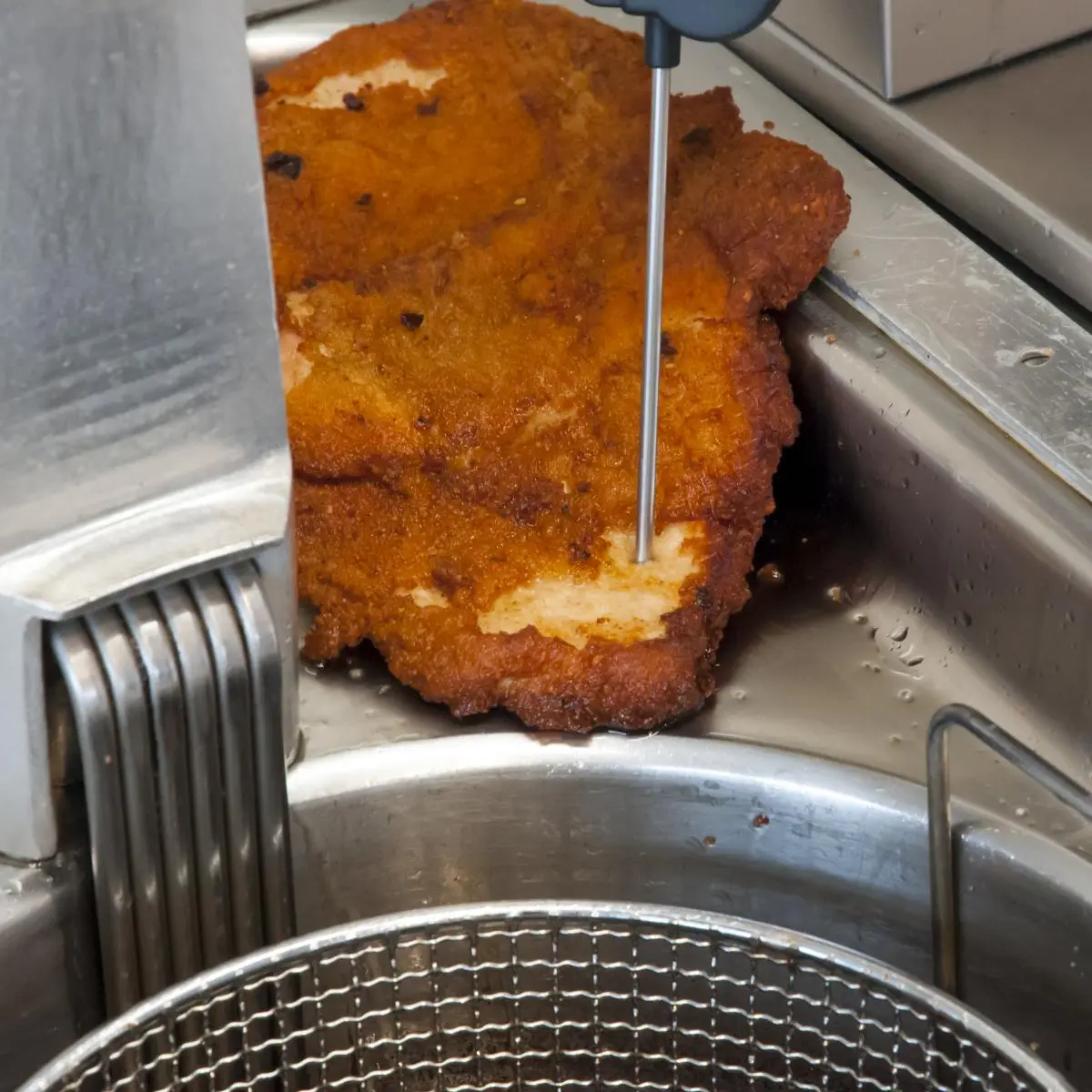

On the other hand, the environmental meter has a stainless steel needle sensor, so that the meter can also be used as a puncture, environmental meter. If the core temperature is measured by this method, the environmental meter can measure in the range between -20 ... 260°C / -4 ... 500°F. The unit of the penetration thermometer can be switched between °C and °F. The fast response time of 10 ms and high resolution of 0.1°C / 1.8°F complete the scope of the environmental meter. The thermometer is supplied with a CR2032 battery.

- Non-contact and contacting temperature measurement combined in one measuring device only
- Large measuring range
- Suitable for use in the food industry according to HACCP
- Emissivity adjustable (pre-set for food)
- Low response time

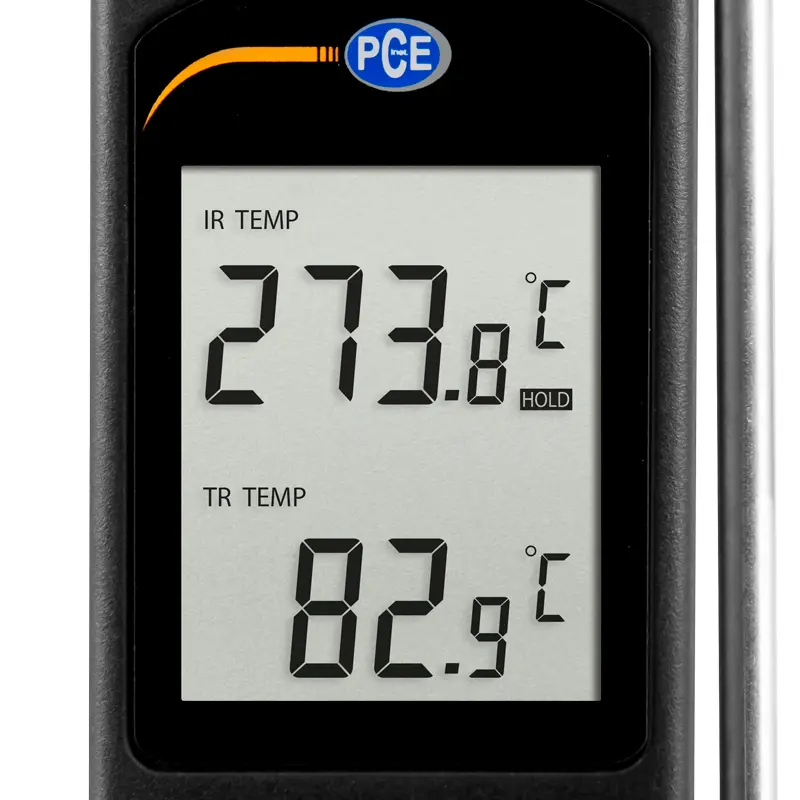

- Measurement hold function (Min./Max.)
- Continuous measurement function
- Waterproof, thus simple hygienic cleaning (flushable housing)
Measurement type infrared
Measuring range-35 ... 330°C / -31 ... 626°F
Resolution0.1°C / 0.18°F
Accuracy-35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F > 0°C / 32°F : ± 2% of rdg. ± 2°C / 3.6°F

Type of measurement Penetration sensor
Measuring range-20 ... 260°C / -4 ... 500°F
Resolution0.1°C / 0.18°F
Accuracy± 1% of of rdg. ± 1.5°C / 2.7°F

Optical resolution4: 1
EmissivityAdjustable 0.1 ... 1.0
Response time 10 ms
Spectral 8 ... 14 μm
Power supply 3.0V CR2032 battery
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight About 100 g / < 1 lb
Dimensions 151 x 41 x 20 mm / 6 x 1.6 x 0.8 in



1 x PCE-IR 80 environmental meter
1 x User manual

Accessories

Order no.: PCE-MS 25
PCE-MS 25 Measuring Point Sticker

Measuring point stickers for pyrometers with measuring surface for E = 0.95 (25 pieces)



Manufacturer: PCE Instruments
£ 13.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-IR
ISO Calibration Certificate for Infrared Thermometer
ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we give the measuring device to our in-house calibration laboratory. As the client, the measured values and the serial number are recorded in this ISO calibration certificate.

- 4 measuring points evenly distributed over the measuring range
- Calibration range: 30 ... 500 °C
- Calibration applies to infrared sensors only

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
