£ 149.00
Price excl. VAT &. delivery
2 year Warranty

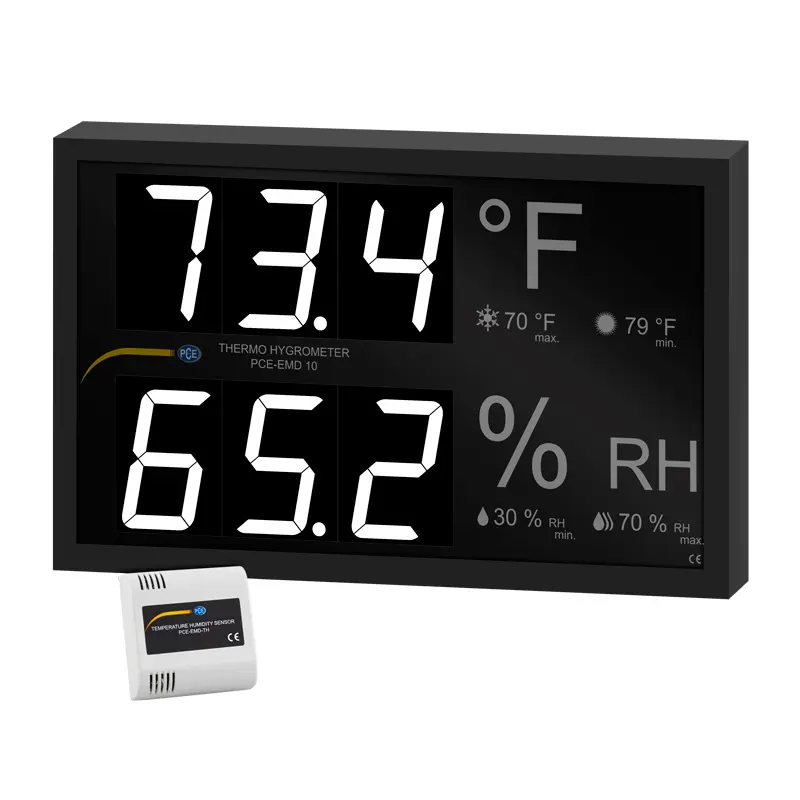

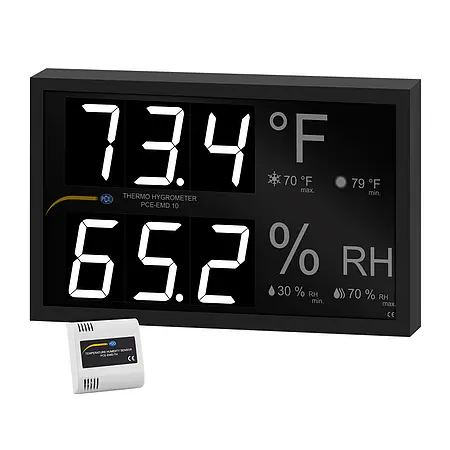

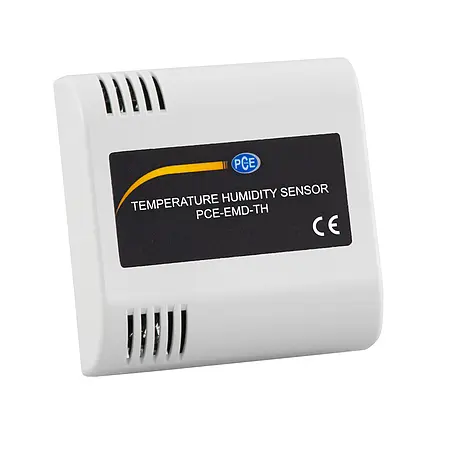

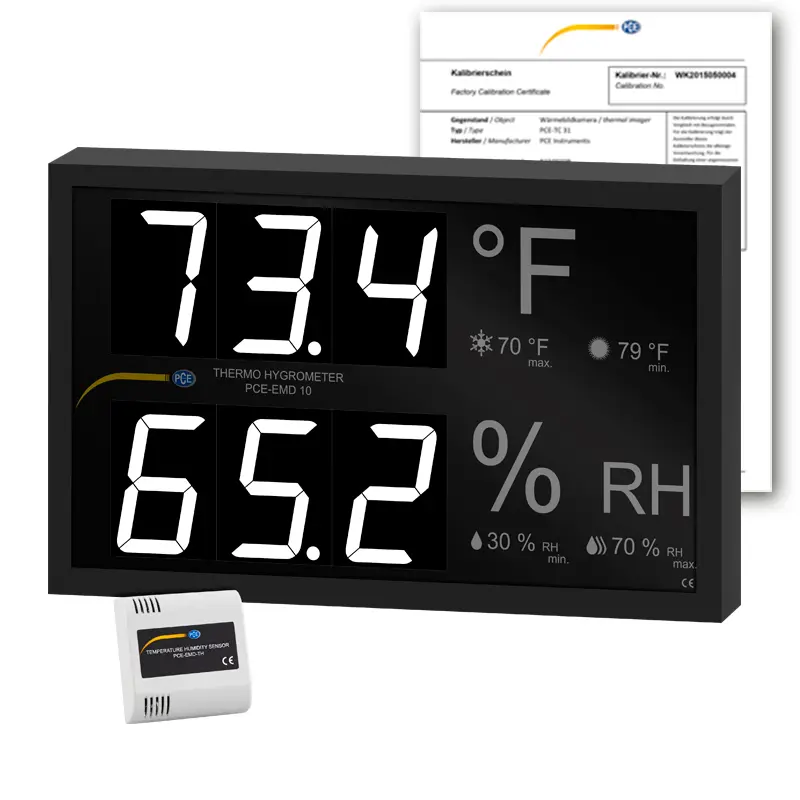

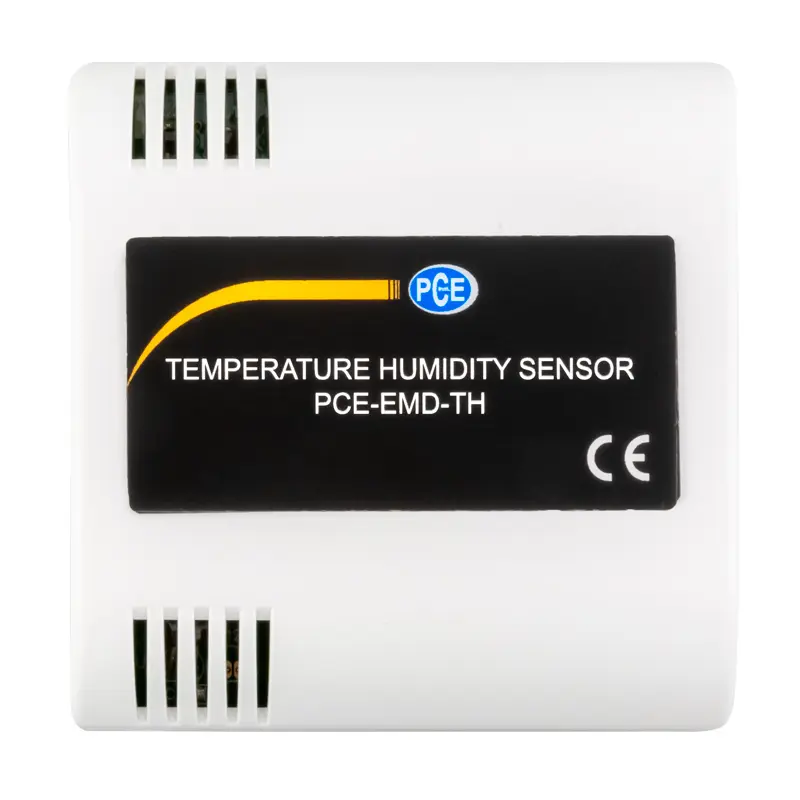

Temperature and humidity transmitter with isolated outputs for the PCE-EMD series
Measuring range temperature | 32.0 … 122.0 °F |
Resolution | 0.1 °F |
Accuracy | ±0.9 °F |
Measuring range humidity | 0.0 … 99.9 % RH |
Resolution | 0.1 % RH |
Accuracy | ±3 % RH |
Further specifications | |
Response time | <15 seconds at a wind speed of <1 m/s |
Display interval | 1 Hz |
Number of usable sensors | 4 |

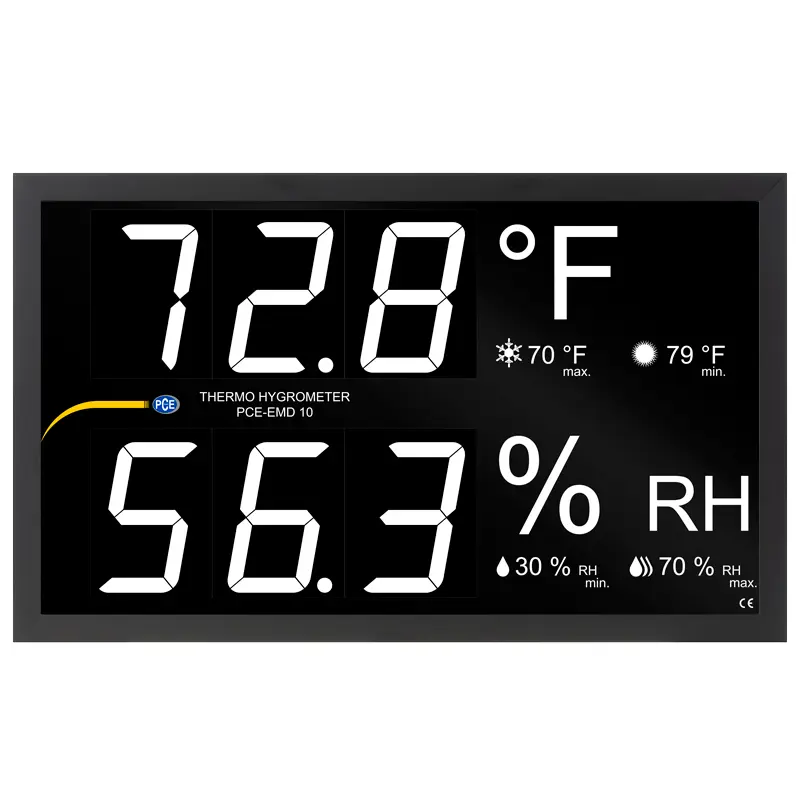

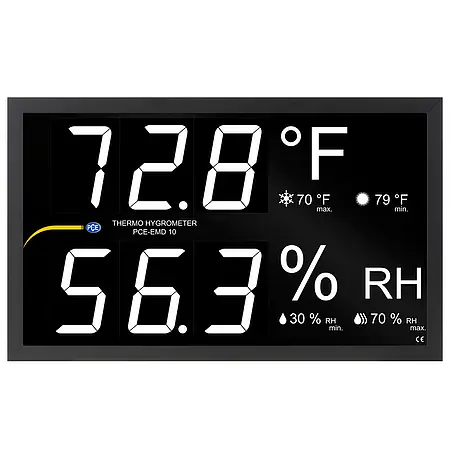

Digit height | 100 mm / 3.9" |
Digit colour | white |
Sensor supply voltage | 12 and 24 V DC |
Maximum sensor supply current | 100 mA |
Impedance current input | <200 Ω |
Housing material | black painted aluminium housing |
Screen protection | anti-reflective methacrylate |

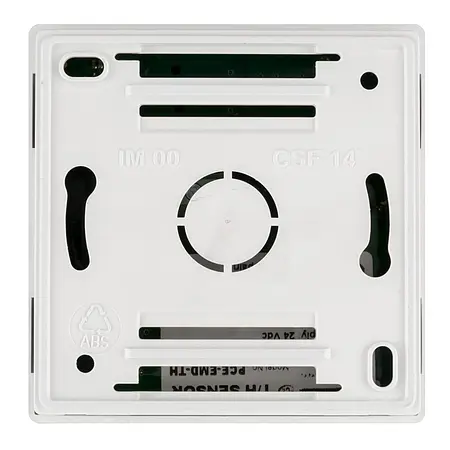

Housing material sensor | ABS |
Protection class display | IP20 |
Protection class sensor | IP30 |
Power supply display | 110 ... 220 V AC 50 / 60 Hz |
Maximum power consumption | 18 W |

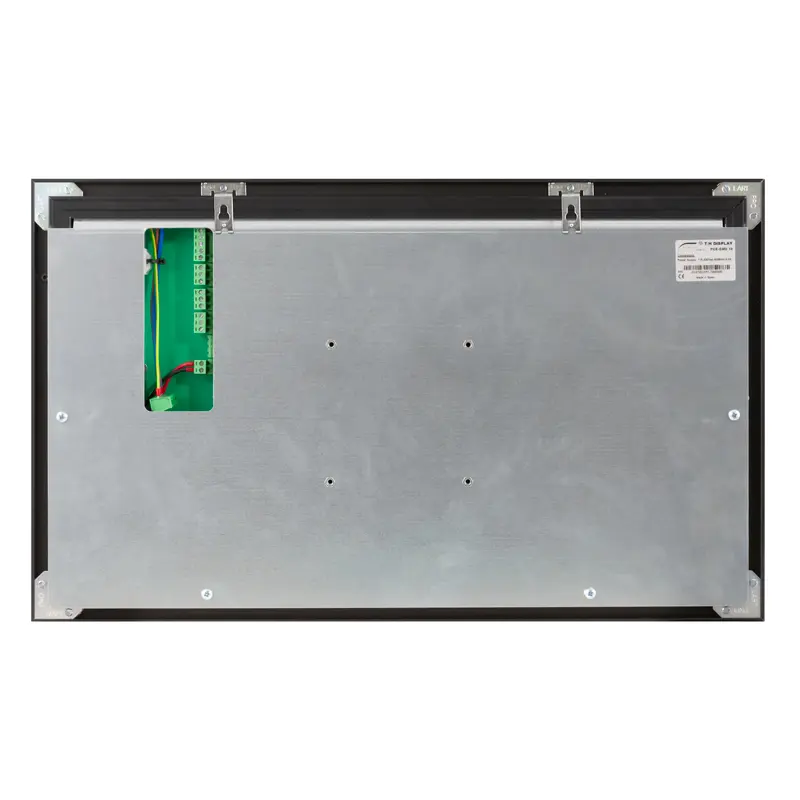

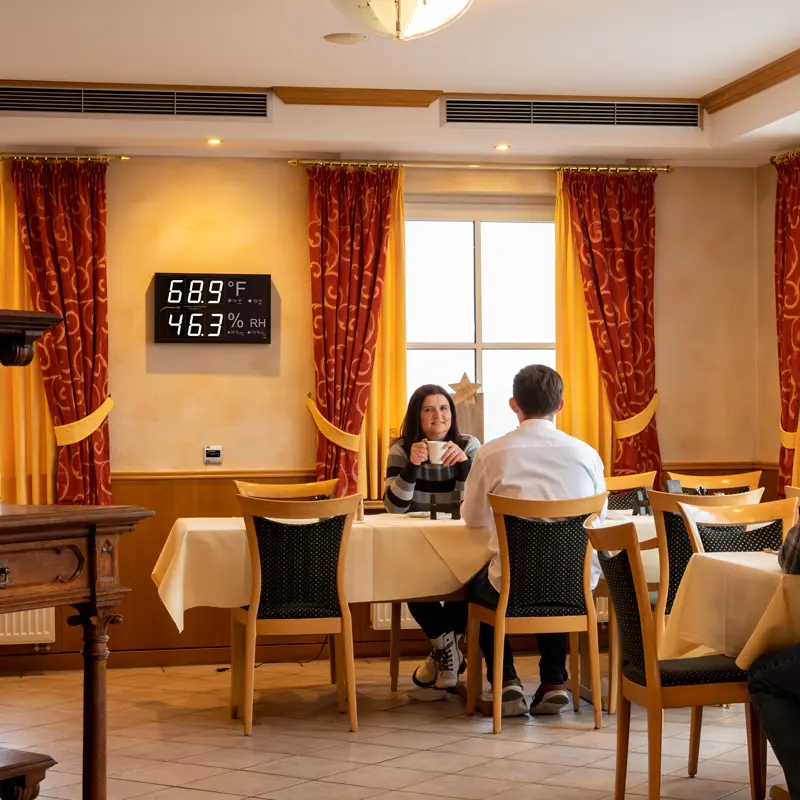

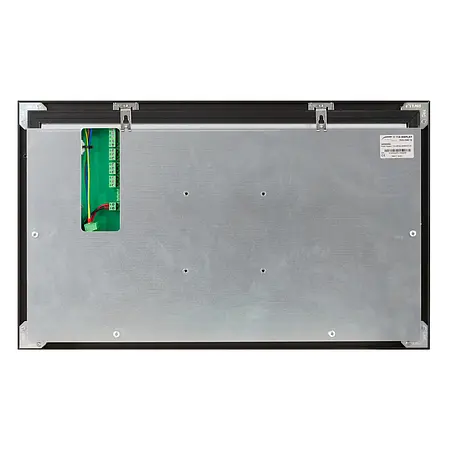

Mounting display | wall mounting, monitor stand (75 x 75 mm / 2.95 x 2.95") |

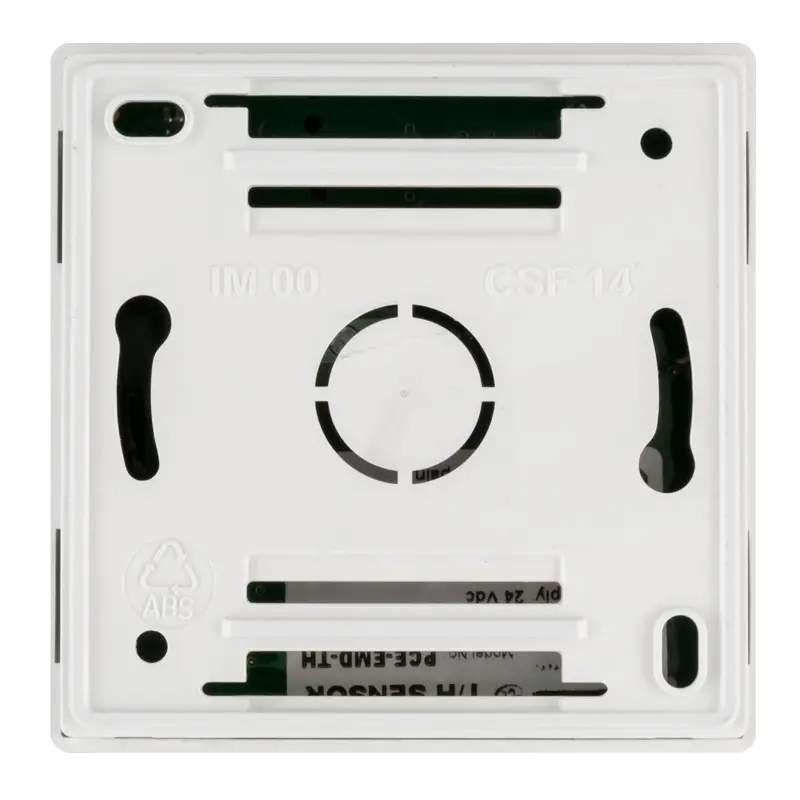

Mounting sensor | wall mounting |

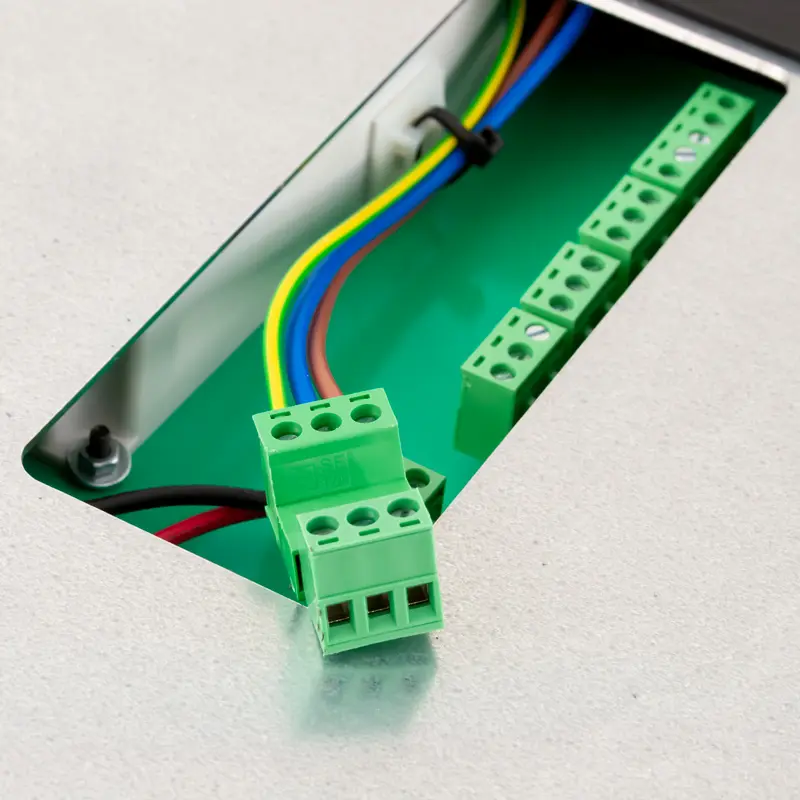

Terminal strip power supply cable cross-section | 0.5 … 2.5 mm² (AWG 14) rigid cable
0.5 … 1.5 mm² (AWG 15) flexible cable |
Terminal strip sensor connection cable cross-section | 0.14 … 0.15 mm² (AWG 18) rigid cable
0.15 … 1 mm² (AWG16) flexible cable |
Terminal strip torque | 1.2 Nm |
Terminal strip screw length | <12 mm / 0.47" |
Dimensions display | 535 x 327 x 53 mm / 21.0 x 12.8 x 2.0" |
Dimensions sensor | 80 x 80 x 35 mm / 3.1 x 3.1 x 1.3" |
Operating conditions | -10 … 60 ºC, 5 … 95 % RH, non-condensing |
Storage conditions | -20 … 70 ºC, 5 … 95 % RH, non-condensing |
Weight display | 4579 g / 161.5 oz |
Weight sensor | 66 g / 2.3 oz |
Price excl. VAT &. delivery
2 year Warranty
An ISO calibration certificate is often required to comply with DIN ISO 9000. Each calibration certificate is issued specifically for the customer and instrument. Therefore, calibration certificates are excluded from the right of return.
