Environmental Meter PCE-CMM 10

Environmental Meter PCE-CMM 10 [zoom]

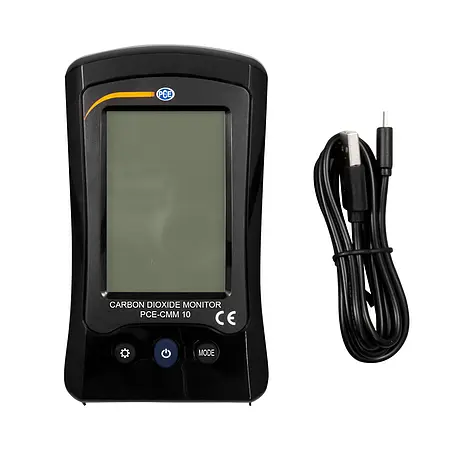

Environmental Meter PCE-CMM 10

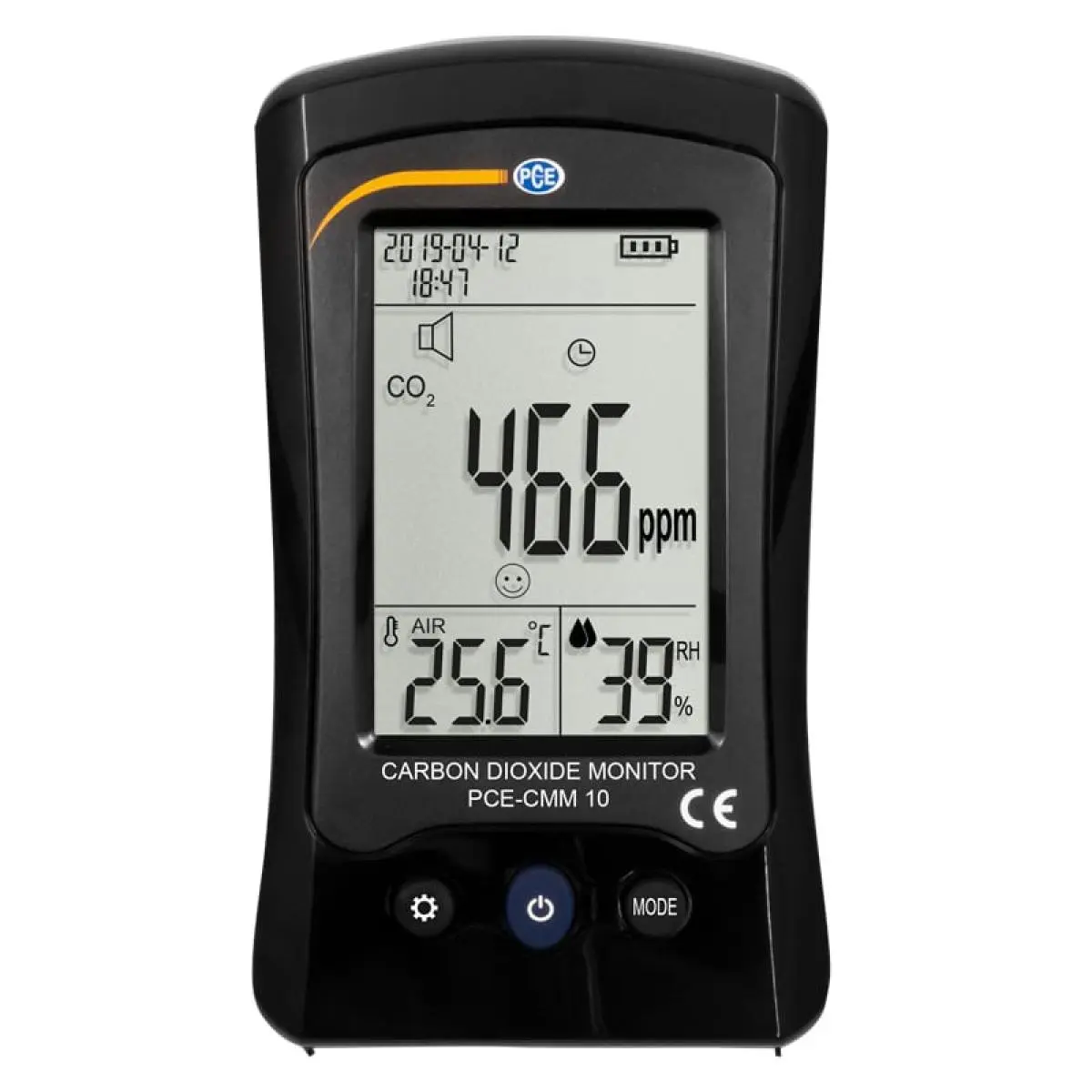

Environmental Meter Frontal

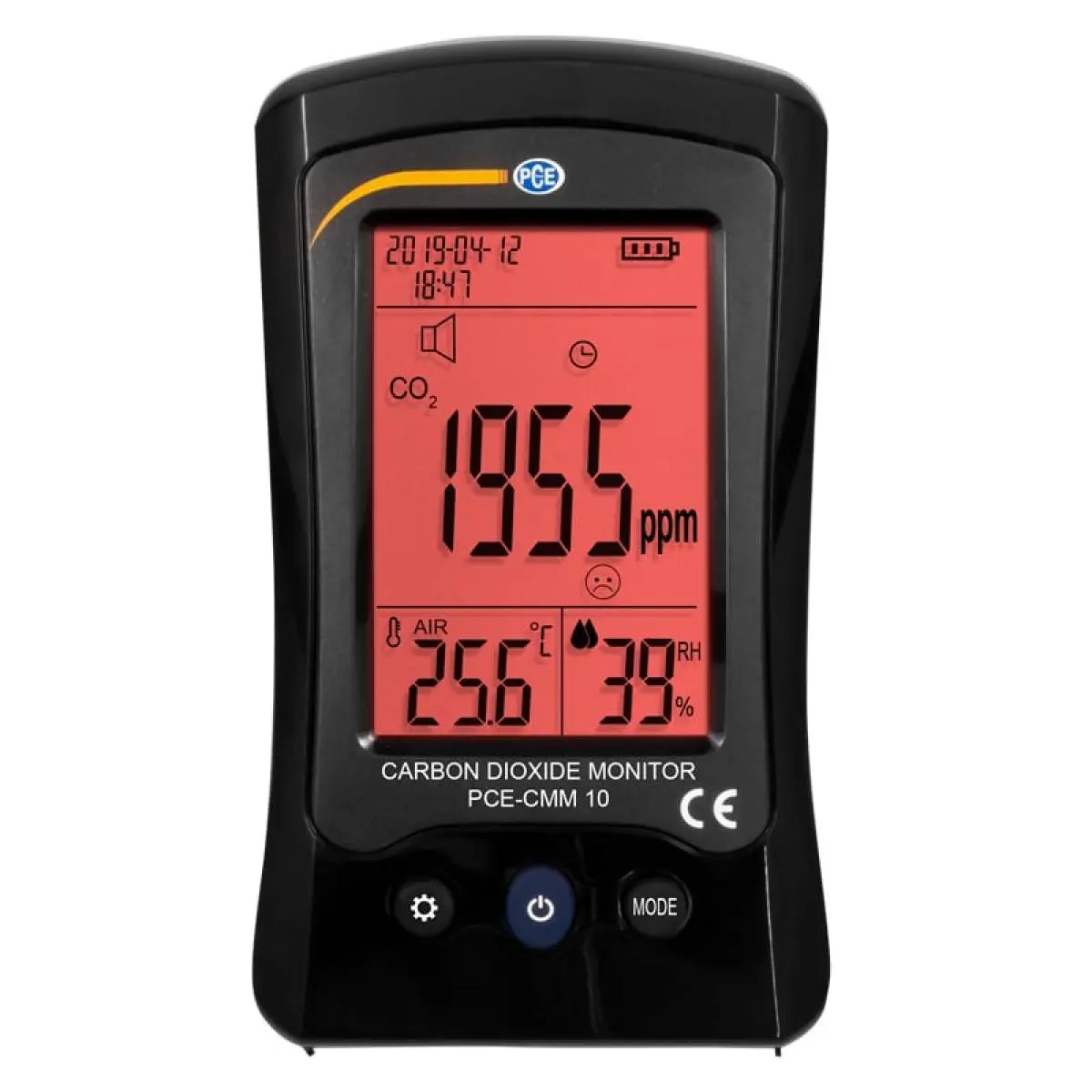

Environmental Meter Display

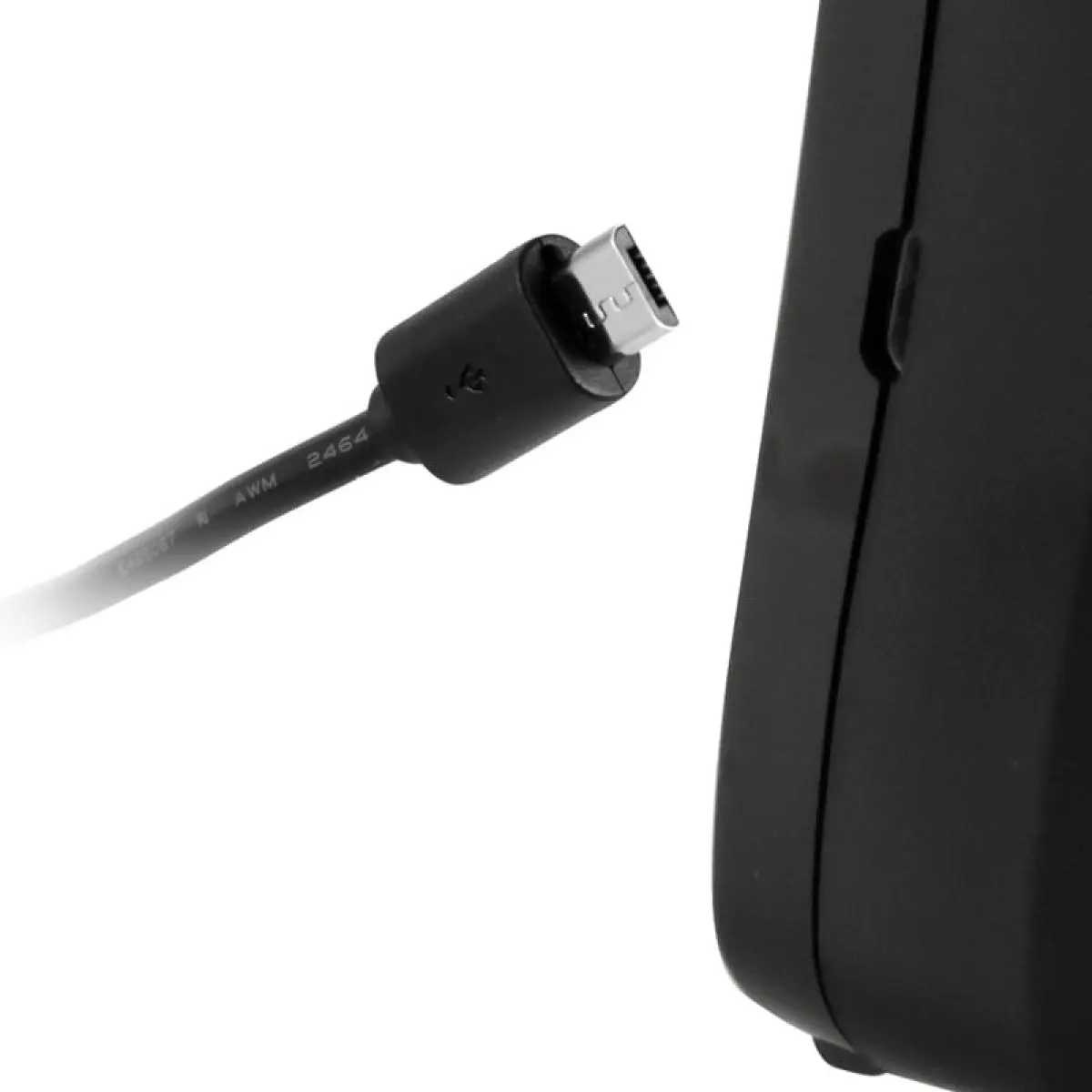

Environmental Meter Connections

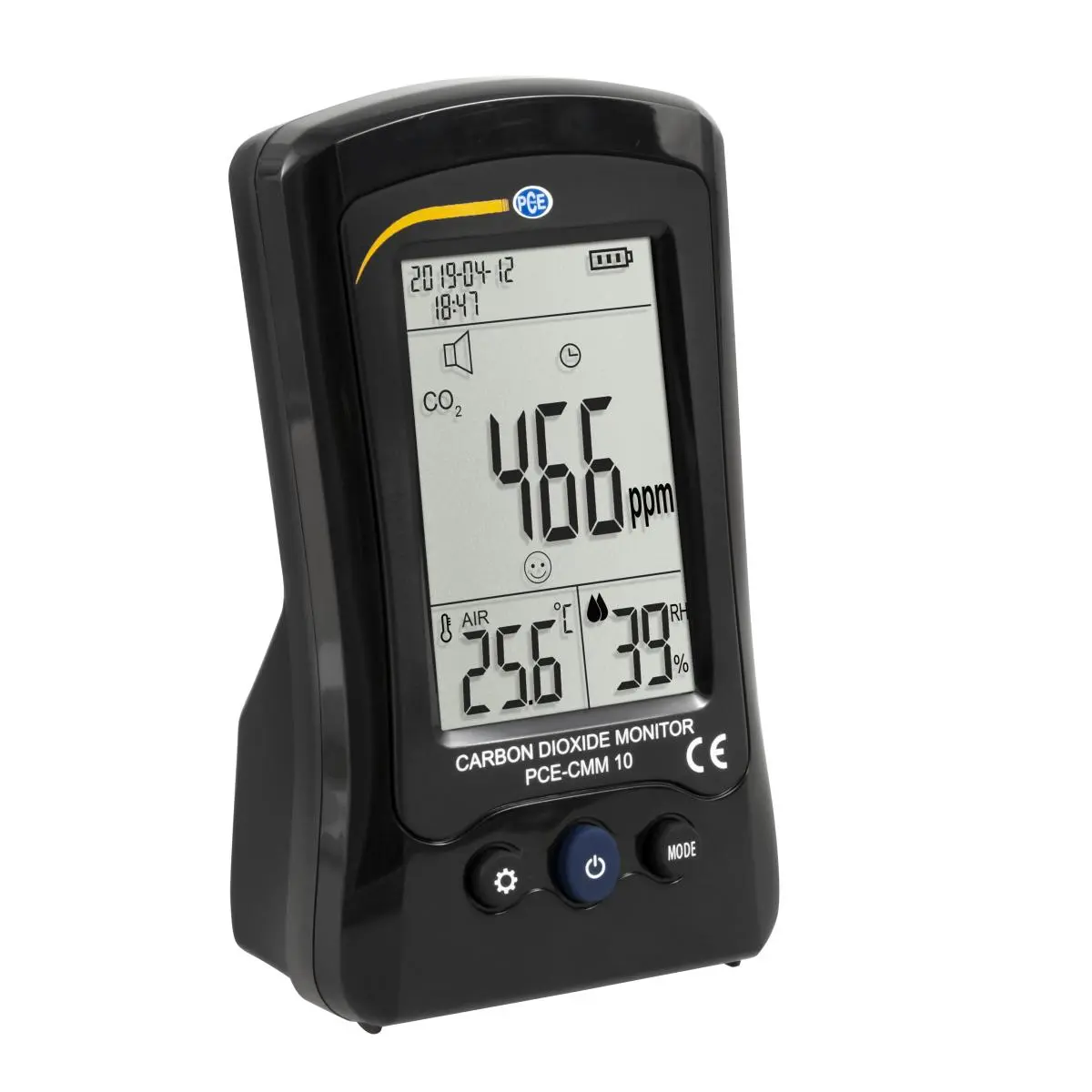

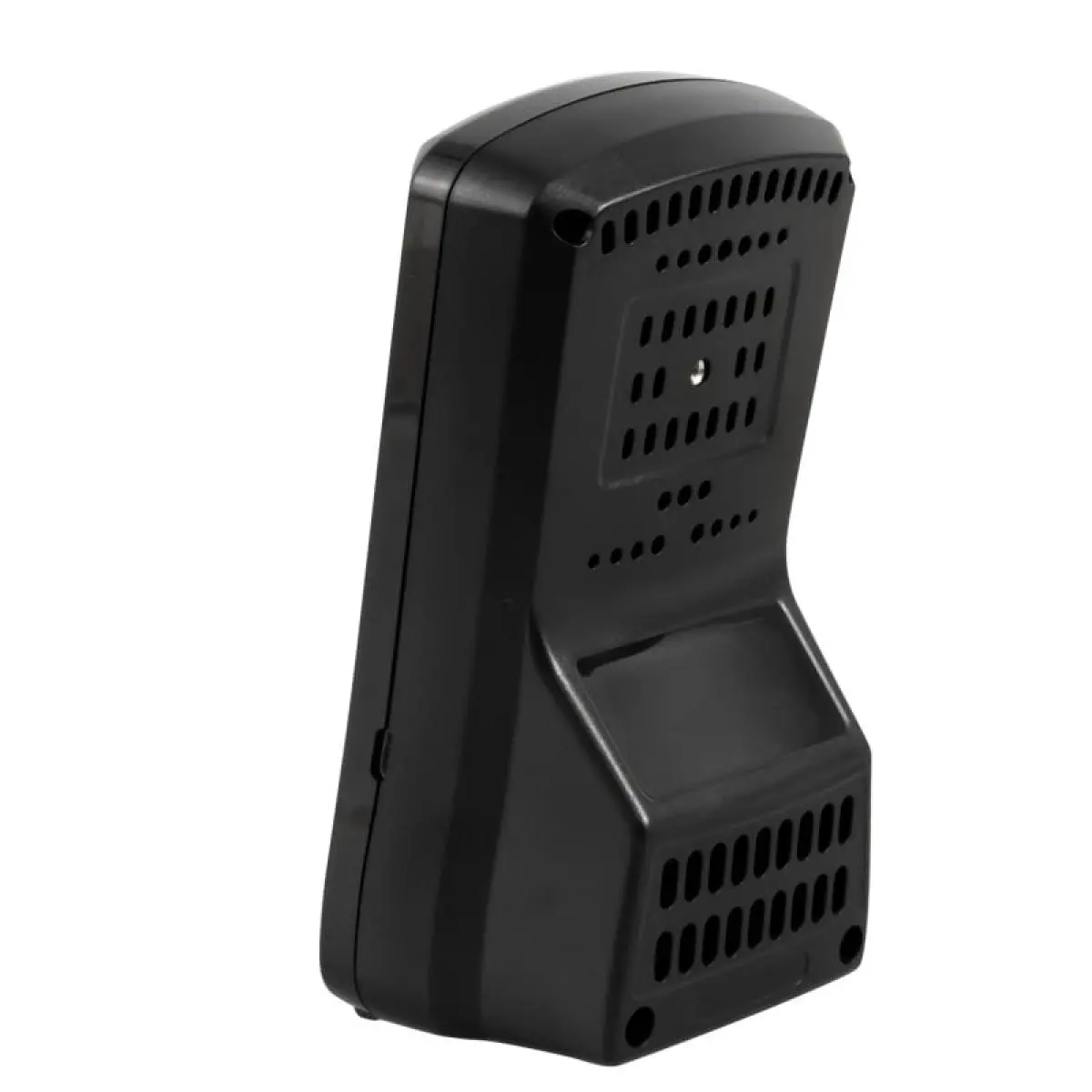

Environmental Meter Side view

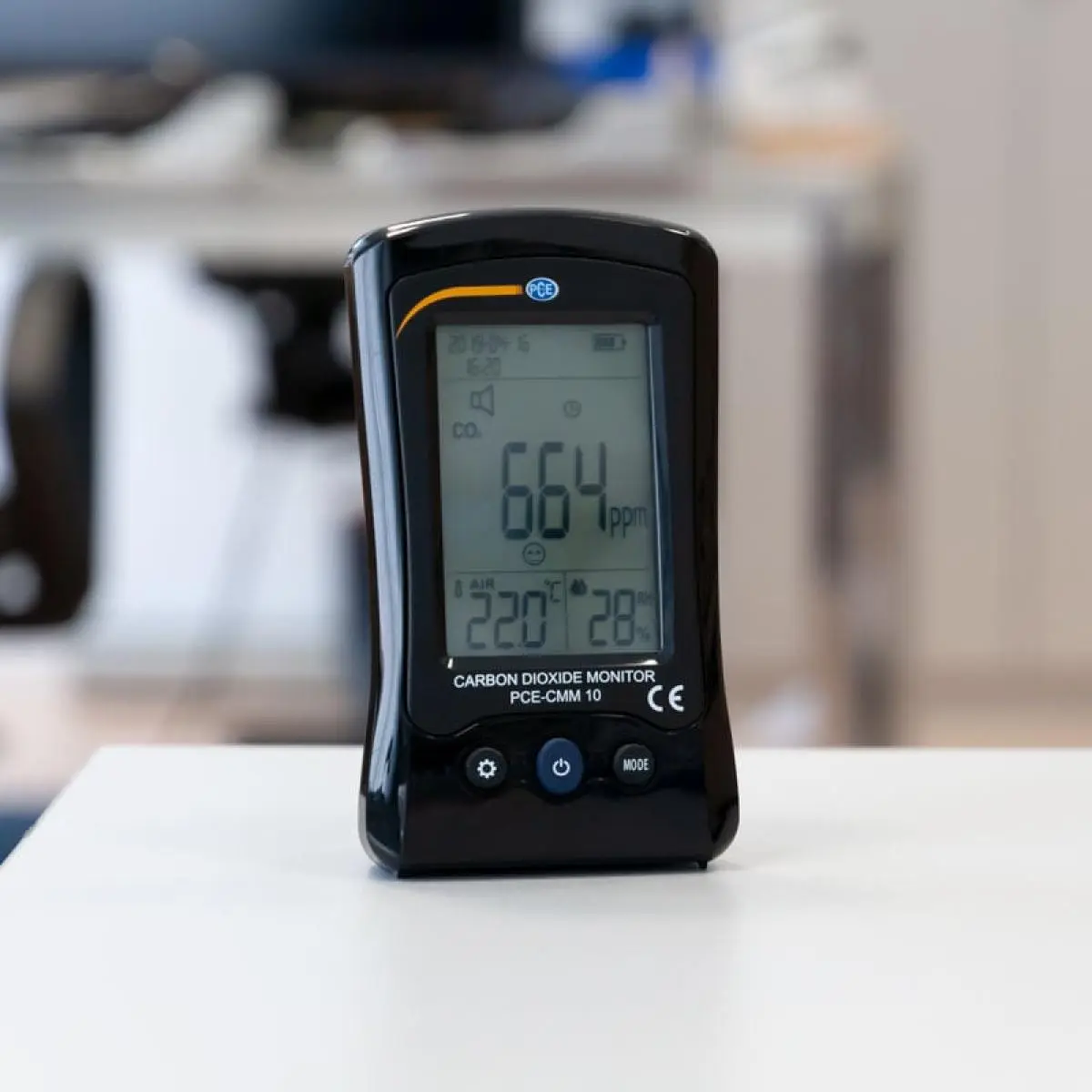

Environmental Meter Application picture

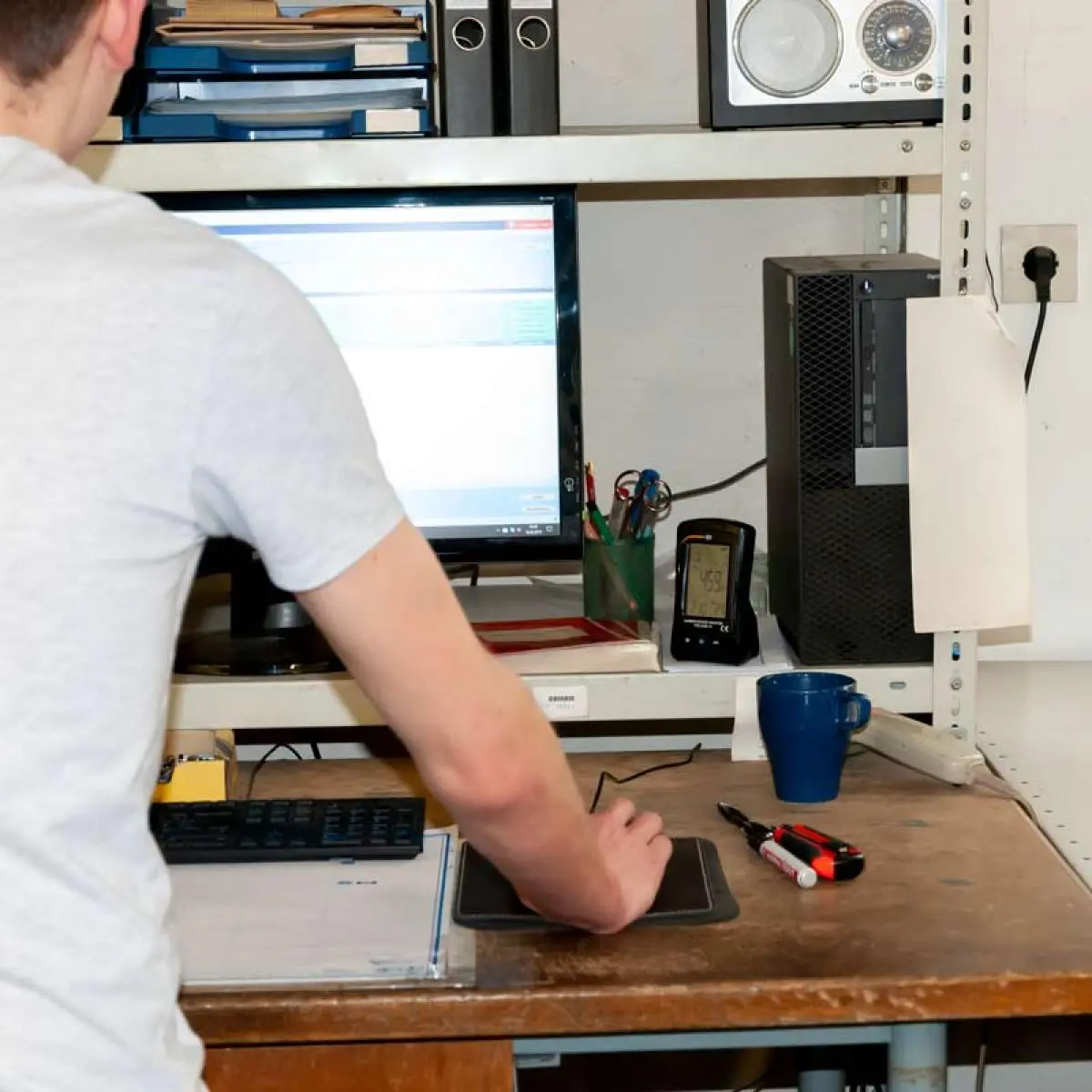

Environmental Meter Application picture

Environmental Meter PCE-CMM 10

Order no.: PCE-CMM 10
GTIN (EAN): 4250348718914
£ 220.00
£ 264.00
price ex. (VAT / delivery)
:
4250348718914
PCE-CMM 10
Delivery time:1-2 working days

Accessory

Description

Environmental meter PCE-CMM 10
CO2 meter / Battery operation / Alarm limits / 400 ... 5000 ppm / Temperature measurement / Visual and acoustic alarm / Automatic switch-off / USB charging / Units can be changed / LC display / Temperature range -10 ... 50°C (4 ... 122°F)

The CO2 measuring device PCE-CMM 10 is a multi-function measuring device for measuring the air quality. This CO2 meter measures synchronously the CO2 concentration, the air temperature and the humidity. In addition, the CO2 meter has permanently programmed alarm limits. As soon as the currently measured CO2 measured value exceeds the alarm limit, the alarm is activated. The user is alerted to the CO2 meter by an audible and visual signal.

Using the built-in USB interface, you can continuously charge the CO2 meter to your PC workstation, for example. Thanks to the small blue shape, you can optimally position the CO2 meter at your workplace. Due to the 3 inch display and the strong backlight, you can read the measured values ​​optimally.

Highlights

- CO2 measurement
- Battery operation
- Limit exceeded
- Backlight
- Air temperature
- Table housing
- Humidity
- Beep

Specification

CO²
Measuring range  400 ... 5000 ppm
Resolution  1 ppm
Accuracy  ±(5 % + 50 ppm) between 400 ... 2000 ppm and an atmospheric pressure of 1013 mbar

Relative humidity
Measuring range  0 ... 99
Resolution  1
Accuracy  ±(5 % at 25 °C) between 10 ... 90 % RH

Temperature
Measuring range  -10 ... +50 °C
Resolution  0,1 °C
Accuracy  ±1 °C (can be influenced by own waste heat)

General technical data
Measuring functions  MIN, MAX, HOLD, ALARM, Average value
Display type  LCD with backlight
Display size  3 in
Display refresh rate  3 s
Sensor  NDIR
Automatic power-off  2 h
Alarm  optical, Acoustic
Menu language  English, English (GB)
Protection class (device)  IP21
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  1000 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  -20 ... 60 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  130 x 75 x 55 mm
Weight  195 g

Delivery Scope

1 x Environmental Meter PCE-CMM 10
1 x USB cable
1 x User manual
