Environmental Meter PCE-555

Environmental Meter PCE-555 [zoom]
Environmental Meter PCE-555

Environmental Meter PCE-555

Order no.: PCE-555
GTIN (EAN): 4250348700384
£ 87.00
£ 104.40
price ex. (VAT / delivery)
:
4250348700384
PCE-555
Delivery time: 1-2 working days
Temperature
±0.5°C
No
Handheld
Internal
No
No

Description

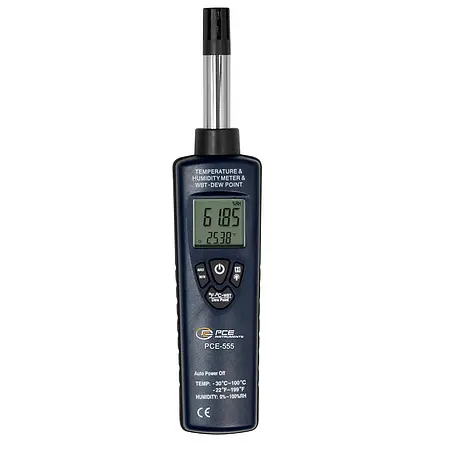

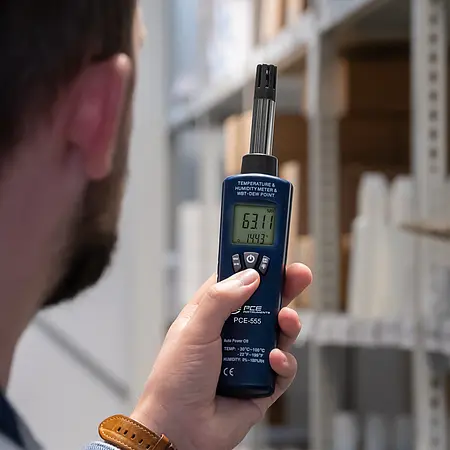

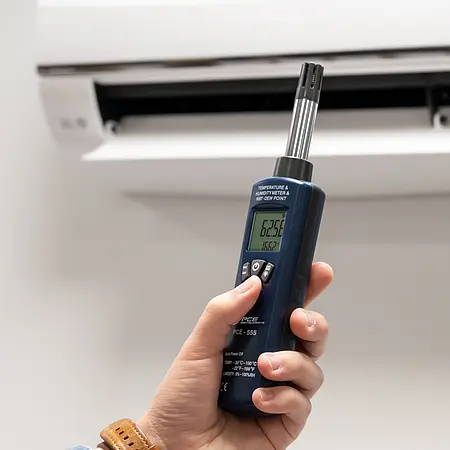

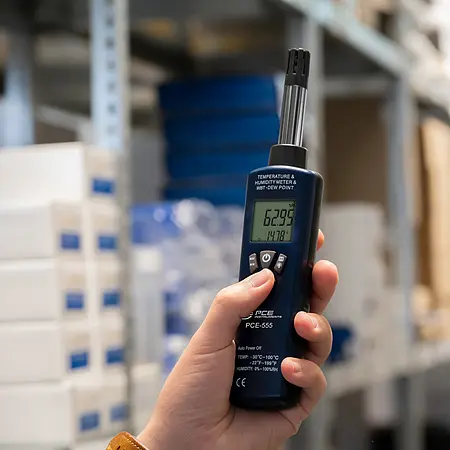

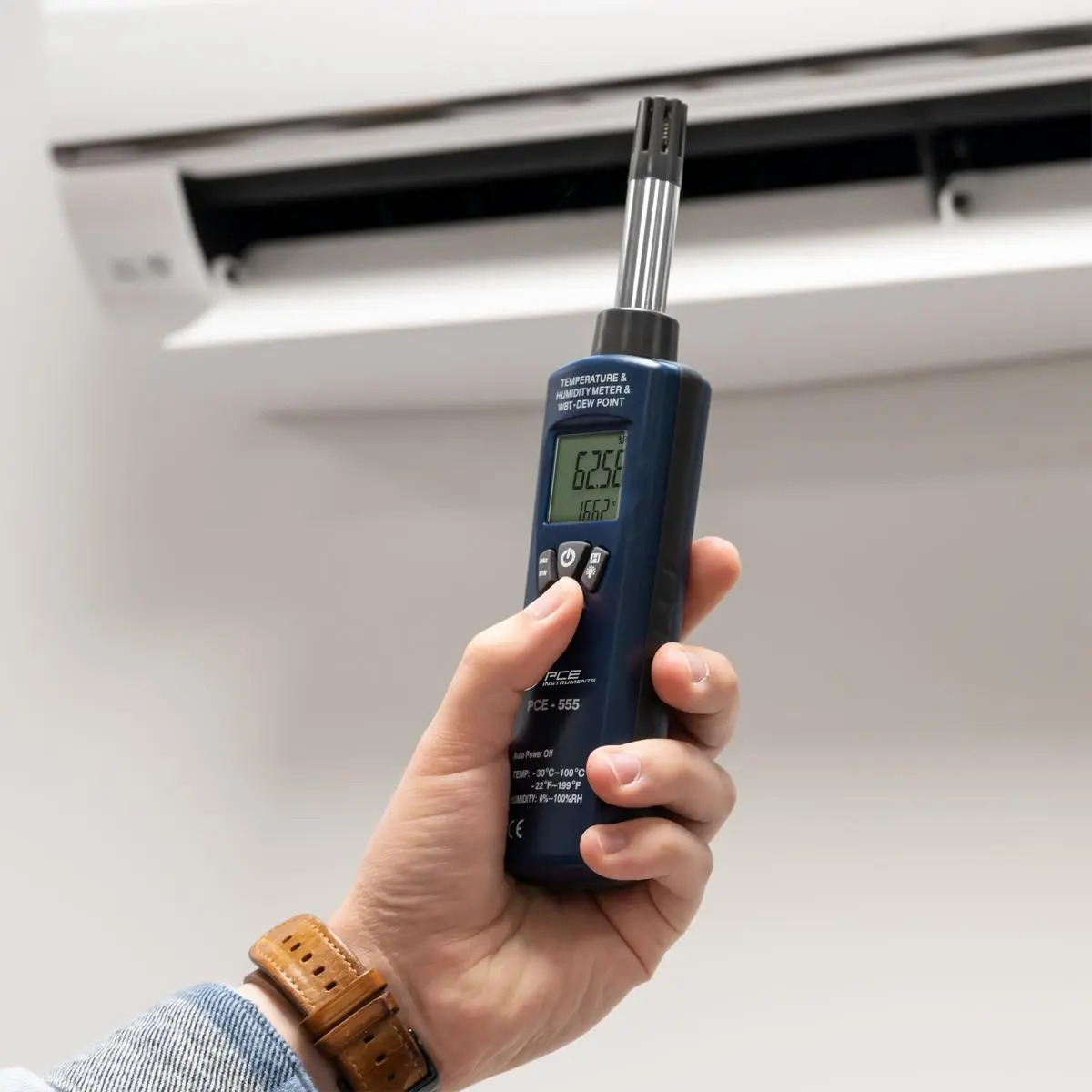

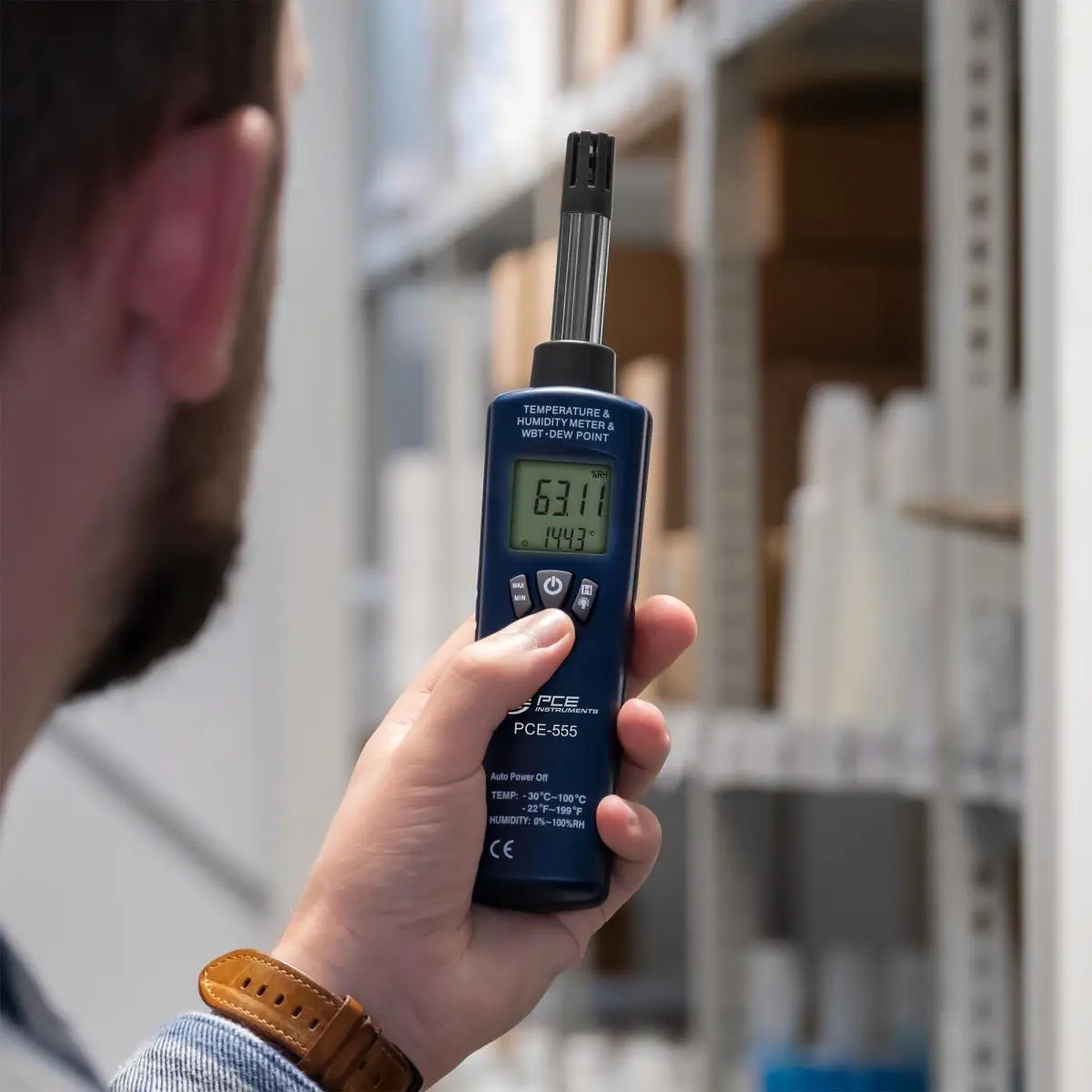

PCE-555 is a combination digital hygrometer and digital thermometer used to measure relative humidity or air humidity as well as air temperature, dew point temperature and wet-bulb temperature. This portable, handheld meter allows for quick and easy detection of environmental conditions. Applications include monitoring climates of refrigerated trucks, warehouses, construction sites and HVAC installations, where excess moisture, condensation and uneven temperatures can create mold, spoilage and health hazards.

Highlights

- Offers a compact design, high precision and a fast response time
- Displays temperature and humidity measurement results simultaneously
- Features backlight, automatic power off, max hold and data hold functionality

Specification

Measuring ranges

Humidity

0 ... 100% relative humidity (rh)

Temperature

-30 ... 100°C / -22 ... 212°F

Dew point temperature

-30 ... 100°C / -22 ... 212°F

Wet-bulb temperature

0 ... 80°C / 32 ... 176°F



General specifications


Accuracy ± 2% rh at 25°C / 77°F and 20 ... 80% rh, otherwise ± 2.5% ± 0.5°C / ± 0.9°F (at 25°C / 77°F), otherwise ± 0.8°C / ± 1.5°F
Resolution 0.01% rh, 0.01°C / 0.018°F
Response time (% rh) Approx. 10 sec. (90% at ambient temperature of 25°C / 77°F)
Sampling rate 2.5 times per sec.
Display 4.5-digit dual LCD with backlight
Energy efficiency Automatic power off after 15 min. inactivity (To deactivate, turn device off. Press and hold Hold key and On/Off key at same time. When display comes on, release both keys.)
Storage conditions -10 … 60°C / 14 … 140°F, ˂ 80% rh, noncondensing
Operating conditions 0 … 40°C / 32 … 104°F, ˂ 80% rh, noncondensing
Power supply 1 x standard 9V battery, NEDA1604 or 6F22
Approx. dimensions 225 x 45 x 34 mm / 8.9 x 1.8 x 1.3 in
Approx. weight 200 g / < 1 lb

See user manual for complete technical specifications and operating instructions.

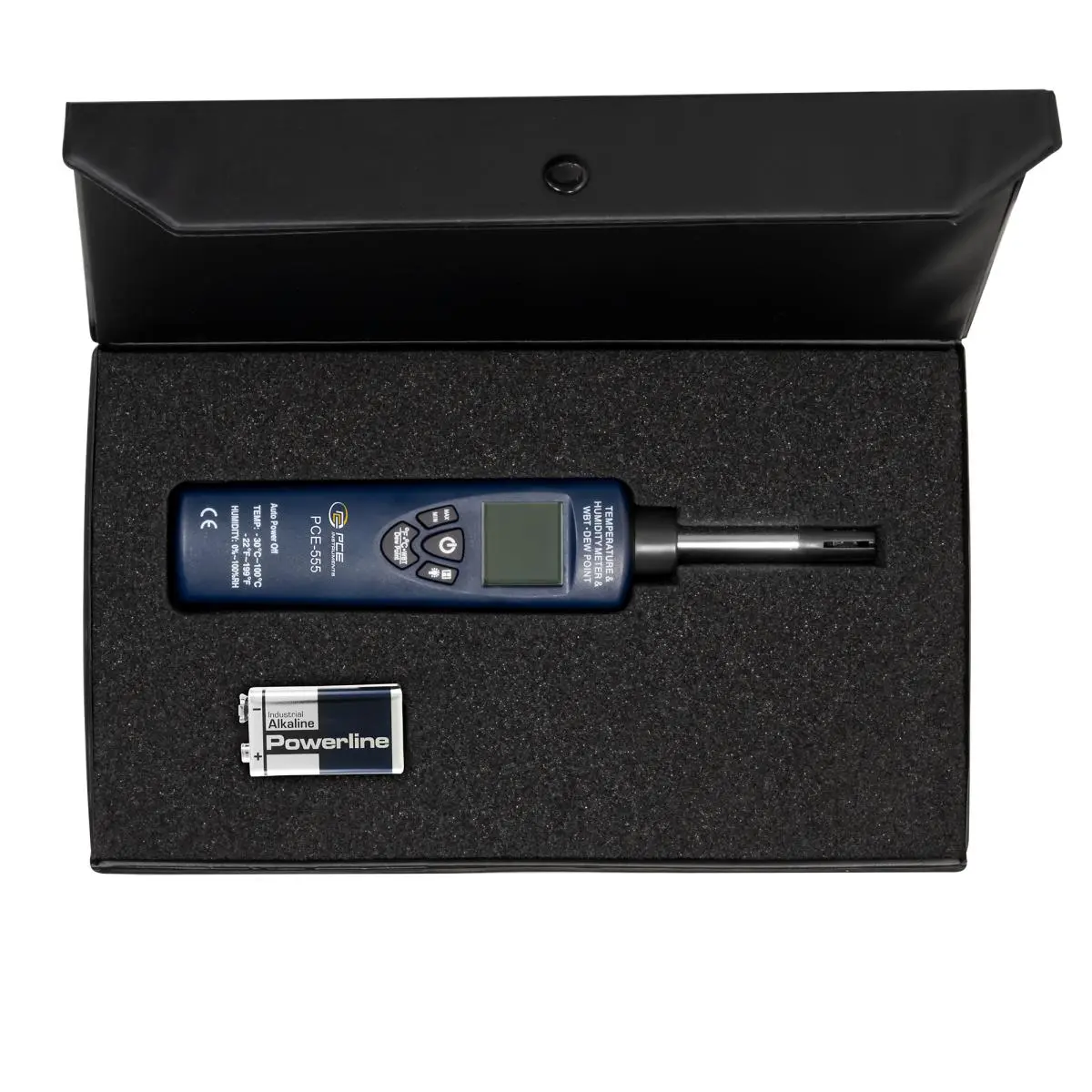

Delivery Scope

1 x PCE-555 environmental meter
1 x Carrying case
1 x Battery
1 x User manual
