Order no.: PCE-354

Environmental Meter PCE-354

Question / Callback

Delivery time: Not in stock!

Description

Environmental Meter with Leq value calculation / Peak measurement / Frequency weighting A and C / Measuring range 30 ... 130 dB / MAX-Hold function / memory for 99 measured values / display with background lighting

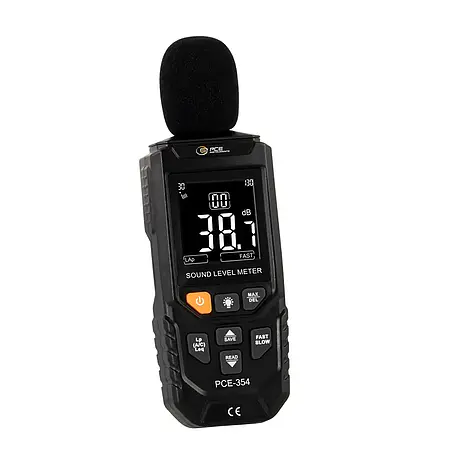

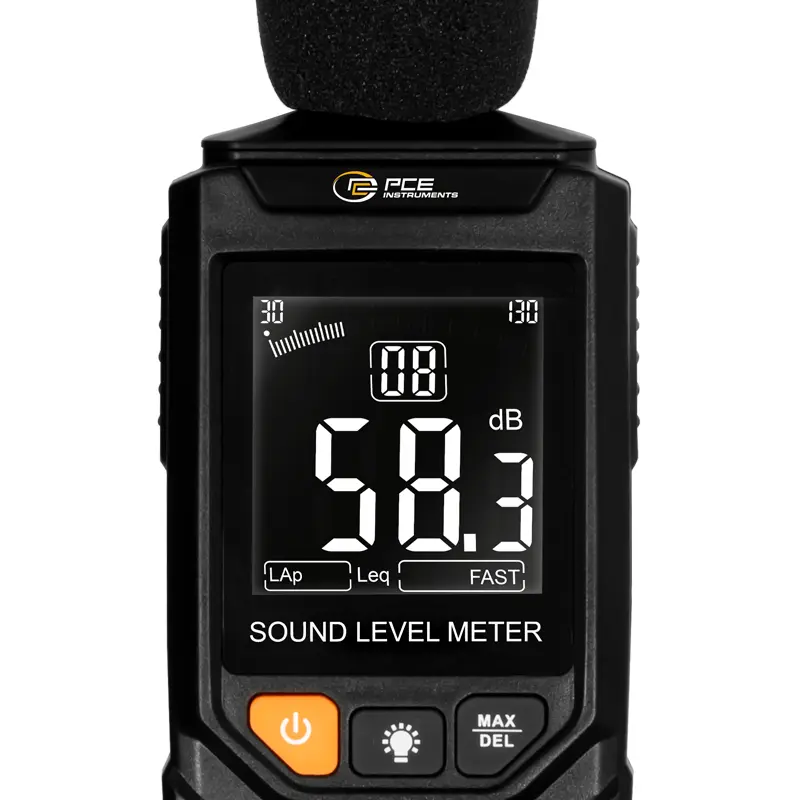

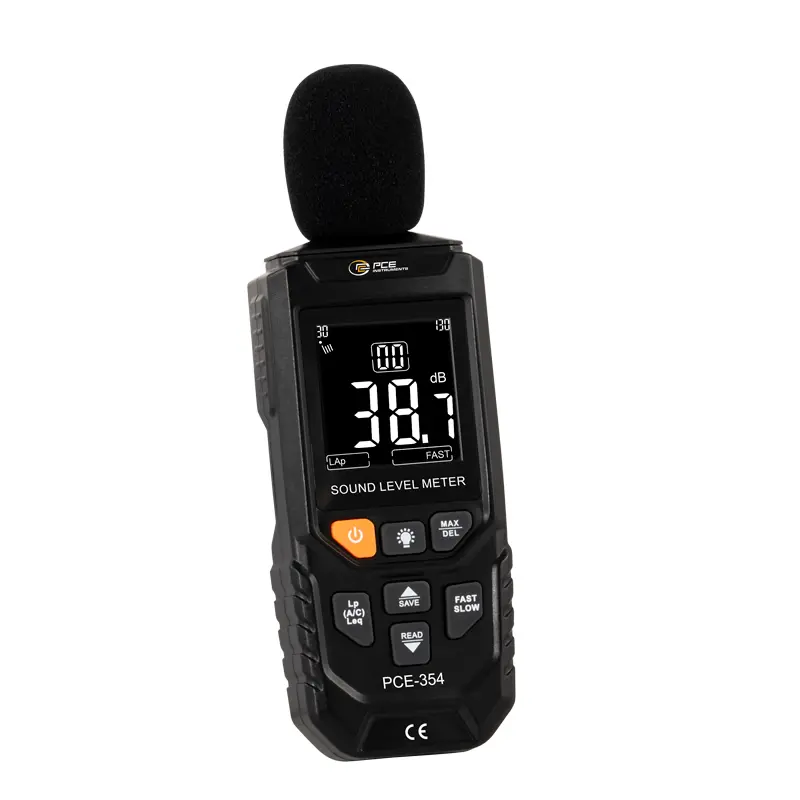

The environmental meter is a small handheld device with many functions such as peak measurement, Leq value calculation and adjustable measuring ranges. In addition, the environmental meter can freeze the largest measured value with the MAX function so that you can really judge whether a limit has been exceeded. The special feature of the environmental meter is the Leq value which, after entering a time, displays the equivalent continuous sound level, i.e. the time average of all sound events within an observation period.

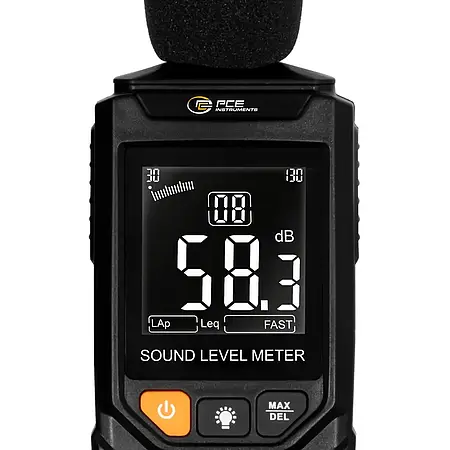

The memory function offers 99 locations which can only be called up via the environmental meter. The backlit display makes reading easy, after 10 minutes without operation the environmental meter switches off automatically.

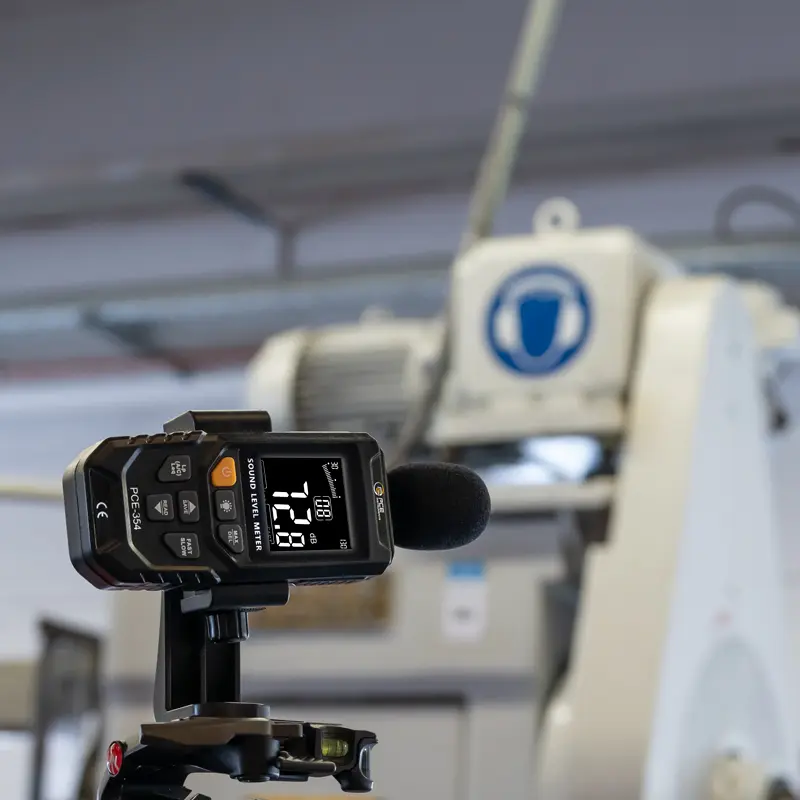

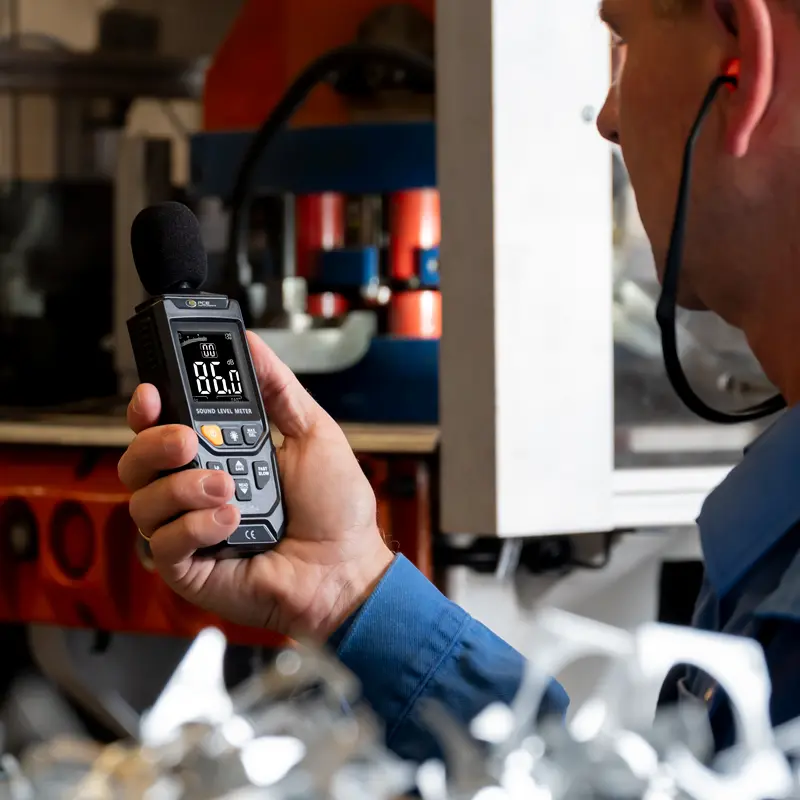

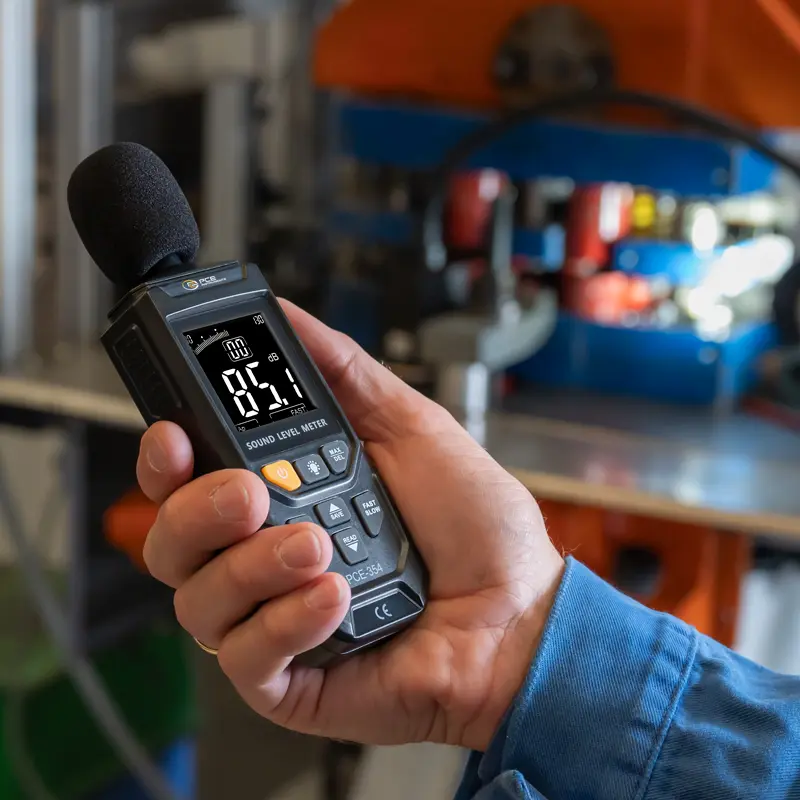

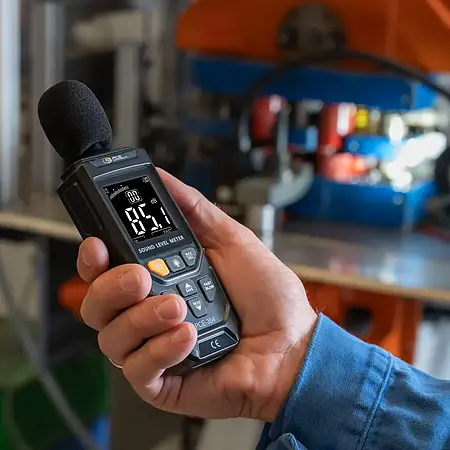

A battery symbol indicates when the three AAA batteries need to be changed. The class 2 environmental meter is used in the workplace, e.g. for noise protection of employees or simply for quick measurement of ambient noise.

Highlights

- Measuring range 30 ... 130 dB

- Measuring function Leq, LAp and LCp

- Memory function 99 measured values

- Frequency range 20 ... 12500 Hz

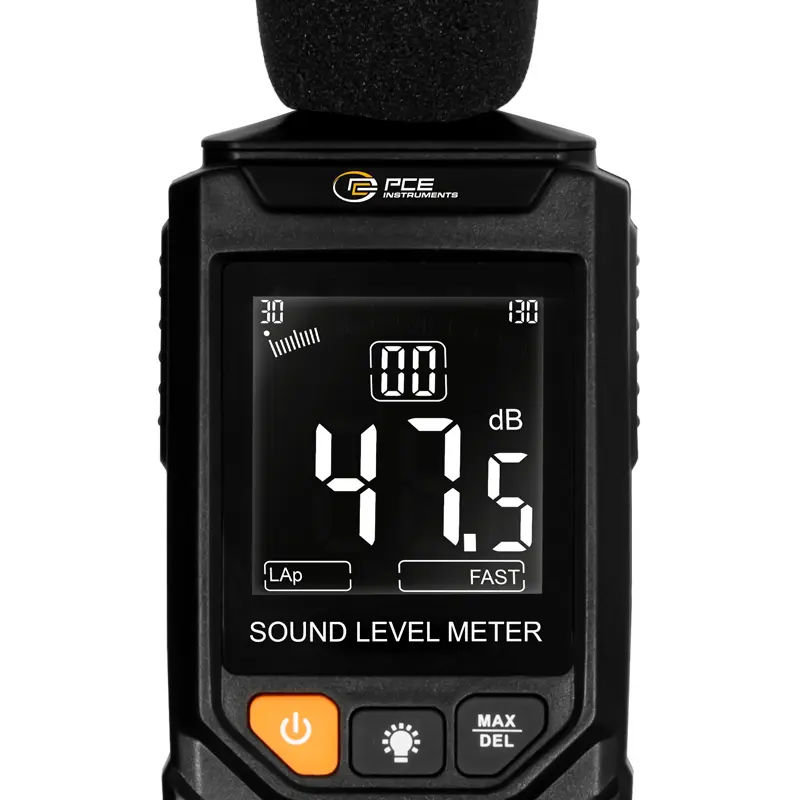

- Display with backlight

Specification

Sound level
Measuring range	30 dB ... 130 dB
Resolution	0.1 dB
Accuracy	±1.5 dB v.Mw.

General technical data
Measurement functions	Lpeak, Leq
Time evaluation	slow (1 sec.), fast (125 ms)
Frequency	20 ... 12,500 Hz
Frequency weighting	A, C
Display type	LCD
Display refresh rate	3 x per second
Memory capacity	99 values
	Storage at keystroke
Microphone type	Electric condenser
Automatic switch-off	10 min.
Standard(s)	Class 2
Power supply	Battery
Battery type	AAA battery (1.5V)
Menu language	English
Protection class	IP20
Operating conditions	0 ... 50 °C,10 ... 95 % r.H.
Dimensions (L x W x H)	177 x 60 x 35 mm
Weight	110 g

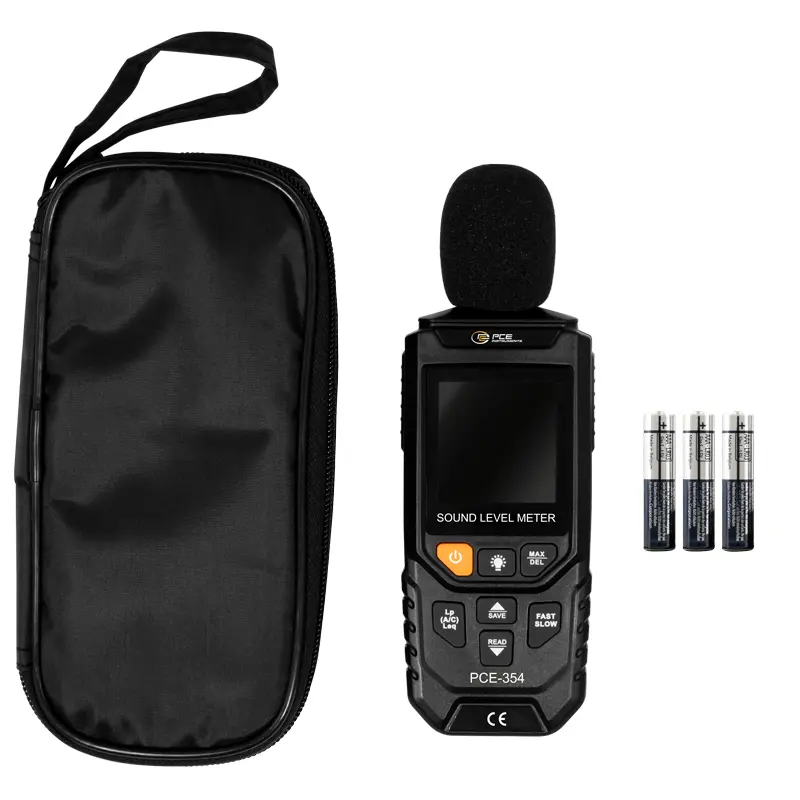

Delivery Scope

1 x Environmental Meter PCE-354

3 x AAA batteries

1 x instruction manual

1 x instrument bag
