  5. Environmental Meter PCE-228-ICA incl. ISO calibration certificate
[zoom]
pH Meter PCE-228-ICA incl. ISO calibration certificate
pH Meter PCE-228-ICA incl. ISO calibration certificate
pH Meter PCE-228-ICA incl. ISO calibration certificate
pH Meter PCE-228-ICA incl. ISO calibration certificate
Environmental Meter PCE-228-ICA incl. ISO calibration certificate

Environmental Meter PCE-228-ICA incl. ISO calibration certificate

Order no.: PCE-228-ICA
GTIN (EAN): 4250348724793
£ 318.00
£ 381.60
ISO Calibration
price ex. (VAT / delivery)
:
4250348724793
PCE-228-ICA
Delivery time:10 - 14 days

Accessory

Description

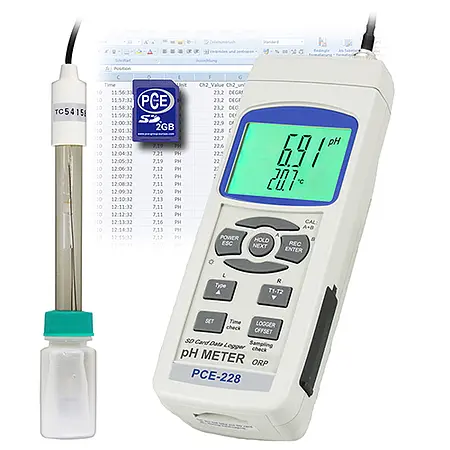

PCE-228-ICA Environmental meter incl. ISO calibration certificate
For pH, redox and temperature/ Large, easy-to-read display / SD card memory (1 ... 16 GB), stored data is saved as an Excel file / RS-232 interface and optional software for direct transfer to the PC

The environmental meter PCE-228-ICA is a very easy-to-use pH / mV / °C / °F handheld instrument. The pH value and the temperature can be stored directly on the SD card (Excel file) or transferred directly from the environmental meter to a PC via the RS-232 interface. For this we optionally offer a software and the suitable RS-232 interface cable as an accessory. Temperature compensation is either manual or automatic via the supplied temperature sensor.

All this allows a fast and reliable pH measurement. The environmental meter has a three-point calibration, which is performed automatically. It can be determined with the combination meter, the pH, the temperature or the REDOX potential (ORP). For the latter measurement parameters, however, a REDOX electrode must also be ordered. Here we recommend the ORP electrode ORP-14. The environmental meter is battery operated (6 x 1.5V batteries are included).

Highlights

- Optimum price / performance ratio
- SD card memory (1 ... 16 GB) - the stored data are saved directly as an Excel file on the SD card (no software needed for evaluation)
- RS-232 interface for online Data Transfer
- Measures pH, ORP & pH. Temperature
- High accuracy
- Large LCD display
- Robust housing
- Incl. PH electrode PE-03 and stainless steel temperature probe
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector

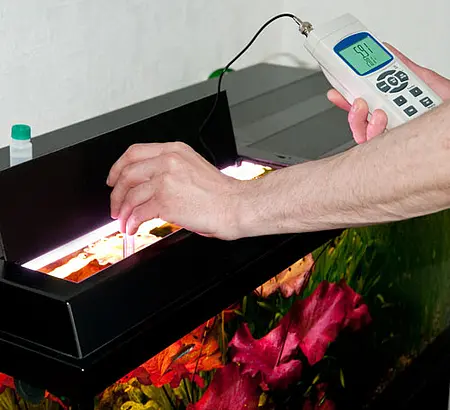

- Suitable for laboratory and on-site pH measurement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to operate
- Incl. ISO calibration certificate

Specification

Measuring range pH

0.00 ... 14.00 pH
Resolution 0.01 pH
Accuracy ± (0.02 pH + 2d)

Measuring range redox -1999 ... 0 ... 1999 mV
(only possible with optional REDOX electrode)
Resolution 1 mV
Accuracy ± (0.5% + 2d)

Measuring range temperature 0 ... 65°C / 32 ...  149°F (only temp. Sensor)
Resolution 0.1°C / 0.18°F
Accuracy (@ 20°C / 68°F) ± 0.5°C / 0.9°F

Calibration Automatic three-point calibration
Temperature Compensation Automatically from 0 ... 65°C / 32 ...  149°F or manually between 0 ... 100°C / 32 ... 212°F with the temperature sensor removed
Electrode PE-03 pH electrode, gel filled, 1 m cable and BNC plug
Temperature range 0 ... 60°C / 32 ... 140°F
Measuring rate Adjustable from 1 second to 8 hours 59 minutes 59 seconds
Display LC display 52 x 38 mm / 2 x 1.5 in
Data storage Flexible via SD card memory 1 ... 16 GB
Interface RS-232
Software Optional
Power supply 6 x 1.5V AA batteries / 9V power adapter (optional)
Environmental conditions 0 ... 50°C / 32 ... 122°F max. 85% rh
Dimensions 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight 490 g / 1.1 lbs

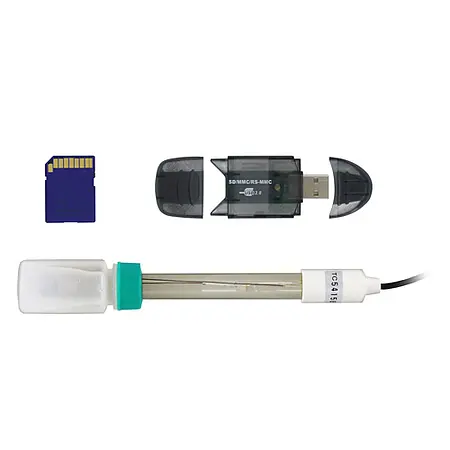

Delivery Scope

1 x Environmental meter PCE-228-ICA incl. ISO calibration certificate
1 x Electrode PE-03
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Batteries
1 x Operating instructions
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
