PCE-VA 20-TEL is a telescoping pole for use with the PCE-VA 20.

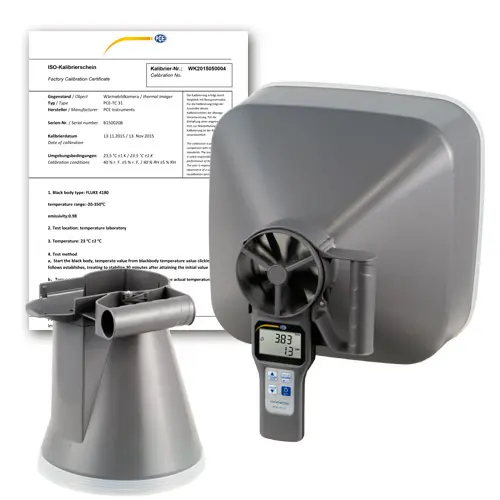

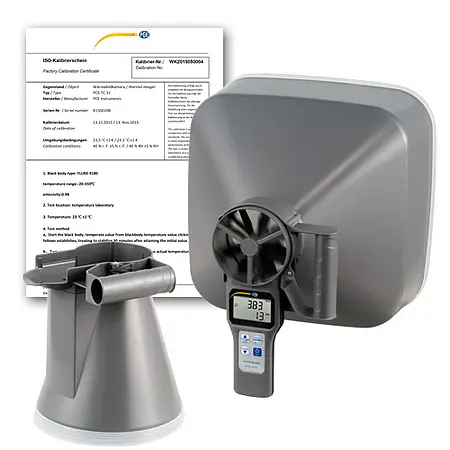

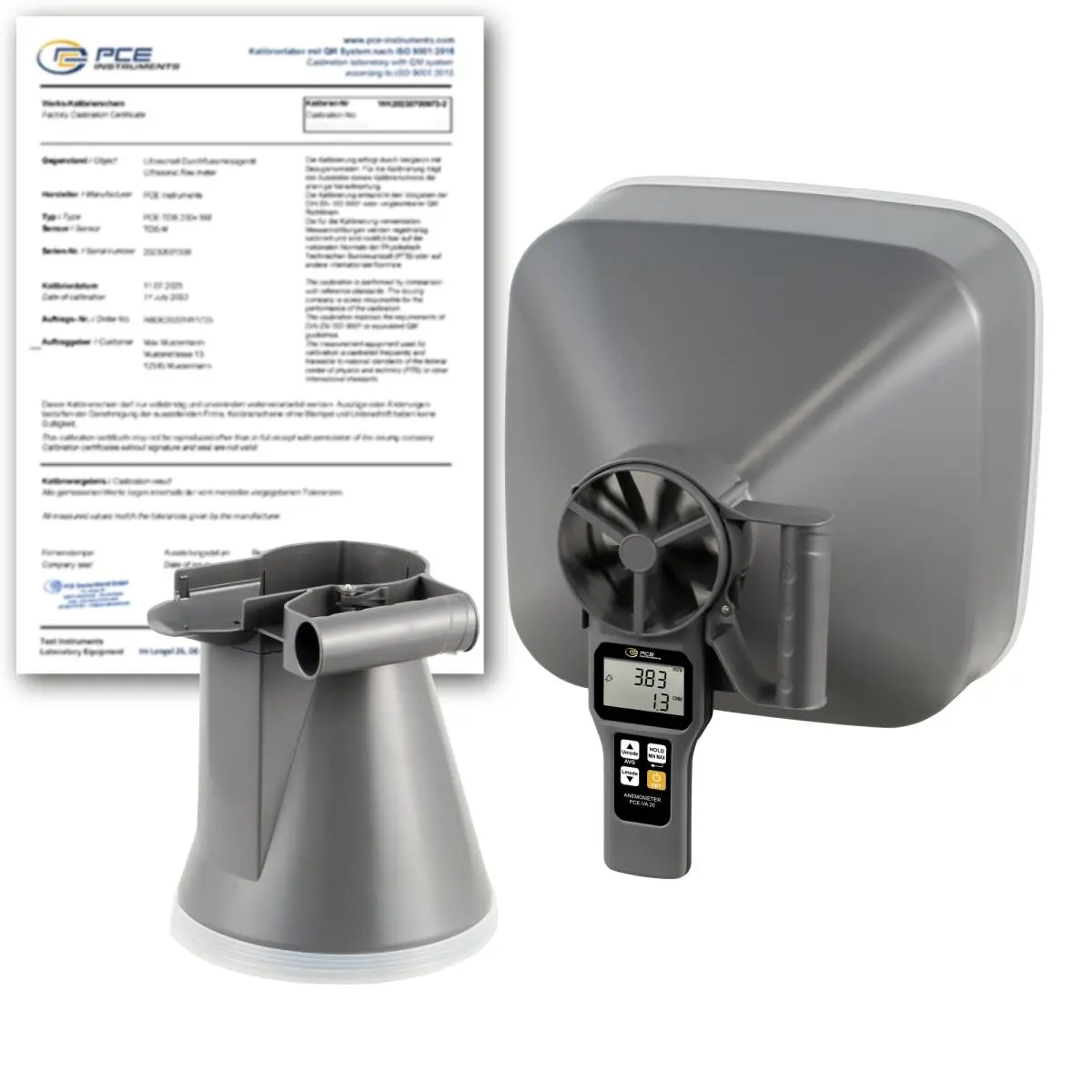

Environmental Meter with Flow Hoods PCE-VA 20-SET-ICA incl. ISO Calibration Certificate
Combination anemometer-hygrometer-thermometer for HVAC system balancing

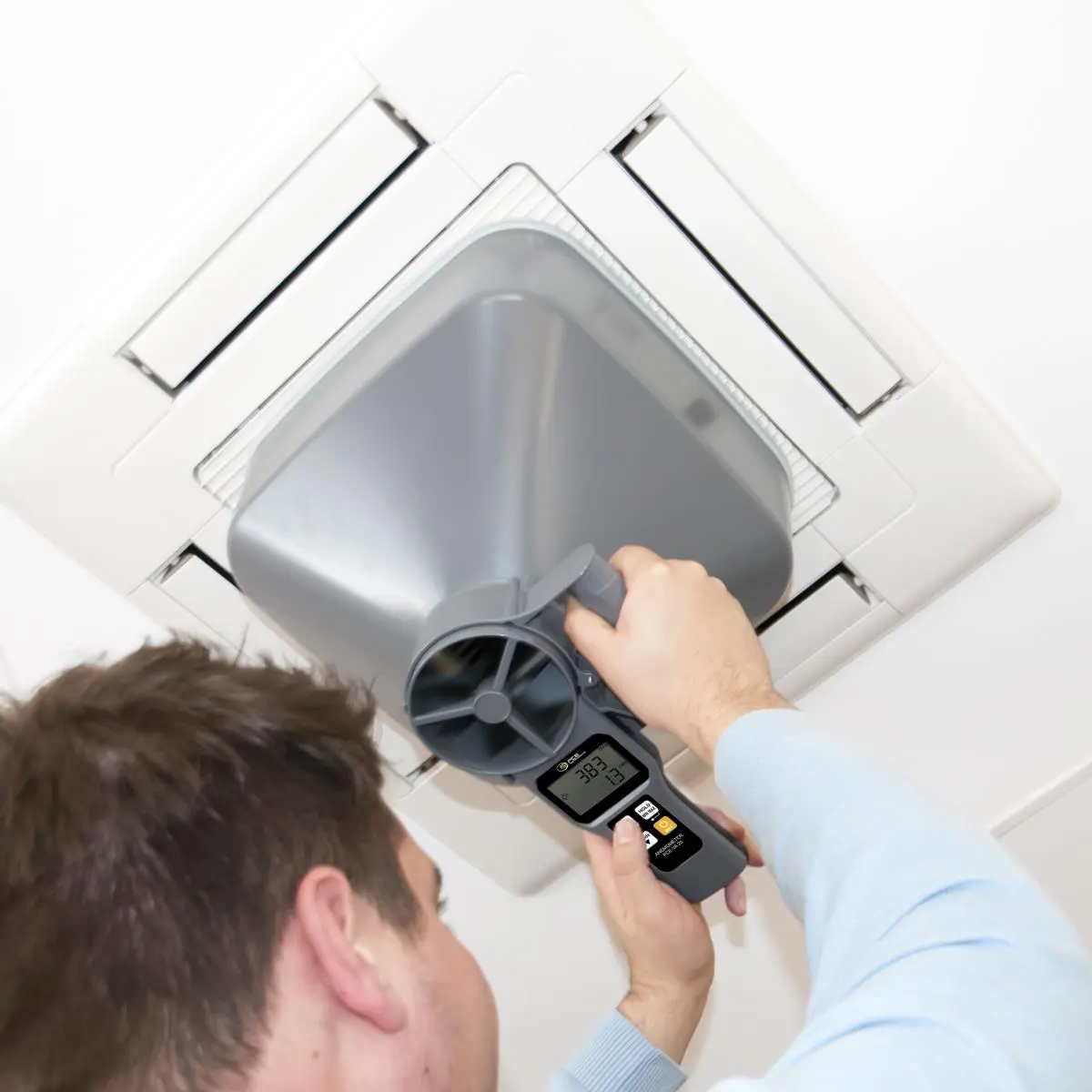

PCE-VA 20-SET is an environmental meter with flow hoods for assessing and balancing heating, ventilation and air conditioning or cooling (HVAC) systems. In addition to measuring air flow velocity (i.e., wind speed), this multipurpose environmental meter measures volume flow, relative humidity (RH), air temperature, dew point temperature and wet-bulb temperature. This combination environmental meter features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.
- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1
- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)
- 10 cm / 3.9 in Ø fan impeller

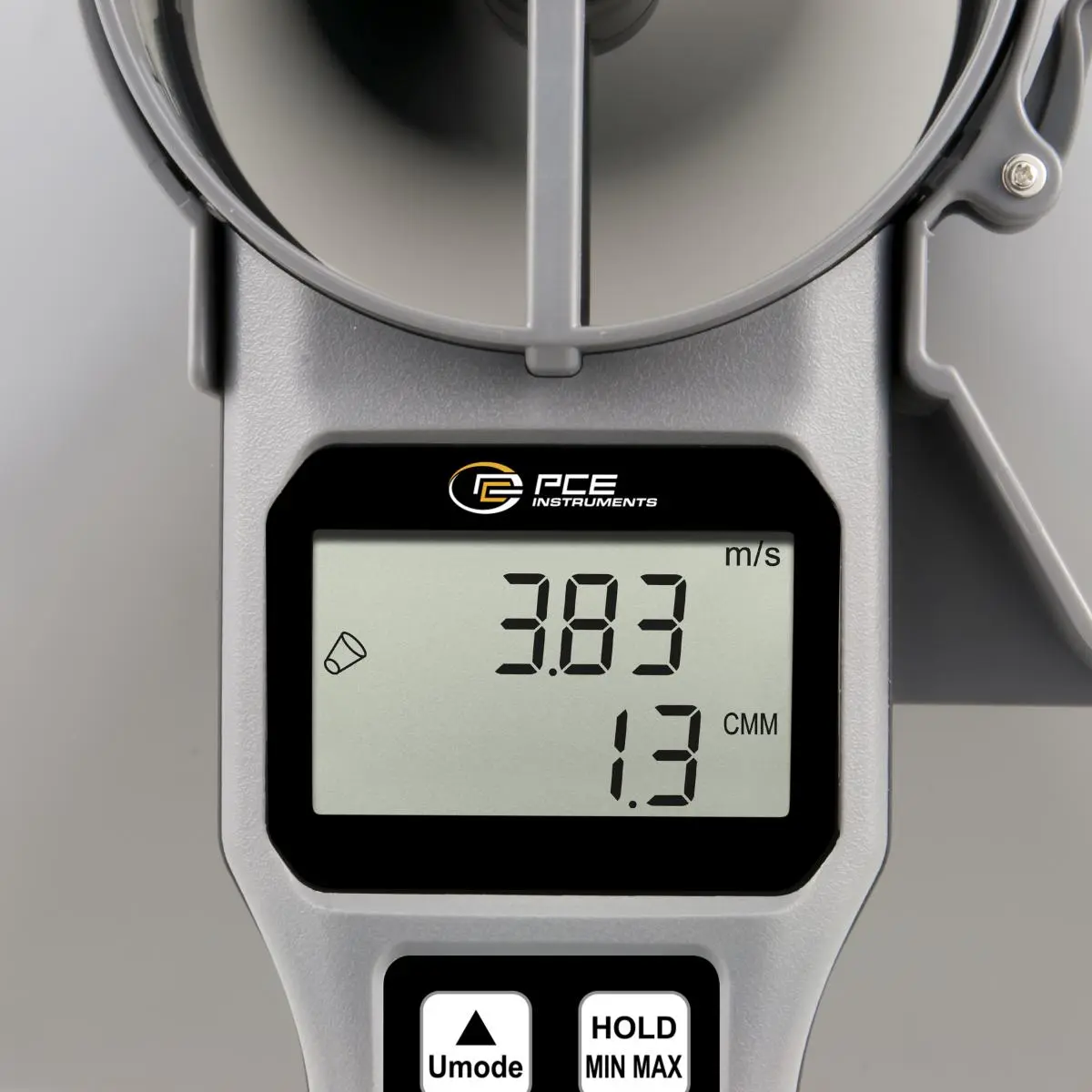

- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection functions
- Incl. ISO Calibration Certificate
Technical Specification | ||
Air flow velocity measuring range |
|
|
Air flow velocity accuracy | <20 m/s: ±(1.5% of rdg. + 0.3 m/s) >20 m/s: ±(3% of rdg. + 0.3 m/s) |
|
Air temperature measuring range | -20 ... 60 °C / -4 ... 140 °F | |
Air temperature accuracy | ±0.6 °C | |
Air temperature resolution | 0.1 °C / °F | |
Humidity measuring range | 0.1 ... 99.9 % r.H. | |
Humidity accuracy | ±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.) else: ±5 % r.H. |
|
Humidity resolution | 0.1 % r.H. | |
Temperature response time | 60 seconds | |
Humidity response time | 60 seconds | |
LCD update | 1 x per second | |
Wet bulb temperature display | -20 ... +59.9 °C / -4 ... 139.8°F | |
Dew point temperature display | -5 ... +59.9 °C / 23 ... 139.8°F | |
Volume flow display | 0 ... 99999 m³/min | |
Volume flow resolution | 0.1 m³/min (0...9999,9 m³/min) 1 m³/min (10000...99999 m³/min) |
|
Automatic shutdown | after 20 minutes of inactivity | |
LCD size | 32.5 x 54 mm / 1.28 x 2.13" (H x W) | |
Power supply | 4 x 1.5 V AAA batteries | |
Operating conditions | 0 ... +50 °C / 32 ... 89.6°F, <80 % r.H. | |
Storage conditions | -10 ... +50 °C / 14 ... 89.6°F, <90 % r.H. | |
Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0" | |
Weight | ca. 200 g / 7 oz |

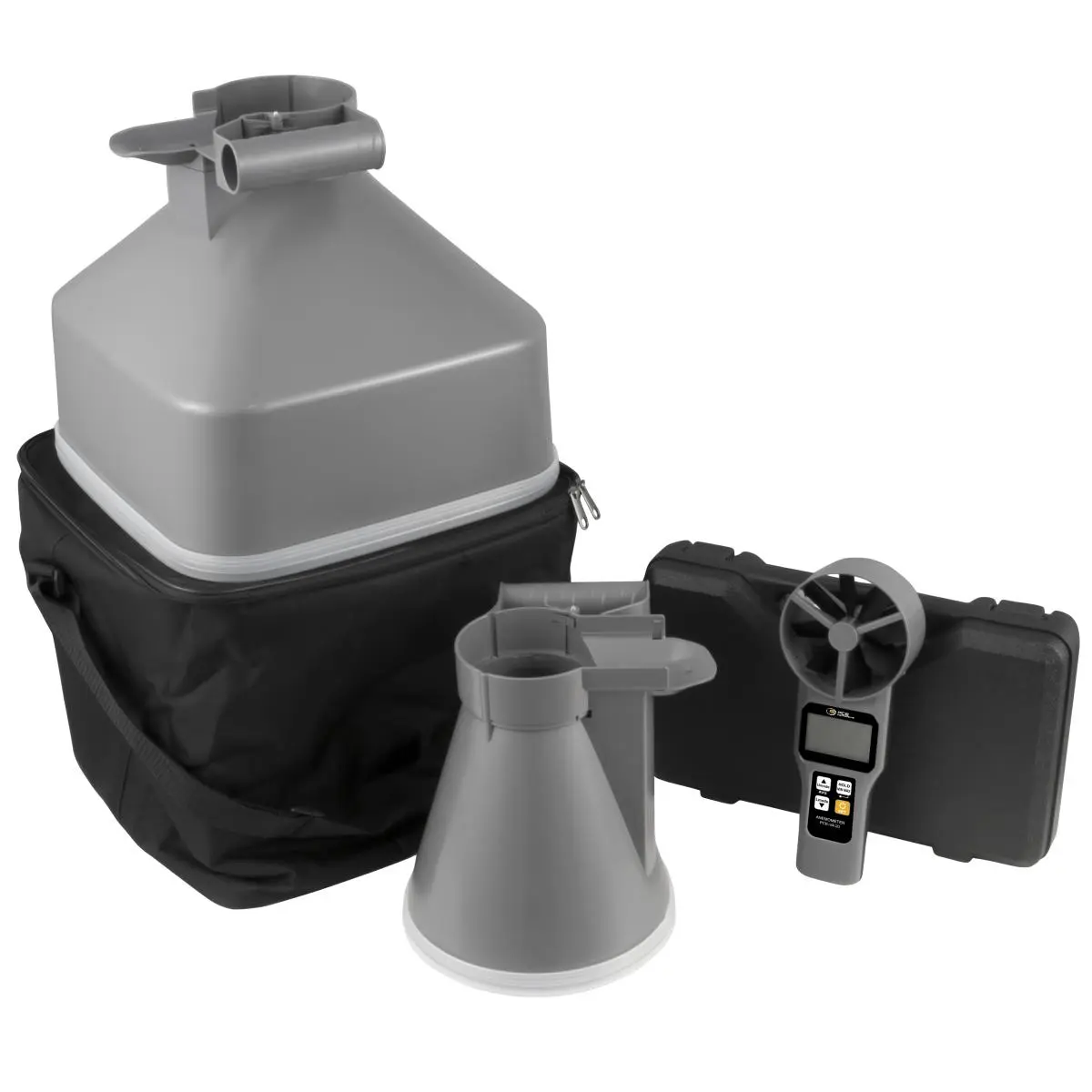

1 x Environmental Meter with Flow Hoods PCE-VA 20-SET
1 x Square flow hood
1 x Round flow hood
4 x AAA batteries
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
