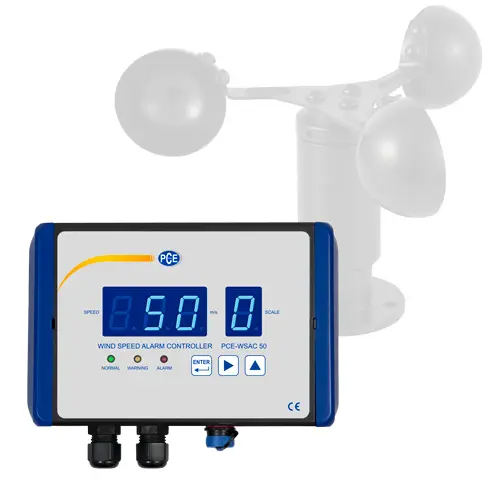

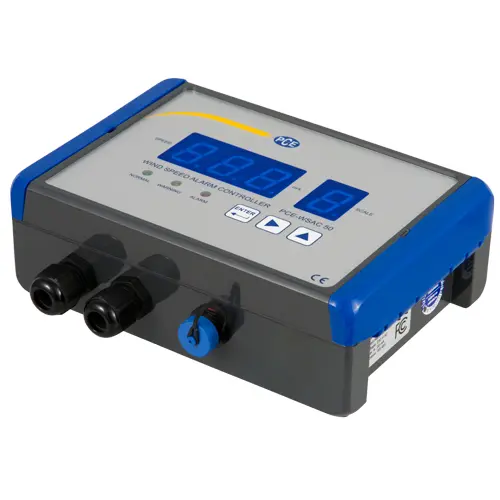

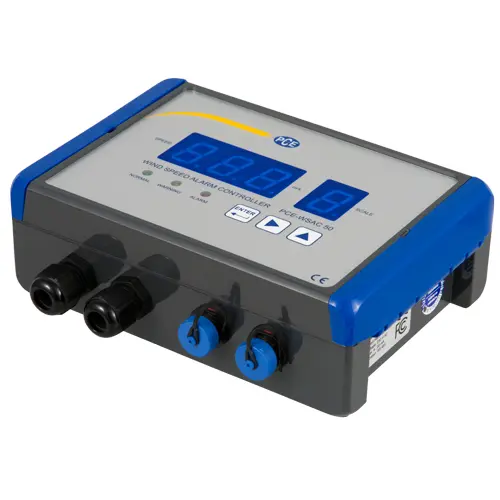

PCE-WSAC 50 Environmental Meter Alarm Controller
Pre-alarm and full alarm / Optional RS-485 modbus interface / Displays current wind speed and average wind speed of last 2 and 5 minutes
PCE-WSAC 50 is an environmental meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

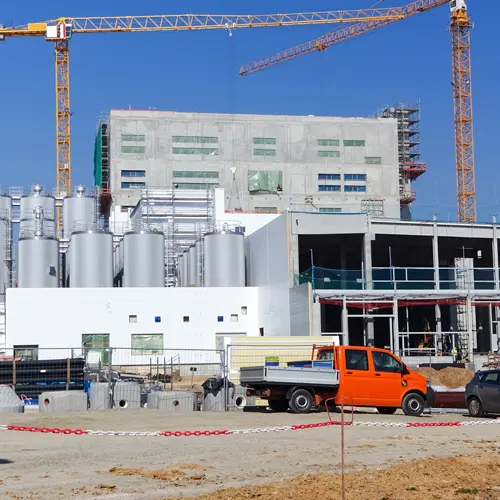

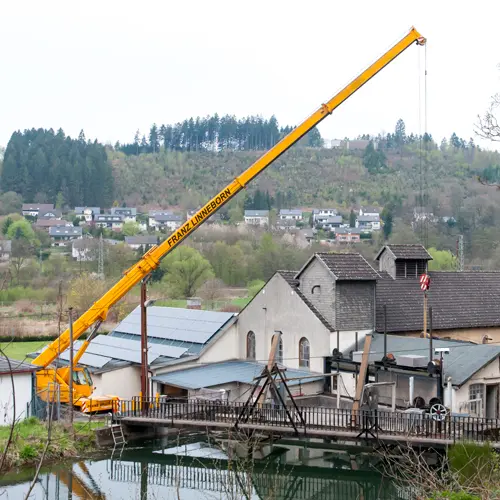

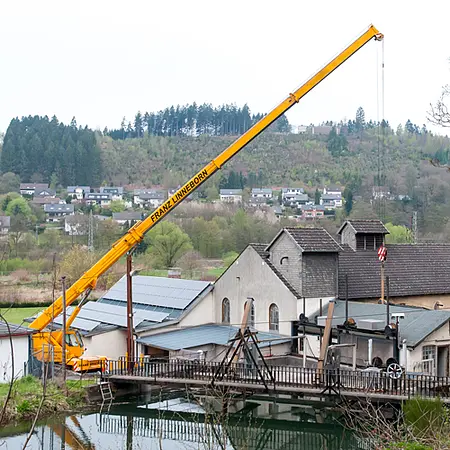

PCE-WSAC 50 allows measurement of the slightest of wind movements. This environmental meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.
***Sensors sold separately***
| Power supply |
115V AC 230V AC 24V DC |
|
| Supply voltage for sensors (output) |
12V DC 24V DC |
|
| Measuring range | 0 ... 50 m/s or 0 ... 110 mph | |
| Measuring accuracy | ± 3% of measuring range | |
| Signal input (selectable) |
4 ... 20-mA 0 ... 5 / 10V |
|
| Alarm relay |
|
|
| Optional interface | RS-485 modbus | |
| Operating temperature | -20 ... 60°C / -4 ... 140°F | |
| Dimensions | 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in | |
| Weight | Approx. 400 g / < 1 lb |
1 x PCE-WSAC 50 environmental meter alarm controller
1 x User manual

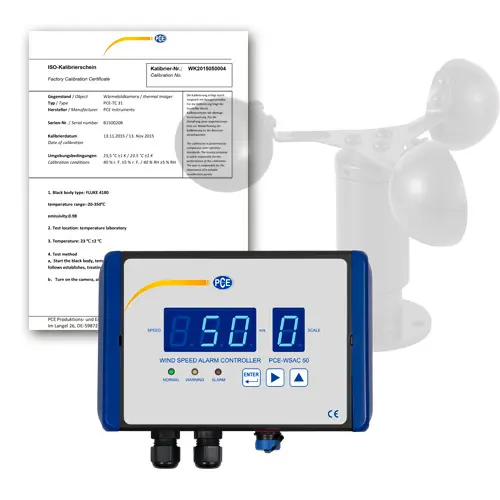

1 x ISO Calibration certificate
***Sensors sold separately***
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The remote maintenance module PCE-SM61 allows you to quickly and easily query your process data via the Internet. Any device with RS485 interface can be connected to the remote maintenance module. The data is retrieved via a web browser and can be carried out simultaneously by the PC, smartphone, tablet, etc., and by several users. In addition to the data query, the remote maintenance module can trigger alarms. The configuration can be done via USB or Ethernet interface.
Price excl. VAT &. delivery
2 year Warranty
25 m Sensor cable for connecting the wind sensors PCE-FST-200-201 to the wind sensor PCE-WSAC 50.
Price excl. VAT &. delivery
2 year Warranty
Mounting bracket suitable for the wind sensor PCE-FST 200-201. The mounting angle can be used to mount the wind sensor for example on a roof.
Price excl. VAT &. delivery
2 year Warranty
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
Price excl. VAT &. delivery
2 year Warranty
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
Price excl. VAT &. delivery
2 year Warranty
Air flow meter with 4 … 20 mA output. Air flow meter for measuring the horizontal wind speed with an analog output signal. The cup cross of the air flow meter is made of plastic, the housing is made of aluminum and anodized. The device has a Pg 21 threaded pin with 2 nuts for mounting.
