EMF measuring device / EMF test device PCE-VT 1100S

Order no.: PCE-VT 1100S

GTIN (EAN): 4250348718365

Description

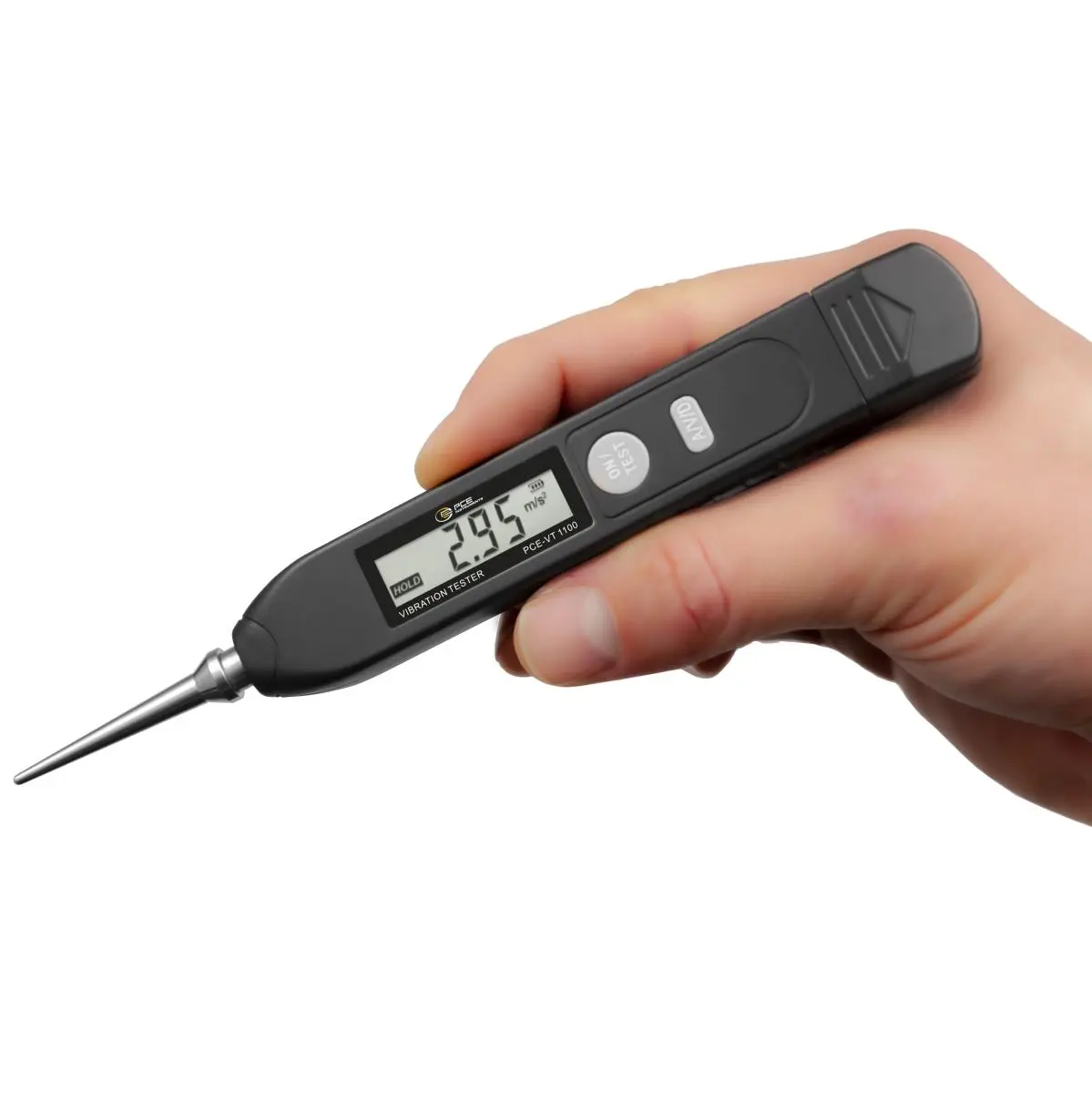

EMF measuring device / EMF test device PCE-VT 1100S Vibration tester for vibration measurement / Measured values memory for previous measurements / Measurement of acceleration, vibration velocity and displacement / Large frequency range / Battery-operated hand-held measuring device

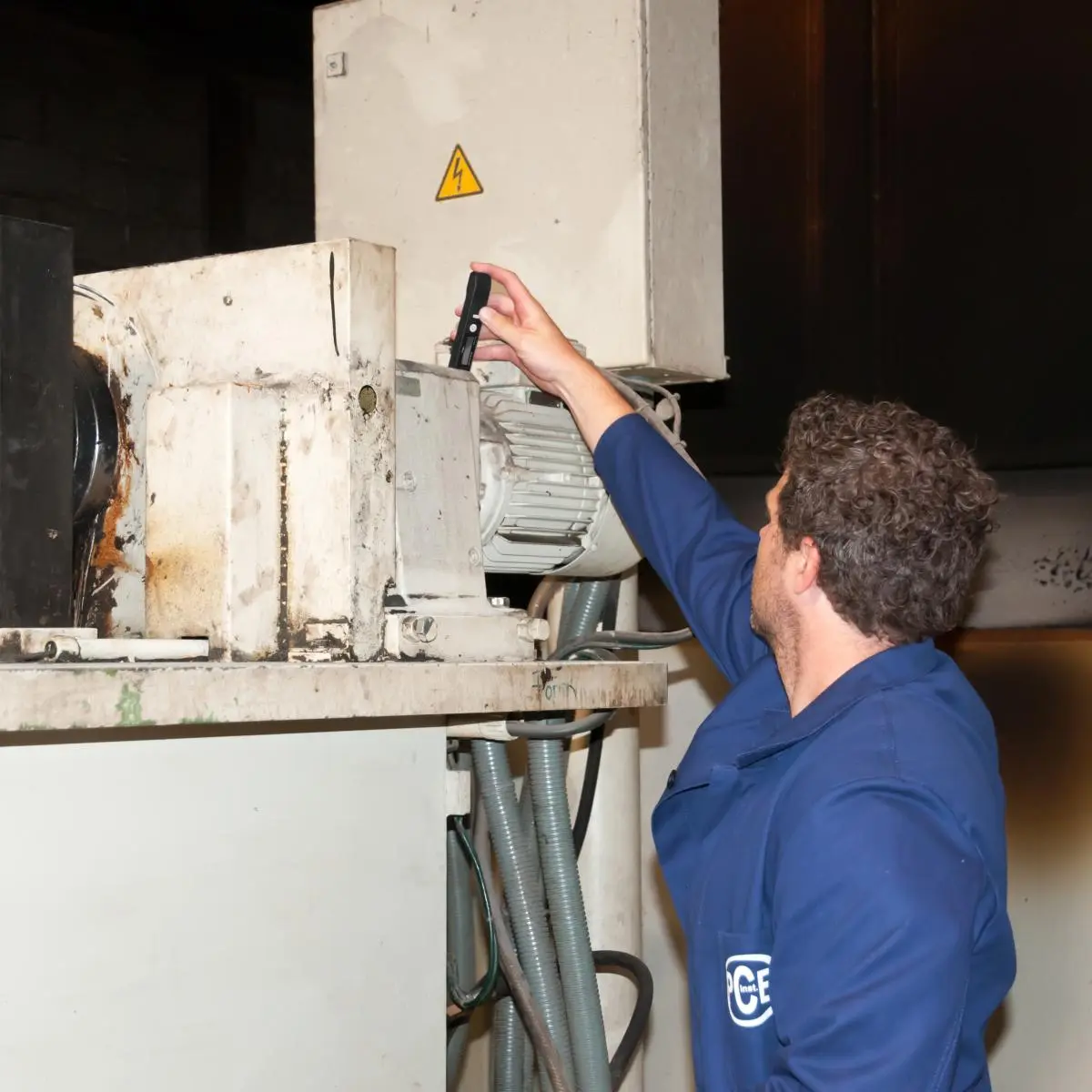

The EMF measuring device / EMF test device is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this EMF measuring device / EMF test device, the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the EMF measuring device / EMF test device serves as a measuring device for relative measurement on different machines.
The EMF measuring device / EMF test device is essentially for precautionary or preventive maintenance of production machines. This EMF measuring device / EMF test device is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the EMF measuring device / EMF test device is also used to assess the status of smaller electric motors.

Highlights

- Measures speed, distance, acceleration

- Keeps the value after every measurement

- Easy to handle and powered by batteries

- Wide frequency range

- Automatic shut-down after 20 seconds of inactivity to protect battery life

- Battery level indicator

Specification

Acceleration
Measuring range	0,01 ... 199,9 m/s² peak
Resolution	0,01 m/s² peak
Accuracy	≤3 % of Rd
Frequency range	10 Hz ... 1 kHz

Speed
Measuring range	0,01 ... 199,9
Resolution	0.01
Accuracy	±(5% of measured value +2 digits)
Frequency range	10 Hz ... 1 kHz

Displacement
Measuring range	0,001 mm p-p ... 1,999
Resolution	0,001 mm p-p
Accuracy	±(5% of reading +2 digits); frequency-dependent: 10 ... 20 Hz: +10 / -20% and 20 ... 1000 Hz: ±5%
Frequency range	10 ... 500 Hz

General technical data
Measuring functions	HOLD
Display type	LCD with backlight
Response time	1 s
Operating time	5 h
Automatic power-off	20 s
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	2 x 3 V CR 2032 (button cell 3V) , lithium
Capacity	220 mAh
Operating conditions	0 ... 40 °C , 0 ... 84 % RH
Storage conditions	0 ... 40 °C , 0 ... 84 % RH
Dimensions ( L x W x H )	155 x 24 x 18,7 mm
Weight	40 g
