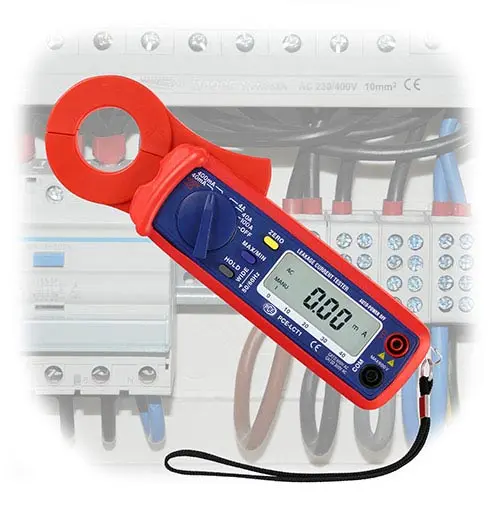

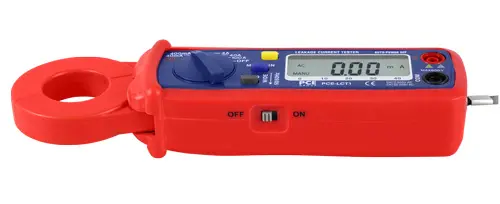

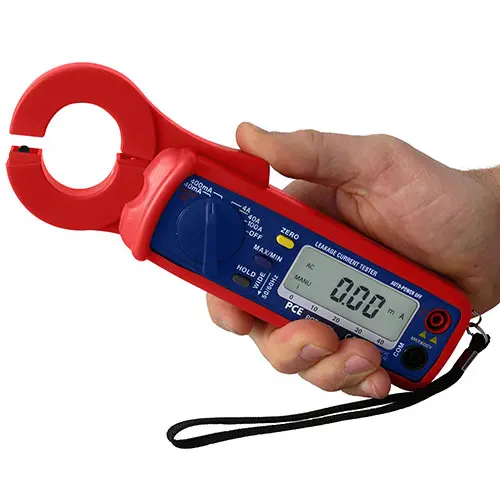

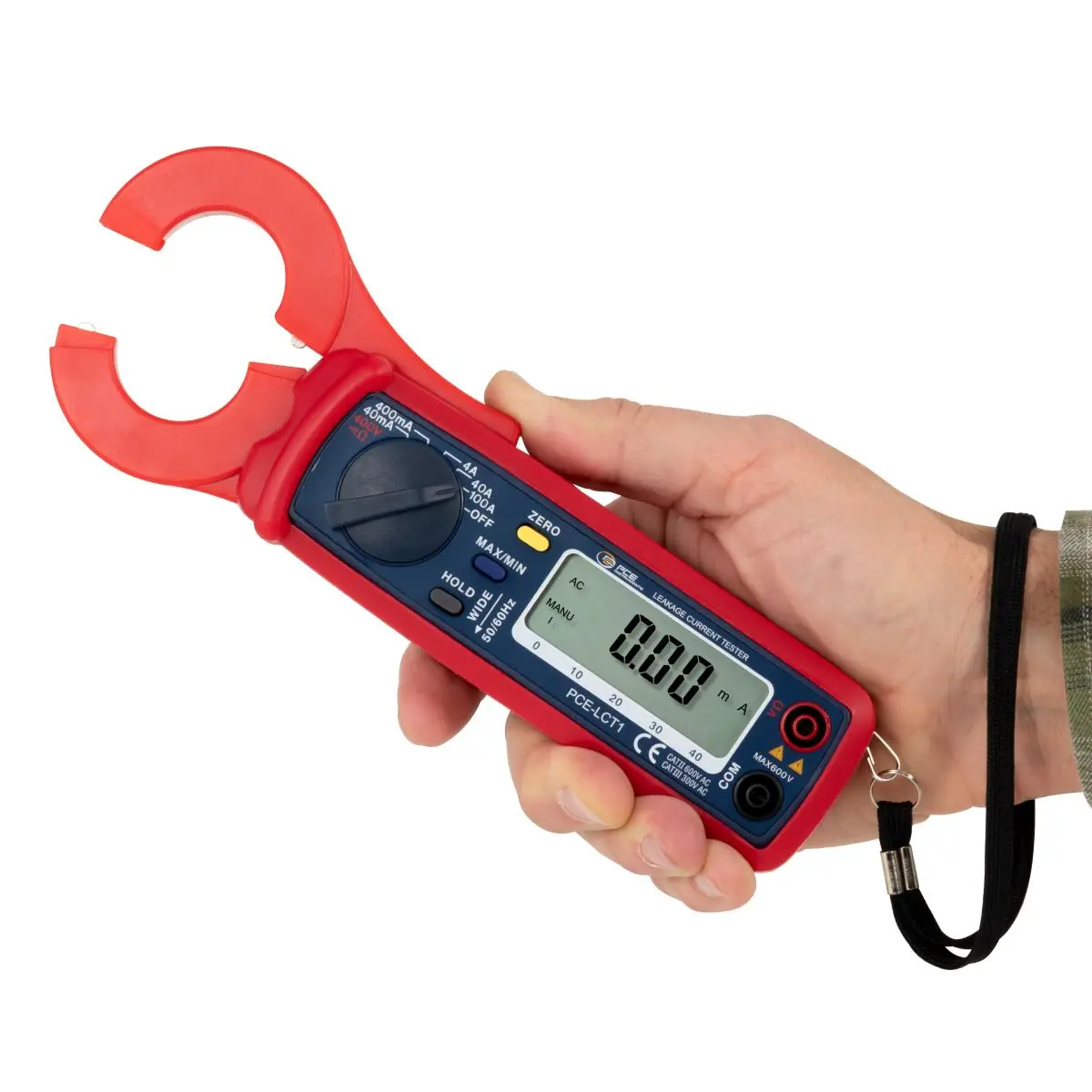

Electrical Tester PCE-LCT 1-ICA

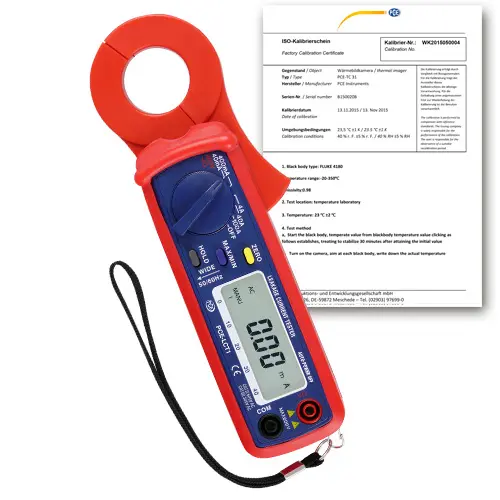

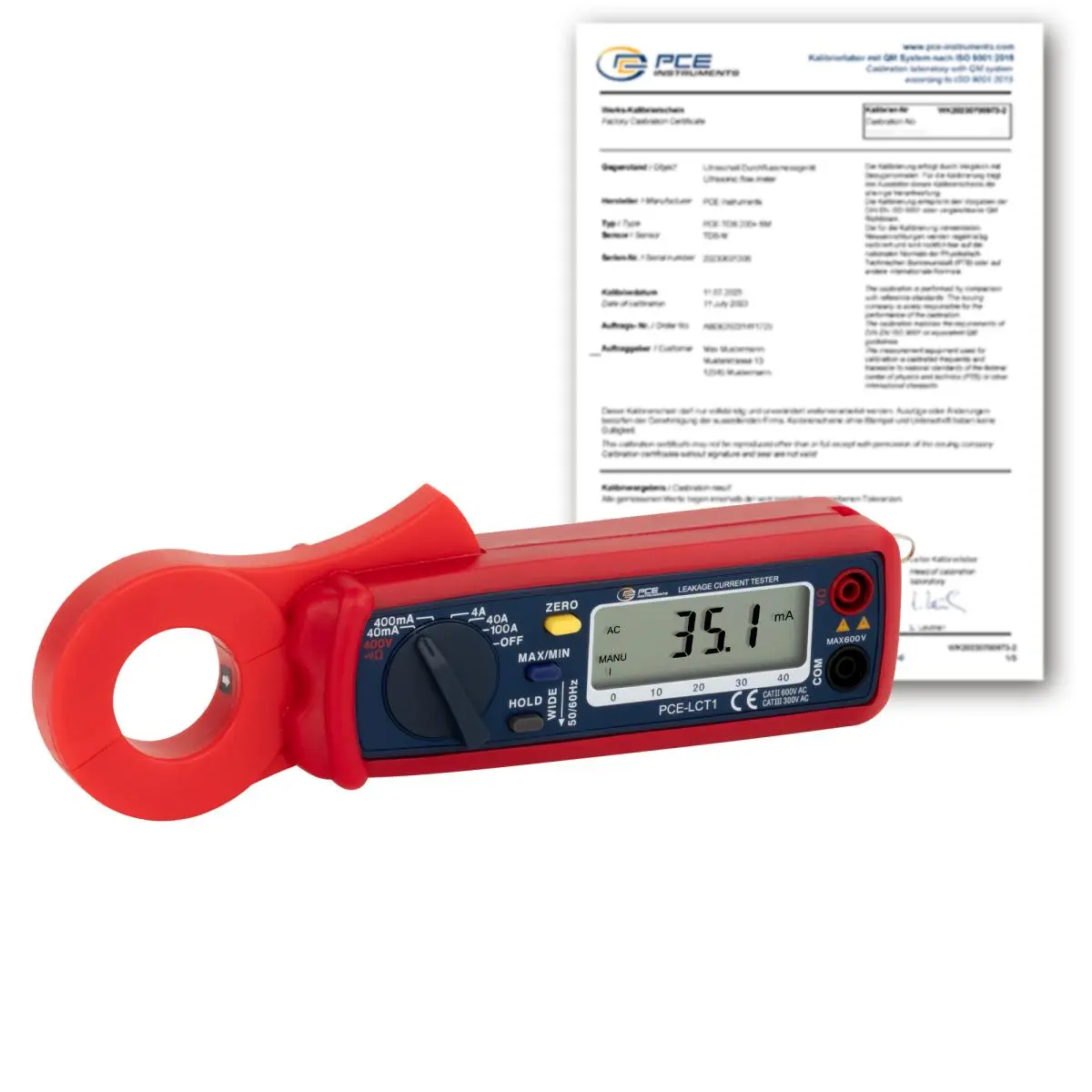

Electrical Tester PCE-LCT 1-ICA incl. ISO Calibration Certificate

Order no.: PCE-LCT 1-ICA
GTIN (EAN): 4250348726223
£ 280.00
£ 336.00
price ex. (VAT / delivery)
:
4250348726223
PCE-LCT 1-ICA
Delivery time:5-7 working days

Description

Electrical Tester incl. ISO Calibration Certificate
For checking the leakage current / RMS Current measurement / Continuity and resistance test / Voltage measurement up to 400V

With the Electrical Tester, it is possible to measure leakage currents in the range of up to 100A. Leakage occurs when a current flows through an electrical conductor that is not normally designed to conduct electricity. The Electrical Tester captures these currents and displays them on the display. For example, the Electrical Tester can be used to detect insulation faults. This is particularly advantageous where machines are operated that cannot or must not be switched off and in which an examination of the insulation is pending. The fact that not only leakage currents can be measured with the leakage Electrical Tester, but also the normal current flow, voltage up to 400V, resistance and passage, the leakage Electrical Tester is ideal for the electrician, who has to perform other measuring tasks in addition to the device tests. Thanks to its compact design, the leakage Electrical Tester fits into any pocket. The robust rubber protection protects the measuring device against small drops from low heights and makes the leakage Electrical Tester a reliable companion especially in the field of electrical inspection and workshop technology.

Highlights

- Measures leakage current
- Measures current up to 100 A
- Measures voltage up to 600 V
- Continuity test
- Measures resistance up to 400 Ω
- Digital bar graph
- High resolution
- Max./min. values are viewed on the display
- Rubber protector
- Test cables are included
- incl. ISO-Calibration Certificate

Specification

AC voltage
Measuring range  0 ... 400 V
Resolution  0,1 V
Accuracy  50 / 60 Hz: ±(1.5 % +2 digits) / 400 Hz ... 1 kHz: ±(2 % +4 digits)

Alternating current AC
Measuring range  0 ... 40 mA
Resolution  10 µA
Accuracy  50 / 60 Hz: ±(1 % +0.5 mA) / 400 Hz ... 1 kHz: ±(4.5 % +0.5 mA)

Alternating current AC
Measuring range  0 ... 400 mA
Resolution  100 µA
Accuracy  50 / 60 Hz: ±(3% +5 mA) / 400 Hz ... 1 kHz: ±(3% +5 mA)

Alternating current AC
Measuring range  0 ... 4 A
Resolution  1 mA
Accuracy  50 / 60 Hz: ±(4% +0.1 A) / 400 Hz ... 1 kHz: ±(4% +0.1 A)

Alternating current AC
Measuring range  0 ... 40 A
Resolution  10 mA
Accuracy  50 / 60 Hz: ±(4% +1 A) / 400 Hz ... 1 kHz: ±(4% +1 A)

Alternating current AC
Measuring range  0 ... 80 A
Resolution  100 mA
Accuracy  50 / 60 Hz: ±(2.5% +1 A) / 400 Hz ... 1 kHz: ±(3% +1 A)

Alternating current AC
Measuring range  80 ... 100 A
Resolution  100 mA
Accuracy  50 / 60 Hz: ±(5% +1 A) / 400 Hz ... 1 kHz: ±(5% + 1A)

Resistance
Measuring range  40 ... 400 Ω
Resolution  0,1 Ω
Accuracy  ±(1% +2 Digits)

Oscilloscope specifications
Input impedance  10 M Ω

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD
Current consumption meter  10 mA
Maximum cable diameter  30 mm
Automatic power-off  30 min
Other dimensions  Pliers diameter: 30 mm
Safety standard  CAT III 300V, CAT II 400V
Menu language  English, English (GB)
Protection class (device)  IP21
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  -10 ... 50 °C , 0 ... 85 % RH
Storage conditions  -20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  210 x 62 x 35,6 mm
Weight  200 g

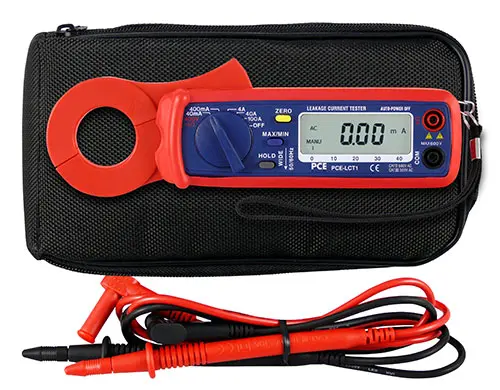

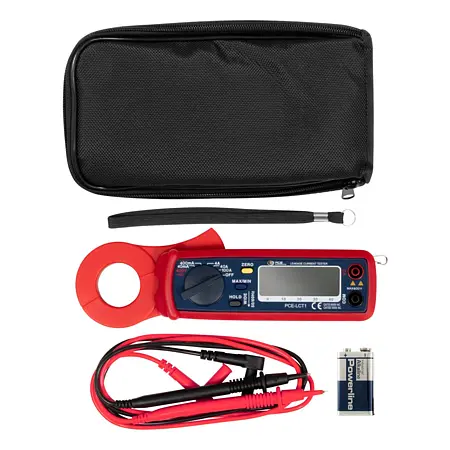

Delivery Scope

1 x Electrical Tester
1 x 9 V battery
2 x Test cables
1 x Carrying case
1 x User's manual
1 x ISO-Calibration Certificate
