Electrical Tester PCE-IT55

Order no.: PCE-IT55

GTIN (EAN): 4250348700988

Description

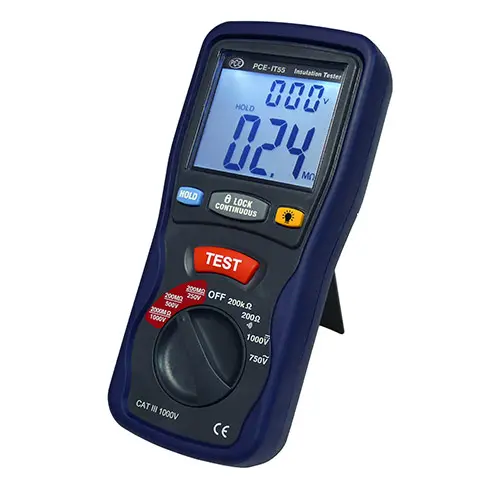

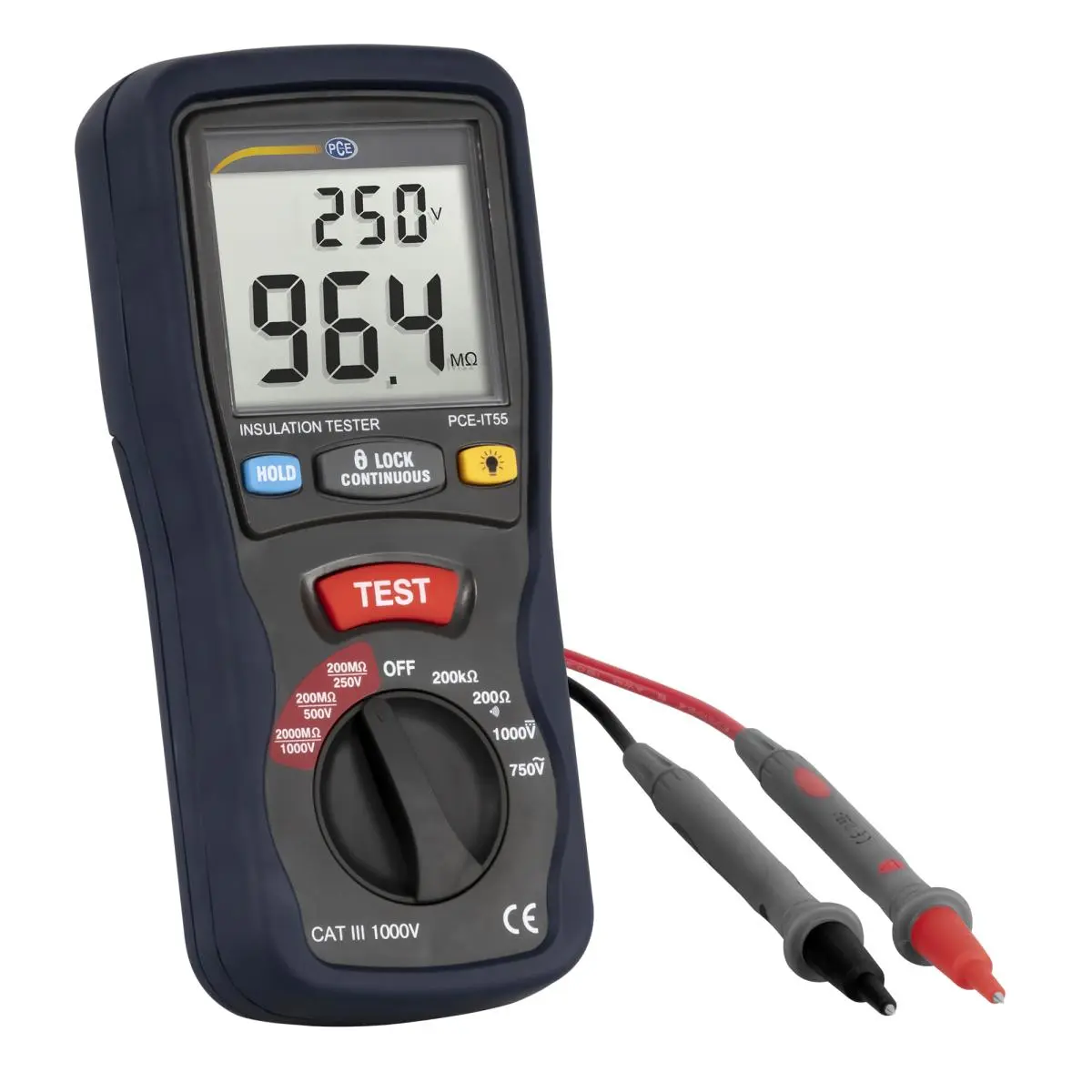

Electrical Tester PCE-IT 55

CAT III 1000V / For insulation resistance up to 2000 MΩ

The PCE-IT 55 Electrical Tester determines insulation resistance up to a maximum of 2000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Electrical Tester also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Electrical Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.

Highlights

- Meets the standards: IEC1010-1, CAT III 1000V

- Has a large dual, backlit display

- Individual or prolonged measurements can be made by pressing the "lock" key

- Indicates overload and battery level

- Auto shut of to conserve battery power

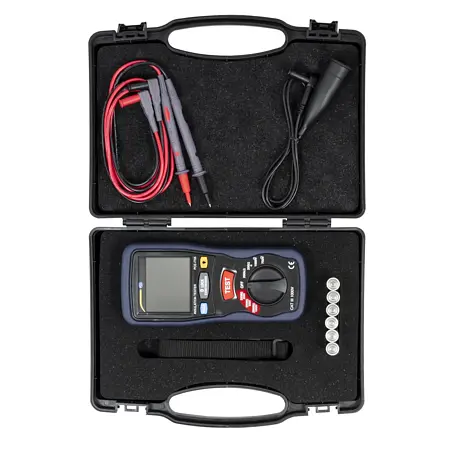

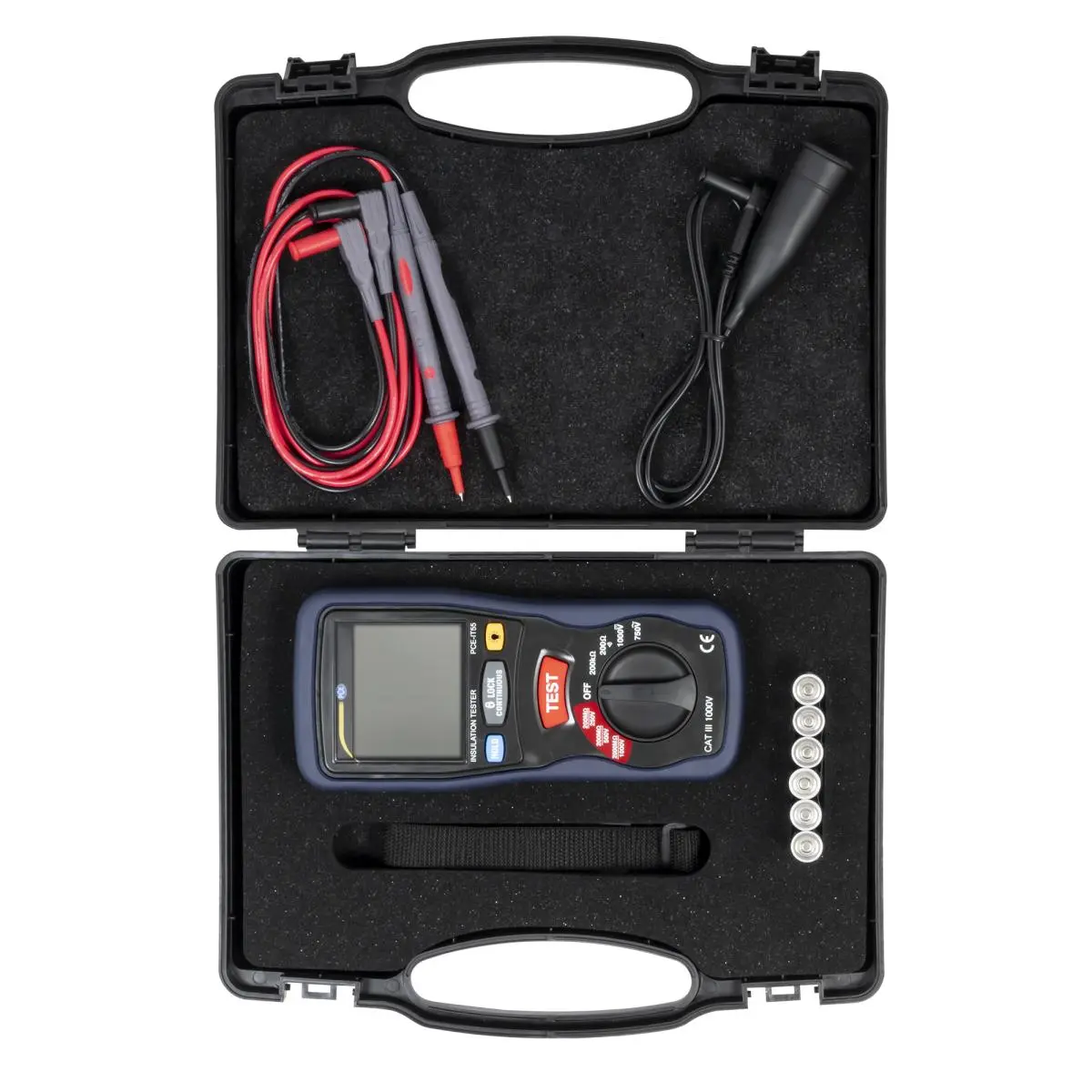

- Comes ready to use in its own carrying case

- Optional ISO calibration certificate

Specification

Direct voltage DC
Measuring range	0 ... 1000 V
Resolution	1 V
Accuracy	±(0.8 % of Rd +3 digits)
Overload	1000 Vrms

AC voltage
Measuring range	0 ... 750 V
Resolution	1 V
Accuracy	±(1.2% of VAT + 10 digits)
Overload	750 Vrms
Frequency range	40 ... 400 Hz

Insulation resistance
Test voltage DC	250V
Measuring range	0 ... 200 M Ω
Resolution	0,1 M Ω
Accuracy	±(3 % v.Mw. +5 digits)

Insulation resistance
Test voltage DC	500V
Measuring range	0 ... 200 M Ω
Resolution	0,1 M Ω
Accuracy	±(3 % v.Mw. +5 digits) M Ω

Insulation resistance
Test voltage DC	1000V
Measuring range	0 ... 1000 M Ω
Resolution	1 M Ω
Accuracy	±(3 % v.Mw. +5 digits)

Insulation resistance
Test voltage DC	1000V
Measuring range	0 ... 1000 M Ω
Resolution	1 M Ω
Accuracy	±(5% of Rd +5 digits)

Resistance
Measuring range	0 ... 200 Ω
Resolution	0,1 Ω
Accuracy	±(1 % of Rd +2 digits)

General technical data
Measuring rate	2,5 Hz
Standard(s)	IEC 1010-1
Automatic power-off	30 min
Safety standard	CAT III 1000V
Test current	≤ 200 mA
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	6 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	0 ... 40 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	200 x 92 x 50 mm
Weight	700 g
