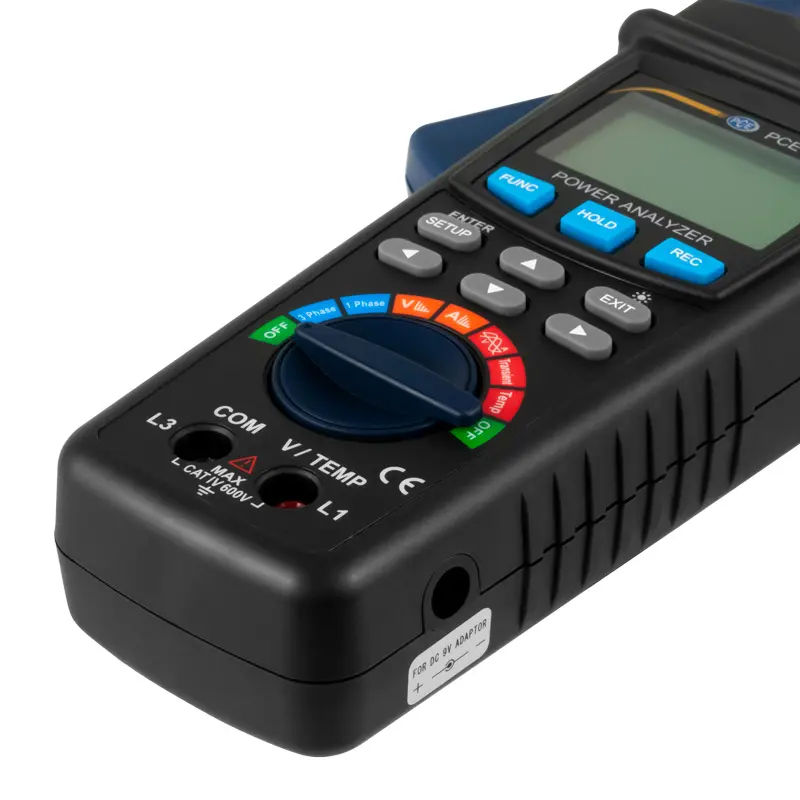

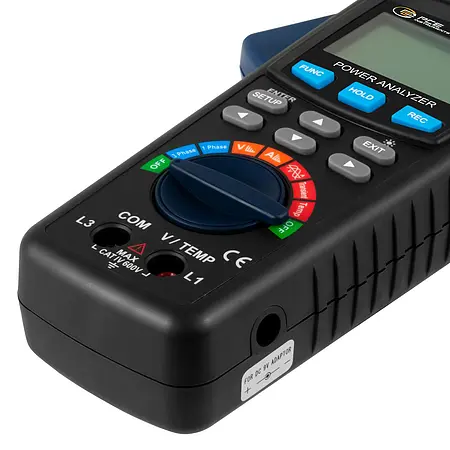

Electrical Tester Connections

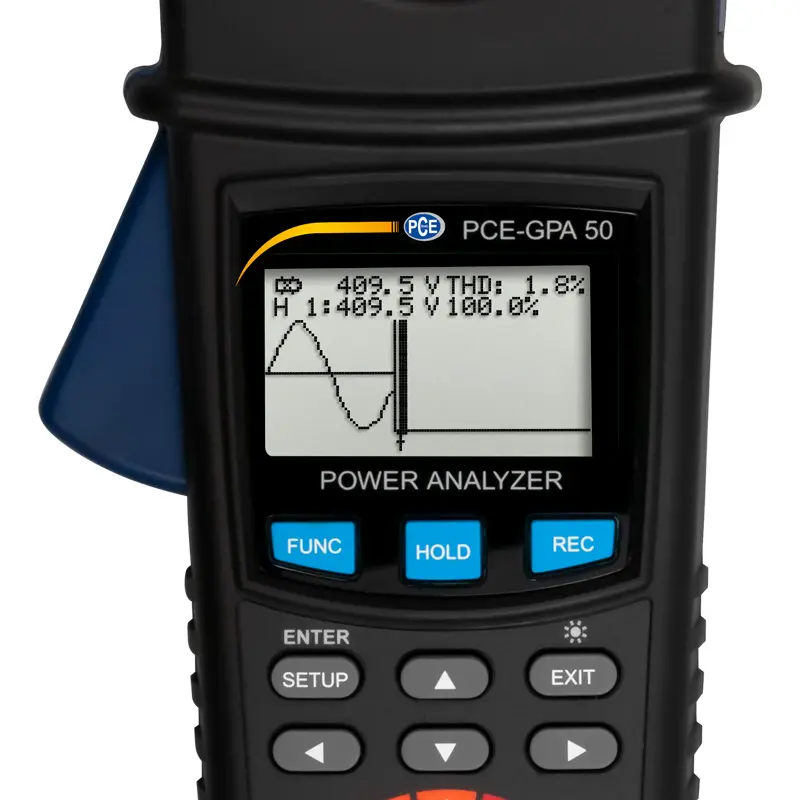

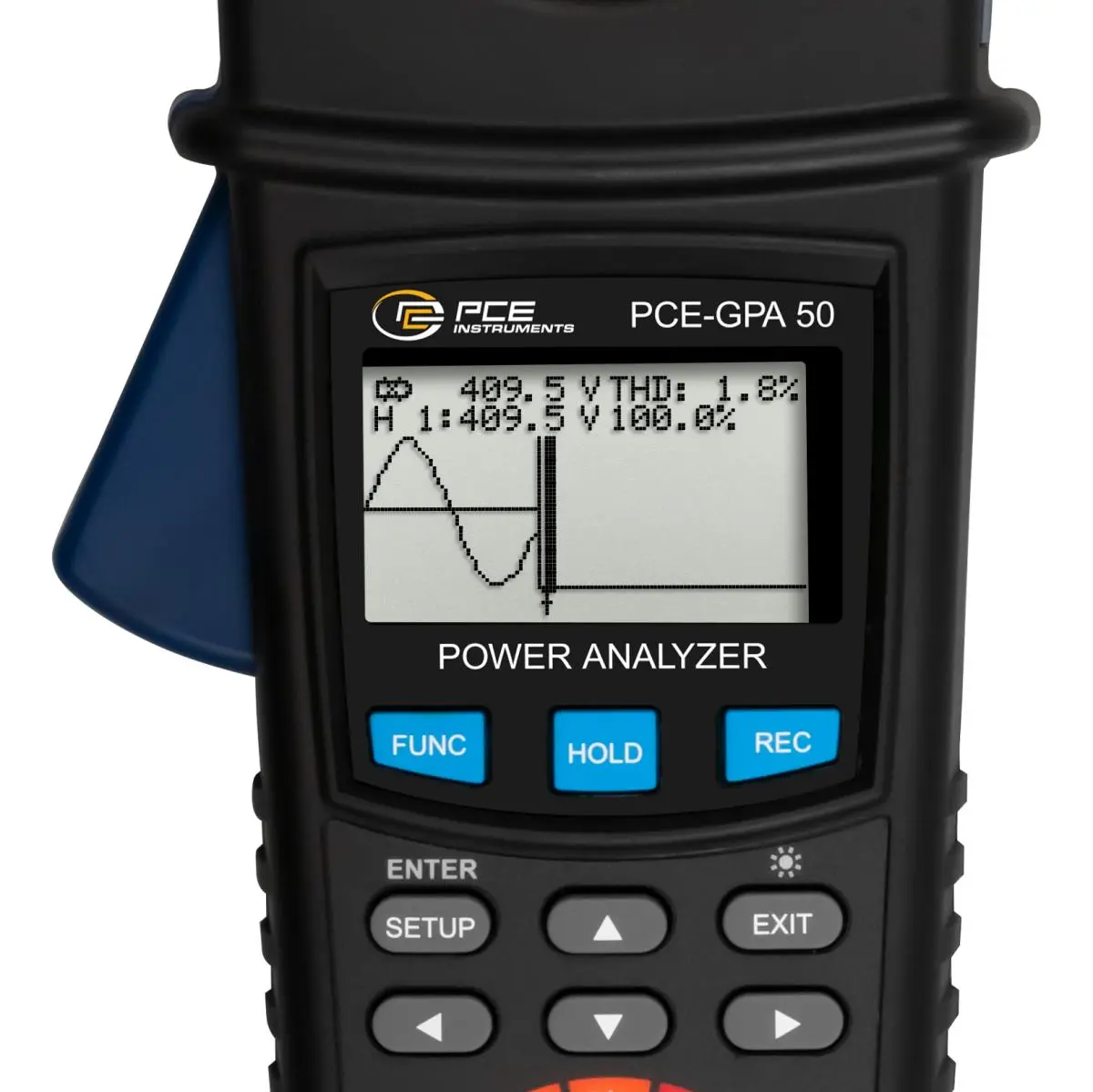

Electrical Tester Display

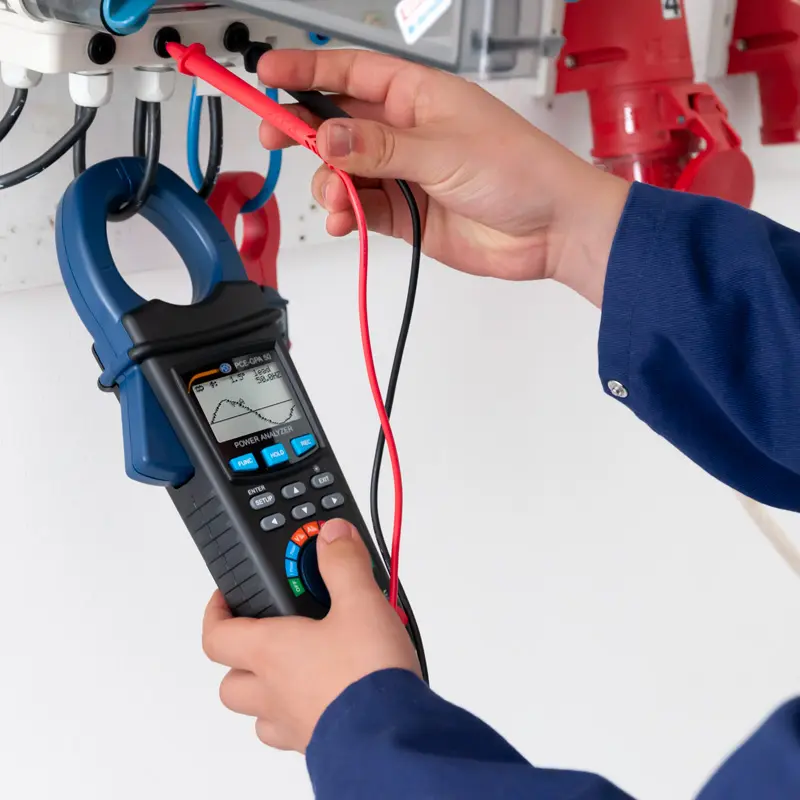

Electrical Tester Application picture

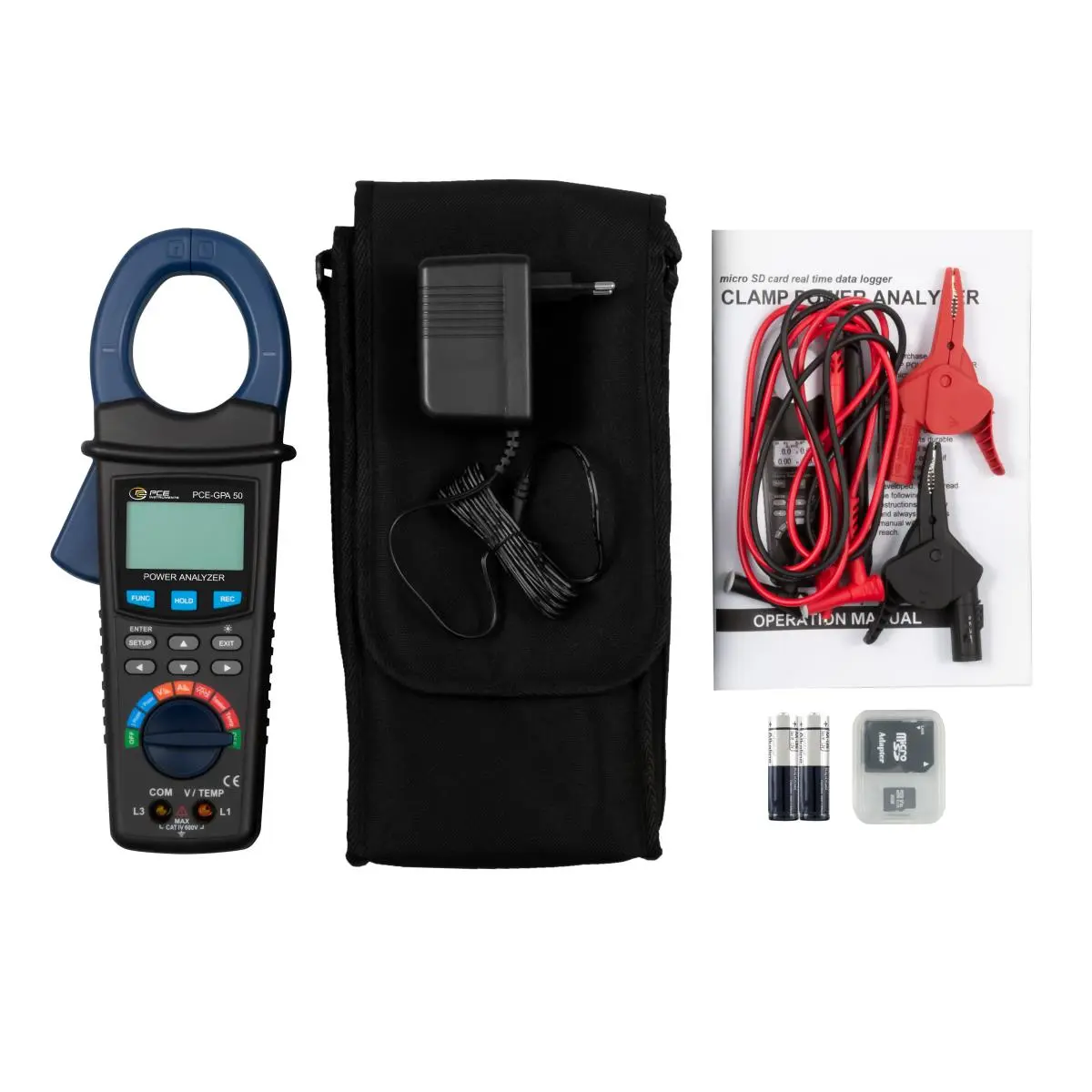

Electrical Tester Delivery scope

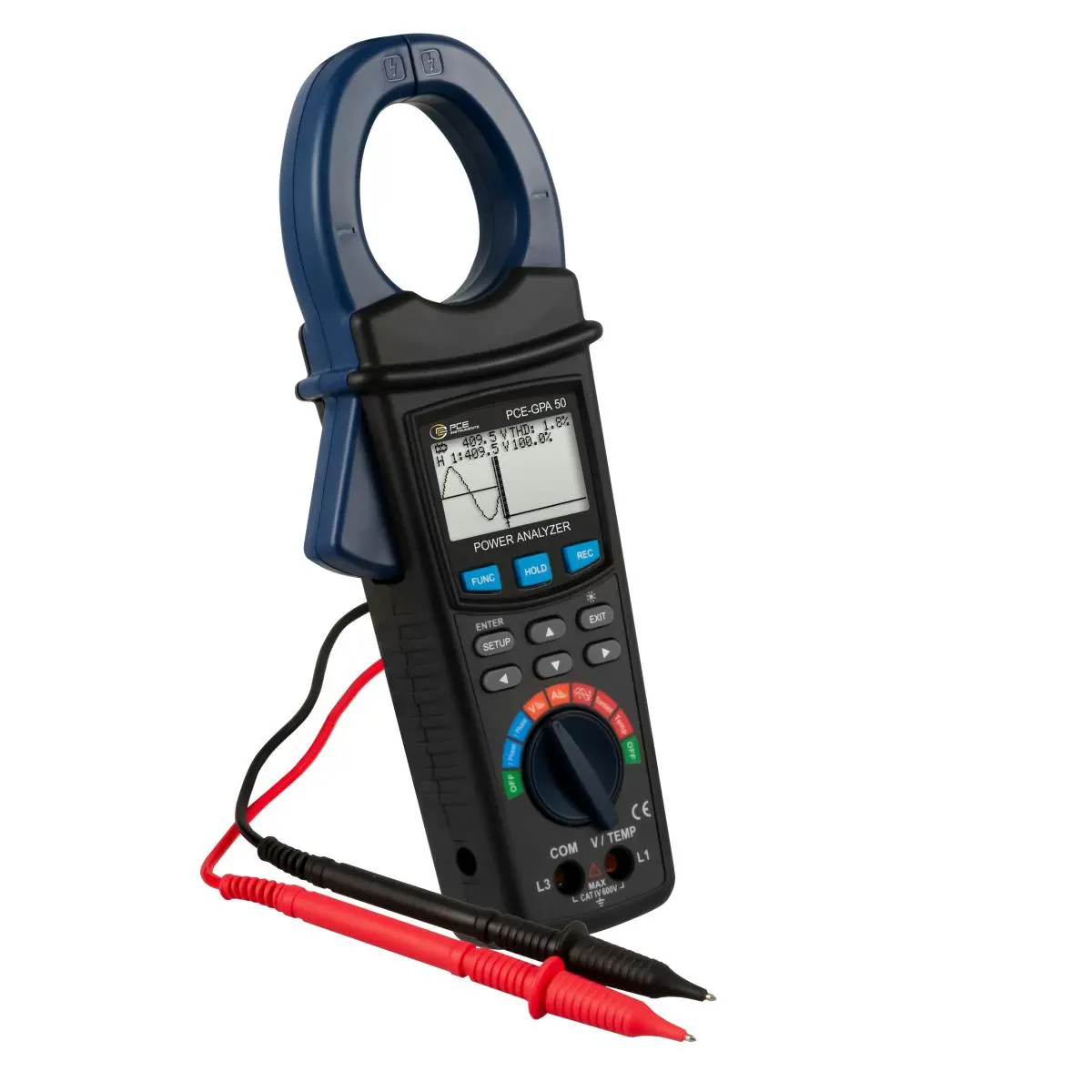

Electrical Tester PCE-GPA 50

Order no.: PCE-GPA 50
GTIN (EAN): 4250348720054
£ 686.00
£ 823.20
price ex. (VAT / delivery)
:
4250348720054
PCE-GPA 50
Delivery time:1-2 working days

Description

Electrical tester PCE-GPA 50
Current clamp up to 2000 A / TRMS measurement / Power measurement / Harmonic analysis / Graphic display with lighting / Data storage / Mains and battery operation

The PCE-GPA 50 current clamp is used to measure the current of 1- or 3-phase loads. This clamp is especially characterized by its measuring range up to 2000 A. Another highlight is the graphic display of the current clamp. Here, in addition to the numerical measured values, the waveform of the phase can also be displayed by the current clamp. Likewise, the current clamp can be used to measure voltages. As a result, the current clamp is able to calculate effective, apparent and reactive power with the help of the phase angle. In addition, the current clamp can measure other network parameters such as the energy, power factor and harmonic.

In addition to the extensive measuring functions, this current clamp distinguishes your data logger function. All measured values ​​can be stored by the current probe directly on a micro SD card. The clamp is powered by 2 1.5V AA batteries. However, it is also possible to operate the current clamp with a power supply for long-term measurements.

Highlights

- Graphic display
- Data logger on Micro-SD card
- Measurement for 1 and 3 phases
- Temperature measurement with thermocouple
- Voltage measurement 10V ... 600V AC RMS
- Current measurement 5 ... 2000 A AC RMS
- Current clamp opening 50 mm
- Harmonic distortion up to the 50th order

Specification

Temperature K-type
Measuring range  -100 ... +199,9 °C
Resolution  0,1 °C
Accuracy  ±(1% +1°C)

Temperature K-type
Measuring range  200 ... 1300 °C
Resolution  1 °C
Accuracy  ±(1% +2°C)

AC voltage
Measuring range  10 ... 600 V
Resolution  0,1 V
Accuracy  ±(0.5 % ... 3 digits)
Overload  720 V RMS

Alternating current AC
Measuring range  5 ... 100 A
Resolution  0,01 mA
Accuracy  ±(1% +0.5 A)
Overload  2100 A

Alternating current AC
Measuring range  100 ... 200 A
Resolution  0,01 A
Accuracy  ±(1% +0.5 A)

Alternating current AC
Measuring range  200 ... 1000 A
Resolution  0,1 A
Accuracy  ±(1% +5 A)

Alternating current AC
Measuring range  1000 ... 2000 A
Resolution  0,1 A
Accuracy  ±(1% +5 A)

Active power
Measuring range  0 W ... 9,999 MW
Resolution  0,001 W
Accuracy  ±(1.5% of measured value +20 digits)

Reactive power
Measuring range  0 VAR ... 9,999 MVAR
Resolution  0,001 VAR
Accuracy  ±(1.5% of measured value +20 digits)

Phase angle
Measuring range  -180 ... +180 °
Resolution  0,1 °
Accuracy  ±1 ° x PF

Apparent power
Measuring range  0 VA ... 9,999 MVA
Resolution  0,001 VA
Accuracy  ±(1.5% of measured value +20 digits)

Power factor
Measuring range  0 ... 1
Resolution  0.001
Accuracy  ±0.04

Active energy
Measuring range  0 kWh ... 9,999 MWh
Resolution  0,001 kWh
Accuracy  ±(1.5% of measured value +20 digits)

Apparent energy
Measuring range  0 kVAh ... 9,999 MVAh
Resolution  0,001 kVAh
Accuracy  ±(1.5% of measured value +20 digits)

Reactive energy
Measuring range  0 kVArh ... 9,999 MVARh
Resolution  0,001 kVArh
Accuracy  ±(1.5% of measured value +20 digits)

Frequency
Measuring range  45 ... 65 Hz
Resolution  0,1 Hz
Accuracy  ±0.2 Hz

Harmonic measurement (harmonics)
Measuring range  1 ... 50 (ordinal number)

General technical data
Measuring functions  HOLD
Frequency  40 ... 1000 Hz
Display type  Graphic LCD
Display size  2,4 Inch
Measuring rate  1 s
Storage medium  Micro SD card
Storage interval from  2 s
Storage interval to  7200 min.
Interface  RS232
Current consumption meter  60 mA DC
Maximum cable diameter  50 mm
Automatic power-off  10 min
Input impedance  10 M Ω
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  9 V / 800 mA
Connector type  Device-europlug
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  280 x 106 x 47 mm
Weight  595 g

Delivery Scope

1 x Electrical Tester PCE-GPA 50
1 x Test lead set
2 x Crocodile clips
1 x Micro SD memory card
1 x Power supply 9V / 800-mA
2 x 1.5V AA battery
1 x Carrying bag
1 x User manual
