Description

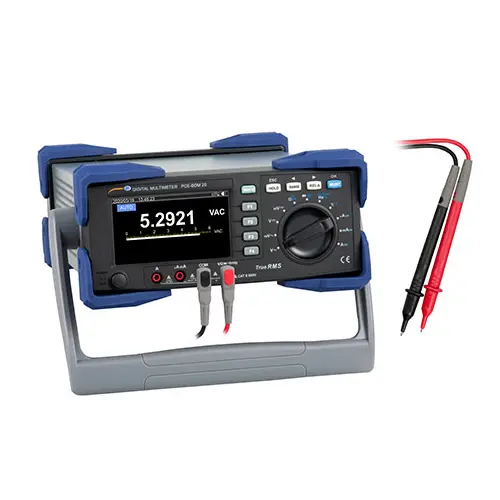

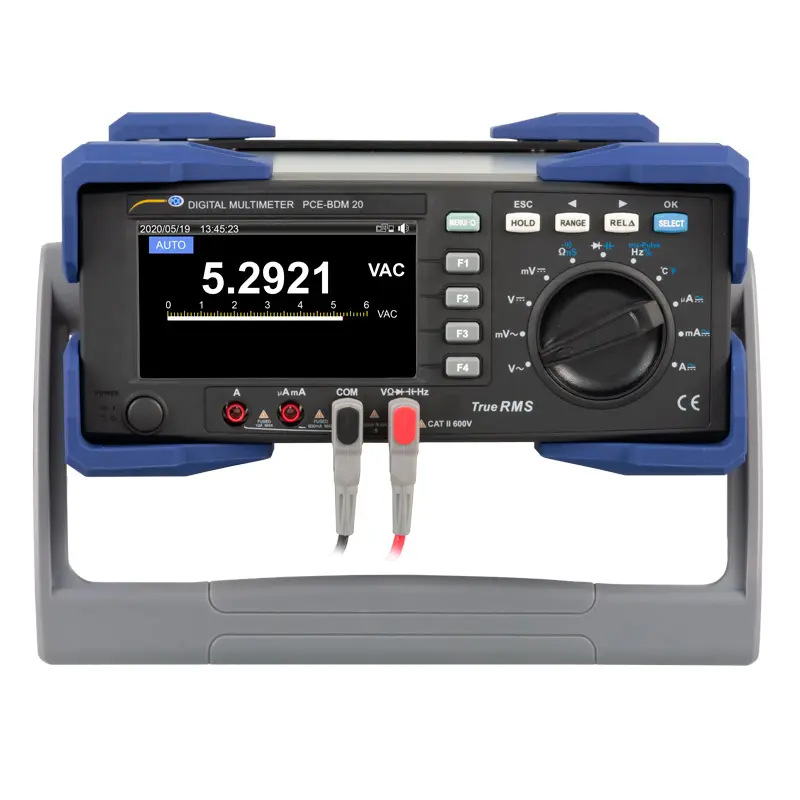

Electrical tester PCE-BDM 20
Digital multimeter for the stationary workplace / Various measurement functions / High measuring ranges / PASS / FAIL function for component testing / HOLD function / Connection of two thermocouples simultaneously / Software / USB interface

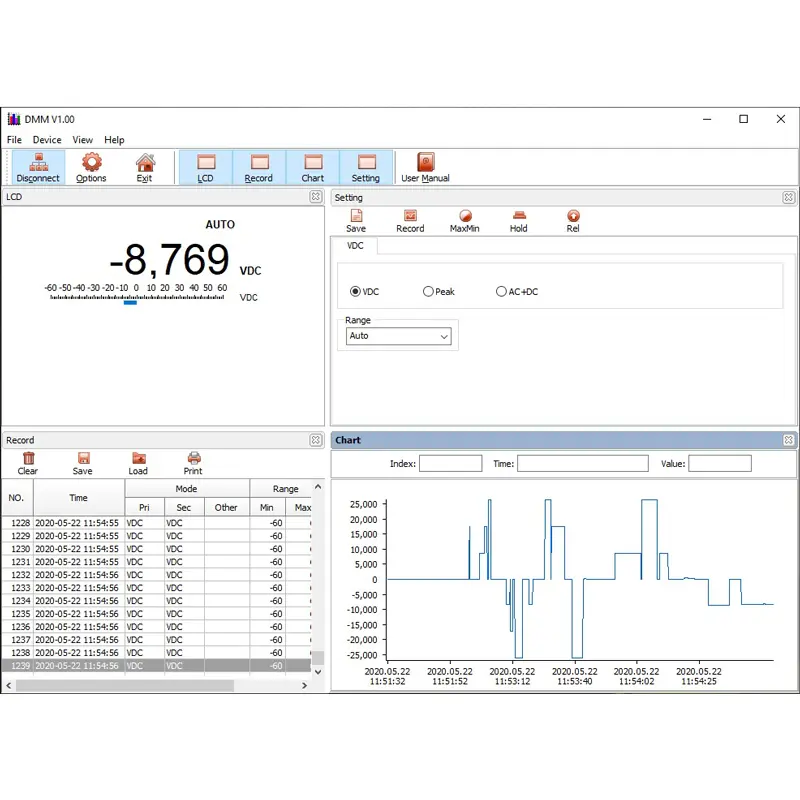

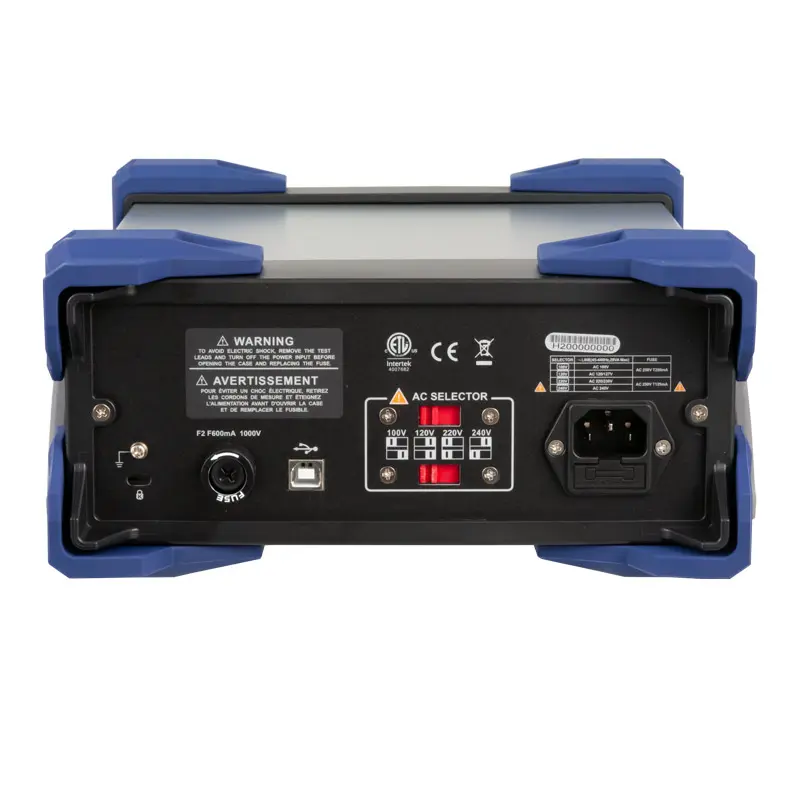

The digital multimeter is a multimeter for a stationary workplace. In addition to measuring current, voltage and resistance, the digital multimeter can also use two thermocouples to measure the temperature and also determine the conductivity. So the digital multimeter can perform a variety of different measurement tasks. A direct connection to a PC can be established via the USB interface on the back of the digital multimeter. The software from the digital multimeter can then be used to carry out live analyzes using graphics and tables.

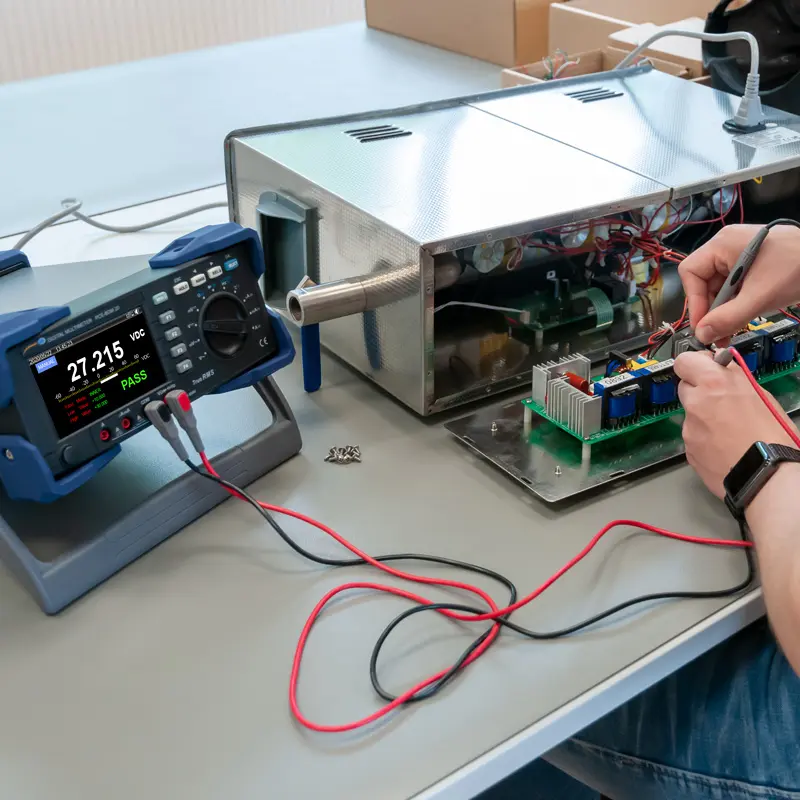

Another special feature of the digital multimeter is the PASS / FAIL function. With this function, target ranges for the measured values can be set for each measuring function. Depending on the actual measured value, a "PASS" (passed) or a "FAIL" (failed) is then shown on the display by the digital multimeter. The digital multimeter is therefore used, for example, in quality control. With the help of the adjustable handle, the digital multimeter can be adjusted for ergonomic use by the operator. The handle of the digital multimeter can also be used to change the workplace. The housing of the digital multimeter has a rubberized edge protection, which prevents damage.

Highlights

- Table multimeter with reinforced housing
- USB interface for PC connection
- PASS / FAIL function for quality control
- extensive measuring functions
- Relate the measured value
- Measured value with bar graph display

Specification

AC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (0.6% 60 digits) @ 45 Hz ... 1 kHz
600 mV	0.01 mV	± (0.3% 30 digits) @ 45 Hz ... 1 kHz
6V	0.0001V	± (0.3% 30 digits) @ 45 Hz ... 1 kHz
60V	0.001V	± (0.3% 30 digits) @ 45 Hz ... 1 kHz
600V	0.01V	± (0.4% 30 digits) @ 45 Hz ... 1 kHz
1000V	0.1V	± (0.6% 30 digits) @ 45 Hz ... 1 kHz
Input impedance:> 10MΩ
Surge protection: 1000V
Display: True RMS in the measuring range of 10 ... 100% of the respective measuring range

DC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (0.025% + 20 digits)
600 mV	0.01 mV	± (0.025% + 5 digits)
6V	0.0001V	± (0.025% + 5 digits)
60V	0.001V	± (0.025% + 5 digits)
600V	0.01V	± (0.003% + 5 digits)
1000V	0.1V	± (0.003% + 5 digits)
Input impedance:> 10MΩ
Surge protection: 1000V

AC voltage + DC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (1% + 80 digits) @ 50 Hz ... 1 kHz
600 mV	0.01 mV	± (1% + 80 digits) @ 50 Hz ... 1 kHz
6V	0.0001V	± (1% + 80 digits) @ 50 Hz ... 1 kHz
60V	0.001V	± (1% + 80 digits) @ 50 Hz ... 1 kHz
600V	0.01V	± (1% + 80 digits) @ 50 Hz ... 1 kHz
1000V	0.1V	± (1.2% + 80 digits) @ 50 Hz ... 1 kHz
Input impedance:> 10MΩ
Surge protection: 1000V
Display: True RMS in the measuring range of 10 ... 100% of the respective measuring range

Alternating current
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.6% + 40 digits) @ 45 Hz ... 1 kHz
6000 µA	0.1 µA	± (0.6% + 20 digits) @ 45 Hz ... 1 kHz
60-mA	0.001-mA	± (0.6% + 40 digits) @ 45 Hz ... 1 kHz
600-mA	0.01-mA	± (0.6% + 20 digits) @ 45 Hz ... 1 kHz
10 A	0.001 A	± (1% + 20 digits) @ 45 Hz ... 1 kHz
Display: True RMS in the measuring range of 10 ... 100% of the respective measuring range
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø 10 x 38 mm
When measuring almost 20 A, the measurement time should not be longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

Direct current
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.8% + 20 digits)
6000 µA	0.1 µA	± (0.8% + 10 digits)
60-mA	0.001-mA	± (0.8% + 20 digits)
600-mA	0.01-mA	± (0.15% + 10 digits)
10 A	0.001 A	± (0.5% + 10 digits)
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø10 x 38 mm
A measurement of almost 20 A should not take longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

AC + DC
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.8% + 40 digits) @ 50 Hz ... 1 kHz
6000 µA	0.1 µA	± (0.8% + 20 digits) @ 50 Hz ... 1 kHz
60-mA	0.001-mA	± (0.8% + 40 digits) @ 50 Hz ... 1 kHz
600-mA	0.01-mA	± (0.8% + 20 digits) @ 50 Hz ... 1 kHz
10 A	0.001 A	± (1.2% + 20 digits) @ 50 Hz ... 1 kHz
Display: True RMS in the measuring range of 10 ... 100% of the respective measuring range
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø10 x 38 mm
A measurement of almost 20 A should not take longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

Resistance
Measuring range	Resolution	Accuracy
600 Ω	0.01Ω	In REL mode: ± (0.05% + 10 digits)
6 kΩ	0.0001 kΩ	± (0.05% + 2 digits)
60 kΩ	0.001 kΩ	± (0.05% + 2 digits)
600 kΩ	0.01 kΩ	± (0.05% + 2 digits)
6 MΩ	0.0001 MΩ	± (0.3% + 10 digits)
60 MΩ	0.001 MΩ	± (2% +10 digits)
Surge protection: 1000 V
With a measuring range of 60 MΩ the ambient humidity should be < 50%.

Conductivity
Measuring range	Resolution	Accuracy
60 nS	0.01 nS	± (2% + 10 digits)
Surge protection: 1000V
The ambient humidity for the measuring range should be < 50%.

Capacity measurement
Measuring range	Resolution	Accuracy
6 nF	0.001 nF	± (3% + 10 digits)
60 nF	0.01 nF	± (2.5% + 5 digits)
600 nF	0.1 nF	± (2% + 5 digits)
6 μF	0.001 μF	± (2% + 5 digits)
60 μF	0.01 μF	± (2% + 5 digits)
600 μF	0.1 μF	± (2% + 5 digits)
6 mF	1 μF	± (5% + 5 digits)
60 mF	10 μF	for reference only
Surge protection: 1000 V

Temperature
Measuring range	Resolution	Accuracy
-40 ... 40°C	1°C	± (2.0% + 30 digits)
40 ... 400°C	1°C	± (1.0% + 30 digits)
100 ... 1000°C	1°C	± 2.5%
-40 ... 104°F	1.8°F	± (2.5% + 50 digits)
104 ... 752°F	1.8°F	± (1.5% + 50 digits)
752 ... 1832°F	1.8°F	± 2.5%
Surge protection: 1000V
Two-channel temperature measurement
Temperature sensor: Type K only applies to the measurement of temperatures below 230°C / 446°F

Frequency measurement
Measuring range	Resolution	Accuracy
60 Hz	0.001 Hz	± (0.02% + 8 digits)
600 Hz	0.01 Hz	± (0.01% + 5 digits)
6 kHz	0.0001 kHz	± (0.01% + 5 digits)
60 kHz	0.00 1kHz	± (0.01% + 5 digits)
600 kHz	0.01 kHz	± (0.01% + 5 digits)
6 MHz	0.0001 MHz	± (0.01% + 5 digits)
60 MHz	0.00 1MHz	± (0.01% + 5 digits)
Surge protection: 1000V
Input amplitude: 10 Hz ... 30 MHz: 600 mV <a <30 Vrm,> 30 MHz: not specified

Duty cycle
Measuring range	Resolution	Accuracy
10 ... 90% @	0.01%	± (1.2% + 30 digits)
(10Hz ... 2kHz)
Surge protection: 1000V
Rise time: <1 µs, the signal is centered on the trigger level

Pulse width
Measuring range	Resolution	Accuracy
250 mS	0.001 ... 0.1 mS	± (1.2% + 30 digits)
Surge protection: 1000V
Rise time: < 1 µs, the signal is centered on the trigger level
10 Hz ... 200 kHz: pulse width > 2 µs
The pulse range is limited by the frequency of the signal

Continuity test
Resolution	Functional description
0.01 Ω	Short circuit alarm: from < 10 Ω, alarm switches off from > 50 Ω
Surge protection: 1000V

Diode test
0.0001V	The open circuit voltage is approx. 3V and the measurable voltage drop
	of the PN transition is < 3V A continuous beep
	indicates the short circuit of the PN junction. The typical tension
	of the silicon PN junction is between 0.5 ... 0.8V.
Surge protection: 1000V

Further specifications on accuracy can be found in the operating instructions

Further specification
Interface	USB interface
Supply voltage	100 ... 240V adjustable
Environmental conditions	23°C / 73.4°F ± 5°C / 41°F, < 75% RH
Dimensions	310 x 240 x 120 mm / 12.2 x 9.4 x 4.7 in
Weight	Approx. 3713 g / 8.2 lbs

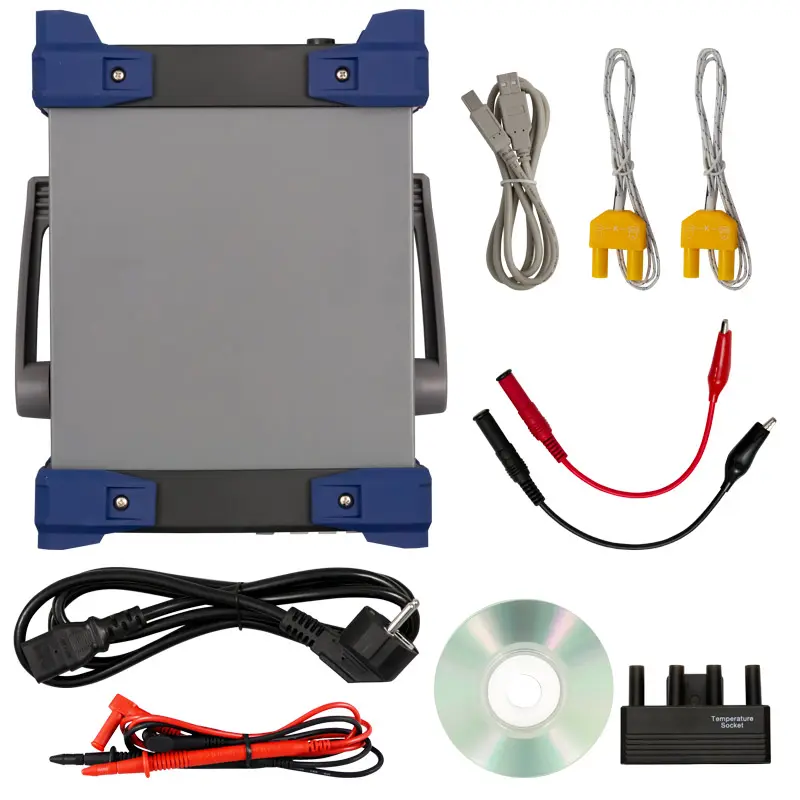

Delivery Scope

1 x Electrical tester PCE-BDM 20
1 x USB cable
1 x Connection adapter for thermocouples
2 x Thermocouple type K x software
2 x Crocodile clip
1 x IEC cable
1 x Instruction manual
