£ 372.00
PCE-360 Single-Phase / 1-Phase Power Meter
Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable
The PCE-360 is a Single-Phase Power Meter or clamp meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software), and waveforms (via software).

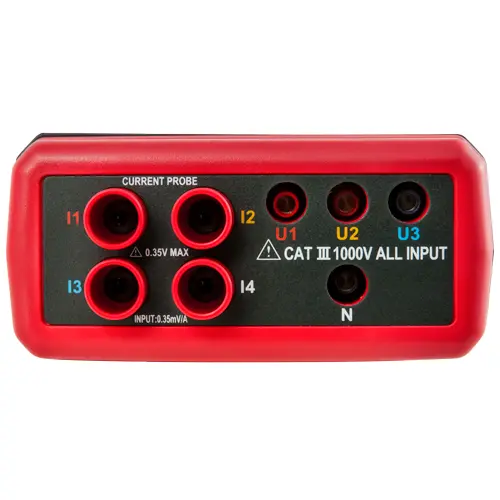

The meter's large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 10,000,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.
| AC voltage | |
| Measuring range | 10 ... 999,9 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.3 % of Rd ±10 digits) |
| Alternating current AC | |
| Measuring range | 3 ... 999,9 A |
| Resolution | 0,1 A |
| Accuracy | ±(0.5 % of Rd ±10 digits) @ >10 A |
| Overload | 1000 A |
| Frequency range | 45 ... 66 Hz |
| Active power | |
| Measuring range | 0,15 ... 999,9 kW |
| Resolution | 0,1 kW |
| Accuracy | ±1% of Rd ±20 digits |
| Phase angle | |
| Measuring range | -180 ... +180 ° |
| Resolution | 0,1 ° |
| Accuracy | ±15 Digits |
| Power factor | |
| Measuring range | -1 ... +1 |
| Resolution | 0.001 |
| Accuracy | ±10 digits |
| Frequency | |
| Measuring range | 40 ... 60 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±0.1 % of Rd ±2 digits |
| Harmonic measurement (harmonics) | |
| Measuring range | 1 ... 63 (ordinal number) |
| Current range | 10 ... 999.9 A |
| Voltage range | 10 ... 999.9 V |
| General technical data | |
| Measuring functions | MAX, HOLD |
| Frequency | 45 ... 66 Hz |
| Display type | LCD |
| Storage medium | SD card |
| Storage capacity | 4 GB |
| Memory capacity (additional information) | (99 memory locations with 350,000 data records each) |
| Storage interval from | 5 s |
| Storage interval to | 2 min. |
| Interface | RS232 |
| Maximum cable diameter | 42 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP30 |
| Power supply | 12V DC |
| Connector type | Device-europlug |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 235 x 117 x 54 mm |
| Weight | 730 g |
