Dynamometer PCE-FM 50N

Order no.: PCE-FM 50N
£ 267.00
£ 320.40
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Dynamometer PCE-FM 50N
Traction gauge / Compression force / USB interface
PEAK function / Different measuring units / Incl. Downloadable evaluation software

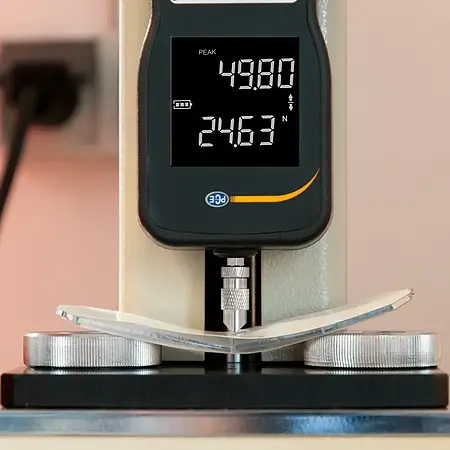

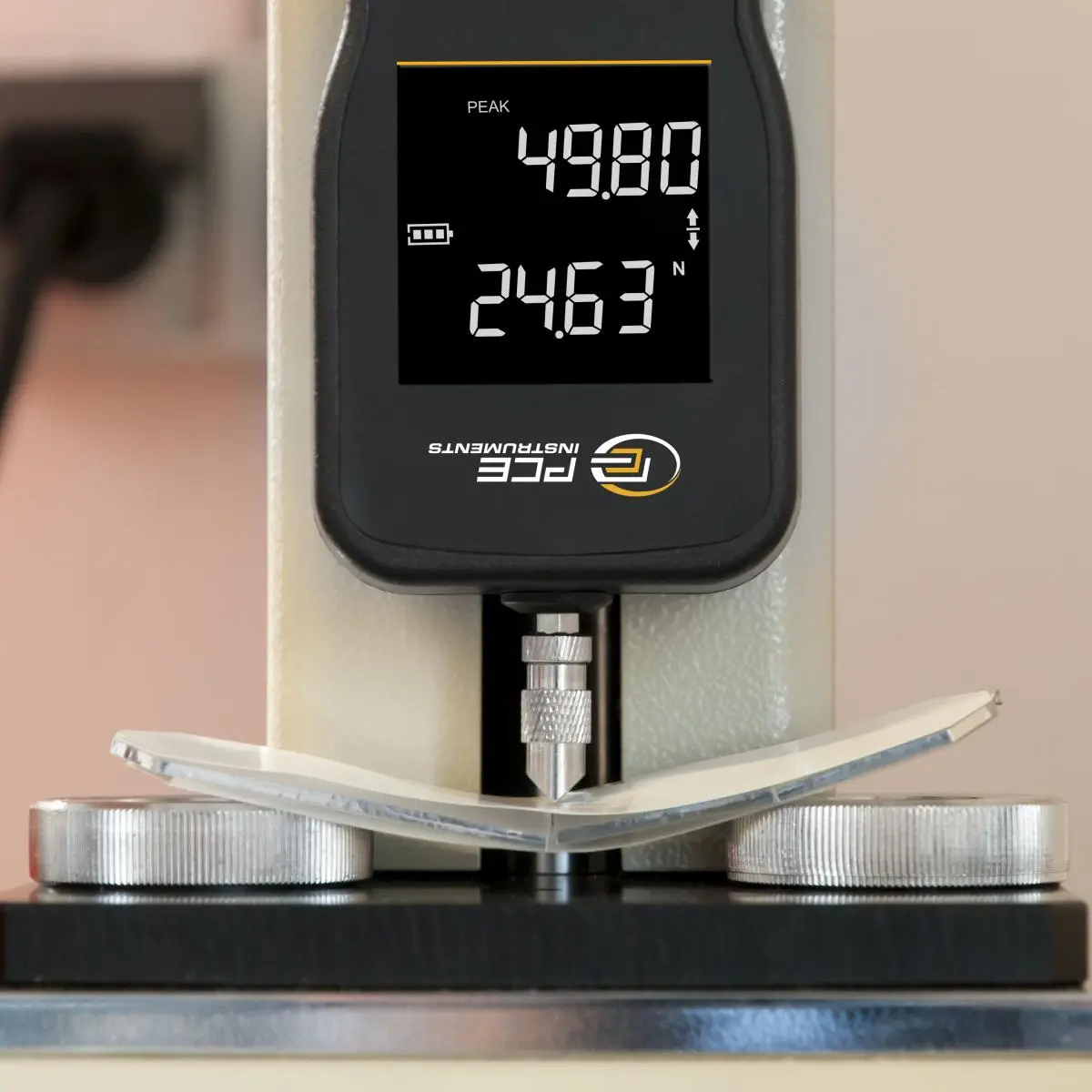

This dynamometer is a tensile / compressive force gauge. This tensile / compressive force gauge has an internal load cell. It is a portable traction / compression force gauge that can be installed in a force measurement stand. The measuring range of this tensile and compressive force gauge is up to 50 N / 11 lbs. So the meter is suitable for more precise tensile and compression tests.

The measurement results can be transferred directly to the PC via USB interface. There they can be archived and evaluated. An integrated statistical evaluation is used to evaluate the measurement results. The force measuring device is thus able to automatically store maximum and minimum measured values ​​in the display.

- Differently shaped measuring adapter
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Power supply via charging adapter
- Delivery with extension rod

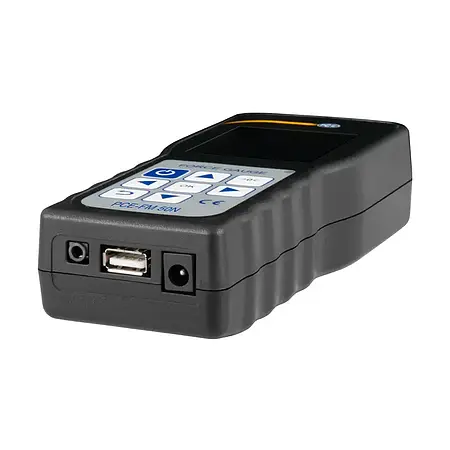

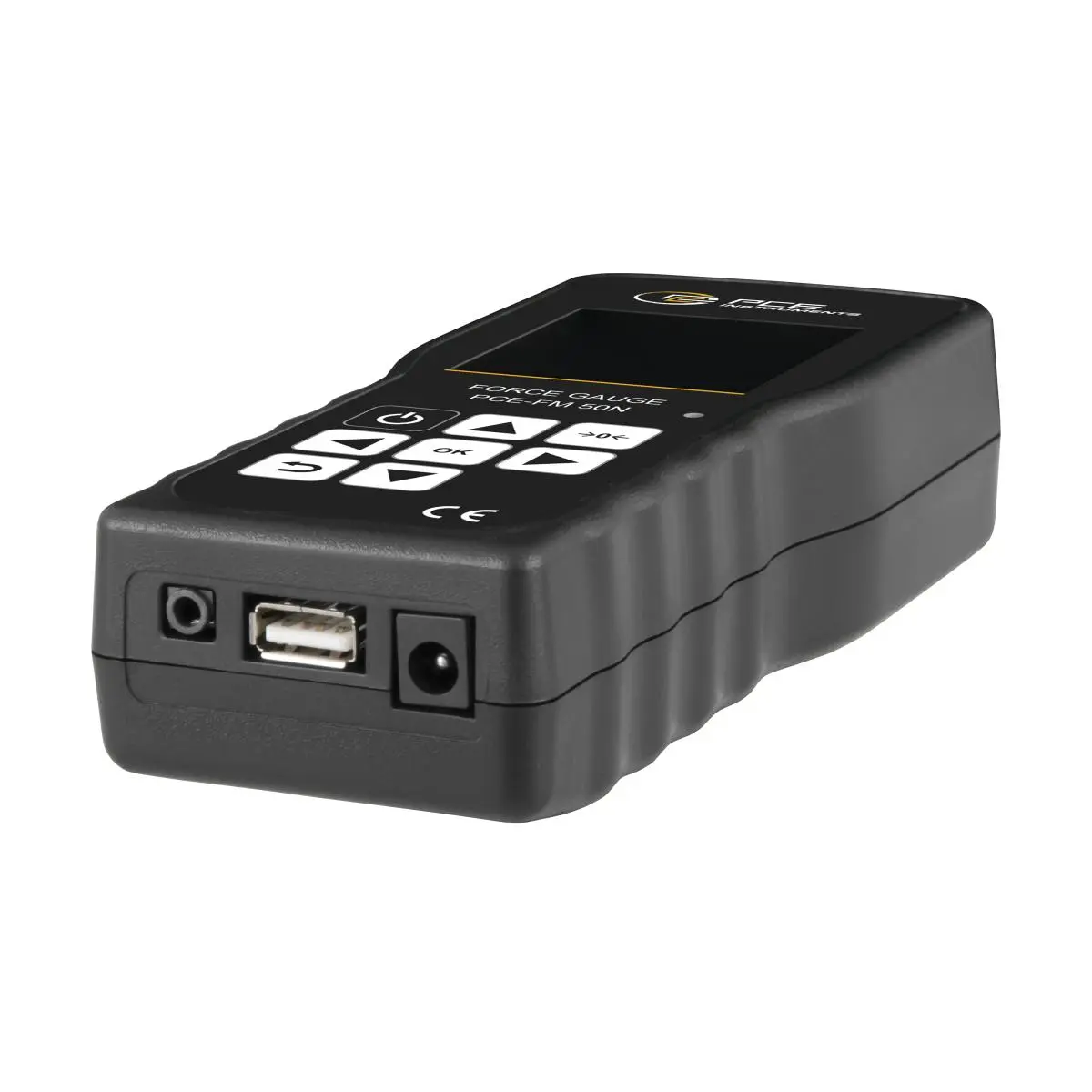

- Evaluation via USB interface

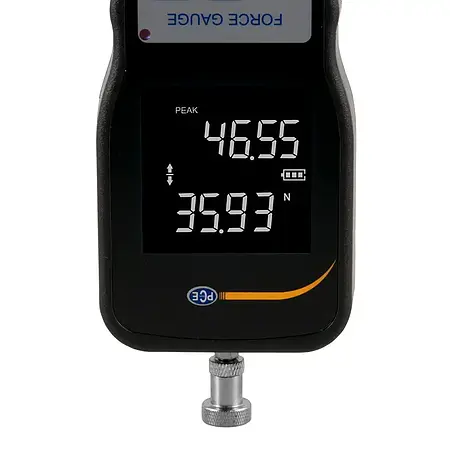

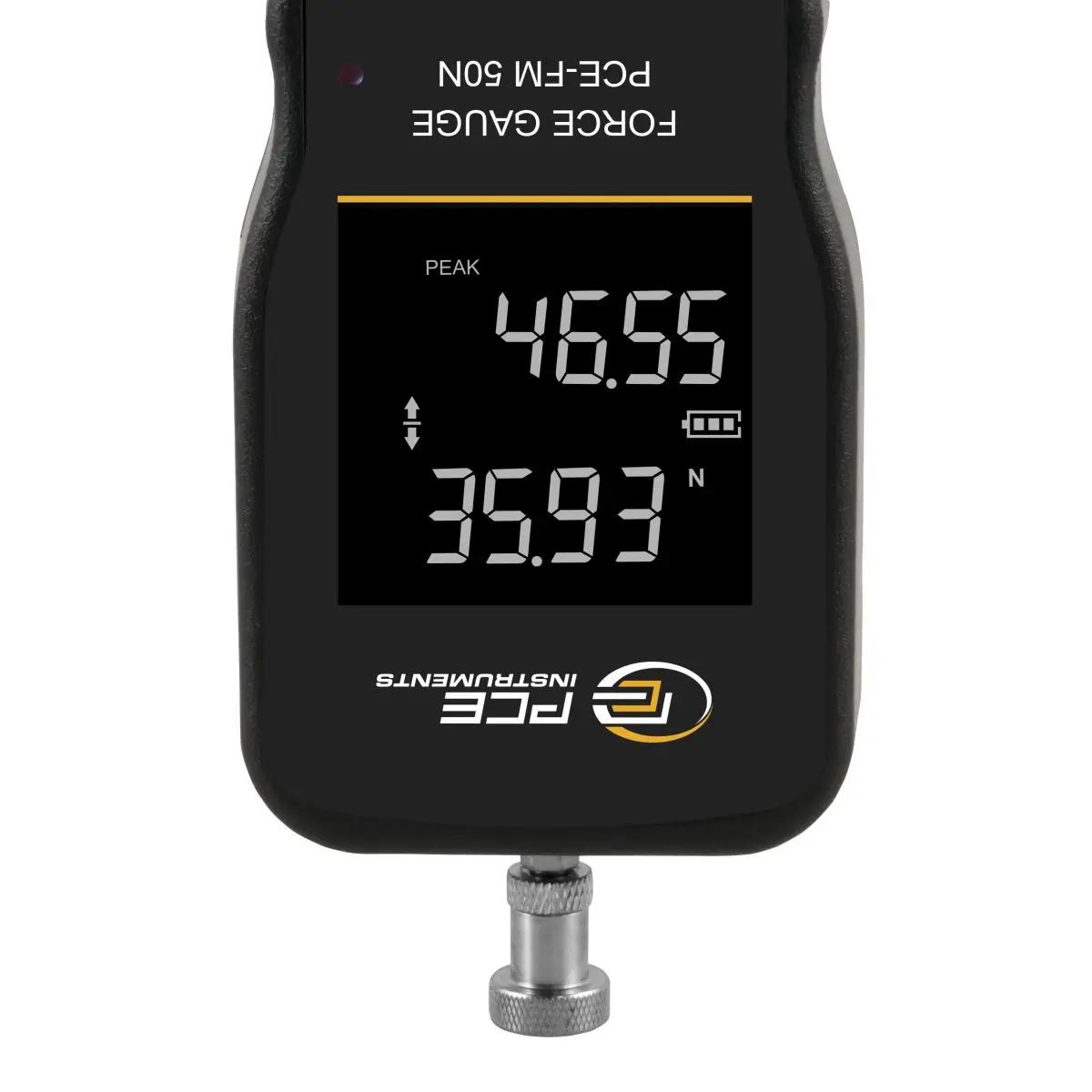

- Fast measured value display
Measuring range0 ... 50 N / 0 ... 11 lbs
Resolution0.01 N / 0.002 lbs
Pressure calibration0.1 Mpa

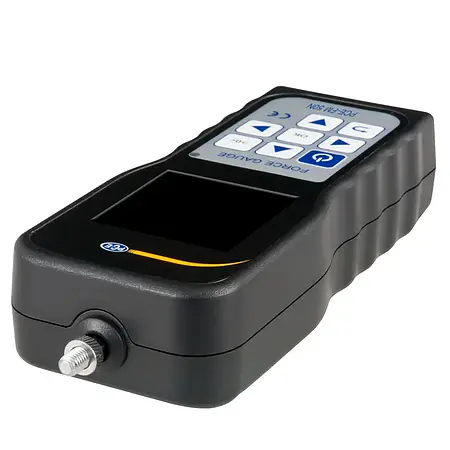

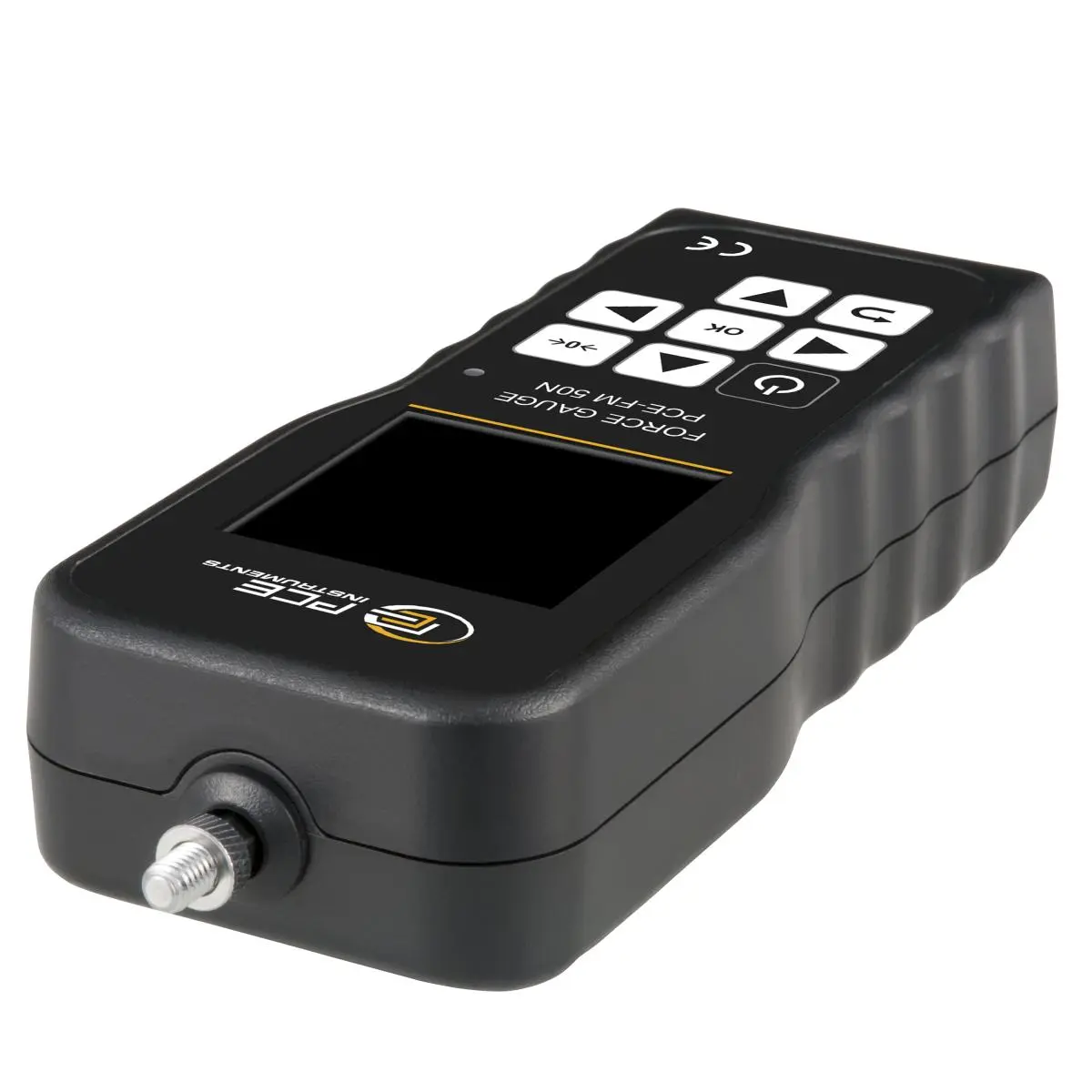

Load cellIntegrated load cell with M6 connection
Measuring range 1 ... 100% of the full scale
Measurement accuracy± 0.5%
UnitsN, kg, lb
Power supplyInternal battery, 12V / 1 A power adapter
Operating temperature10 ... 30°C / 50 ... 86°F
Relative humidity15 ... 80% relative humidity
Weight1 kg / 2.2 lbs
Working conditions:
The device must not be near sources of vibration or corrosive substances

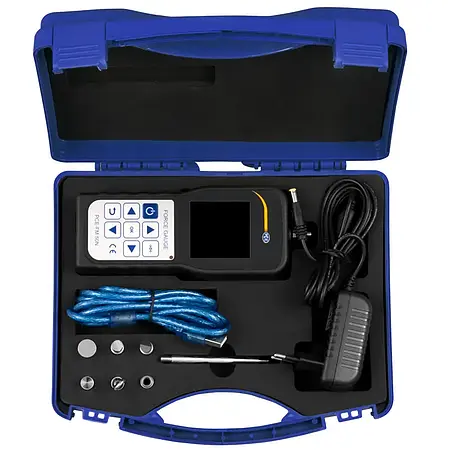

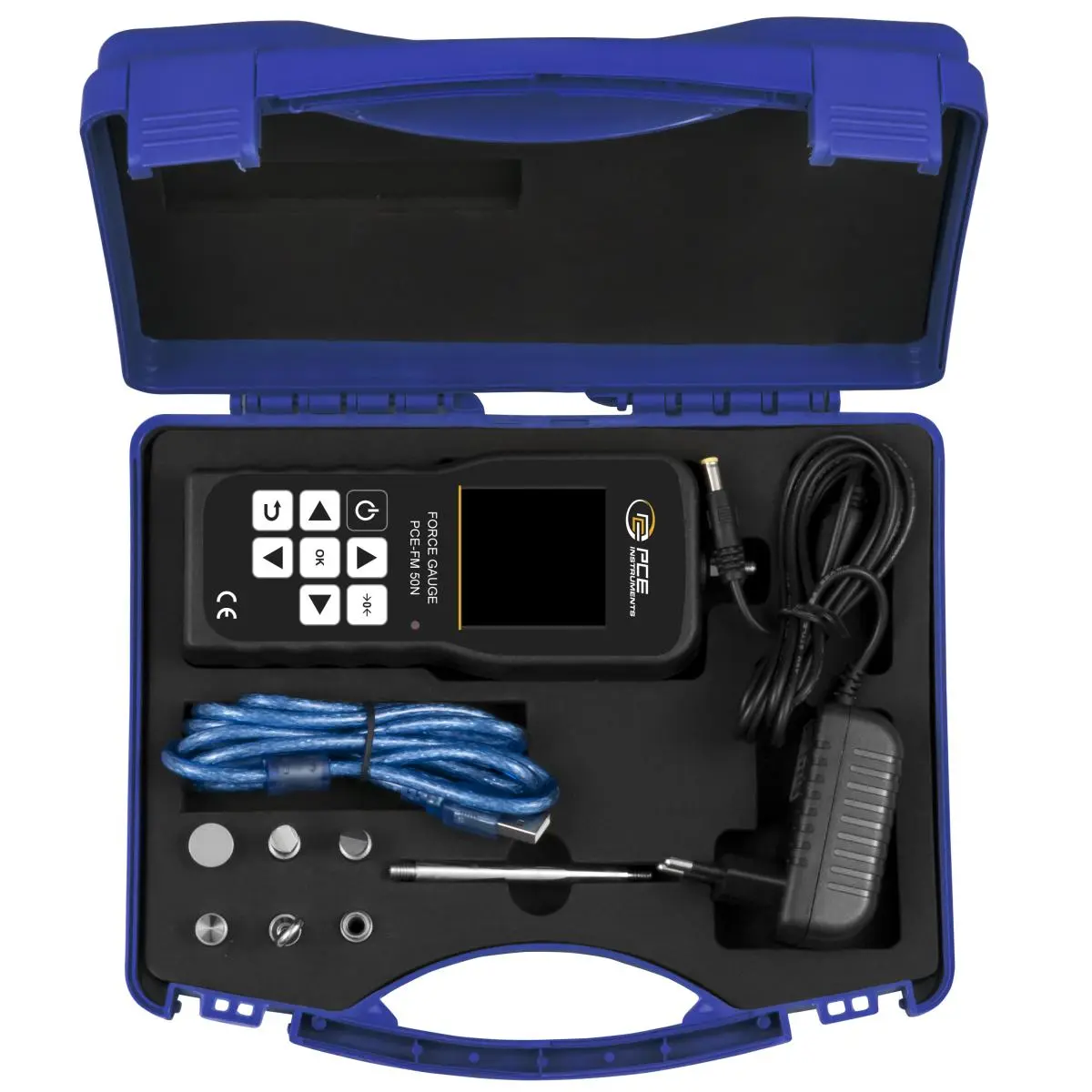

1 x PCE-FM 50N dynamometer with internal load cell
1 x Downloadable evaluation software
1 x USB cable

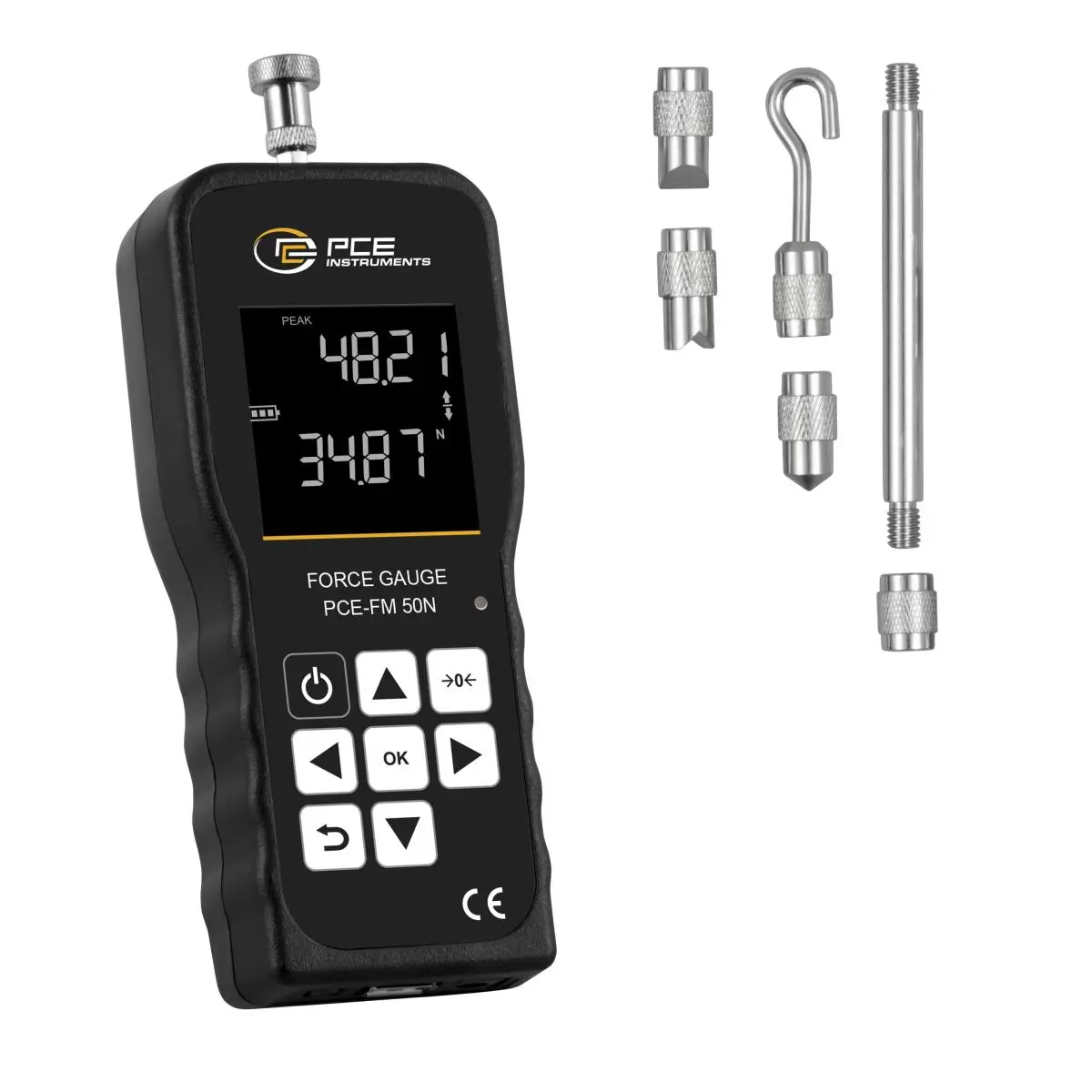

1 x Flat head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension bar (65 mm / 26 in)
1 x Charging adapter
1 x Device case
1 x User manual
