Drain Camera PCE-VE 340N

Drain Camera PCE-VE 340N

Order no.: PCE-VE 340N
GTIN (EAN): 4250348709271
£ 1,009.00
£ 1,210.80
price ex. (VAT / delivery)
:
4250348709271
PCE-VE 340N
Delivery time:1-2 working days

Description

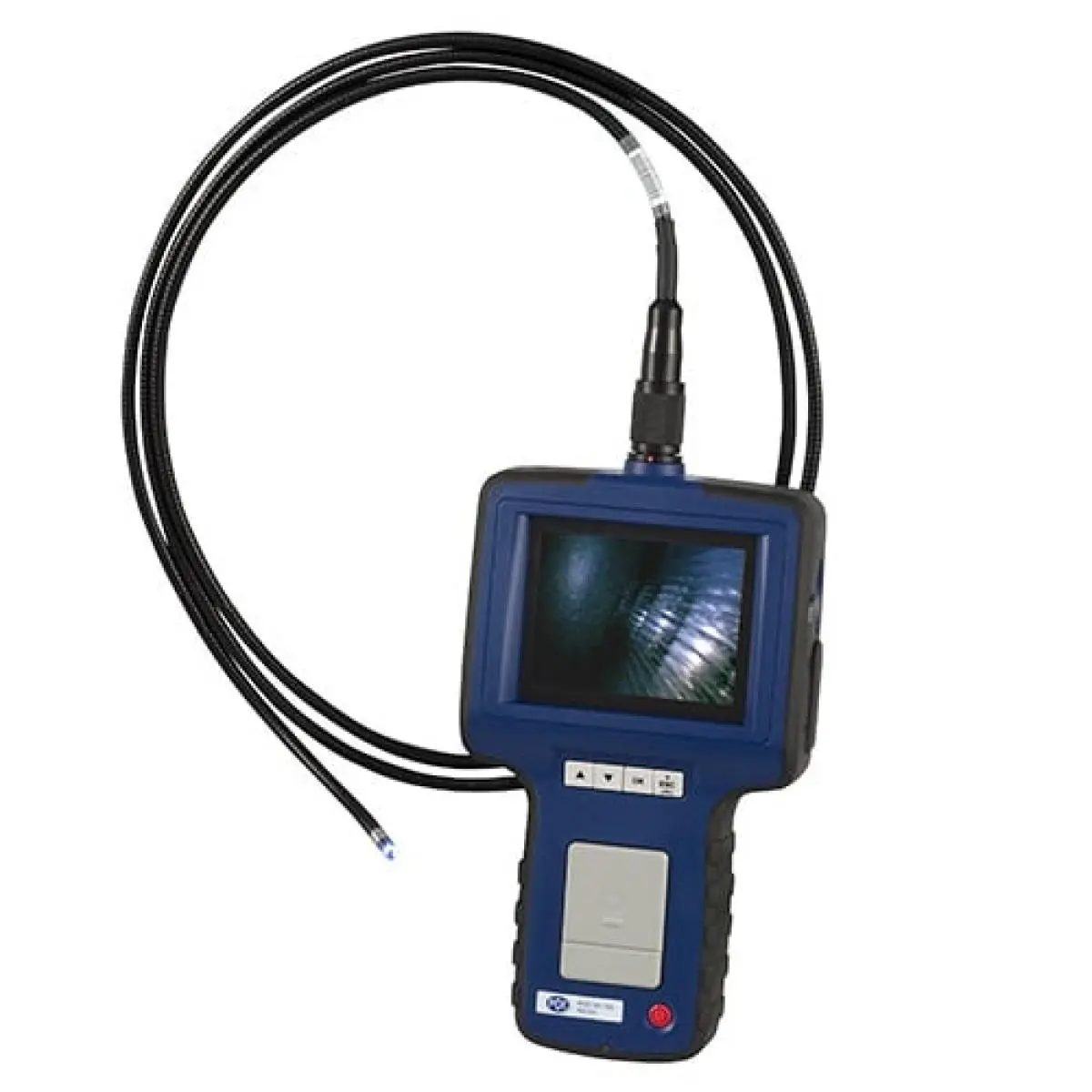

PCE-VE 340N is an automotive tester, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines, and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 10 m / 32.8 ft cable length and 5.5 mm / 0.22 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines, and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning, and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.
*Not for medical use*


Highlights

- Cable length 1m, 2m or 10m / 3ft 3", 6ft 6" or 32ft 9" (depending on model)
- Cable diameter 5.5 mm / 0.22"
- Storage of pictures and videos
- 8 GB memory card incl.
- LED lighting
- Robust carrying case included
- Additional camera cables optional

Specification

General technical data
Resolution  Image format: JPEG (640 x 480)
Video format: ASF (320 x 240)
Cable length  10 m
Display type  TFT colour display
Display size  3,5 Inch
Display refresh rate  30 x per second
Storage medium  SD card
Storage capacity  32 GB
Memory capacity (additional information)  Images and videos can be saved
Interface  Mini-USB, AV out, SD card
Sensor  CMOS
Camera resolution  320 x 240 pixels
Camera orientation  frontal 0°
Operating time  4 h
Camera head length  18 mm
Camera head diameter  5,5 mm
Camera probe movement  flexible
Other dimensions  Handle width 79 mm
Field of vision  56 °
Depth of field of vision  10 ... 60 mm
Luminous intensity  4 LEDs
Menu language  English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian
Protection class (device)  IP52
Power supply  AC 100 ... 240 V | 50 ... 60 Hz
Connector type  Device-europlug
Capacity  2300 mAh
Operating conditions  0 ... 45 °C , 0 ... 95 % RH
Storage conditions  0 ... 45 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  207 x 118 x 37 mm
Weight  390 g

Delivery Scope

1 x Drain Camera PCE-VE 340N
1 x 8 GB SD memory card
1 x Cable (PCE-VE-N-SC10)
1 x USB cable
1 x Carrying case
1 x Power adapter
1 x User manual
Please note: Not to be used for medical applications!
