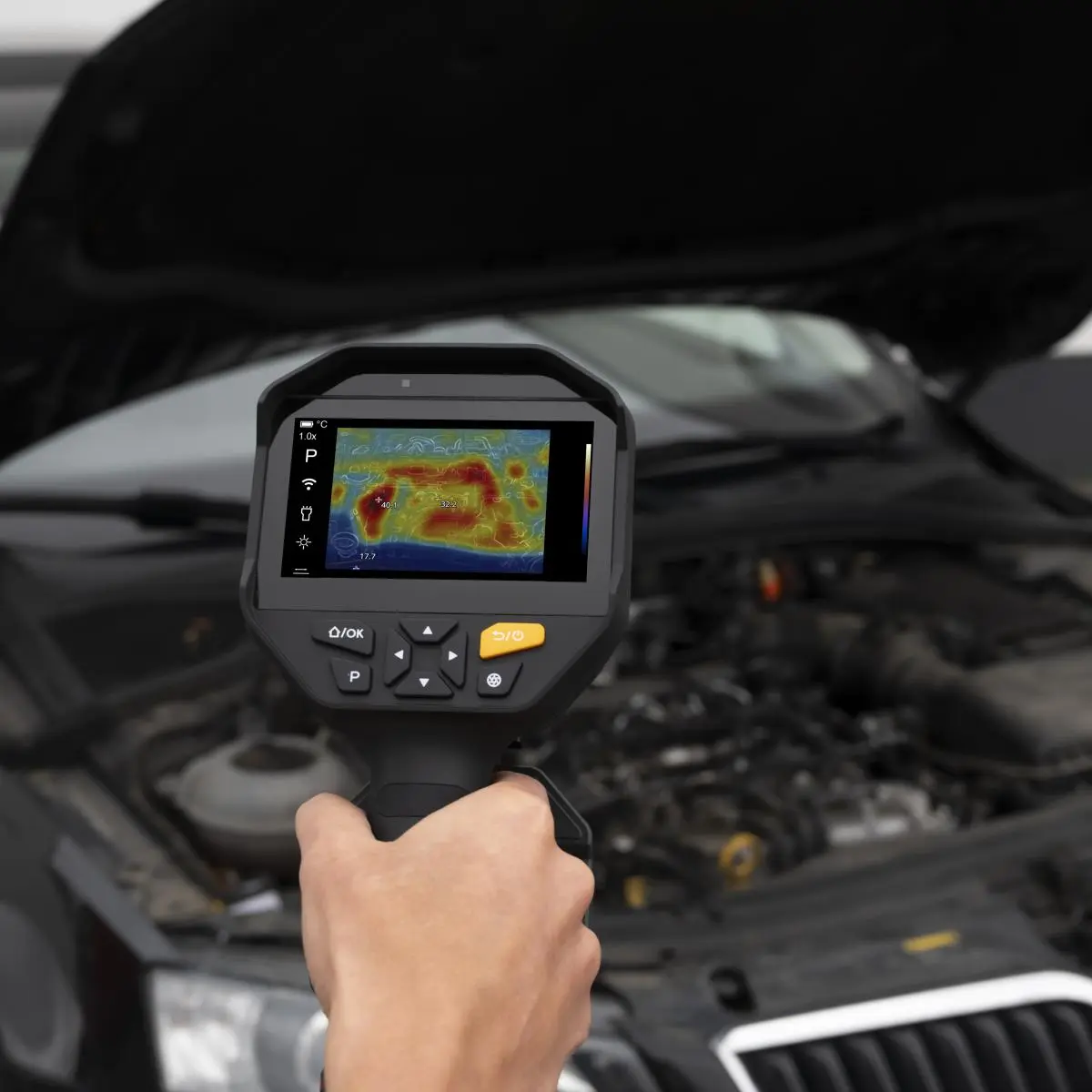

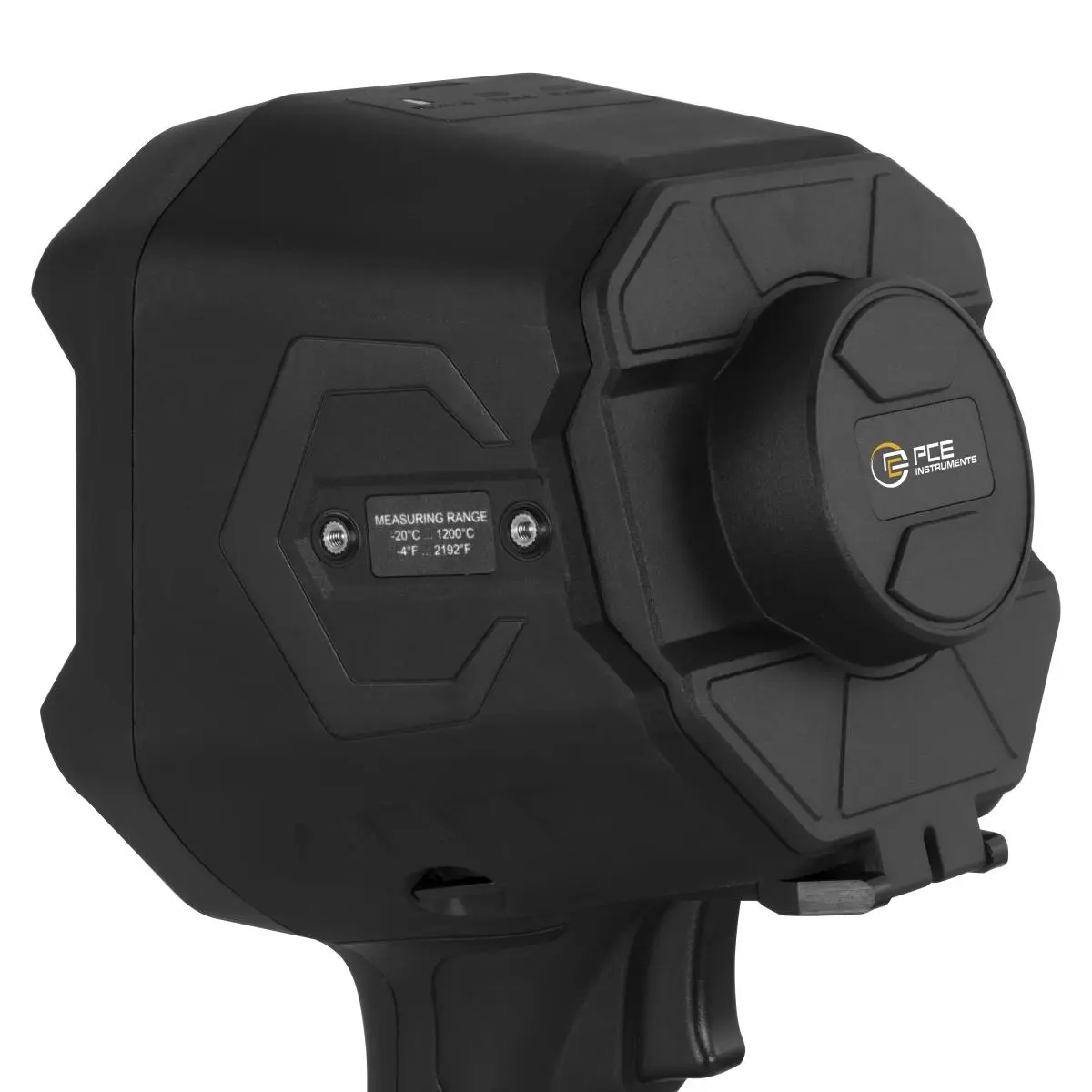

The Digital Thermometer is suitable for applications in industry, maintenance, building services, electrical engineering and for service and maintenance work. With a temperature measuring range of -20 … 1200°C, a resolution of 0.1°C and an accuracy of ±2°C or ±2% of reading, the Digital Thermometer enables precise detection of temperature distributions. The IR resolution of 384 × 288 pixels and the thermal sensitivity of <40 mK at 25°C also make it possible to display even small temperature differences.

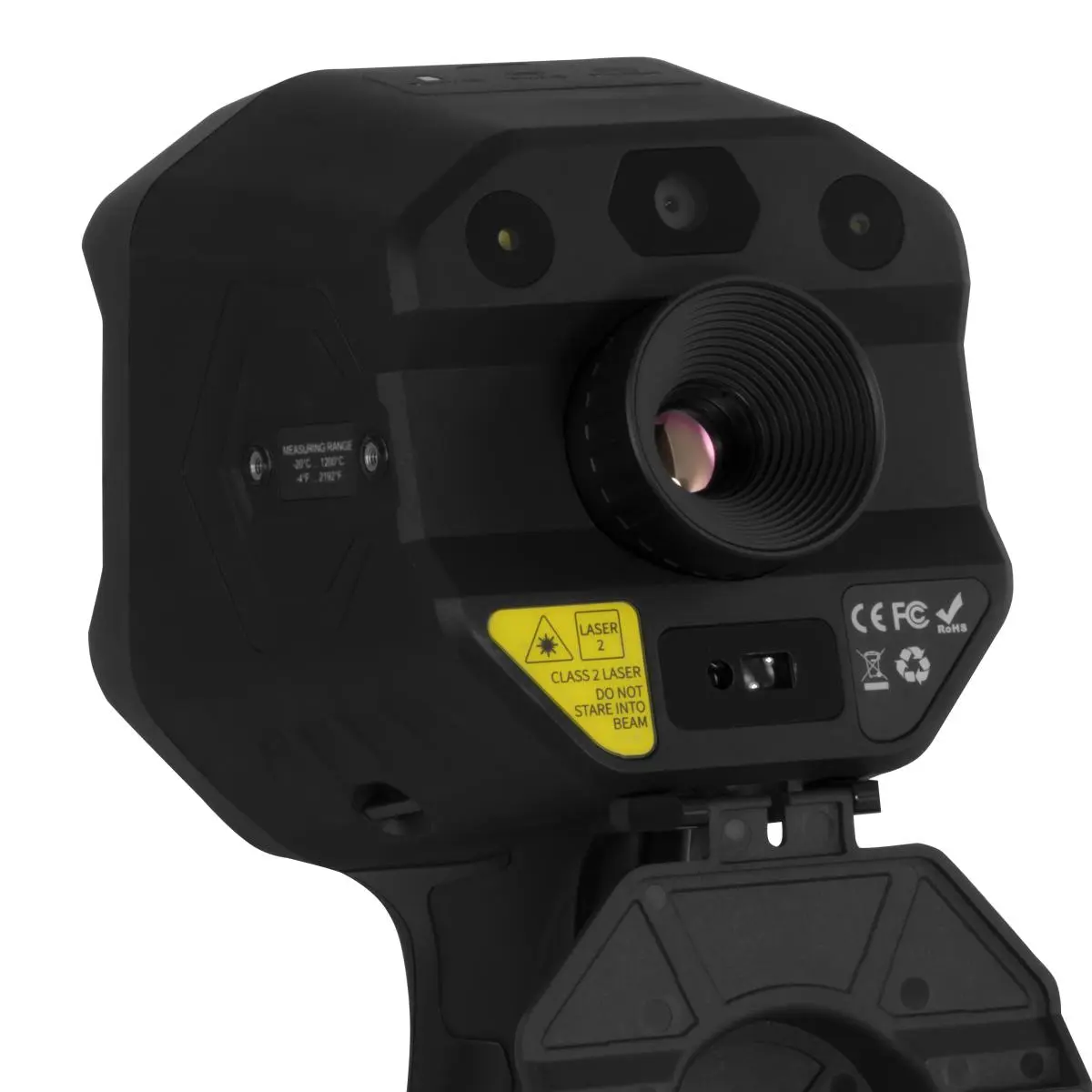

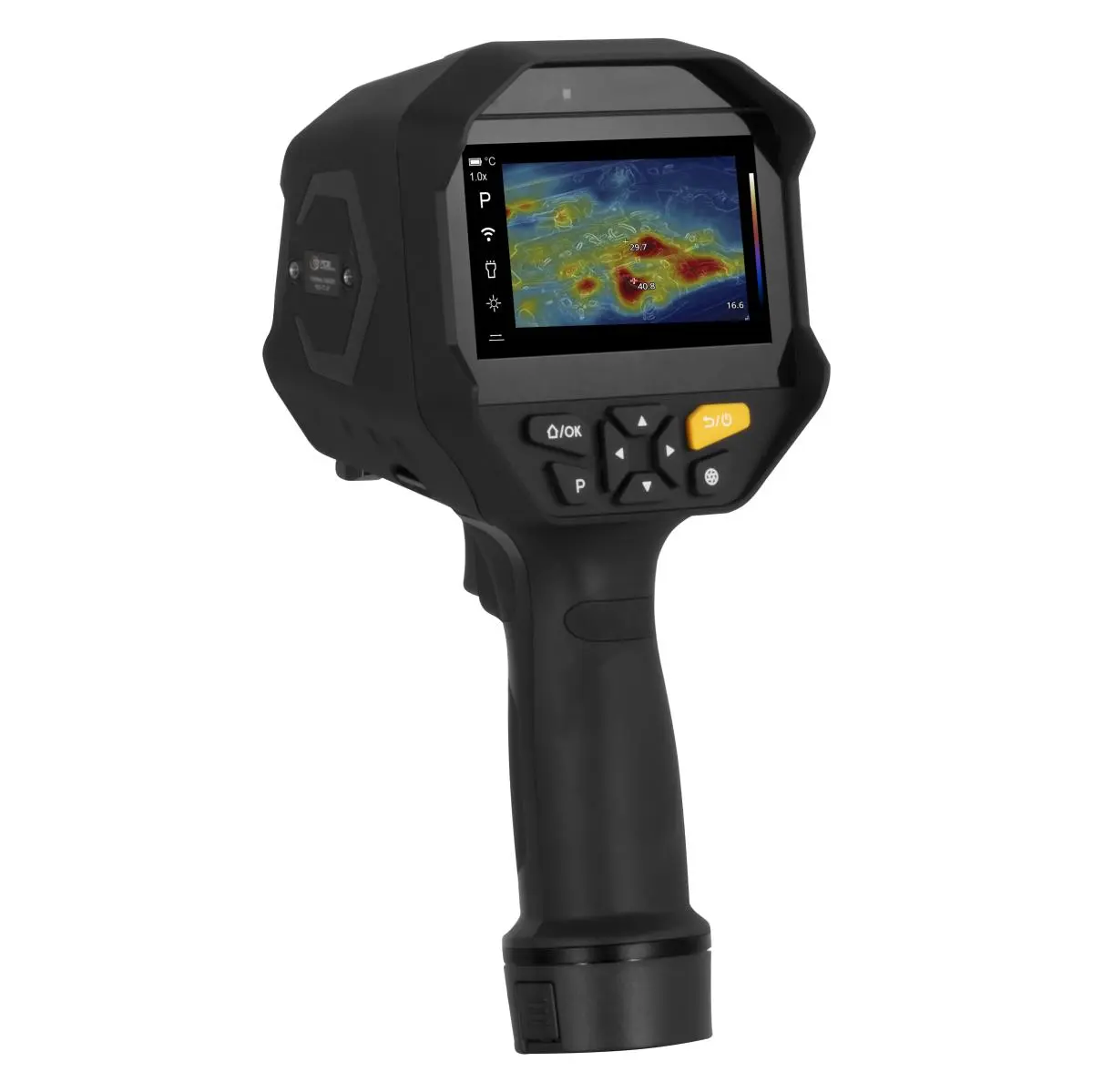

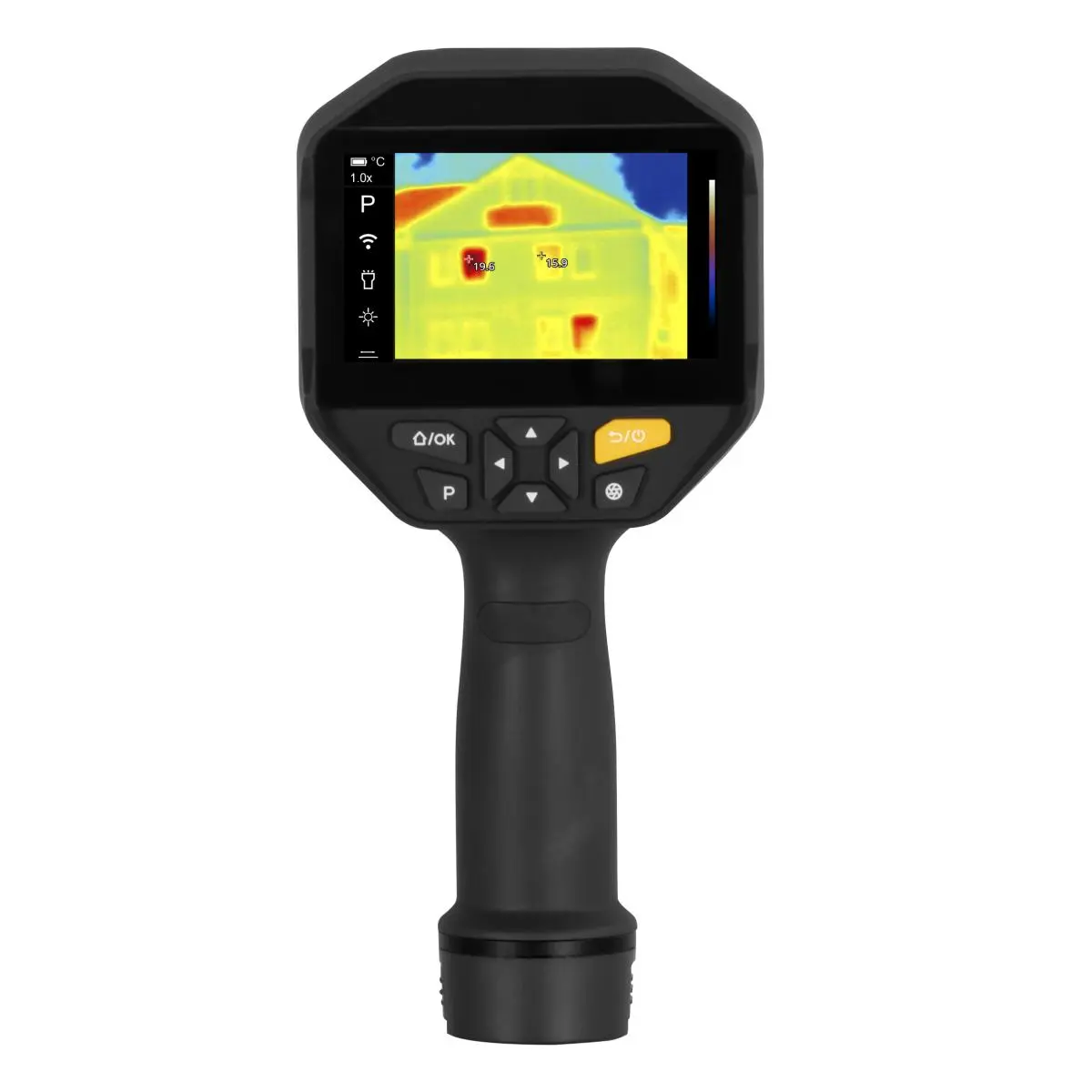

The Digital Thermometer features an 8-megapixel digital camera with image fusion, picture-in-picture function and integrated illumination for recordings in poor lighting conditions. The 4.3-inch LCD touch display with button operation ensures convenient use. To determine the measuring distance, the Digital Thermometer is equipped with laser distance measurement. The target distance can be manually set independently from 0.5 … 50 m to adapt the temperature measurement to the respective measuring distance. In addition, the camera has maximum temperature detection and minimum temperature detection for rapid localisation of temperature deviations.

The adjustable emissivity of 0.01 … 0.99 enables measurements on different materials. The camera operates in a wavelength range of 8 … 14 µm and has a frame rate of 50 Hz. For documentation, photos can be taken and saved in JPG format and videos in MP4 format. The internal 32 GB memory can be expanded via a Micro SD card up to 256 GB.

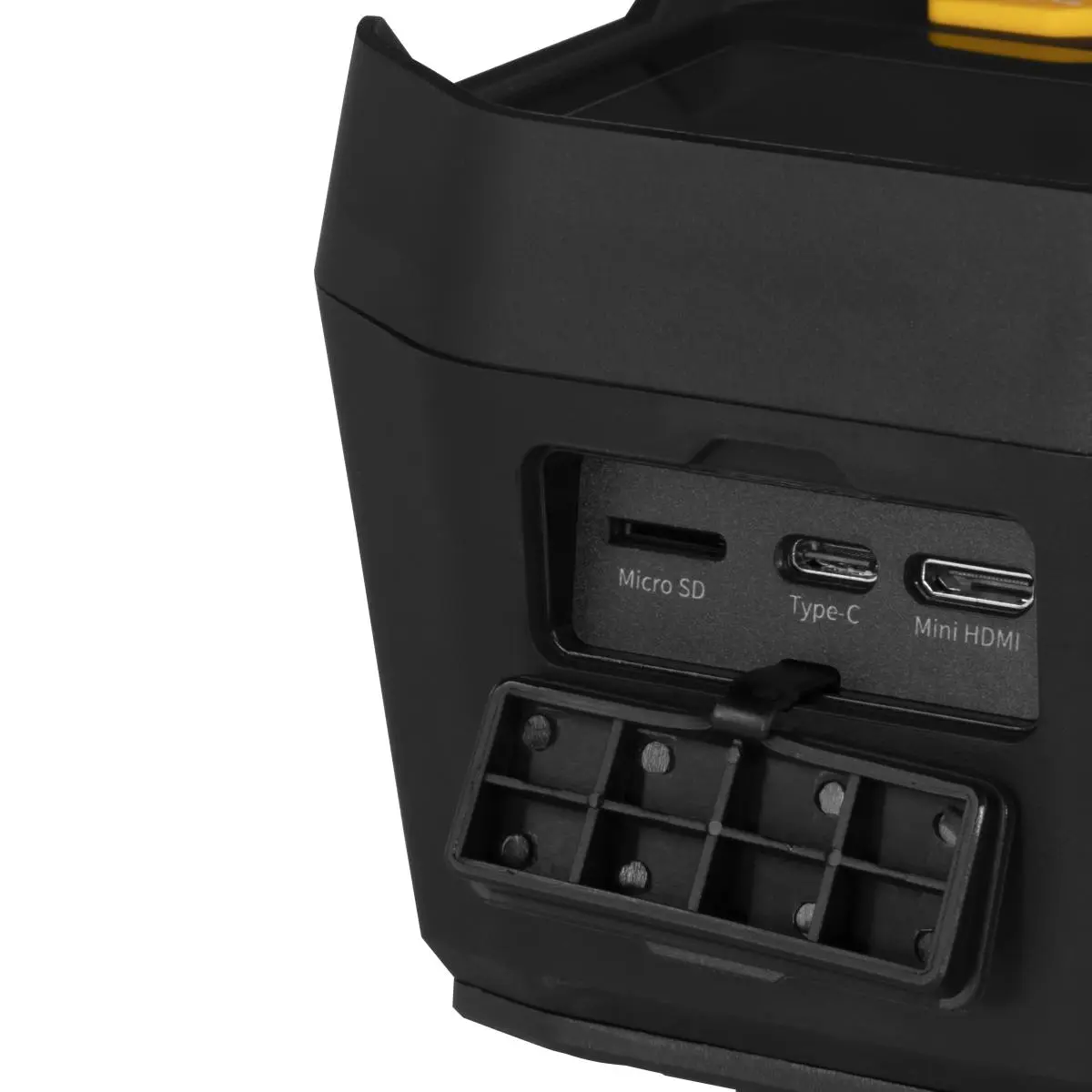

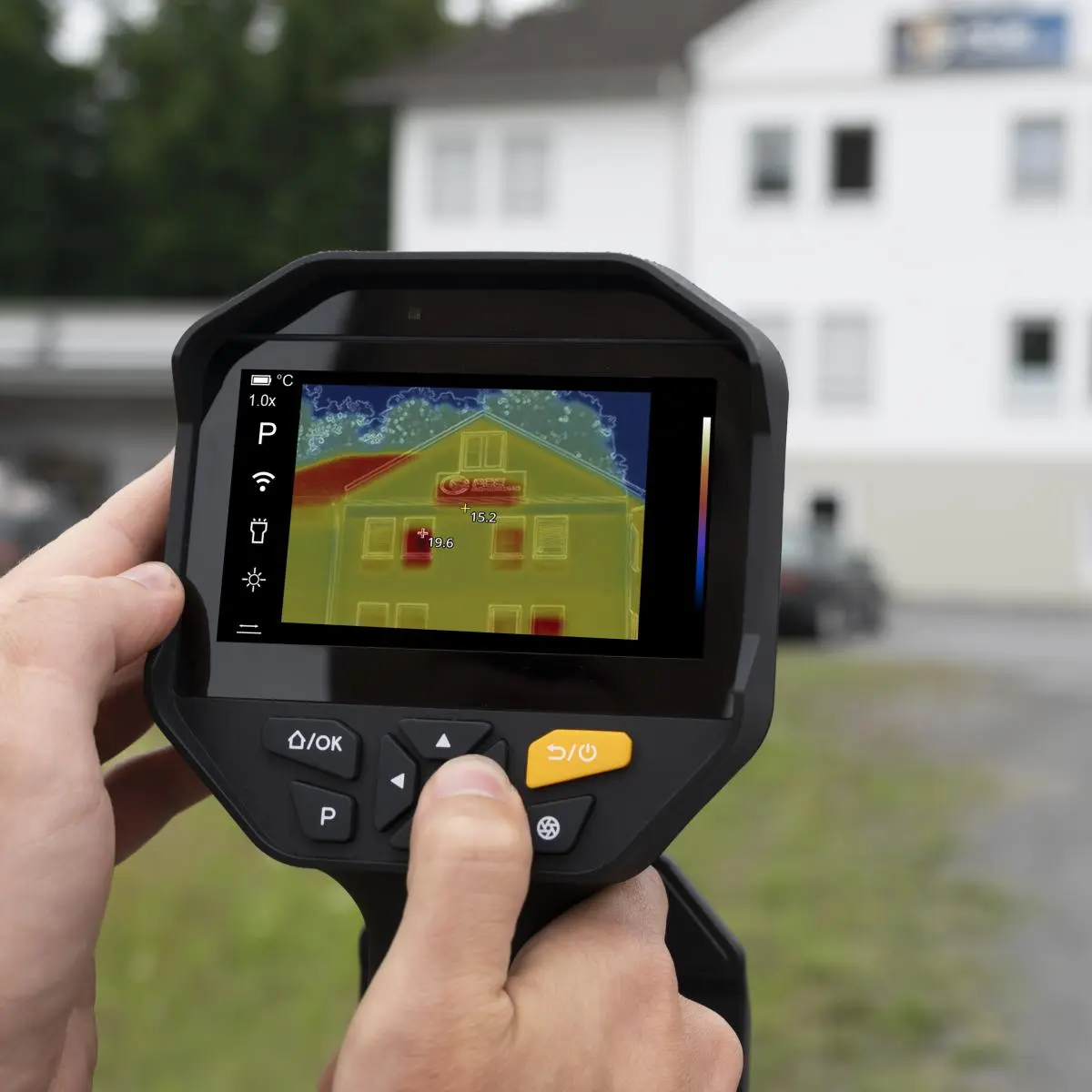

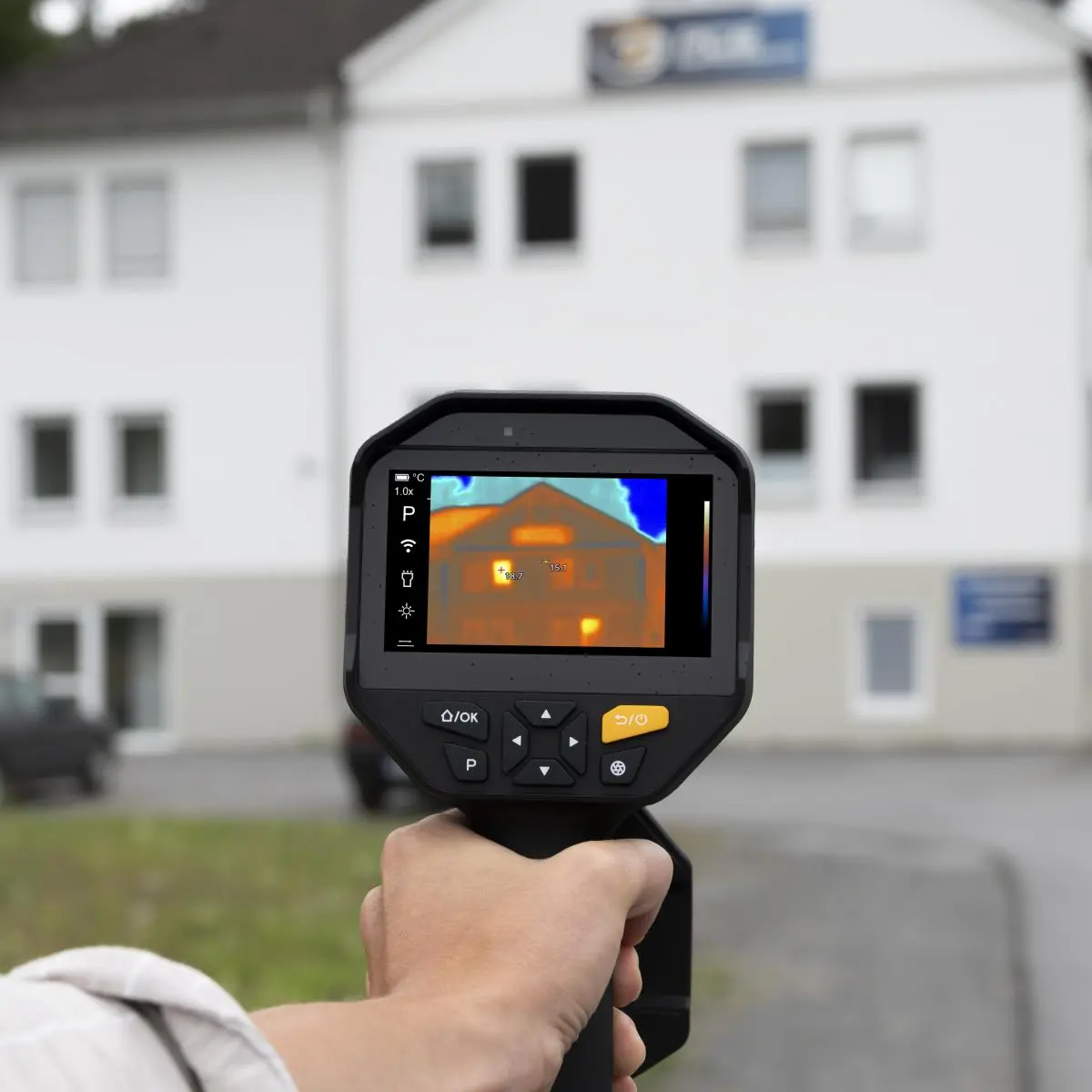

Data can be transferred via Wi-Fi, USB-C and Mini HDMI, and images can be displayed on external devices. Further functions include PC software for thermal image analysis, seven colour palettes, automatic shut-off, and optical and audible temperature alarms with adjustable upper and lower limits. When the set limits are reached, a visual and audible alarm is triggered. The Digital Thermometer is suitable for thermal inspection of electrical systems, machines, buildings and heating and air conditioning systems.
