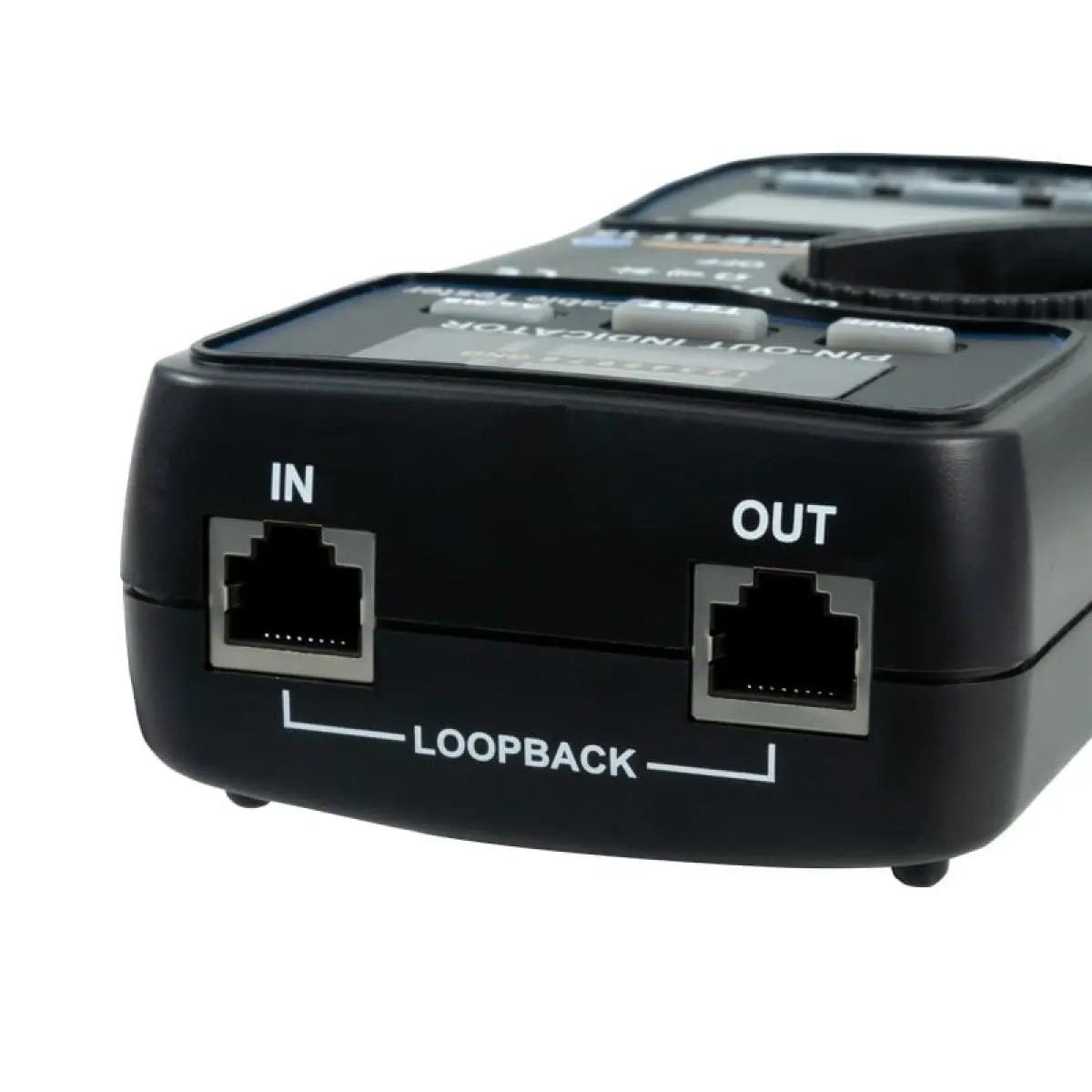

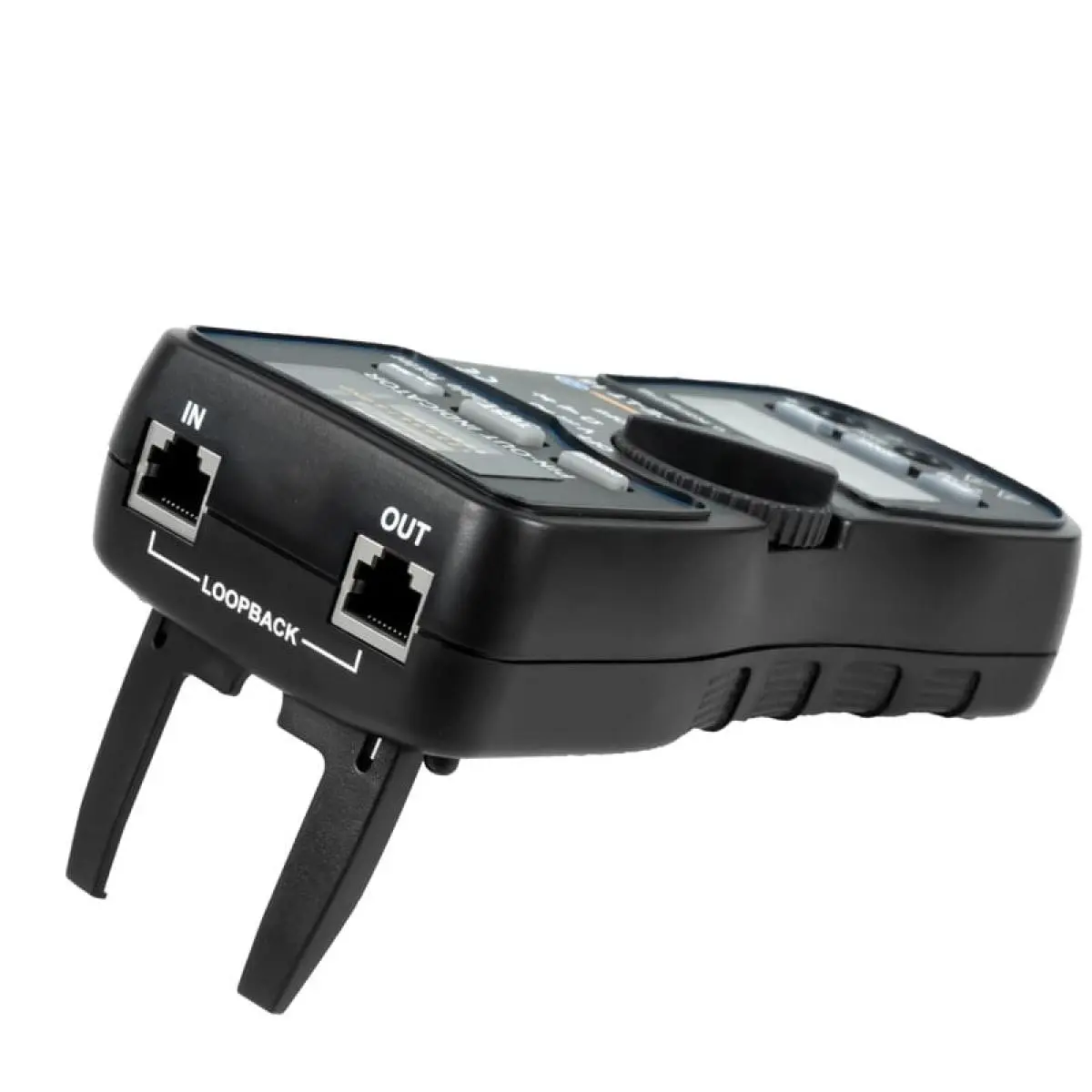

Digital Multimeter Connections

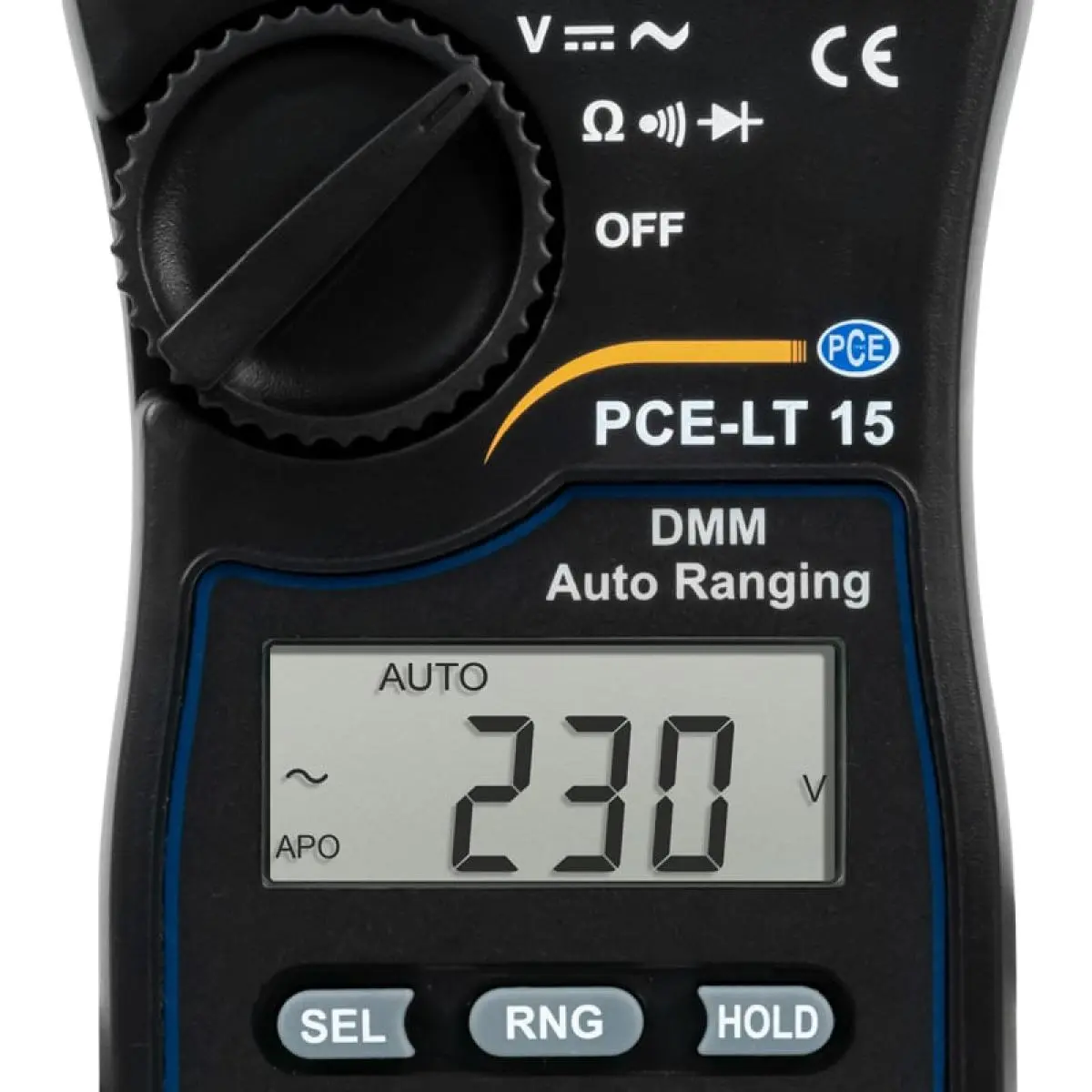

Digital Multimeter Display

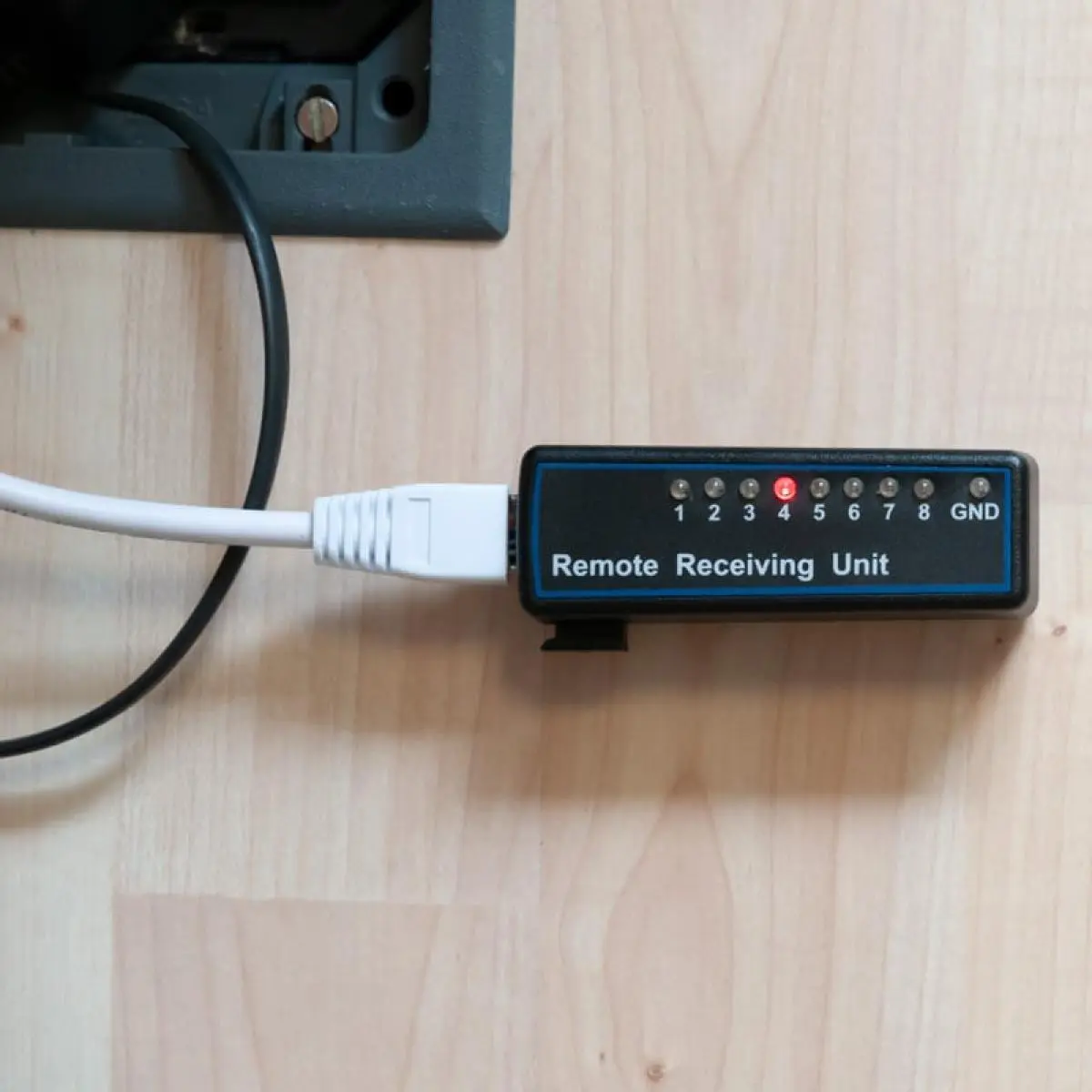

Digital Multimeter Sensor connection

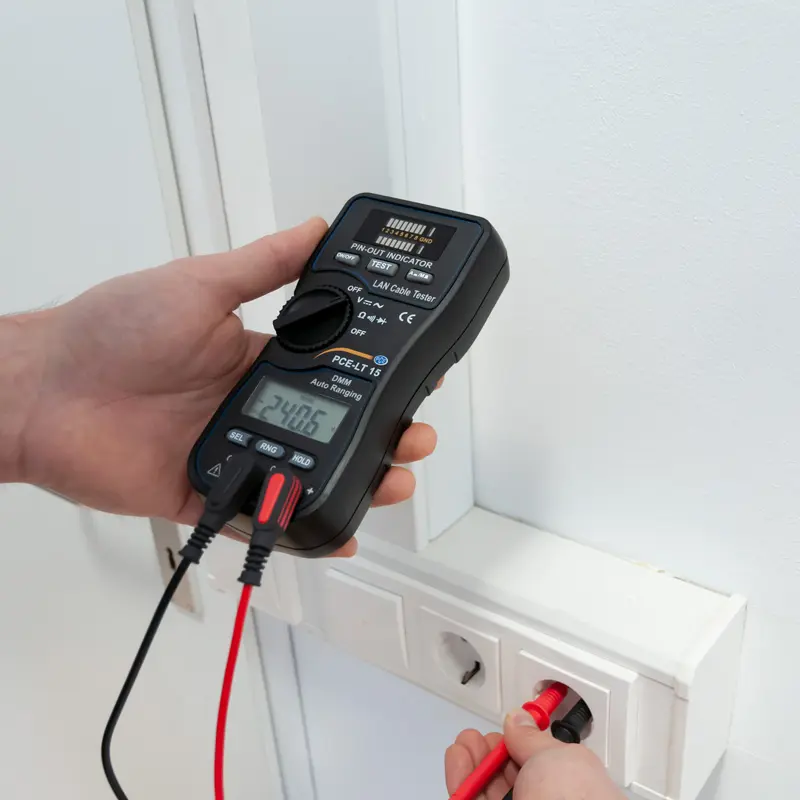

Digital Multimeter Application picture

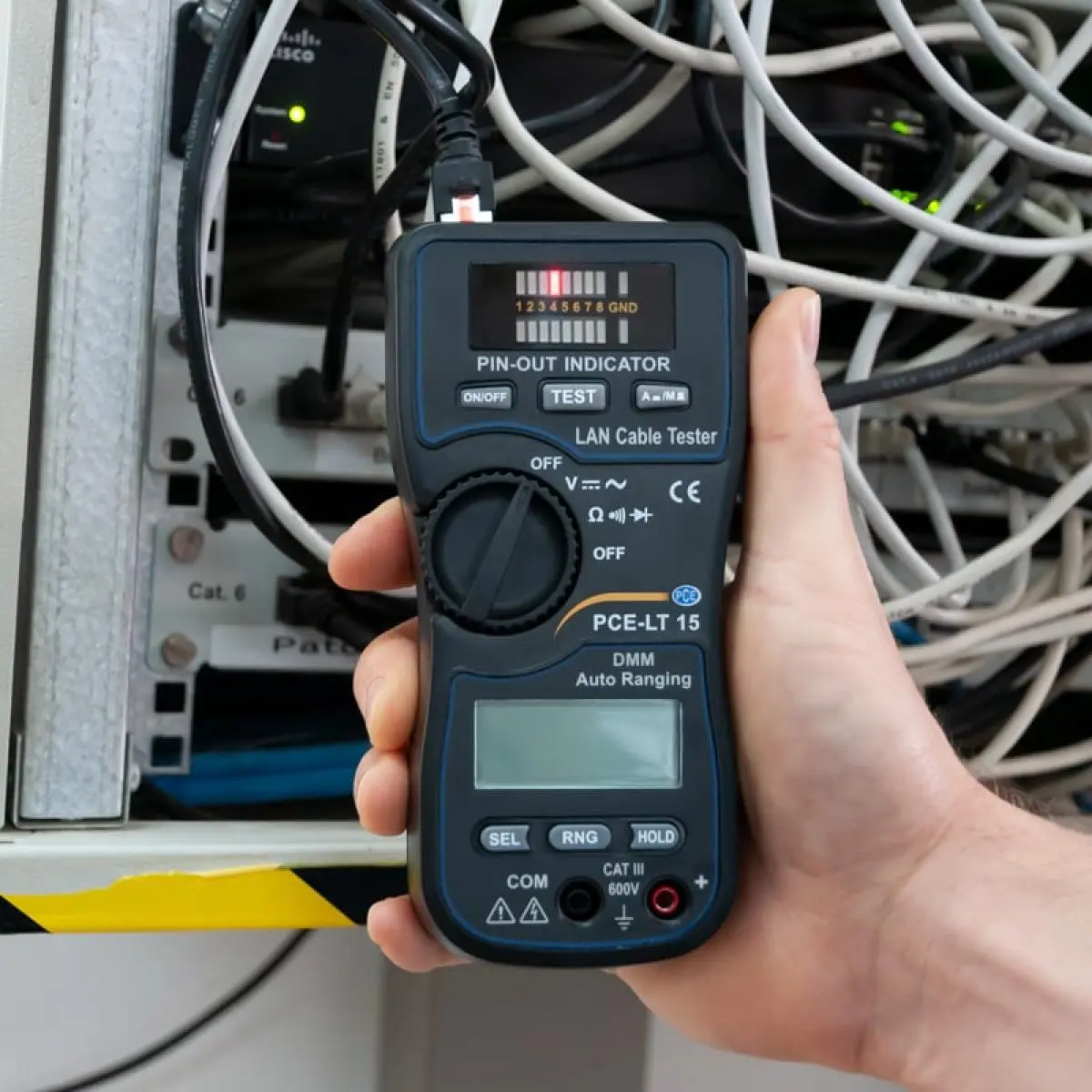

Digital Multimeter Application picture

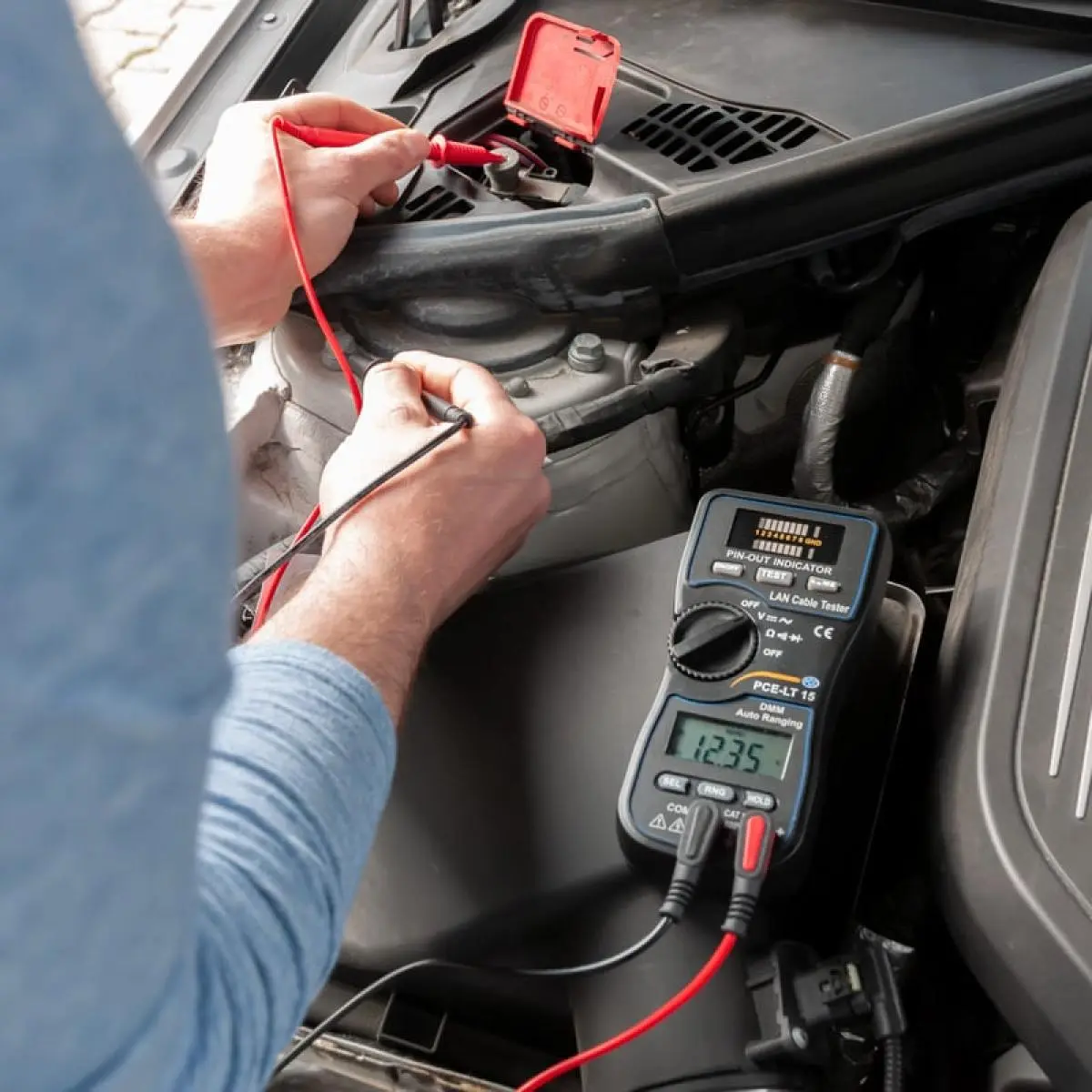

Digital Multimeter Application picture

Digital Multimeter PCE-LT 15

Order no.: PCE-LT 15
GTIN (EAN): 4250348719034
£ 62.00
£ 74.40
price ex. (VAT / delivery)
:
4250348719034
PCE-LT 15
Delivery time:1-2 working days

Description

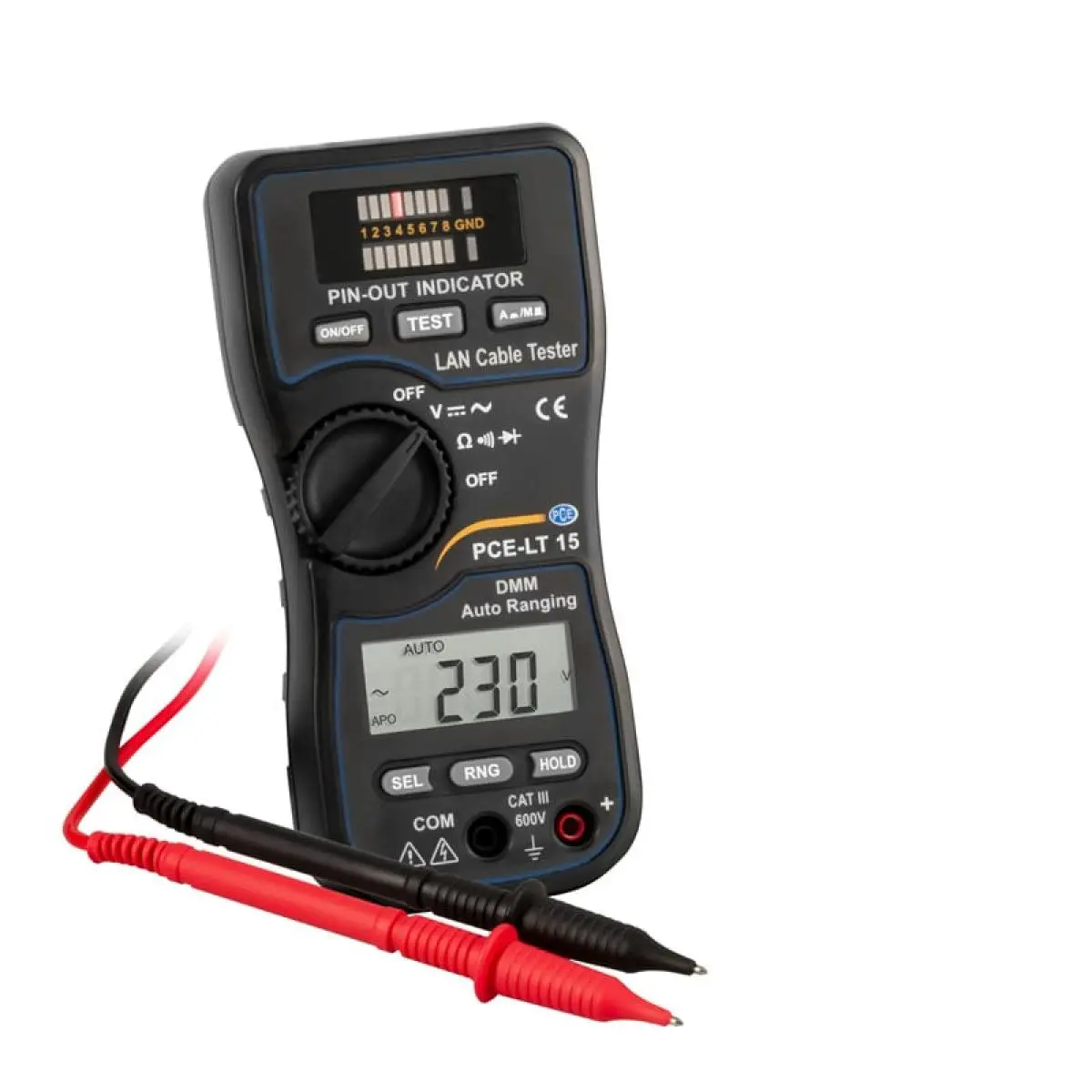

Digital Multimeter PCE-LT 15
LAN tester for fast network cable inspection / Combination device consisting of LAN tester and multimeter with voltage and resistance measurement

The LAN tester PCE-LT 15 is a combination device which detects configuration errors in the network and at the same time can be used as a multimeter. Thus, the periphery of a network can be quickly checked with the LAN tester. With the LAN tester PCE-LT 15 it is possible to check 8-pin data cables with RJ-45 connectors for continuity, open connections, and short circuits. In addition to the LAN test function, the LAN Tester can also measure DC and AC voltages.

With the LAN tester, which also serves as a multimeter, it is possible to perform a continuity test with buzzer and a diode test. The LAN tester is also a device that identifies the most common network installation errors. The two-row LEDs successively indicate the pin assignment of the cable to be tested. In the event of a short circuit, more than two LEDs light up simultaneously.

Highlights


Specification

Direct voltage DC
Measuring range  0 ... 400 mV
Resolution  0,1 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range  0 ... 4 V
Resolution  1 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range  0 ... 40 V
Resolution  10 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range  0 ... 400 V
Resolution  100 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range  0 ... 1000 V
Resolution  1 V
Accuracy  ±(0.5 % of Rd +3 digits)

AC voltage
Measuring range  0 ... 400 mV
Resolution  0,1 mV
Accuracy  ±(1 % of Rd +5 digits)

AC voltage
Measuring range  0 ... 4 V
Resolution  1 mV
Accuracy  ±(1 % of Rd +5 digits)

AC voltage
Measuring range  0 ... 40 V
Resolution  10 mV
Accuracy  ±(1 % of Rd +5 digits)

AC voltage
Measuring range  0 ... 400 V
Resolution  100 mV
Accuracy  ±(1 % of Rd +5 digits)

AC voltage
Measuring range  0 ... 750 V
Resolution  1 V
Accuracy  ±(1 % of Rd +5 digits)

Resistance
Measuring range  0 ... 400 Ω
Resolution  0,1 Ω
Accuracy  ±(1.2 % of Rd +3 digits)

Resistance
Measuring range  0 ... 4 kΩ
Resolution  1 Ω
Accuracy  ±(1.2 % of Rd +3 digits)

Resistance
Measuring range  0 ... 40 kΩ
Resolution  10 Ω
Accuracy  ±(1.2 % of Rd +3 digits)

Resistance
Measuring range  0 ... 400 kΩ
Resolution  100 Ω
Accuracy  ±(1.2 % of Rd +3 digits)

Resistance
Measuring range  0 ... 4 M Ω
Resolution  1 kΩ
Accuracy  ±(1.2 % of Rd +3 digits)

Resistance
Measuring range  0 ... 40 M Ω
Resolution  10 kΩ
Accuracy  ±(2% v.Mw. +4 Digits)

General technical data
Measuring functions  Continuity test, HOLD
Display type  LCD
Display size  1,9 in
Interface  RJ45
Safety standard  CAT III 600V
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  -10 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  165 x 82 x 45 mm
Other dimensions  Remote unit: 75 x 30 x 25 mm
Weight  245 g
Other weights  Remote unit: 30 g

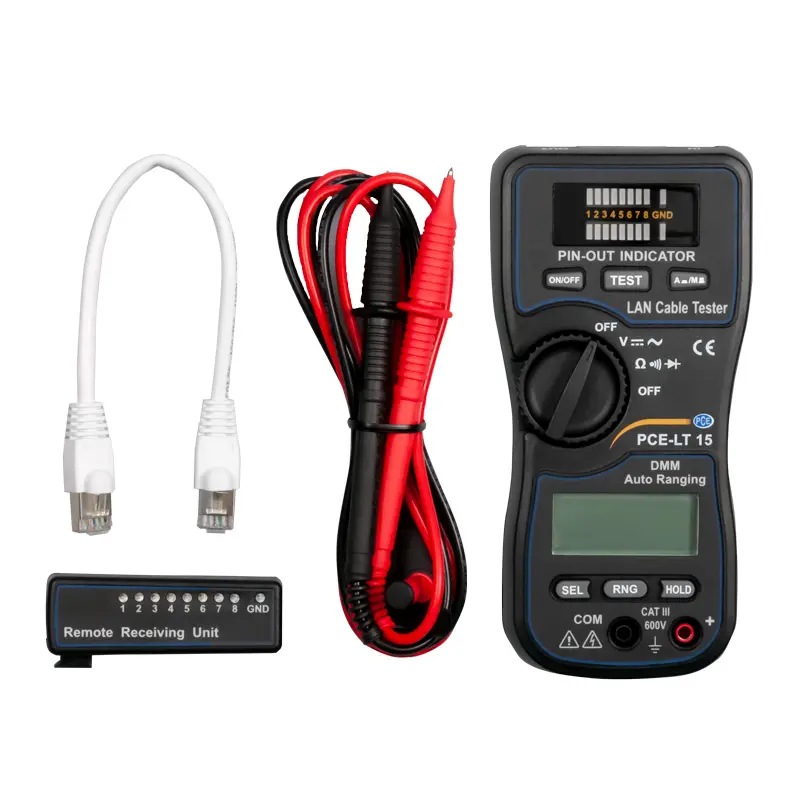

Delivery Scope
