Order no.: PCE-SLD 10-ICA

Data Logger with USB Interface PCE-SLD 10-ICA Incl. ISO Calibration Certificate

ISO Calibration
£ 406.00
£ 487.20
:
4250348726681
PCE-SLD 10-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

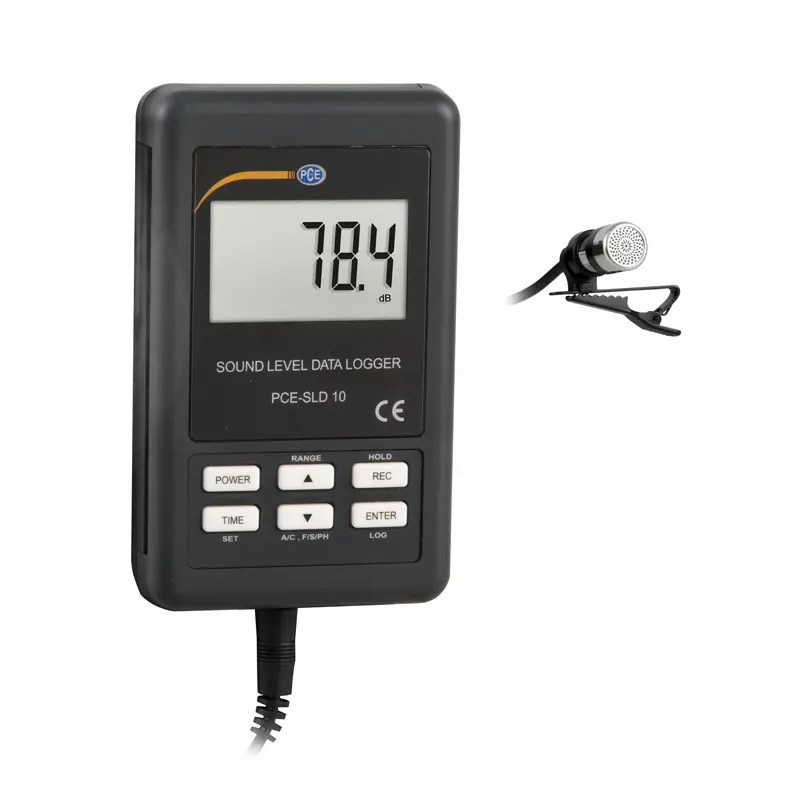

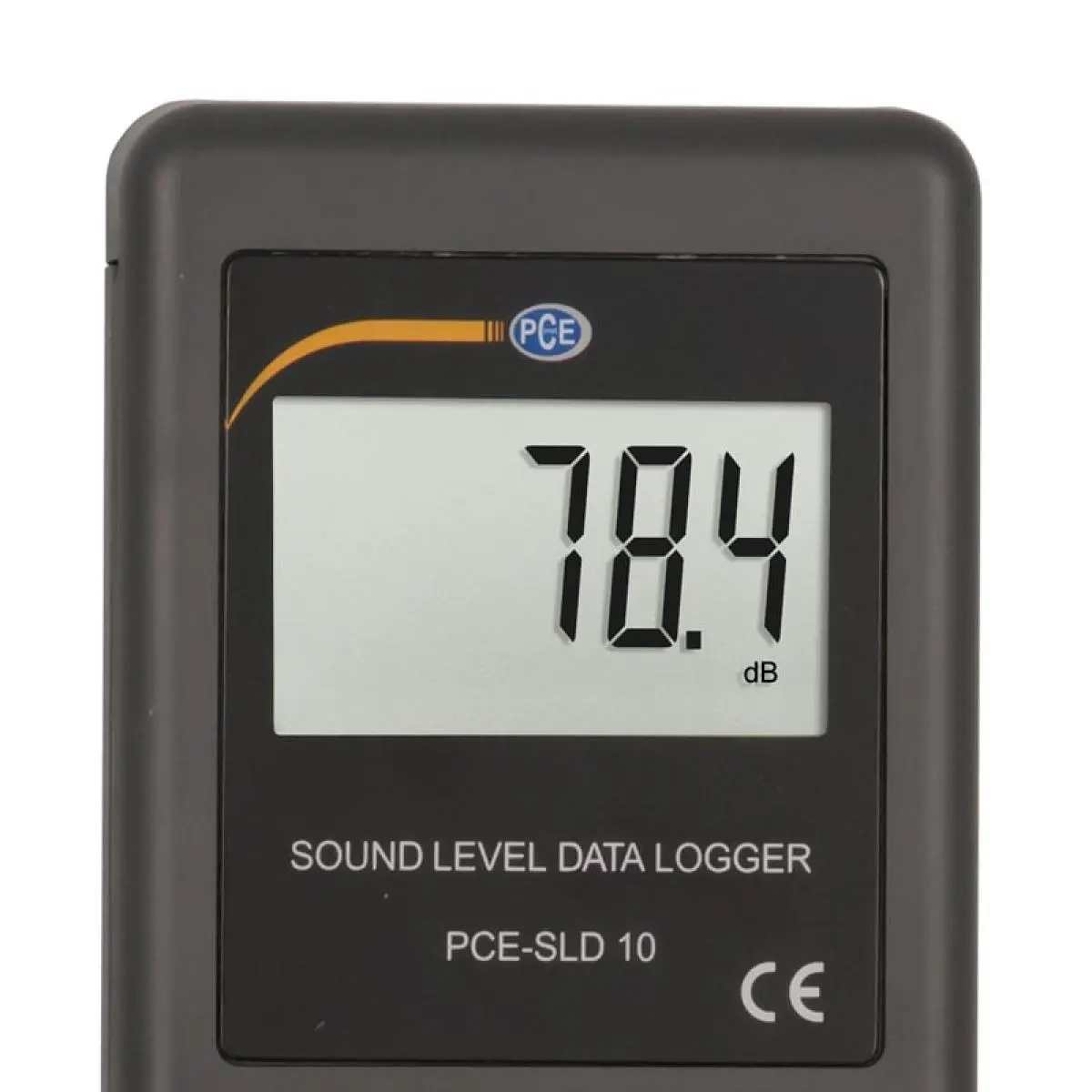

Data Logger with USB Interface PCE-SLD 10-ICA incl. ISO calibration certificate
Sound level data logger with 4 ... 20-mA output / Memory on SD card / Excel data logger / A & C rating / Large LC display

The data logger with USB interface is used for permanent monitoring of the sound level. In addition to storing the measured values, the sound level data logger is able to display the measured values ​​on a display and output them as a 4 ... 20-mA analog value. The sound level data logger has a wide measuring range of 30 ... 130 dB. Frequency weighting is done in A or C depending on the selected measurement mode. Alternatively, the sound level data logger can measure the sound level in fast or slow mode.

The measured values ​​are stored by the data logger with USB interface as an Excel file on a memory card. This has the advantage that after a measurement, the SD memory card can be easily removed from the sound level data logger and the data can be evaluated without additional software. The PCE-SLD 10 sound level data logger is powered by 6 x 1.5V AAA batteries. For long-term operation, an external plug-in power supply is included in the sound level data logger.

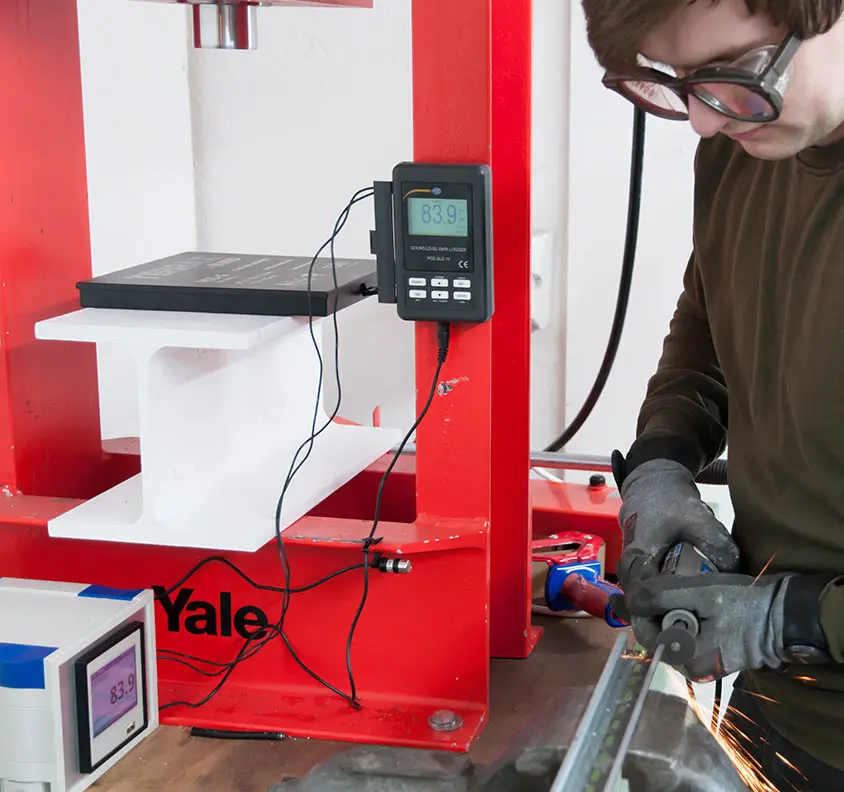

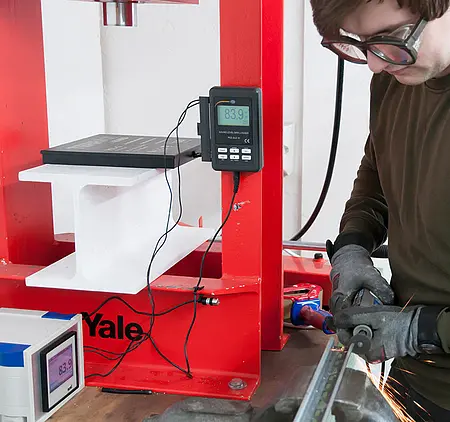

The data logger with USB interface is used wherever the noise level has to be permanently monitored and a controller is to carry out further actions. In a production hall, for example, this can be the visualization of the sound level on a large display. Or, in conjunction with switchgear, closing windows and doors when the sound level is exceeded.

Highlights

- Wide measuring range up to 130 dB
- Analog output with 4 ... 20-mA
- Data interface
- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation

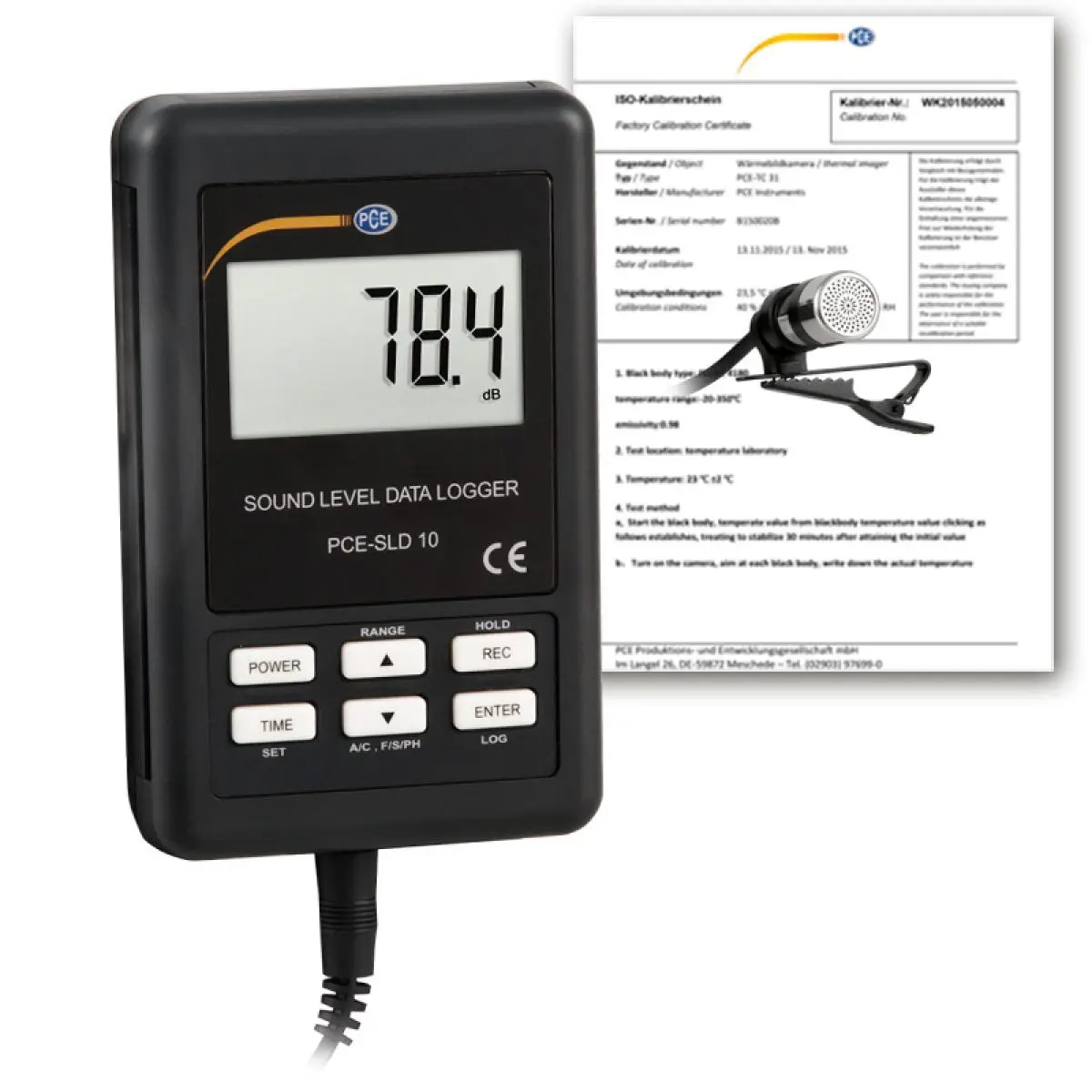

- Incl. ISO calibration certificate

Specification

Measuring range 30 ... 130 dB
Measurement accuracy Based on class 2 according to IEC61672
Resolution 0.1 dB
Frequency A & C
Term review Fast: 125 ms
  Slow: 1 s
Frequency range 31.5 Hz ... 8 kHz
Measuring range selection 30 ... 130 dB (auto)
  30 ... 80 dB
  50 ... 100 dB
  80 ... 130 dB
Measurement functions Hold by pressing a button
  Peak Hold
  Max-Min
Analog output

4 ... 20-mA



Note: The scaling of the analog output depends on the selected measuring range.



Adjustment Via optional calibrator in an internal menu
Data storage SD card max 16 GB
Storage rate 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
Memory error <0.1% of the total stored data
Refresh rate from the display              About 1 s

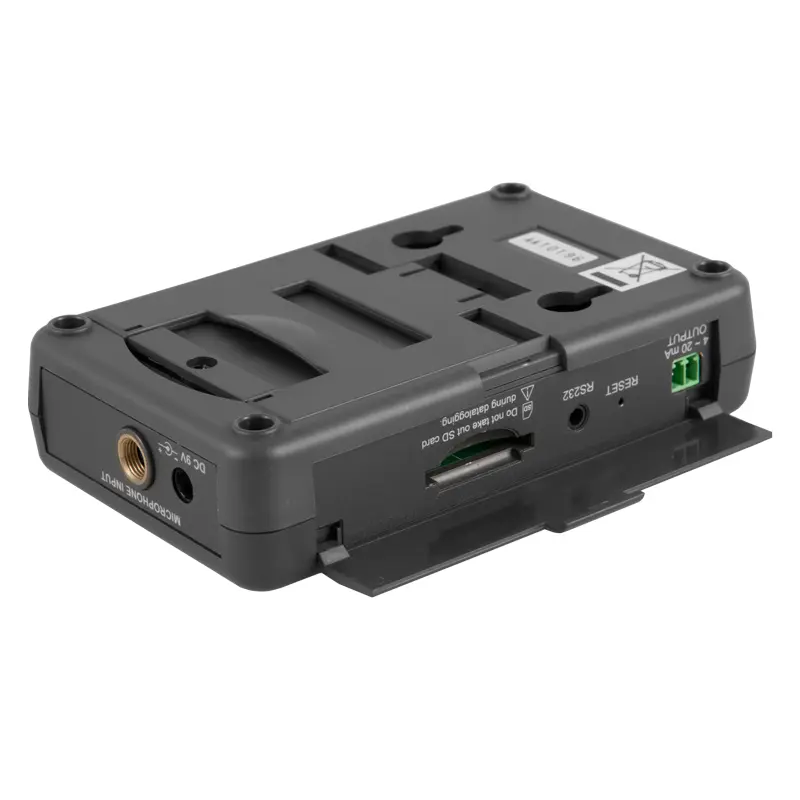

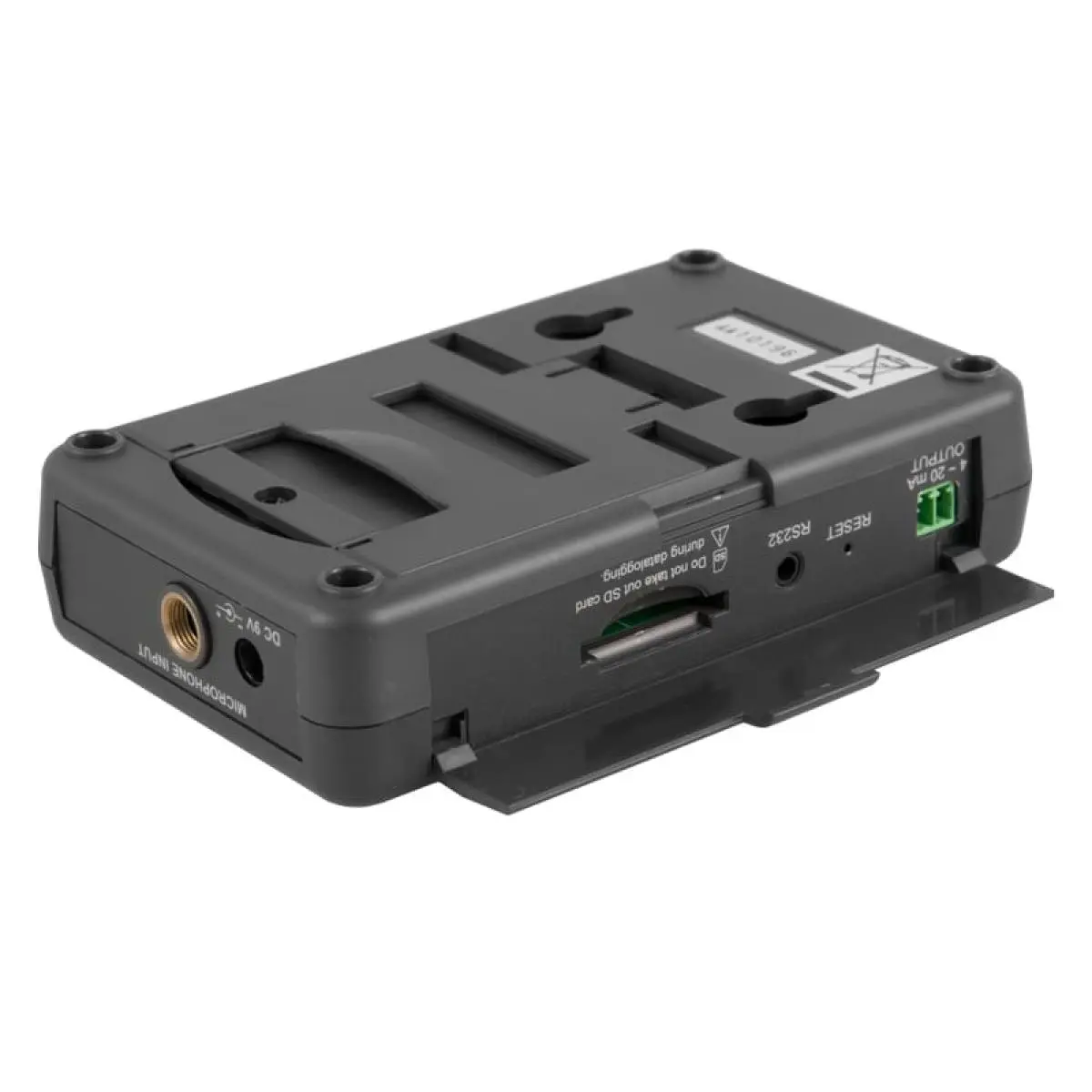

Interface Serial, for live visualization on computers
  (Data cable SOFT-LUT-USB sold separately)
Power supply 6 x 1.5V AAA batteries
  9V / 1 A power adapter
Automatic shutdown After 10 minutes without operation
  Disabled when in power supply mode
Operating conditions 0 ... 50°C / 32 ... 122°F,  max. 85 rh
Weight About 230 g / < 1 lb
Dimensions Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
  Microphone: 12.5 x 32 mm
  Cable length: approx. 120 cm

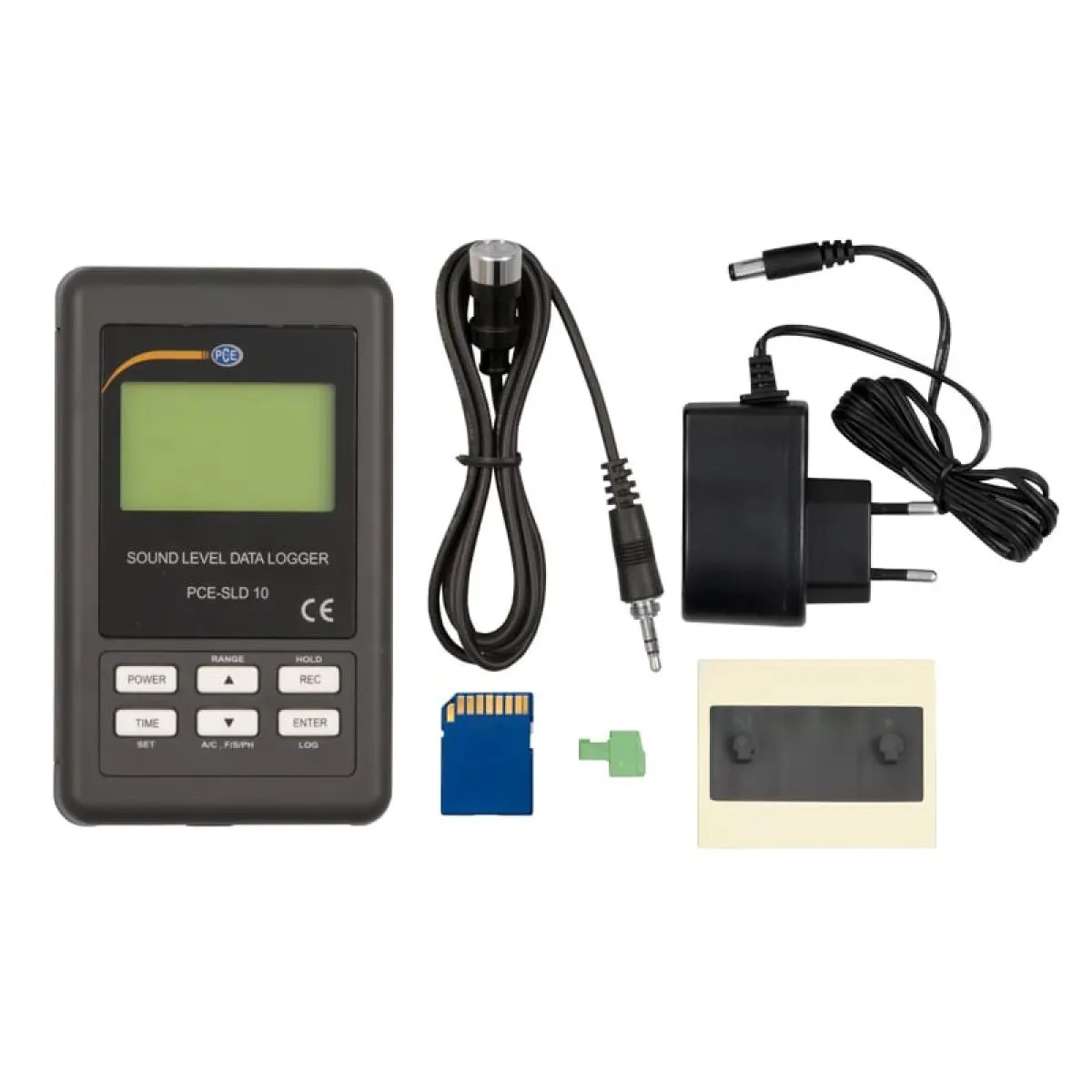

Delivery Scope

1 x Data Logger with USB Interface PCE-SLD 10
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 ... 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
1 x ISO calibration certificate
