Temperature Data Logger PCE-T 330

Order no.: PCE-T 330

Question / Callback

Delivery time: 1-2 working days

Two-channel thermometer / Battery life of approx. 190 hours /

Different file formats / No software required / Storage for 20,000 data points

The temperature data logger has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the thermometer.

With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.

- Two-channel temperature data logger

- For thermocouples type K, T and J

- Long battery life

- Data storage for 20,000 measuring points

- File format TXT, CSV, XLS and DLG

- Rubberized protective cover

Temperature Sensor	Measuring range	Resolution	Accuracy
Type K	-200 ... 1370 °C / -328 … +2498 °F	0.01 °C	±0.3 % of rdg. +0.4 °C
Type T	-200 ... 400 °C / -328 … 752 °F	0.01 °C	±0.3 % of rdg. +0.4 °C
Type J	-200 ... 1200 °C / -328 … 2192 °F	0.01 °C	±0.3 % of rdg. +0.4 °C

Units		°C / °F
Number of channels		2
Measuring rate		2 Hz
Data storage		15,328 kB for 20,000 data points
File formats		TXT, CSV, XLS, DLG
Storage interval		1 .... 86,399 s
Interface		Micro-USB
Power supply		3 x 1.2 V AAA rechargeable batteries
		3 x 1.5 V AAA batteries
Battery life		ca. 190 hours
		(without backlight, battery capacity
		1200 mAh, ambient temperature 25 °C)
Operating conditions		-10 ... 50 °C / 14 … 122 °F
Storage conditions		-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions		173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weight		ca. 226 g / 7.9 oz

1 x Temperature Data Logger PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual

man-temperature-data-logger-pce-t-330-de-en-1466095.pdf

Manual

Accessories

Order no.: PCE-SP-202

Surface temperature sensor PCE-SP-202

Ideal for measuring surface temperature

- Measuring range: up to 500 °C / 932 °F
- Type: K
- Spiral cable: 2000 mm / 78.7"
- Handle: ABS / rubber
- Length: 160 mm / 6.3"
- Sensor head diameter: 30 mm / 1.1"

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

Manufacturer: PCE Instruments

£ 41.00

Price excl. VAT &. delivery
2 year Warranty

Surface temperature roller sensor PCE-SP-101

Order no.: PCE-SP-101

Surface temperature roller sensor PCE-SP-101

Surface temperature roller sensor for use on moving or rotating, smooth surfaces

- Measuring range: -50 to 250 °C / -58 to 482 °F
- Response time: <5 seconds
- Type: K
- Sensor length: 360 mm / 14.1" (without handle)
- Sensor length: 480 mm / 18.9" (with handle)
- Sensor head width: 45 mm / 1.7"
- Sensor head length: 40 mm / 1.5"
- Accuracy class: Class Ⅰ

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

Manufacturer: PCE Instruments

£ 67.00

Price excl. VAT &. delivery
2 year Warranty

Calibration certificate for 2-channel thermometer

Order no.: CAL-T2

Calibration certificate for 2-channel thermometer

ISO calibration certificate for thermometers. This is often required in companies to comply with DIN ISO 9000.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Catalogue: Measuring Instruments / Test Meters / Digital Thermometer

Manufacturer: esz AG calibration & metrology

£ 115.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-RA330-5

Temperature Contact Sensor TF-RA330-5

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 5 m / 16.4 ft
- Thermocouple: Type T

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

£ 44.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-RA330-3

Temperature Contact Sensor TF-RA330-3

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 3 m / 9.8 ft
- Thermocouple: Type T

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

£ 40.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-RA330

Temperature Contact Sensor TF-RA330

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 1 m / 3.2 ft
- Thermocouple: Type T

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

£ 35.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-551

Miniature Connector TF-551

Female miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

Manufacturer: Airflow Lufttechnik GmbH

£ 6.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-550

Miniature Connector TF-550

Male miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

Manufacturer: Airflow Lufttechnik GmbH

£ 6.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TF-524

Screw-on Sensor TF-524

Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Length: 1 m
- Washer interior: 8 mm
- Thermocouple: Type K

Catalogue: Measuring Instruments / Test Meters / Temperature Sensor

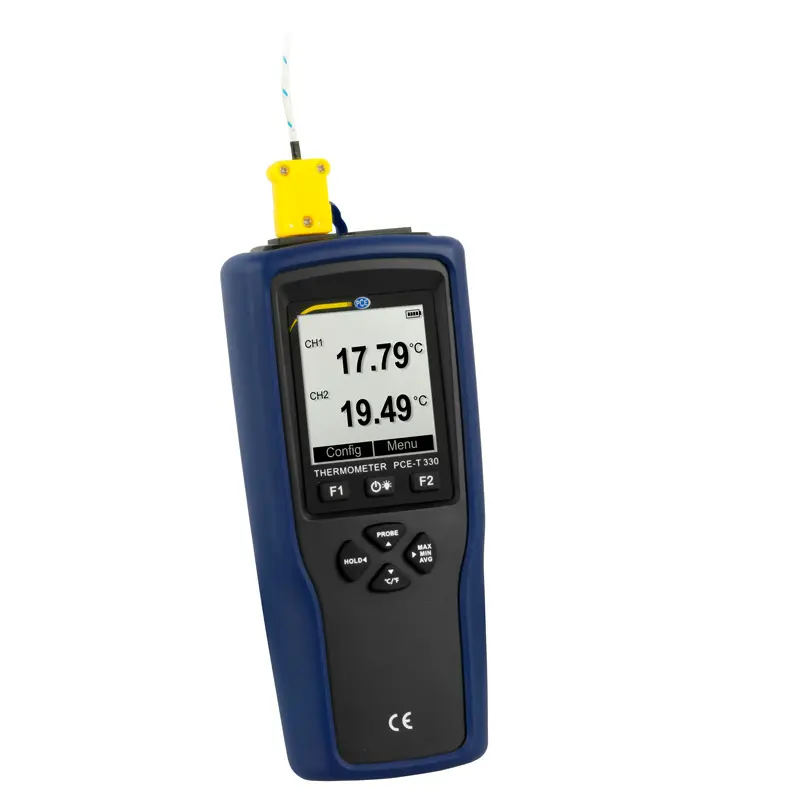

Temperature Data Logger PCE-T 330

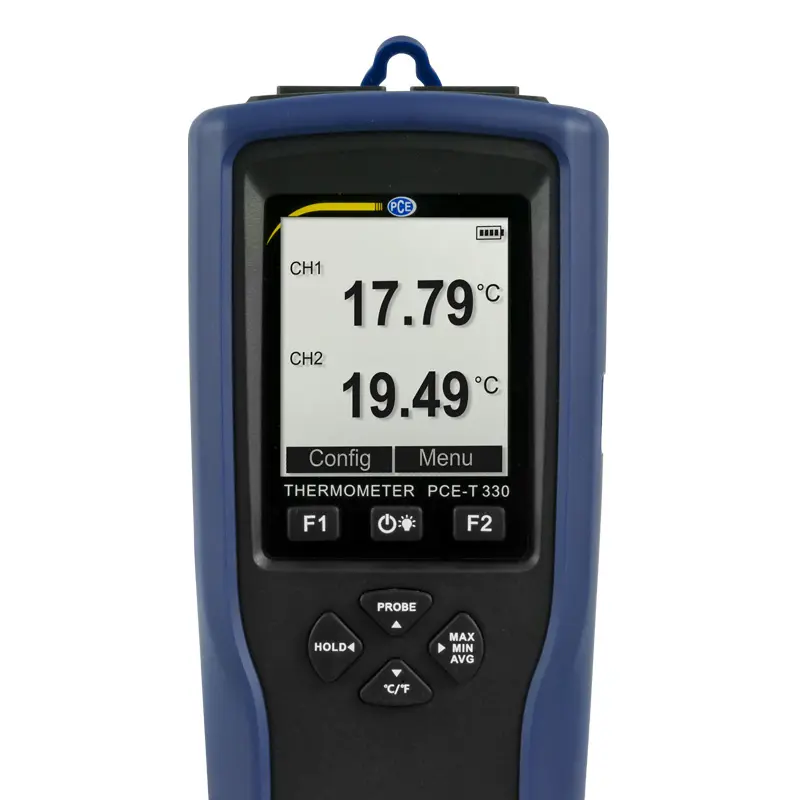

Temperature Data Logger PCE-T 330 display

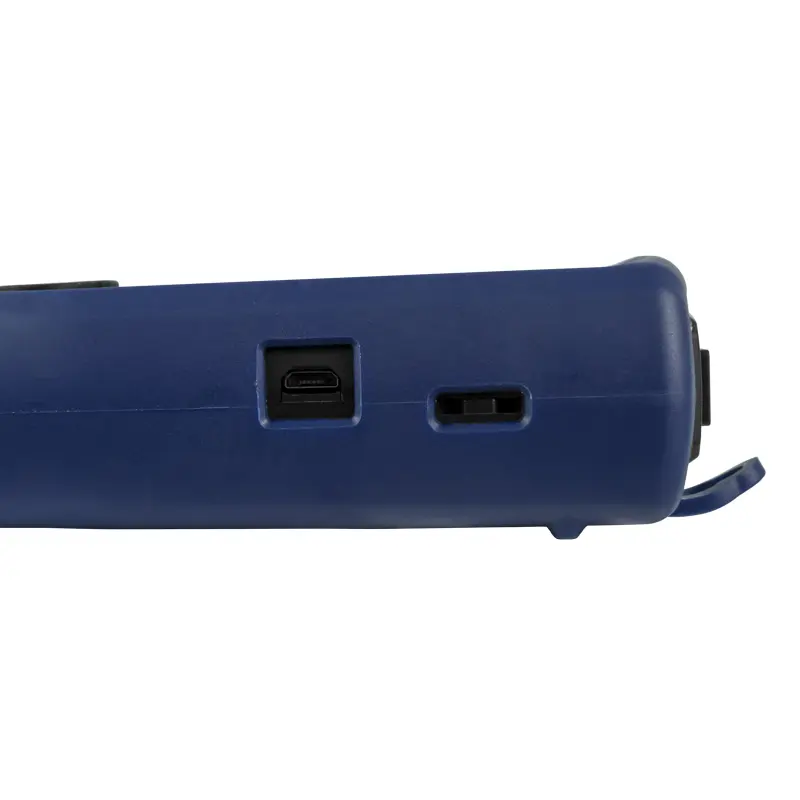

Temperature Data Logger PCE-T 330 USB

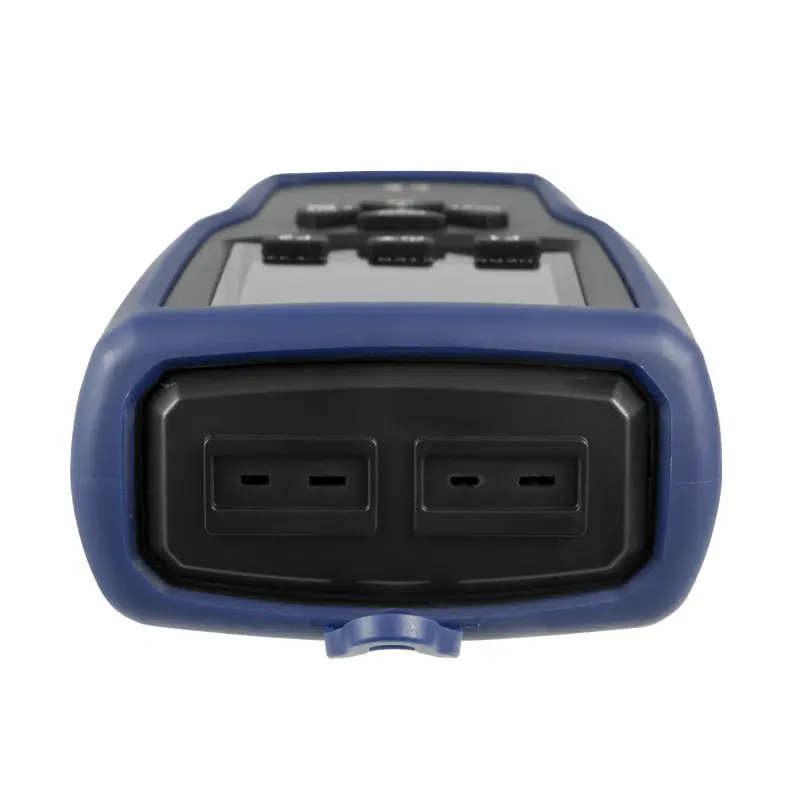

Temperature Data Logger PCE-T 330 connections

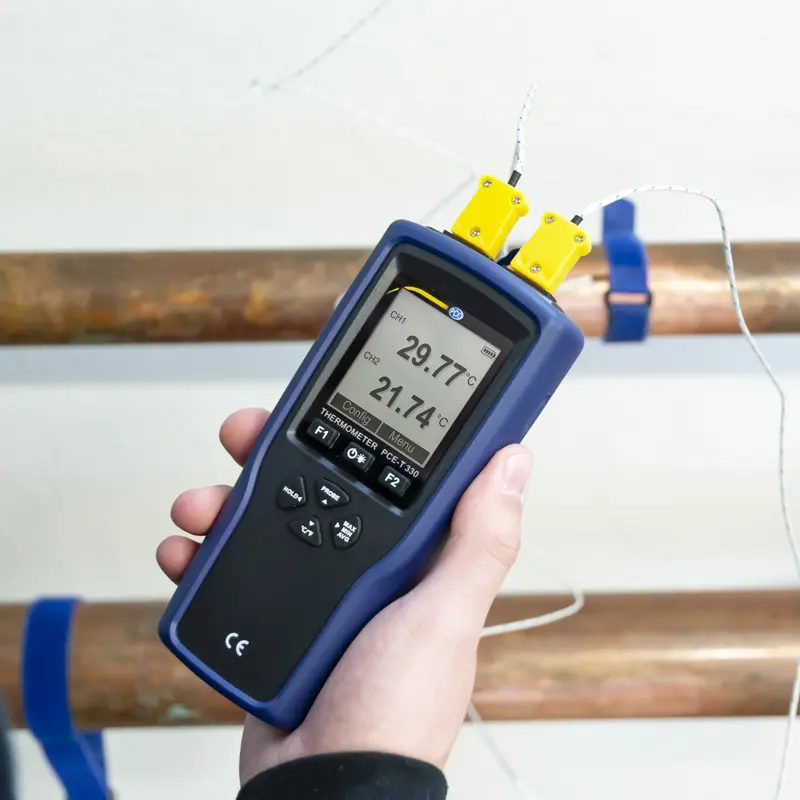

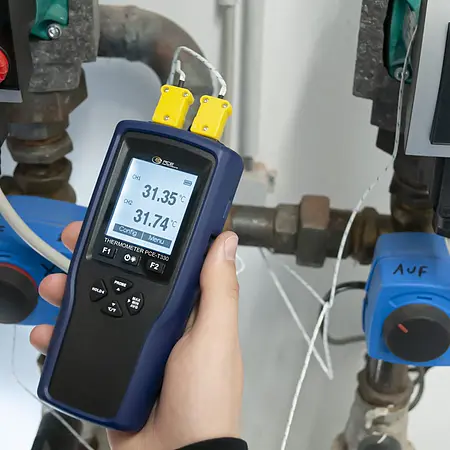

Temperature Data Logger PCE-T 330 application

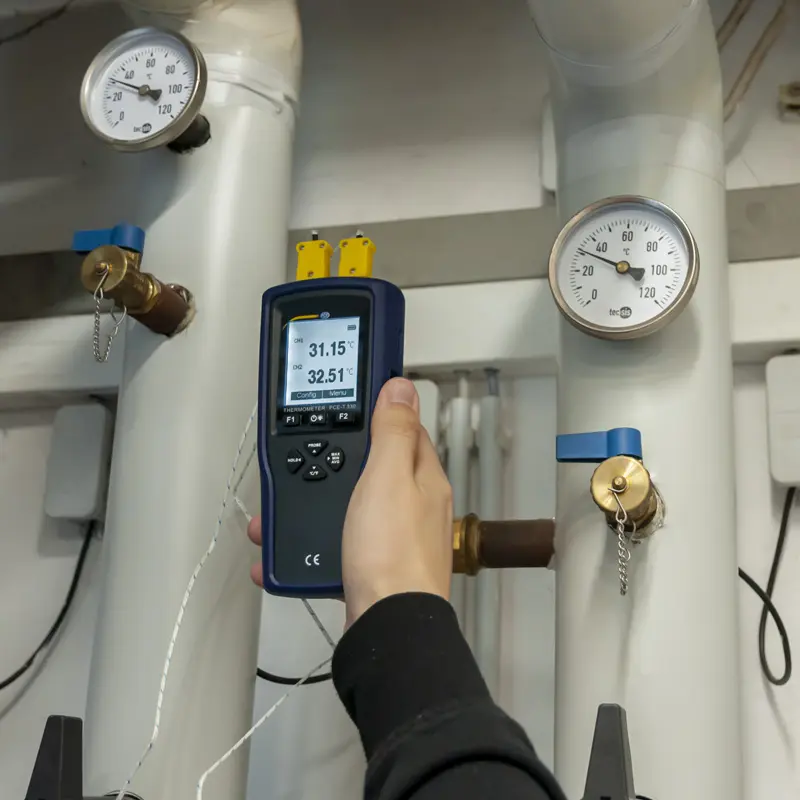

Temperature Data Logger PCE-T 330 application

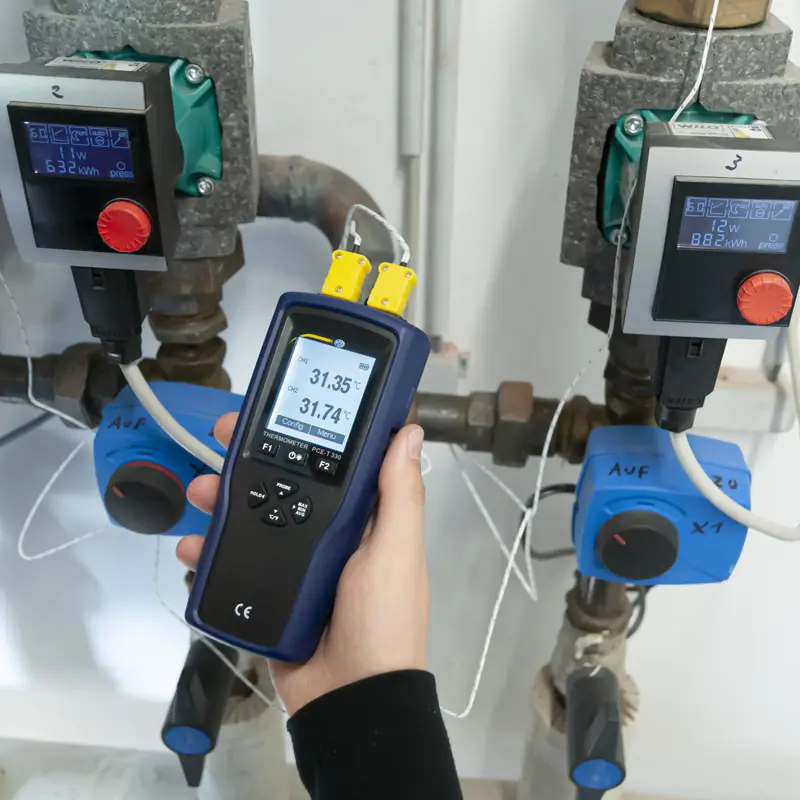

Temperature Data Logger PCE-T 330 application

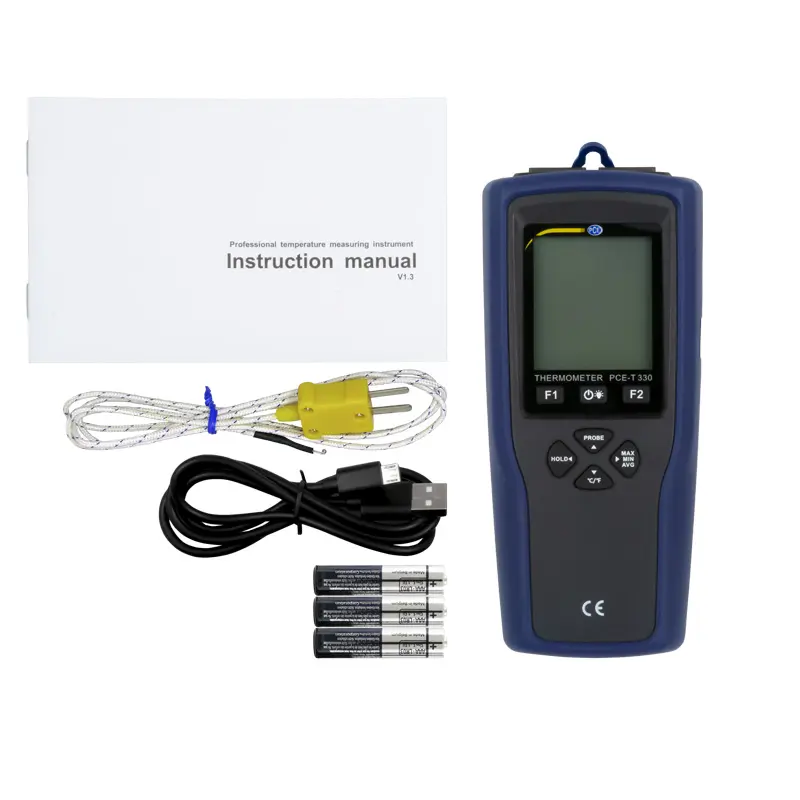

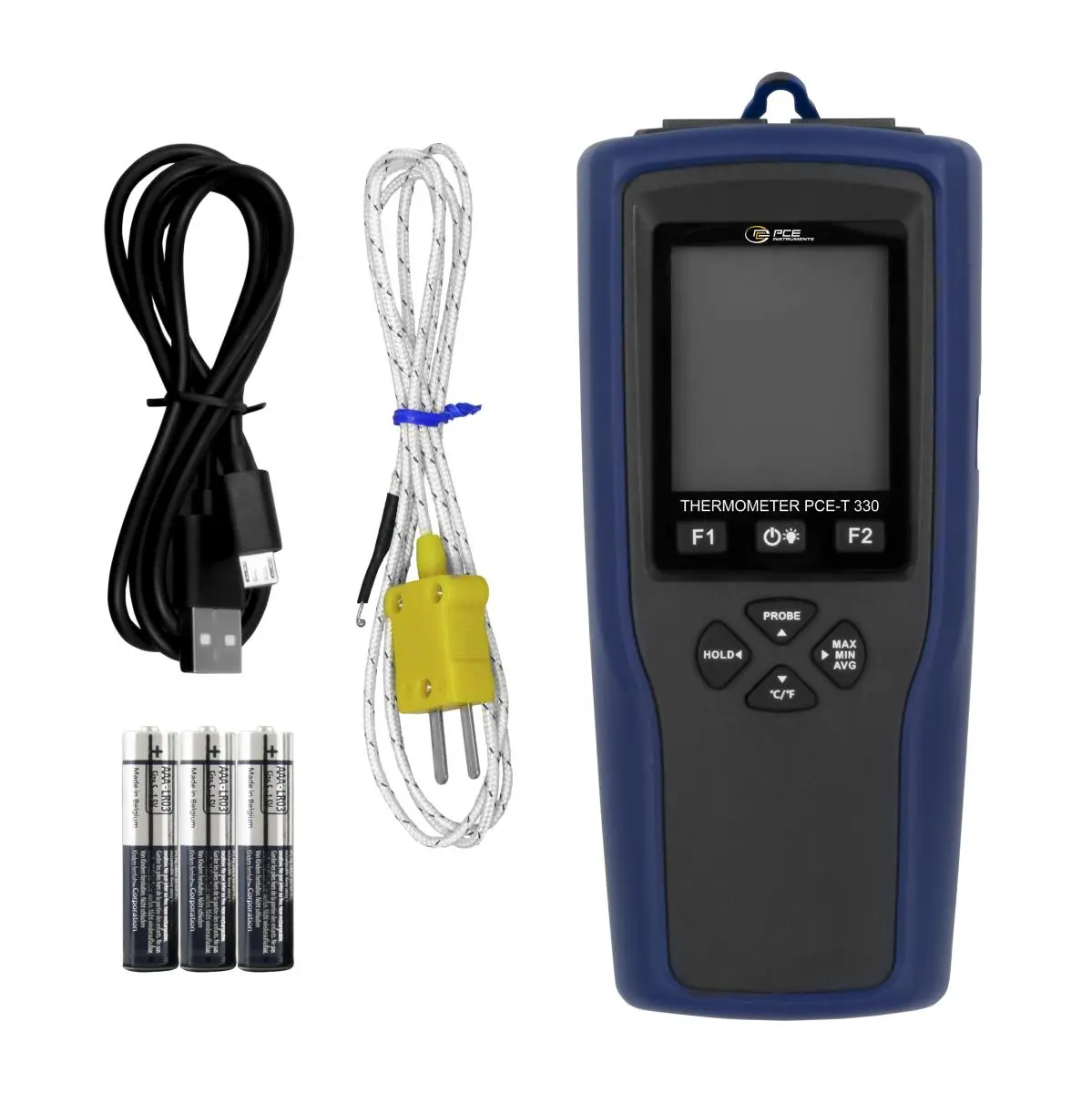

Temperature Data Logger PCE-T 330 delivery
