Humidity / Temperature Data Logger Set PCE-HT 71N-10

Order no.: PCE-HT71N-10
GTIN (EAN):
£ 745.00
£ 894.00
price ex. (VAT / delivery)
PCE-HT71N-10
Delivery time:1-2 working days
Temp. / Humidity

Description

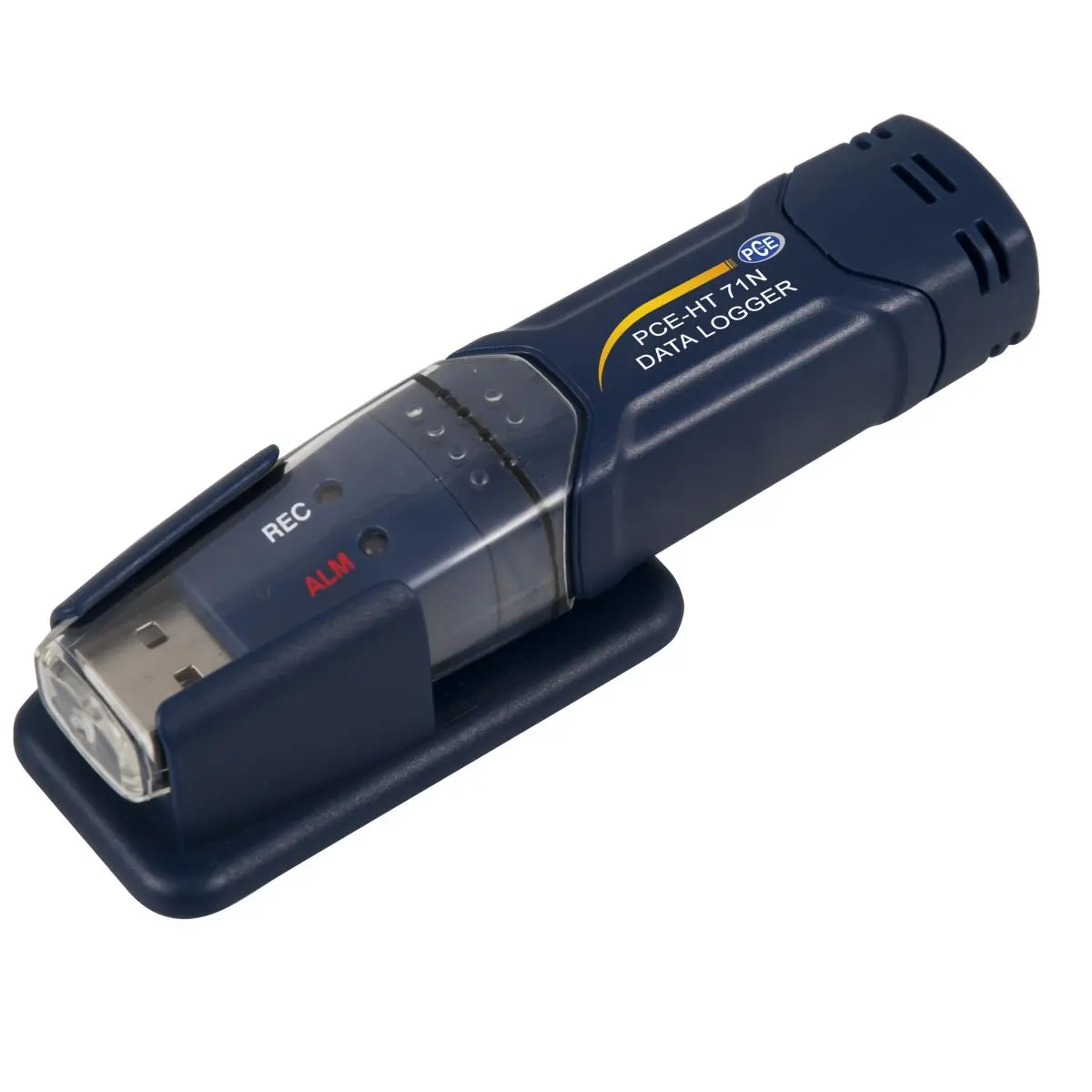

PCE-HT 71N Data Logger
Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port / Software to calculate dew point/ Powered by a long-life lithium battery

The PCE-HT 71N Data Logger detects air temperature and humidity and stores readings in its internal memory. The Data Logger has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a Data Logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The Data Logger works as a Data Logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N Data Logger can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6V, long-life lithium battery. The battery life is approximately one year.


Highlights

- Storage capacity: 32K
- USB port
- A software for calculating dew point and analysing data in a computer is
included
- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- Non-volatile EEPROM
- Staus indicated by 2 LEDs (including alarm)
- Programmable alarm limits across entire measurement range
- Replacement battery

Specification

Relative humidity
Measuring range  0 ... 100
Resolution  0,1
Accuracy  ±3 % RH

Temperature
Measuring range  -40 ... +70 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Display type  without display
Storage medium  Internal memory
Storage capacity  32000 Values
Memory capacity (additional information)  16000 per parameter
Storage interval from  2 s
Storage interval to  24 h
Interface  USB
Operating time  1 Year(s)
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Protection class (device)  IP20
(Rechargeable) battery  10 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity  1200 mAh
Operating conditions  -40 ... 70 °C , 0 ... 100 % RH
Storage conditions  -40 ... 70 °C , 0 ... 100 % RH
Dimensions ( L x W x H )  130 x 30 x 25 mm
Weight  20 g

Delivery Scope

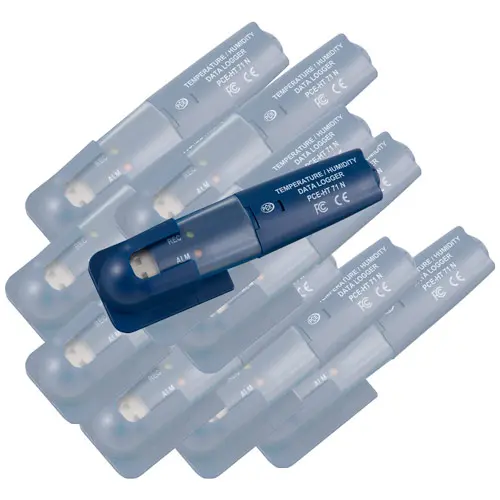

10 x PCE-HT 71N Data Logger
10 x Wall mount
10 x Battery
10 x Software
10 x User’s manual
