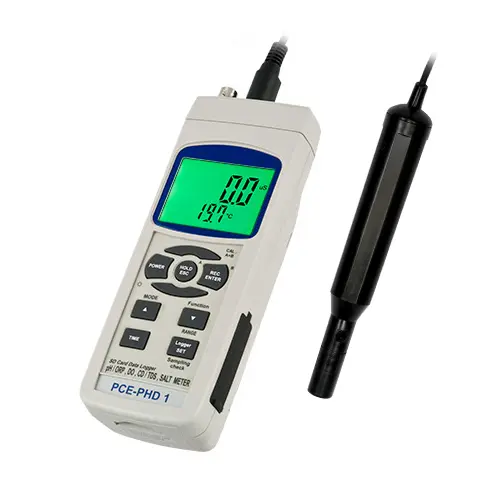

PCE-PHD 1-O2 Dissolved Oxygen Data-Logging Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Dissolved Oxygen Data-Logging Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.

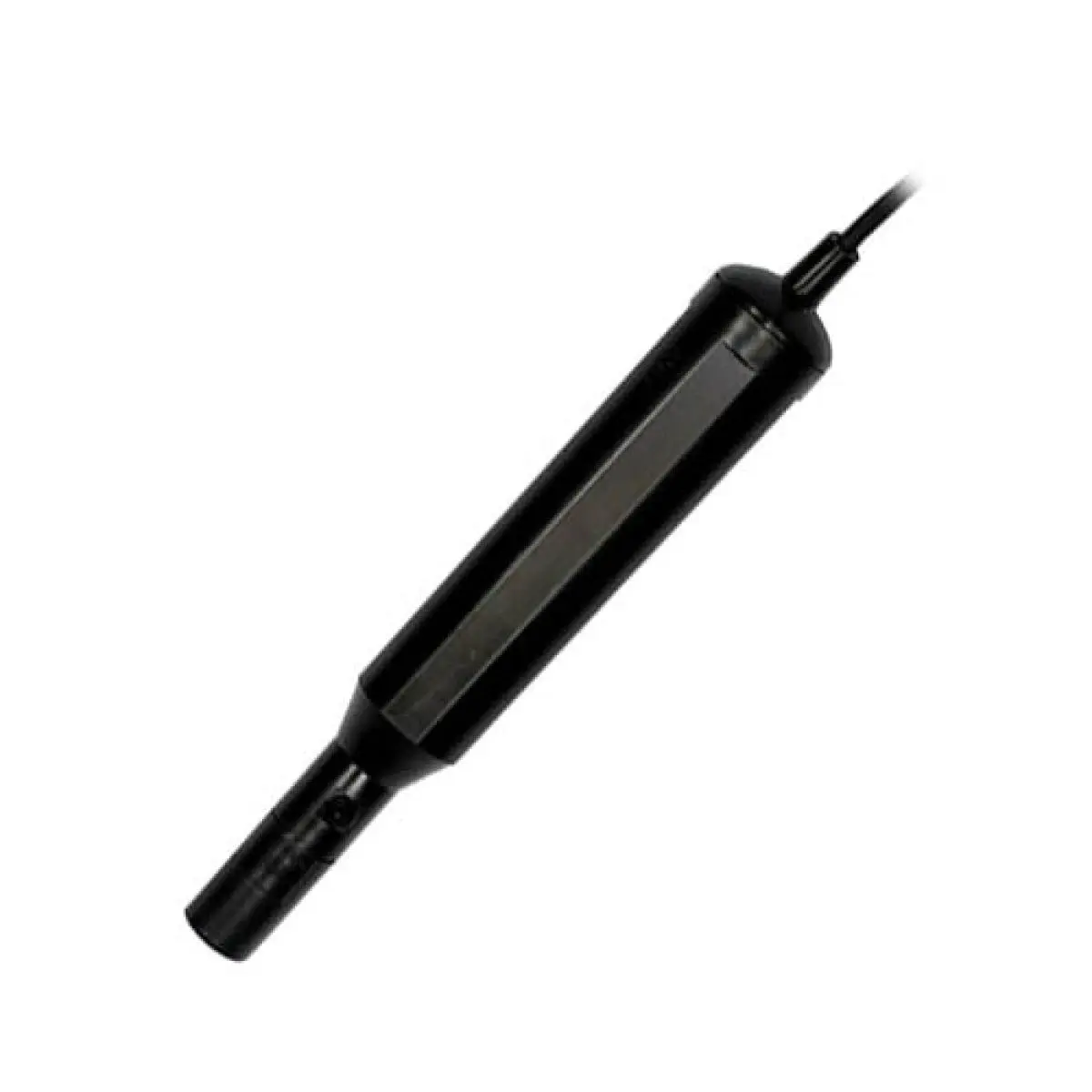

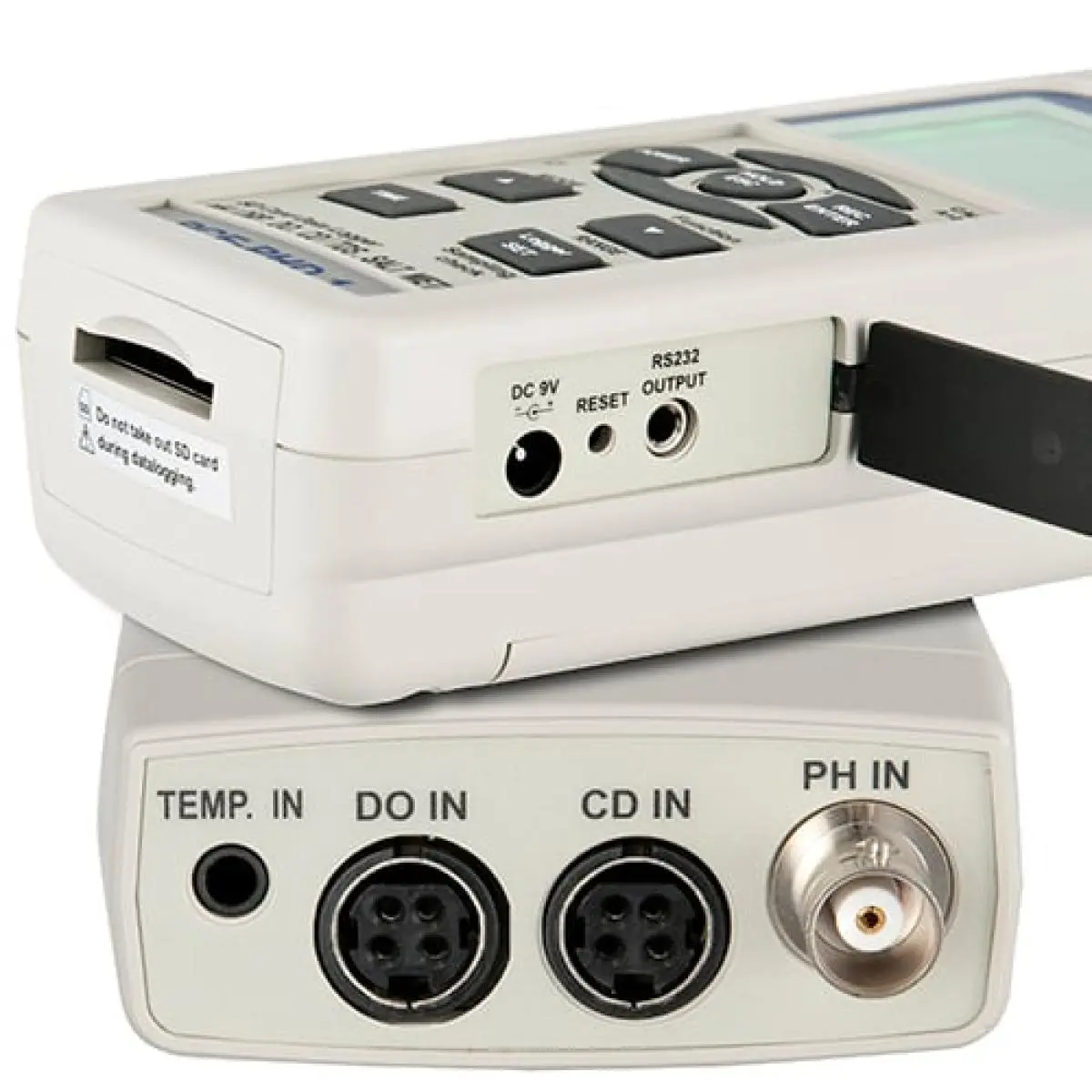

Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-O2 is supplied with an oxygen electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-O2 acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
| Oxygen | |
| Measuring range | 0 ... 20 mg/l |
| Resolution | 0,1 mg/l |
| Accuracy | 0.4 mg/l |
| Oxygen | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,1 % |
| Accuracy | ±0.7% |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.8 °C |
| General technical data | |
| Temperature compensation | automatic, 0 to 50°C / 32 to 122°F |
| Display type | LCD |
| Display size | 2,54 in |
| Storage medium | SD card |
| Storage capacity | 16 GB |
| Memory capacity (additional information) | SD card from 1 GB to 16 GB possible |
| Storage interval from | 1 s |
| Storage interval to | 9 h |
| Interface | RS232 |
| Calibration | in the open air |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 177 x 68 x 45 mm |
| Weight | 490 g |
